• Experience powerful, accurate low frequencies thanks to the reinforced ultra-stiff paper composite cone and high-excursion natural rubber surround that deliver clean and distortion-free bass.
• Configure your system for maximum performance or efficiency. Wire in parallel for a 1-ohm load to unleash full amplifier power, or in series for a stable 4-ohm setup with cooler operation.

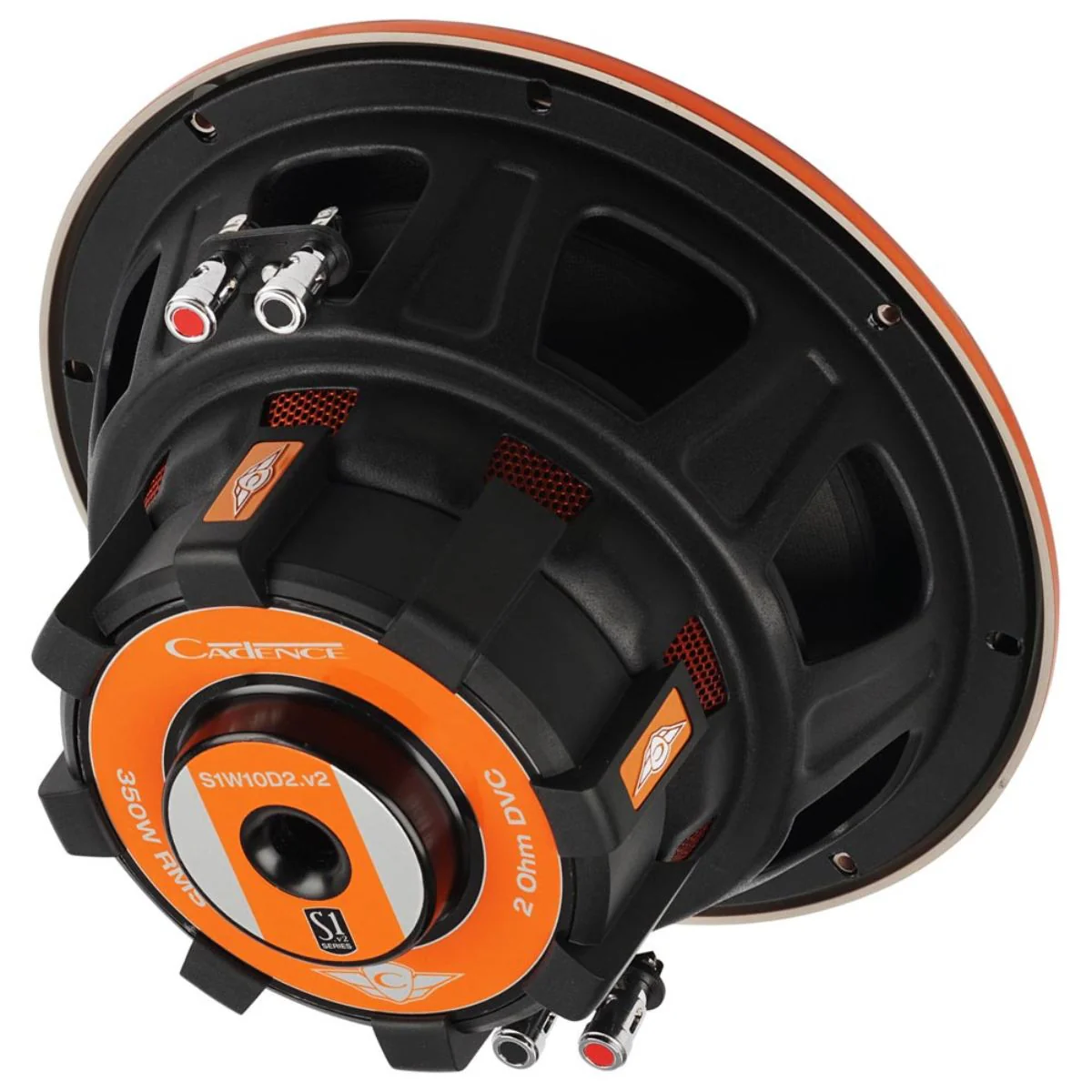

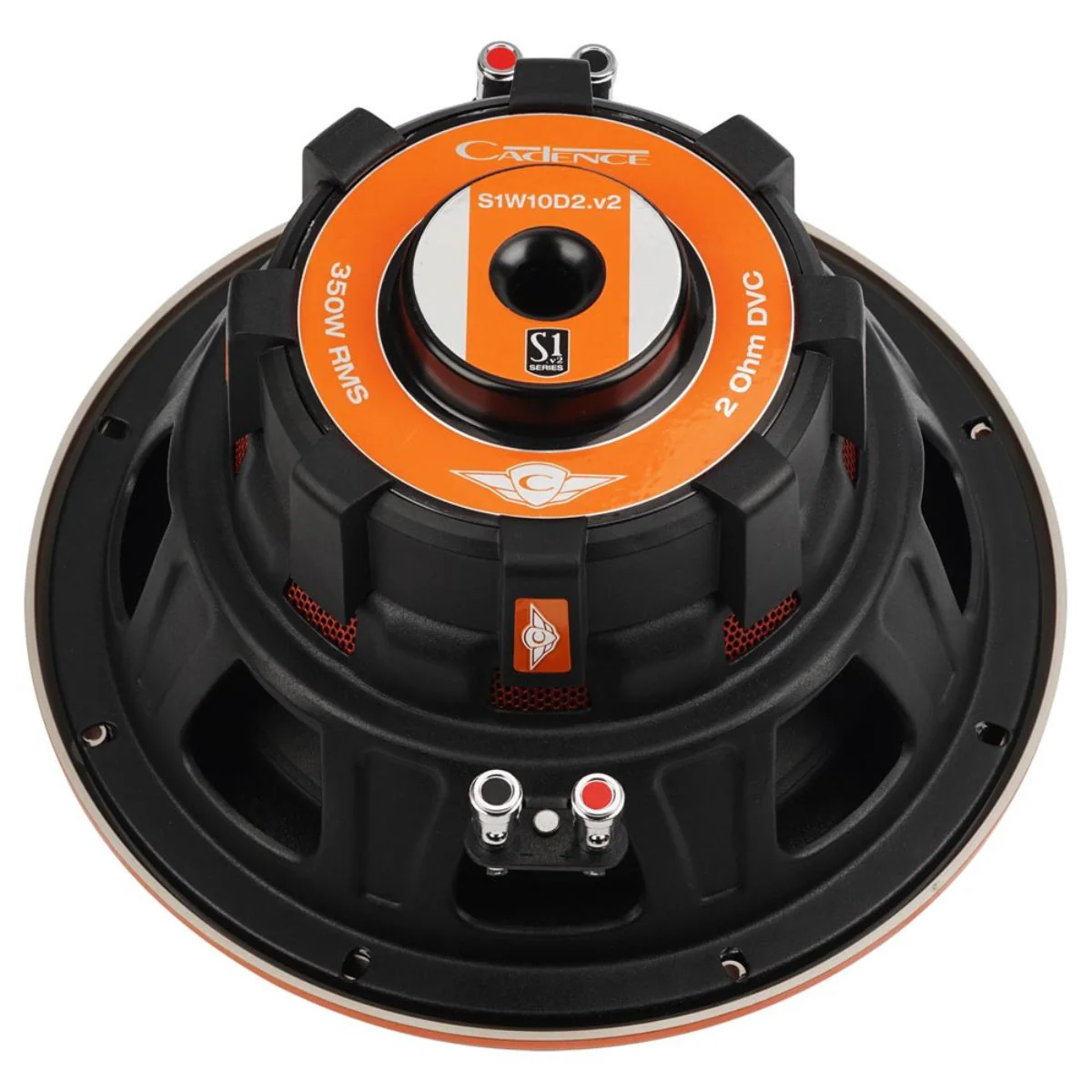

• The Aero-style magnet motor with heat pump cooling keeps temperatures low during long sessions, ensuring consistent output and extended subwoofer life.
• With 350 watts RMS power handling, 700 watts peak, and 87 dB sensitivity, this 10″ subwoofer delivers hard-hitting bass in a manageable size ideal for sealed or ported enclosures.

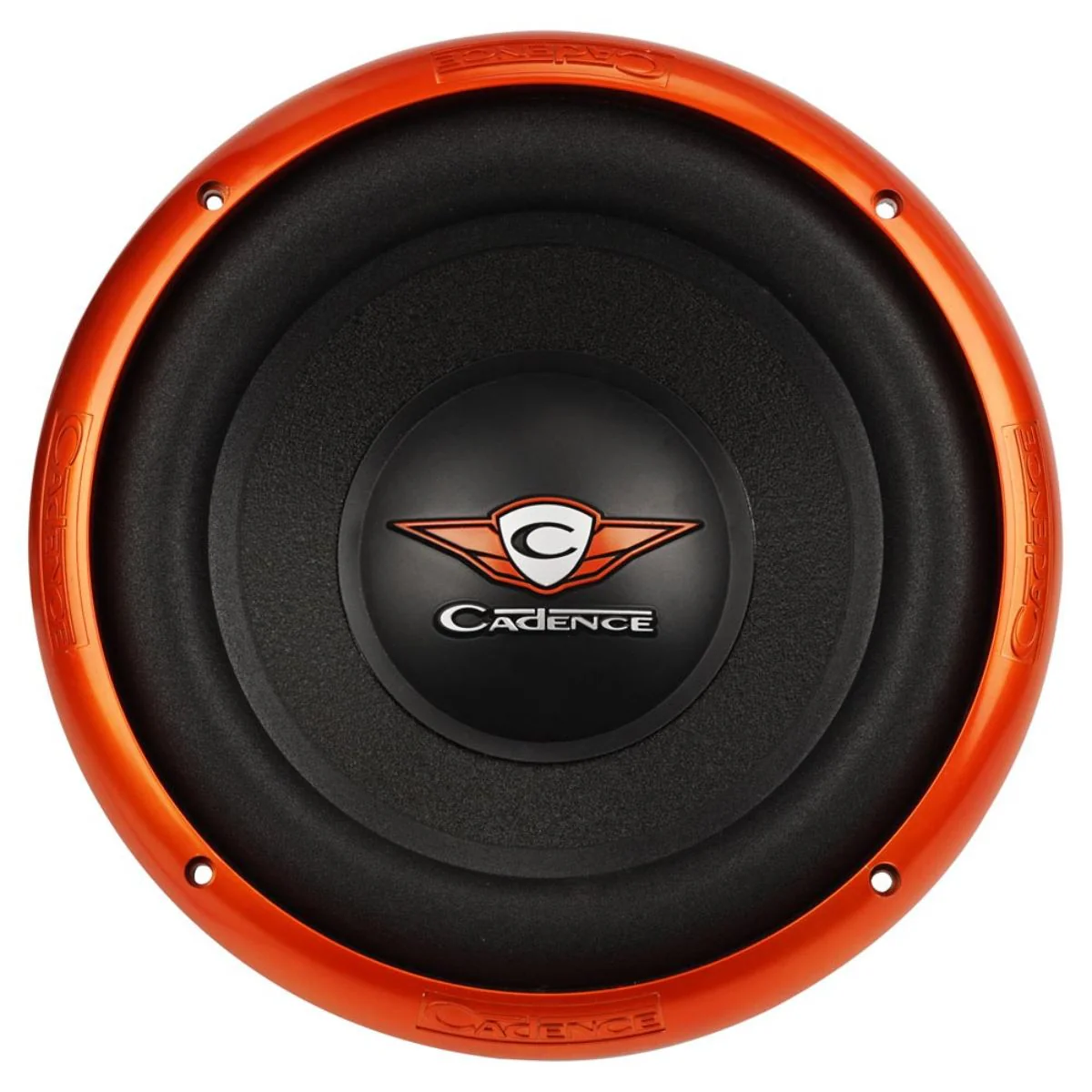

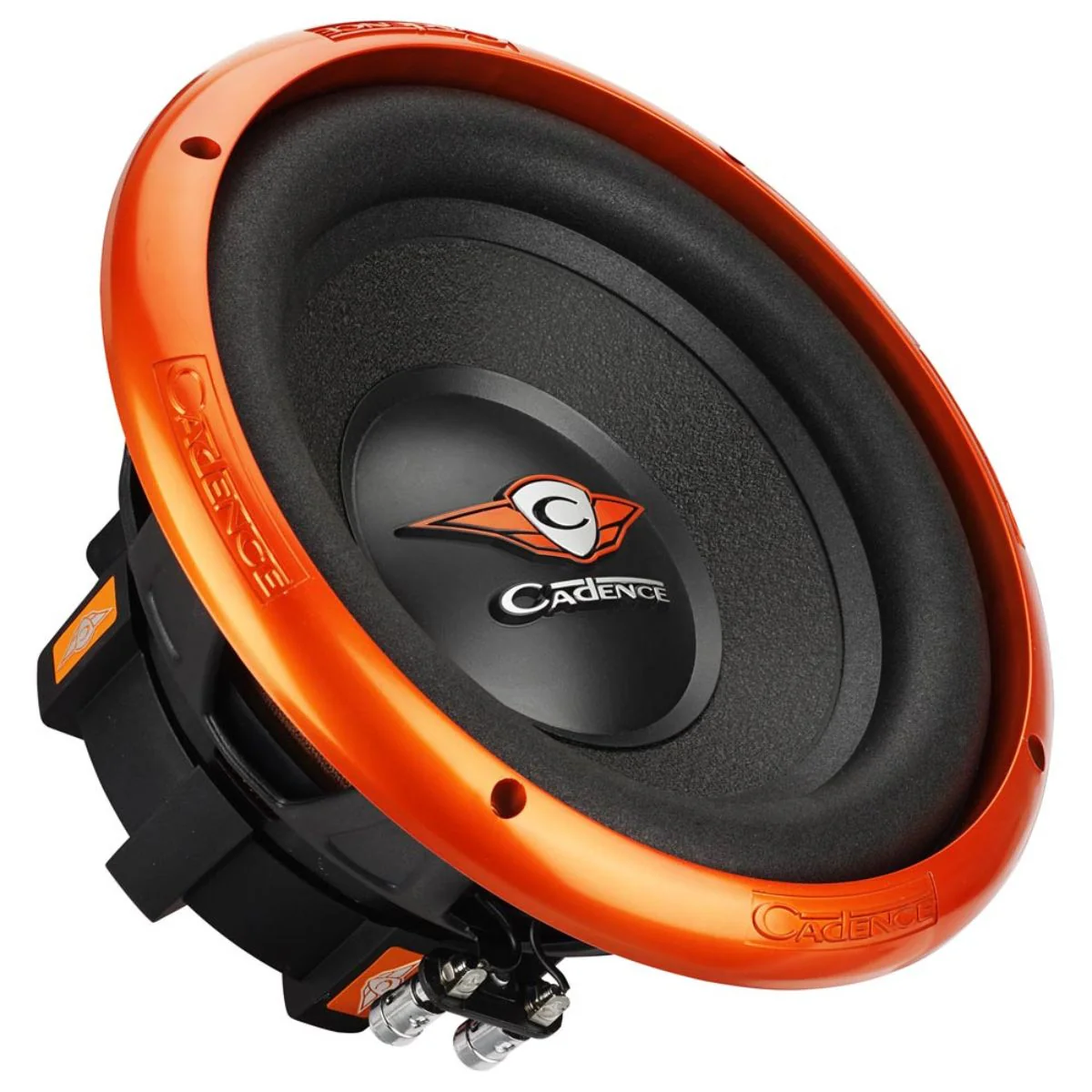

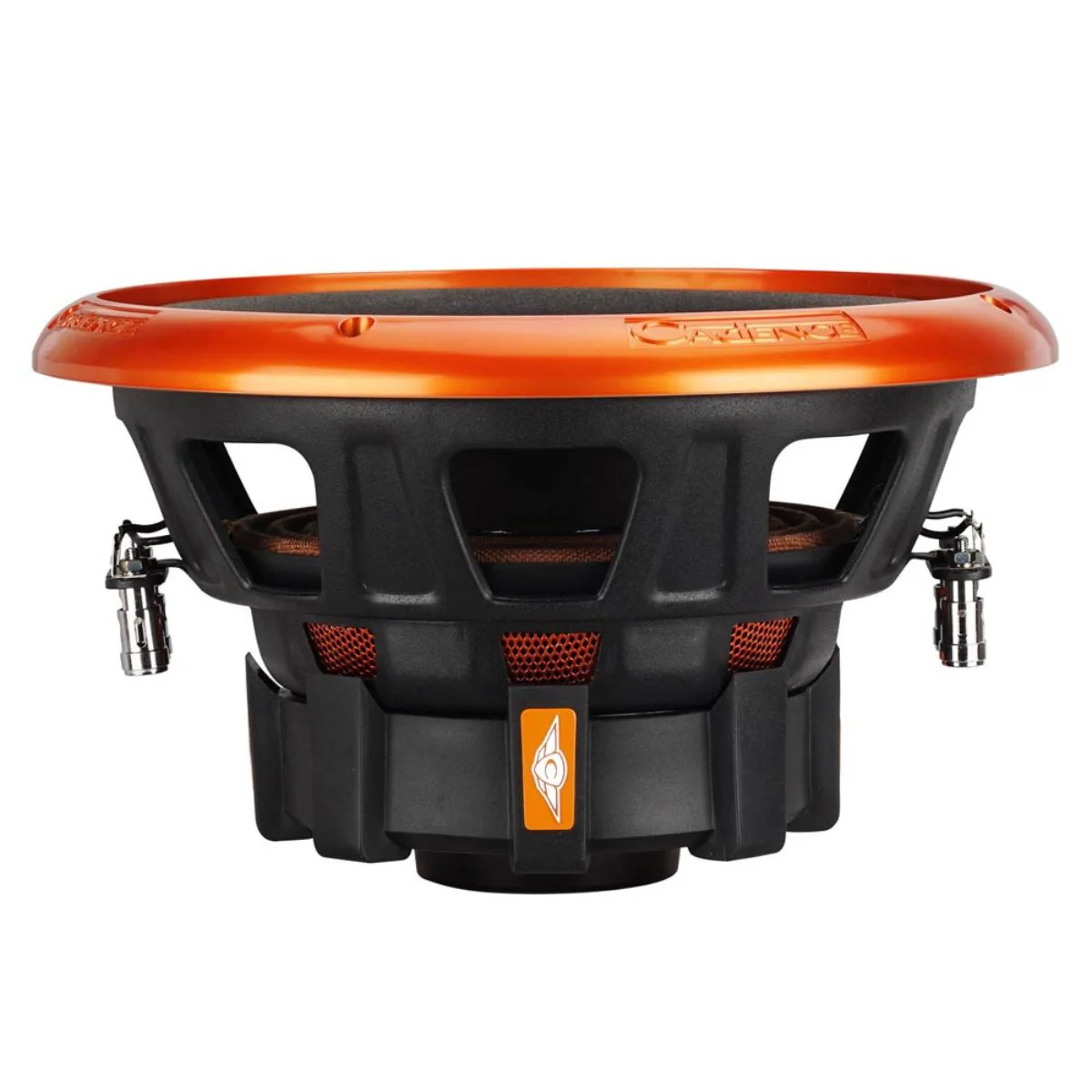

• Encased in a cast aluminum basket with an orange metallic finish and signature Cadence 3D wing emblem, the S1W10D2.v2 combines modern aesthetics with rugged durability.

Cadence Pro Car Audio 10" 350 Watt RMS 2-Ohm Dual Voice Coil Subwoofer S1W10D2V2

This Listing Includes:

• (1) Cadence S1W10D2.v2 10†Car Subwoofer


• User Manual


• Manufacturer Packaging

Ignite your sound system with the Cadence S1W10D2.v2 Supernova Core Subwoofer, a bold evolution in 10-inch bass performance. Designed for audiophiles who demand both style and power, this subwoofer combines an orange metallic cast frame with a black reinforced paper cone that screams precision and strength. The signature Cadence wing emblem proudly marks its Supernova heritage, symbolizing explosive power with refined control.

Equipped with dual 2-ohm voice coils, the S1W10D2.v2 lets you customize your setup for power or stability. Wire it in parallel for an aggressive 1-ohm load that maximizes your amp's potential, or switch to a 4-ohm configuration for a more balanced, efficient performance. Its Aero-style magnet motor with heat pump cooling ensures consistent output even under demanding conditions.

Specifications:

• Application Type: Car


• Model Series: S1W


• Model Number: S1W10D2.v2


• Size & Type: 10" Subwoofer


• Basket: Cast Aluminum


• Cone: Reinforced Ultra-Stiff Paper Composite


• Surround: High Excursion Natural Rubber


• Magnet: Aero Style Motor with Heat Pump Cooling


• Voice Coil: Dual 2 Ohm Voice Coil

Performance:

• Power Handling: 350W RMS / 700W Peak


• Frequency Response: 28 Hz - 800 Hz


• Sensitivity (SPL @ 1W/1m): 87 dB


• Impedance: Dual 2 Ohm


• Xmax: 14.55 mm


• FS: 33.83 Hz


• QTS: 0.44


• VAS: 24.508 L

Installation:

• Cutout Diameter: 9.17" (233 mm)


• Mounting Depth: 6.34" (161 mm)

Recommended Enclosures:

• Ideal Sealed Box Volume: 0.54 cu ft (15.29 L)


• Ideal Ported Box Volume: 0.88 cu ft (24.92 L)


• Port Diameter: 2.5"


• Port Length: 10.5"

Dimensions:

• Length: 14 in (356 mm)


• Width: 14 in (356 mm)


• Height: 8 in (203 mm)


• Weight: 12 lbs (5.44 kg)
