• Delivers 600W RMS and 1200W peak for deep, clean, and controlled bass across all music styles.
• Wire for 2 or 8 ohms to match any amplifier or system configuration with full flexibility.
• Ultra-stiff composite cone paired with a rubber surround for accurate, distortion-free sound.
• Cast aluminum basket, heat pump cooling motor, and high excursion design ensure reliability and longevity.
• Ideal in a 0.7 cu ft tuned box for smooth, dynamic bass with strong low-end response.

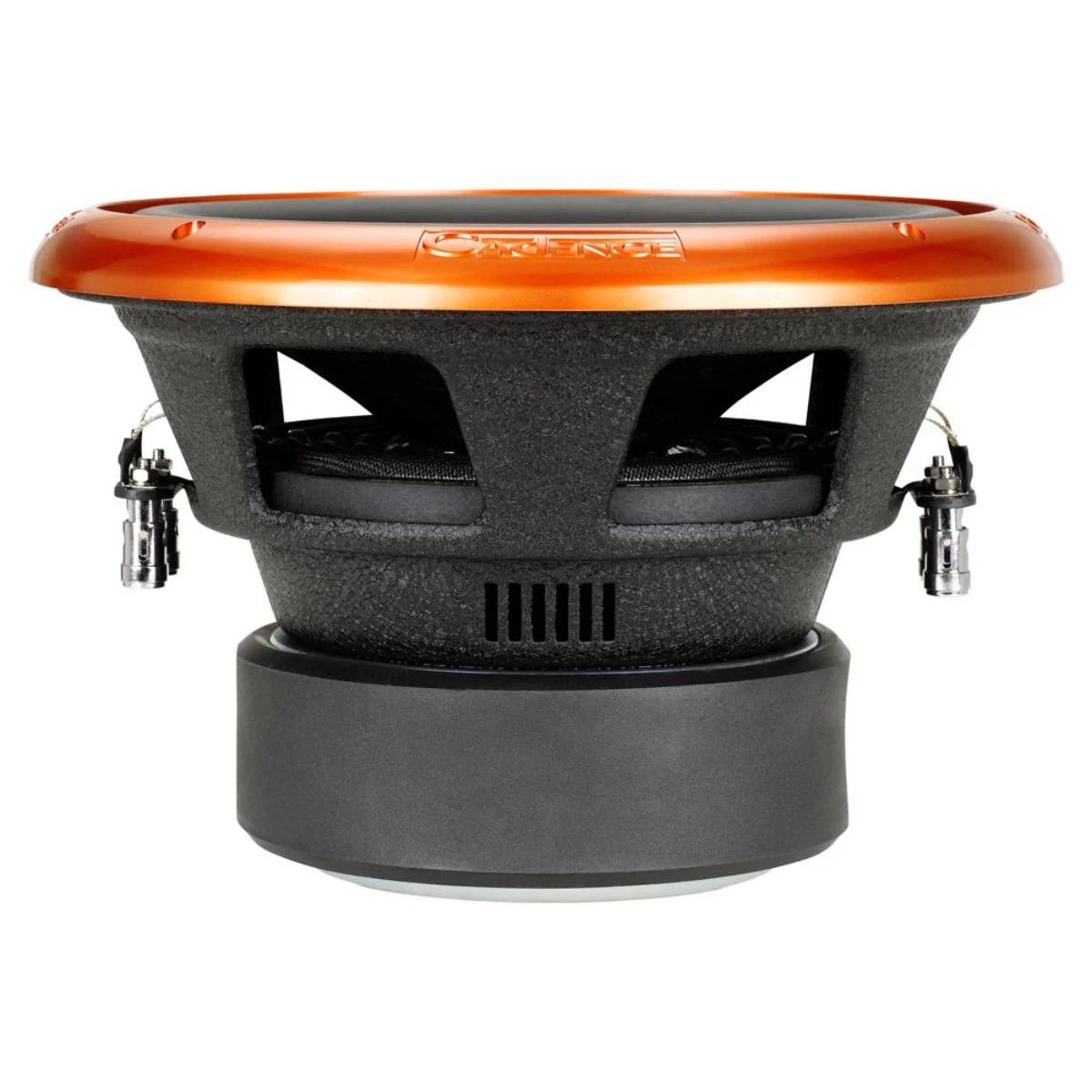

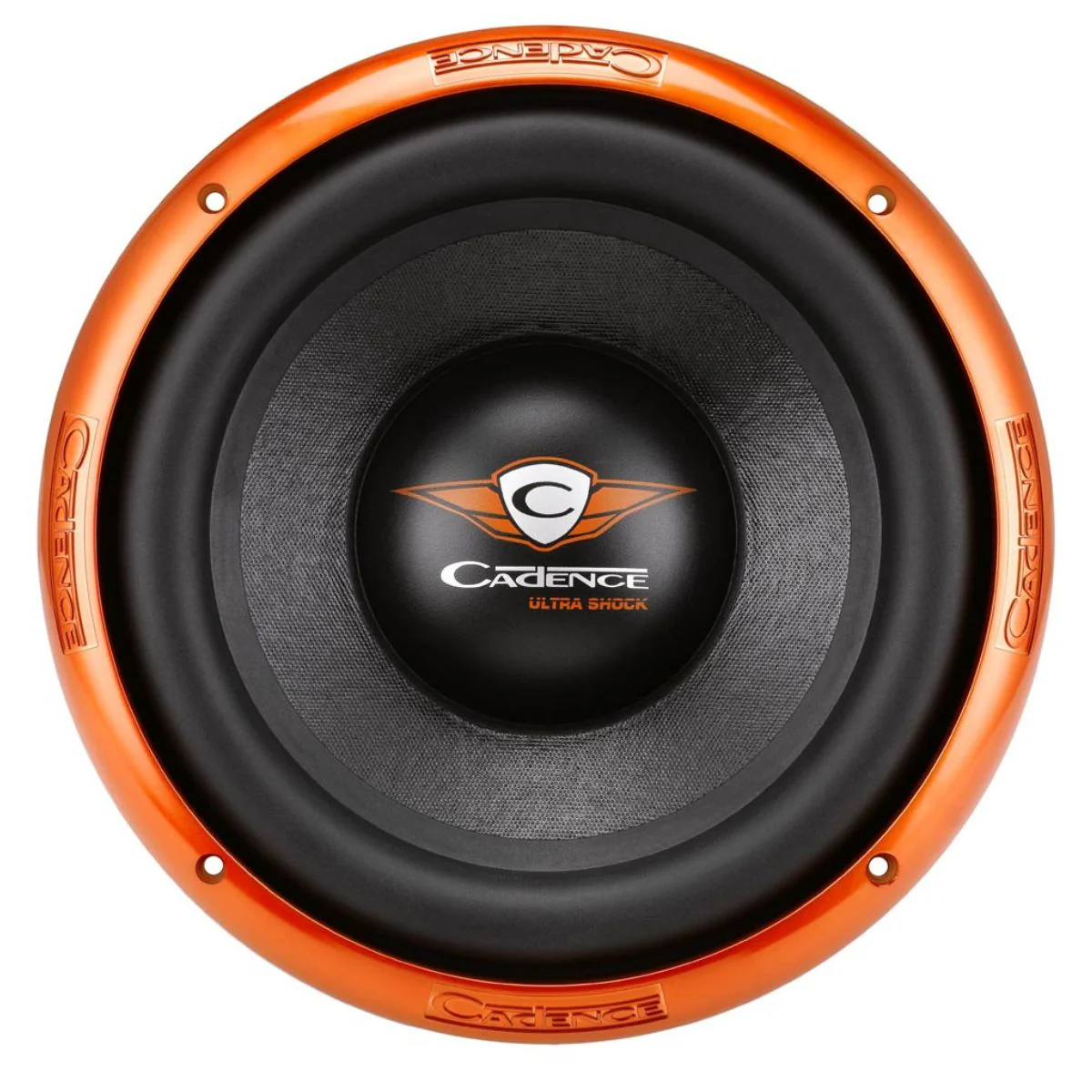

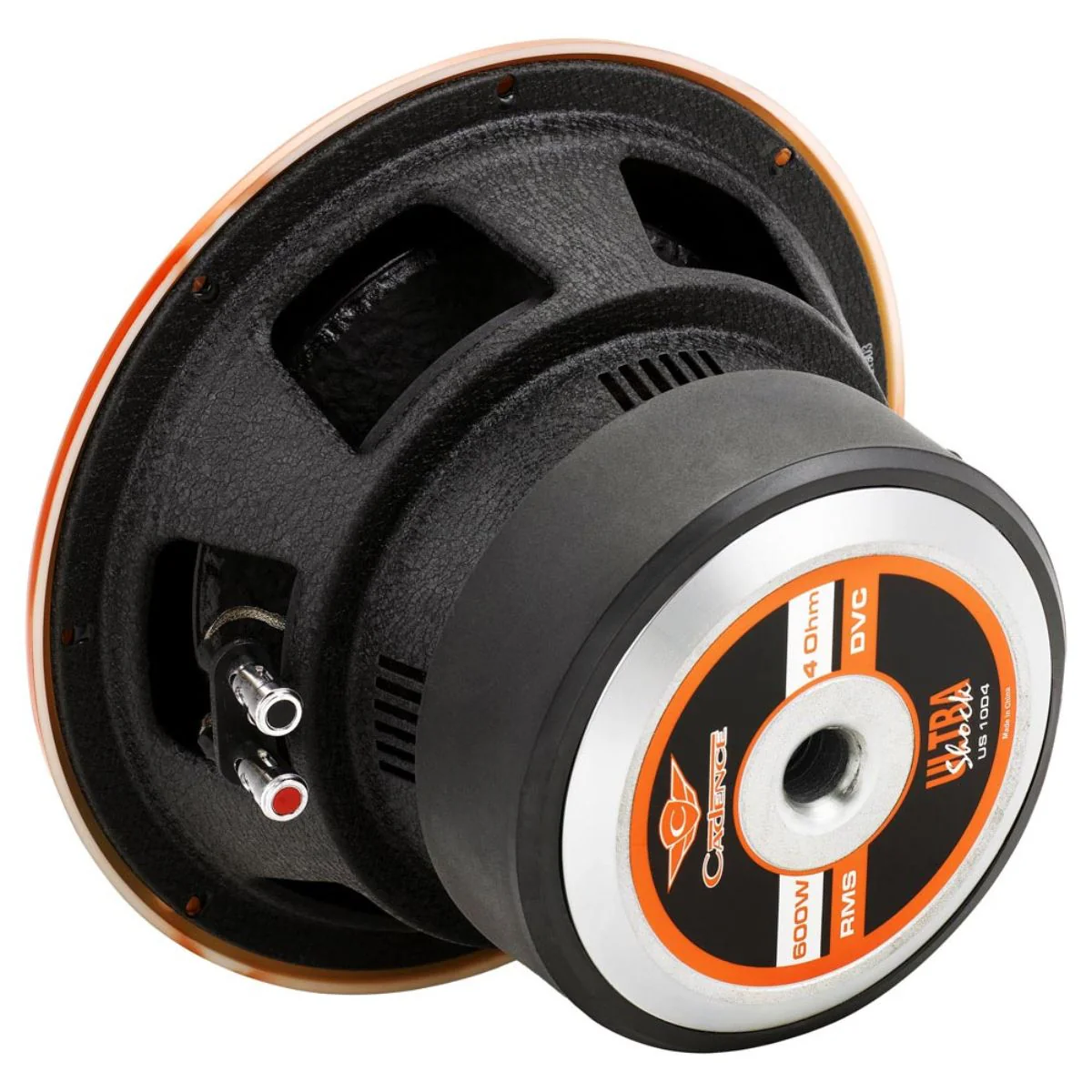

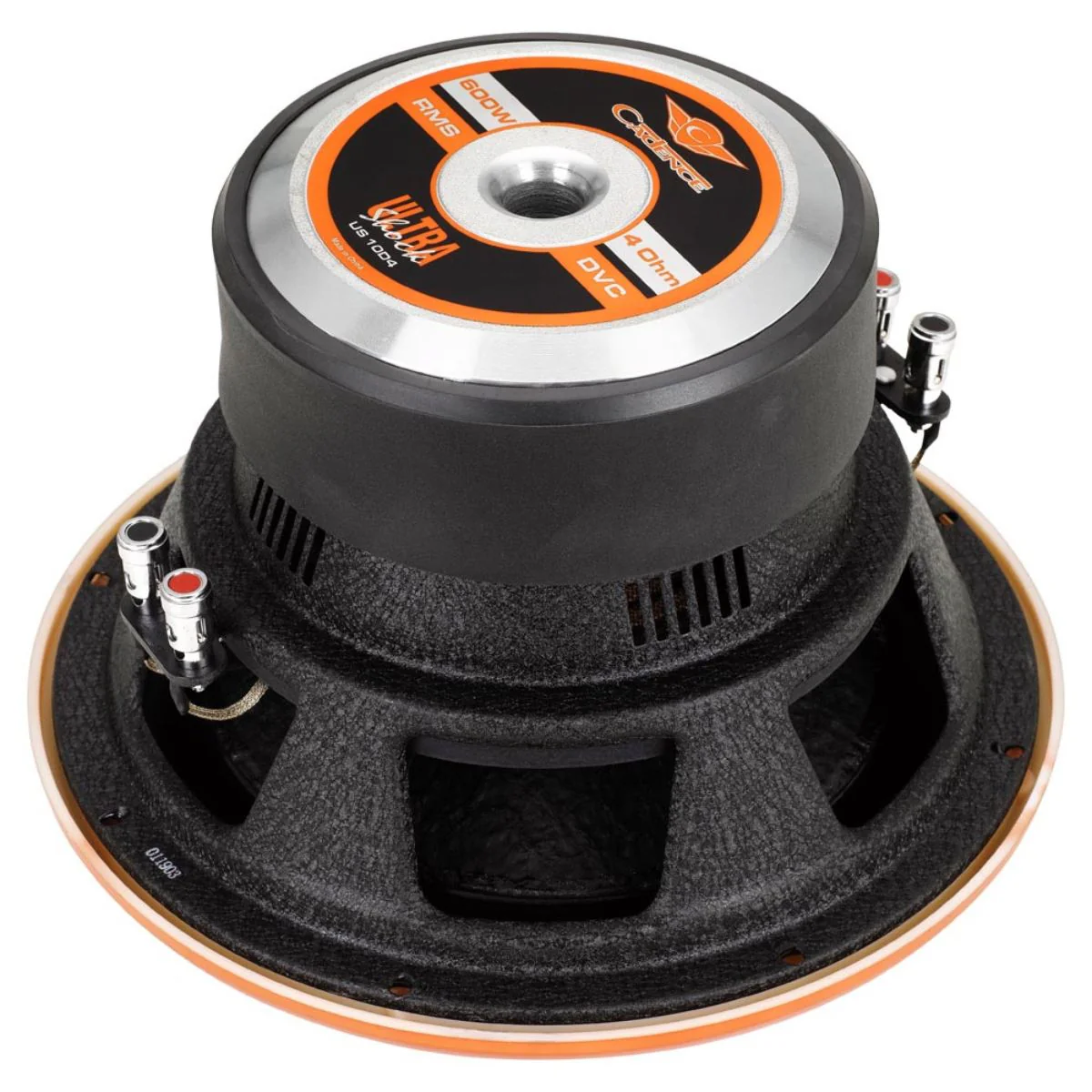

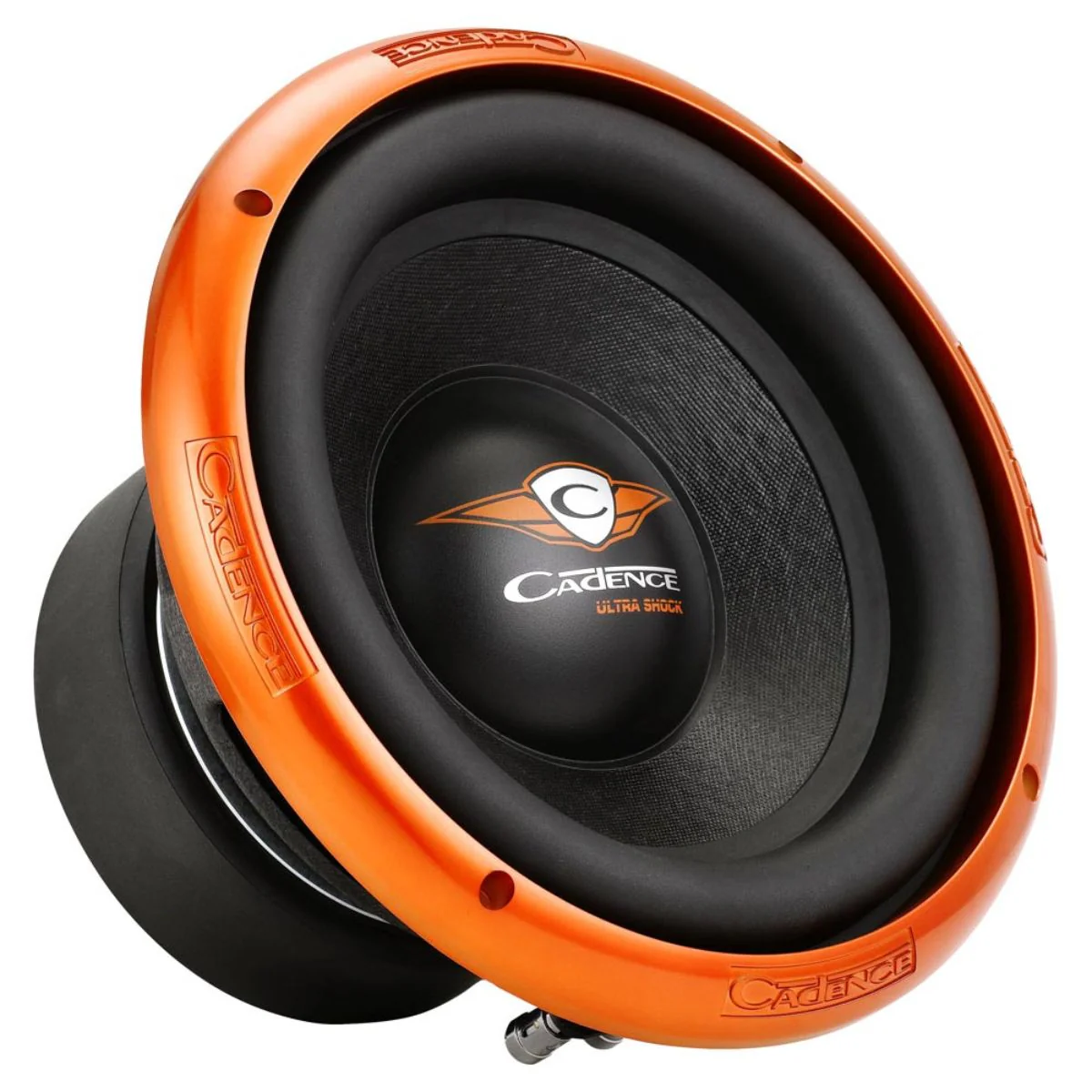

Cadence Pro Car Audio 10" 600 Watt RMS 4-Ohm Dual Voice Coil Subwoofer US10D4

This Listing Includes:

• (1) Cadence US10D4 10" Car Subwoofer


• User Manual

Experience the next level of sound precision with the Cadence US10D4 from the Ultra Shock Series - a 10-inch subwoofer that blends power, accuracy, and durability in one bold design. Its signature orange frame and Kevlar-reinforced cone showcase Cadence’s craftsmanship, while its compact, heavy-duty build ensures long-lasting performance and thrilling bass reproduction.

The US10D4 features dual 4-ohm voice coils that offer flexible wiring options for any setup. Configure it to 2 ohms for powerful, high-output bass, or to 8 ohms for multi-driver systems where balance and clarity are key. Pushing 600 watts RMS and 1200 watts peak, this subwoofer is designed for both precision and impact.

Specifications:

• Application Type: Car


• Model Series: US (Ultra Shock)


• Model Number: US10D4


• Size & Type: 10" Subwoofer


• Basket: Cast Aluminum


• Cone: Kevlar Reinforced Ultra-Stiff Paper Composite


• Surround: High Excursion Natural Rubber


• Magnet: Aero Style Motor with Heat Pump Cooling


• Voice Coil: Dual 4 Ohm Voice Coil

Performance:

• Power Handling: 600W RMS / 1200W Peak


• Frequency Response: 30 Hz - 800 Hz


• Sensitivity (SPL @ 1W/1m): 87 dB


• Impedance: Dual 4 Ohm


• Xmax: 10 mm


• FS: 45 Hz


• QTS: 0.44


• VAS: 12.33 L

Installation:

• Mounting Depth: 5.94" (151 mm)

Recommended Enclosures:

• Ideal Sealed Box Volume: 0.35 cu ft (9.91 L)


• Ideal Ported Box Volume: 0.70 cu ft (19.82 L)


• Port Diameter: 3.0"


• Port Length: 12.5"

Dimensions:

• Length: 13 in (330 mm)


• Width: 13 in (330 mm)


• Height: 10 in (254 mm)


• Weight: 18 lbs (8.16 kg)
