• OEM FIT MAVERICK X3 2020 UP 2 AND 4 DOOR: Front door speaker panels designed for a seamless factory look and fit on Can-Am Maverick X3 2020 up models, includes driver and passenger panels.
• PRE LOADED 6.5 NXL-IQ6BK COAXIAL SPEAKERS: Plug and play panels come loaded with 6.5 inch water resistant coaxial speakers rated 150W RMS each and 300W max each with 95 dB sensitivity for loud, clear trail audio.
• DUAL DIGITAL LED LIGHTING BUILT IN: Includes digital LED badge lighting on each panel plus digital LED lighting integrated behind each speaker cone for extra style on night rides.
• ALL ELEMENTS READY UV AND IP65 RATED: Panels are built from polyethylene with UV protection and IP65 rating, and speakers are water resistant for mud, rain, and harsh off road conditions.
• LED APP CONTROL WITH OPTIONAL CONTROLLER: Digital lighting is controlled through the DS18 LC app using the LC-DRM Bluetooth controller (sold separately), with 12V digital IN and OUT terminals for clean wiring.

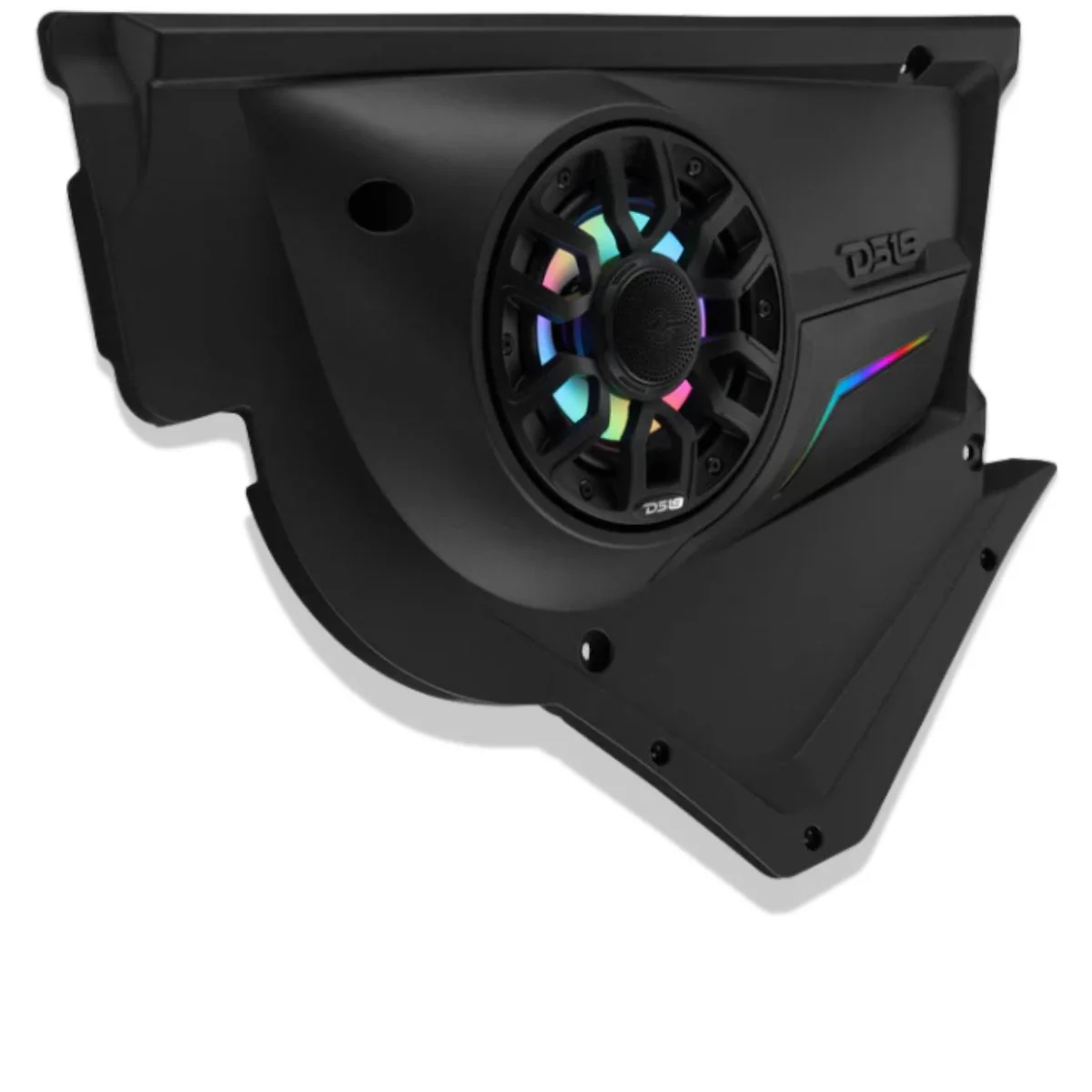

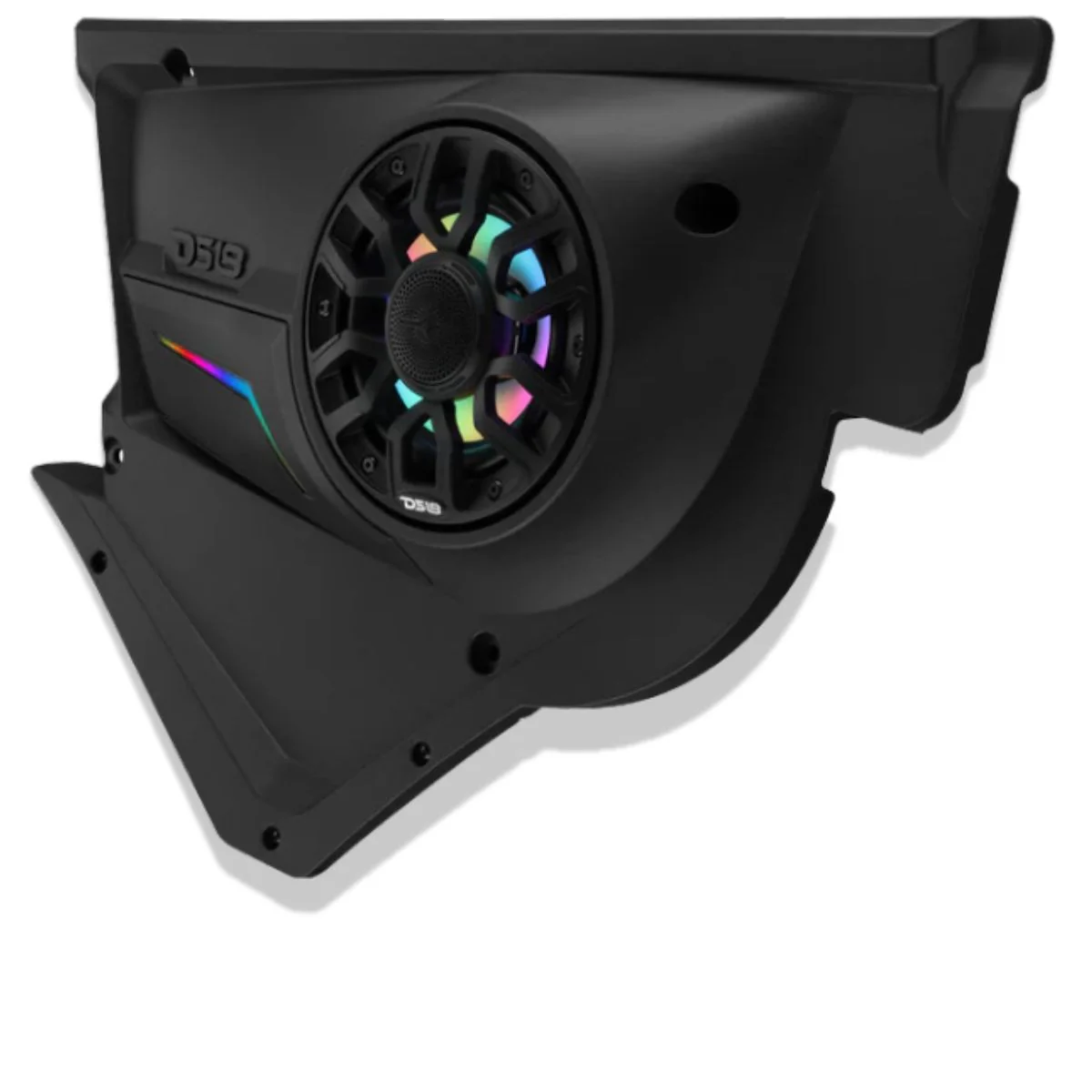

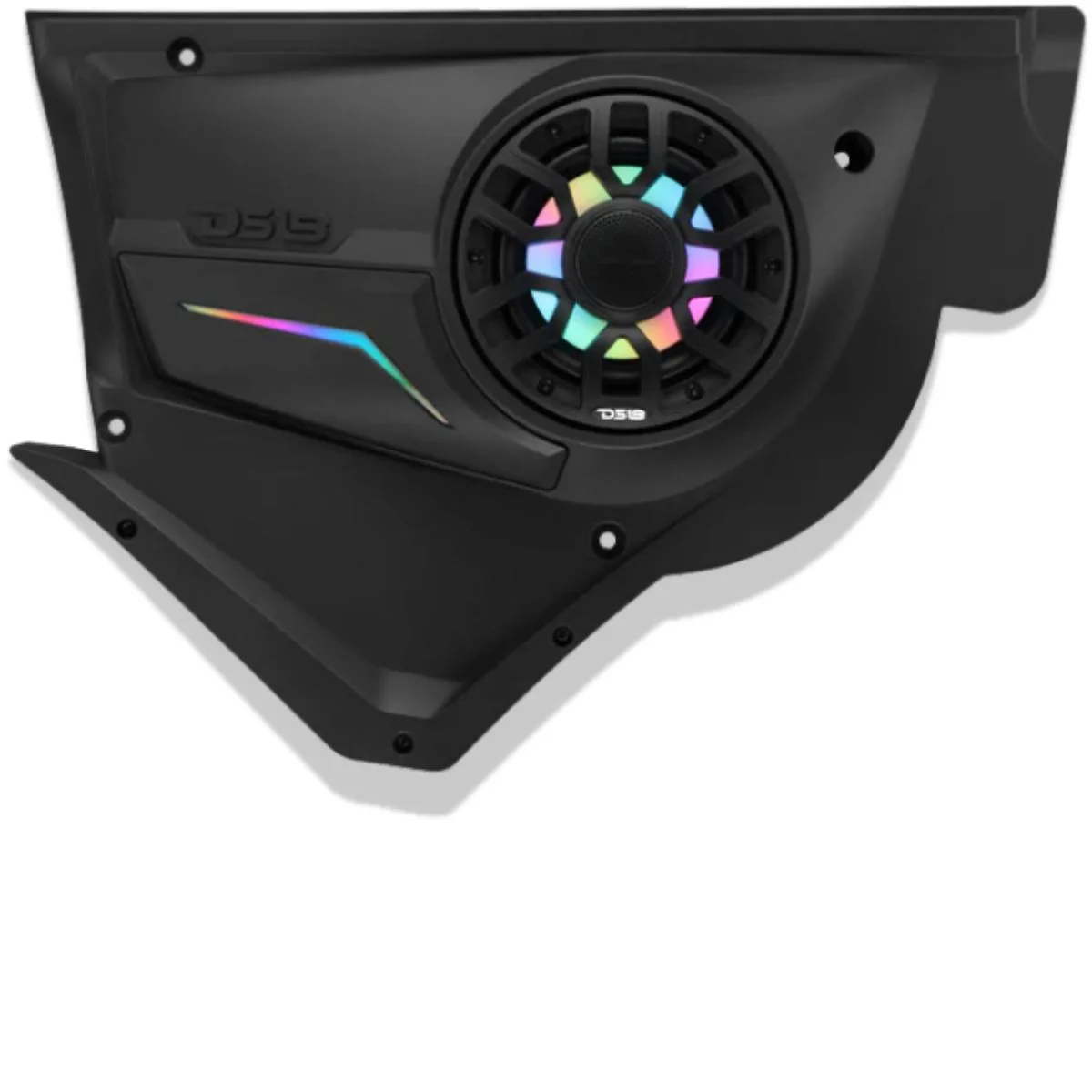

DS18 Can-Am Maverick X3 Front Door LED Speaker Panel loaded w/ 6.5" NXL-IQ6/BK Pair 2020+ | CA-X3FD6LD

This Listing Includes

• (2) DS18 Front Door Speaker Panels CA-X3FD6LD

Upgrading your Can-Am Maverick X3 sound system is simple with the DS18 CA-X3FD6LD front door speaker panels loaded with NXL-IQ6BK speakers. These panels integrate directly into your X3 front doors and come as a pair, one for the driver side and one for the passenger side, for Maverick X3 2020 up to 2-door and 4-door models. With speakers pre-installed, this package delivers a clean OEM-style look with less install time and fewer parts to source.

Each panel comes preloaded with a DS18 NXL-IQ6BK 6.5-inch water-resistant coaxial speaker built for powersports use. Each speaker is rated at 150 watts RMS and 300 watts max, with 95 dB sensitivity and a frequency response from 45 Hz to 20 kHz. A floating bullet tweeter adds crisp top-end detail for better clarity at speed.

For night rides and show style, this setup features dual digital LED illumination. The panel includes an integrated digital LED badge, and the speakers include digital LED lighting behind the cone. Lighting control is handled through the DS18 LC app using the LC-DRM Bluetooth controller (sold separately).

With UV protection and an IP65 rating, these panels are built for real off-road use. Ready to handle trail conditions like rain, mud, and dust.The black finish gives a factory look while delivering a durable, all elements ready audio upgrade.

Notes: The LC-DRM Bluetooth controller is sold separately for LED control. Designed for Maverick X3 2020 up to 2-door and 4-door models.

Features

• OEM-style front door panel fit for Can-Am Maverick X3 2020 up, 2-door and 4-door


• Plug and play setup, panels come preloaded with NXL-IQ6BK 6.5 water-resistant coaxial speakers


• Dual LED illumination: LED badge on panel plus digital LED behind speaker cone


• All elements are ready with UV protection and IP65-rated panels for off-road use


• App-controlled digital LED using the LC-DRM Bluetooth controller (sold separately) and the DS18 LC app

Specifications:

General

• Brand: DS18


• SKU / Model: CA-X3FD6LD


• Product Type: Front door speaker panels loaded with speakers and digital LED lighting


• Vehicle Fitment: Can-Am Maverick X3 2020 up, 2-door and 4-door models


• Total Impedance: 4 Ohms


• Load Configuration: Individual


• Input Wire: 5-core OFC tinned (speaker plus digital LED)

Speaker Specifications (NXL-IQ6BK)

• Speaker Type: 6.5-inch water-resistant coaxial with digital LED


• RMS Power Handling: 150W each


• Max Power Handling: 300W each


• Sensitivity (1W 1M): 95 dB


• Frequency Response: 45 Hz to 20 kHz


• Recommended High Pass Crossover: 60 Hz


• Voice Coil Diameter: 1.5 inch (38.6 mm)


• Voice Coil Former: Glass fiber


• Winding Material: CCAW


• Cone Material: Injection molded polypropylene, UV compliant


• Surround Material: Butyl rubber


• Basket Material: Injection molded composite PC with UV protection coating


• Magnet Material: Ferrite plus neodymium


• Magnet Weight: 13 oz plus 1.1 oz


• LED Lighting: Digital LED integrated behind cone


• LED Connection Type: 12V digital IN and OUT terminal


• Digital LED Chip Type: 1815S

Tweeter Specifications (NXL-IQ6BK)

• Tweeter Type: Floating bullet tweeter


• Voice Coil Diameter: 1 inch (25.4 mm)


• Voice Coil Former: Kapton


• Winding Material: CCAW


• Diaphragm Material: Aluminium


• Bullet Material: Injection molded composite PC with UV protection coating


• Magnet Material: Neodymium N35H


• Magnet Weight: 0.4 oz

Panel Specifications (CA-X3FD6)

• Panel Type: Front baffle


• Box Material: Polyethylene (PE)


• Finish Material: Black


• UV Protection: Yes


• Waterproof Rating: IP65


• LED Badge Lighting: Yes, 12V digital 1815S chip

Dimensions:

• Overall Height: 16.1" (409 mm)


• Overall Width: 22.83" (578 mm)


• Overall Depth: 4.39" (111 mm)

LED Control Note

• Digital LED lighting controlled by LC-DRM Bluetooth controller (sold separately) using DS18 LC app for iPhone and Android
