• GENUINE DD AUDIO TERMINAL CUP – Original DD Audio TCUP-DVC dual terminal subwoofer terminal cup designed for high-power car audio systems.
• DUAL POSITIVE & NEGATIVE TERMINALS – Dual terminal design allows cleaner wiring, easier parallel connections, and improved current distribution.
• MULTIPLE INTERNAL WIRING OPTIONS – Internal side features stud-and-nut connectors compatible with ring and fork terminals, plus U-shaped tabs for direct wire crimping.
• SUPPORTS HIGH-CURRENT WIRING – External terminals accept 8 gauge or smaller wire, ideal for SPL and high-output subwoofer applications.
• HEAVY-DUTY BUILD – Designed for durability and secure electrical connections in custom enclosures and demanding audio installs.

DD Audio Dual Terminal Subwoofer TCUP Dual Power & Ground Terminal Cup TCUP-DVC

This Listing Includes:

• (1) DD Audio Dual Terminal Cup TCUP-DVC

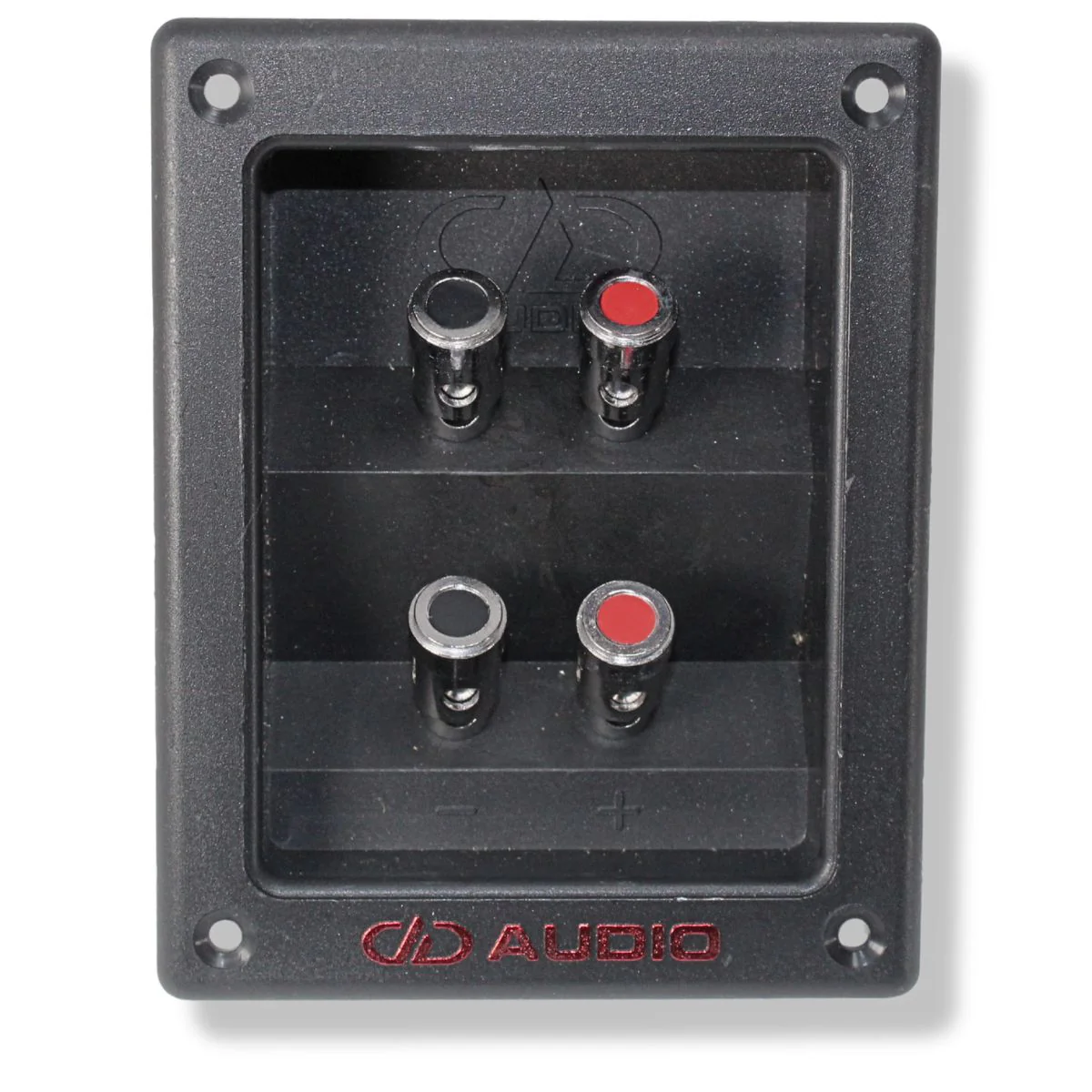

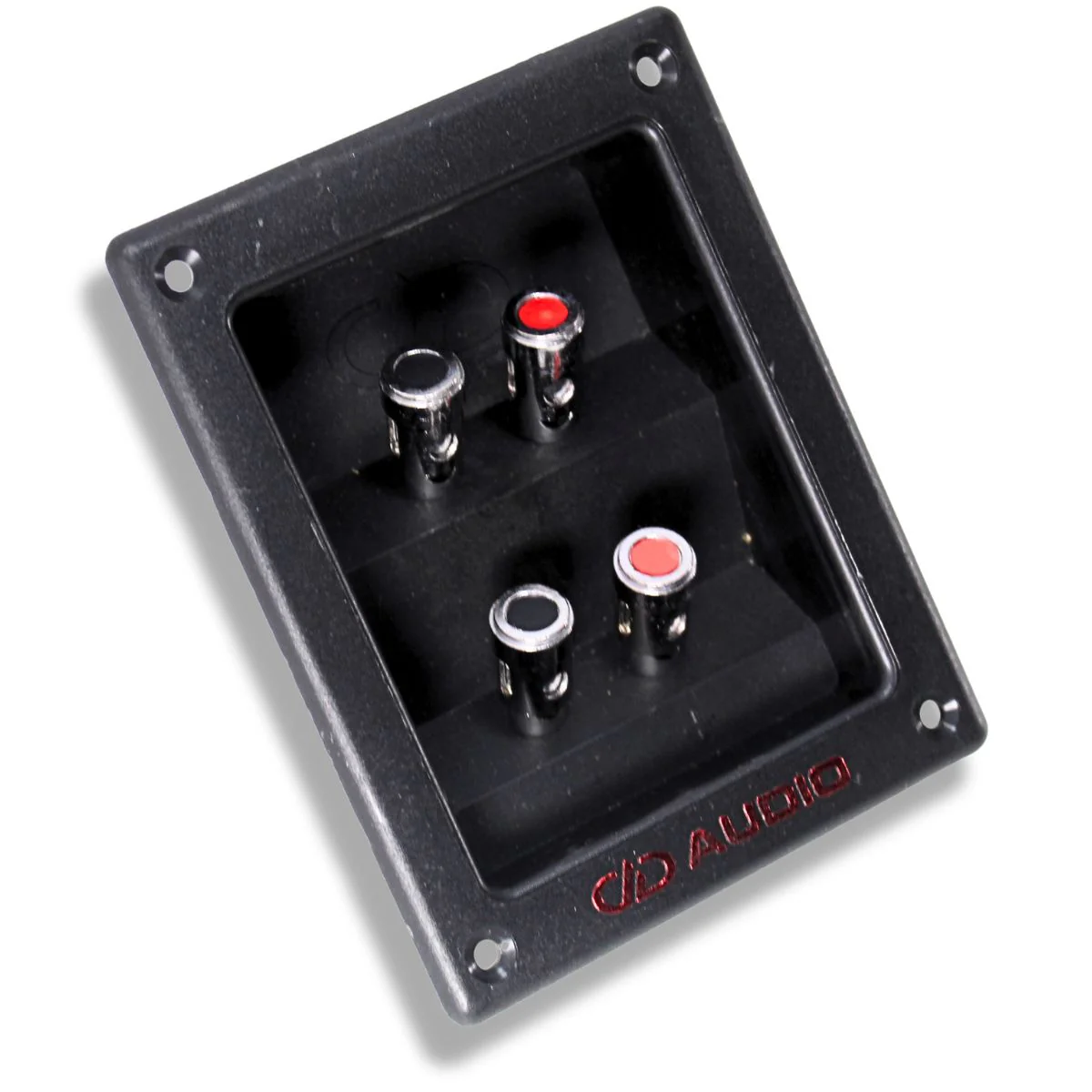

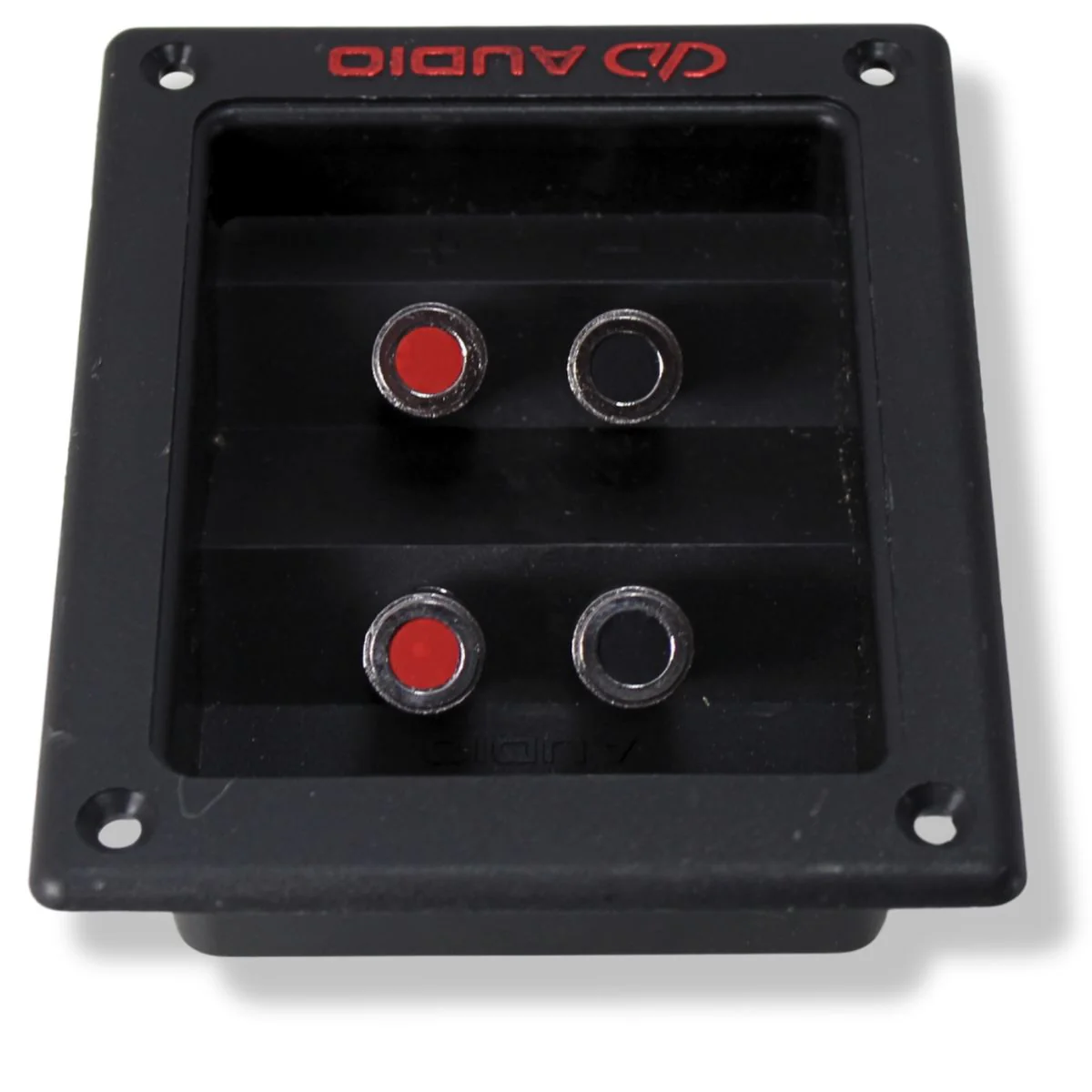

The DD Audio TCUP-DVC is a heavy-duty dual terminal subwoofer terminal cup engineered for high-power car audio systems. Featuring dual positive and dual negative terminals, this TCUP allows for cleaner wiring, easier parallel connections, and improved current distribution in high-output and SPL applications.

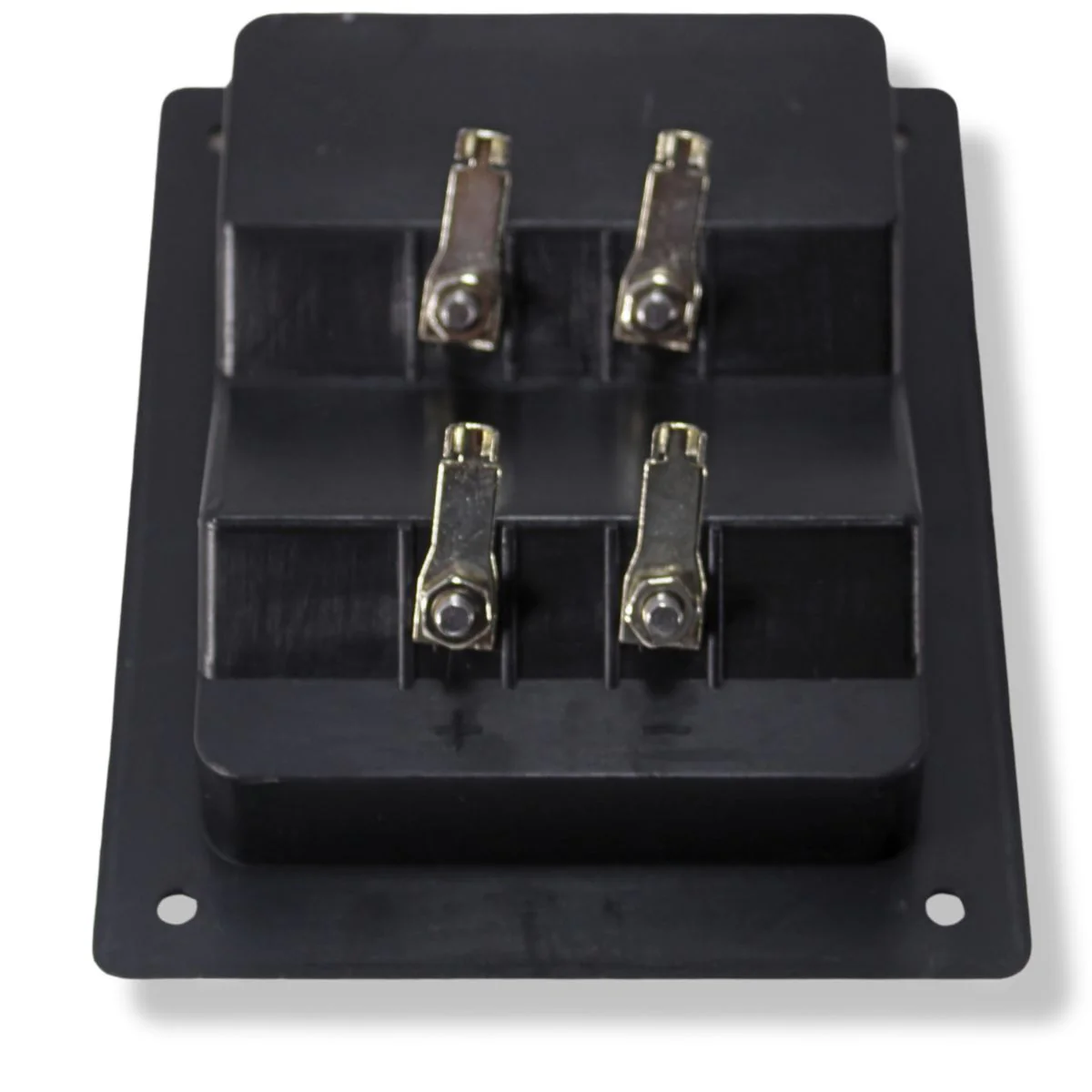

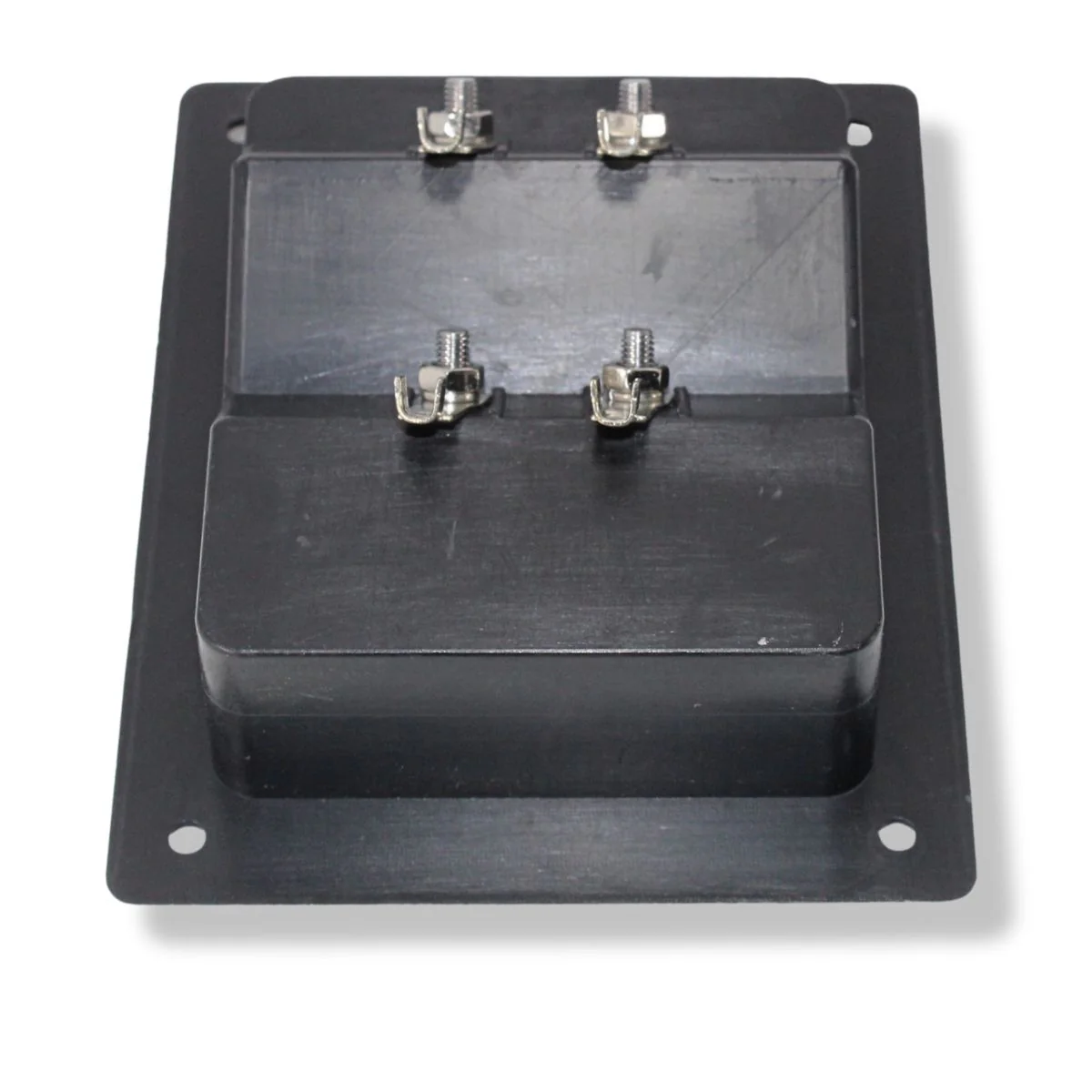

On the internal-facing side, the TCUP-DVC uses a stud-and-nut connector design that supports ring and fork connectors for secure, serviceable internal wiring. In addition, the internal terminals include U-shaped tabs, allowing the wire to be crimped directly around the conductor for installers who prefer a solder-free or hybrid connection method.

The external terminals accept up to 8-gauge wire, providing a solid and reliable connection point for high-current power and ground leads entering the enclosure.

Features

• Genuine DD Audio dual terminal TCUP


• Dual positive and dual negative terminals for high-current applications


• Internal stud-and-nut connectors support ring and fork terminals


• U-shaped internal tabs allow direct crimping around wire


• External terminals accept 8-gauge or smaller wire


• Enables cleaner wiring and easier parallel subwoofer connections


• Designed for high-power and SPL subwoofer systems


• Heavy-duty construction for long-term durability

Specifications

• Brand: DD Audio


• Model: TCUP-DVC


• Terminal Configuration: Dual Positive / Dual Negative


• Internal Connection Type: Stud and nut; U-shaped crimp tabs


• Connector Compatibility: Ring, fork, or direct-crimp wiring


• External Wire Capacity: Accepts up to 8 gauge wire


• Application: Subwoofer terminal cup


• Use Case: High-power, SPL, and multi-subwoofer systems

Compatibility / Fitment Notes

• Designed for use with custom enclosures


• The installer should verify the enclosure cutout and terminal requirements before installation


• Professional installation recommended for high-power systems

Dimensions:

• Width: 3.79"


• Length: 4.82"


• Depth: 1.73"


• Mounting width: 2.93"


• Mounting length: 3.78"


• Mounting depth: 1.065"
