• This listing includes: (1) Deaf Bonce 12 Subwoofer MF-12S D2
• (1) Deaf Bonce Monoblock Amplifier MLA-1000
• (1) Deaf Bonce Remote Bass Knob

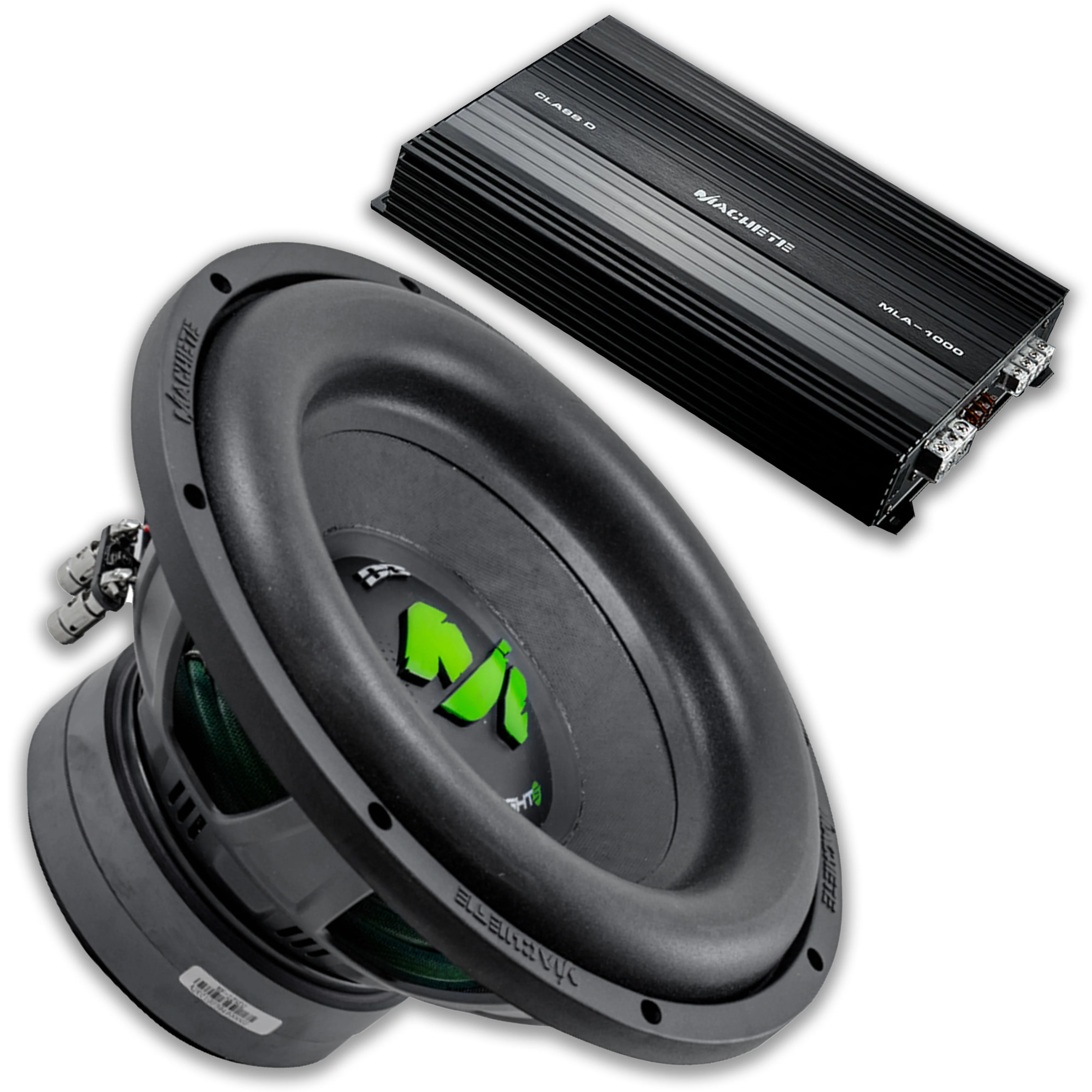

Deaf Bonce Car Audio 12" Subwoofer Dual 2 Ohm MF-12S & 1 Ch Amplifier MLA-1000

This listing includes:

• (1) Deaf Bonce 12 Subwoofer MF-12S D2


• (1) Deaf Bonce Monoblock Amplifier MLA-1000


• (1) Deaf Bonce Remote Bass Knob

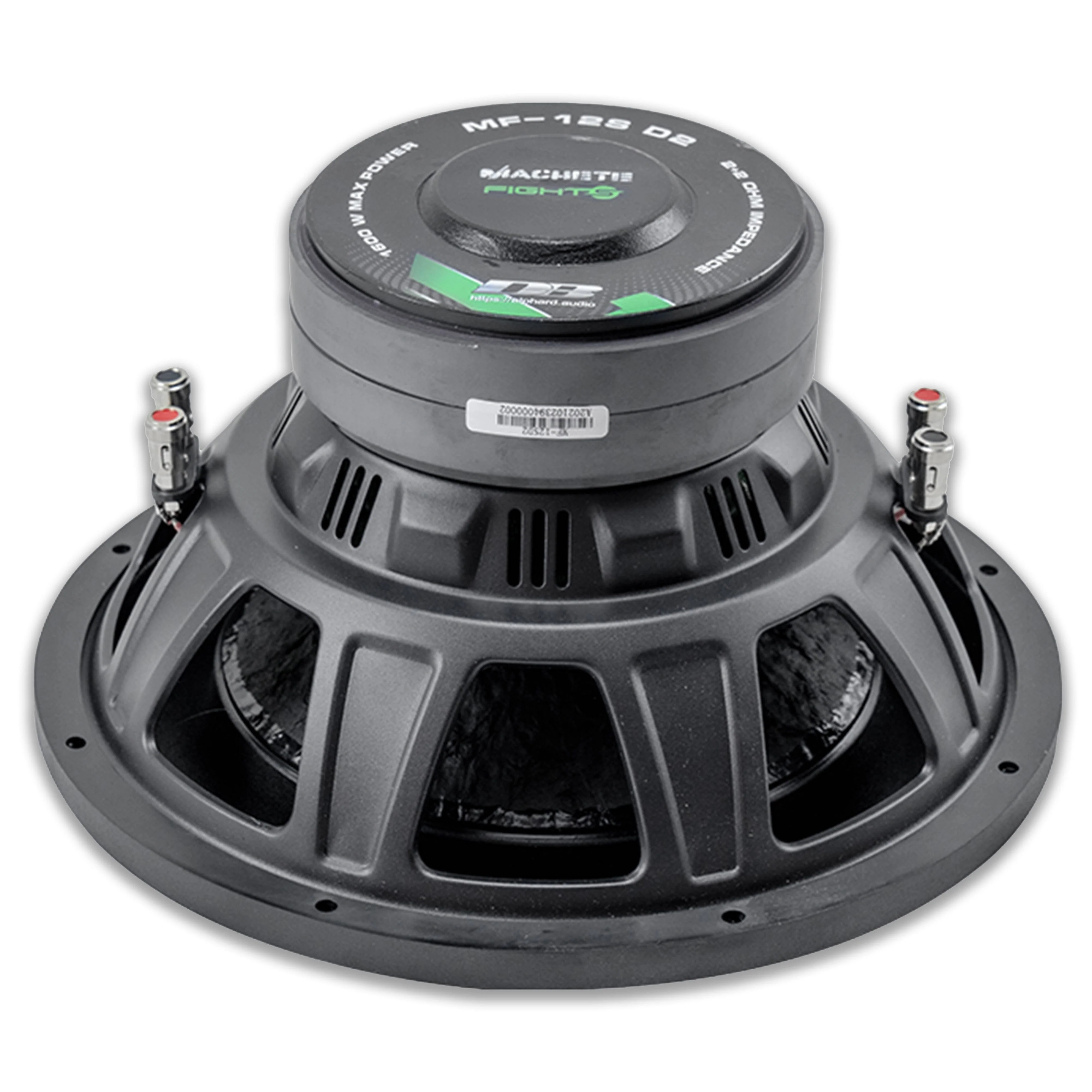

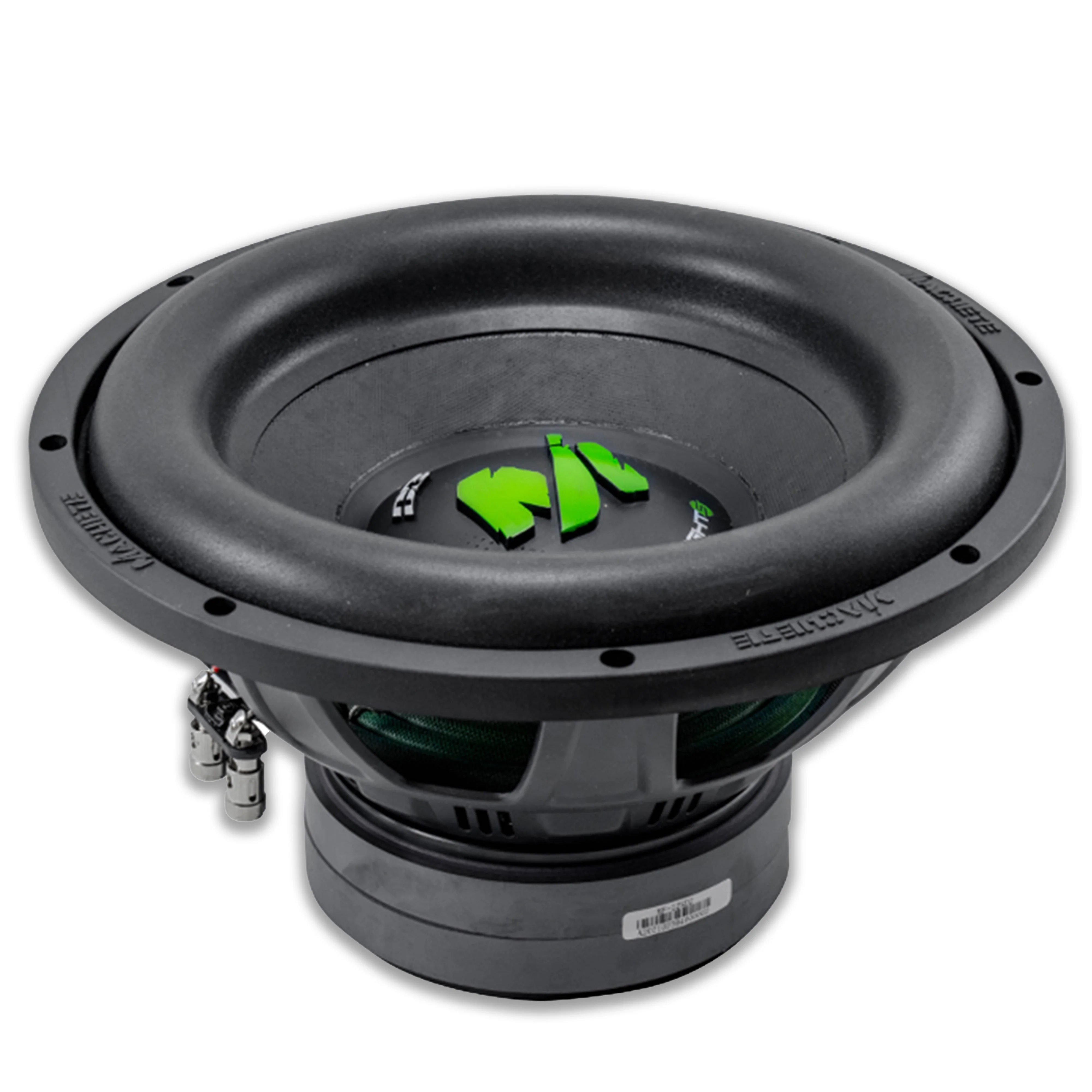

SPECIFICATIONS FOR SUBWOOFER:

• Nominal Diameter: 12


• Voice coil size: 2.5"


• Cone: Paper


• Magnet: Ferrite


• Voice coil wire: CCAW


• Surround: Foam


• RMS Power: 800 Watts


• MAX Power: 1600 Watts


• Frame: Steel


• Impedance: 2+2 Ohm

T/S PARAMETERS:

• Re (Ohm): 1.8+1.8


• SPL: 86,0 dB


• Fs: 35.0 Hz


• BL: 18,50


• Vas: 36.5 L


• Qts: 0.49


• Xmax: 0.55" (14.00 mm)

DIMENSIONS:

• Mounting depth: 6.3" (159.7 mm)


• Cut-out dimension: 11.14" (283.0 mm)

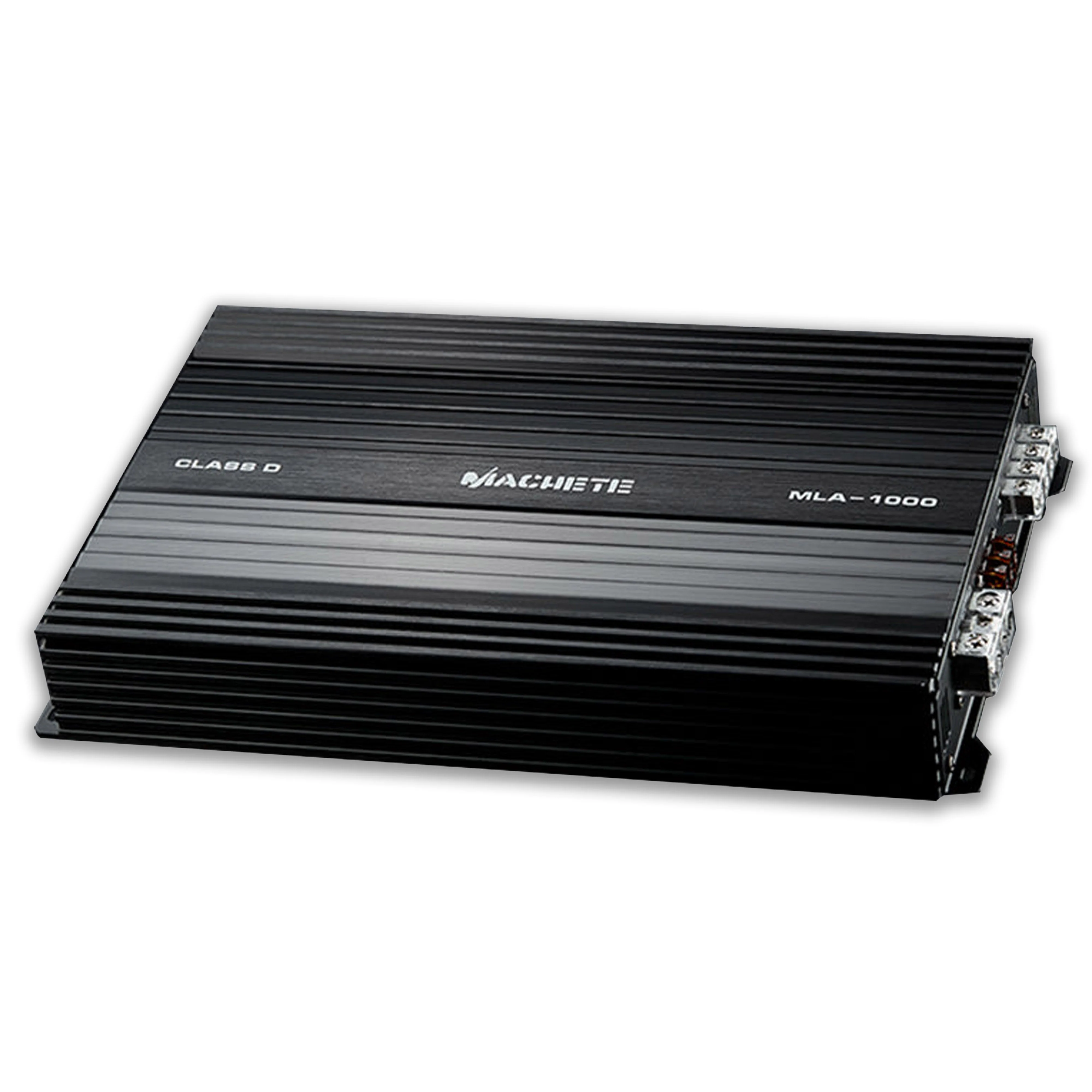

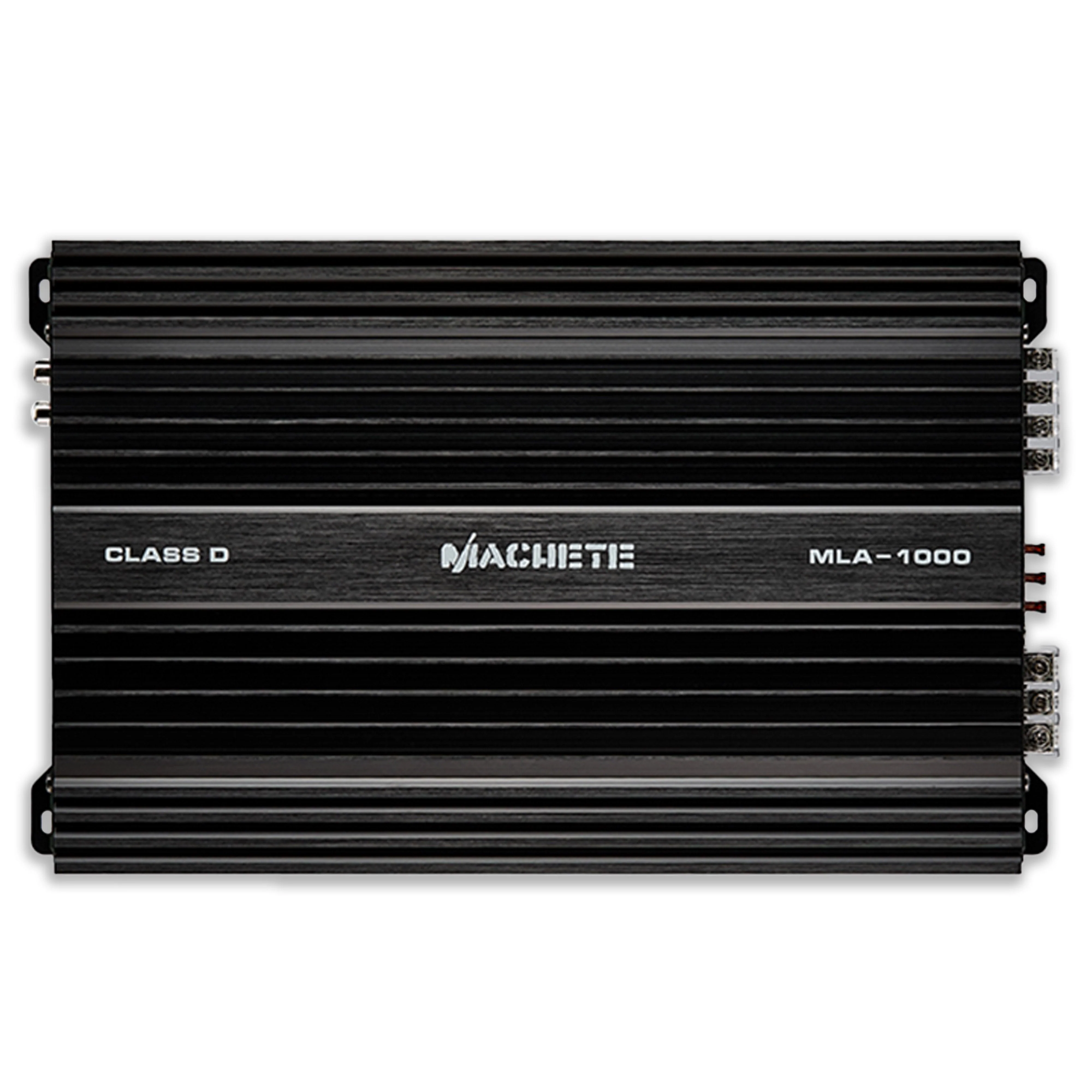

SPECIFICATIONS FOR AMPLIFIER:

• Power RMS Watts @ 4 Ohm: 400 Watt x 1


• Power RMS Watts @ 2 Ohm: 680 Watt x 1


• Power RMS Watts @ 1 Ohm: 990 Watt x 1


• Crossover (db/Oct): 12


• Frequency Response: 10Hz-300KHz


• Low Pass Frequency: 32Hz ~ 300Hz


• Subsonic filter: 10 ~ 50Hz


• Bass Level Adjustment: 0 / 6 / 18


• Bass Frequency Adjustment: 45Hz


• Frequency response: 10 ~ 300Hz


• Input sensitivity(V) 0.2-6


• Signal to noise Ratio: > 88db


• Input terminal connection: 4 Ga


• Output terminal connection: 8 Ga


• Working voltage: 10 ~ 15V


• Minimum permissible load impedance: 1 Ohm

DIMENSIONS:

• Width: 13.79"


• Length: 8.50"


• Height: 1.96"
