• AP-M61AC SPEAKER: Size: Maximum power: 360 Watts Rated power: 180 Watts
• Installation depth,: 3.03"/ 77 mm Mounting diameter: 6.01"/ 152.8 mm
• AAK-180.4 Class: AB Number of the channels: 4

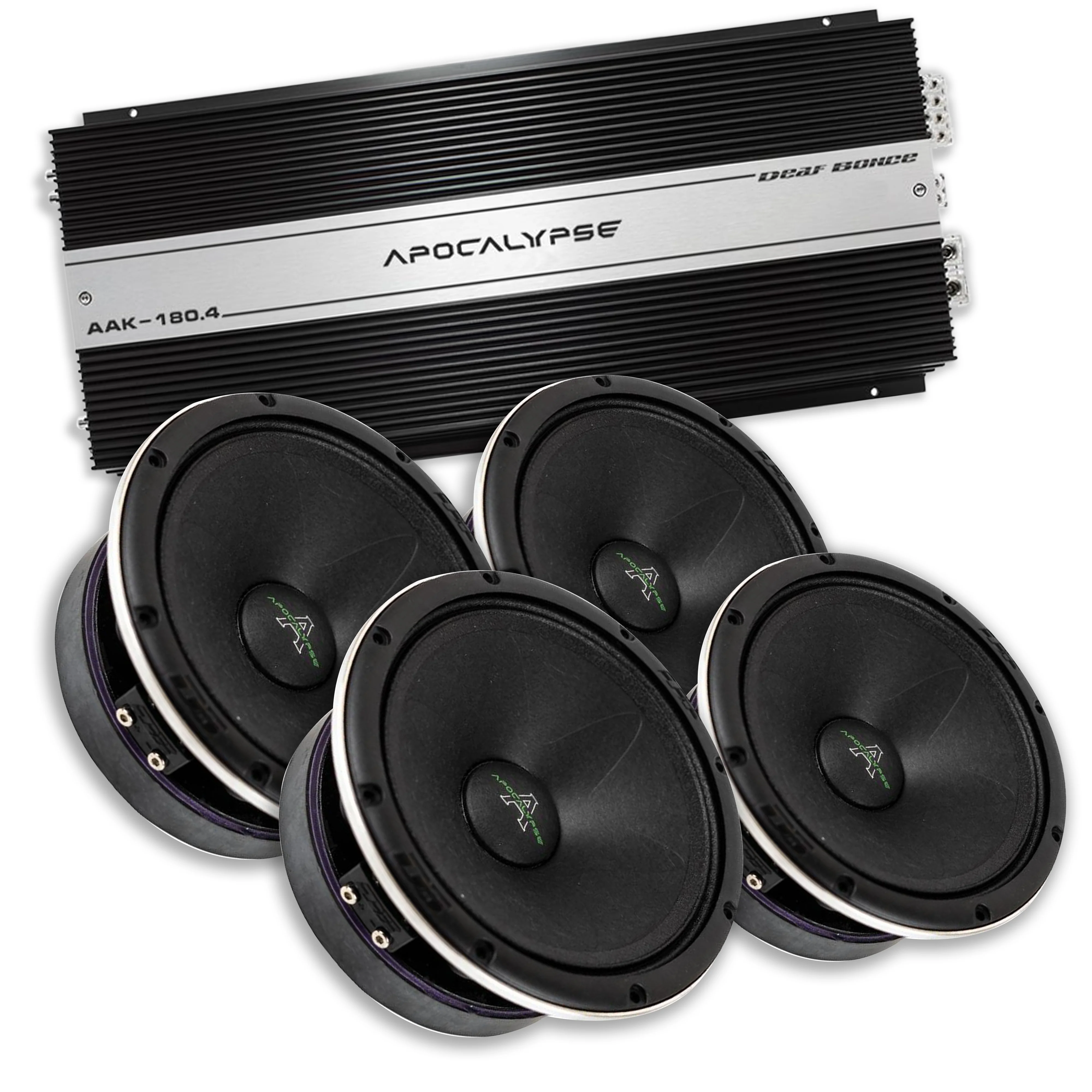

Deaf Bonce Car Audio 4x 6.5 Midrange Speakers 720 Watts 4 Ohm AP-M61AC With 4 Channel Amplifier Class AB & Remote Bass Knob AAK-180.4 Package

This listing includes:

(4) Deaf Bonce 6.5 Midrange Speakers AP-M61AC

(1) Deaf Bonce 4 Channel Amplifier AAK-180.4

(1) Deaf Bonce Remote Bass Knob

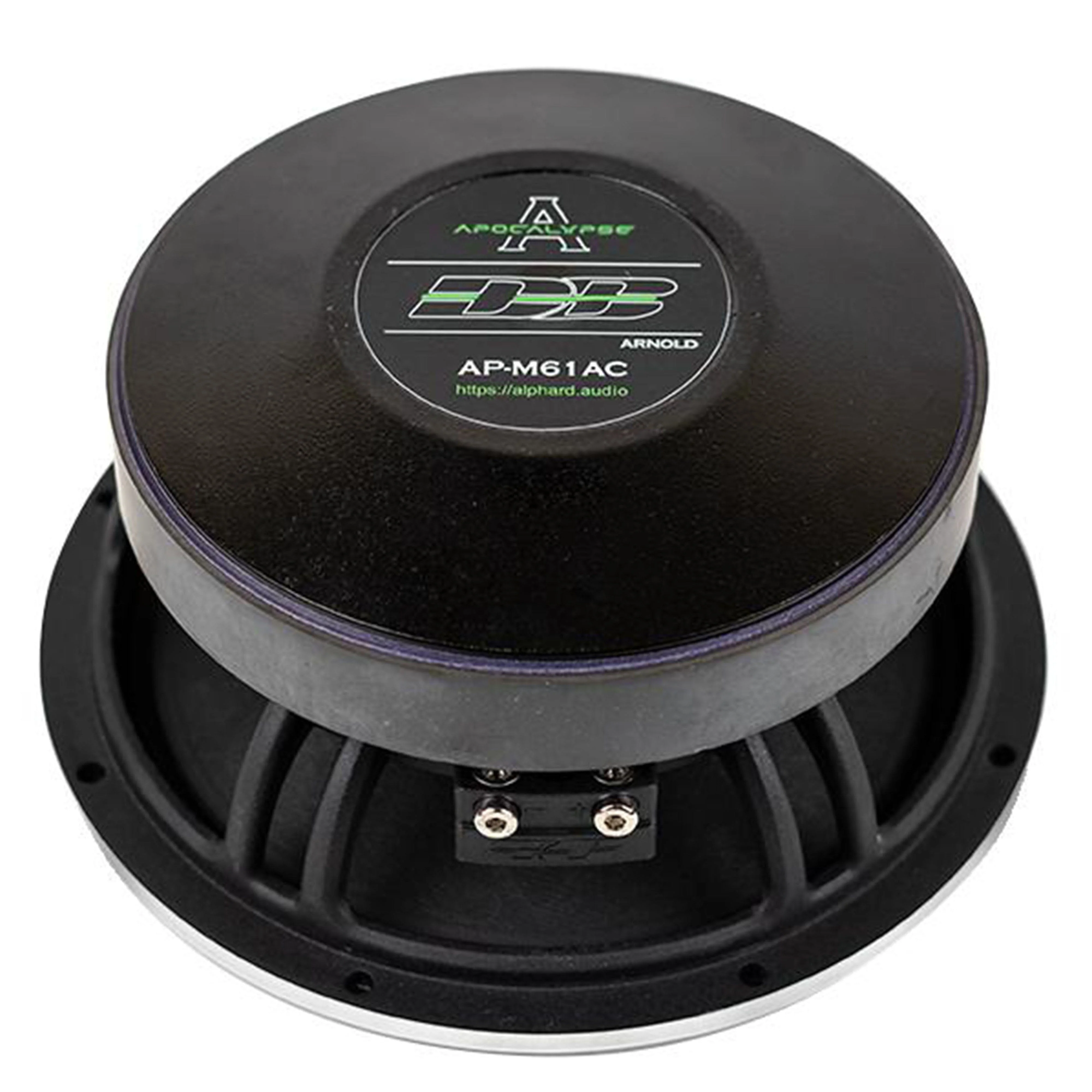

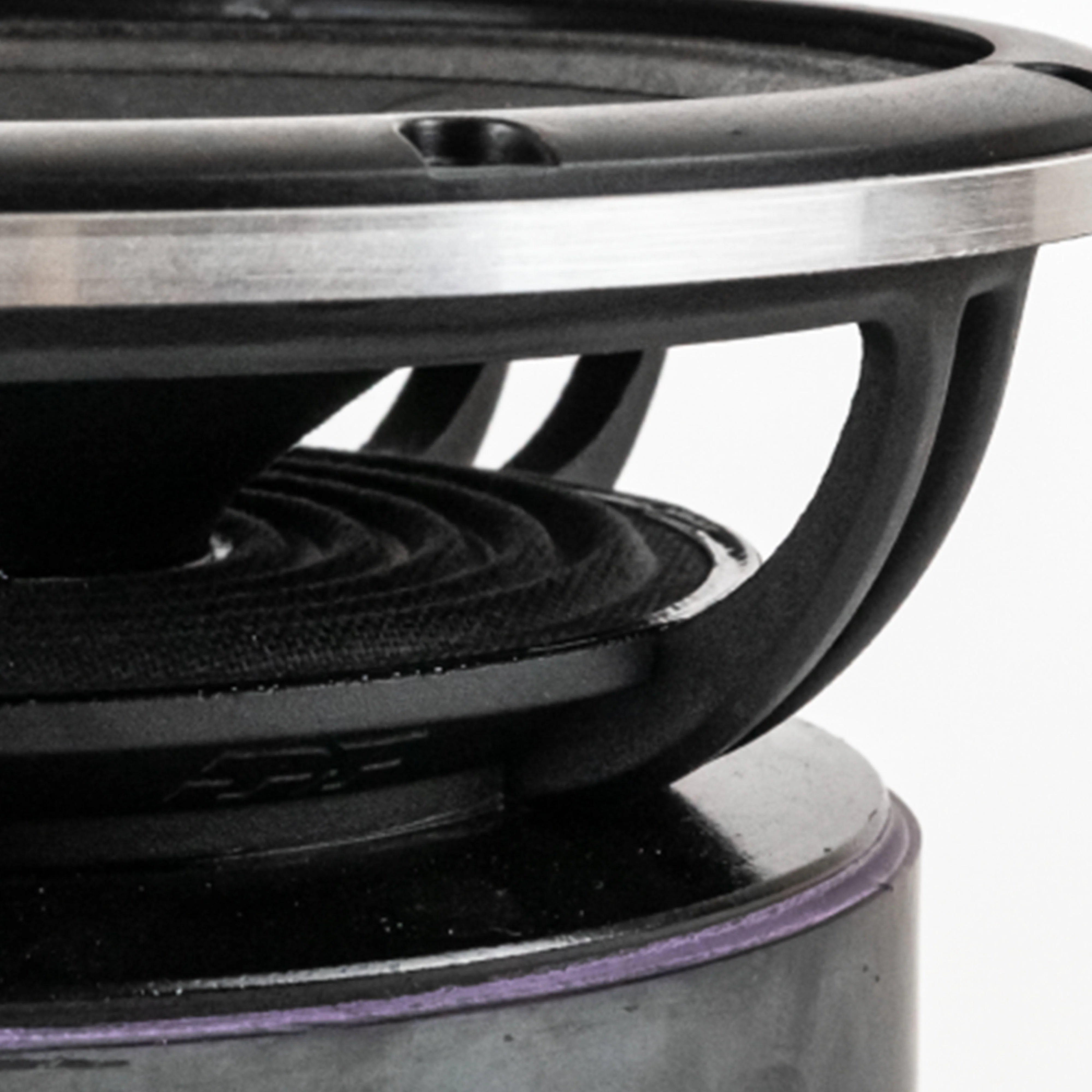

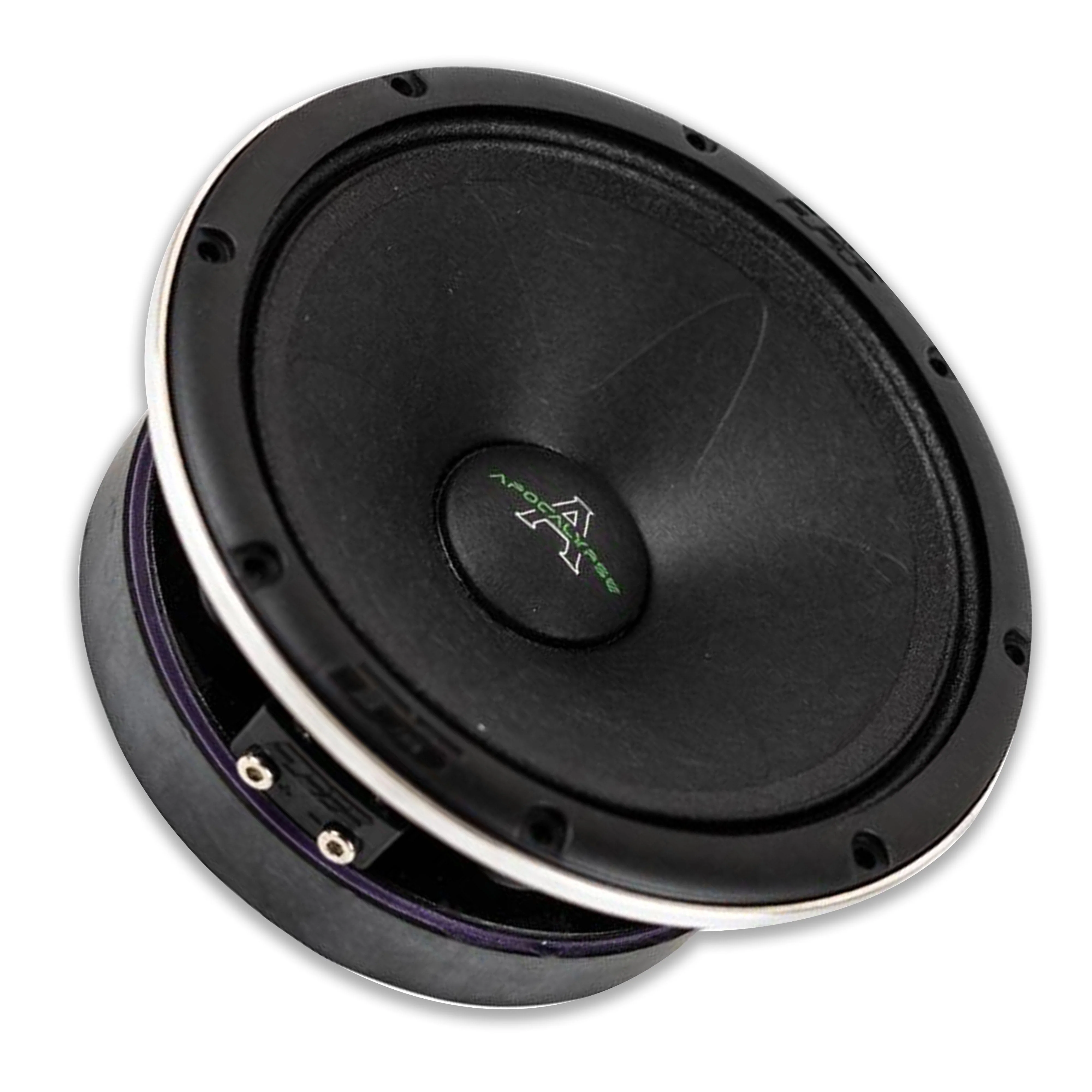

SPECIFICATIONS PER AP-M61AC SPEAKER:

Size: 6.5 inch.

Type: Midrange

Maximum power: 360 Watts

Rated power: 180 Watts

Impedance: 4 Ohm

Sensitivity (SPL): 101.60 dB

Series: Apocalypse

Resonance frequency (Fs):110 Hz

Magnetic induction coefficient (Bl): 7.90 Bl

Total Q factor: 0.32 Qts

Equivalent volume (Vas): 7.10 L

Frequency range: 100-15000 Hz

In the package: Pair

Material diffuser: Pressed paper

Suspension material: Cloth

Magnet material: Ferrite

Winding material: CCAW

Basket material: Aluminum

Coil diameter: 1.5"

DIMENSIONS:

Installation depth,: 3.03"/ 77 mm

Mounting diameter: 6.01"/ 152.8 mm

Weight: 9 lbs

-------------------------------------------------------------------

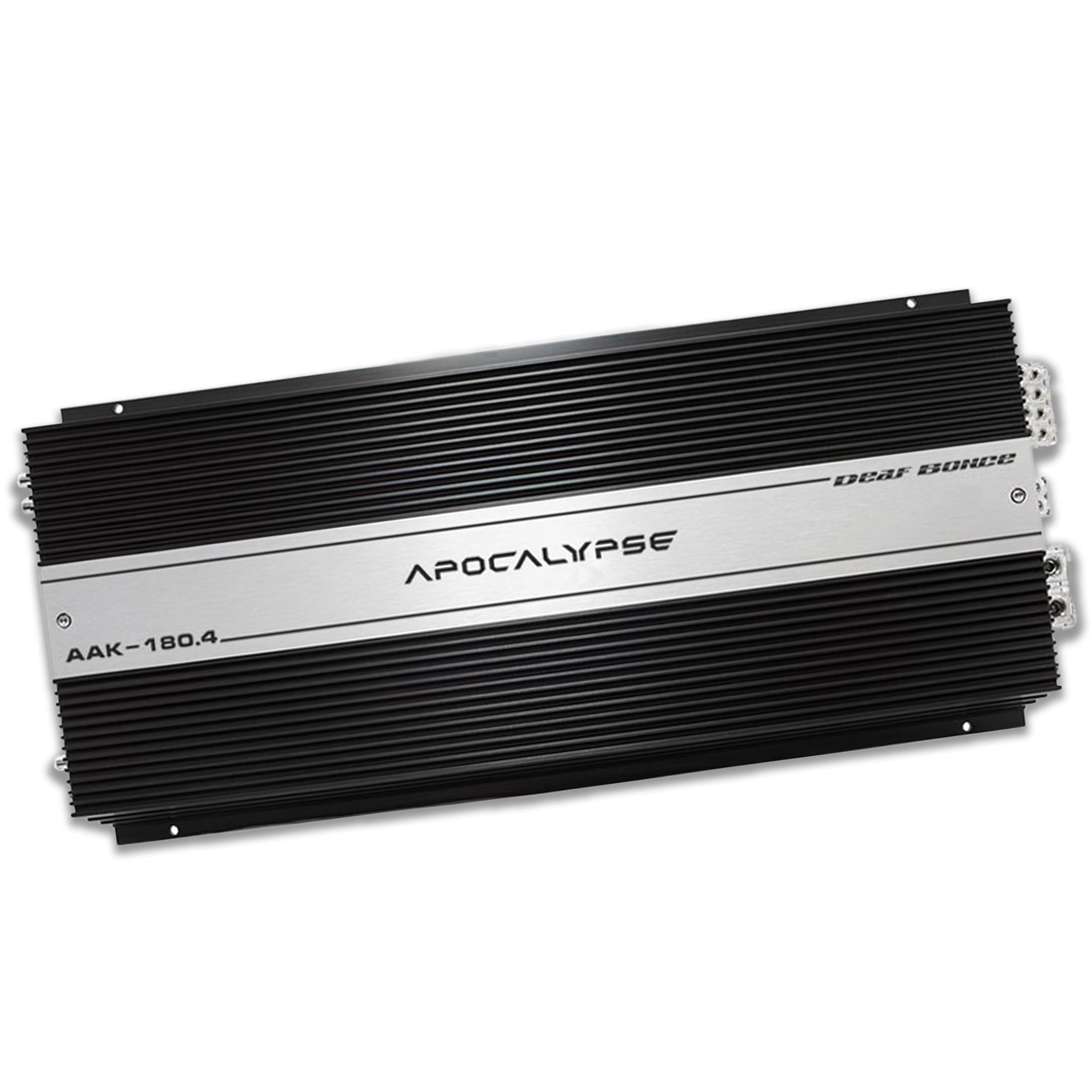

SPECIFICATIONS FOR AAK-180.4 AMPLIFIER:

Model: AAK-180.4

Class: AB

Number of the channels: 4

Frequency response: 20 - 20000 Hz

2 Ohm RMS Power (14.4 V): 250 W x 4

4 Ohm RMS Power (14.4 V): 180 W x 4

4 Ohm RMS Power (Bridge): 500 W x 2

Minimum permissible load on the channel: 2 Ohm

Minimum permissible load in a bridge connection: 4 Ohm

Input SPL: 0.2 - 6 V

Low pass filter: 50 - 800 Hz

High pass filter: 20 - 800 Hz

LPF and HPF simultaneous operation: True

Crossover: 12 dB/Oct

Input terminal: 0 Ga

Output terminal: 8 Ga

Damping factor: More than or Equal to 200

Working voltage: 9 - 15 V

Signal-to-noise ratio: More than or Equal to 105 dB

Dimensions (WxLxH): 21.26" x 9.65" 2.54"

Weight: 21 lbs
