• (8) Deaf Bonce 6.5" Midrange Speakers AP-M61SE
• (1) Deaf Bonce 4 Channel Amplifier AAP-400.4D Atom Plus

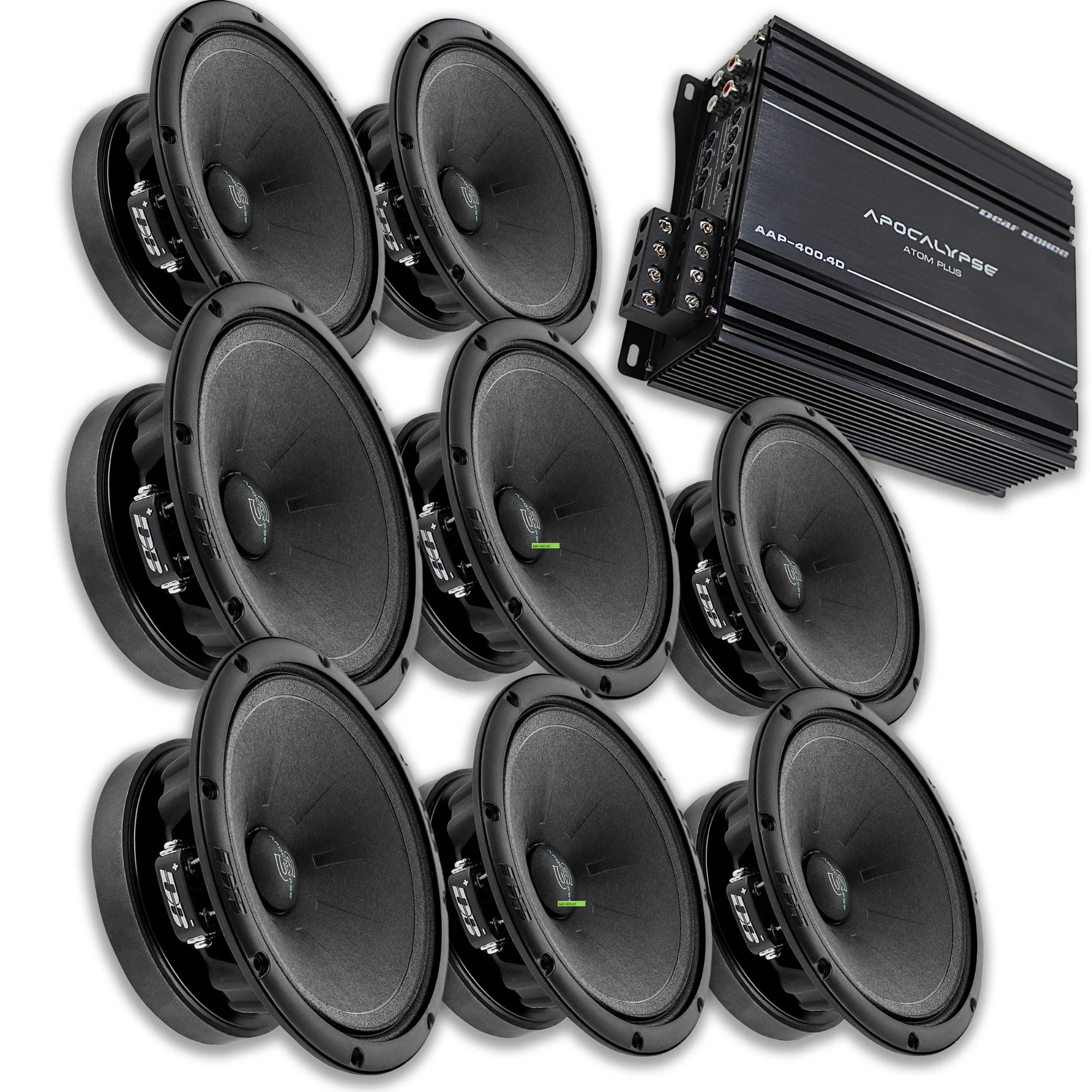

Deaf Bonce Car Audio 4x 6.5 Midrange Speakers 4 Ohm 1040 Watt AP-M61SE With 4 Channel Amplifier Class D AAP-400.4D Package



(8) Deaf Bonce 6.5" Midrange Speakers AP-M61SE

(1) Deaf Bonce 4 Channel Amplifier AAP-400.4D Atom Plus

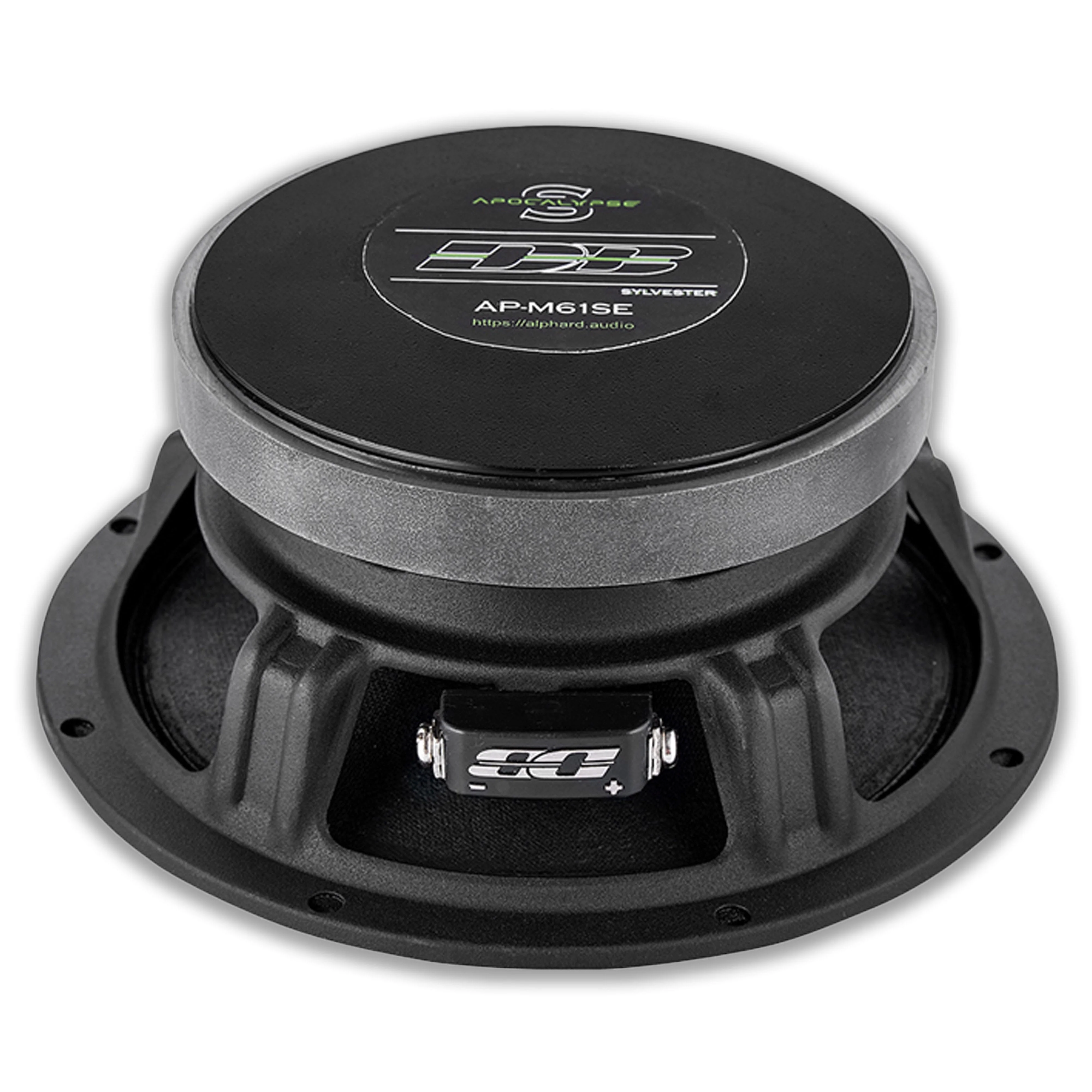

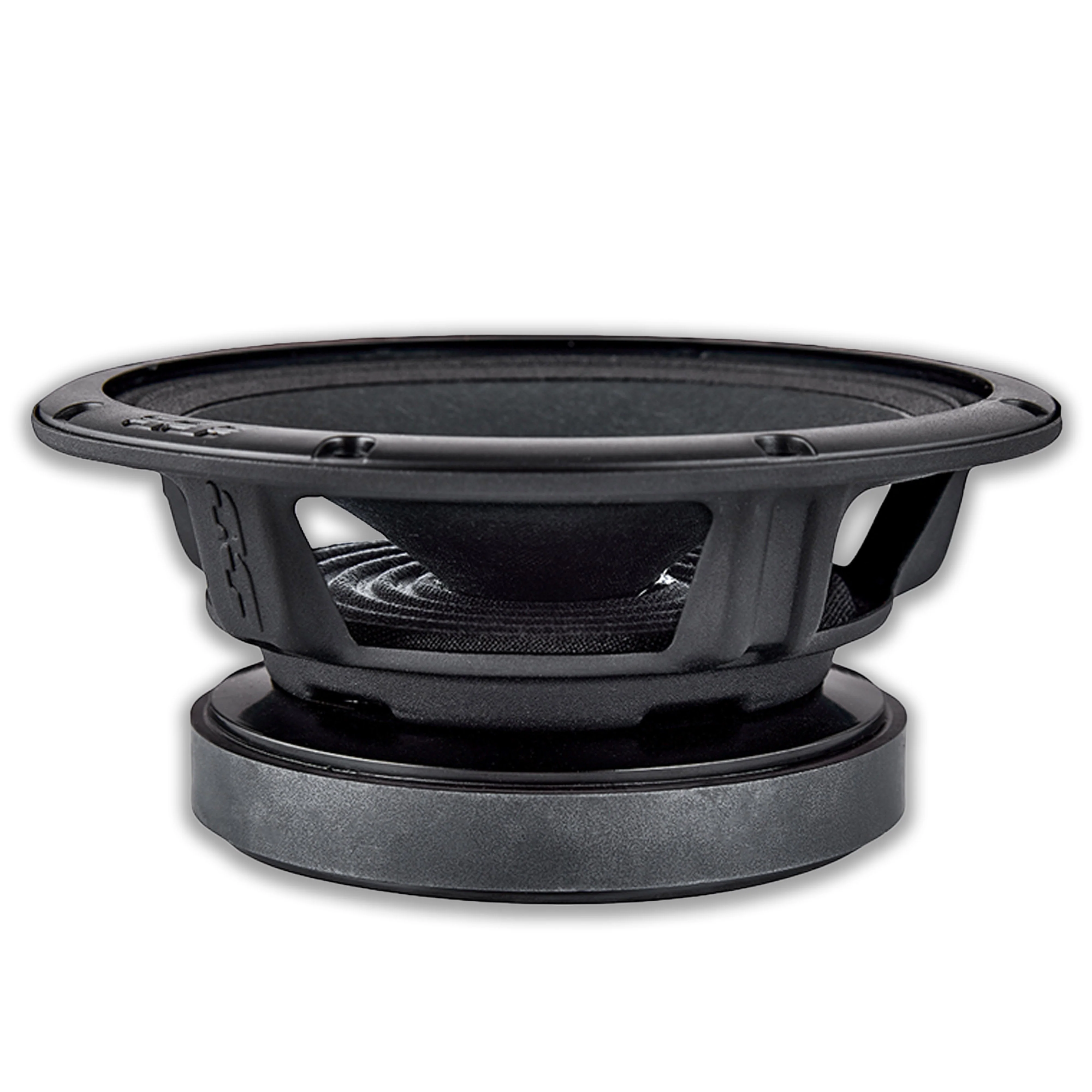

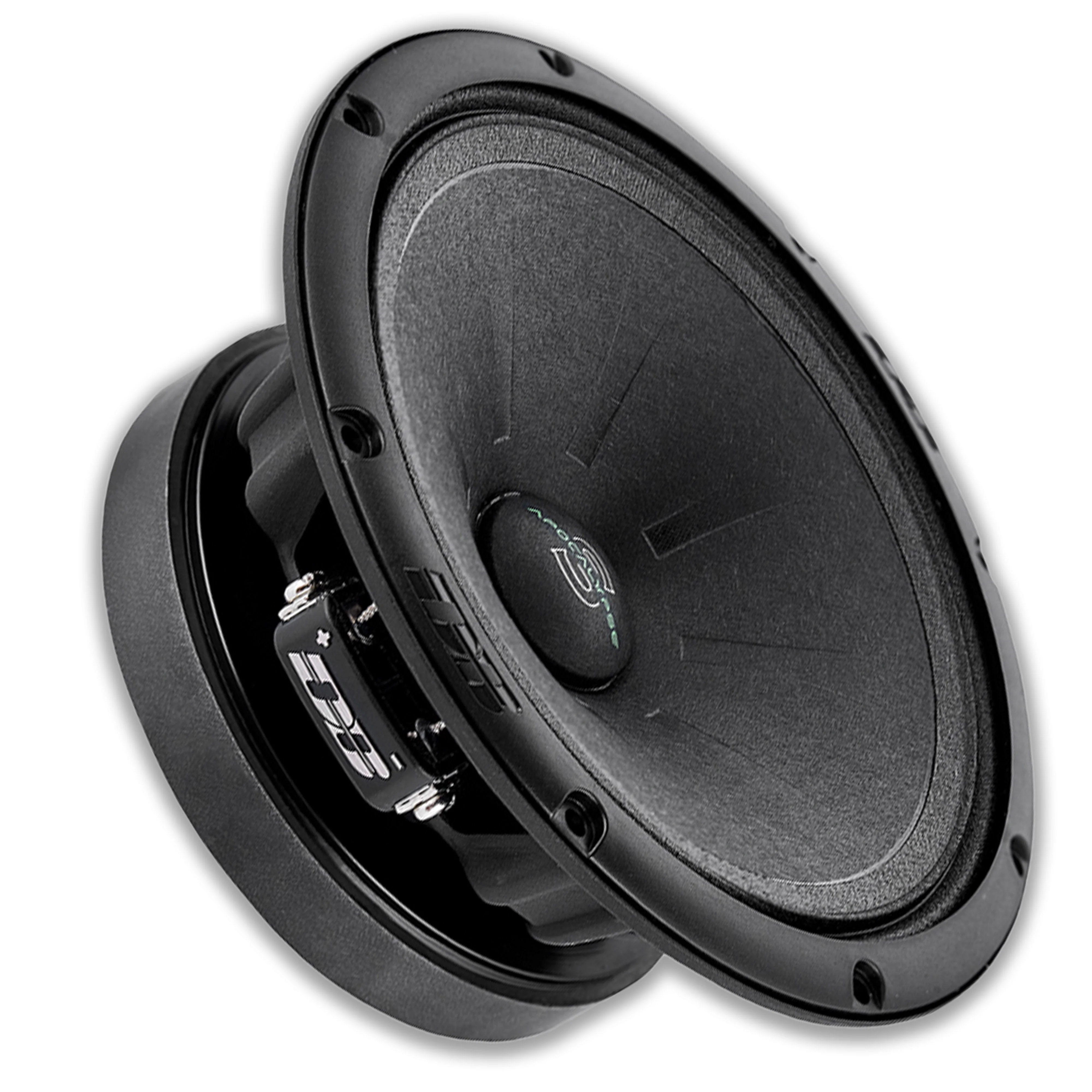

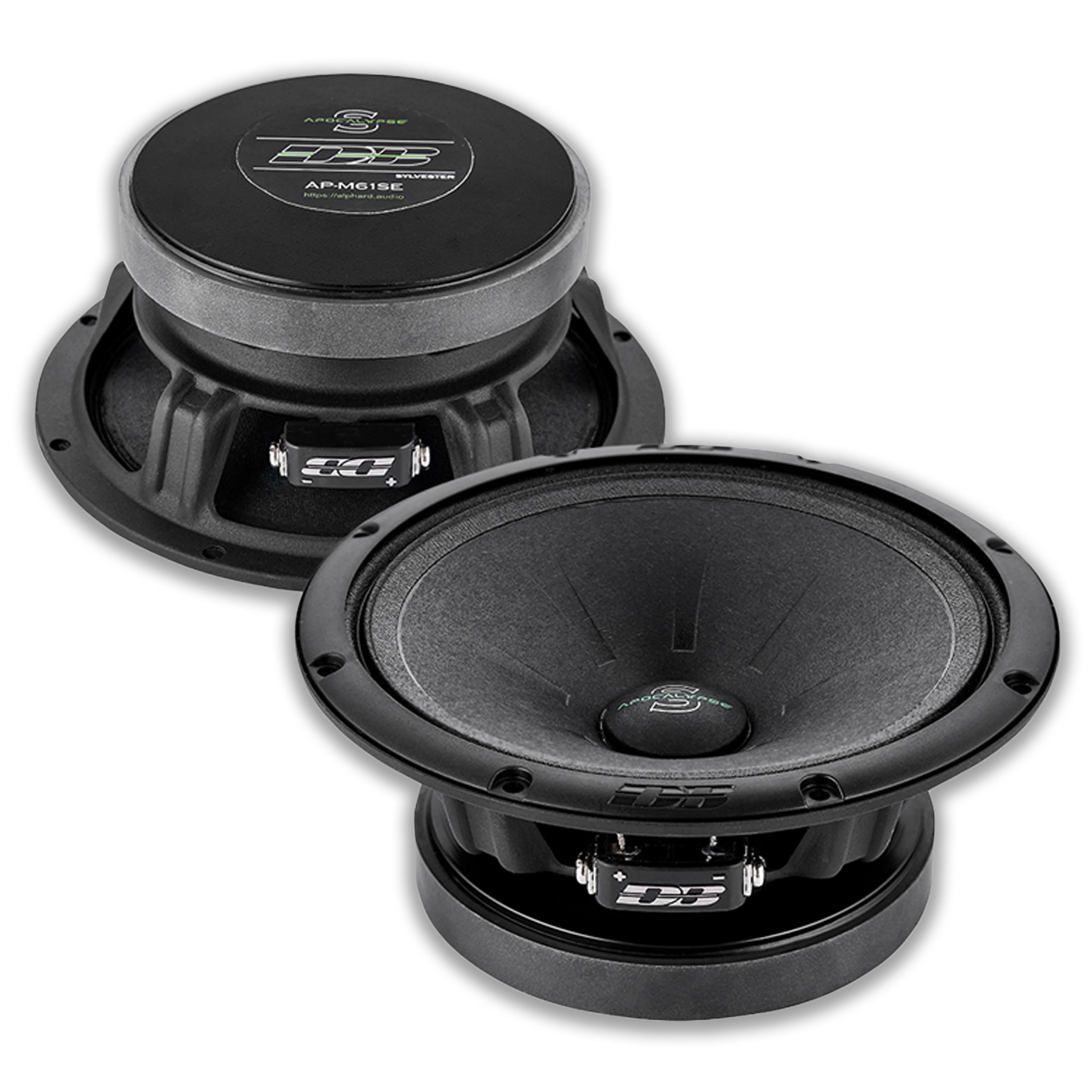

SPECIFICATIONS PER AP-M61SE SPEAKER:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

MAX Power Handling: 260 Watts

RMS Power Handling: 130 Watts

Sensitivity (1w/1m): 101.5dB

Frequency Response: 100Hz ~ 15.5KHz

MOTOR:

Voice Coil Diameter: 1.25"

Winding Material: CCAW

Cone Material: Pressed Paper

Surround Material: Cloth

Basket Material: Stamped Steel

Magnet Material: Ferrite

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 6.8L

Free Air Resonance: Fs - 112Hz

Total Factor: Qts - 0.51

Force Factor: BL - 6.15

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.69" (170mm)

Front Mount Baffle Cutout: 5.86" (149.5mm)

Mounting Depth: 2.83" (72.5mm)

Overall Depth: 3.07" (78.5mm)

Weight: 4.3 lbs

SPECIFICATIONS FOR AAB-400.4D AMPLIFIER:

Amplifier Class: D

Number of the channels: 4

Frequency response: 10-20000 Hz

1 Ohm RMS Power (14.4 V) 430 W x 4

2 Ohm RMS Power (14.4 V) 265 W x 4

4 Ohm RMS Power (14.4 V) 140 W x 4

2 Ohm RMS Power (Bridge) 833 W x 2

4 Ohm RMS Power (Bridge) 516 W x 2

Minimum permissible load on the channel: 1 Ohm

Minimum permissible load in a bridge connection: 2 Ohm

Input SPL: 0.2 - 6 V

Low pass filter: 50-6000 Hz

High pass filter: 15-6000 Hz

LPF and HPF simultaneous operation: True

Crossover: 12 dB/Oct

Bass frequency adjustment @ 45 Hz: 0 - 12

Input terminal: 4 Ga

Output terminal: 8 Ga

Damping factor: Less than or equal to 260

Working voltage: 9 - 15 V

Signal-to-noise ratio: Less than or equal to 100 dB

DIMENSIONS:

Length: 8.98 (228mm)

Width: 6.3 (160mm)

Height: 2.5 (63.5mm)

Weight: 5 lbs
