• Nominal Diameter: 6.5"
• Frequency Response: 100Hz ~ 12KHz
• Voice Coil Diameter: 1"
• Magnet Material: Ferrite
• Force Factor: BL - 4.8

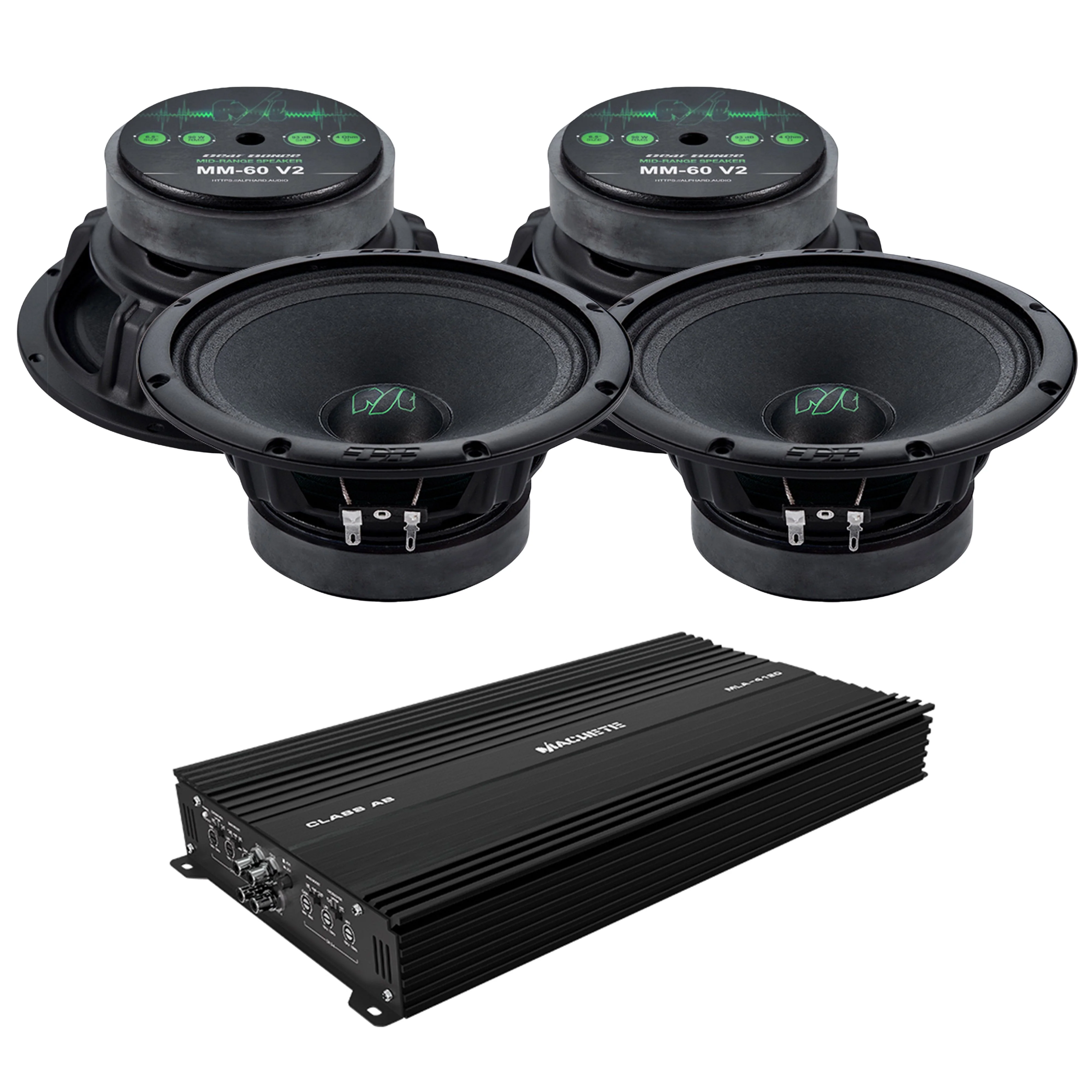

Deaf Bonce Car Audio 6.5" 4 Ohm Midrange Speakers MM-60-V2 & 4 Channel Class AB Amplifier Package MLA-4120

This listing includes :

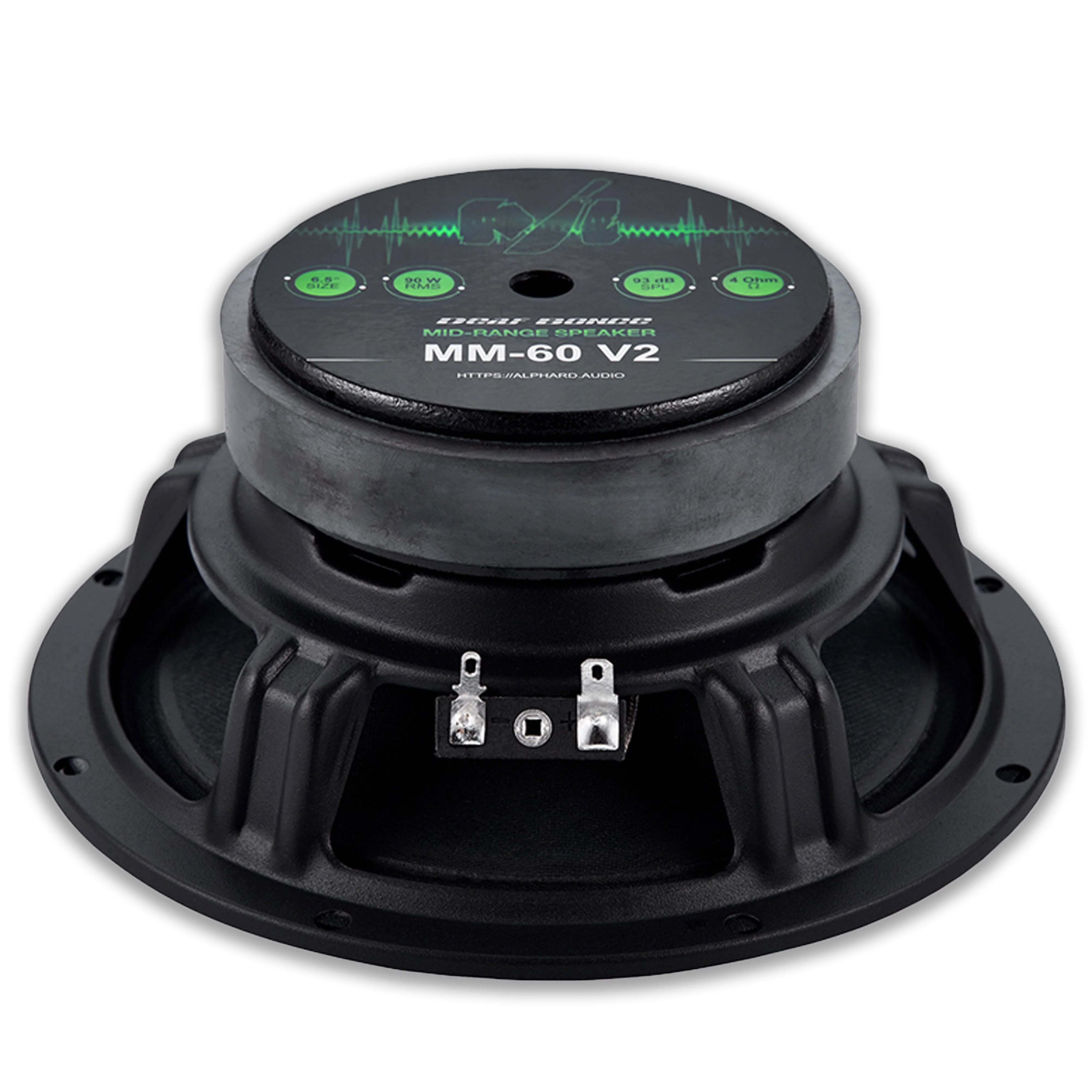

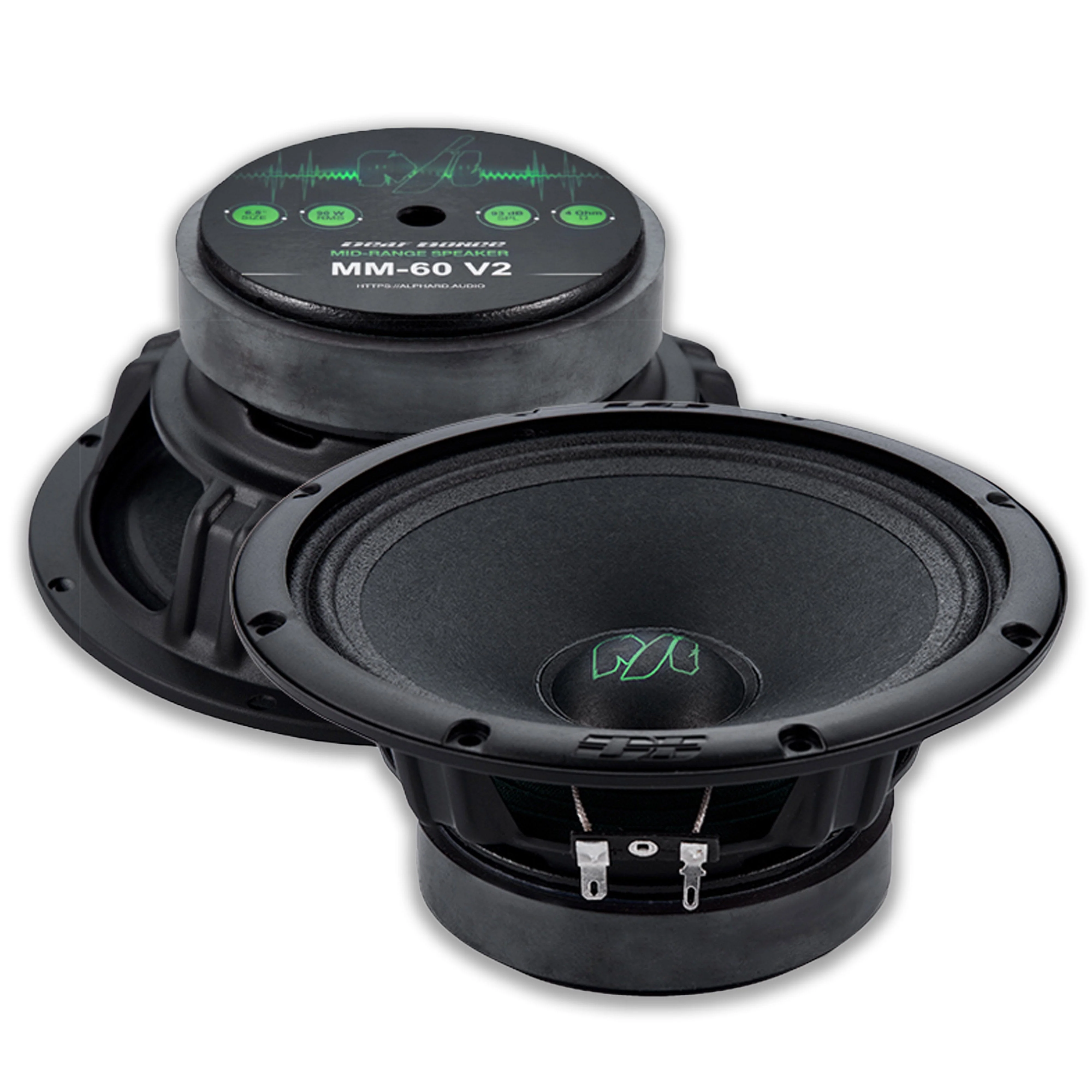

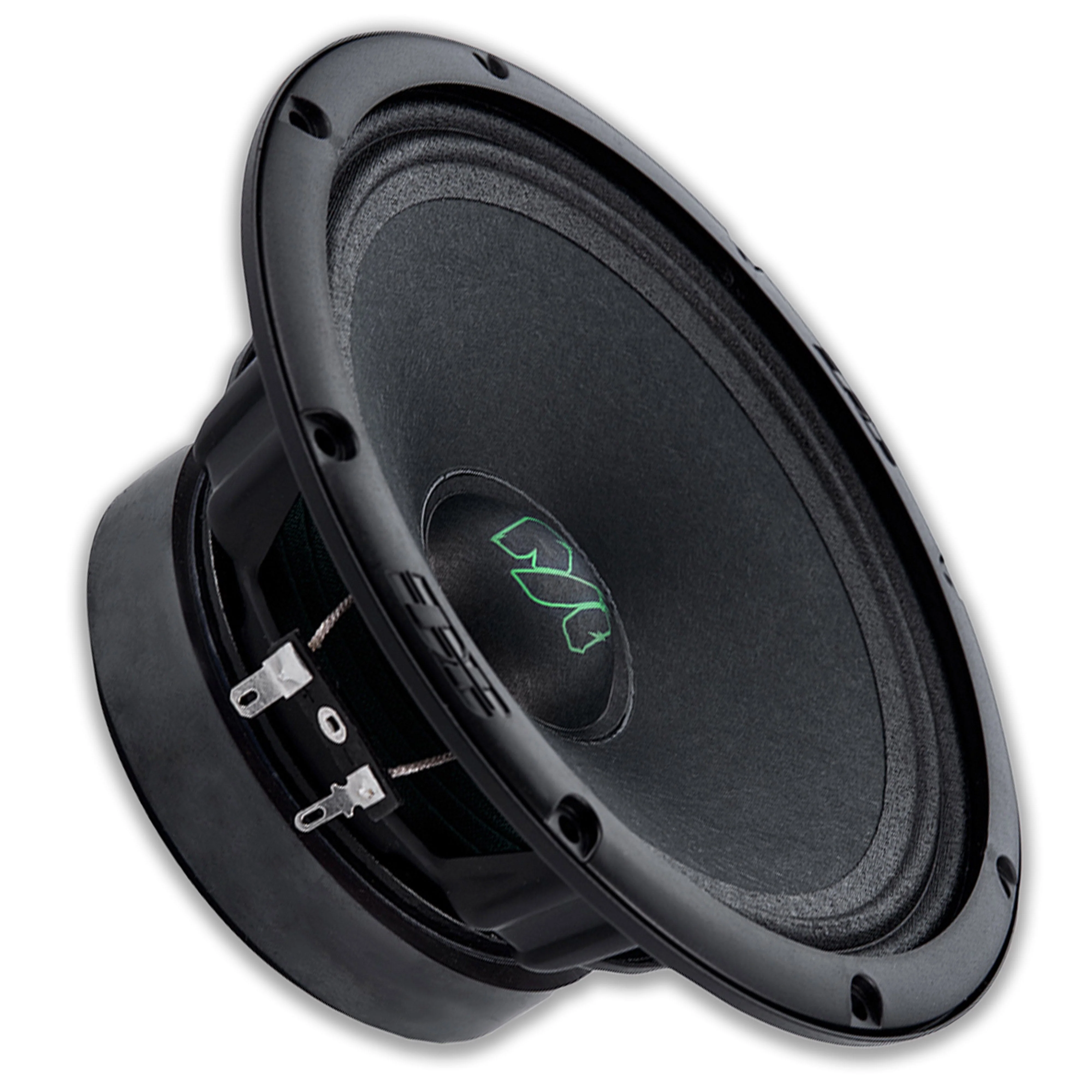

• (4) 6.5" 4 Ohm Midrange Speakers MM-60-V2

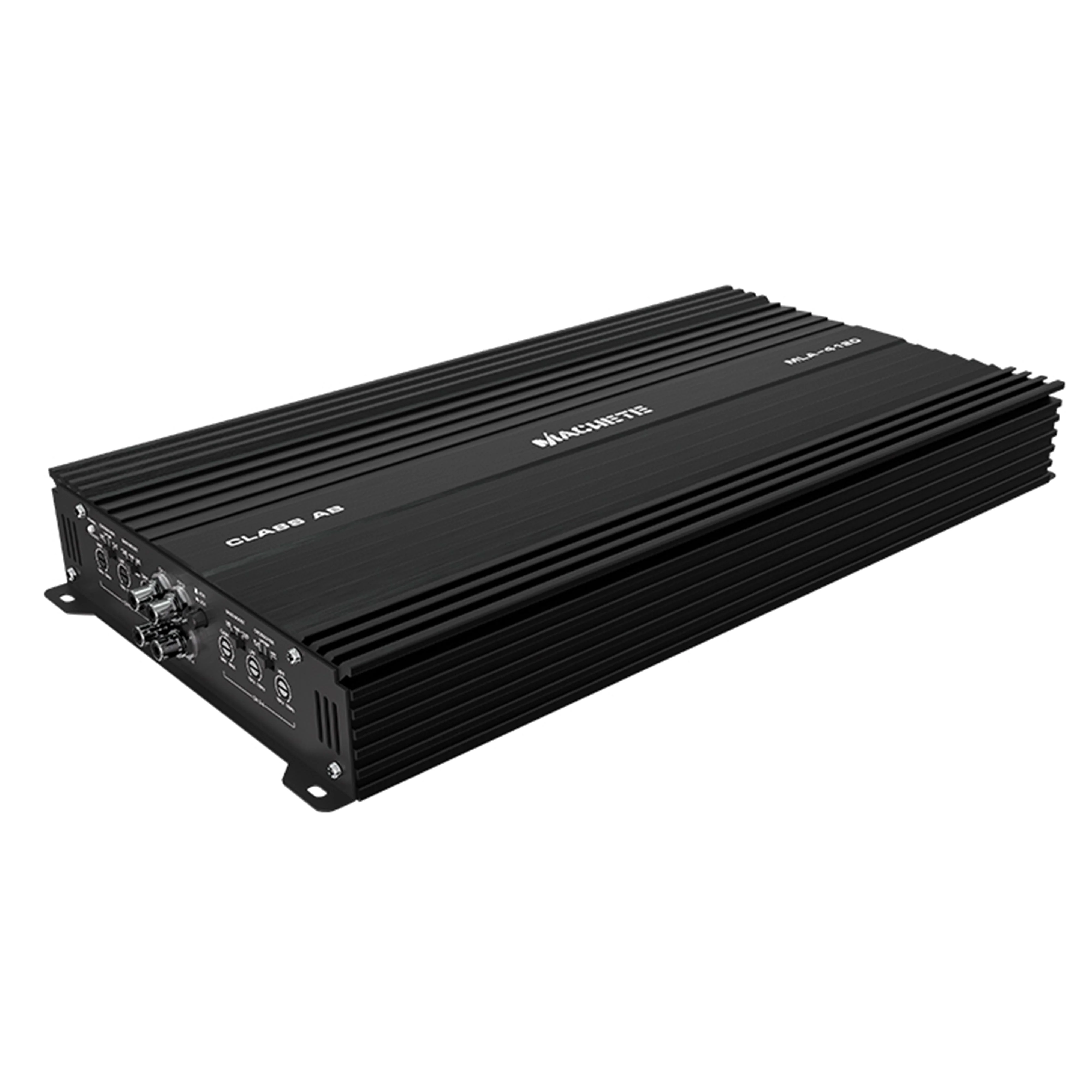

• (1) 4 Channel Class AB Amplifier MLA-4120

SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

MAX Power Handling: 180 Watts

RMS Power Handling: 90 Watts

Sensitivity (1w/1m): 93dB

Frequency Response: 100Hz ~ 12KHz

MOTOR:

Voice Coil Diameter: 1"

Winding Material: CCAW

Cone Material: Pressed Paper

Surround Material: Cloth

Basket Material: Stamped Steel

Magnet Material: Ferrite

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 6.5L

Free Air Resonance: Fs - 116Hz

Total Factor: Qts - 0.72

Force Factor: BL - 4.8

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.69" (170mm)

Front Mount Baffle Cutout: 5.89 (149.5mm)

Mounting Depth: 2.83" (72mm)

Overall Depth: 3.07" (78mm)

SPECIFICATIONS FOR AMPLIFIER :

Class: AB

Number of channels: 4

Frequency response: 10-20000 Hz

2 Ohm RMS Power (14.4 V): 150 W x 4

4 Ohm RMS Power (14.4 V): 120 W x 4

4 Ohm RMS Power (Bridge): 300 W x 2

Minimum permissible load on the channel: 2 Ohm

Minimum permissible load in a bridge connection: 4 Ohm

Input SPL: 0.2 - 6 V

Low pass filter: 10-12000 Hz

High pass filter: 10-12000 Hz

LPF and HPF simultaneous operation: True

Crossover: 12 dB/Oct

Input terminal: 4 Ga

Output terminal: 8 Ga

Working voltage: 10-15V

Signal-to-noise ratio: Greater than91 dB

DIMENSIONS:

Size (W x L x H): 15.55" x 8.50" x 1.96"
