• This listing includes : (1) 8" Dual 2 Ohm Subwoofer SA2508-D2 (1) Monoblock Class D Amplifier DB-MLA-1000
• RMS Power: 800W MAX Power: 1600 W
• Impedance: 2+2 Ohm
• Amp Model- MLA-1000 Power RMS Watts(4 Ohm):400W x 1 Power RMS Watts (2 Ohm ): 680Wx1 Power RMS Watts (1 Ohm): 990Wx1

Deaf Bonce Car Audio 8" Dual 2 Ohm Subwoofer SA2508-D2 & Monoblock Class D Amplifier Package DB-MLA-1000



This listing includes :

(1) 8" Dual 2 Ohm Subwoofer SA2508-D2

(1) Monoblock Class D Amplifier DB-MLA-1000

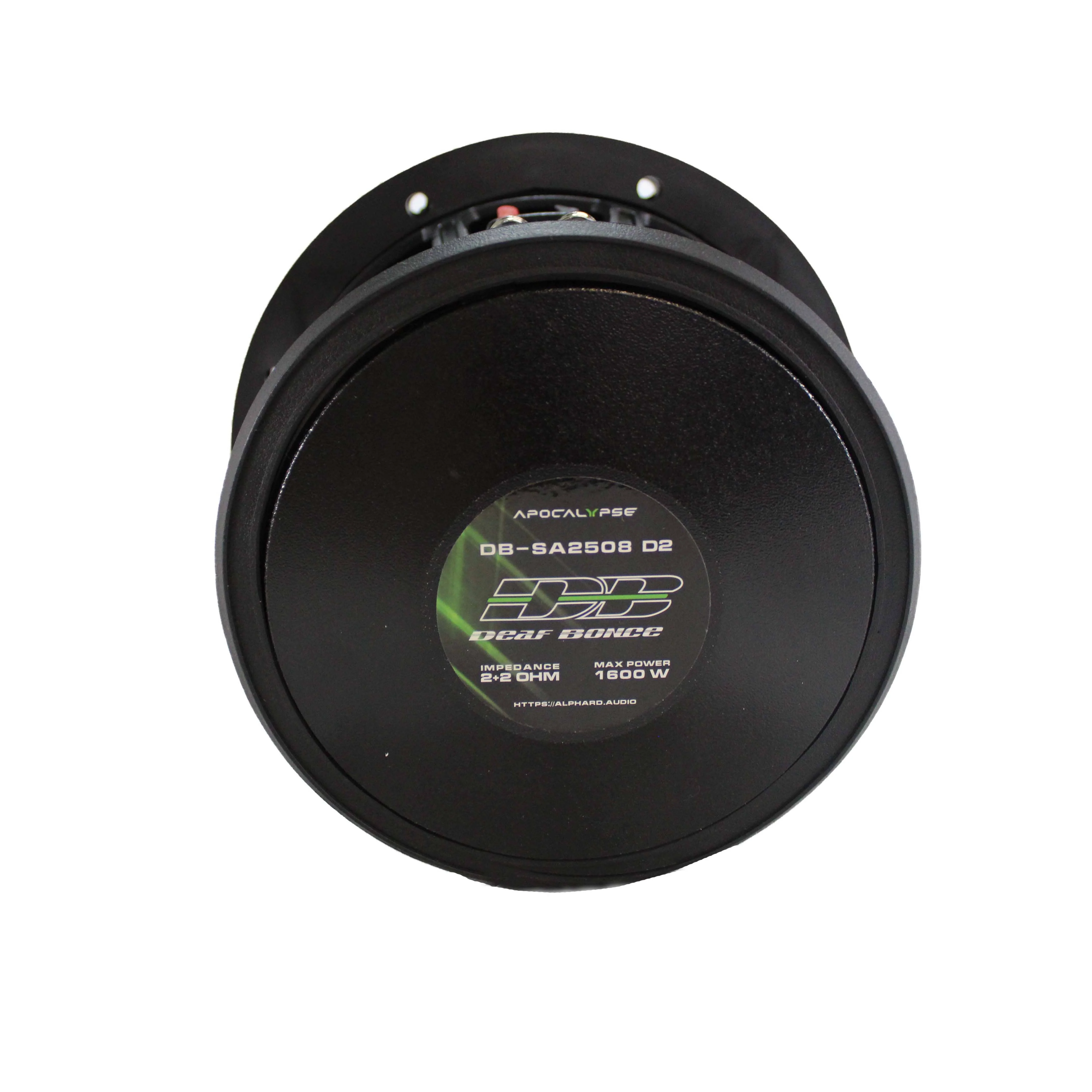

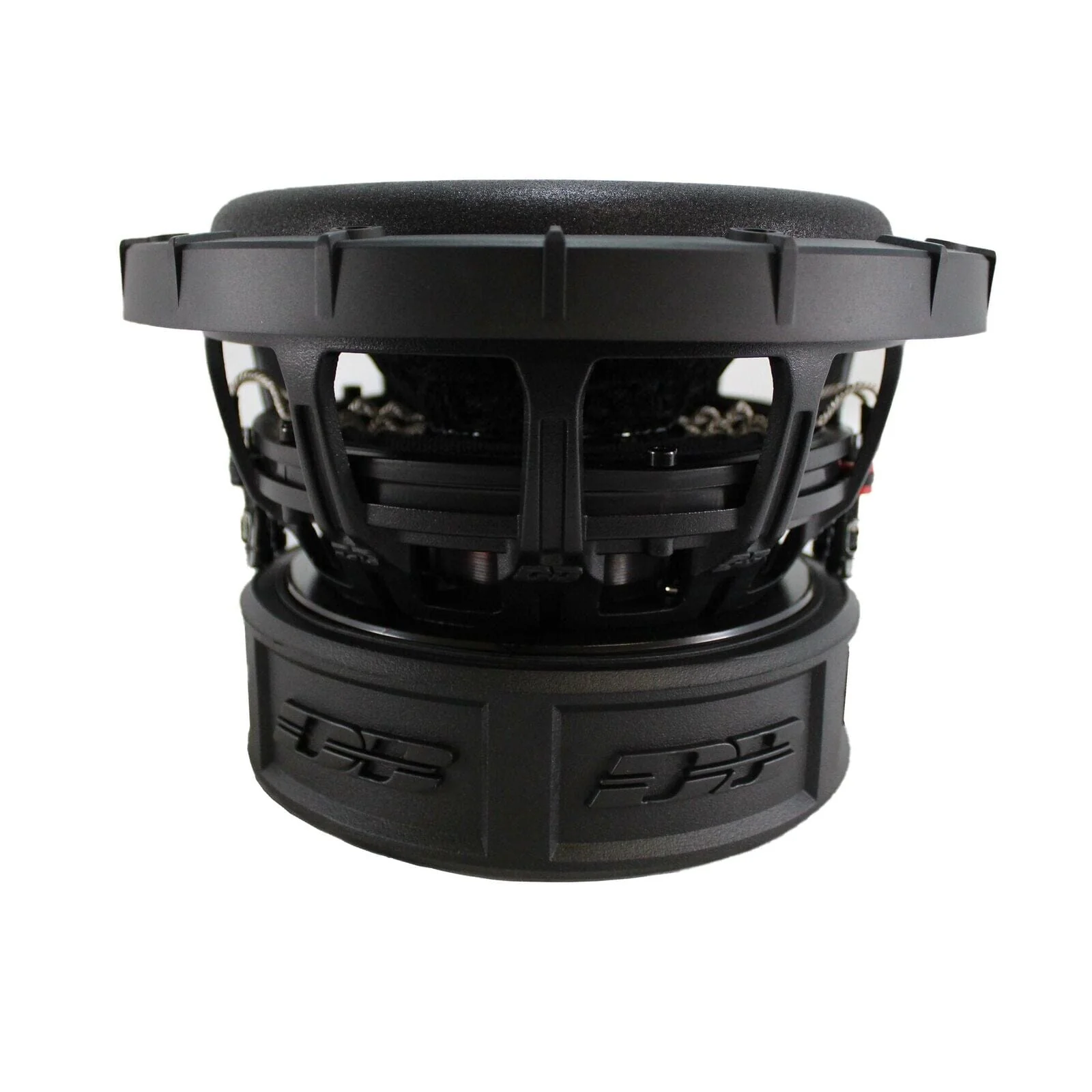

This 8" Apocalypse series subwoofer from Deaf Bonce is here to provide incredible power and ground shaking bass in a compact size. Handling up to1600 watts max and equipped with a Dual 1 Ohm Voice Coil, you will have incredible sounding bass for all to hear! Aluminum frame for long lasting extreme durability.



SPECIFICATIONS FOR SUBWOOFER :



Voice coil size: 2.5"

Cone: Paper

Magnet: Ferrite

Voice coil wire: CCA

Surround: Foam

RMS Power: 800W

MAX Power: 1600 W

Frame: Aluminum



THIELE & SMALL PARAMETERS:



Impedance: 2+2 Ohm

Re (Ohm): 1.6+1.6

SPL: 85 dB

Fs: 35.9 Hz

BL: 21.4

Vas: 19.7 L

Qts: 0.56

Xmax: 14 mm



DIMENSIONS:



Overall Diameter: 9.05" (230 mm)

Mounting depth: 5.19" (132.7 mm)

Cut-out dimension: 7.43" (183.0 mm)



WEIGHT:

Gross weight: 18.3 lb (8.30 kg)



FEATURES:



-1000 Watts Max Power

-Class D

-1 Channel

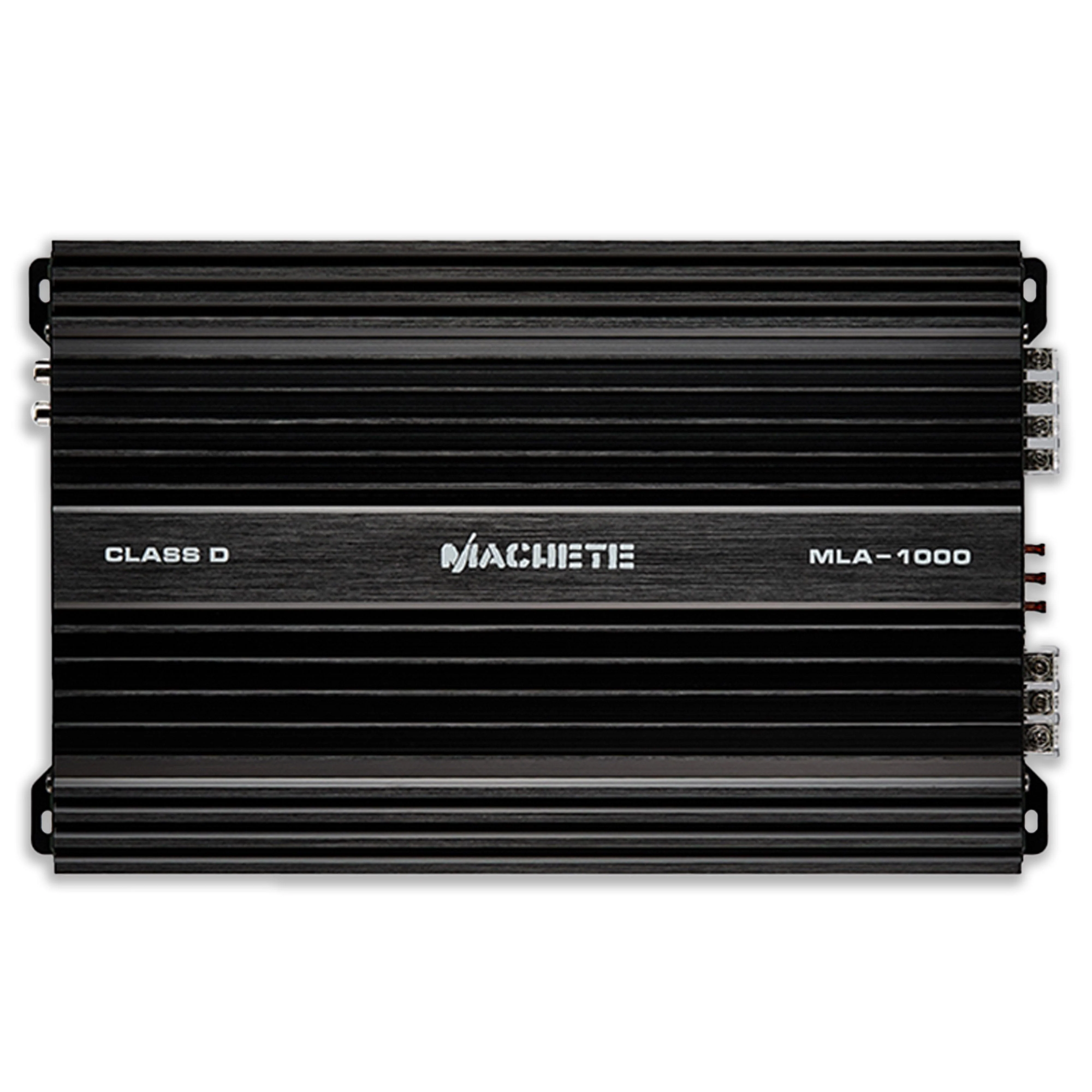

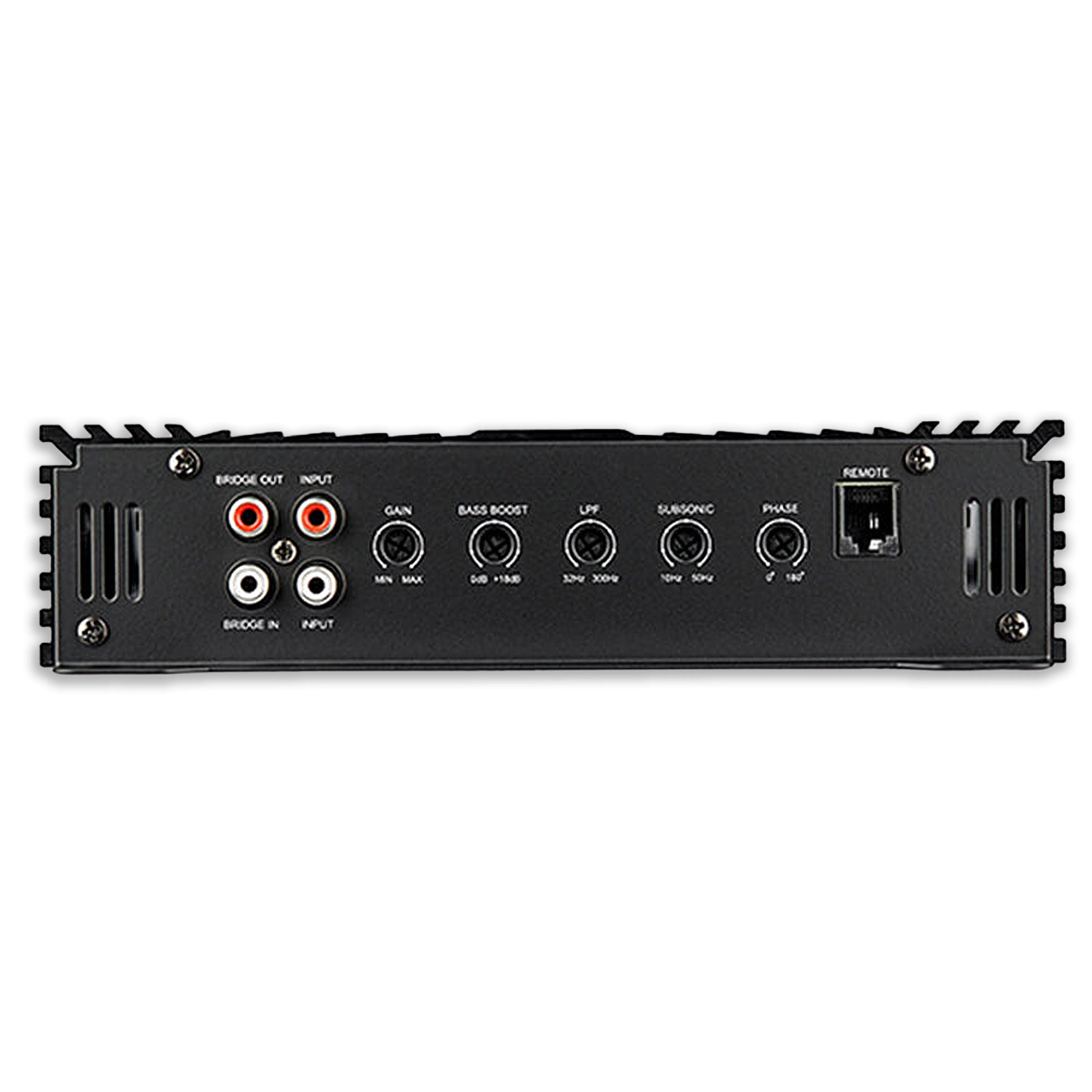

SPECIFICATIONS FOR AMPLIFIER :



Model-MLA-1000

Power RMS Watts(4 Ohm):400W x 1

Power RMS Watts (2 Ohm ): 680Wx1

Power RMS Watts (1 Ohm): 990Wx1

Crossover (db/Oct) 12

Frequency Response: 10Hz-300kHz

Low Pass Frequency: 32-300 Hz

Subsonic filter (Hz) 10-50

Bass Level Adjustment: 0/ 6/ 18

Bass Frequency Adjustment(Hz) 45

Frequency response(Hz) 10-300

Input sensitivity(V) 0.2-6

Signal to noise Ratio: Greater than 88db

Input terminal connection: 4 Ga

Output terminal connection: 8 Ga

Working voltage (V) 10-15

Minimum permissible load impedance 1 Ohm



DIMENSIONS:



Size (W x L x H): 13.79 x 8.50 x 1.96 inch



WEIGHT: 7.5lbs.
