• This listing Includes: (1) AAP-800.1D Amplifier
• (1) Bass Knob
• (1) MF-08S D2 Subwoofer

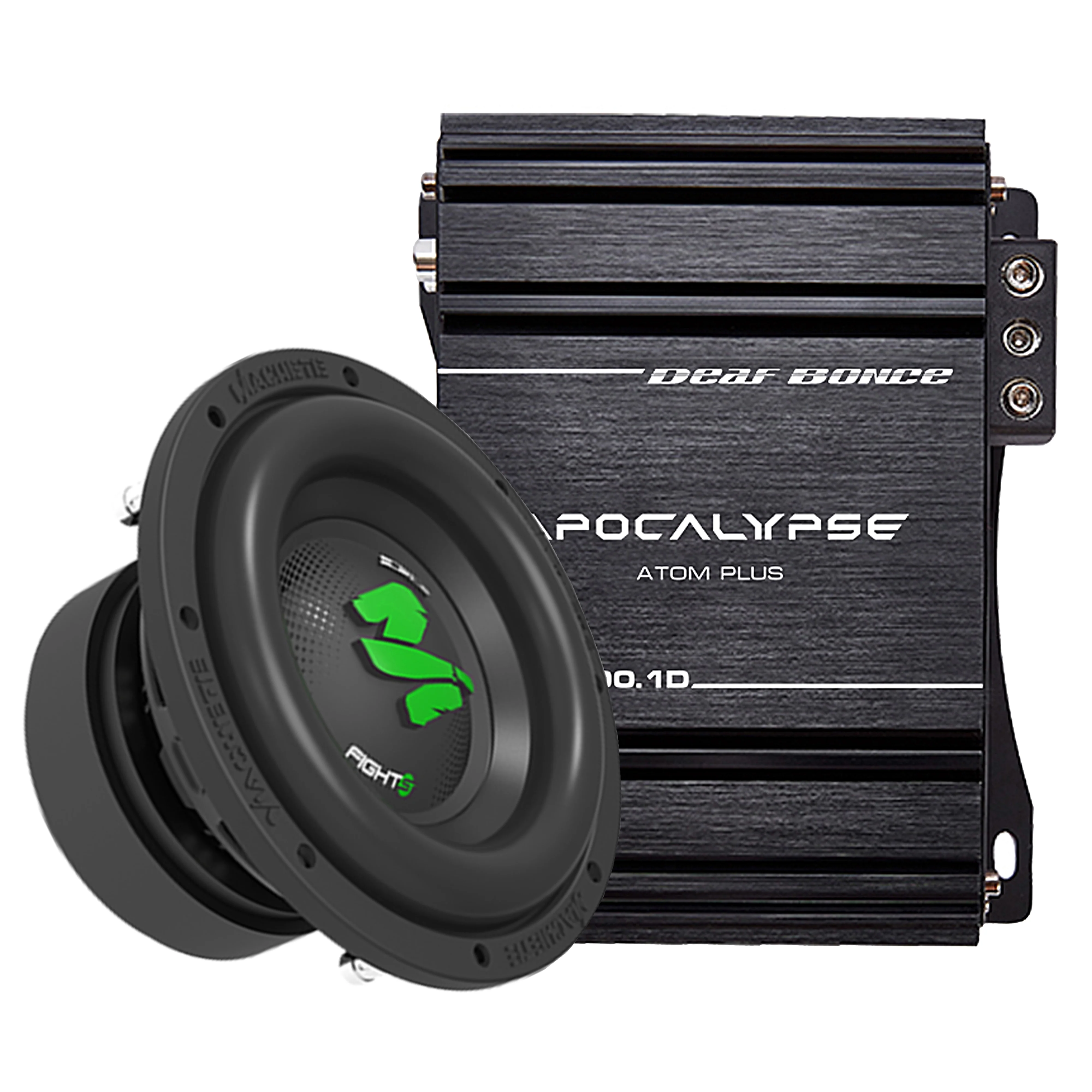

Deaf Bonce Car Audio 8" DVC 2 Ohm 1200W Subwoofer MF-08S D2 W/ Monoblock Amplifier Class D 800W AAP-800.1D Package



Deaf Bonce Apocalypse - Created for new world records, is able to release the full potential of your competitive system to the MAX level. Either you are a veteran of car audio or someone just entering the hobby, this package will take the guess work out of figuring out your build.



This listing Includes:

(1) AAP-800.1D Amplifier

(1) Bass Knob

(1) MF-08S D2 Subwoofer

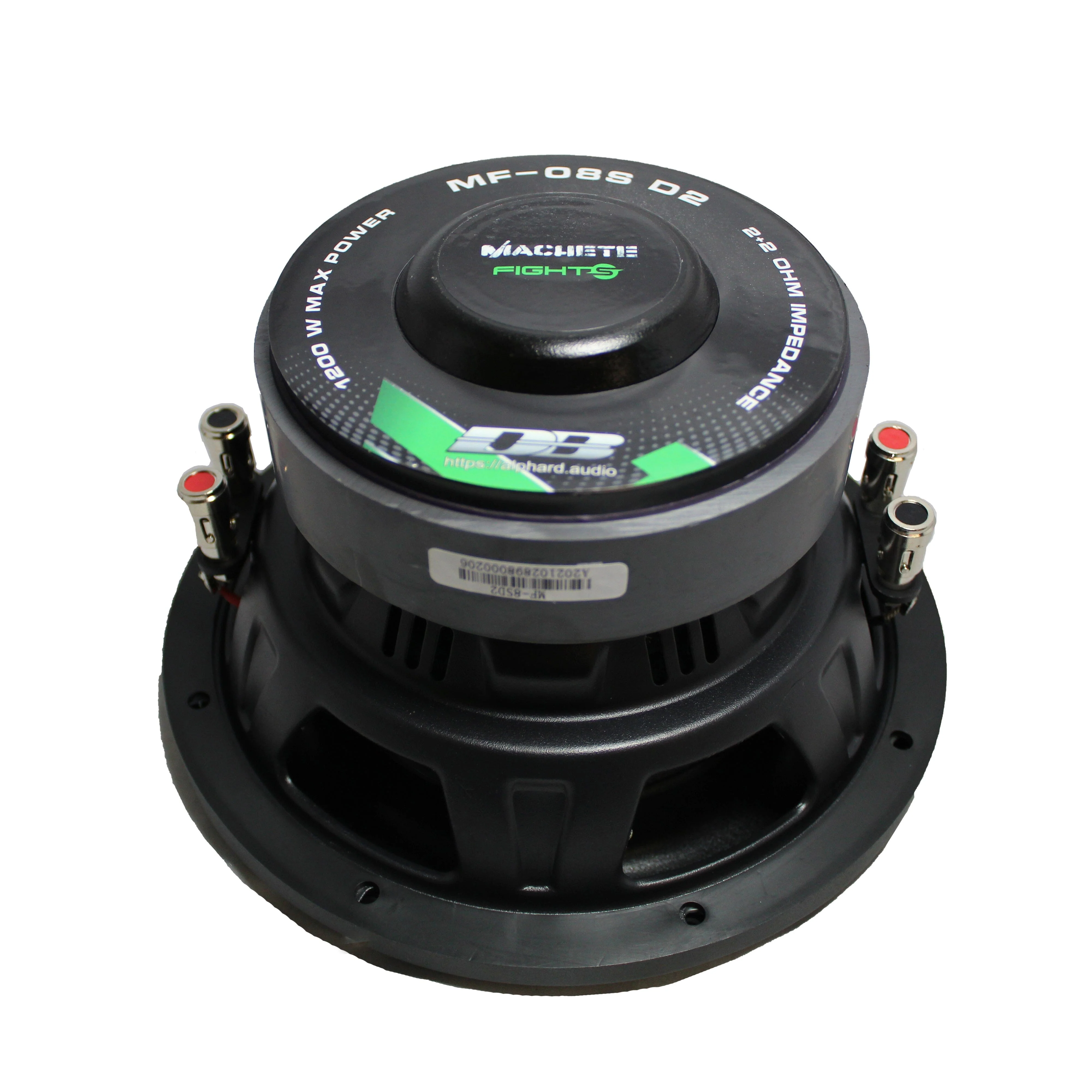

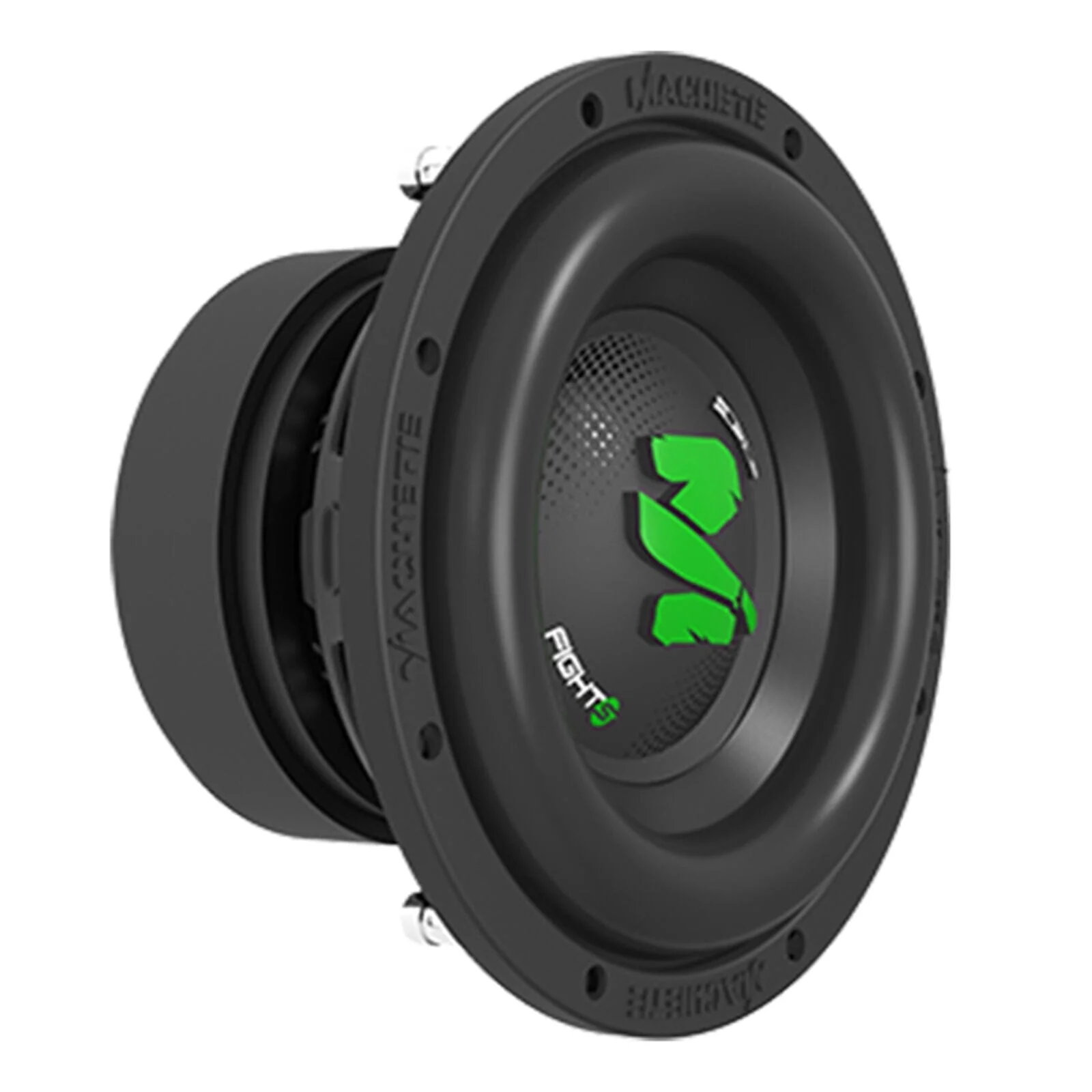

Subwoofer Specifications:

Voice coil size: 2"

Cone: Paper

Magnet: Ferrite

Voice coil wire: Copper

Surround: Foam

RMS Power: 600W

MAX Power: 1200 W

Frame: Steel



THIELE & SMALL PARAMETERS:

Impedance: 2+2 Ohm

Re (Ohm): 1.8+1.8

SPL: 84,0 dB

Fs: 48.00 Hz

BL: 15,10

Vas: 7.50 L

Qts: 0.41

Xmeh: 0.94" (24.00 mm)

Xmax: 0.47" (12.00 mm)



Subwoofer Dimensions:

Mounting depth: 4.55" (115.8 mm)

Cut-out dimension: 7.20" (183.0 mm)

Subwoofer Weight: 10.2 lb

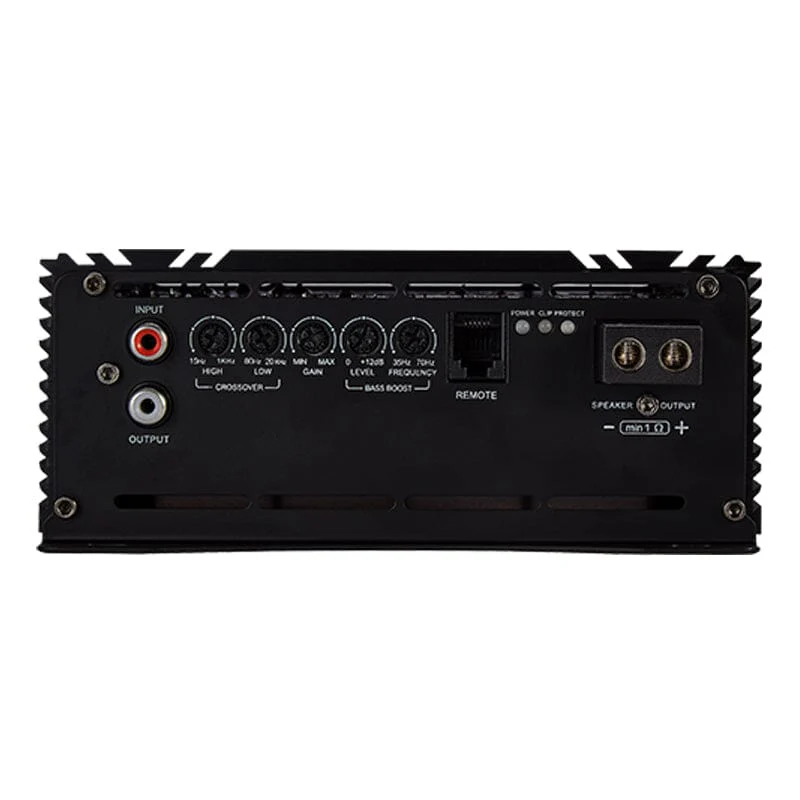

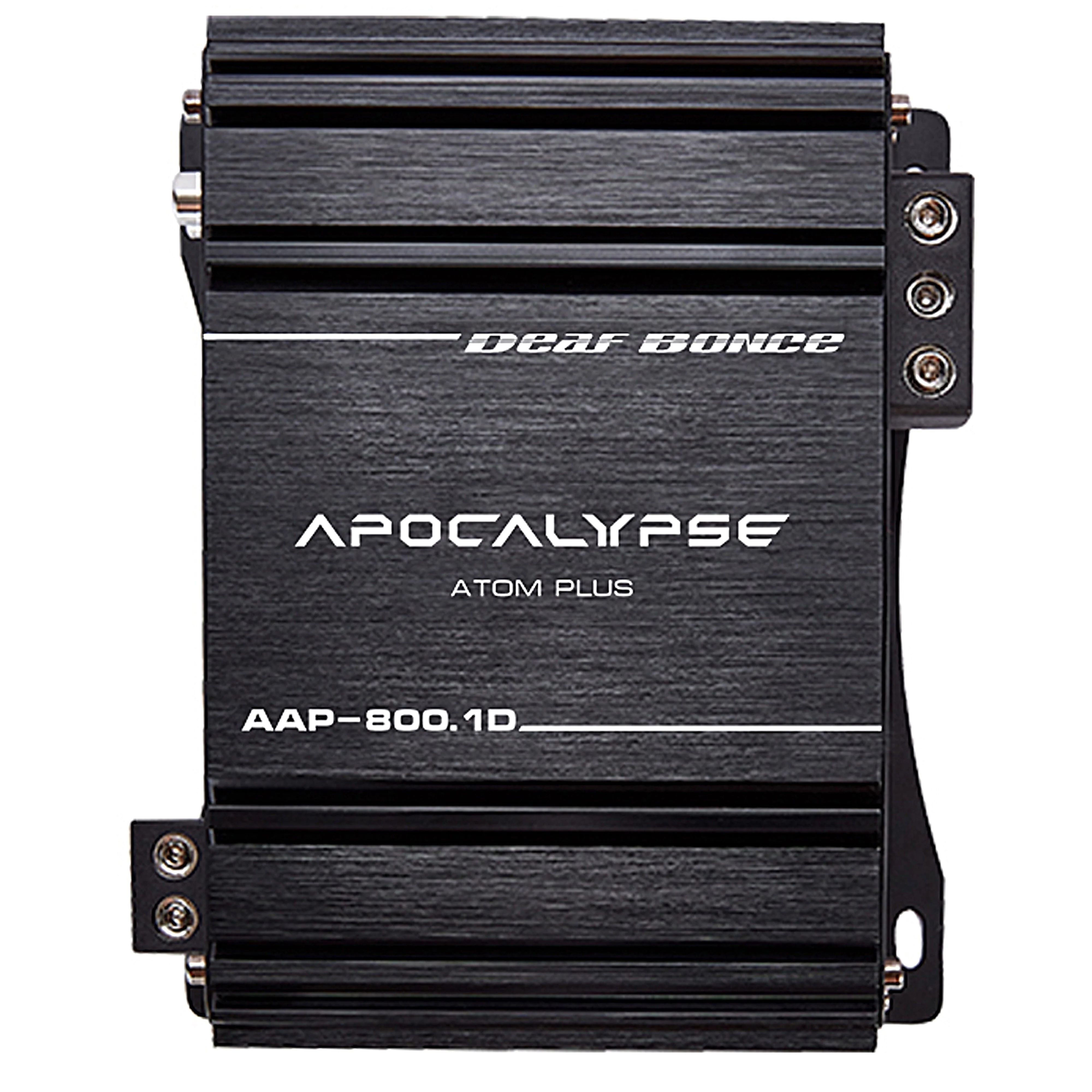

Amplifier Specifications:

Model: AAP-800.1D Atom

Class: D

Number of the channels: 1vFrequency response: 15-20000 Hz

1 Ohm RMS Power (14.4 V): 790 W

1 Ohm RMS Power (12 V): 700 W

2 Ohm RMS Power (14.4 V): 480 W

4 Ohm RMS Power (14.4 V): 270 W

Minimum permissible load on the channel: 1 Ohm

Input SPL: 0.2 - 6 V

Low pass filter: 80-20000 Hz

High pass filter: 15-1000 Hz

Crossover: 12 dB/Oct

Bass frequency adjustment: 35-70 Hz

Bass Level Adjustment: 35-70

Input terminal: 4 Ga

Output terminal: 8 Ga

Damping factor: More than or equal to 210

Working voltage: 9 - 15 V

Signal-to-noise ratio: More than or equal to 100 dB

Input RCA: 1

Output RCA: 1

Speaker Output: 1



Amplifier Dimensions: 5.3"x6.3" x2.5"

Amplifier Weight: 3.60 lbs
