• Lithium Titanate (LTO) Chemistry: Offers superior cycle life and fast charging capabilities
• Plug & Play Design: Easy installation with no additional setup required
• Balancer Included: Ensures optimal cell performance and maximizes battery lifespan
• Ideal for Various Applications: Perfect for automotive, solar, and backup power systems
• CE-Certified: Ensures quality and safety for peace of mind

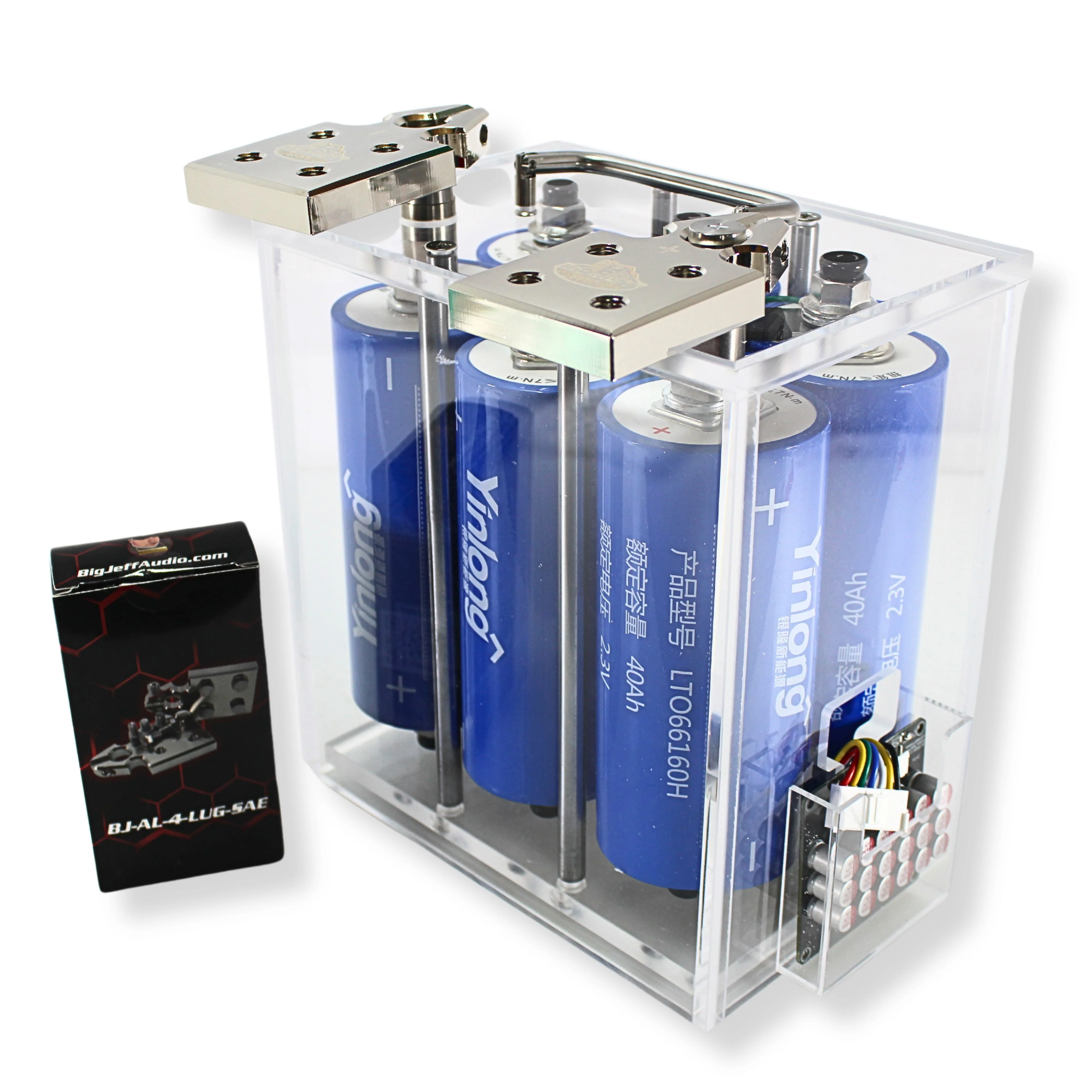

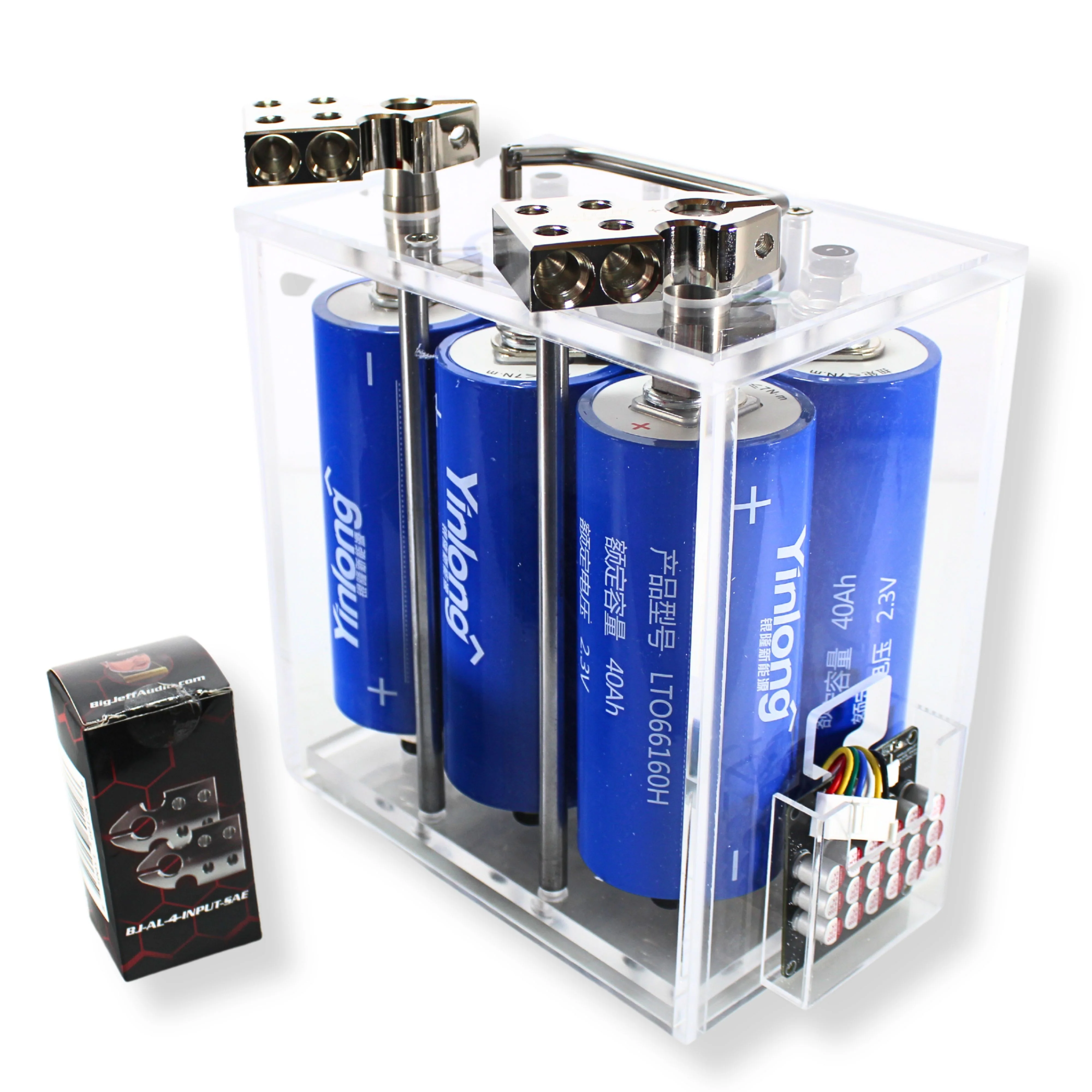

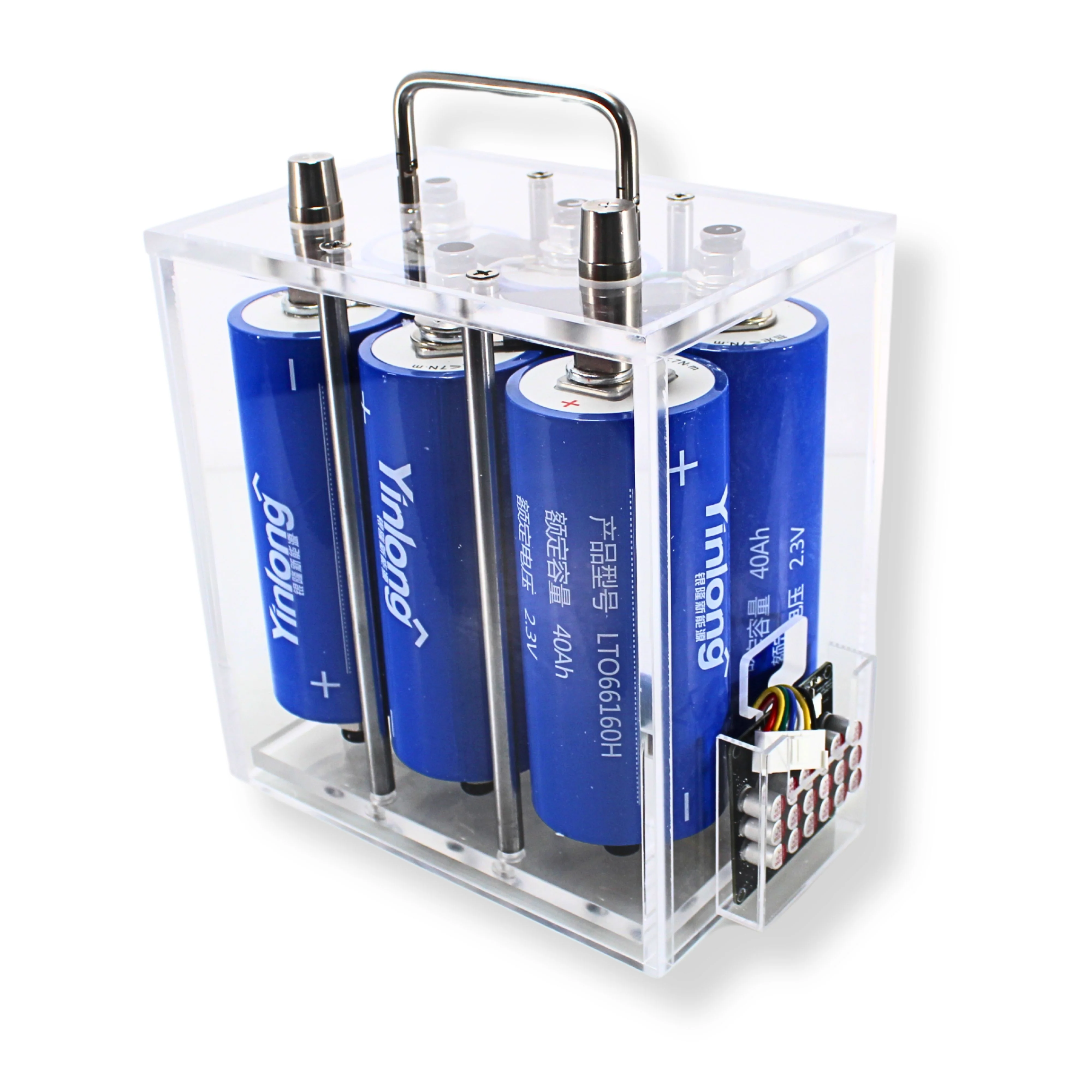

DIY Plug & Play Yinlong 40AH LTO 12V 6-Cell Bank w/ Balancer & Top Lug Posts

This Listing Includes:

• (1) Plug & Play Yinlong 40AH LTO Lithium Titanate 12V 6-Cell Bank


• (1) Balancer

Add on options

• (1) pair of 4 Lug Style SAE Aluminum Top Post Battery Terminals

or

• (1) pair of 4 input  Style SAE Aluminum Top Post Battery Terminals

Upgrade your energy storage with this Yinlong 40AH LTO Lithium Titanate 12V 6-Cell Bank, designed for high performance and long-lasting durability. This plug-and-play battery bank is ideal for various applications, including Car Audio, solar, and backup power systems. The included balancer ensures even charge distribution across all cells, maximizing efficiency and lifespan. as well as with a pair of Big Jeff 4 hole Lug style Terminals (BJ-AL-4-LUG-SAE.)

Features:

• Lithium Titanate (LTO) chemistry for superior cycle life and fast charging


• Plug-and-play design for easy installation and use


• Built-in balancer for optimal cell performance and longevity


• Ideal for Car Audio, solar, and backup power applications


• CE-certified for quality and safety assurance


• Folding carry handle


• Encased in sealed plexiglass

Specifications:

Plug & Play Yinlong 40AH LTO Lithium Titanate 12v 6 Cell Bank w/ Balancer:

• Battery Type: Lithium Titanate (LTO)


• Nominal Capacity: 40AH


• Certification: CE


• Top Post Terminals


• Battery type: Lithium titanium


• Rated voltage: 13.8 V


• Charging voltage: 17.4 V


• Single battery: 2.3v


• Battery capacity: 40ah


• Battery board: 6s Balance Board


• Cycle life: 25000 cycles (80% dod)


• Output voltage range: 9-17.4 V


• Discharge shuts off voltage: 9 +/-1v


• Charging voltage: 17.4 V


• Maximum continuous output current: 400a (10c)


• Maximum instantaneous output current: 800a (20c)


• Working temperature: -50 c, 65 c


• Applicable power: 0-5500w

BJ-AL-4-LUG-SAE:

• Material: Polished Aluminum


• Mounting Hole: 3/8"


• Lugs: 4 Lug Style


• Terminal Type: Bolt Down


• Fits: SAE Top Post Batteries

BJ-AL-4-INPUT-SAE

• Gauge: 1/0


• Terminal: Screw Terminal


• Material: Aluminum


• Specification Met: SAE

Dimensions Per Bank:

• Length: 10.63 inches


• Width: 9.21 inches


• Height: 6.50 inches
