• Slim Mount Design: Shallow 2.3" mounting depth fits tight spaces where standard 10" drivers can’t.
• High Power Handling: Delivers 250W RMS and 500W MAX at 4-Ohm for serious midrange output.
• Neodymium Magnet: Lightweight motor provides strong magnetic force with reduced weight.
• Pro-Grade Clarity: CNC aluminum bullet improves dispersion while reducing distortion.
• Efficient & Loud: 97dB sensitivity ensures massive output with minimal power.

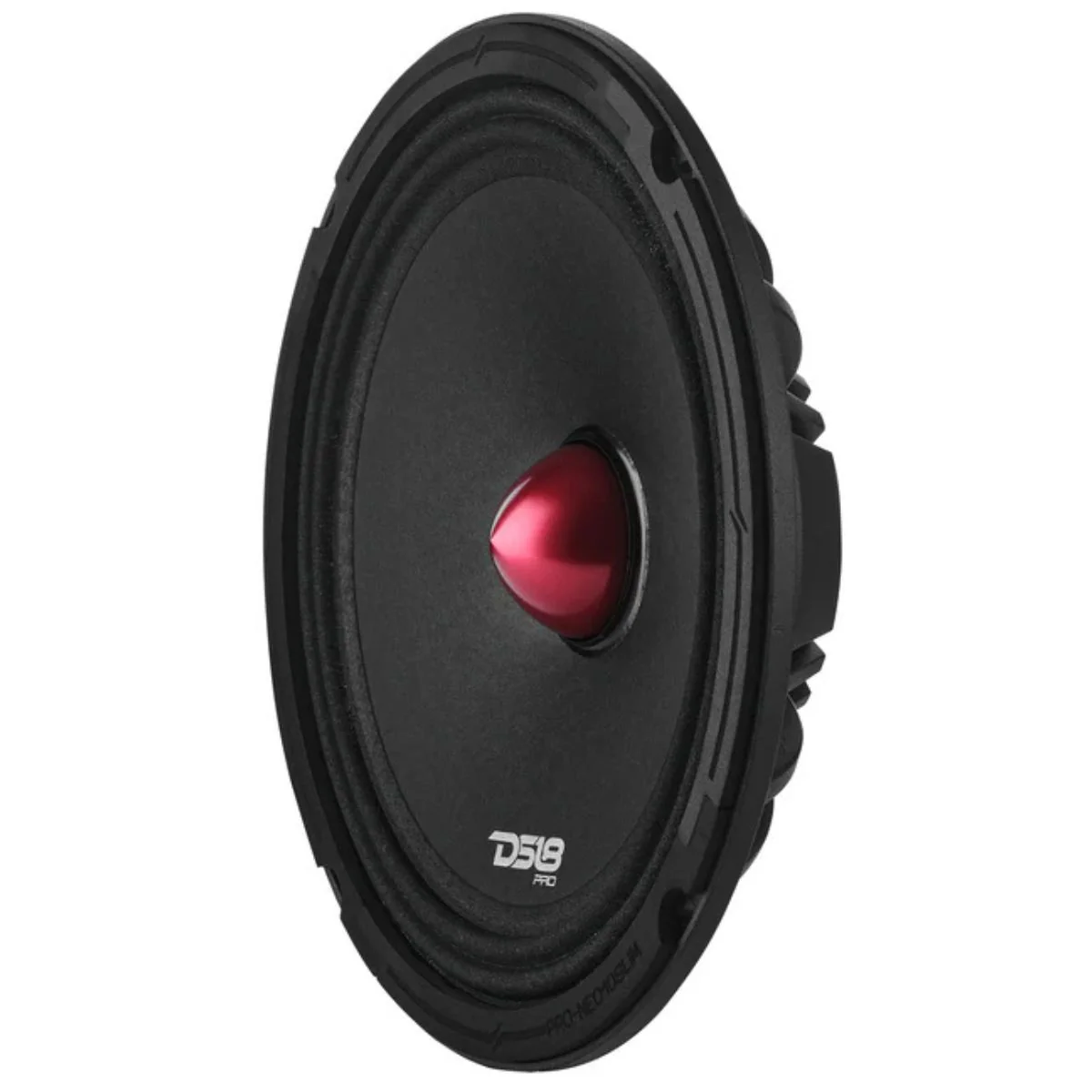

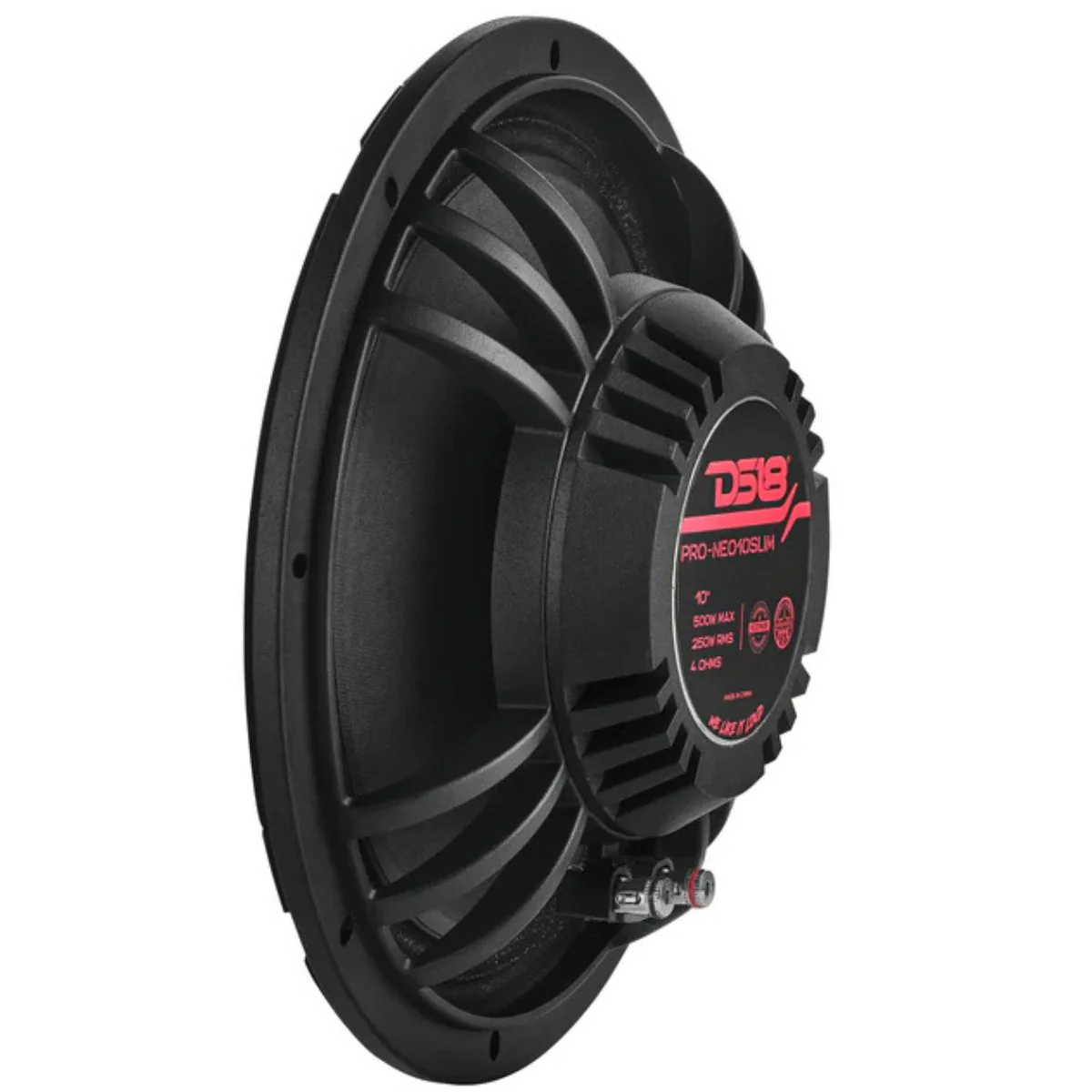

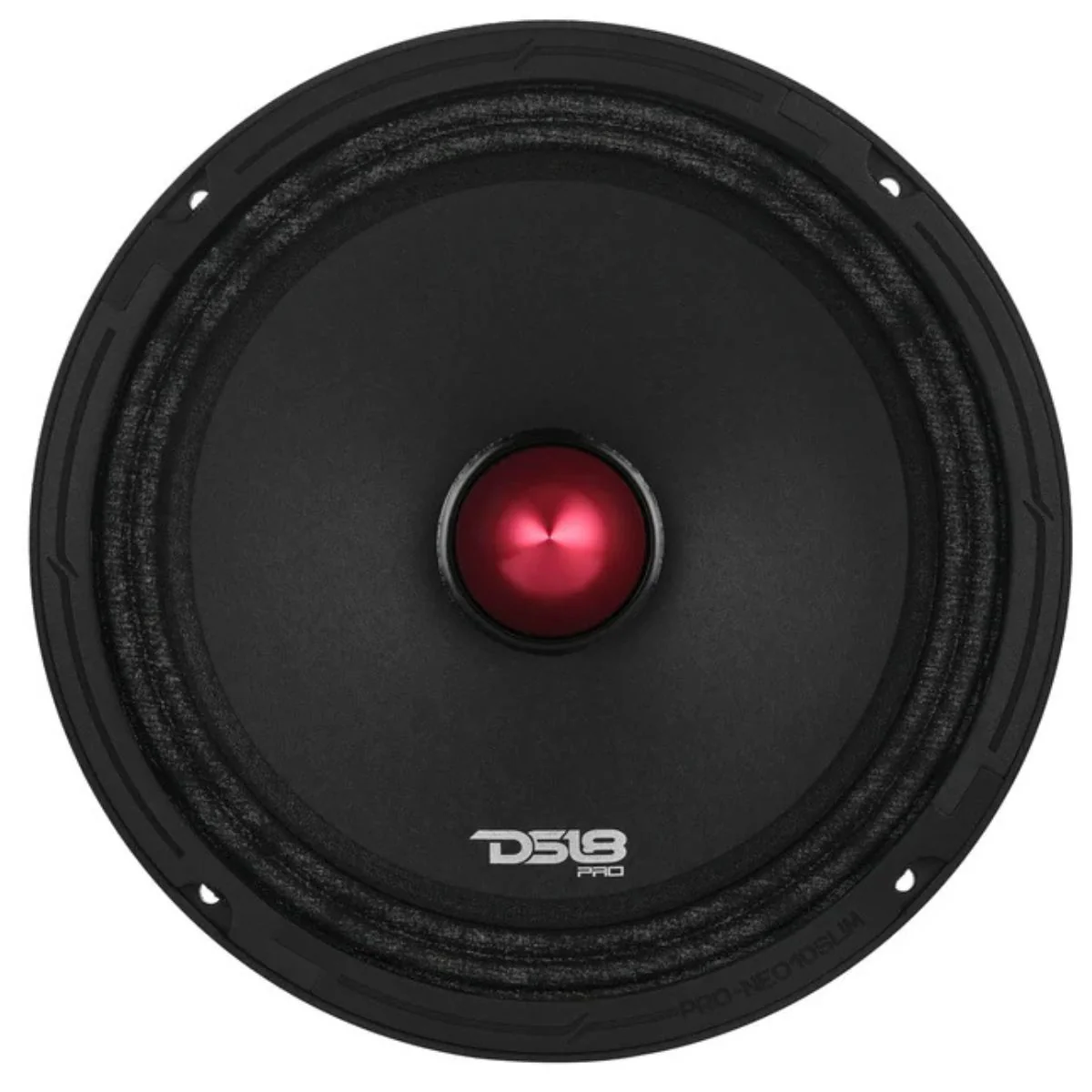

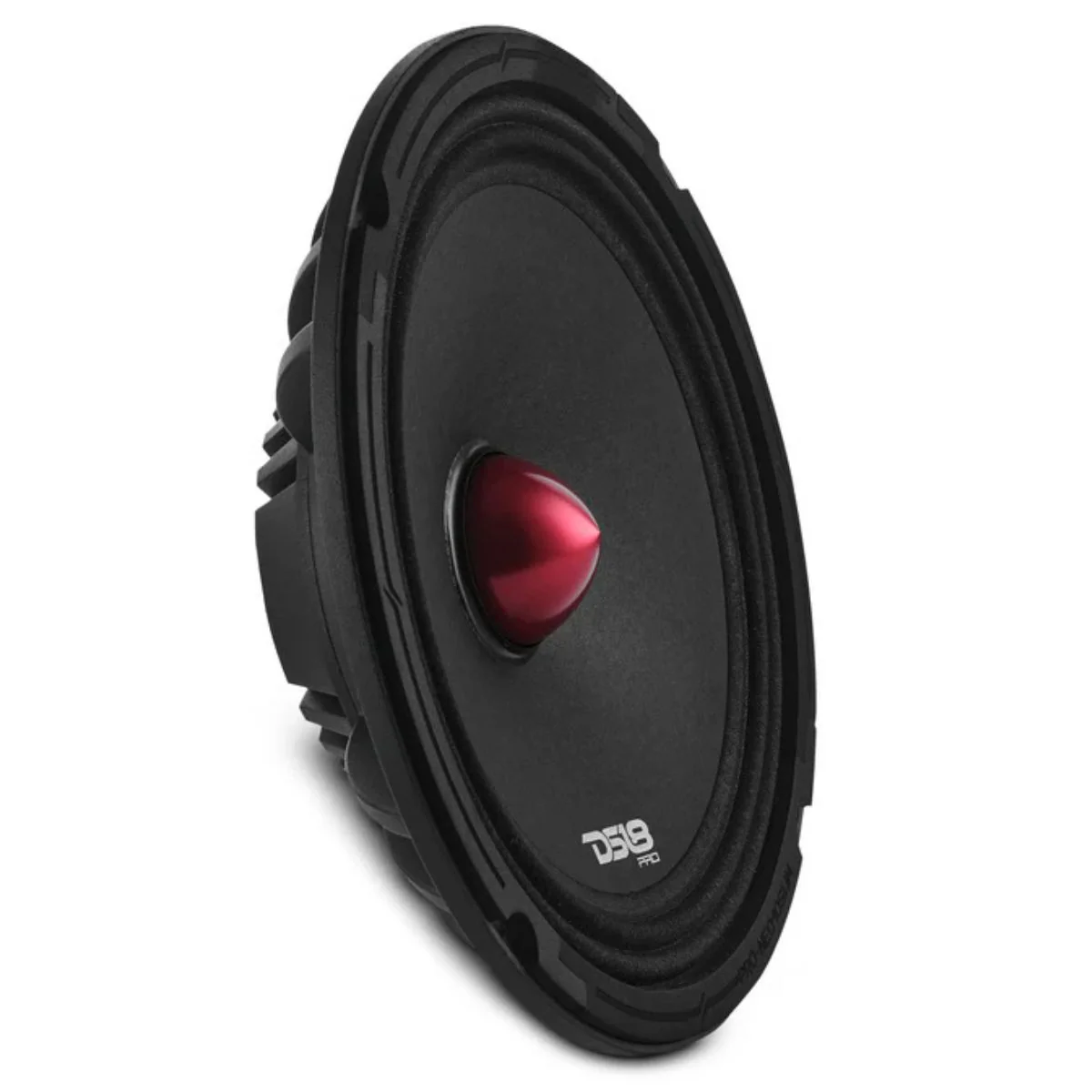

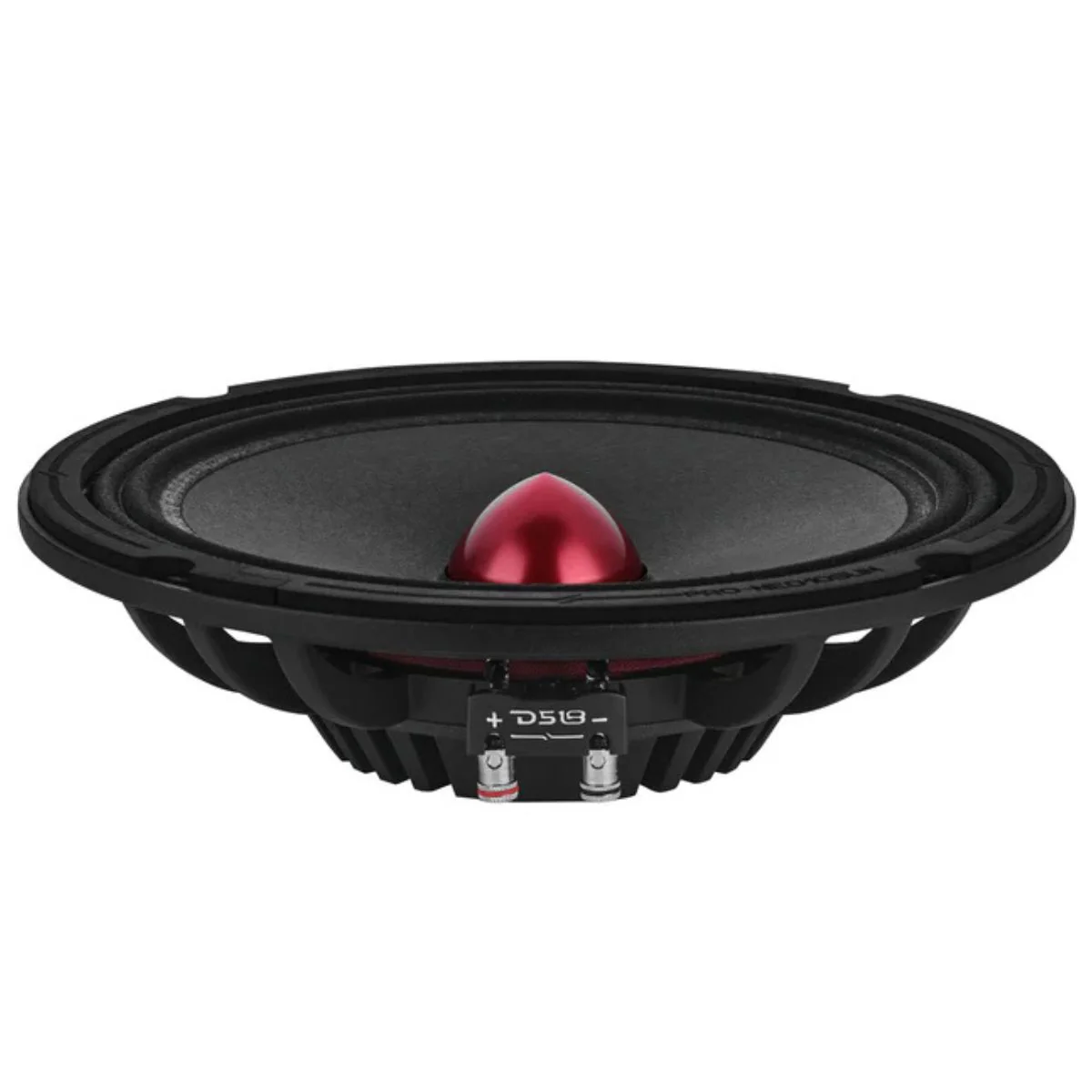

DS18 10" 250W RMS 4-Ohm Slim Neodymium Mid-Range Loudspeaker with Bullet

This Listing Includes:

• (1) DS18 PRO-NEO10SLIM 10" Slim Neodymium Mid-Range Loudspeaker with Bullet

The DS18 PRO-NEO10SLIM is a shallow-mount 10" mid-range loudspeaker built for serious output and pro-level clarity in tight spaces. Despite its compact 2.3" mounting depth, this slim driver handles 250W RMS (500W MAX) with ease, powered by a lightweight yet strong neodymium magnet. A CNC-machined aluminum bullet enhances dispersion and projection, while the paper cone and cloth surround deliver tight, accurate midrange response. At 97dB sensitivity, this speaker gets loud with minimal power, making it ideal for SPL builds or pro audio systems that demand big sound in a slim package.

Key Features:

• 10" slim mid-range loudspeaker with CNC aluminum bullet


• 250W RMS / 500W MAX at 4-Ohm


• Shallow 2.3" mounting depth for tight installs


• Lightweight neodymium magnet for high power-to-weight performance


• 97dB sensitivity ensures loud, efficient output

Specifications:

• Nominal Diameter: 10" / 254mm


• Impedance: 4 Ohms


• RMS Power: 250W


• MAX Power: 500W


• Sensitivity: 97dB (1w/1m)


• Frequency Response: 100Hz - 3.7KHz


• Recommended HI Pass Crossover: 120Hz


• Voice Coil Diameter: 2" / 50.8mm (Kapton, CCAW windings)


• Cone: Paper with cloth surround


• Bullet: CNC aluminum


• Basket: Aluminum, matte black finish


• Magnet: Neodymium, 7.9 Oz

Thiele & Small Parameters

• Equivalent Volume (Vas): 21.86L / 0.77ft


• Excursion (Xmax): 1.45mm (one way)


• Free Air Resonance (Fs): 80Hz


• BL Factor: 8.93


• DC Resistance (Re): 3.3 Ohms


• Cone Area (Sd): 346.36cm

Measurements

• Overall Diameter: 10.3" / 261.5mm


• Overall Depth: 2.75" / 70mm


• Baffle Cutout Diameter: 9.25" / 235mm


• Mounting Depth: 2.3" / 59mm


• Motor Diameter: 4.13" / 105mm

Perfect for SPL competitors and pro-audio setups that need maximum loudness and clarity in a compact footprint.
