• Compact design allowing endless options for placement in areas with minimal space
• Specially designed 10 inch subwoofer that maximizes bass response in spaces that are not typically designed for subwoofers.
• This unit fits behind most conventional car seating, rear cubby, or small sized storage compartments

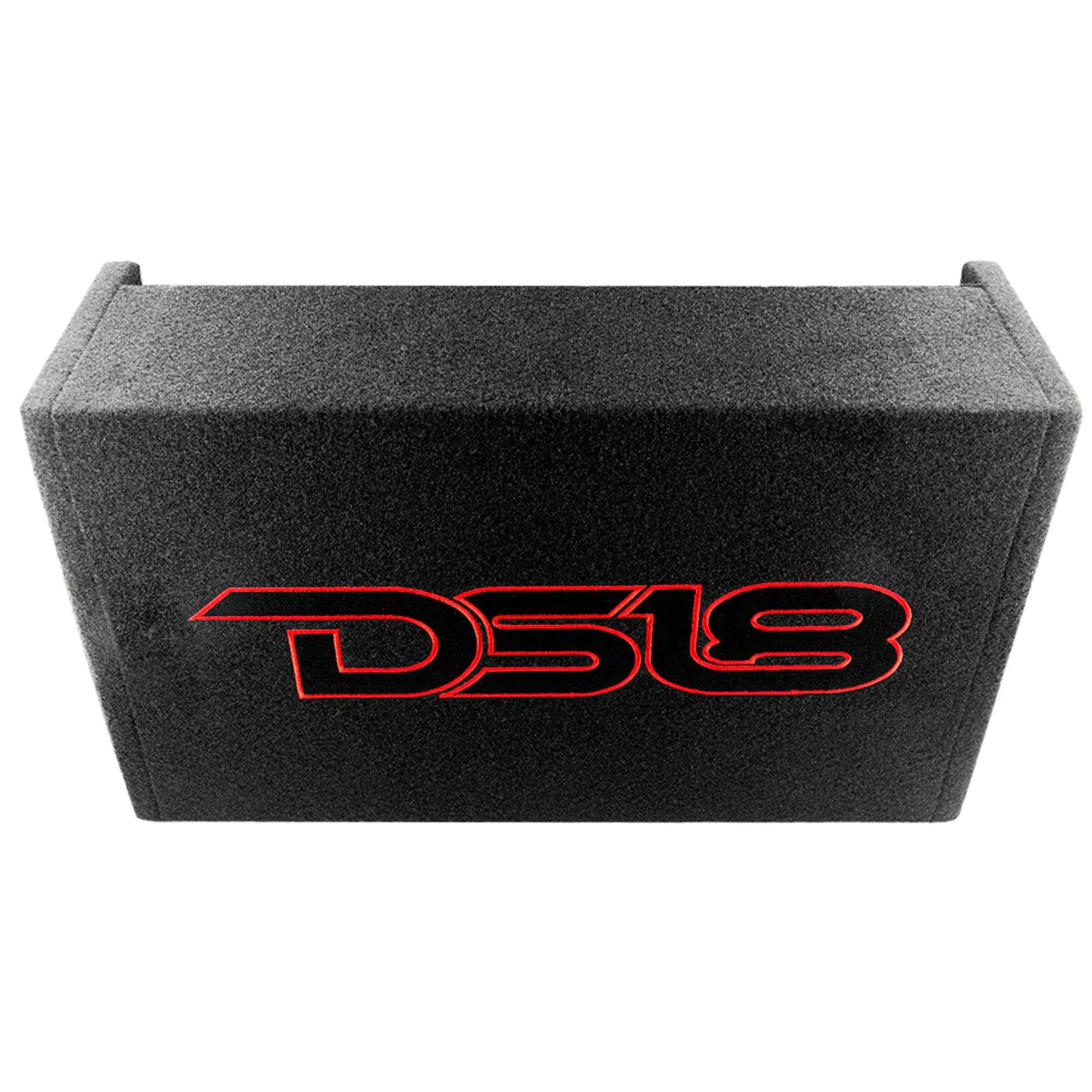

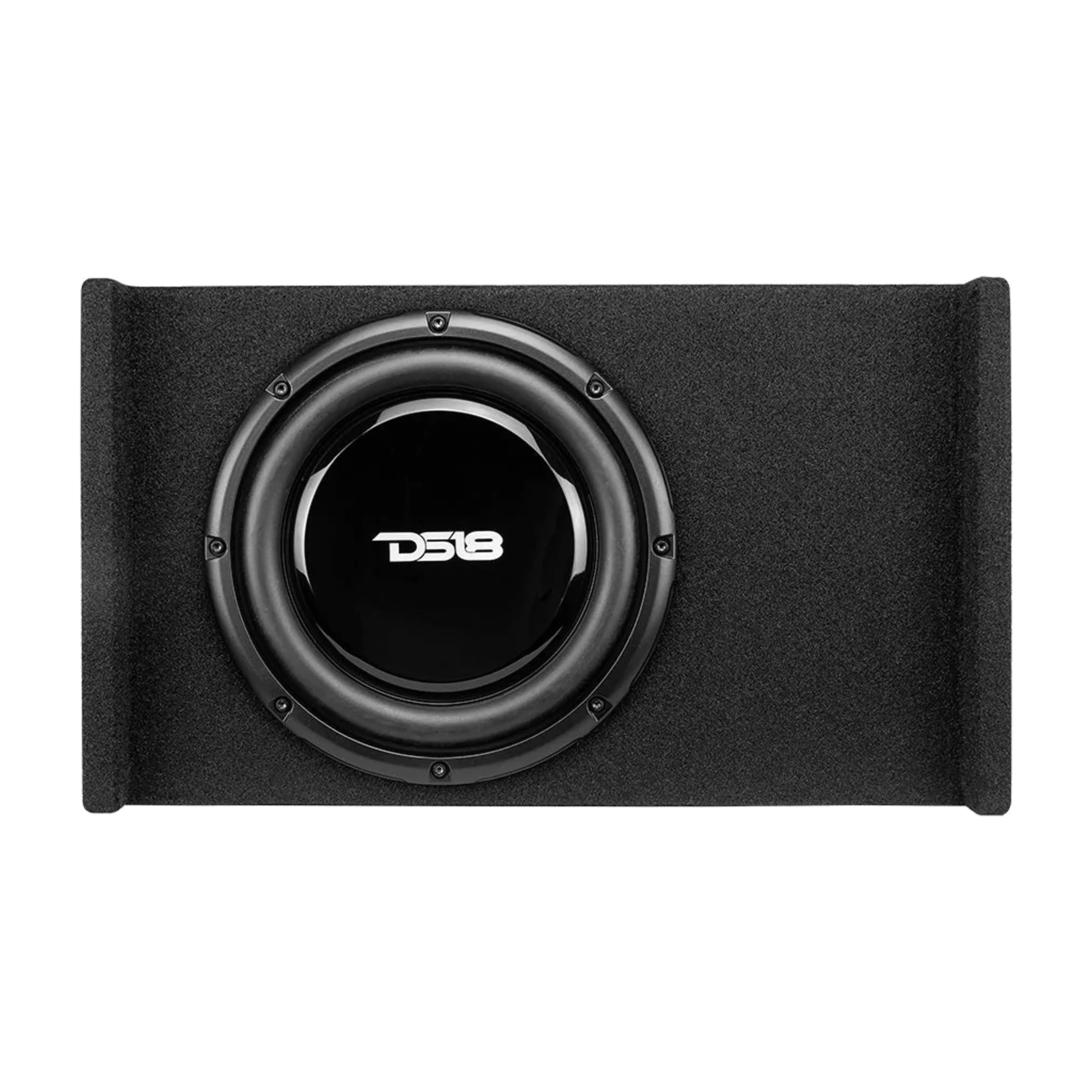

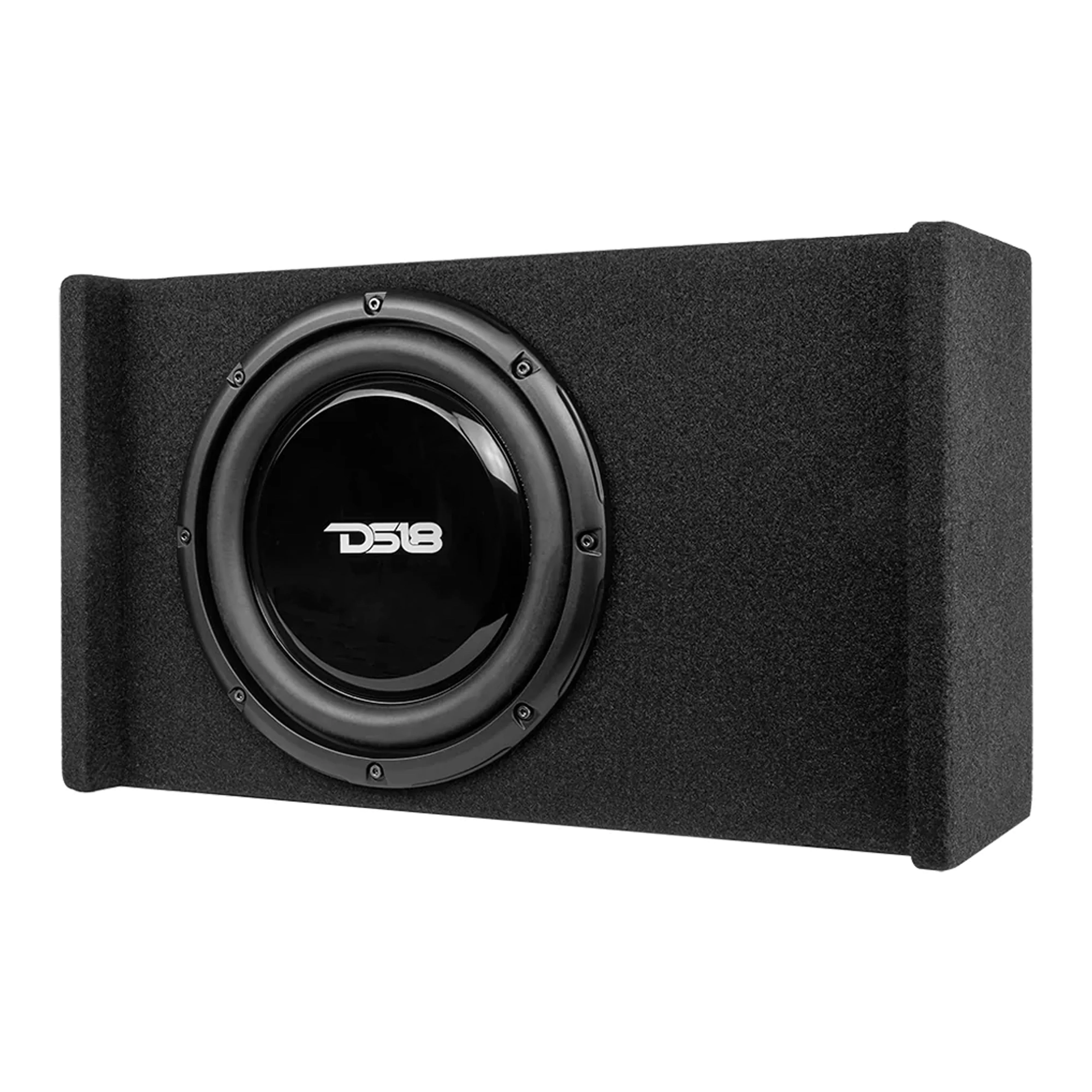

DS18 600W Shallow Subwoofer Enclosure  4ohms Single Voice Coil DS-EN-DF10

The EN-DF10 utilizes a 10 inch subwoofer in a compact enclosure

(sized at 20” x 11” x 6”) to help extend and elaborate the bass for your music!

This subwoofer requires an external amp to feed it the 300w RMS 600w Max it needs at 4 ohms. This unit fits behind most conventional car seating, rear cubby, or small sized storage compartments so you can have clear and vibrant bass without sacrificing massive amounts of space.

This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.

General Specifications:

Speaker Type & Size:                   10" Passive Subwoofer

Total Impedance:                           4 ohms

Total RMS Power Handling:         300 watts

Total MAX Power Handling:        600 watts

Sensitivity (1w/1m)                       86dB

Frequency Response:                    25-250Hz

Recommended Lo Pass Crossover:    80Hz

Speaker Specifications:

Voice Coil Diameter:          1.52"/38.6mm

Voice Coil Former Material:  Aluminum

Winding Material:  Copper

Cone Material:  Injection PP Cone

Surround Material:  Rubber

Basket Material:  Steel

Basket Color:   Wrinkle Black

Magnet Material:   Ferrite

Magnet Weight:  40 oz

Box Pecifications

Internal Volume:   12L/0.42ft3

Load Configuation:   Single 4 ohm

Box Type:   10" Down-Firing Sealed

Box Material:   5/8"/ 15mm MDF

Finish Material:   Black Carpet

-3dB Dropping Point:   39Hz

Measurements:

Overall Height:     11.6"/295mm

Overall Width:       20.27"/515mm

Overall Depth:       6.3"/160mm

Weight:
