• 2.5" aluminum voice coil former with copper winding for high power handling
• Non-pressed paper cone and foam surround for deep bass response
• Basket: Steel with black matte finish | Dust Cap: PPI material
• Sensitivity: 81 dB | Frequency Response: 27Hz – 200Hz

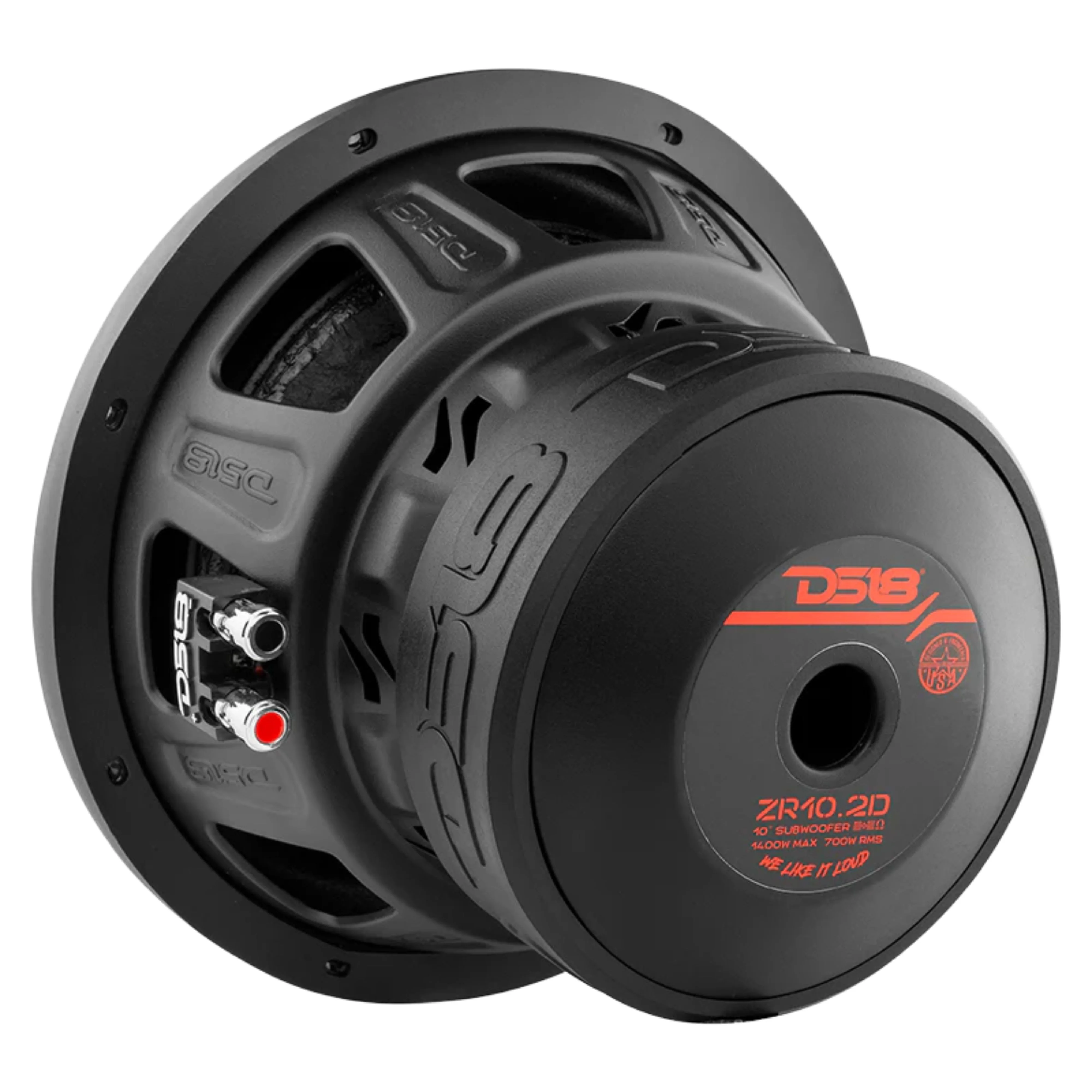

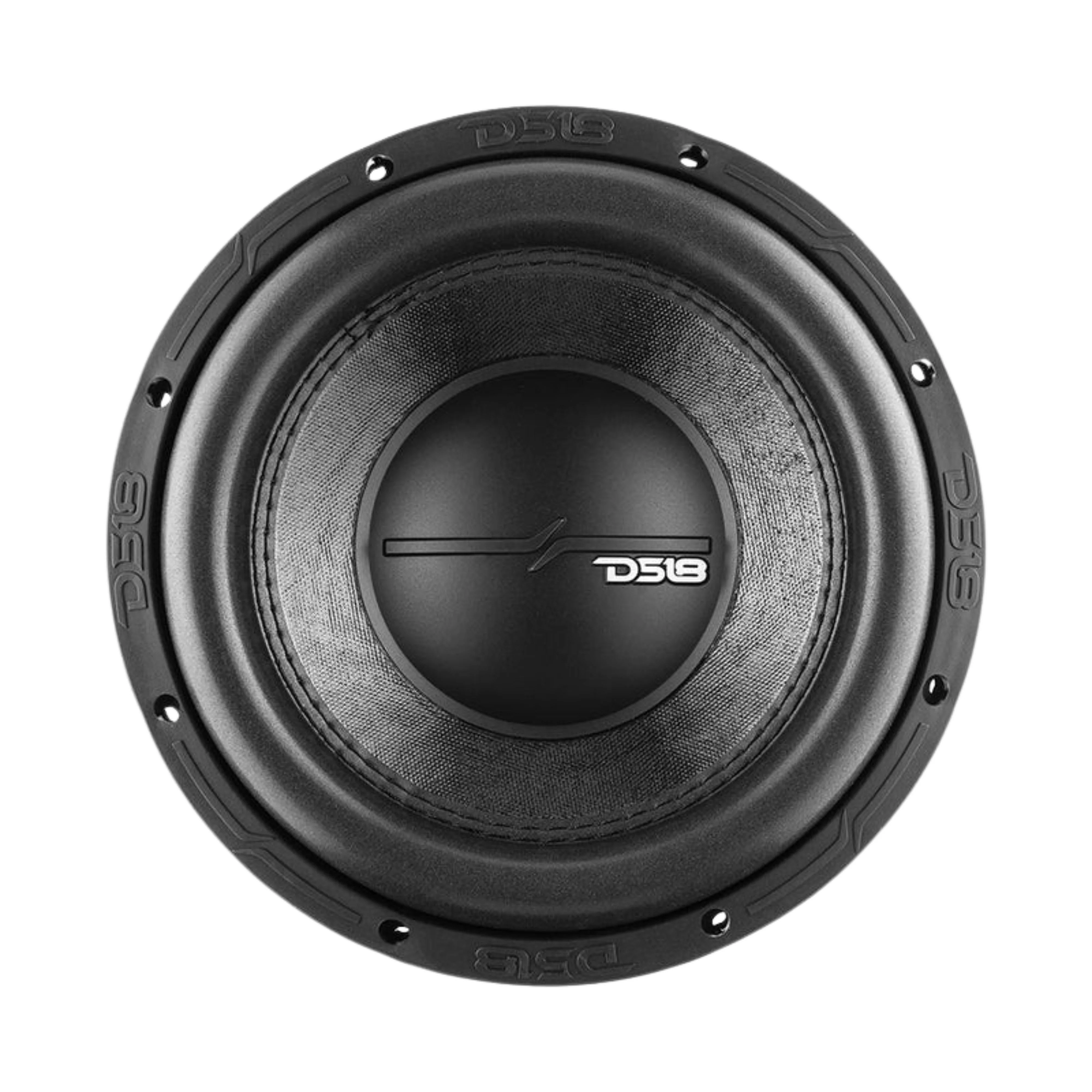

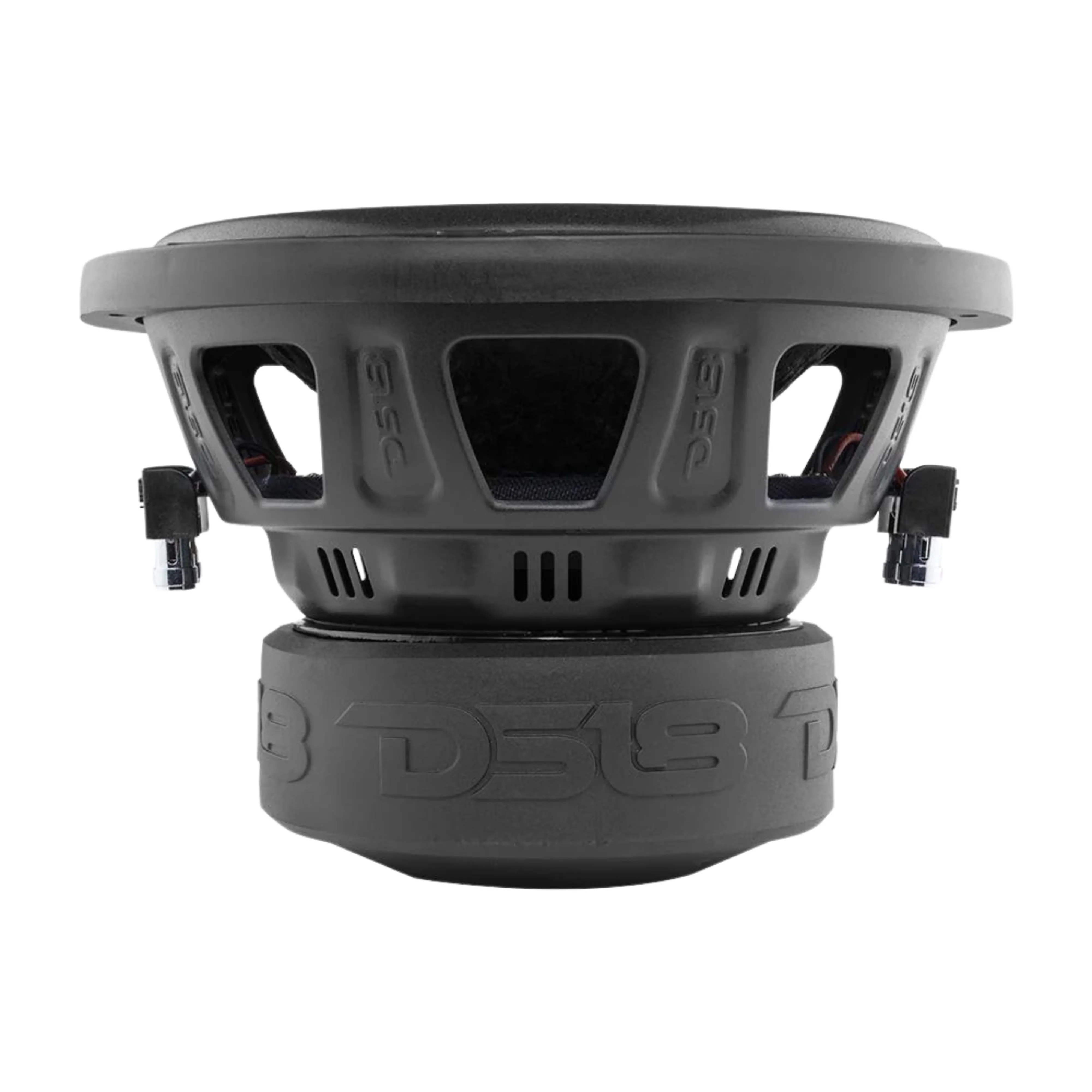

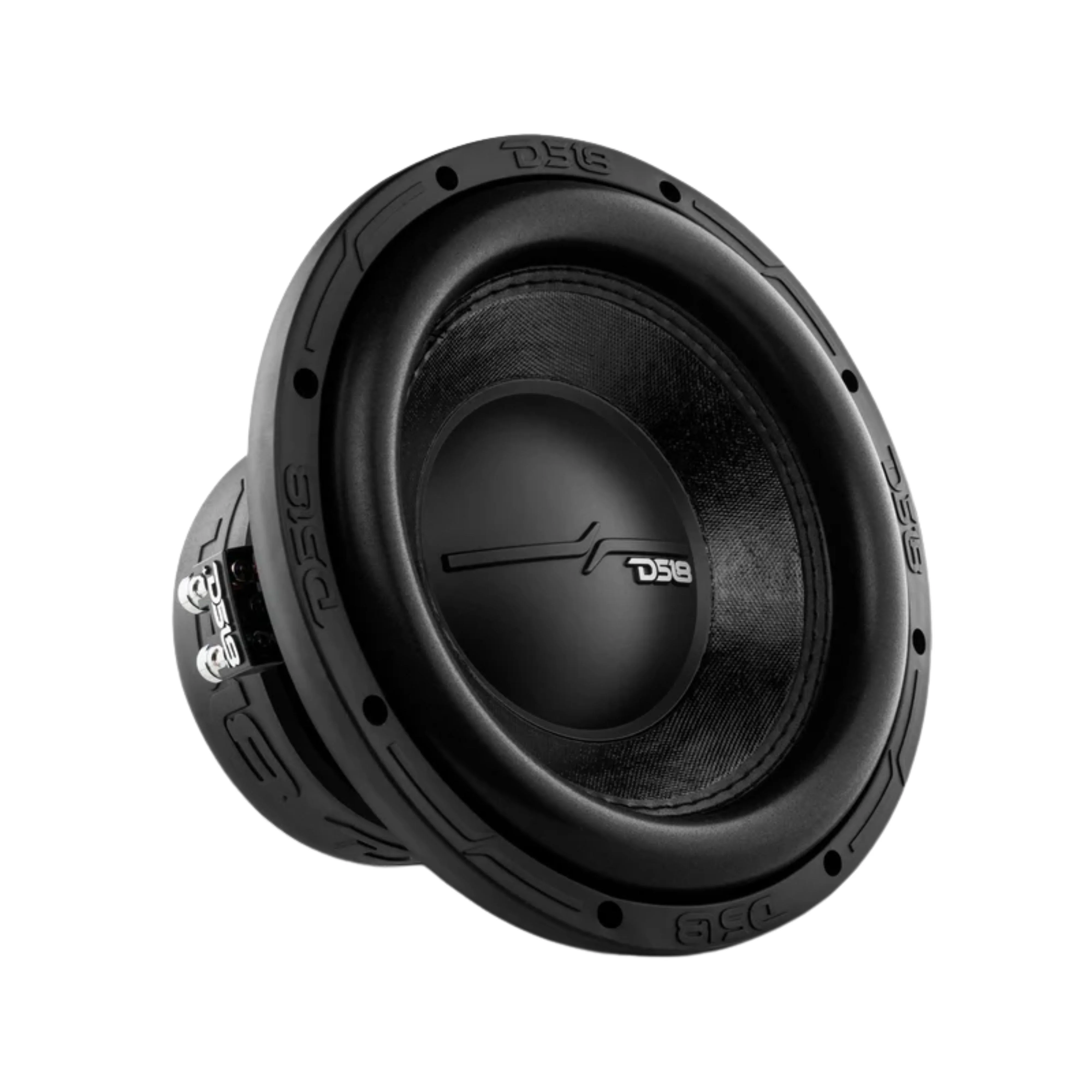

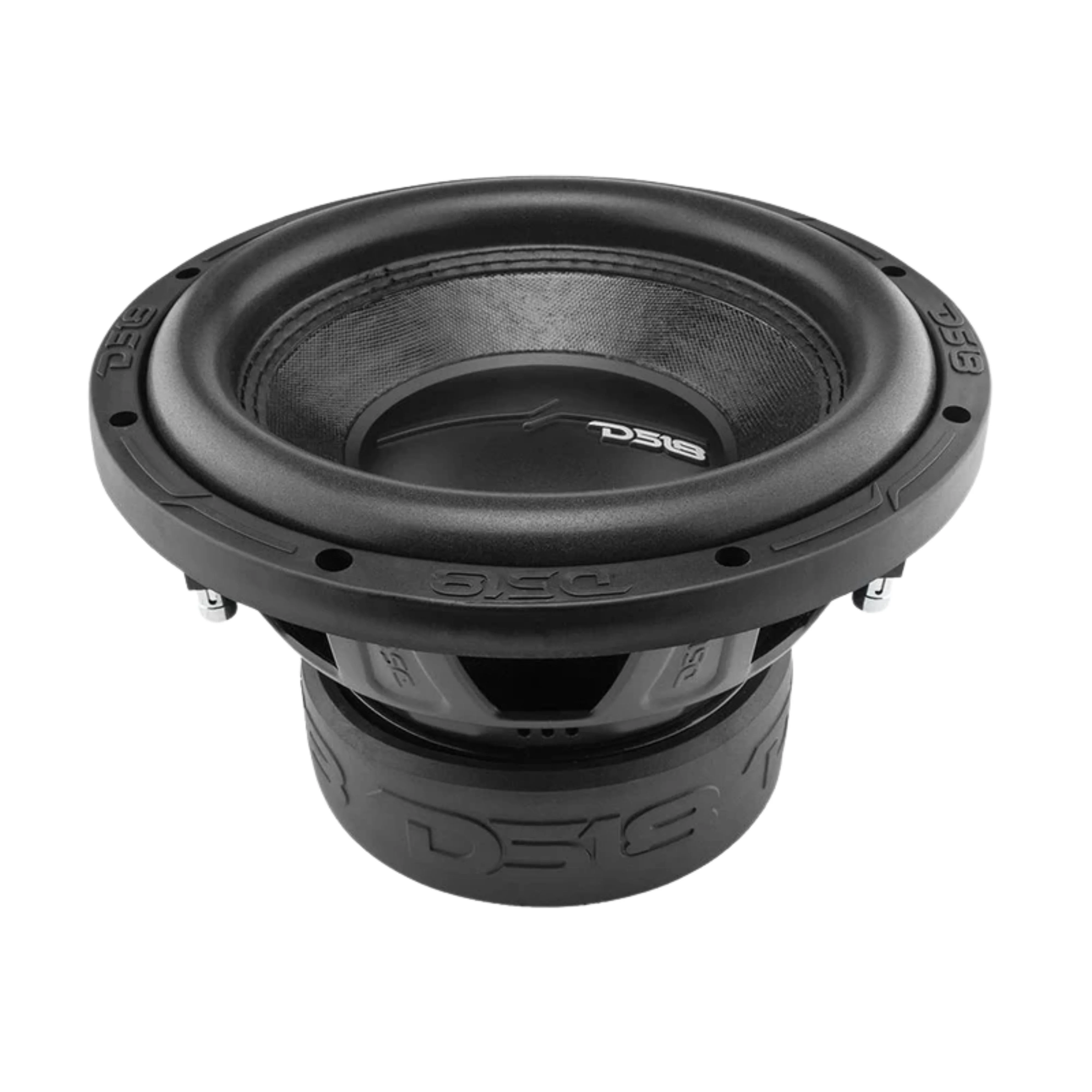

DS18 10" 700W RMS 2.5 Dual 2 Ohm Voice Coil Subwoofer ZR10.2D

This Listing Includes

• (1) 10" 700W RMS 2.5 Dual 2 Ohm Voice Coil Subwoofer

Description:

The DS18 ZR10.2D is built for powerful bass in a compact 10" design. Delivering 700W RMS and 1400W peak power, this subwoofer features a 2.5" dual voice coil, ferrite magnet, and non-pressed paper cone. Ideal for sealed or ported enclosures, it provides deep bass response and durability for demanding audio systems.

Key Features:

• (1) 10" Subwoofer


• 700W RMS / 1400W MAX Power


• 2.5" Dual 2-Ohm Voice Coils


• Ferrite Magnet (100 Oz)


• Non-Pressed Paper Cone & Foam Surround


• Sensitivity: 81dB


• Frequency Response: 27Hz - 200Hz


• Recommended Low-Pass Crossover: 100Hz

Motor & Build:

• Voice Coil Former: Aluminum


• Winding Material: Copper


• Basket: Steel, Black Matte Finish


• Dust Cap: PPI Material


• Displacement Volume: 0.05 ft cubed

Thiele & Small Parameters:

• Fs: 34 Hz


• Vas: 8.26 L


• Qms: 4.3


• Qes: 0.8


• Qts: 0.67


• Mms: 252g


• Cms: 53.37 m/N


• BL: 8.78 Tm


• Sd: 333.29 cm Sq.


• Re: 1.8 + 1.8 Ohm

Measuremnts:

• Overall Diameter: 10.31" (262mm)


• Mounting Depth: 6" (152.3mm)


• Cutout Diameter: 9" (229mm)


• Motor Diameter: 6.1" (155mm)


• Gross Weight: 17.5 lbs


• Unit Dimensions (W x L x H): 11.5" x 11.5" x 8.25"
