• Compact design allowing endless options for placement in areas with minimal space
• Specially designed 10 inch subwoofer that maximizes bass response in spaces that are not typically designed for subwoofers.
• 250W RMS 500W MAX output engineered to power this compact subwoofer and enclosure to optimal production.
• Built in high power amplifier with remote control functionality.

DS18 10" Amplified 500 Watt Down Firing Shallow Subwoofer Enclosure Box 2Ohm

Designed to add magnificent bass to vehicles with minimal amounts of room for larger sized subs and boxes.

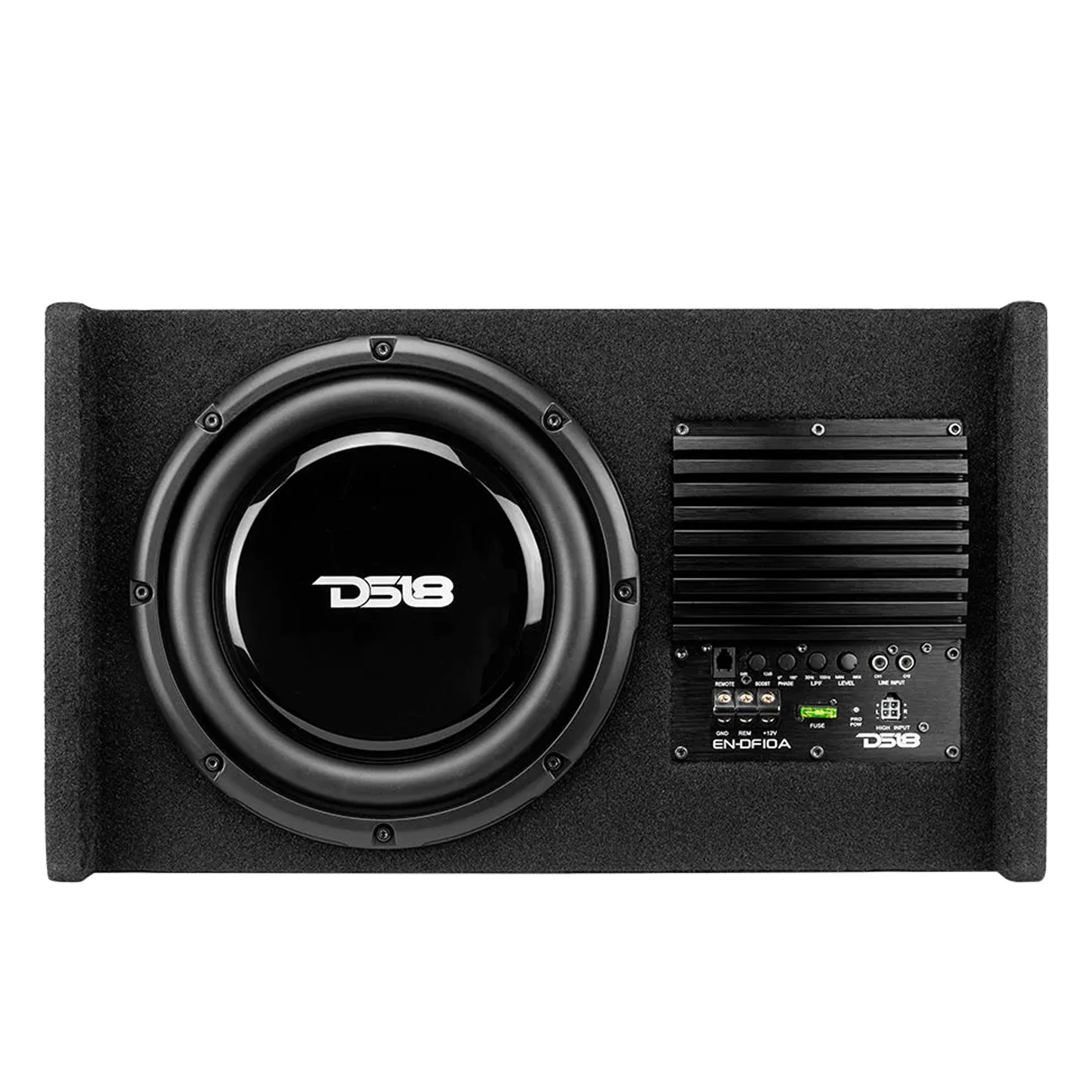

The EN-DF10A utilizes a 10 inch subwoofer in a compact enclosure

(sized at 20 x 11 x 6) to help extend and elaborate the bass for your music!

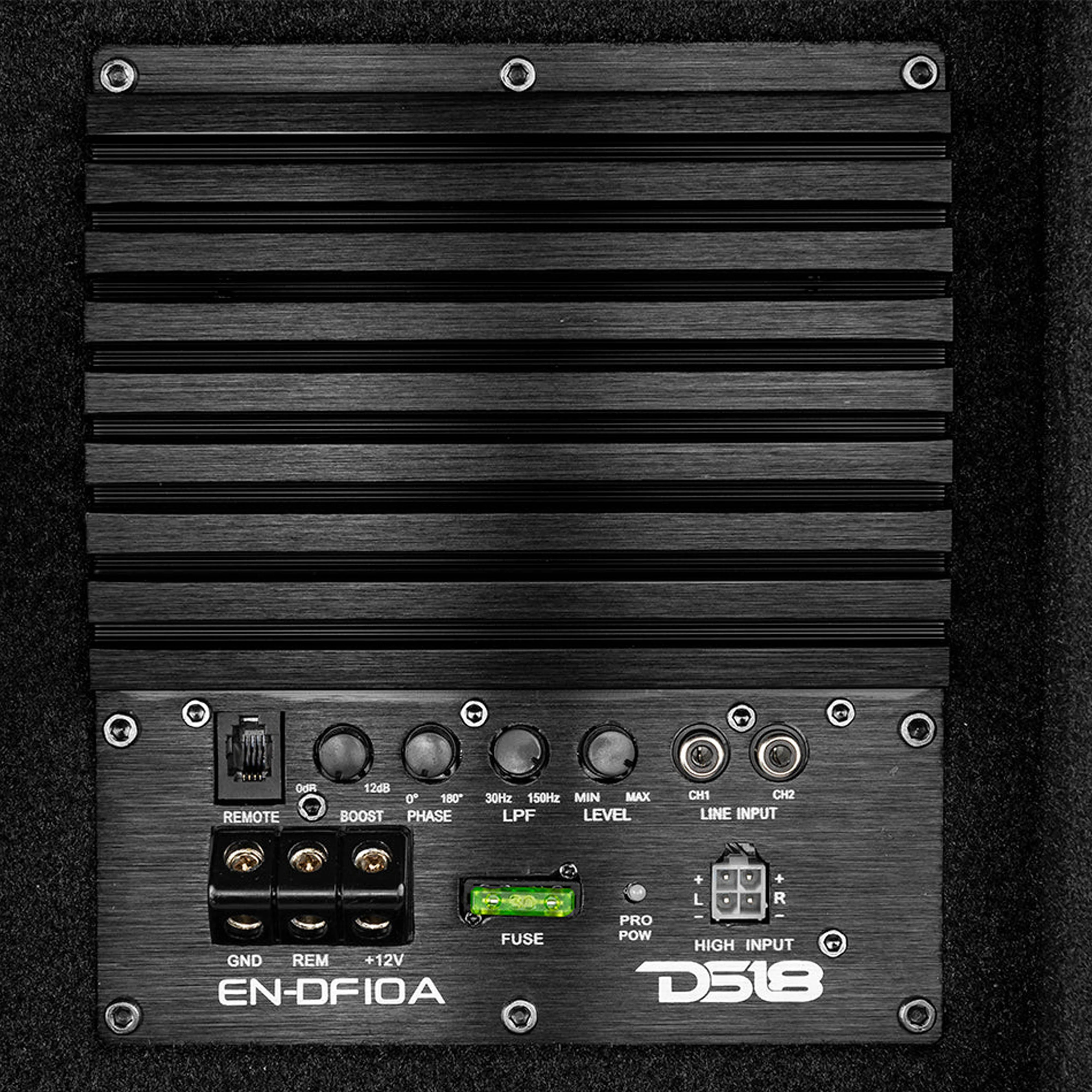

The built in amp requires power (250W RMS and 500W MAX Power Handling) before allowing you access to dB boosting, phase adjusting, and low pass filtration settings. The included low pass filter promotes clarity in your audio by filtering out high frequency noise for distortion free audio when you need it.

This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.

General Specifications:

Speaker Type & Size:                   10" Active Subwoofer

Total Impedance:                           2 ohms

Total RMS Power Handling:         250 watts (14.4V)

Total MAX Power Handling:        500 watts

Sensitivity (1w/1m)                       86dB

Frequency Response:                    25-250Hz

Recommended Lo Pass Crossover:    80Hz

Speaker Specifications:

Voice Coil Diameter:          1.52"/38.6mm

Voice Coil Former Material:  Aluminum

Winding Material:  Copper

Cone Material:  Injection PP Cone

Surround Material:  Rubber

Basket Material:  Steel

Basket Color:   Wrinkle Black

Magnet Material:   Ferrite

Magnet Weight:  40 oz

Amplifier Specifications:

Amplifier Class:   Digital

Amplifier Type:  Subwoofer Monoblock

Number of Channels:  1

Minimum Impedance:  2 ohms

Signal to Noise Ratio:   80dB

Efficiency @4ohm:   75%

Total Harmonic Distortion (THD): 0.50%

Low Level Input Range: 200mV-6V

High Level Input: Yes

Auto Turn-On:  Yes

Selectable X-Over:  LPF Fixed

X-Over Filter Range:  30-150Hz

Bass Boost Range:  0-12db

Bass Boot Frequency:  80Hz

Phase Selector:  0 -180 degrees

LED Indicator:  Power/Protection

Power input Terminal Size:  8Ga

Fuse Size:  30A

Remote Level Control:  Yes, Dash Mount

Thermal Protection:  Yes (>75 degrees)

Over-Load Protection: Yes

DC Output Protection: Yes

Short Circuit Output Protection:  Yes

Voltage Input Protection: Yes

Box Pecifications

Internal Volume:   12L/0.42ft3

Load Configuation:   Single 2 ohm

Box Type:   10" Down-Firing Sealed

Box Material:   5/8"/ 15mm MDF

Finish Material:   Black Carpet

-3dB Dropping Point:   39Hz

Measurements:

Overall Height:     11.6"/295mm

Overall Width:       20.27"/515mm

Overall Depth:       6.3"/160mm

Weight:
