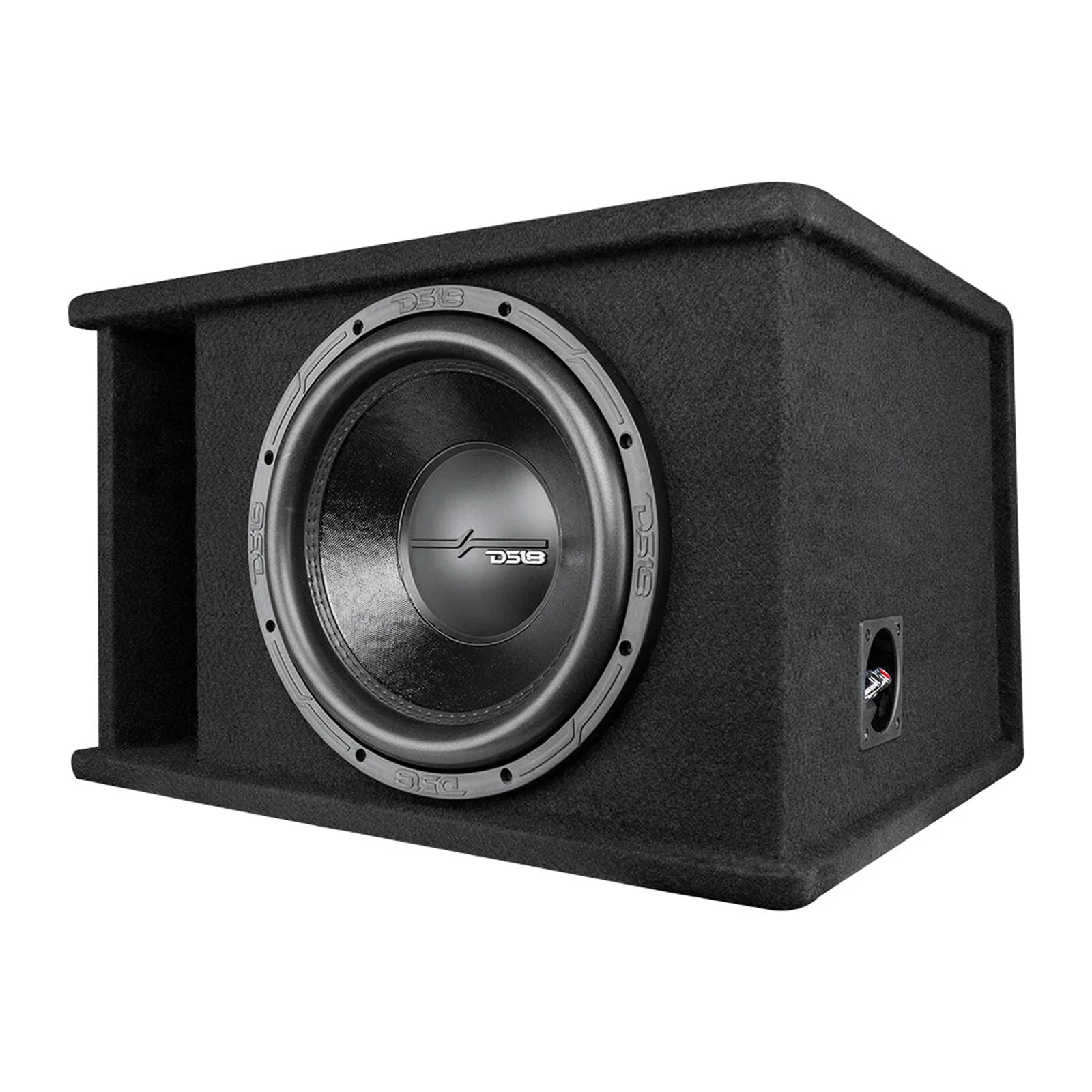

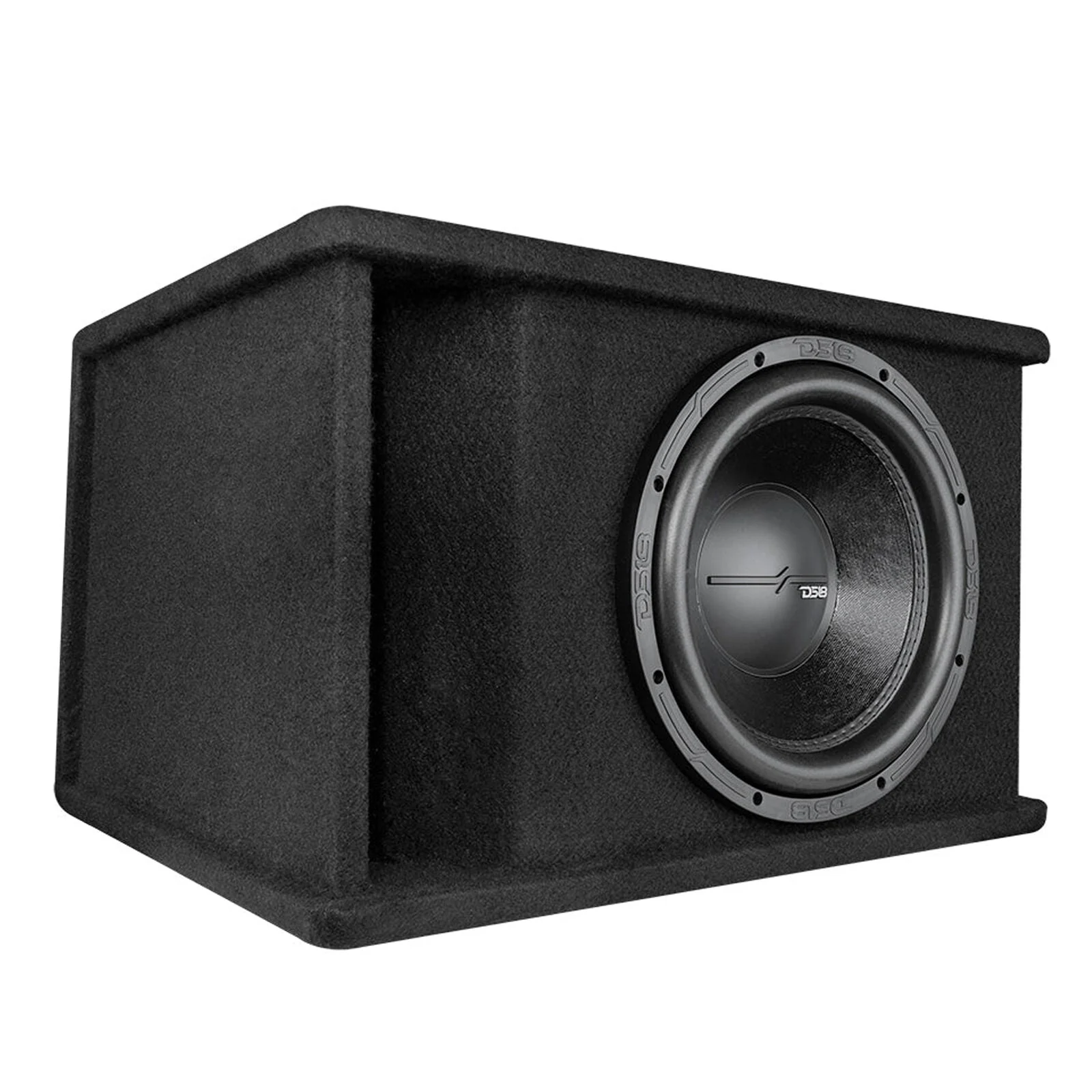

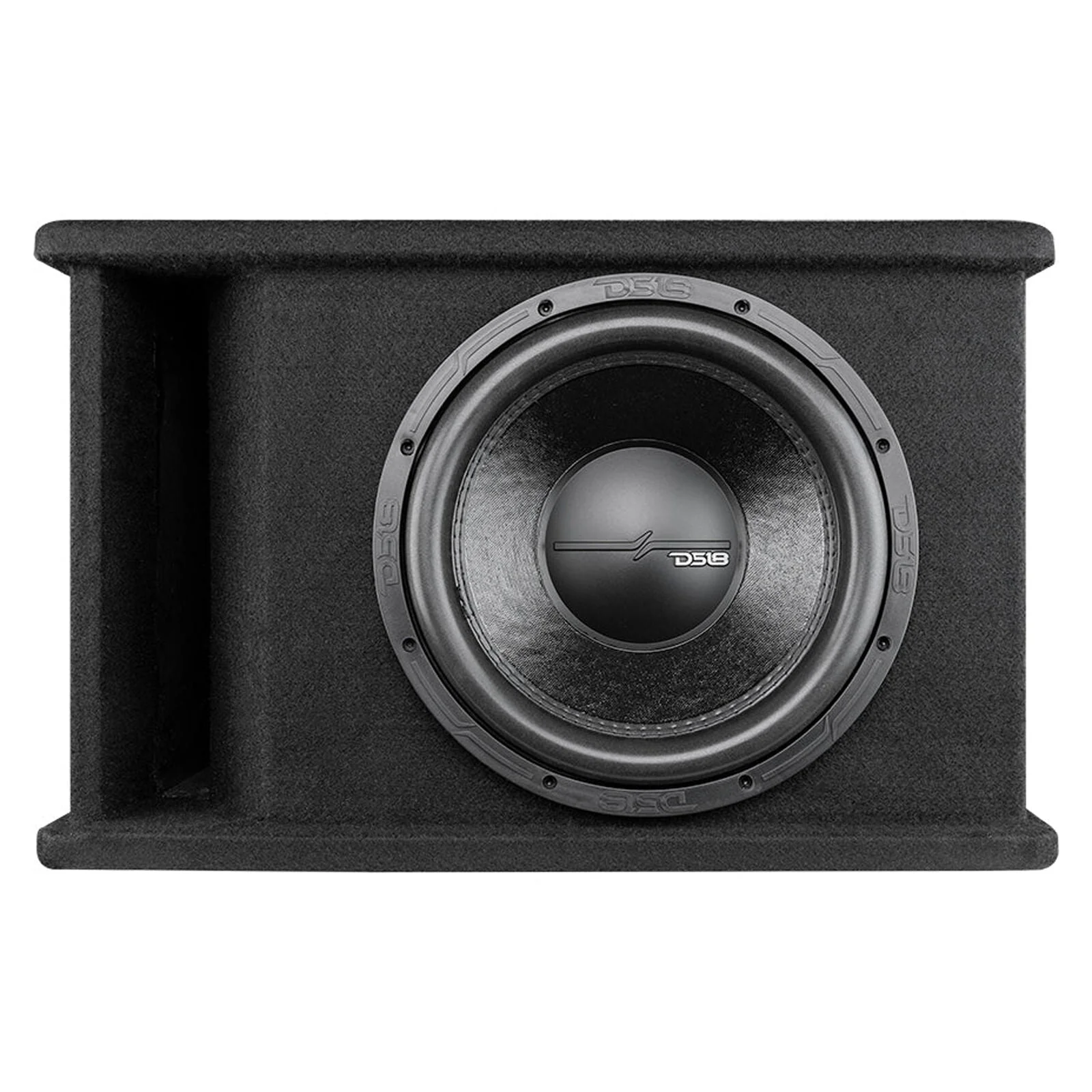

DS18 12" 1 Ohm Subwoofer 1600 Watt Loaded In a Ported Box ZR112LD

This Listing Includes:

• (1) DS18 Bass Package ZR112LD

DS18 has  made it easy to upgrade your bass with this sweet ZR112D loaded subwoofer combo! This is a prefabricated box that comes ready to go with one of our best selling subwoofers, the ZR12.2D. Included is a high quality carpeted box with DS18 designs tuned to 29 hz  for low and hard hitting bass. The box is constructed of thick 3/4 inch MDF for great strength and resonance. The subwoofer included is the very popular ZR12.2D that is a DVC 2 Ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that can handle 800 watts RMS and 1600 watts MAX. This loaded box is a great solution to get hard hitting heavy bass for all to enjoy. To power this combo we recommend a 1000 watt RMS amplifier like the DS18 ZR1000.1D  to bring it  its maximum potential.

FEATURES:

• 12 inch DVC subwoofer


• Max Power Handling: 1600 watts


• RMS Power Handling: 800 watts


• Frequency Response: 25hz-200hz


• Voice Coil Diameter: 2.5"


• Voice Coil Material: Copper


• Impedance: Dual Voice Coil 2-Ohm


• Sensitivity: 82 DB


• Magnet Weight: 100 oz


• Magnet Mayerial: Ferrite


• Mounting Depth: 6.6"


• Xmax: 25mm one way

SPECIFICATIONS:

• Total Impedance: 1 ohm


• Total RMS Power Handling: 800 Watts


• Total MAX Power Handling: 1600 Watts


• Sensitivity (1w/1m): 84 db


• Frequency Response: 20-200 Hz


• Recommended Lo Pass Crossover: 70Hz


• MOTOR SPECIFICATIONS:


• Voice Coil Diameter: 2.5"


• Voice Coil Former Material: Aluminum


• Winding Material: Copper


• Cone Material: Non-Pressed Paper


• Dust Cap Material: PPI


• Surround Material: Foam


• Basket Material: Steel


• Magnet Material: Ferrite


• Magnet Weight: 100 Oz


• BOX SPECIFICATIONS:


• Internal Volume: 79.3L / 2.8 ft3


• Port Tune: 29 Hz


• Load Configuration:  Ported Box


• Box Type: Single 12"


• Box Material: 3/4" (19mm) MDF


• Finish Material: Black Carpet


• Logo: Red Stitched


• -3Db Dropping Point: 24 Hz

MEASUREMENT:

Height: 14.48"

Width: 23.14"

Depth 1: 17.71"

Depth 2: 19.68"

WEIGHT: 37 lbs.
