• Pro-Grade Midbass – 12" design delivers clear, powerful midrange and punchy bass.
• High Power Handling – 500W RMS / 1000W peak for demanding audio setups.
• Neodymium Magnet – Lightweight, high-strength magnet for tight, precise sound.
• Wide Frequency Response – 40Hz–5kHz captures all musical details.
• Durable Construction – Steel basket, non-pressed paper cone, cloth surround, and TSV 3" voice coil with CCAW for long-lasting reliability.

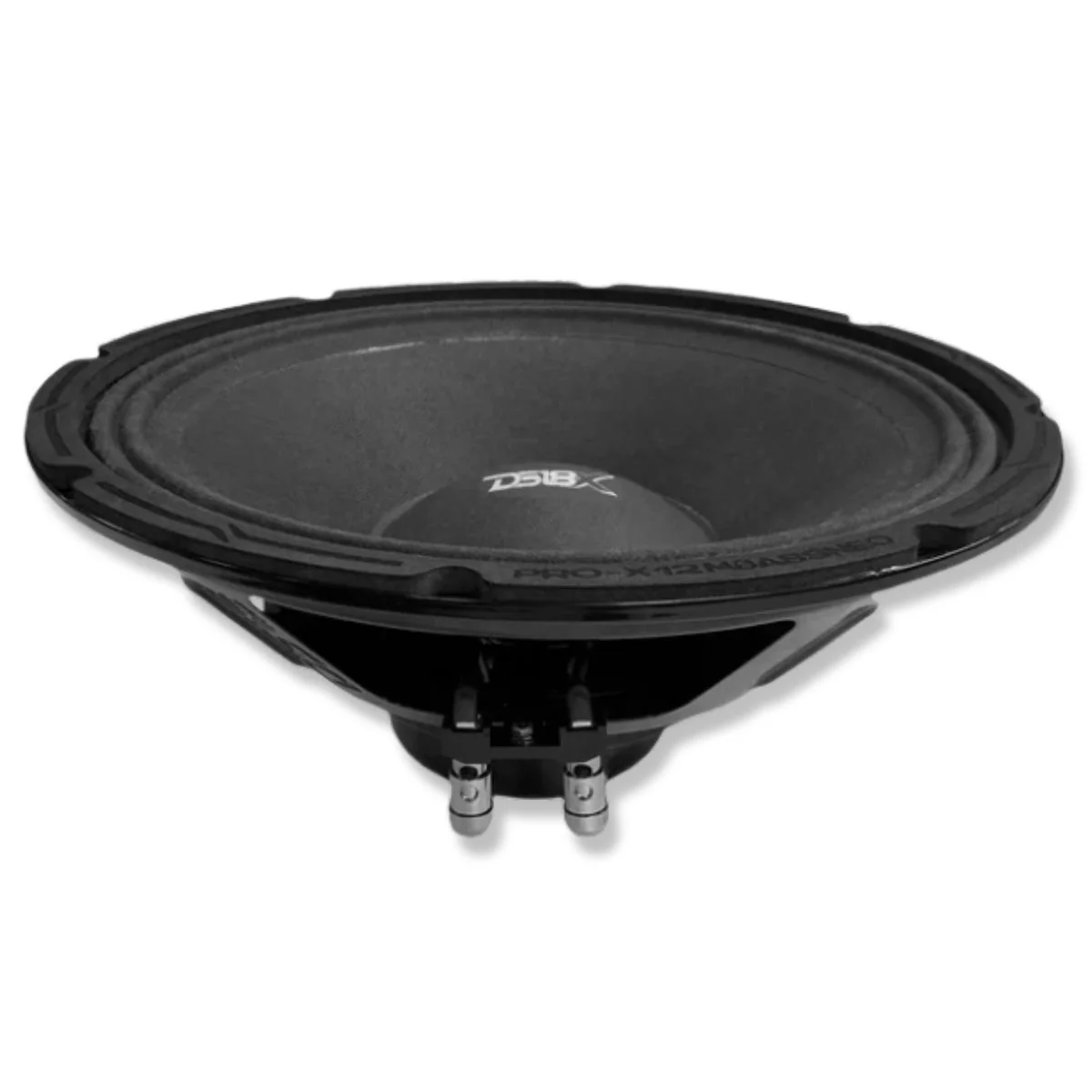

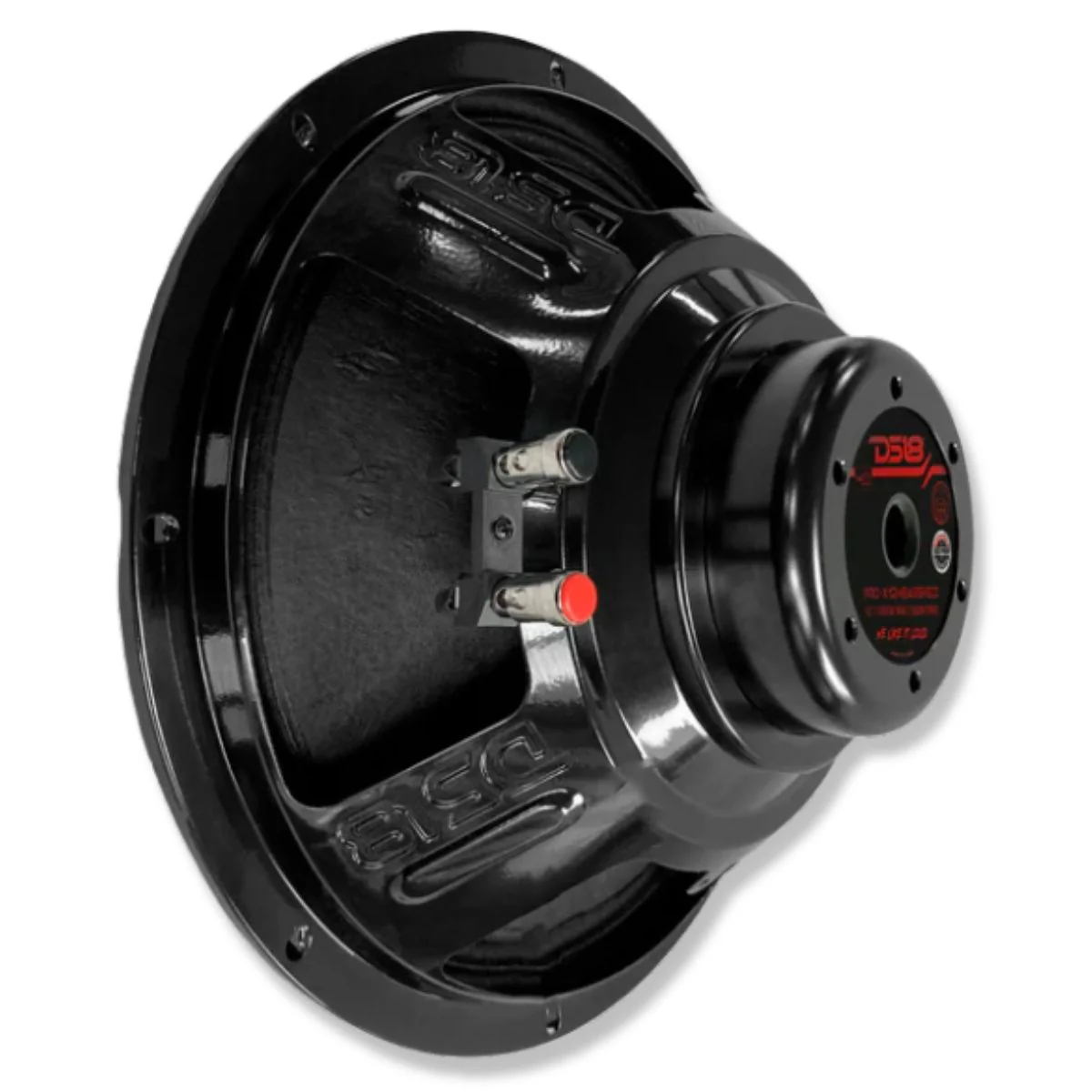

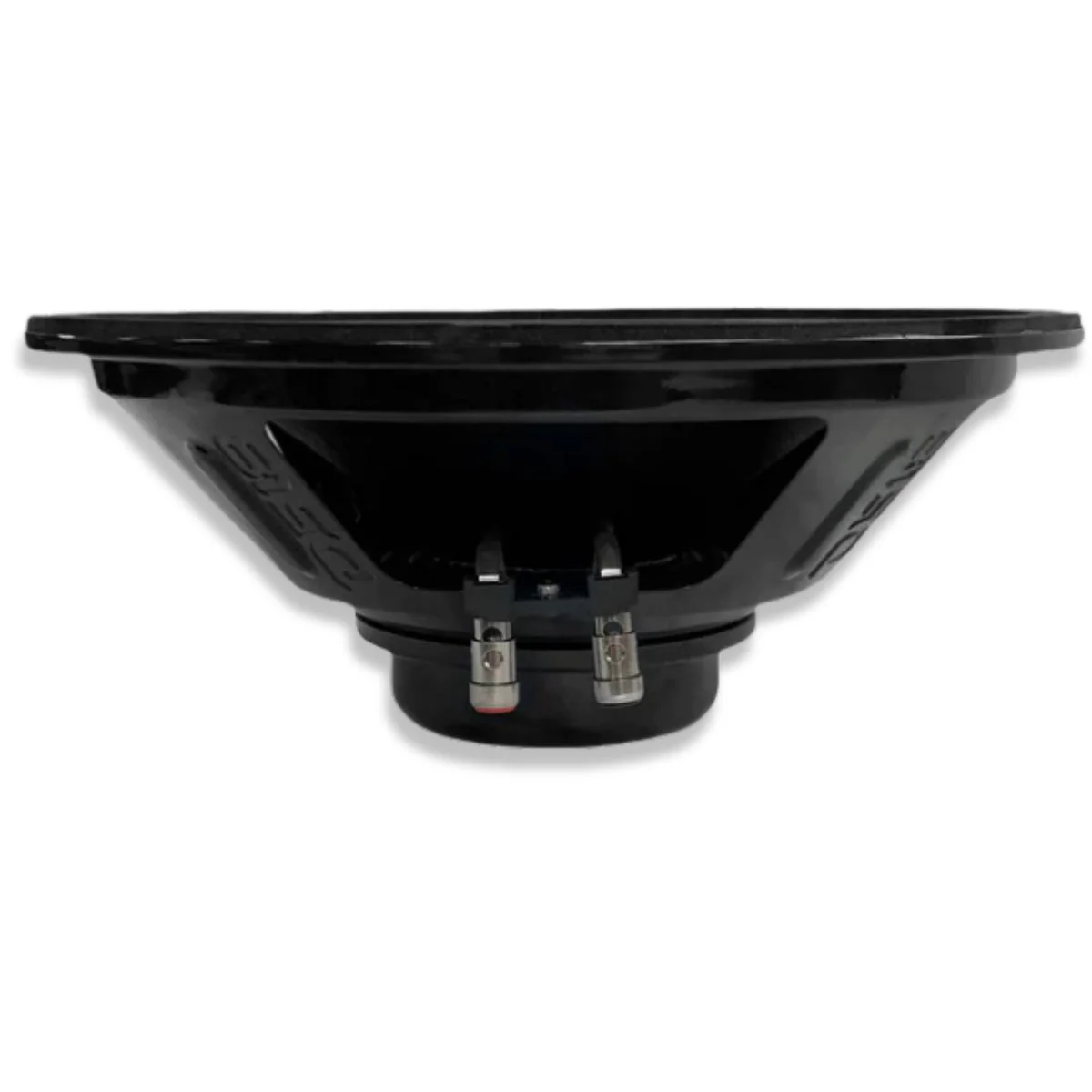

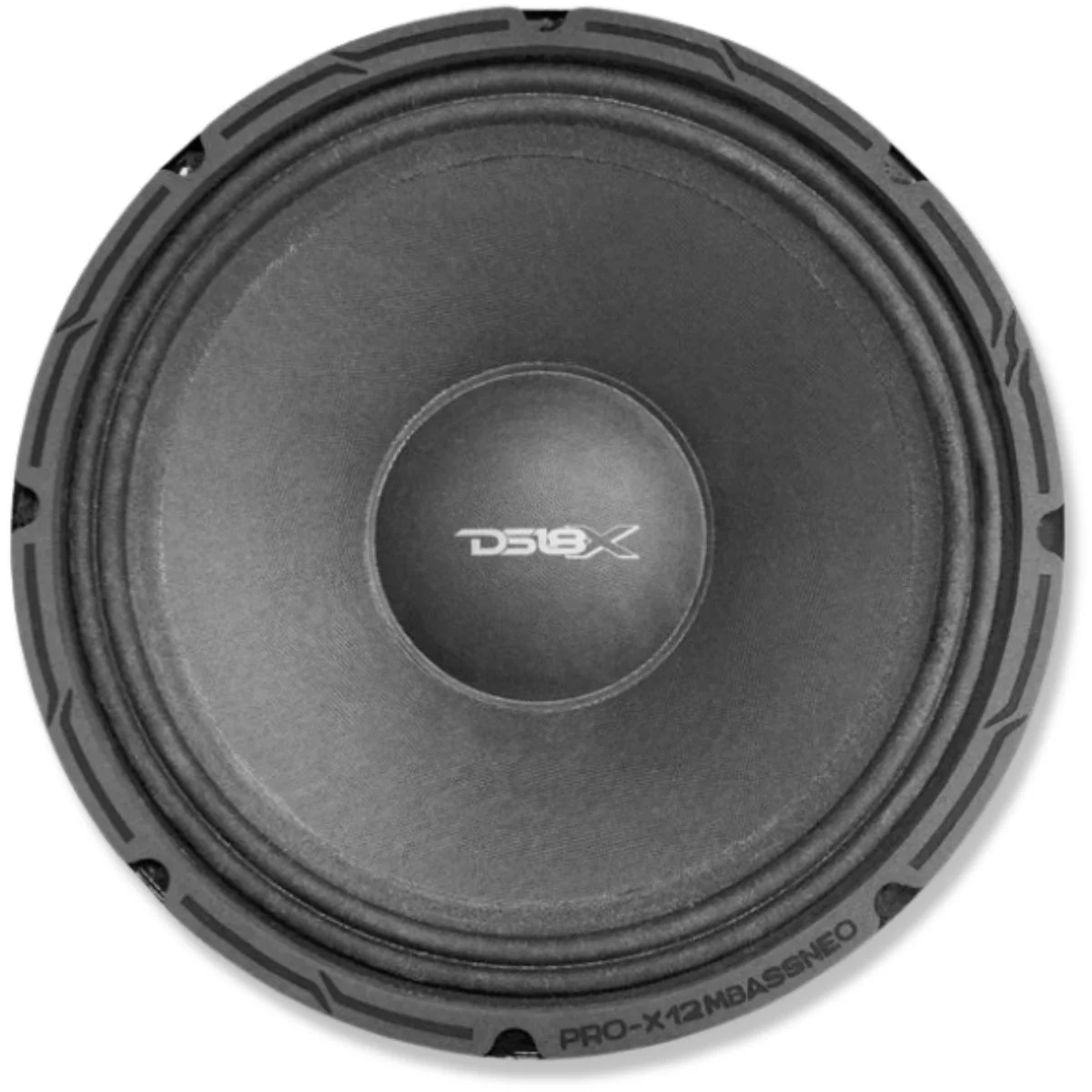

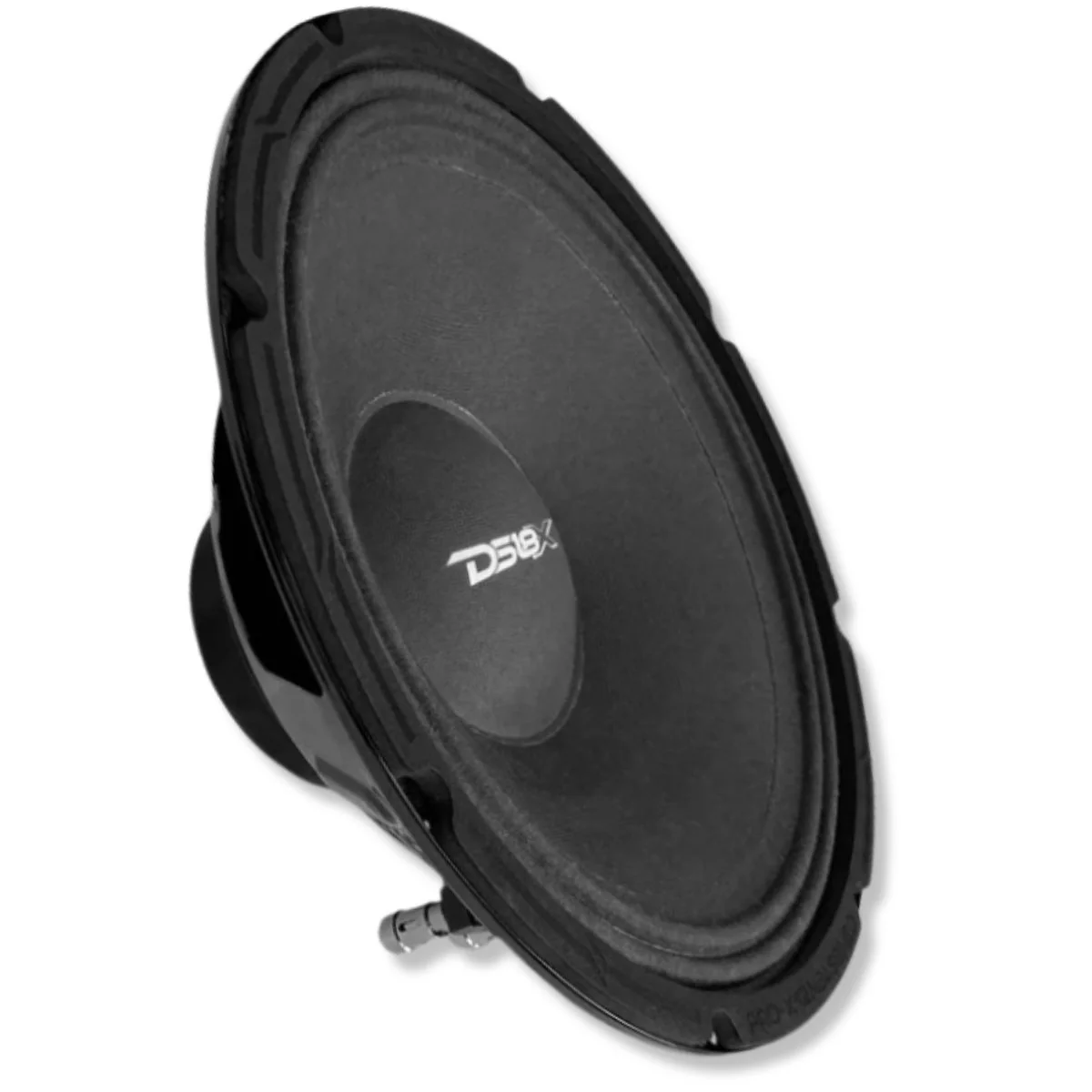

DS18 12" 500W RMS 4-Ohm Mid-Bass Loudspeaker w/ Neodymium Magnet PRO-X12MBASSNEO

Included Items

• (1) DS18 PRO-X12MBASSNEO 12" Mid-Bass Loudspeaker

The PRO-X12MBASSNEO is engineered for clarity, strength, and precision. This 12" mid-bass driver delivers 500W RMS / 1000W MAX with a 4-ohm impedance, bringing distortion-free midrange and punchy bass to your car audio system.

Equipped with a 3" TSV voice coil and a neodymium magnet, this mid-bass loudspeaker provides solid bass response, crisp mids, and long-lasting performance. With a frequency response of 40Hz–5kHz and 96dB sensitivity, every track comes through with detail and authority.

Features

• Pro-Grade Midbass – 12" design delivers powerful, detailed midrange.


• High Power Handling – 500W RMS / 1000W MAX handles demanding setups.


• Neodymium Magnet – Lightweight, high-strength magnet for tight, precise bass.


• Wide Frequency Response – 40Hz–5kHz captures every musical nuance.


• Efficient Sensitivity – 96dB ensures strong output without excessive power.


• Robust Construction – Steel basket, non-pressed paper cone, cloth surround, and durable voice coil.

Specifications

• Nominal Diameter: 12" (304.8 mm)


• Nominal Impedance: 4 ©


• RMS Power Handling: 500W


• MAX Power Handling: 1000W


• Sensitivity (1W/1m): 96 dB


• Frequency Response: 40Hz–5kHz


• Recommended Hi-Pass Crossover: 60 Hz


• Pair or Single: Single


• Grill Included: No

Motor & Voice Coil

• Voice Coil Diameter: 3" (76 mm)


• Voice Coil Former Material: TSV


• Winding Material: CCAW


• Cone Material: Non-Pressed Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Steel (Gloss Black Finish)


• Magnet Material: Neodymium


• Magnet Weight: 8.76 oz

Thiele & Small Parameters

• Equivalent Volume: 64.8L / 2.28 ft


• Excursion (Xmax, one way): 8 mm


• Free Air Resonance (Fs): 53 Hz


• Mechanical Factor (Qms): 10.81


• Electrical Factor (Qes): 0.68


• Total Factor (Qts): 0.64


• Mechanical Mass (Mms): 54.74 g


• Mechanical Compliance (Cms): 0.16 mm/N


• BL Factor: 11.22


• Voice Coil Inductance (Le): 0.2 mH


• Cone Area: 526.85 cm


• DC Resistance (Re): 3.5-Ohms

Dimensions:

• Overall Diameter: 12.2" (312 mm)


• Overall Depth: 4.9" (124.5 mm)


• Front Mount Baffle Cutout: 11.15" (283 mm)


• Mounting Depth: 4.6" (117 mm)


• Motor Diameter: 4.25" (108 mm)
