• 750W RMS and 1500W MAX power handling for an immersive sound experience.
• 45Hz-6.5KHz frequency response captures music nuances.
• Massive 93oz ferrite magnet for powerful and accurate bass responses.
• Satin black aluminum basket enhances aesthetics and provides structural integrity.
• Crafted with a 3.5" Kapton voice coil and non-pressed paper cone for durability.

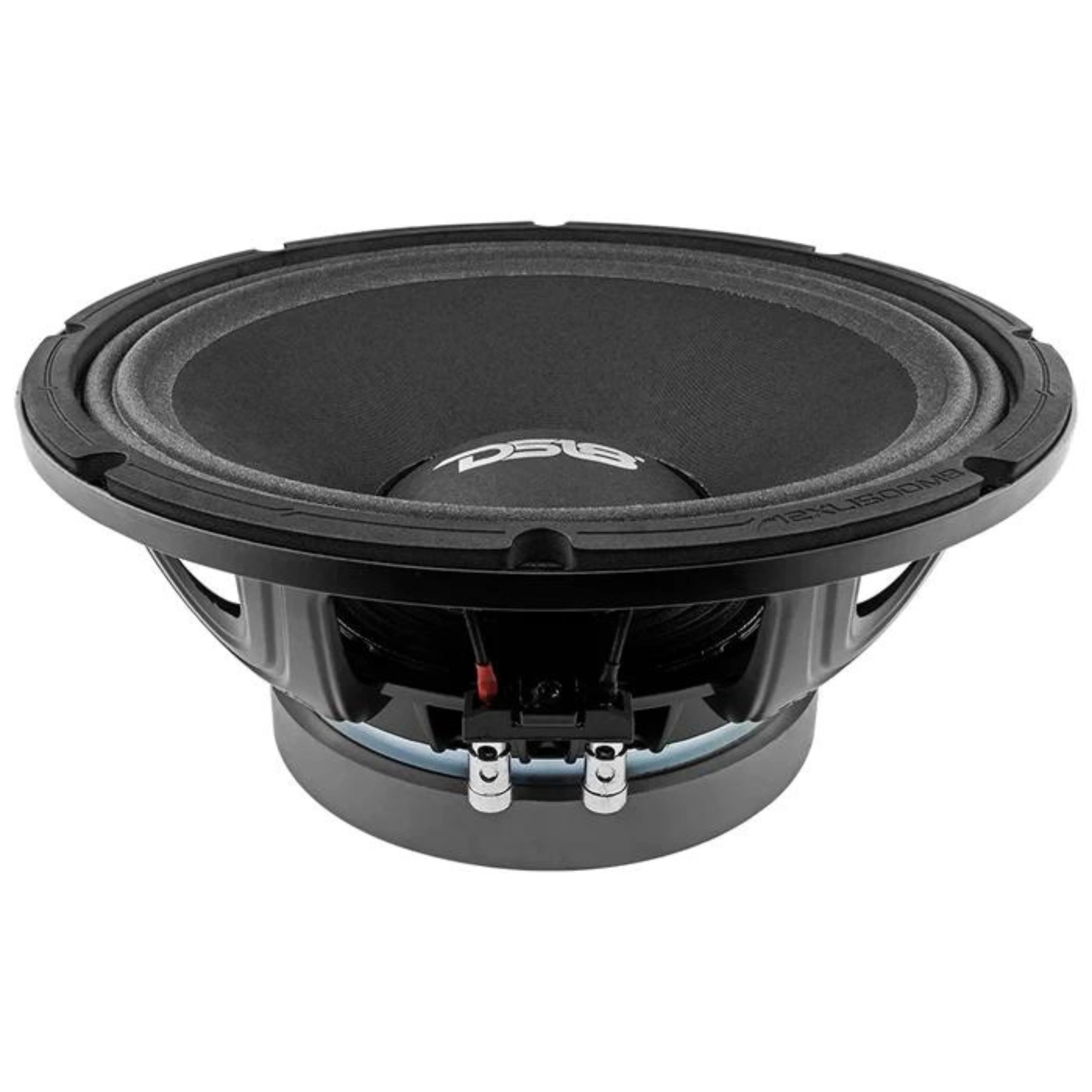

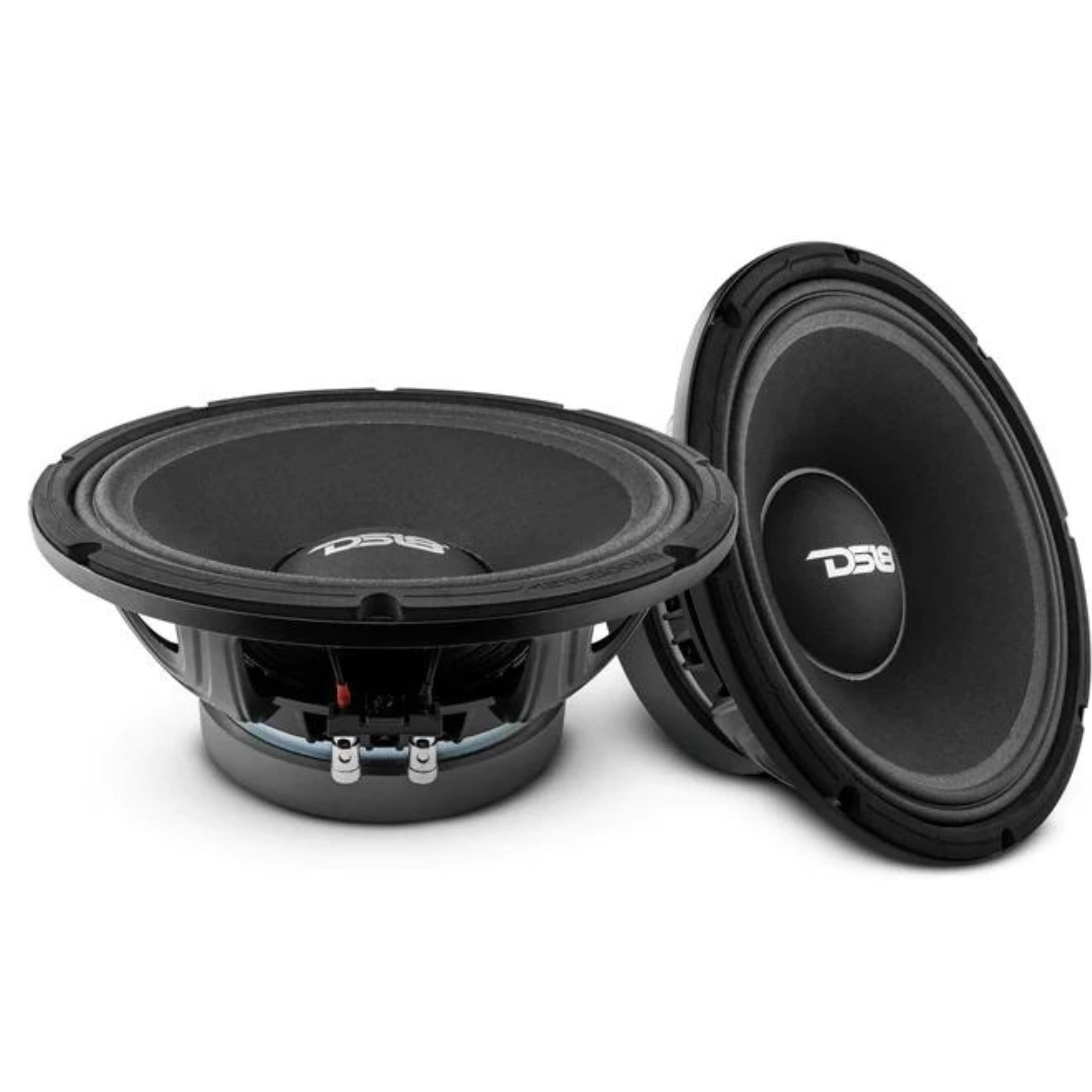

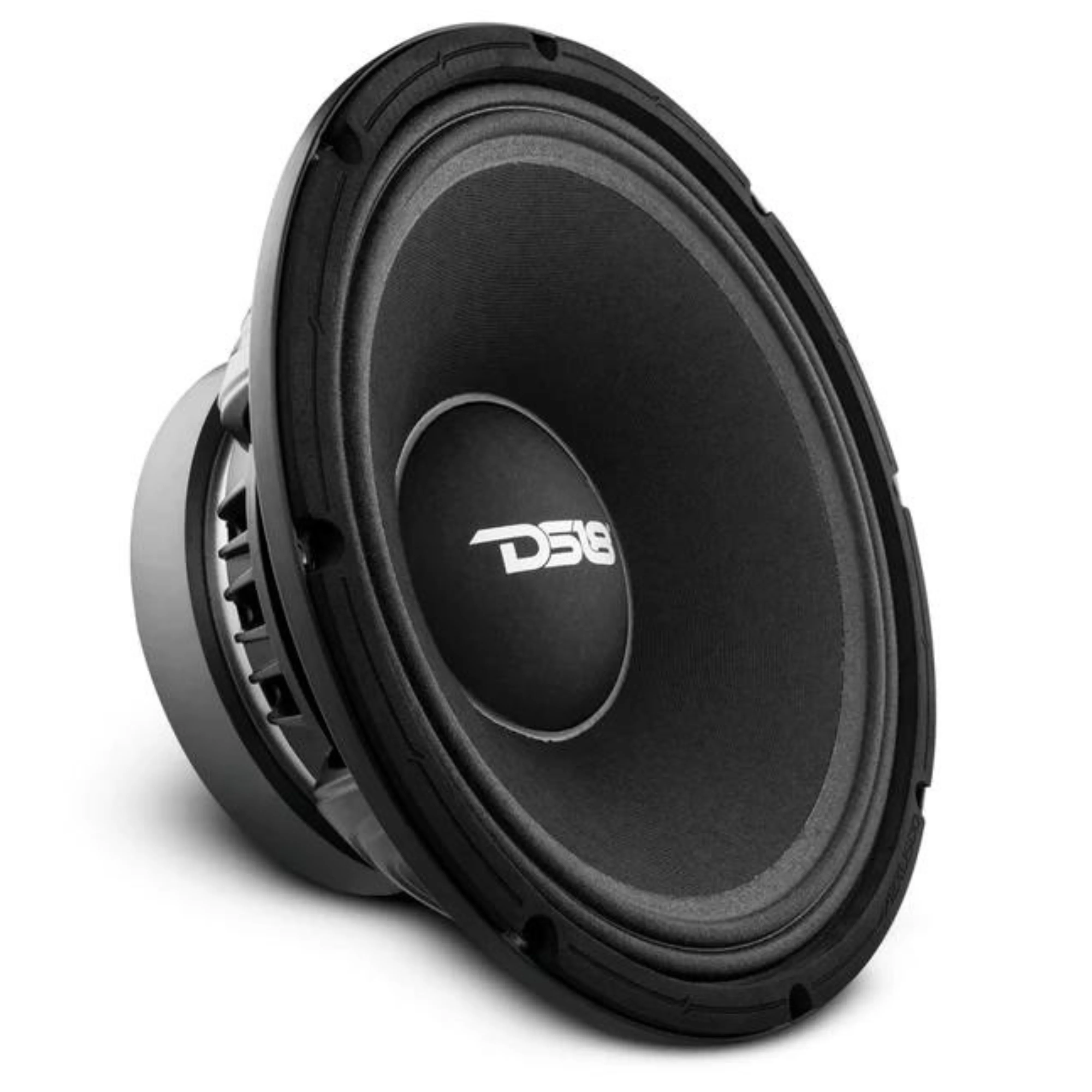

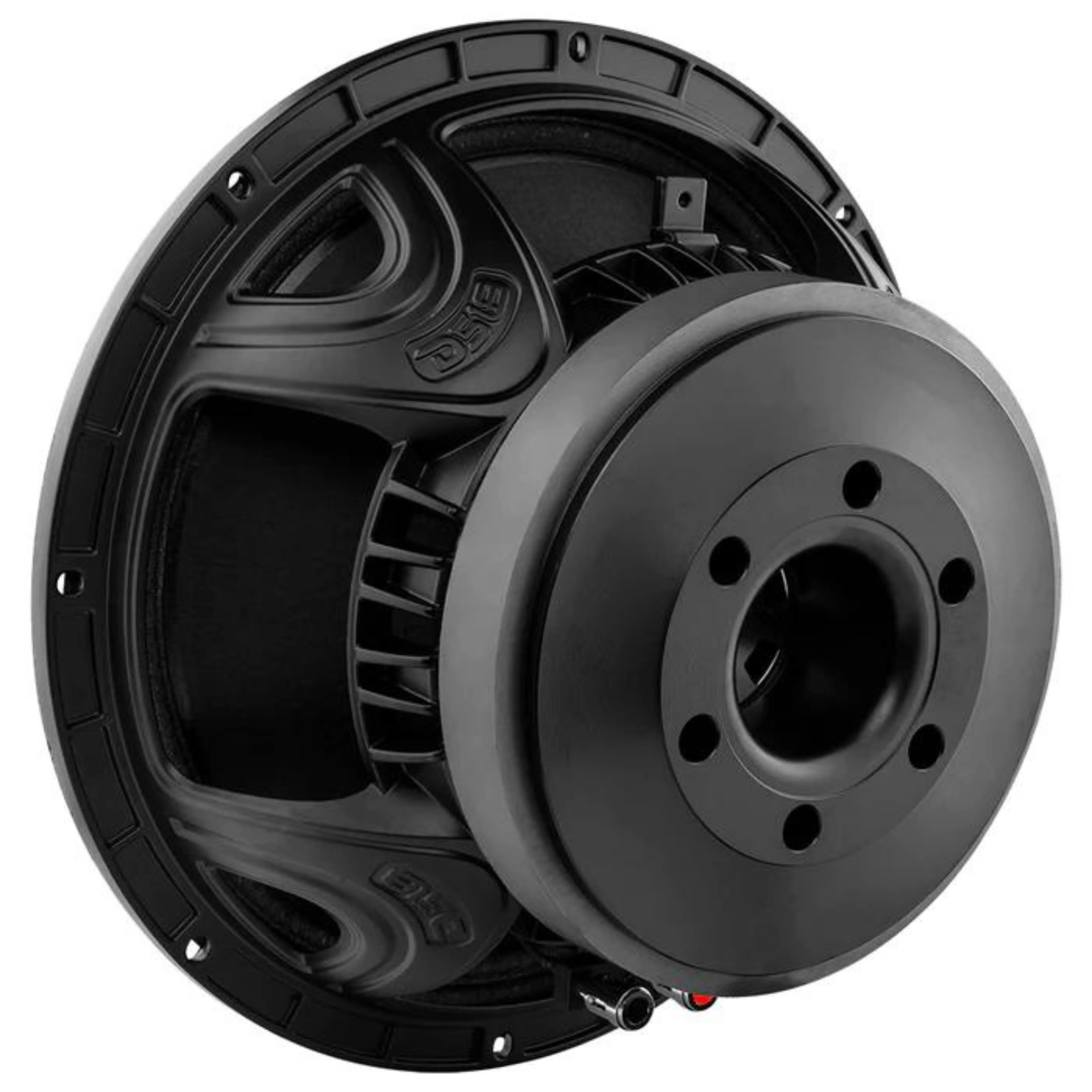

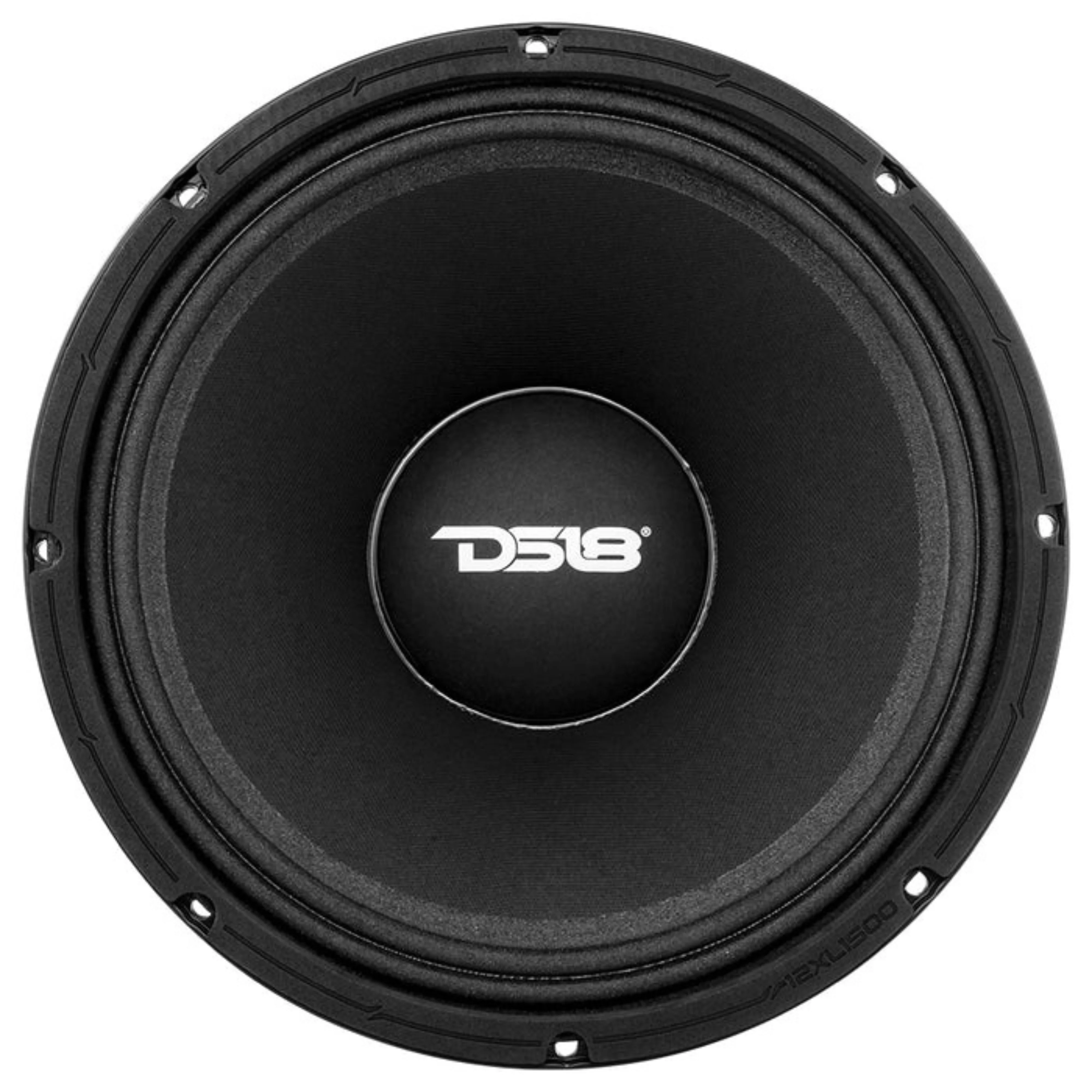

DS18 12" XL Series Mid-Range Loudspeaker 750 Watts Rms 4-Ohm12XL1500-4

This Listing Includes:

(1) Mid-Range Loudspeaker 750 Watts

DS18’s 12XL1500-4 revolutionizes your music experience with precision and power. Boasting a 12-inch size, 4-ohm and 750W RMS power, these speakers excel in mid-range competition. Crafted with a 3.5" Kapton voice coil, non-pressed paper cone, and a robust aluminum basket, they deliver durability and optimal sound reproduction. With a massive 93oz ferrite magnet, expect powerful and accurate bass responses. The 45Hz-6.5KHz frequency range ensures nuanced music capture, and a 98.7 dB sensitivity guarantees crystal-clear reproduction, even in large venues.

Specifications:

          12XL1500-4

• Nominal Diameter: 12" / 305mm


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 750 watts


• MAX Power Handling: 1500 watts


• Sensitivity (1w/1m): 98.7 dB


• Frequency Response: 45Hz-6.5KHz


• Recommended HI Pass Crossover; 60Hz


• Sold in Pair or Single: Single


• Grill Included; No

MOTOR

• Voice Coil Diameter: 3.5" / 89mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW (2 Layers IN/OUT)


• Cone Material: Non-pressed Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish:Satin Black


• Magnet MaterialL: Ferrite


• Magnet Weight: 93 Oz


• Displacement Volume:  2.2L / 0.09ft3

THIELE & SMALL PARAMETERS

• Equivalent Volume: 62.7L / 2.21ft3


• Excursion (one way): 4.5mm


• Free Air Resonance: 54Hz


• Mechanical Factor: 6.98


• Electrical Factor: 0.41


• Total Factor: 0.38


• Mechanical Mass: 58.394g


• Mechanical Compliance: 0.16mm/N


• BL Factor: 16.92


• Voice Coil Inductance: 0.12mH


• Cone Area: 526.85cm2


• DC Resistance: 3.6 ohm


• Mechanical Mass w/o air: 60g

MEASUREMENT

Overall Diameter: 12.3" / 312mm

Overall Depth: 5.76" / 146.2mm

Front Mount Baffle Cutout: 10.9" / 278mm

Mounting Depth: 5.23" / 133mm

Motor Diameter: 7.48" / 190mm
