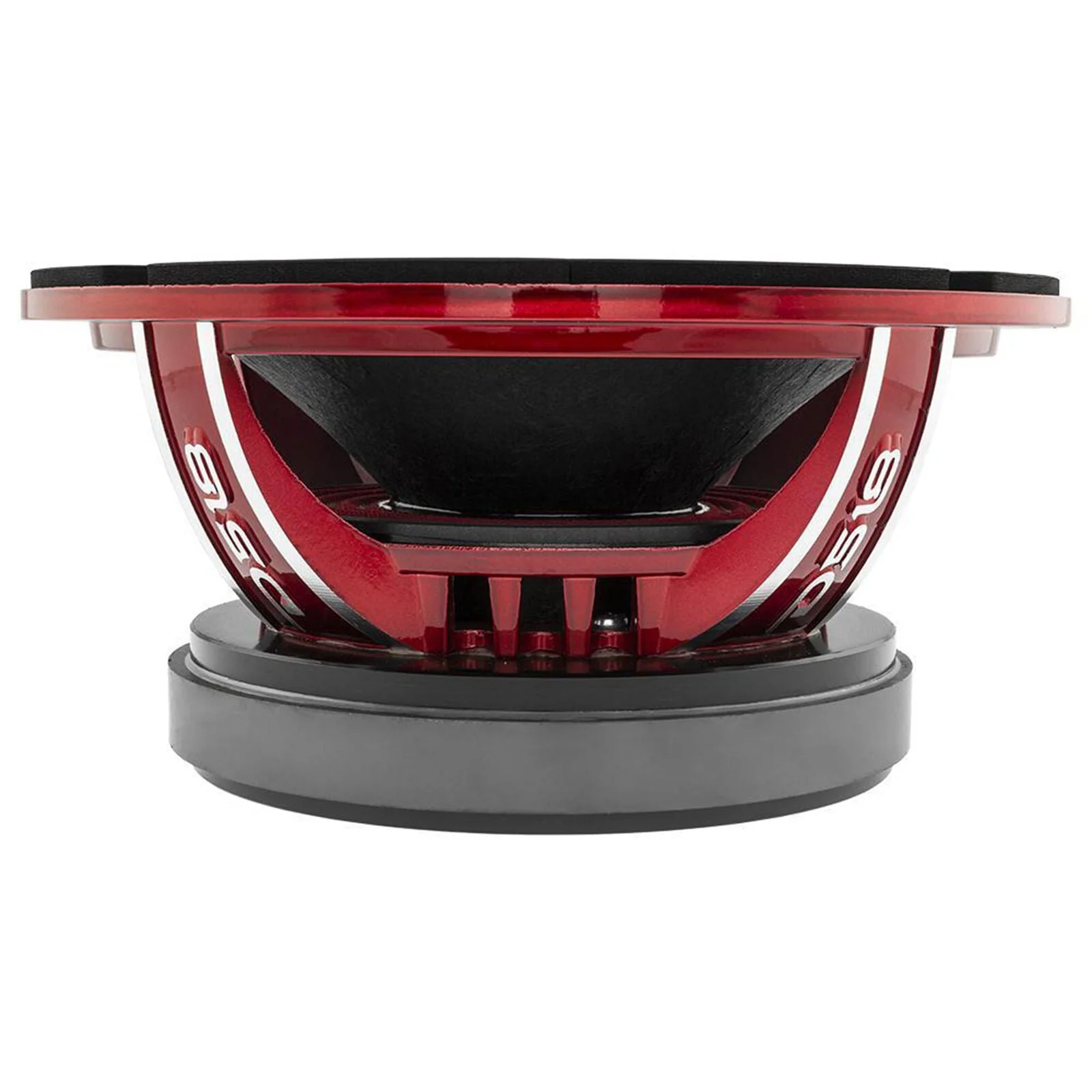

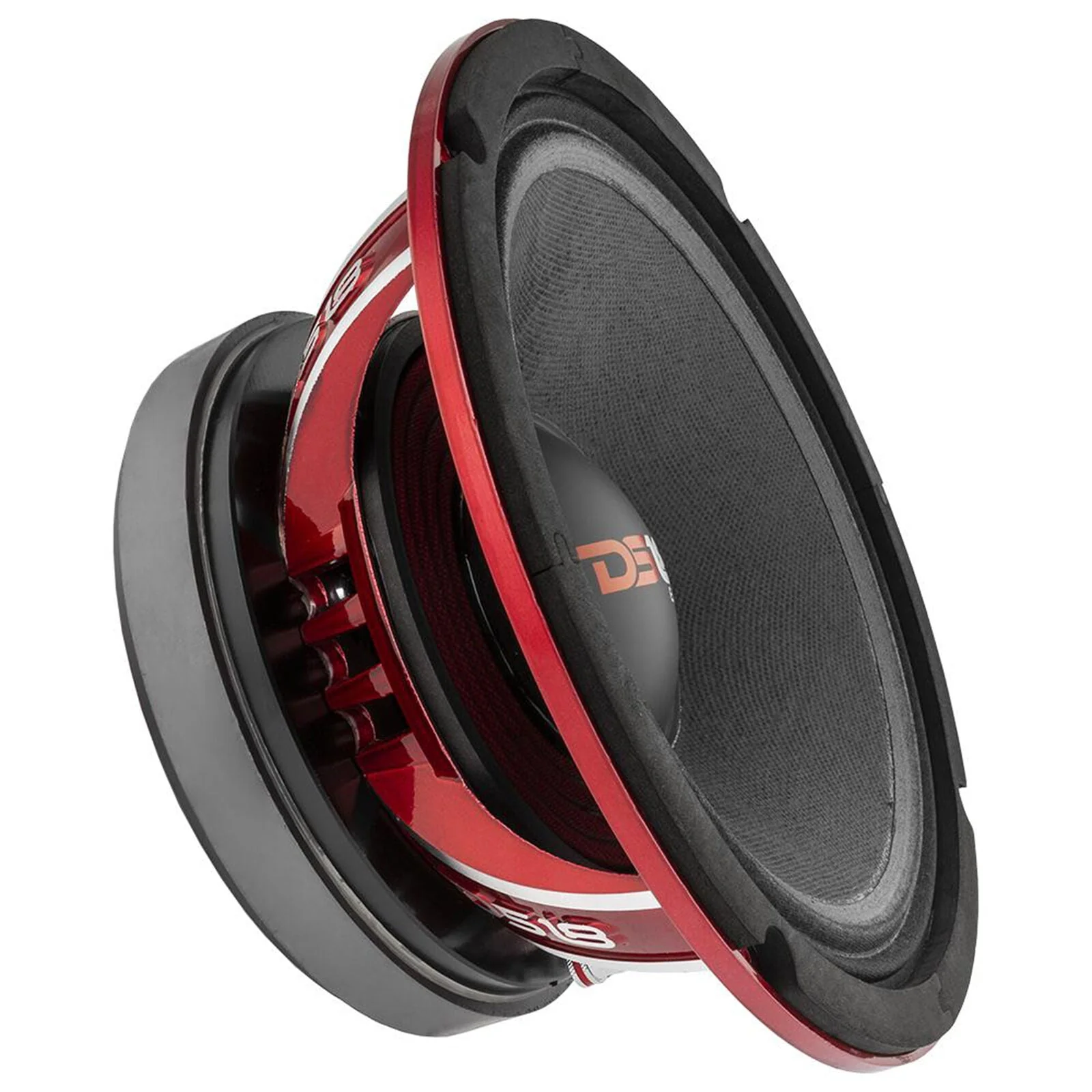

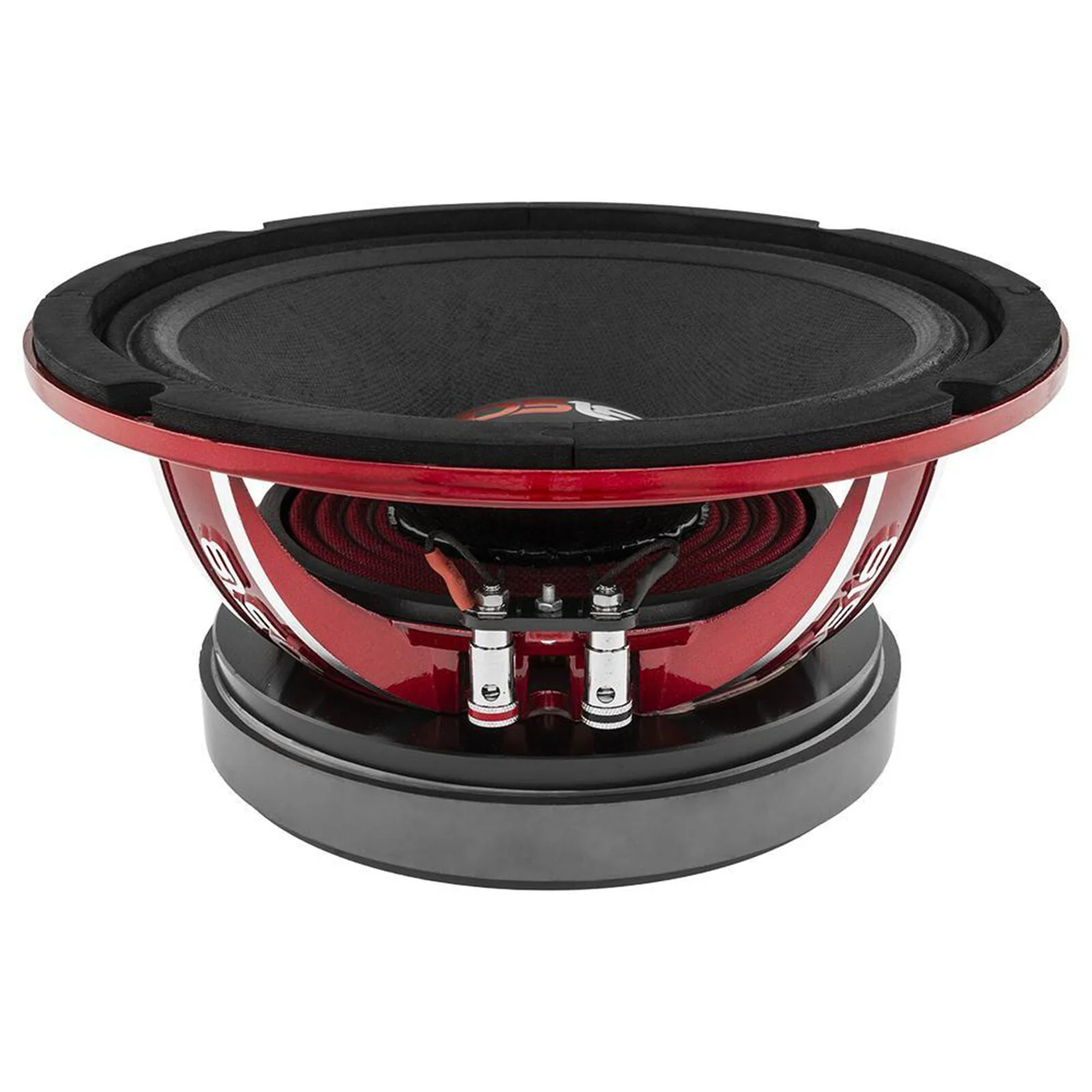

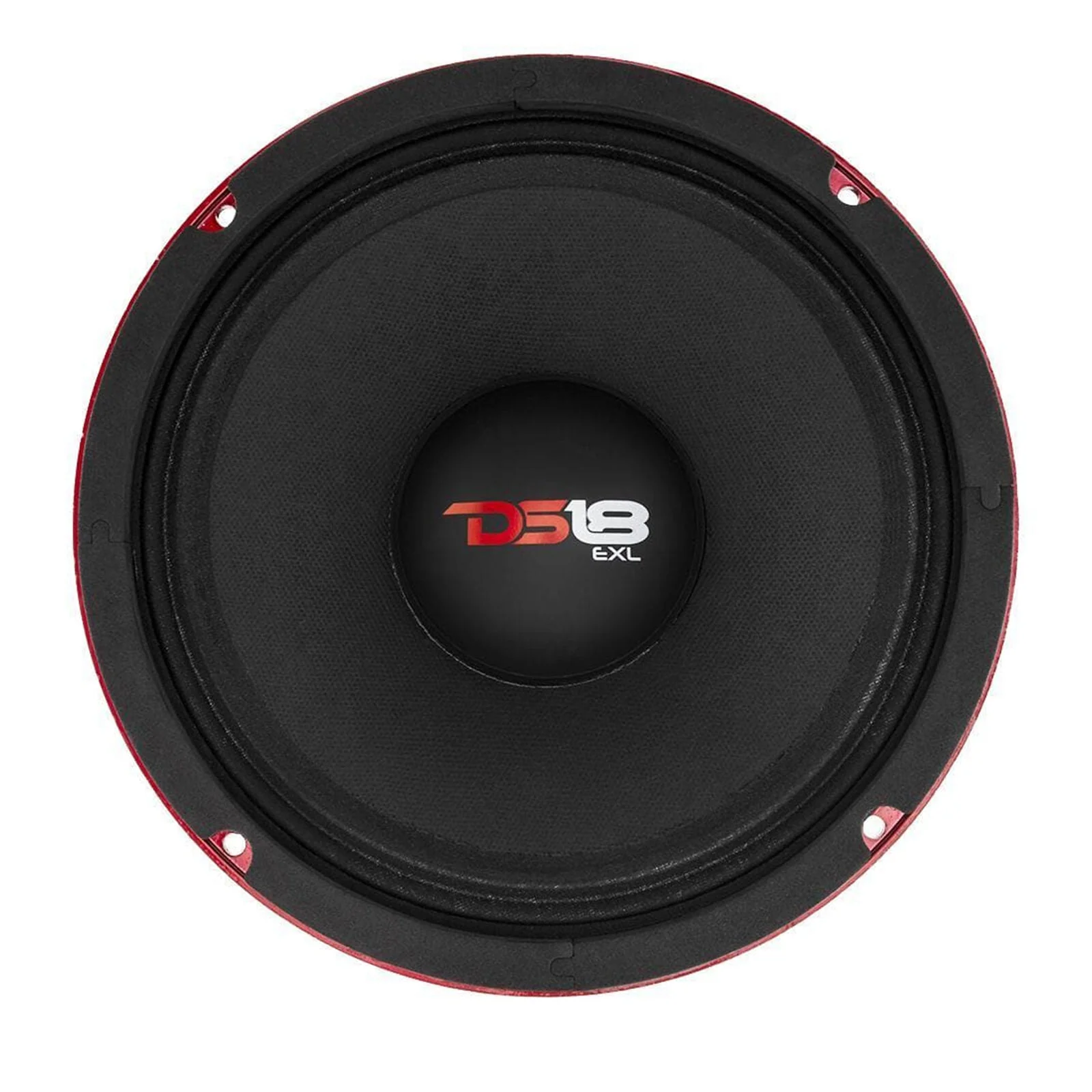

DS18 1200 Watt 8 Ohm 10" Mid-Bass Loudspeaker Red PRO-EXL108MB

People who appreciate car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and large amounts of funds allocated to Research & Development, DS18 launched the PRO-EXL Extremely Loud series. They are the essence of competition-quality speakers. They have huge power handling capacities, great looking red aluminum baskets, cloth-edges and non-pressed paper cones.

This Listing Includes:

(1) PRO-EXL108MB Speaker

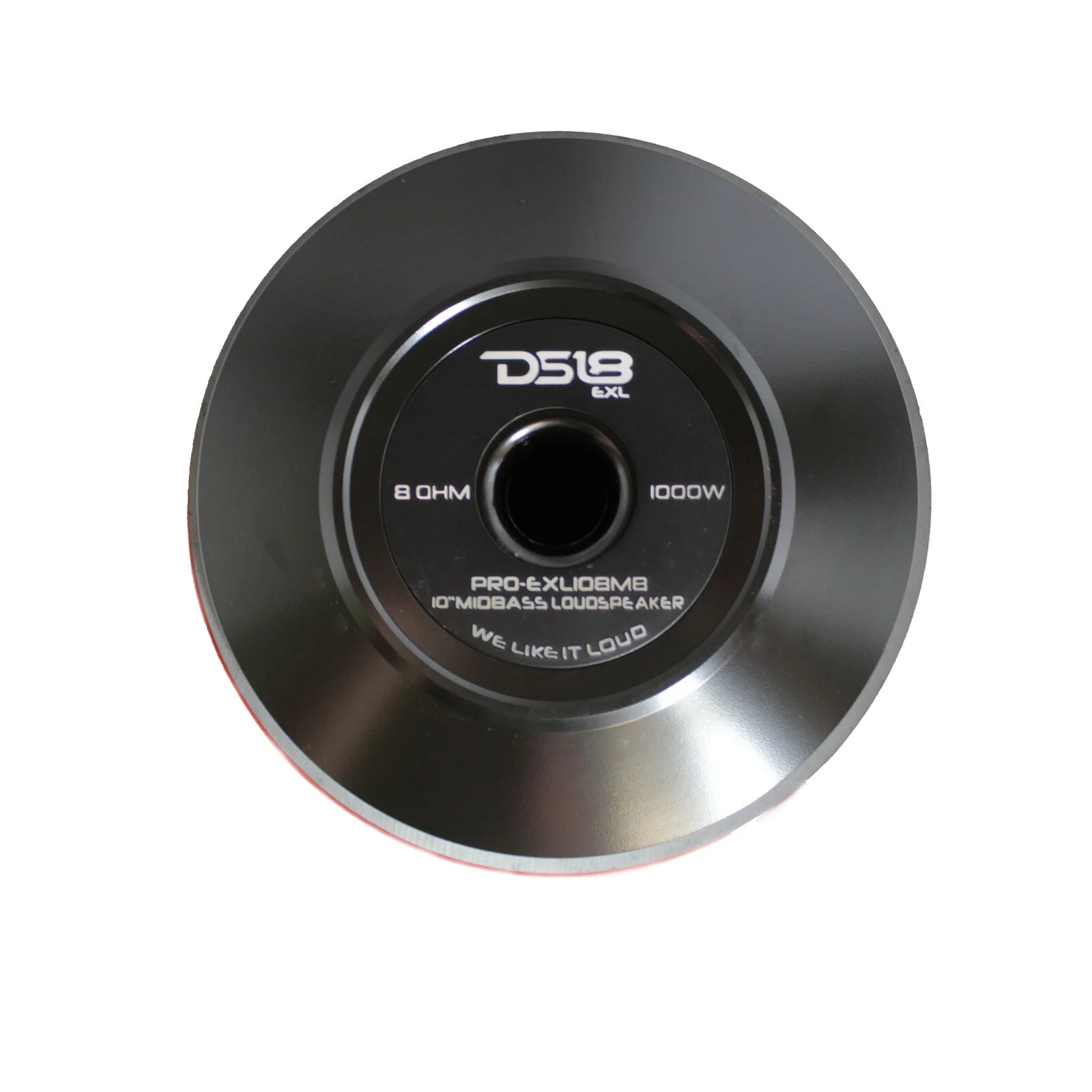

**Back of speaker shows a misprint "1000W" (see pic) -speaker actually handles 1200 Watts max per DS18 **

FEATURES:

-Competition Quality

-Flagship DS18 series producing more more mid-bass for the serious pro audio enthusiasts.

-Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

-Large push style connections for large wire and maximum power flow from your amp.

-Large 3" Voice Coil

-Red Aluminum Basket

Specifications:

Model:PRO-EXL108MB

Type: Mid-bass Loudspeaker

Size: 10"

RMS Power: 600W

MAX Power:1200W

Frequency Response: 72Hz-8KHz

Impedance: 8 ohm

Sensitivity: 96dB

Surround: Cloth Edge

Frame: Red Aluminum Basket

Cone: Non-Pressed Paper Cone

Magnet: Ferrite

Voice Coil Wire: CCAW

Voice Coil Size: 3"

Magnet Size: 80 oz.

Thiele & Small Parameters:

Vas: 18.6L

Xmax: 10mm

Fs: 65.9 Hz

Qms: 7.188

Qes: 0.265

Qts: 0.256

Sd: 330.06 cm2

Mms: 52.447 g

Bl: 21.19 N/A

Re: 5.47 Ohm

Le: 0.098Mh

Mmd: 45.671 g

Cms: 0.029 mm/N

Dimensions:

Overall Diameter: 10.3" (261.5mm)

Mounting Depth: 4.68" (119mm)

Cut-Out Dimension: 9.13" (232mm)

Front Mount Baffle Cutout: 9.21" (234mm)

Weight:

Net Weight: 15.21 lbs. (6.9 kg)
