• Exceptional Sound Quality - DS18 PRO-D22PH.8 with a 2" phenolic voice coil elevates audio with crisp highs and smooth mid-range frequencies.
• Versatile Compatibility - 8-ohm nominal impedance, 160W AES, 320W program, and 640W peak power handling for compatibility with various audio setups.
• Durable Design, Optimal Performance - High-quality Kapton voice coil, phenolic diaphragm, and a 35 oz ferrite magnet ensure durability and superior sound reproduction.
• Precision Craftsmanship, Sleek Design - Crafted with precision, featuring an aluminum body in a sleek black finish, and a quick bolt-on integration (4xM6 - 4").
• Powerful and Clear Sound - High sensitivity of 110dB (1w/1m) ensures powerful and clear sound even at high volumes.

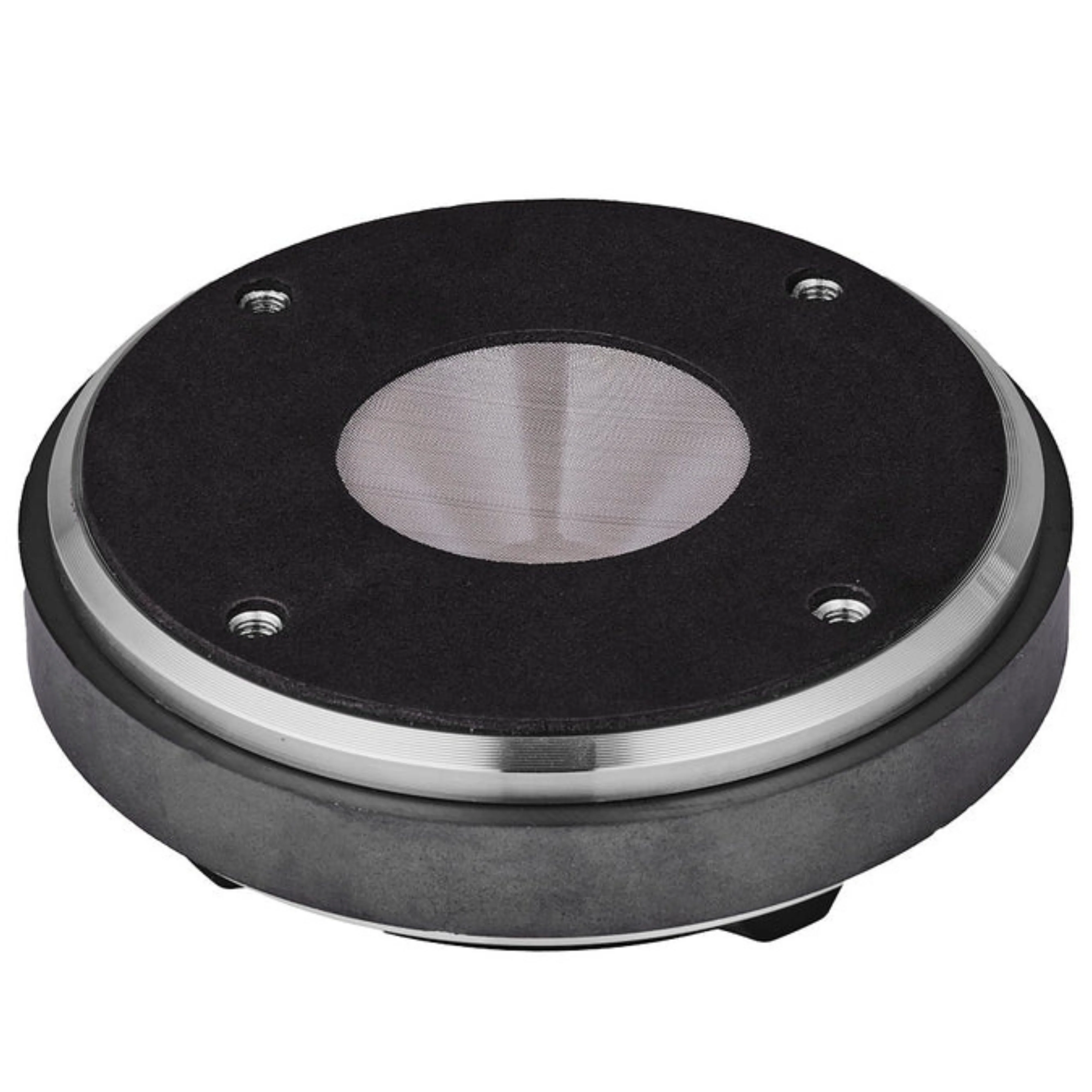

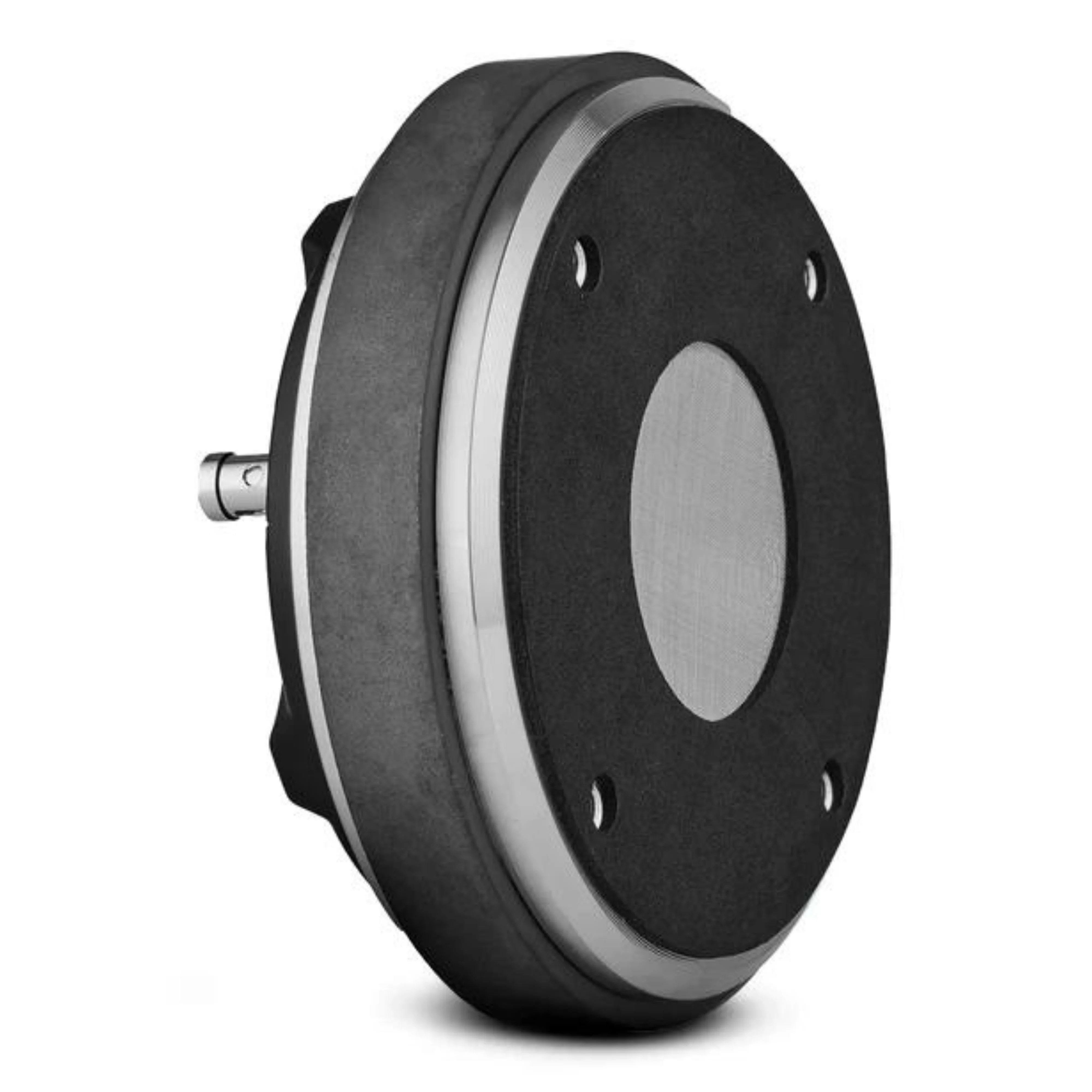

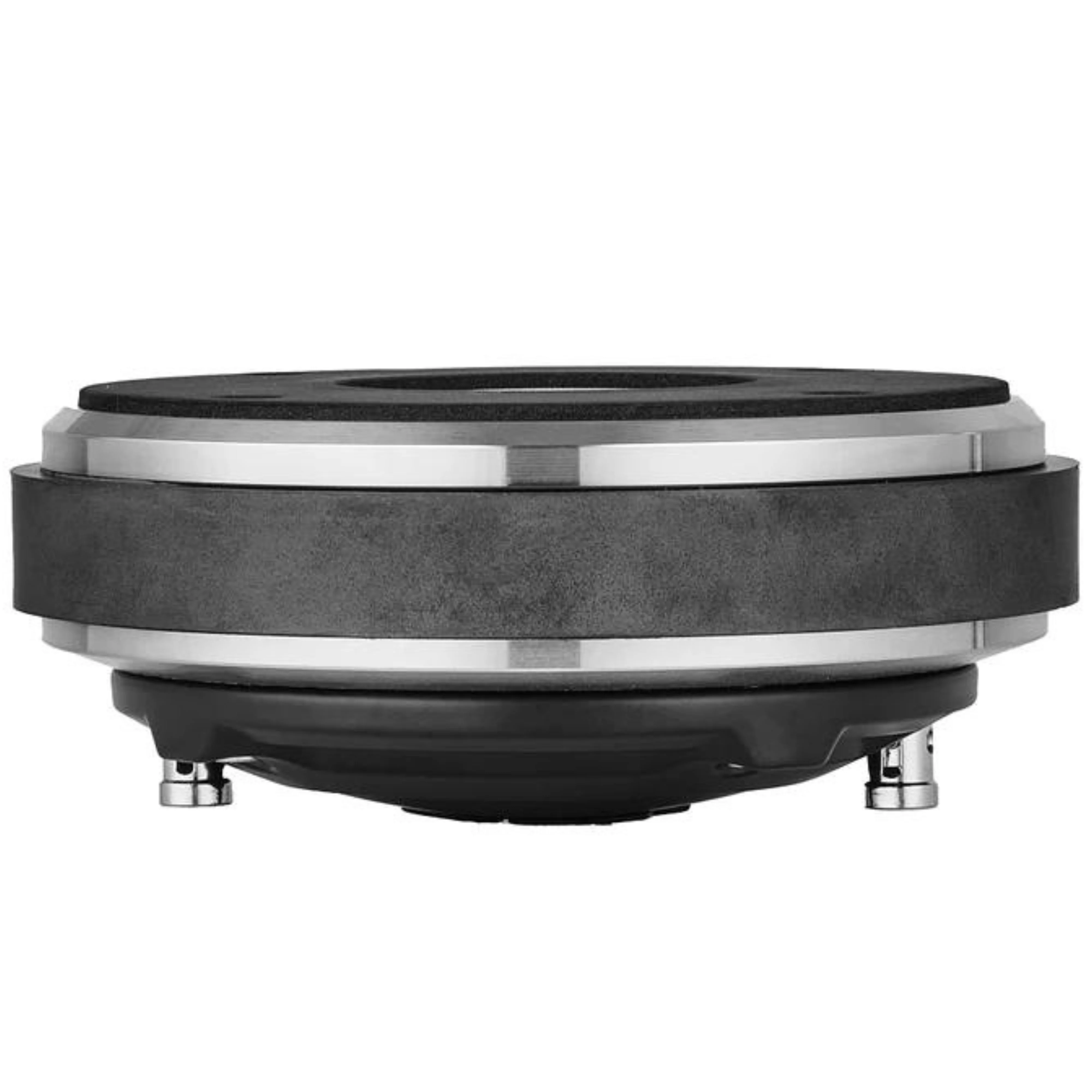

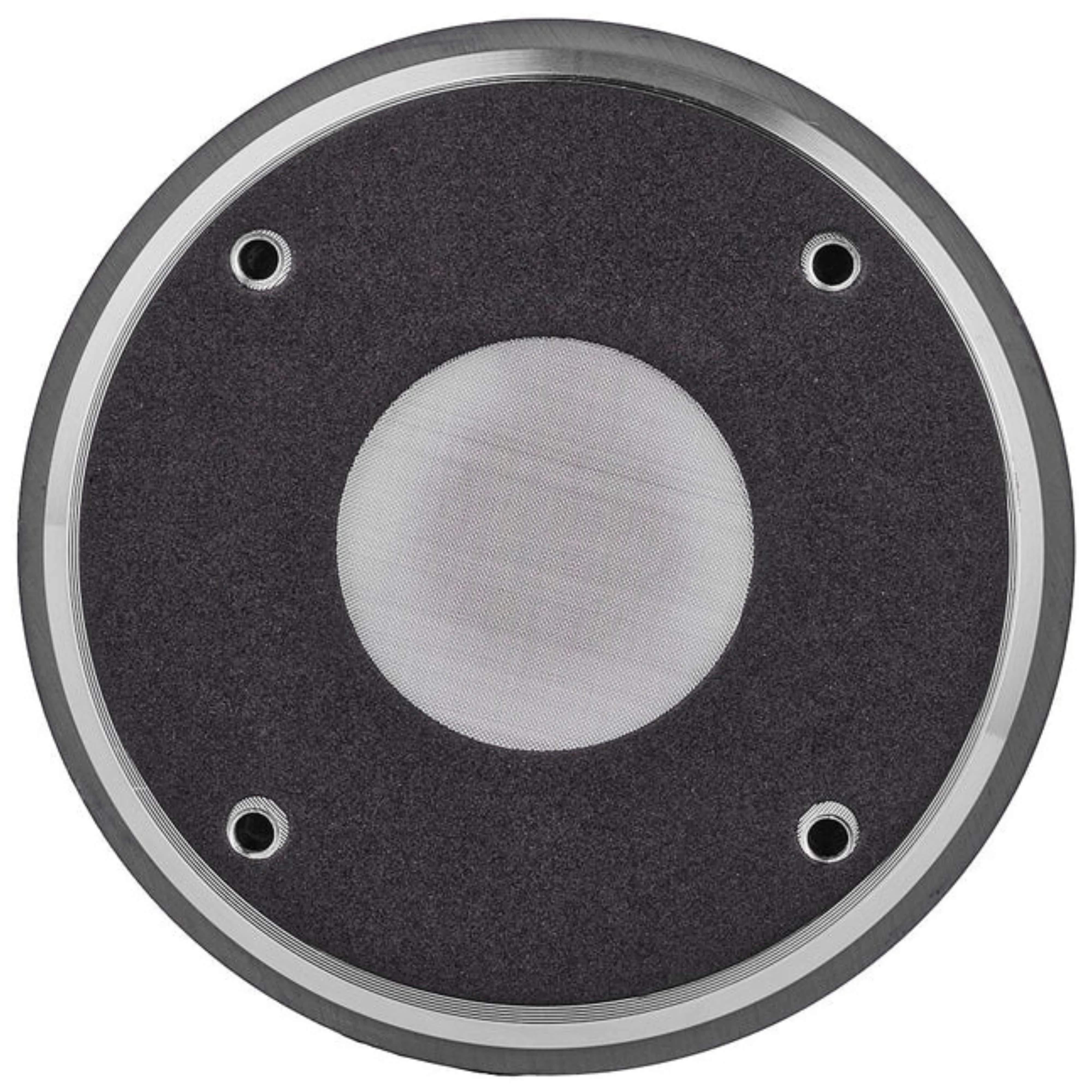

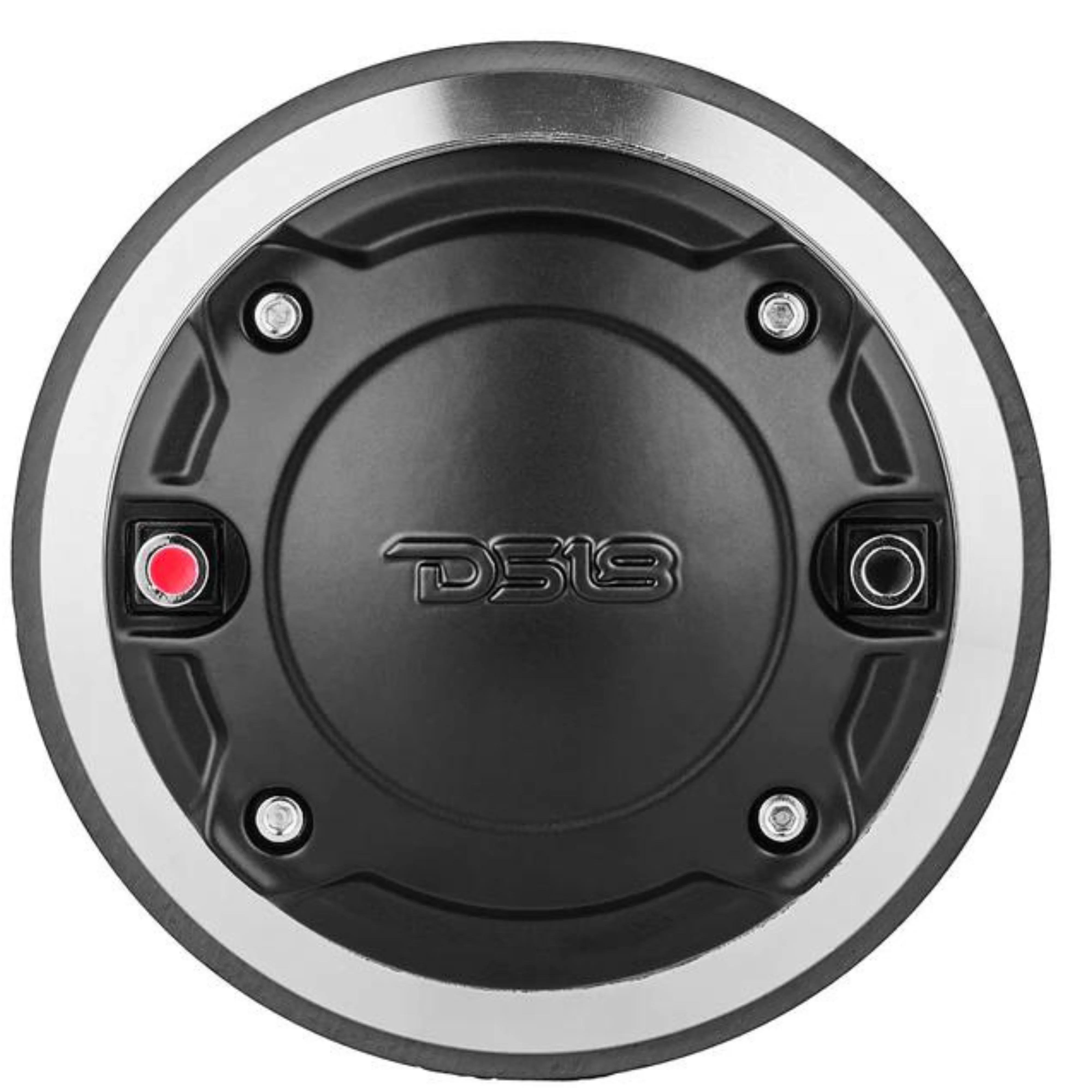

DS18 2" Throat Bolt-On Compression Driver 320W With Phenolic Voice Coil 8-OhmThis Listing Includes:

• (1) Phenolic Voice Coil Compression Driver


• (1) 10UF 100V Bass blocker

Elevate Your Audio System with DS18 PRO-D22PH.8

Enhancing your audio system is a breeze with DS18's PRO-D22PH.8. Crafted to impress even the most discerning audiophiles, this powerful driver features a 2" phenolic voice coil that delivers exceptional sound quality and clarity.

Versatile Compatibility and Power Handling

With an 8-ohm nominal impedance, the PRO-D22PH.8 ensures compatibility with a wide range of audio setups. Its impressive power handling capabilities of 160W AES, 320W program, and 640W peak guarantee a dynamic sound performance. The high sensitivity of 110dB (1w/1m) ensures clear and powerful sound even at high volumes.

Durable Design for Optimal Performance

The 2" voice coil diameter, made from high-quality Kapton material, ensures durability and optimal performance. The phenolic diaphragm material enhances sound reproduction, providing crisp highs and smooth mid-range frequencies. The ferrite magnet contributes to the overall power and efficiency of this state-of-the-art driver.

Precision Craftsmanship in a Sleek Design

Crafted with precision, DS18’s PRO-D22PH.8 features an aluminum body in a sleek black finish. The bolt pattern and type of 4xM6 - 4" ensure a quick integration into any existing audio setup.

Body/Features:

• Filter (Bass Blocker): 10Uf/100V


• Body Material: Aluminum


• Body Color/Finish: Black/Machined

Motor:

• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW (Copper-Clad Aluminum Wire)


• Diaphragm Material: Phenolic


• Magnet Material: Ferrite


• Magnet Weight: 35 oz

Speaker Specifications (PRO-D22PH.8):

• SKU: PRO-D22PH.8


• Throat Diameter: 2" / 50.8mm


• Installation Type: Bolt-On


• Nominal Impedance: 8 Ohms


• AES Power Handling: 160W


• Program Power Handling: 320W


• Peak Power Handling: 640W


• Sensitivity (1w/1m): 110dB


• Frequency Response: 630Hz-8KHz


• Recommended Hi Pass Crossover: 800Hz


• Sold in Pair or Single: Single

Measurement:

• Overall Diameter: 5.31" / 135mm


• Overall Depth: 2.08" / 53mm


• Bolt Pattern/Type: 4xM6 - 4" / 102mm
