• 2 way driver featuring a 160w AES driver and 60w AES tweeter
• Separate inputs for both speakers to give you more power and mounting options
• Gold plated terminals for the highest conductivity
• Mid-Range Peak Power Handling 640W
• Tweeter Peak Power Handling 240W

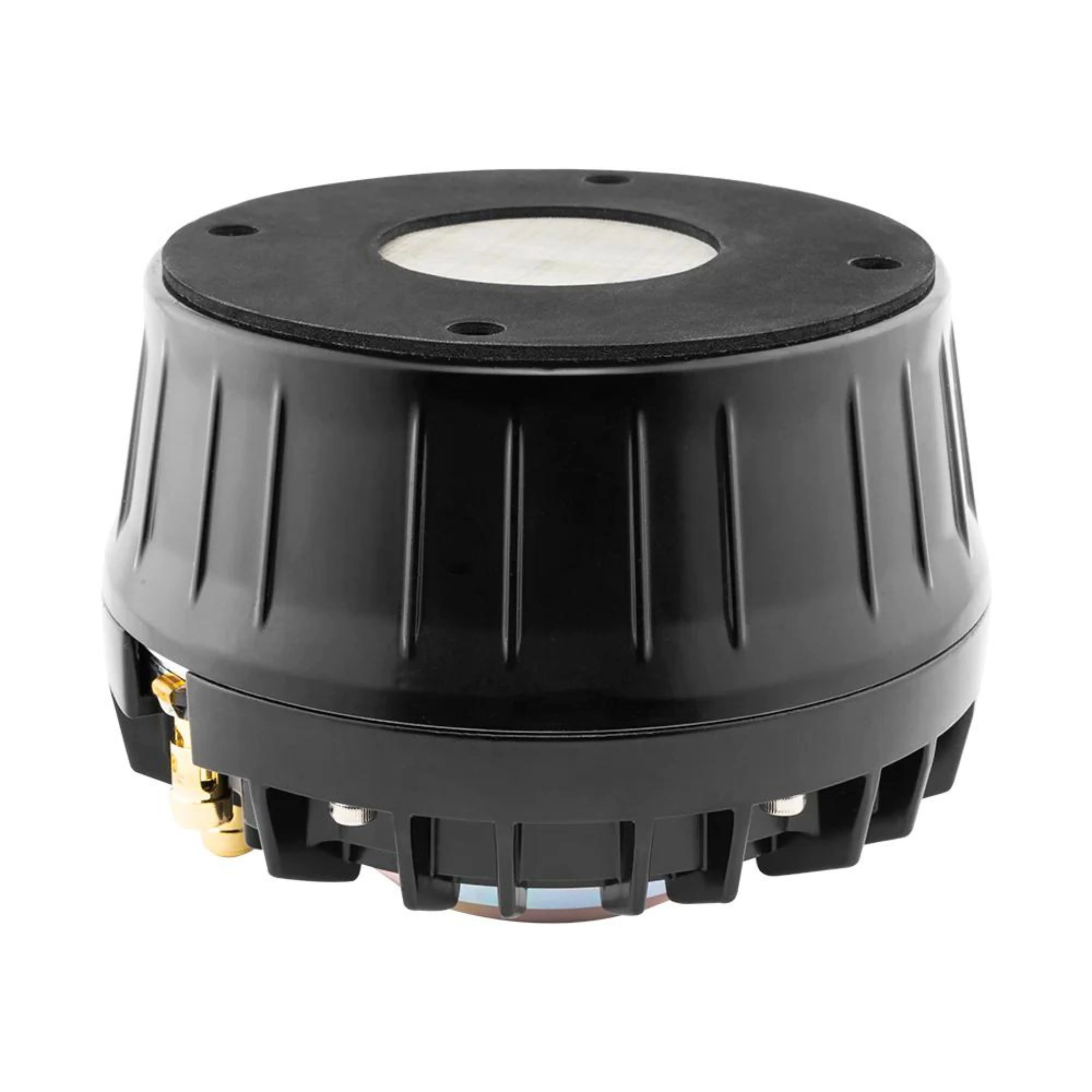

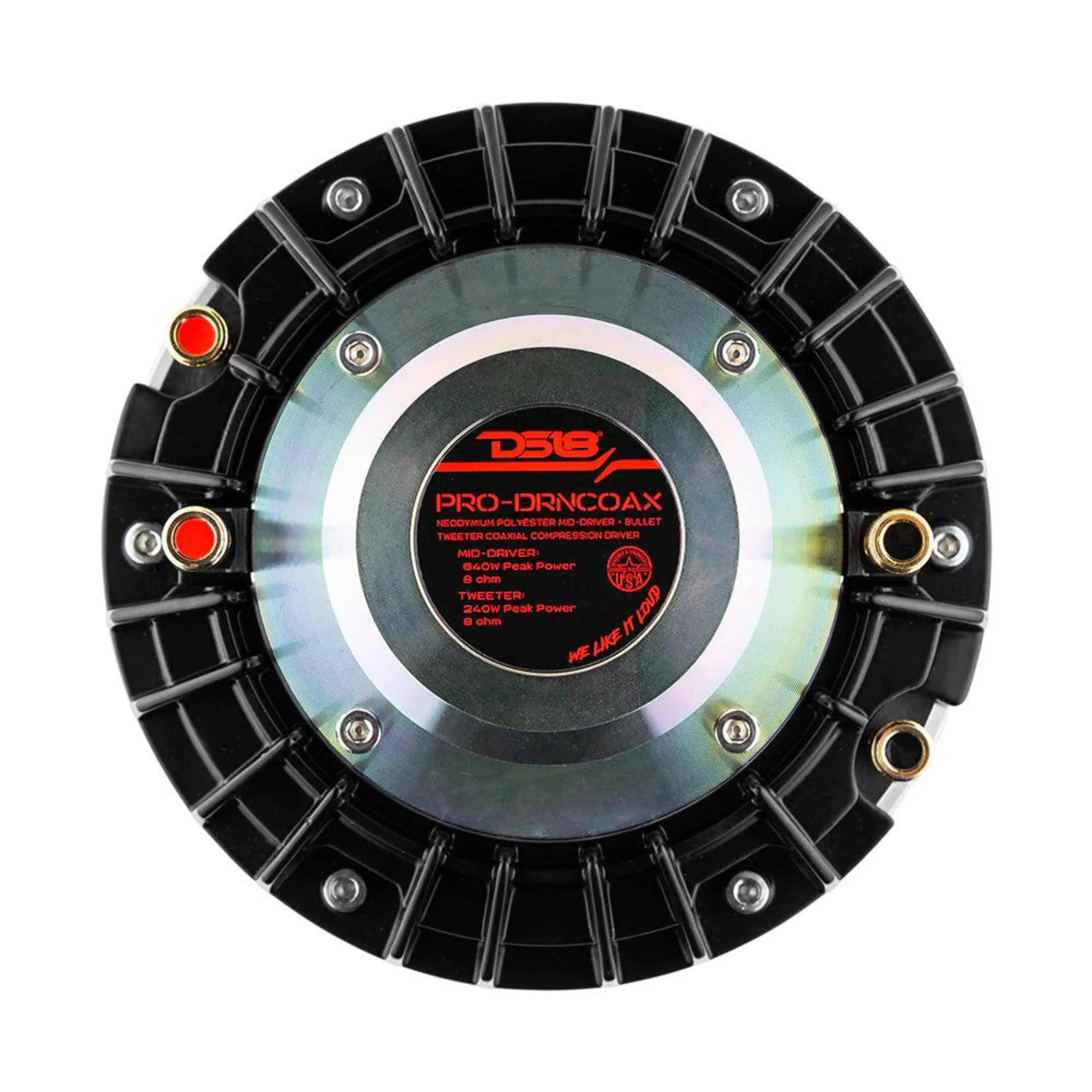

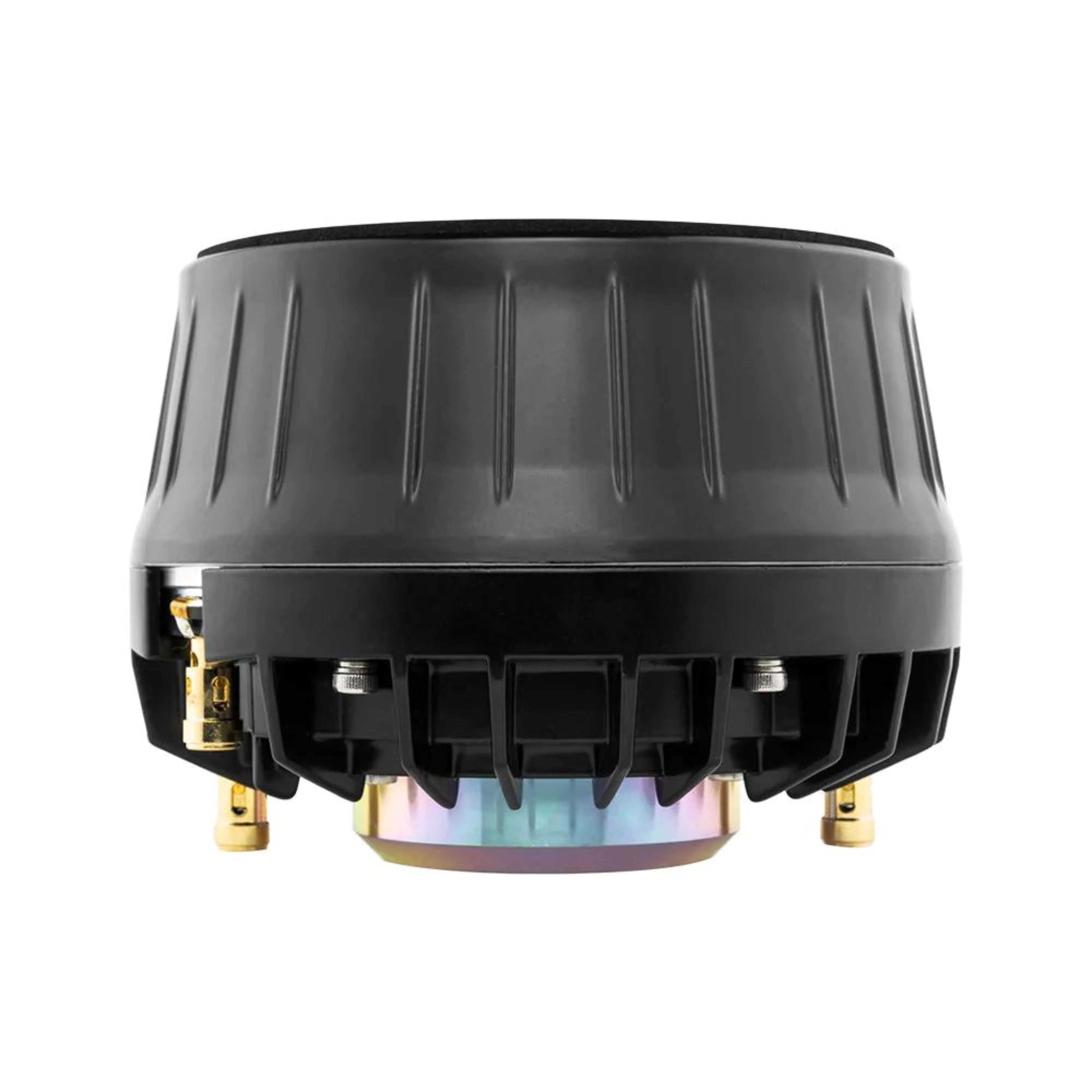

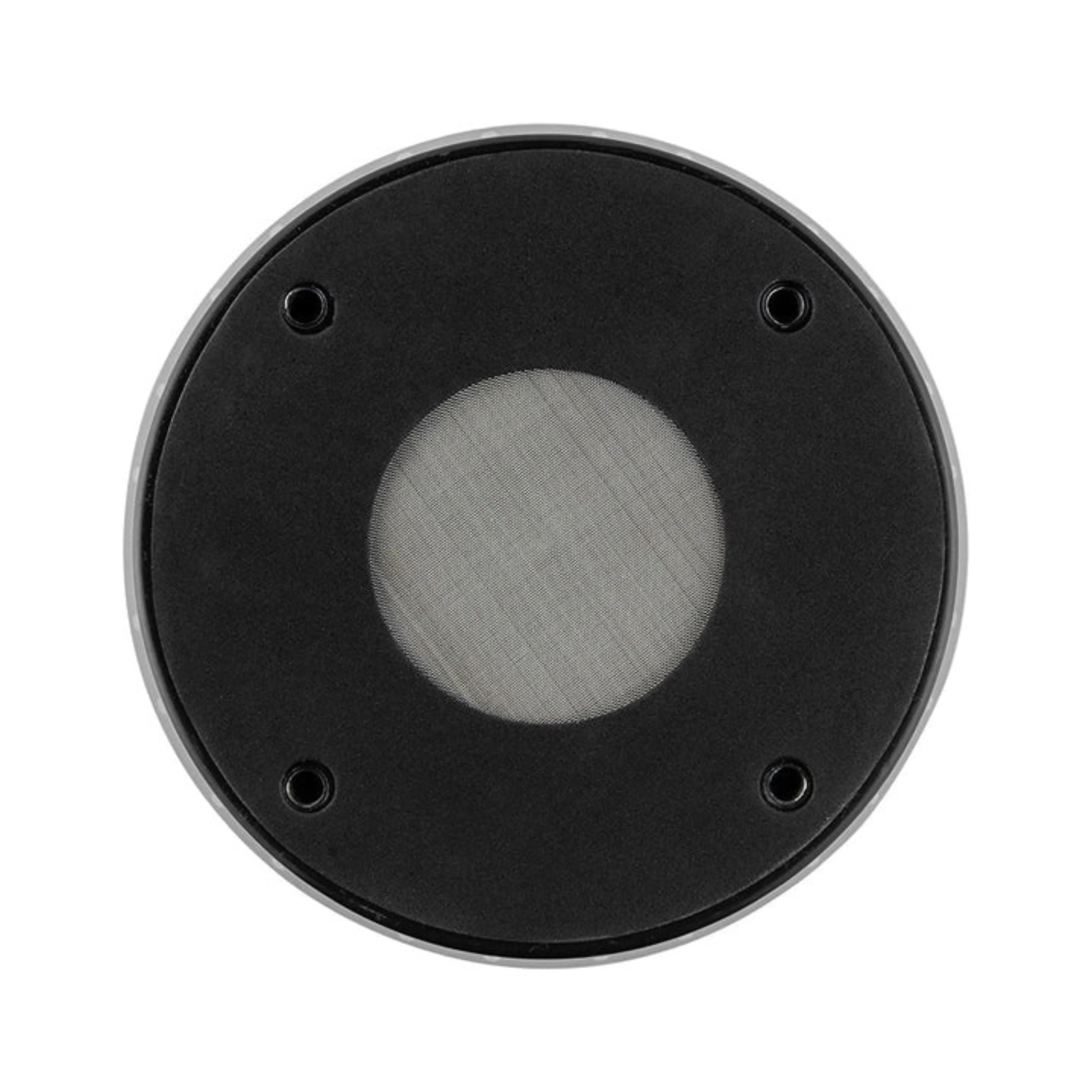

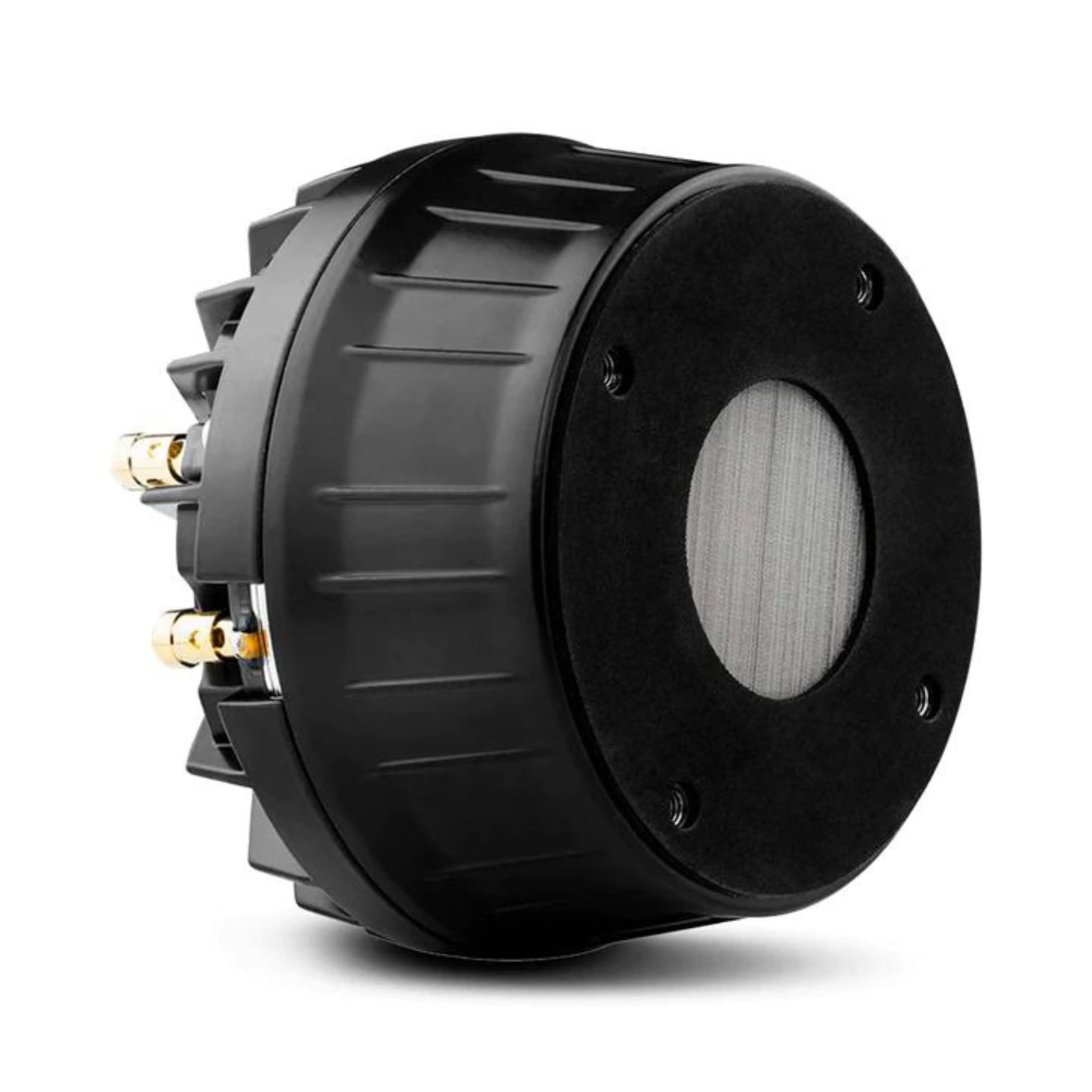

DS18 2" Throat Bolt-on Nedodymium Driver 320W w/Dual Polymer Mid/High-Range 8ohm

This Listing Includes:

(1) 8ohm MID-DRIVER + BULLET TWEETER COAXIAL COMPRESSION DRIVER

Bringing new and innovative products is what DS18 is all about! Our new coax driver will be sure to fill in all your high end frequencies without slipping one beat! This unique neodymium driver is 2 way. The midrange driver plays 315Hz - 20KHz, while the high range tweeters fills out frequencies from 4 KHz to 20KHz for added punch!

Secifications:

Installation Type Bolt-on

Sensitivity (1w/1m) 118dB

Frequency Response 315Hz - 20KHz

Mid-Driver Specifications

Peak Power Handling 640W

Program Power Handling 320W

AES Power Handling 160W

Frequency Response 315Hz - 20KHz

Recommended Band-Pass Crossover 630Hz - 5KHz

Tweeter Specifications

Peak Power Handling 240W

Program Power Handling 120W

AES Power Handling 60W

Frequency Response 4KHz - 20KHz

Recommended Hi-Pass Crossover 5KHz

Motor

Tweeter Voice Coil Diameter 1.75"/44.4mm

Mid-Drive Voice Coil Diameter 3.5"/90mm

Voice Coil Former Material Kapton

Winding Material CCAW

Diaphragm Material Polyester

Magnet Material Neodymium

Measurements

Overall Diameter 5.5"/140 mm

Overall Depth 3.9"/101 mm

Bolt Pattern M6 - 4"/102mm
