• 4" super bullet tweeter designed for premium audio systems
• Wide frequency response of 900Hz-20KHz for detailed, dynamic audio
• Shallow 1.8" mounting depth for easy and versatile installation
• 1.5" titanium voice coil for high-frequency clarity and accuracy
• Neodymium magnet ensures precise sound reproduction

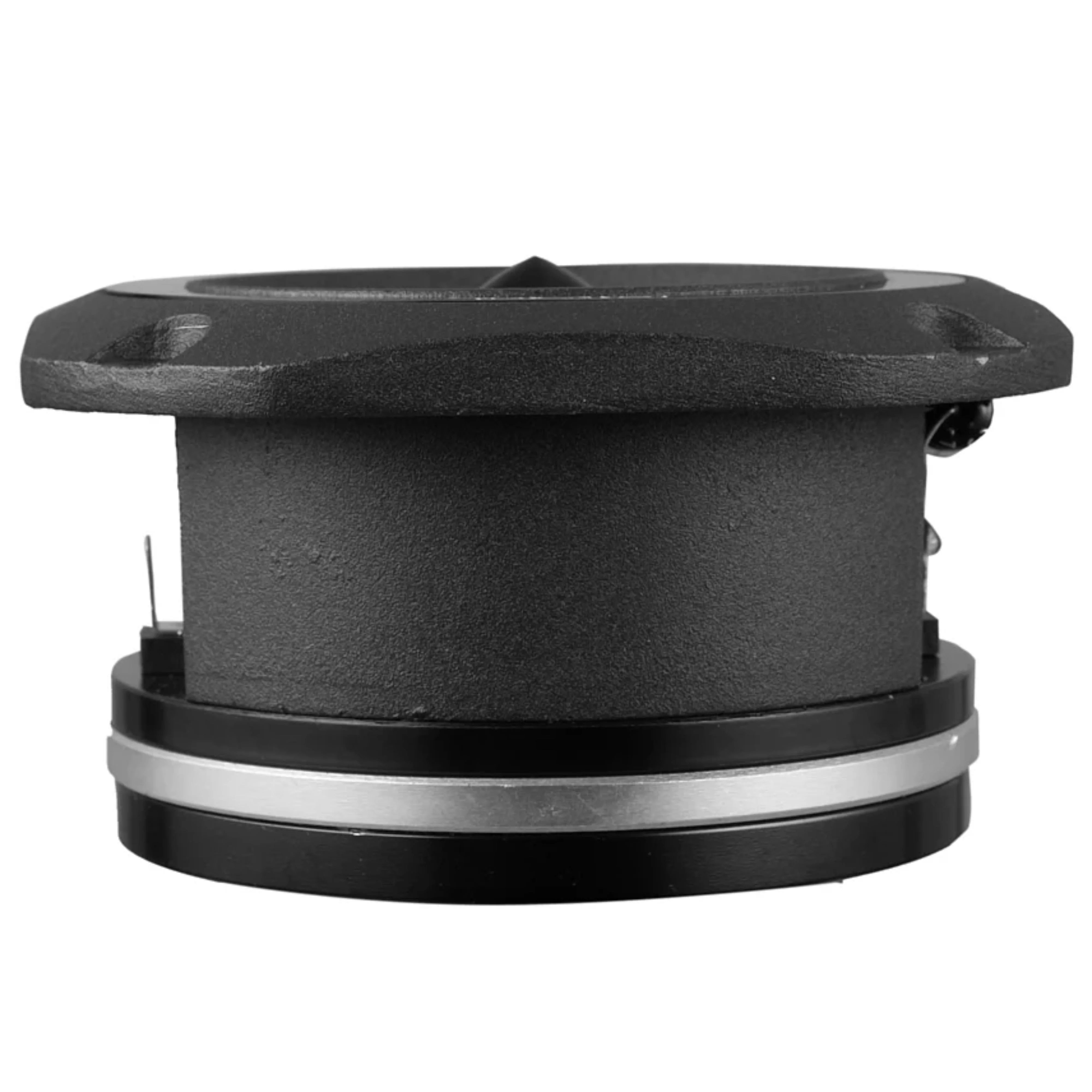

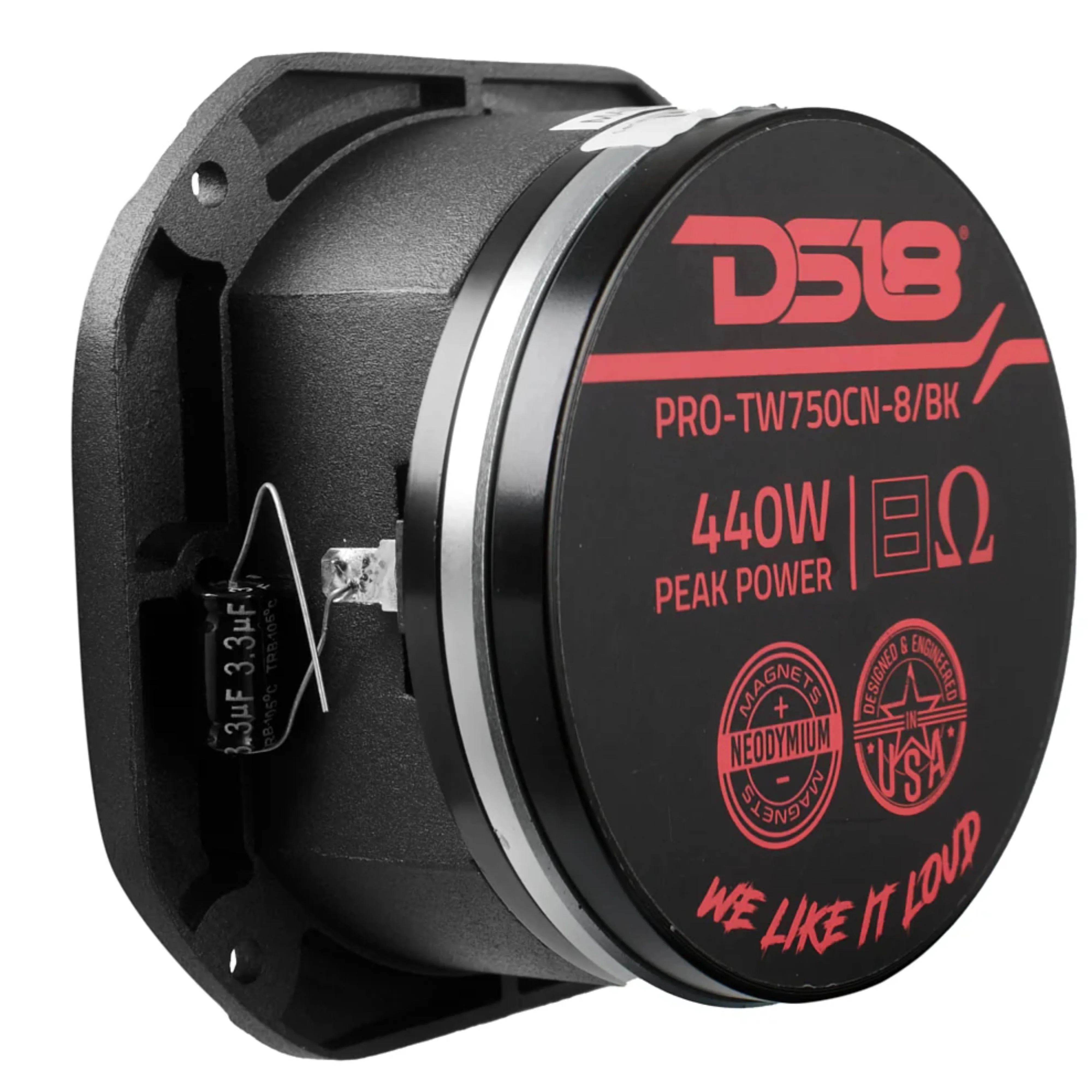

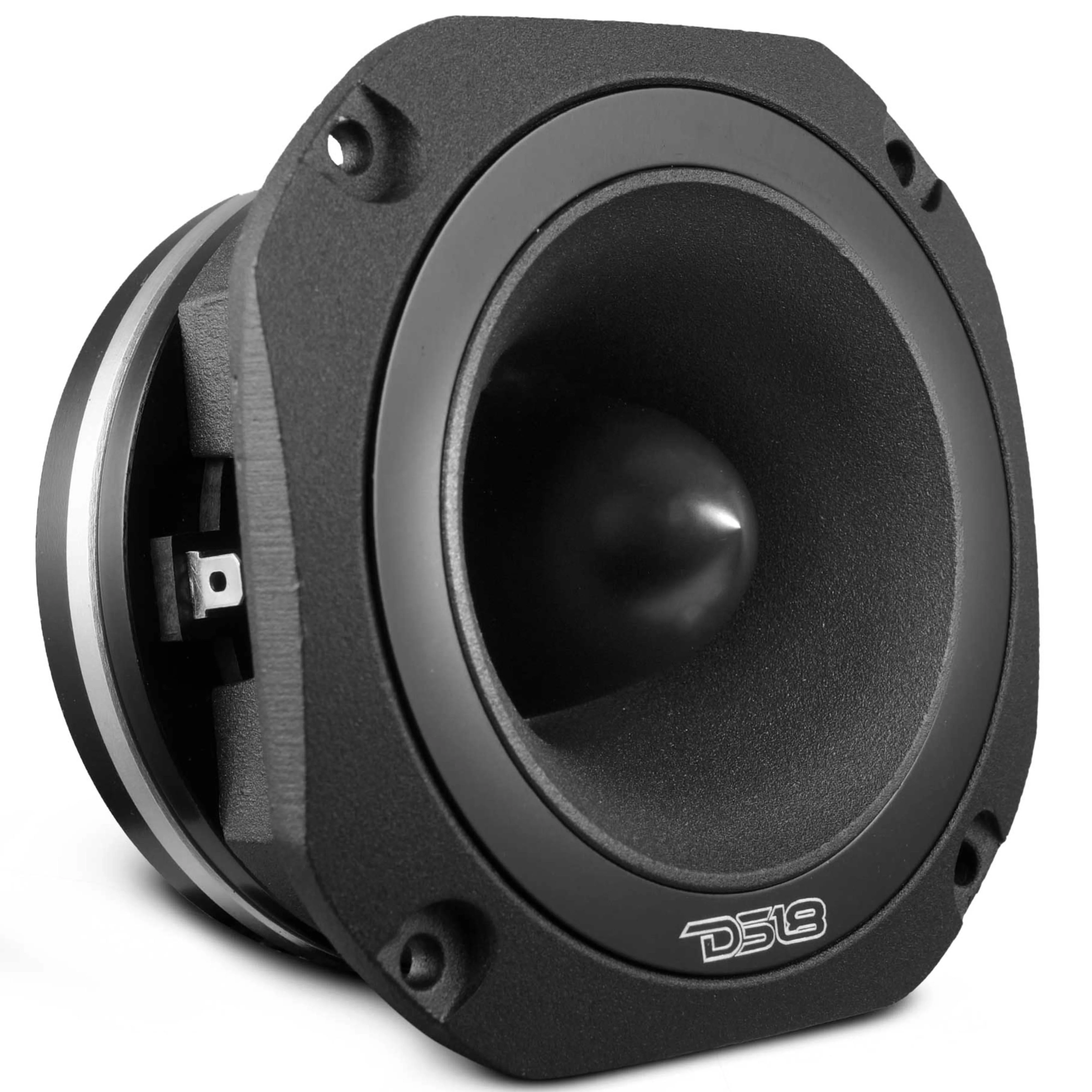

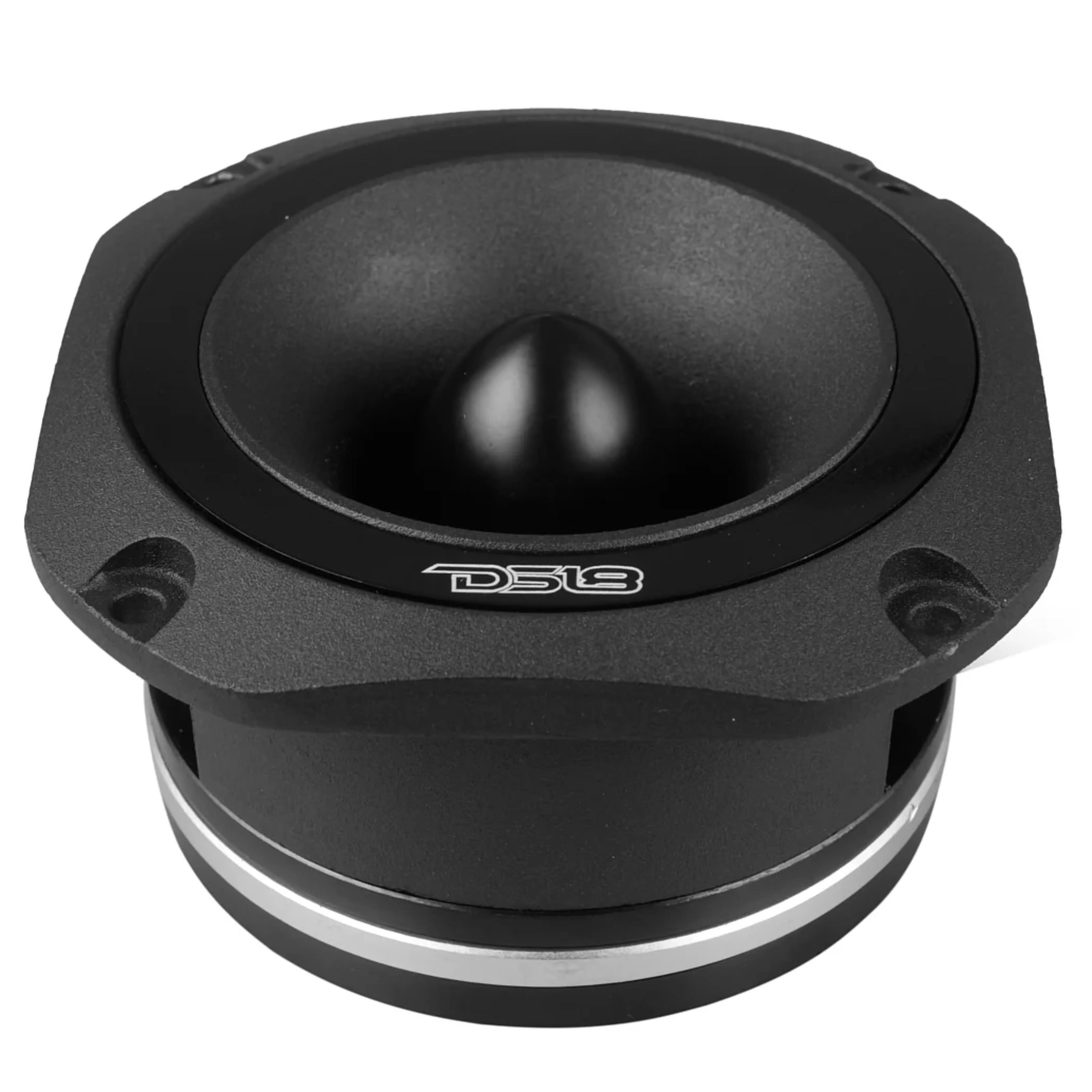

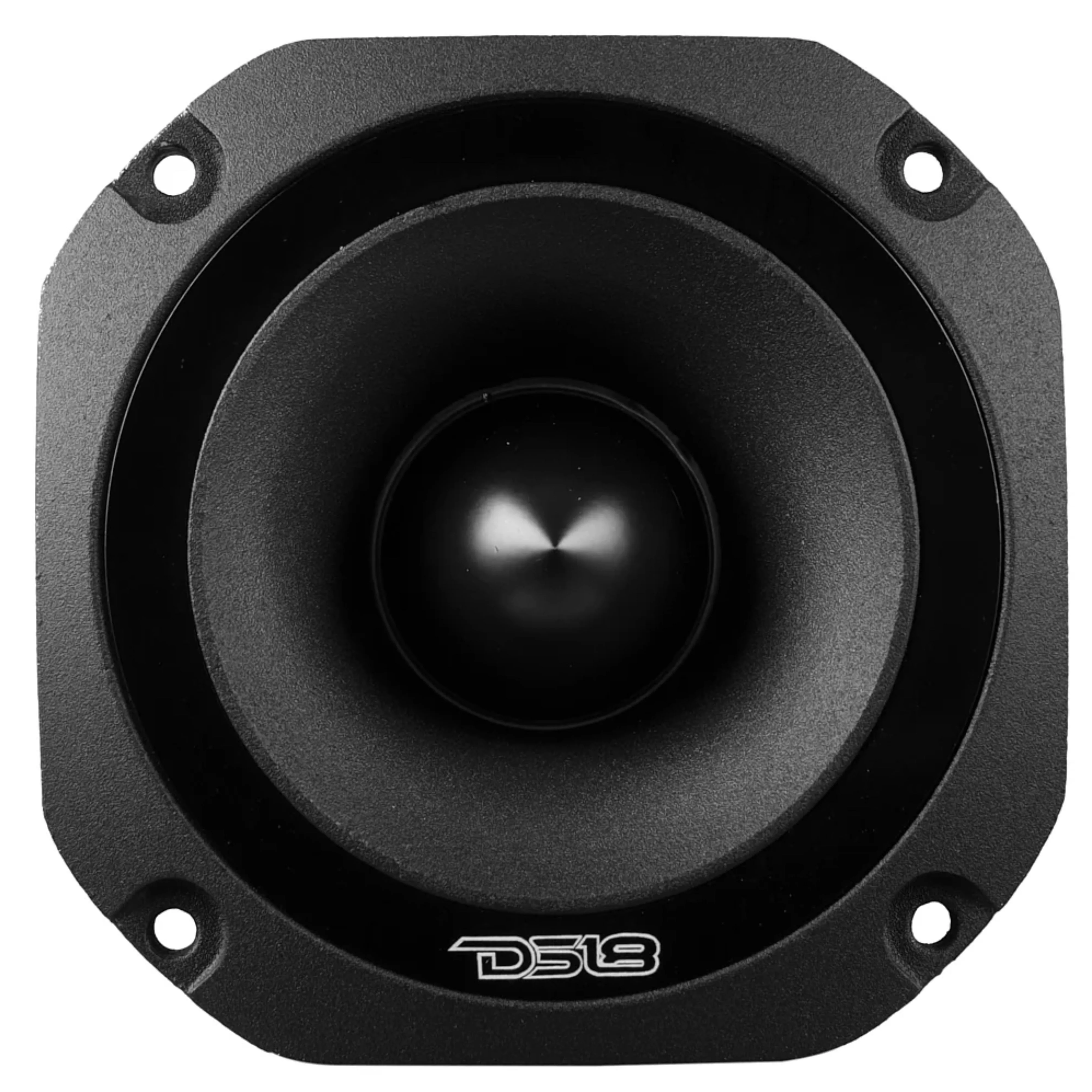

DS18 4" 8-Ohm 220W RMS 1.5" Titanium VC Neodymium Super Bullet Tweeter

This Listing Includes:

• (1) DS18 4" Super Bullet Tweeter with 1.5" Titanium Voice Coil Neodymium Magnet 220 Watts 8-Ohm

The DS18 PRO-TW750CN-8 is a high-performance 4-inch super bullet tweeter designed for premium audio systems. It features a 1.5" titanium voice coil and a neodymium magnet for exceptional sound clarity and accuracy. With a wide frequency response from 900Hz to 20KHz, it delivers dynamic, distortion-free sound, even at high volumes, with 440W peak power and 110dB sensitivity. A 3.3uF bass blocker filters out low frequencies to protect the tweeter. Its CNC aluminum bullet design ensures durability, and the shallow 1.8-inch mounting depth allows easy installation in various setups.

Specifications:

• Nominal Diameter: 4" / 101mm


• Nominal Impedance: 8 ohms


• AES Power Handling: 160W


• Program Power Handling: 220W


• Peak Power Handling: 440W


• Sensitivity (1w/1m): 110dB


• Frequency Response: 900Hz-20KHz


• Recommended Hi Pass Crossover: 3KHz


• Sold In Pair or Single: Single

Body / Features:

• Filter (Bass Blocker): 3.3uf / 100V


• Body Material: Aluminum


• Body Color / Finish: Black / Aluminum


• Faceplate Color / Finish: Black / Aluminum


• Bullet Material: CNC Aluminum

Motor:

• Voice Coil Diameter: 1.5" / 38mm


• Voice Coil Former Material: KSV


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• Magnet Size: 3.54"x0.19" / 90x5mm


• Magnet Weight: 5.82 Oz

Measurement:

• Overall Diameter: 4" / 103mm


• Overall Depth: 2.28" / 58mm


• Front Mount Baffle Cutout: 3.5" / 90mm


• Mounting Depth: 1.8" / 46mm
