• Exceptional Clarity: The DS18 6PRO300MR-4 features a 6.5" diameter and 4 OHMS impedance, delivering exceptional clarity and detail in audio reproduction for immersive listening experiences.
• Powerful Sound: Enjoy 150W RMS and 300W MAX power handling, ensuring powerful and dynamic sound reproduction, making it ideal for various audio applications.
• Immersive Sound: With a high sensitivity rating of 102 dB, this speaker fills any space with rich and immersive sound, providing an engaging listening experience.
• Reduced Distortion: Copper demodulating rings are incorporated to reduce distortion, resulting in cleaner output and improved sound quality, allowing for faithful audio reproduction.
• Enhanced Dispersion: The curvilinear cone shape enhances dispersion, ensuring that sound is evenly distributed throughout the listening area, delivering a more immersive audio experience
• Hassle-Free Installation: Equipped with push speaker terminals, installation is quick and easy, allowing for seamless integration into various audio systems.

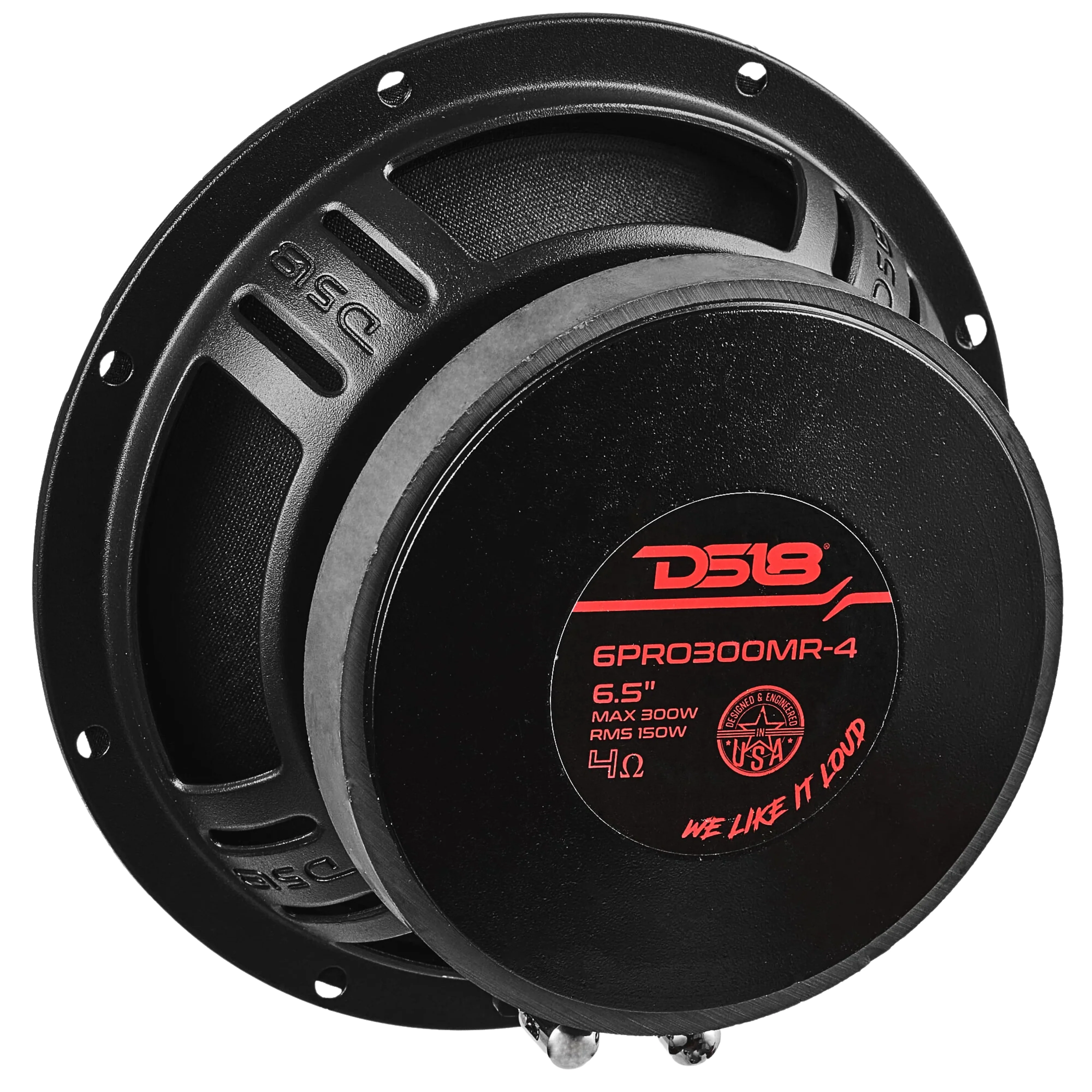

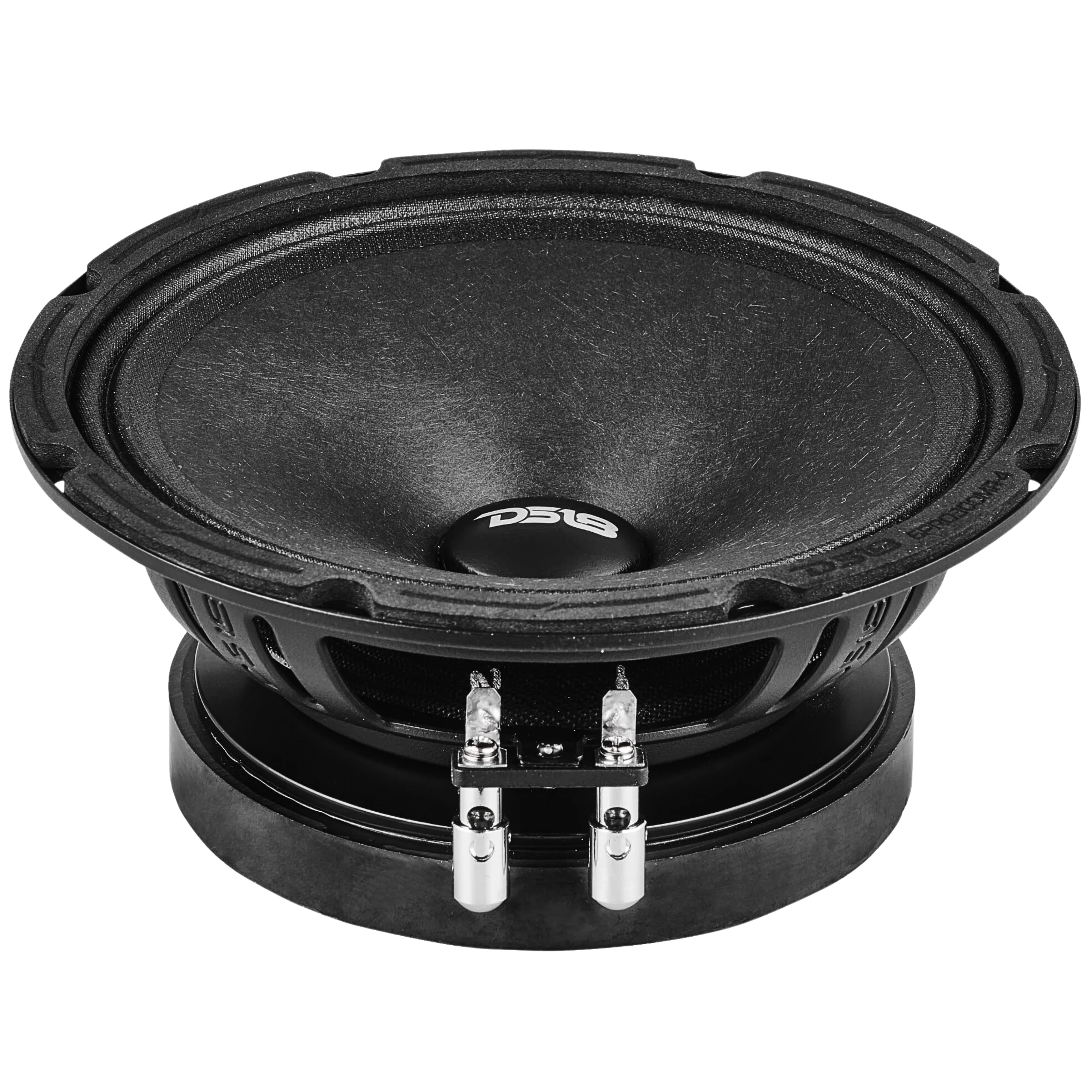

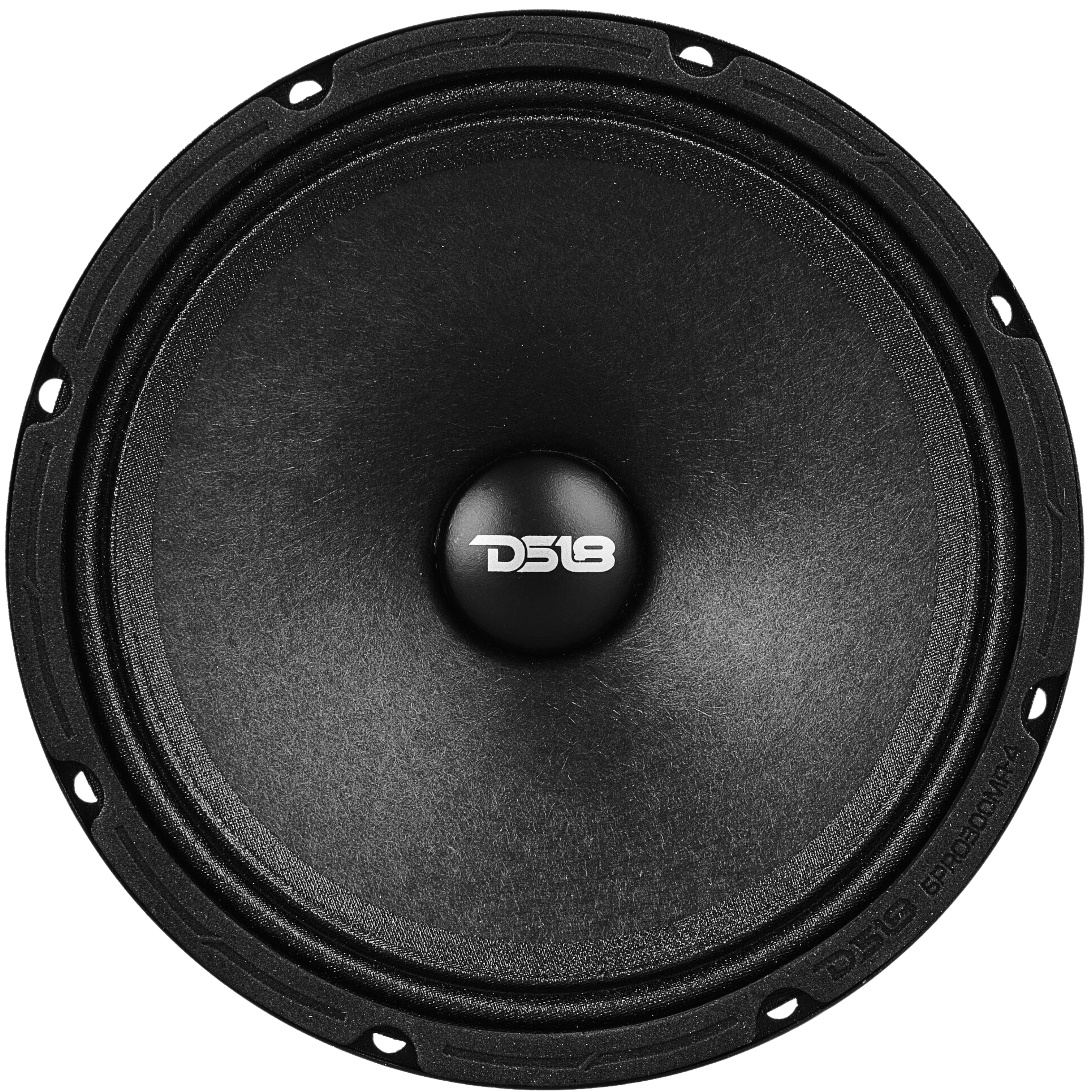

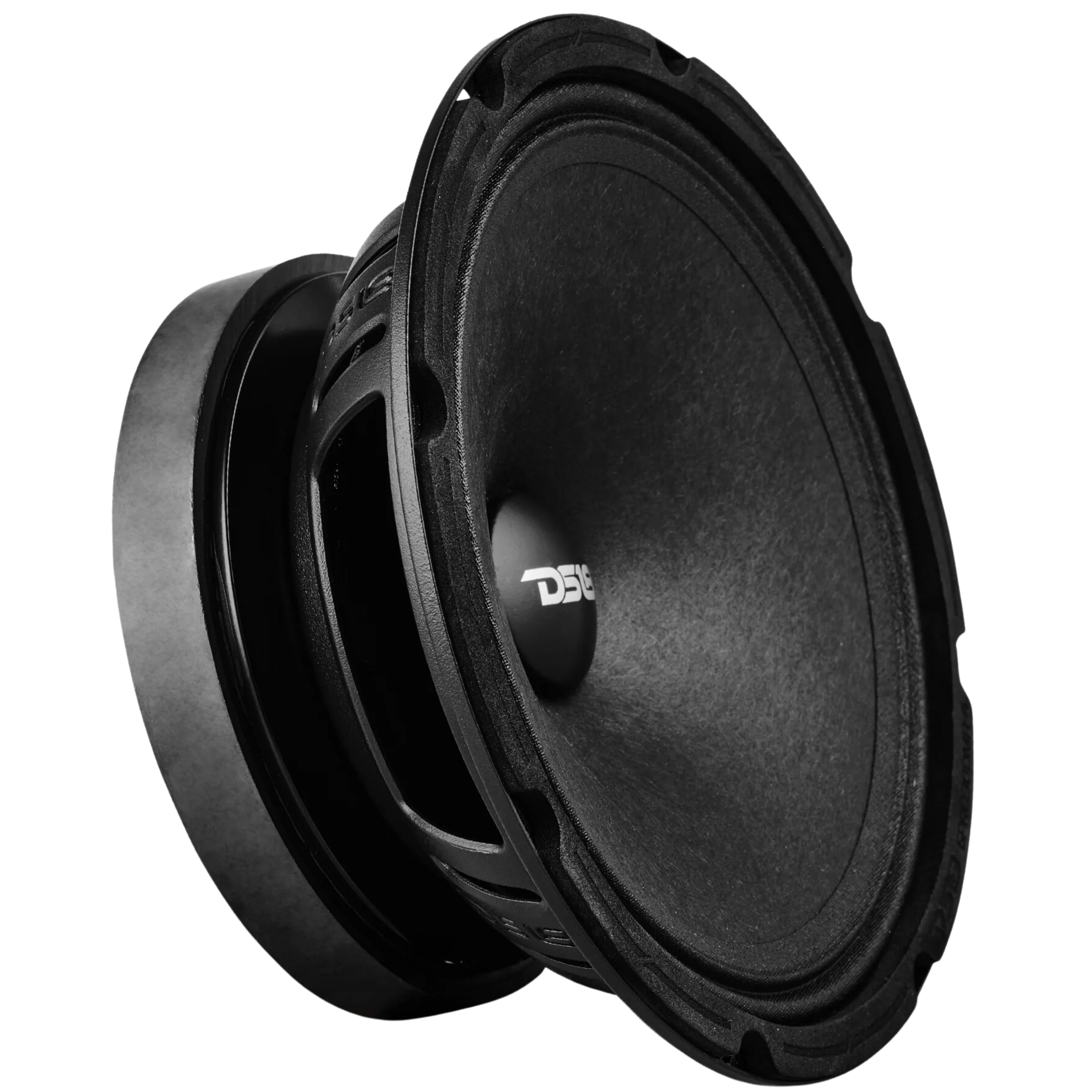

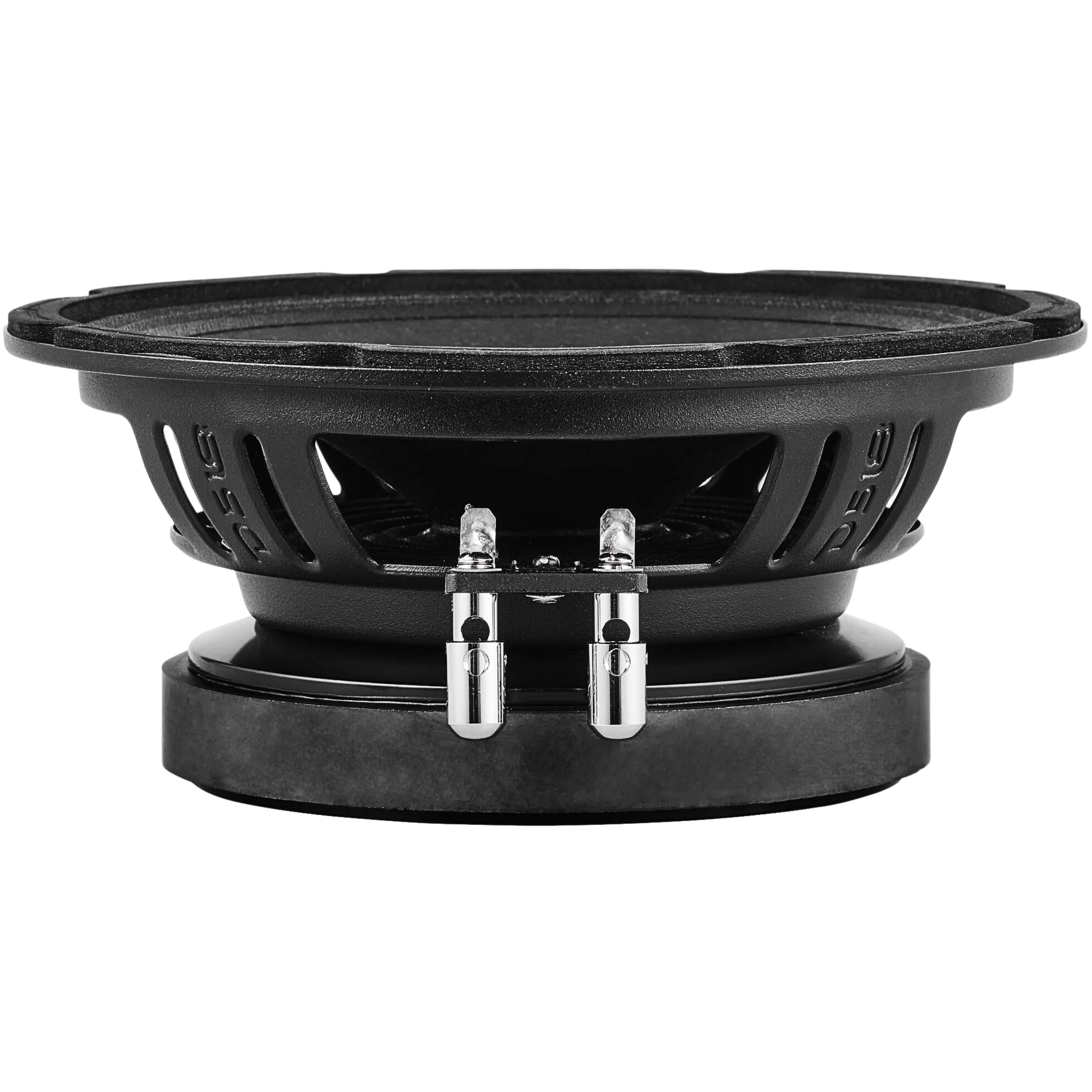

DS18 6.5" 150W RMS 4-Ohm SVC Pro Mid-Range Loudspeaker / 6PRO300MR-4

This Listing Includes:

• (1) DS18 6.5-inch loudspeaker 6PRO300MR-4

Experience superior sound with DS18’s 6PRO300MR-4! With a 6.5" diameter and 4 OHMS impedance, it delivers exceptional clarity. Enjoy 150W RMS and 300W MAX power handling for powerful sound reproduction. Its high sensitivity rating of 102 dB fills any space with rich, immersive sound. Copper demodulating rings reduce distortion for cleaner output. The curvilinear cone shape enhances dispersion, and push speaker terminals ensure hassle-free installation. With a 1.25" Kapton material voice coil, enjoy extended playtime without compromise.

SPECIFICATIONS:

• Nominal Diameter: 6.5" / 165mm


• Nominal Impedance: 4 OHMS


• RMS Power Handling: 150 Watts


• MAX Power Handling: 300 Watts


• Sensitivity (1w/1m): 102 dB


• Frequency Response: 100Hz-12.5KHz


• Recommended HI Pass Crossover: 160Hz


• Sold as Pair or Single: Single

FEATURES:

• Demodulating Rings: Copper Ring


• Cone Shape: Curvilinear


• Speaker Terminals: Push (16ga)

MOTOR:

• Voice Coil Diameter: 1.25" / 31.7mm


• VC Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Spider Diameter: 4" / 102mm


• Leads Connection Type: Spider Crossed


• Basket Material: Steel


• Basket Color/Finish: Black


• Magnet Material: Ferrite


• Magnet Weight: 25 Oz


• Displacement Volume: 0.28L / 0.01ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume: Vas 8.85L / 0.312ft3


• Excursion (one way): Xmax 0.95mm


• Free Air Resonance: Fs 118Hz


• Mechanical Factor: Qms 4.73


• Electrical Factor: Qes 0.64


• Total Factor: Qts 0.57


• Mechanical Mass: Mms 7.36g


• Mechanical Compliance: Cms 0.25mm/N


• BL Factor: Bl 5.31


• Voice Coil Inductance: Le 0.03mH


• Cone Area: Sd 158.37cm2


• DC Resistance: Re 3.3ohms


• Mechanical Mass w/o air: Mmd 7.1g

MEASUREMENTS:

• Overall Diameter: 6.7" / 170mm


• Overall Depth: 3" / 78mm


• Front Mount Baffle Cutout: 5.87" / 149mm


• Mounting Depth: 2.83" / 72mm


• Motor Diameter: 4.72" / 120mm
