• Nominal diameter: 6.5"
• RMS Power handling: 150 Watts
• Magnet material: Ferrite
• Mounting depth: 2.8" | Front mount baffle cutout: 5.6"

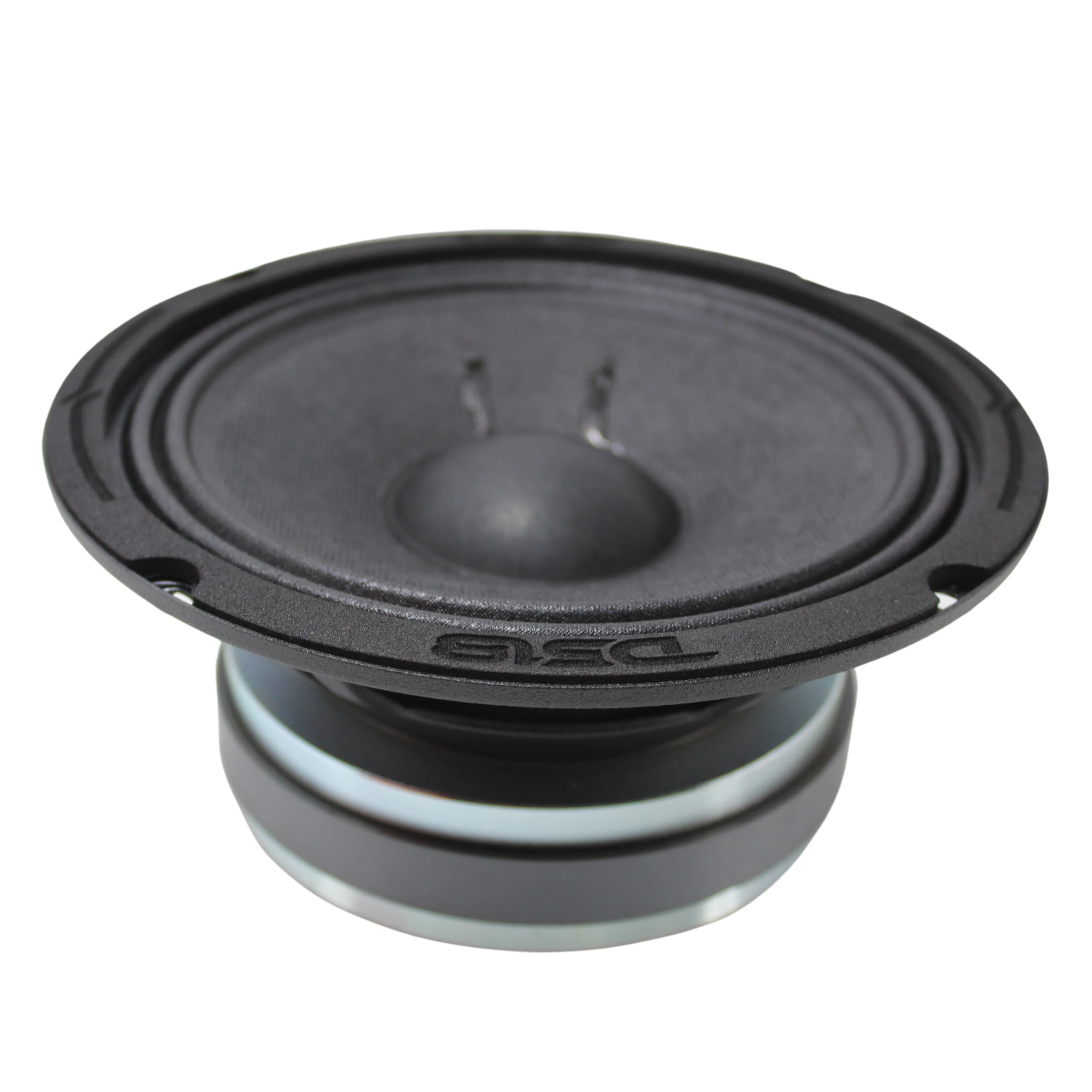

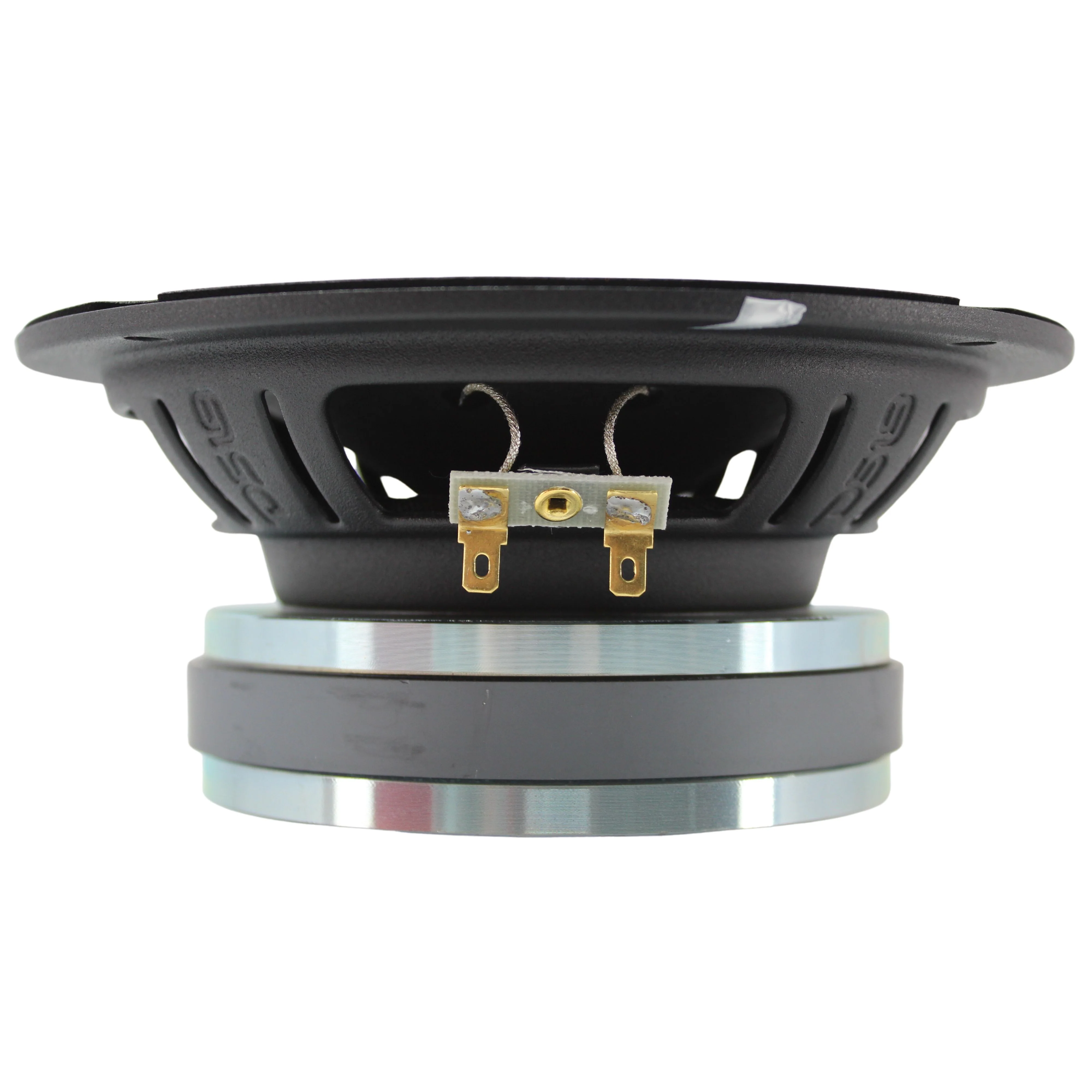

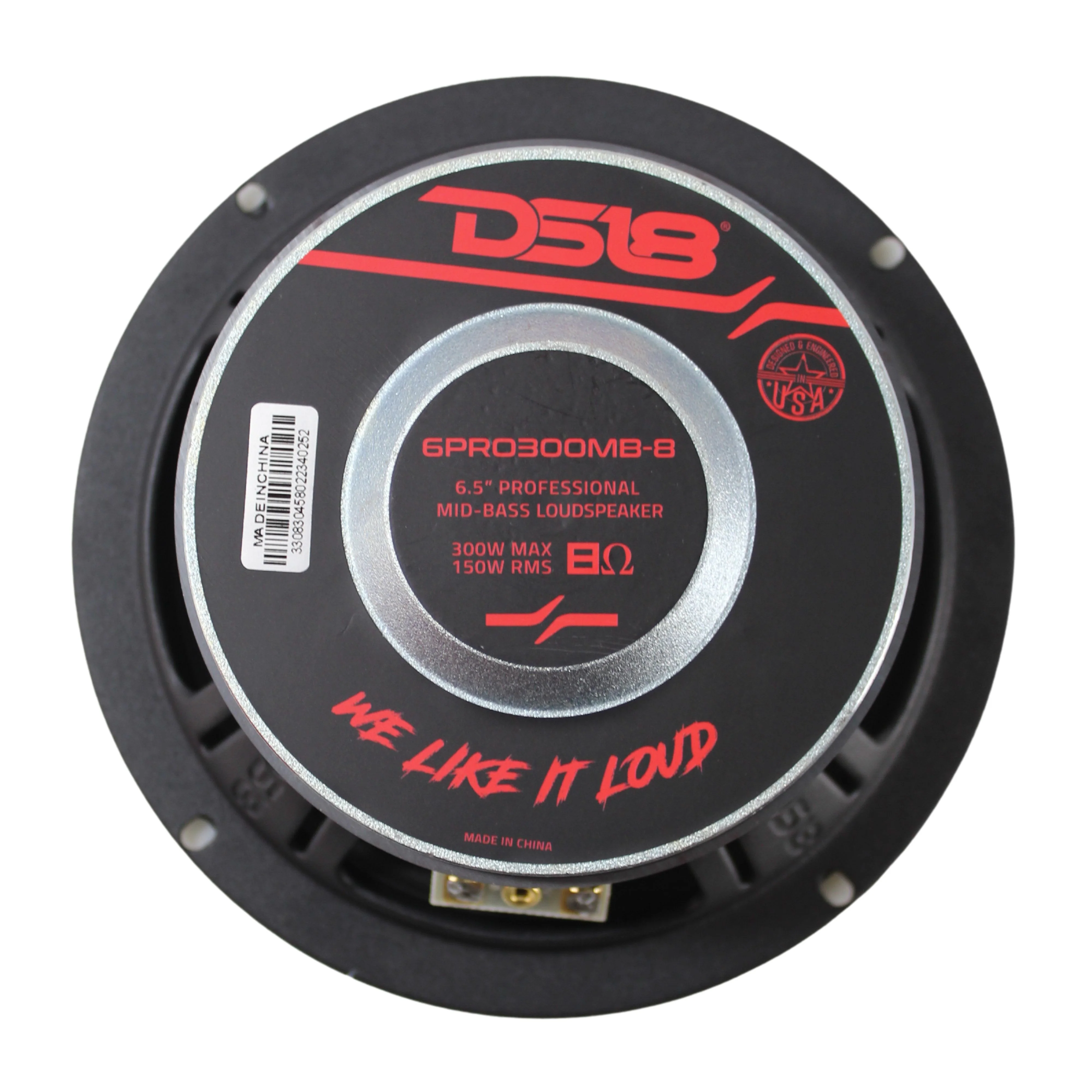

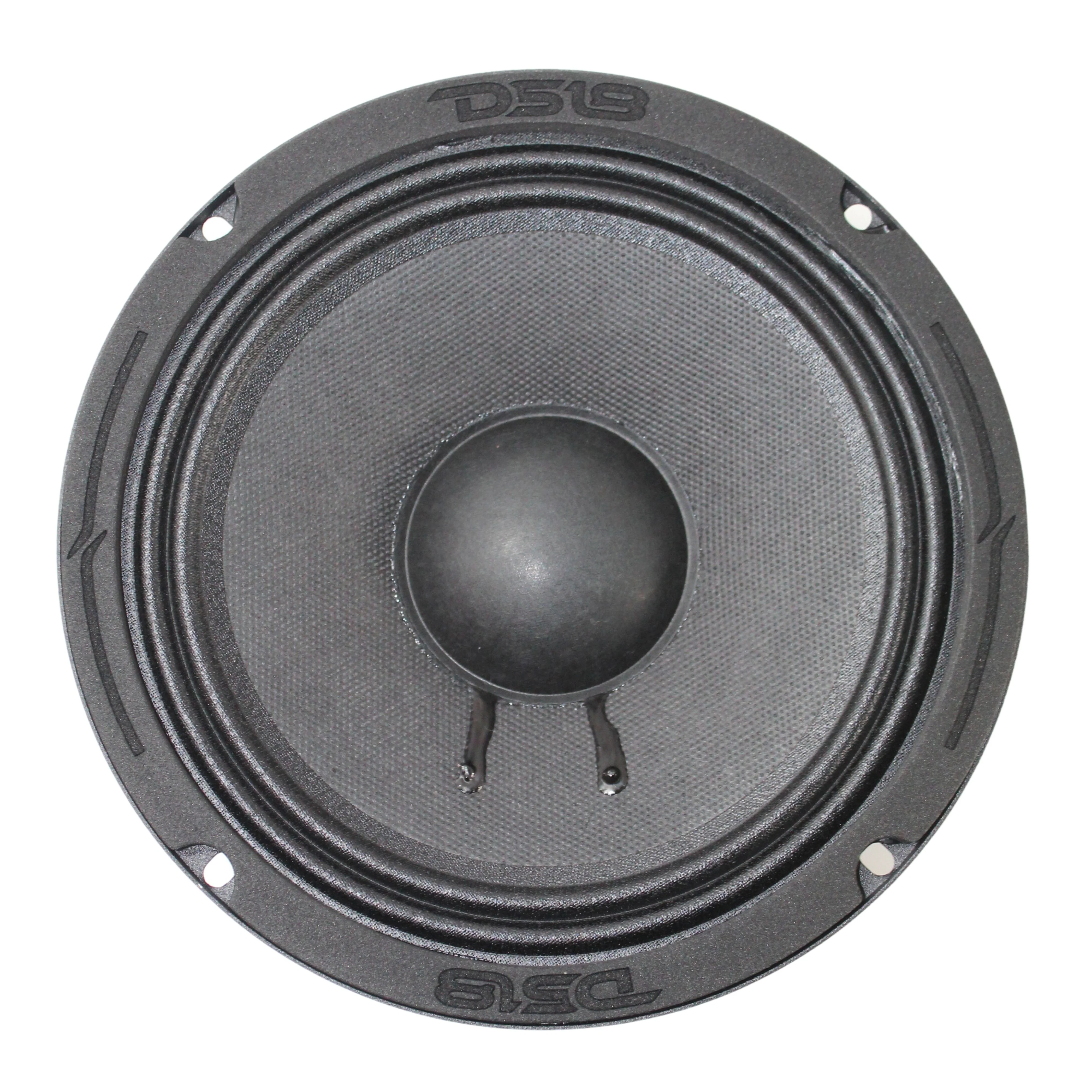

DS18 6.5" 8 Ohm 300 Watts Peak Pro Car Audio Loudspeaker 6PRO300MB-8

This listing includes:

• (1) DS18 6.5" 8 Ohm 300 Watt Loudspeaker

Specifications:

• Nominal diameter: 6.5"


• Nominal impedance: 8 Ohms


• RMS Power handling: 150 Watts


• MAX Power handling: 300 Watts


• Sensitivity: 96 dB

Motor:

• Voice coil diameter: 1.5"


• Voice coil former material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color: Satin black


• Magnet material: Ferrite


• Magnet weight: 20 oz

Thiele & Small Parameters:

• Excursion / Vas: 3.97L / 0.14ft


• Free air resonance / Xmax: 9.4mm


• Mechanical factor / Fs: 120 Hz


• Electrical factor / Qms: 1.76


• Total factor / Qes: 0.49


• Mechanical Mass / Mms: 0.38


• Mechanical Compliance / Cms: 0.16 mm/N


• BL Factor / Bl: 9.77


• Voice coil inductance / Le: 0.2 mH


• Cone area / Sd: 130.7 cm


• DC Resistance / Re:  5.7 Ohm

Measurements:

• Overall diameter: 6.5"


• Overall depth: 3.1"


• Front mount baffle cutout: 5.6"


• Mounting depth: 2.8"


• Motor diameter: 4.5"
