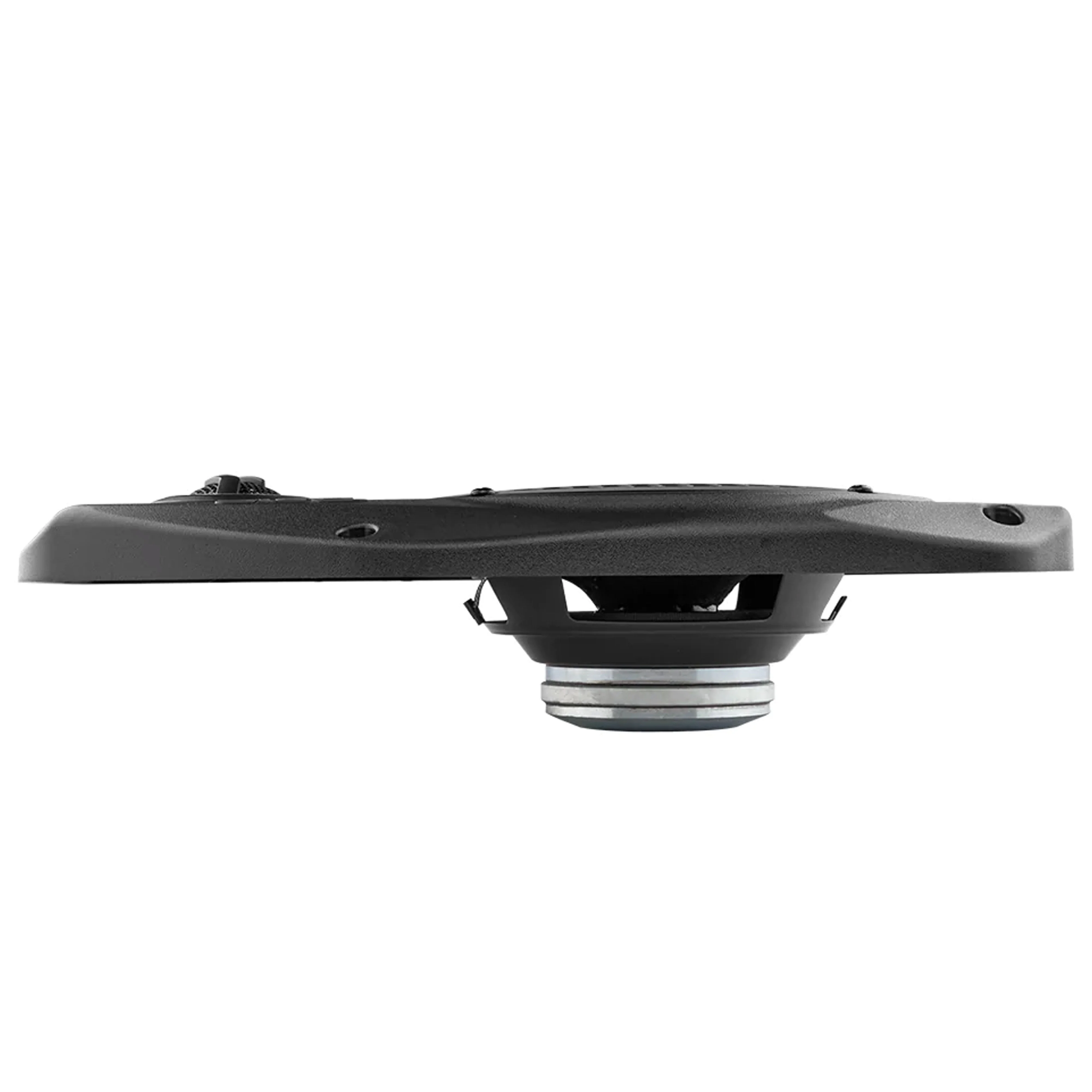

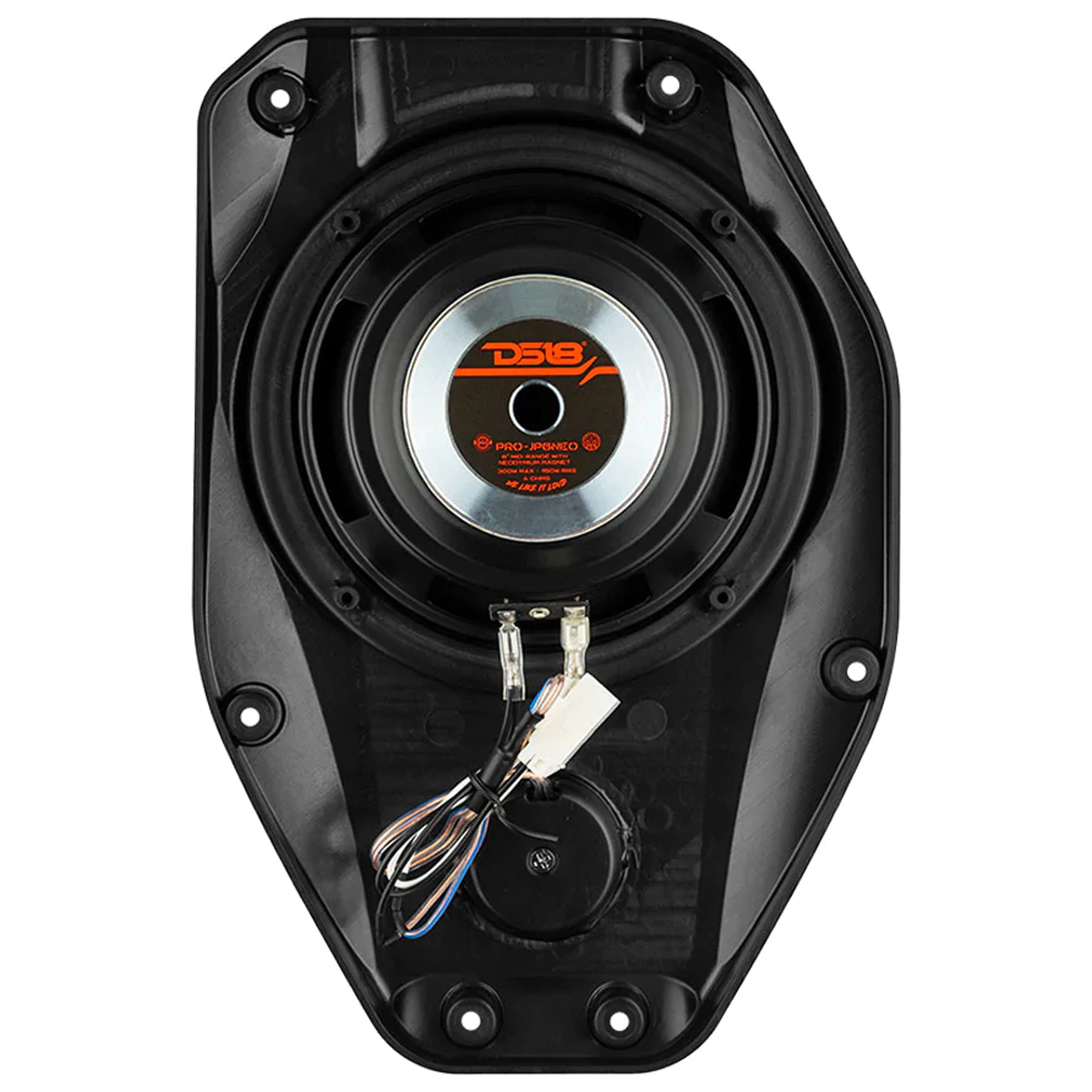

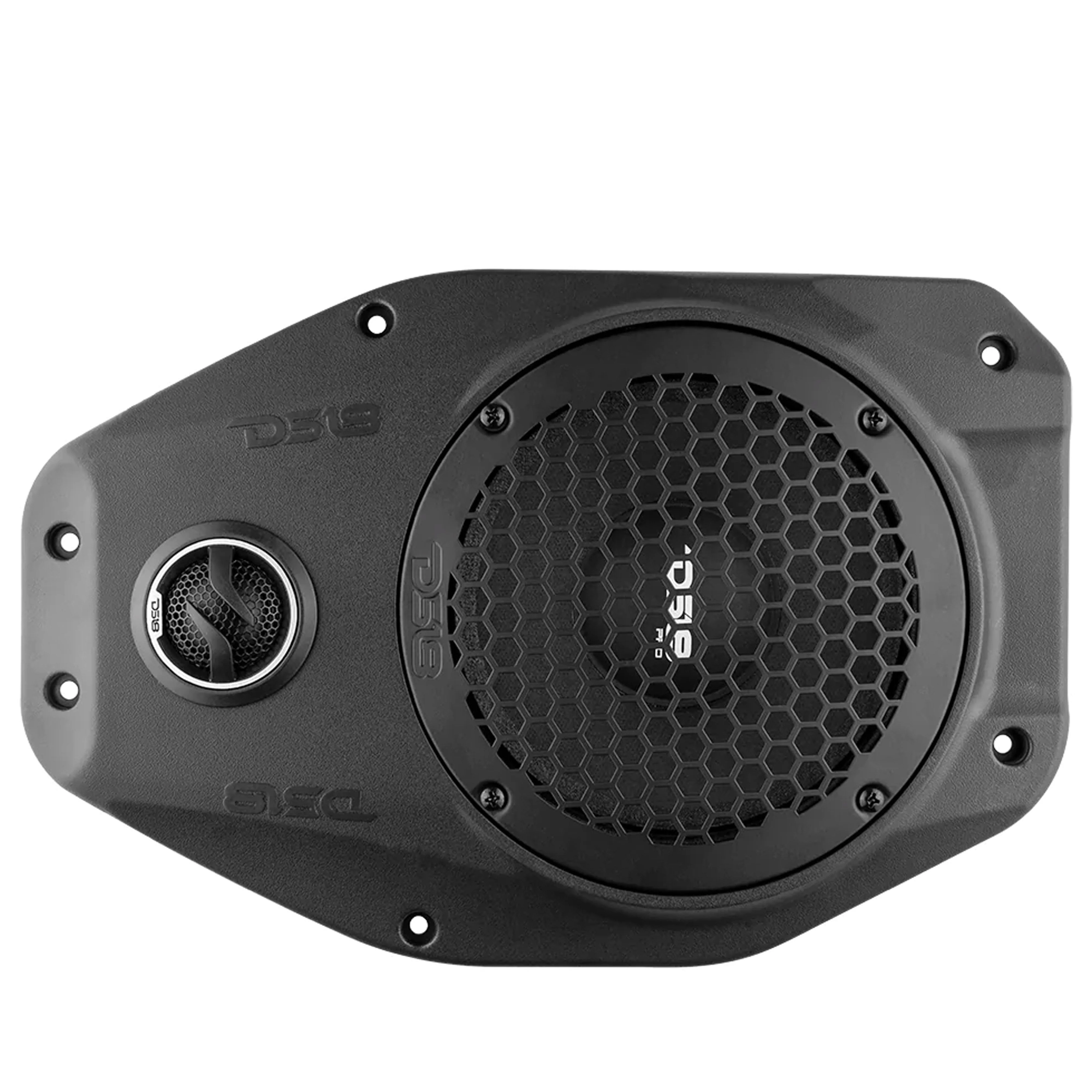

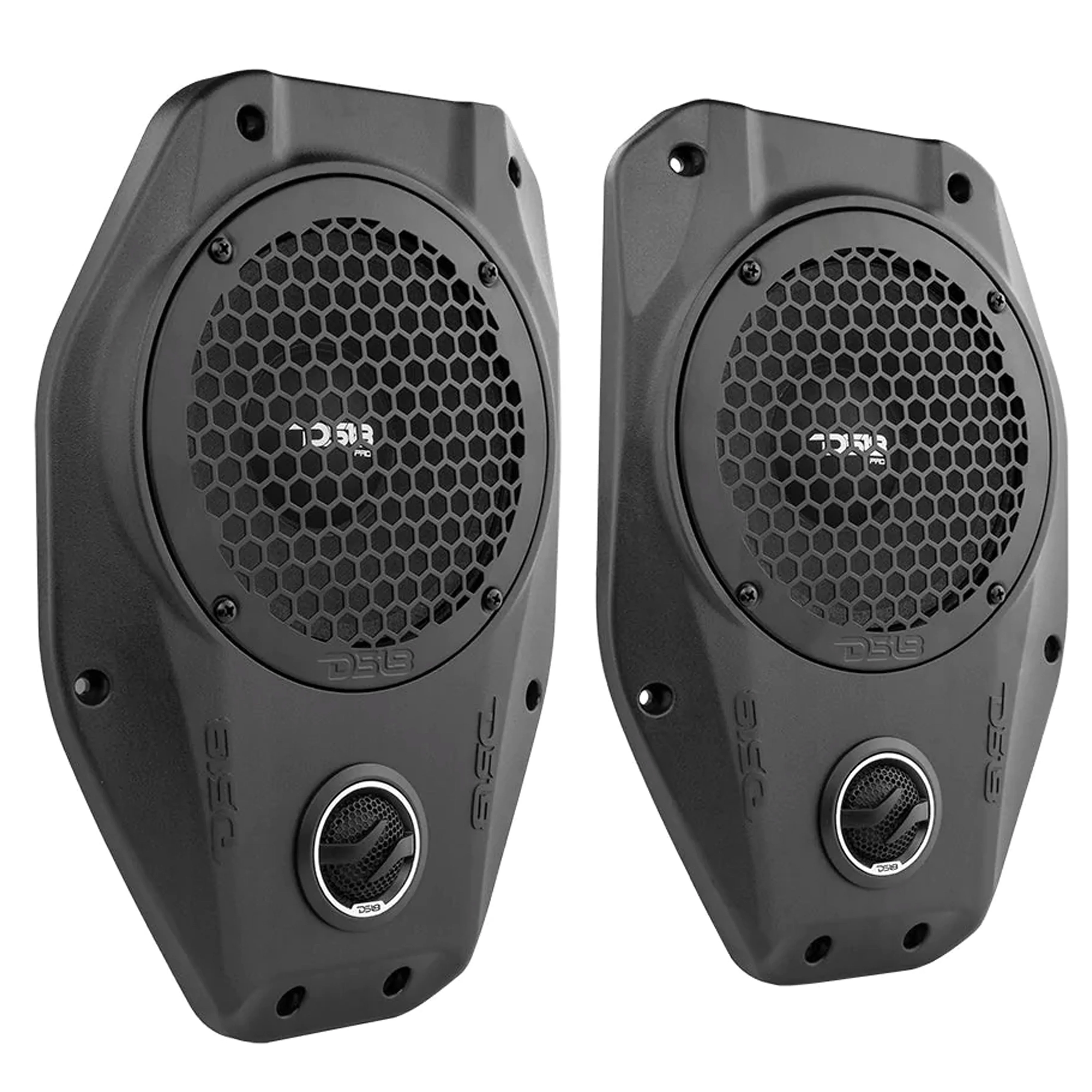

DS18 6.5 Jeep Wrangler Enclosures /w Speakers & Tweeters JL/JLU/Gladiator JT

The JL-SB6 is a handpicked soundbar speaker upgrade kit designed for Jeep Wrangler JL Models/ Gladiator JT Models. This package includes a Set (Left and Right) of Speaker Soundbar Upgrade Kit with a 6.5 Neodymium Midrange Speaker and a 1 Dome Tweeter. This system requires cutting of the existing sound bar for installation, templates are included and a Dremel is recommended. The users who like it loud can power it up with an external amp for even more vibrancy.

Highlights:

- Designed to upgrade factory 2-way speakers from 4 to 6.5.

- Compatible with JL and Gladiator Jeeps with the basic sound system.

- 5 Neodymium speaker with 1 Dome Tweeter included.

- Speaker depth 2.5.

- Mounting Plate/ Cutting Template Included.

- All installation screws included.

- Speaker Connectors Plug & Play.

This listing includes:

(2) DS18 6.5 Soundbar Enclosure Upgrade (Left & Right) JL-SB6

SPECIFICATIONS:

Component Set: 2-Way

Nominal Speaker Diameter: 6.5 (165mm)

Nominal Tweeter Diameter: 1.7 (43mm)

Nominal Impedance: 4 Ohms

MAX Power Handling: 300 Watts

RMS Power Handling: 150 Watts

Total Sensitivity (1w/1m): 97dB

Frequency Response: 60Hz ~ 20KHz

SPEAKER SPECIFICATIONS:

Nominal Impedance: 4 Ohms

Total Sensitivity (1w/1m): 96 dB

Frequency Response: 60Hz ~ 10KHz

Voice Coil Diameter: 1.5" (38mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Cone Material: Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Steel

Magnet Material: Neodymium

Magnet Weight: 3 Oz

SPEAKER THIELE & SMALL PARAMETERS:

Equivalent Volume - Vas: 4.46L (0.152ft)

Excursion (one way) - Xmax: 15 mm

Free Air Resonance - Fs: 138 Hz

Mechanical Factor - Qms: 4.249

Electrical Factor - Qes: 0.977

Total Factor - Qts: 0.794

Moving Mass - Mms: 7.166g

Compliance - Cms: 148.927 U/M/N

Bl Factor - BL: 4.767

Voice Coil Inductance - Le: 0.08696mH

Diaphragm Area - Sd: 145cm

DC Resistance - Re: 3.2 Ohm

Mechanical Mass w/o air - Mmd: 6.159g

TWEETER SPECIFICATIONS:

Nominal Impedance: 4 Ohms

Sensitivity (1w/1m): 92dB

Frequency Response: 1KHz ~ 20KHz

Hi Pass Crossover: 3.5KHz

Body Color | Material: Black | ABS / ABS

Voice Coil Diameter: 1 (25.4mm)

Voice Coil Former Material: Aluminum

Winding Material: SV

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 13g

BODY | FEATURES:

Wiring | Connections: Plug & Play to factory Speaker Connector

Enclosure Material: Injection Molded ASA composite

Grill Material: Steel

Sold as Pair: Yes (Left and Right Set)

Color | Finish: Black | Satin

DIMENSIONS:

Overall Wide: 8.26 (210mm)

Overall Length: 12.36 (314mm)

Overall Depth: 3.27 (83mm)
