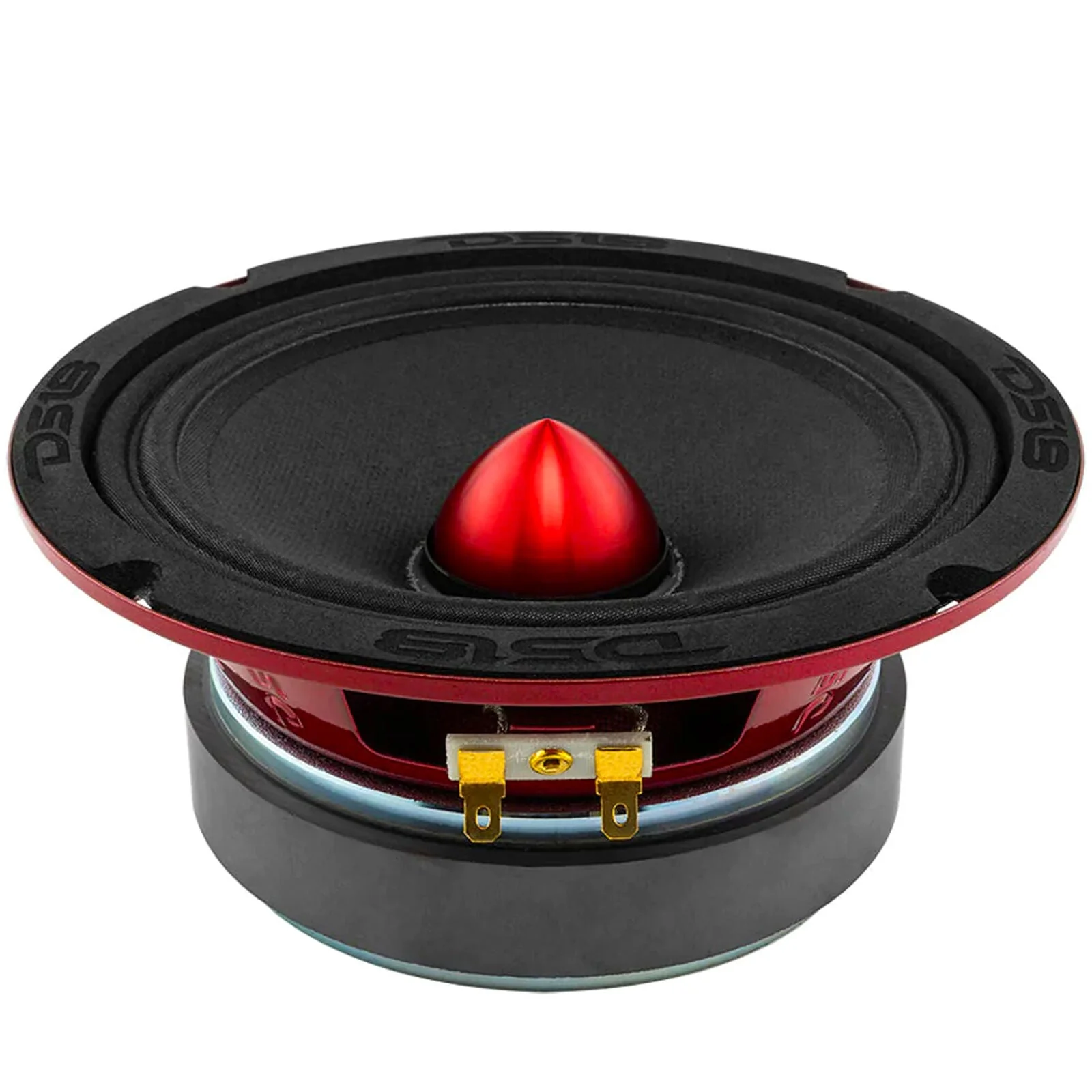

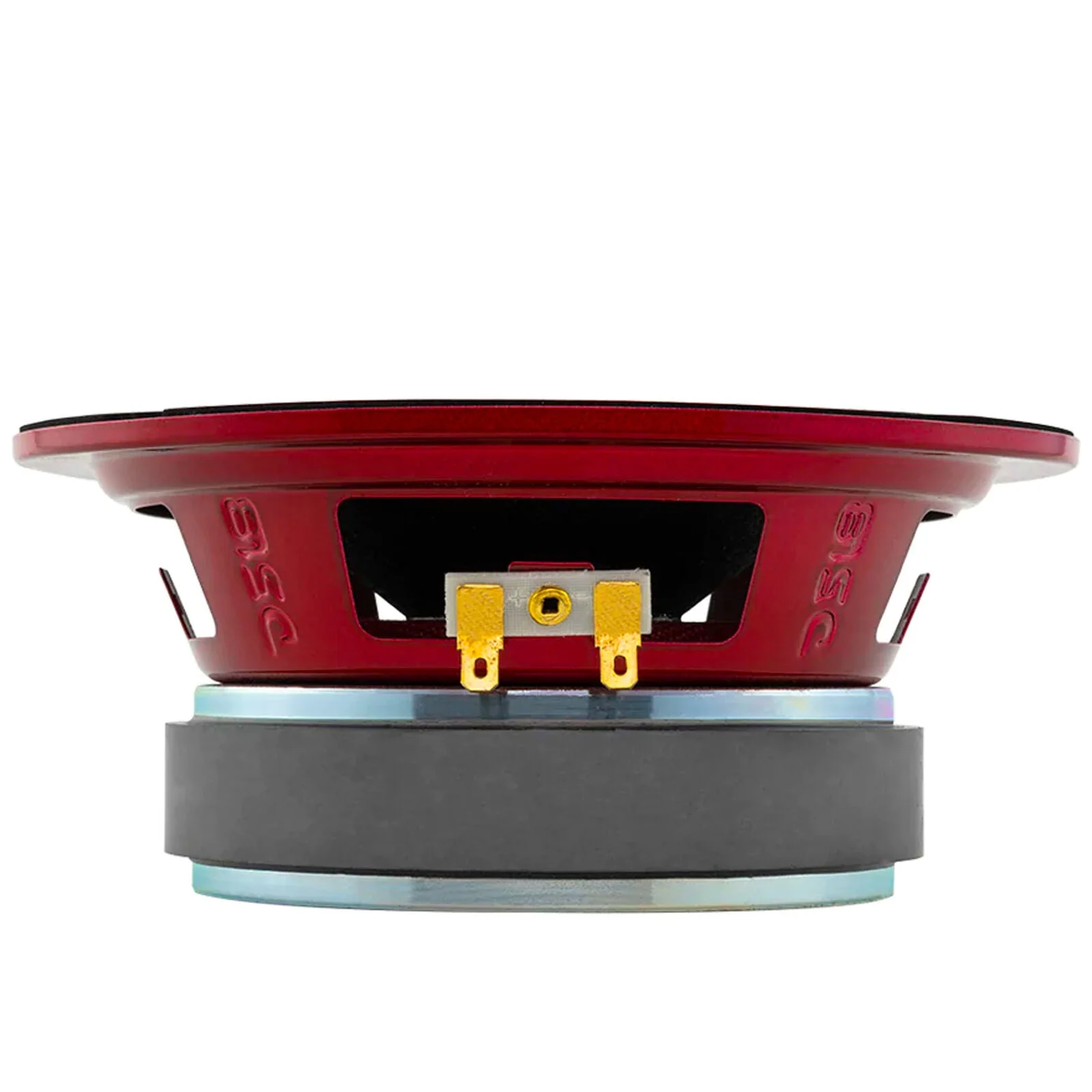

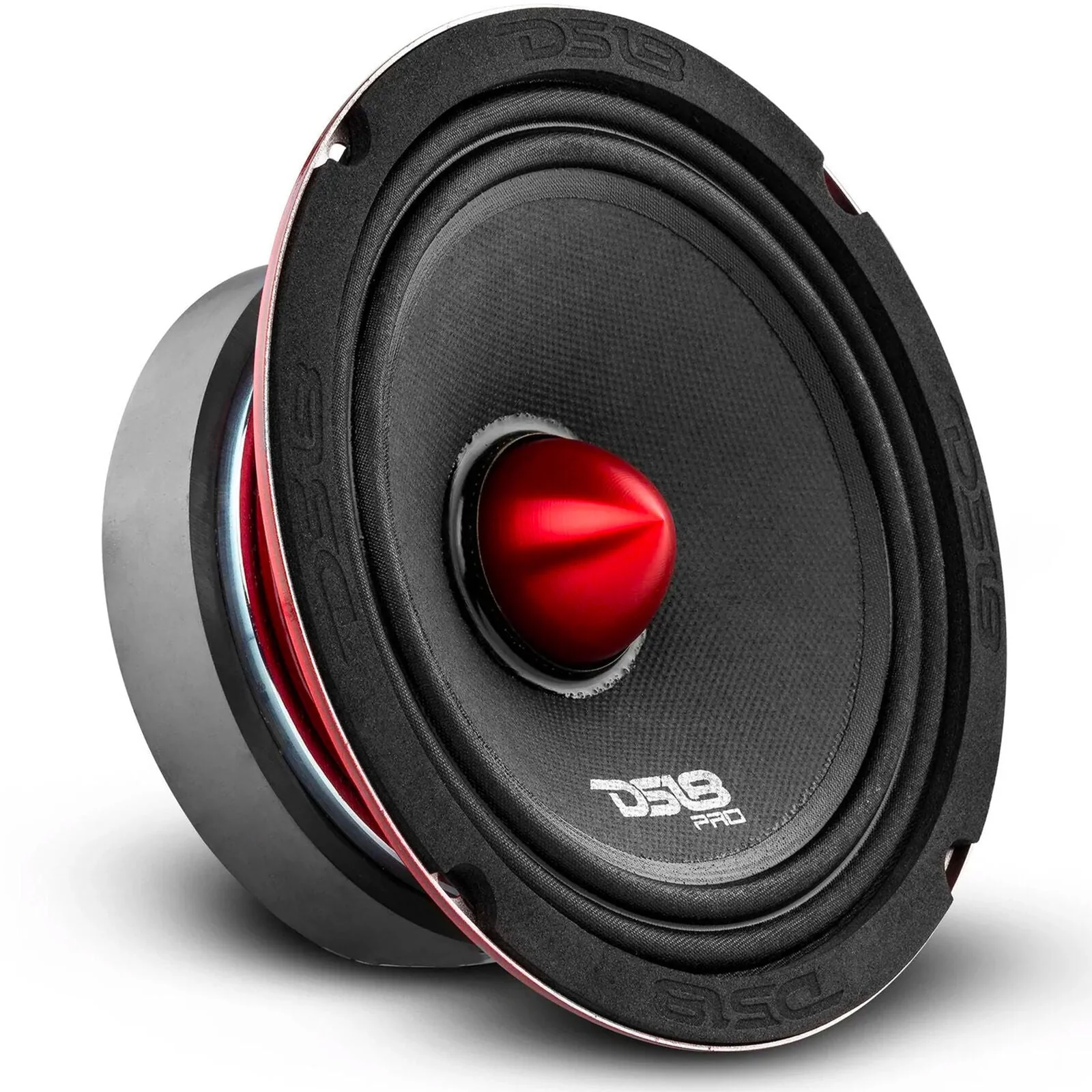

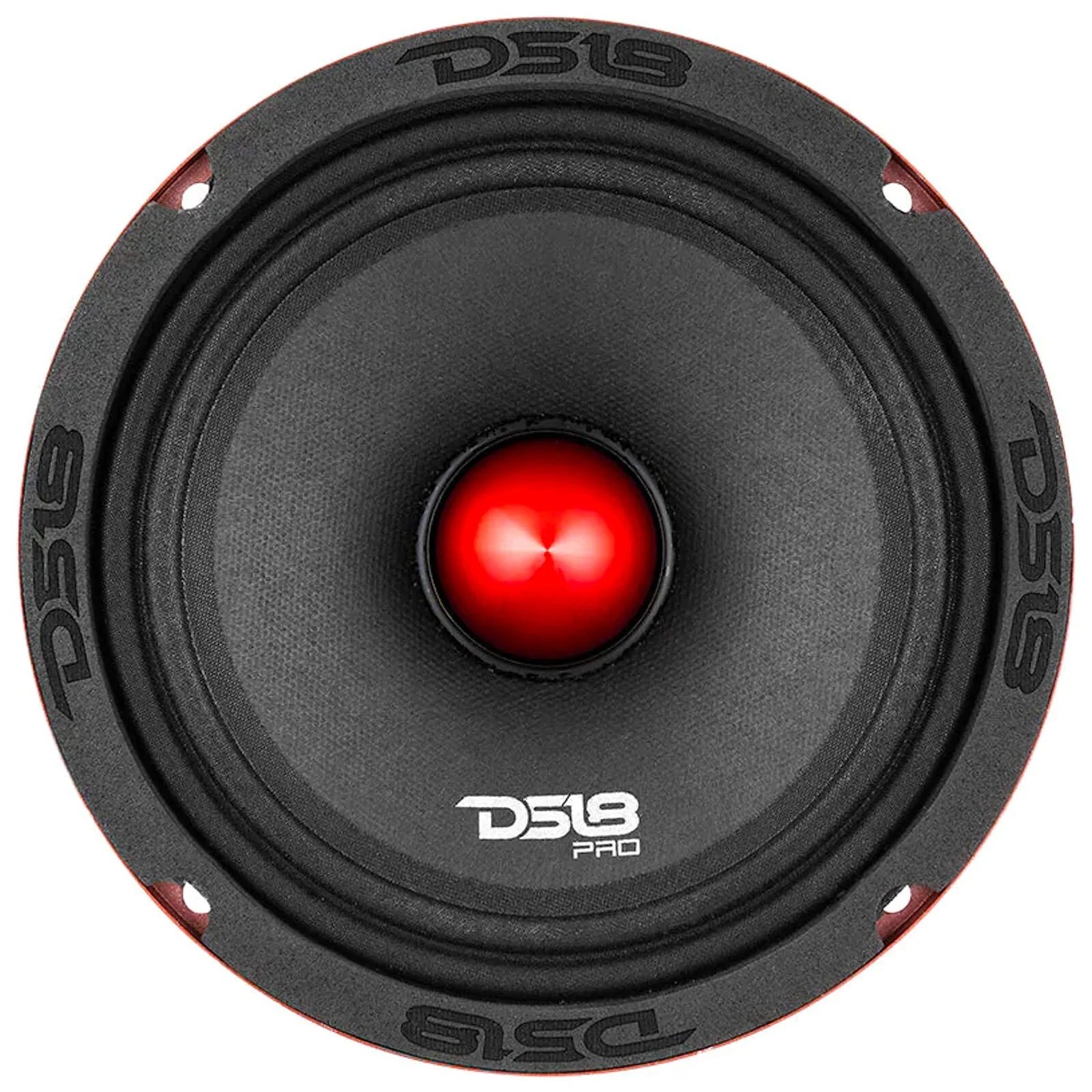

DS18 Car Audio 6.5" Midrange Loudspeaker 500 Watts 4 Ohm /w Bullet PRO-X6.4BM OPEN BOX

• Open-box items are not subject to returns.


• They are sold "As Is".


• All requests for returns will not be accepted.


• Bent outer rim, Install damage, Surface Scratches.

This Listing Includes:

• (1) DS18 6.5" Loudspeaker PRO-X6.4BM

With a strong midrange and ultra clear high frequencies, these speakers deliver a concert-like audio experience without any distortion. Even better, the 1.5" 4-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time.   The high 94dB sensitivity of the PRO-X6.4BM lets you crank up the volume without any sound distortion, while the 125Hz to 12KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 250 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!

SPECIFICATIONS:

• Nominal Diameter: 6.5" (165.1mm)


• Nominal Impedance: 4 Ohm


• MAX Power Handling: 500 Watts


• RMS Power Handling: 250 Watts


• Sensitivity (1w/1m): 94 dB


• Frequency Response: 125Hz ~ 12KHz


• Recommended HI Pass Crossover: 120Hz

MOTOR:

• Voice Coil Diameter: 1.5"


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Non-press Paper


• Surround Material: Cloth Edge


• Basket Material: Steel


• Magnet Material: Ferrite


• Magnet Weight: 30 Oz

THIELE & SMALL PARAMETERS:

• Equivalent Volume: Vas - 3.810L


• Excursion: X-max - 8.2mm


• Free Air Resonance: Fs - 106Hz


• Mechanical Factor: Qms - 8.027


• Electrical Factor: Qes - 0.471


• Total Factor: Qts - 0.445


• Dc Resistance: Re - 3.2 Ohm

DIMENSIONS:

• Overall Diameter: 6.61" (168mm)


• Front Mount Baffle Cutout: 5.7" (145mm)


• Mounting Depth: 2.44" (62mm)


• Overall Depth: 2.72" (69mm)
