• Ultra-Slim 1.16-Inch Mounting Depth: Perfect for shallow installs in doors, motorcycles, side panels, and custom pods
• High Efficiency 95 dB Sensitivity: Delivers loud, clear midrange output with less amplifier power
• 120W RMS Power Handling: Handles aggressive volume levels while maintaining clean response
• Neodymium Motor Design: Lightweight magnet provides fast, accurate midrange performance
• Focused 80 Hz to 6 kHz Range: Ideal for mid-focused systems with a recommended 120 Hz high-pass
• Durable Construction: Paper cone, cloth surround, matte black steel basket, and protective steel mesh grille

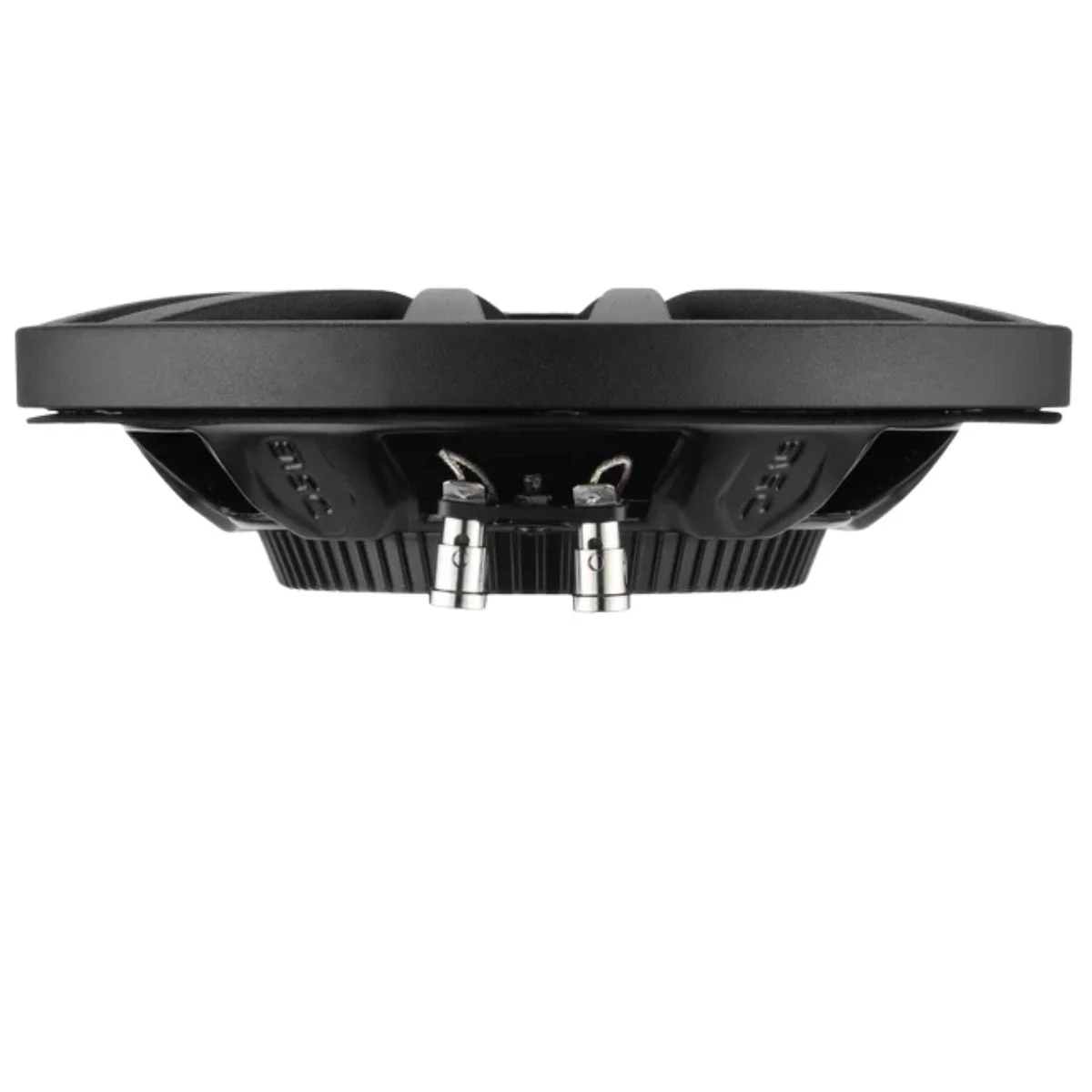

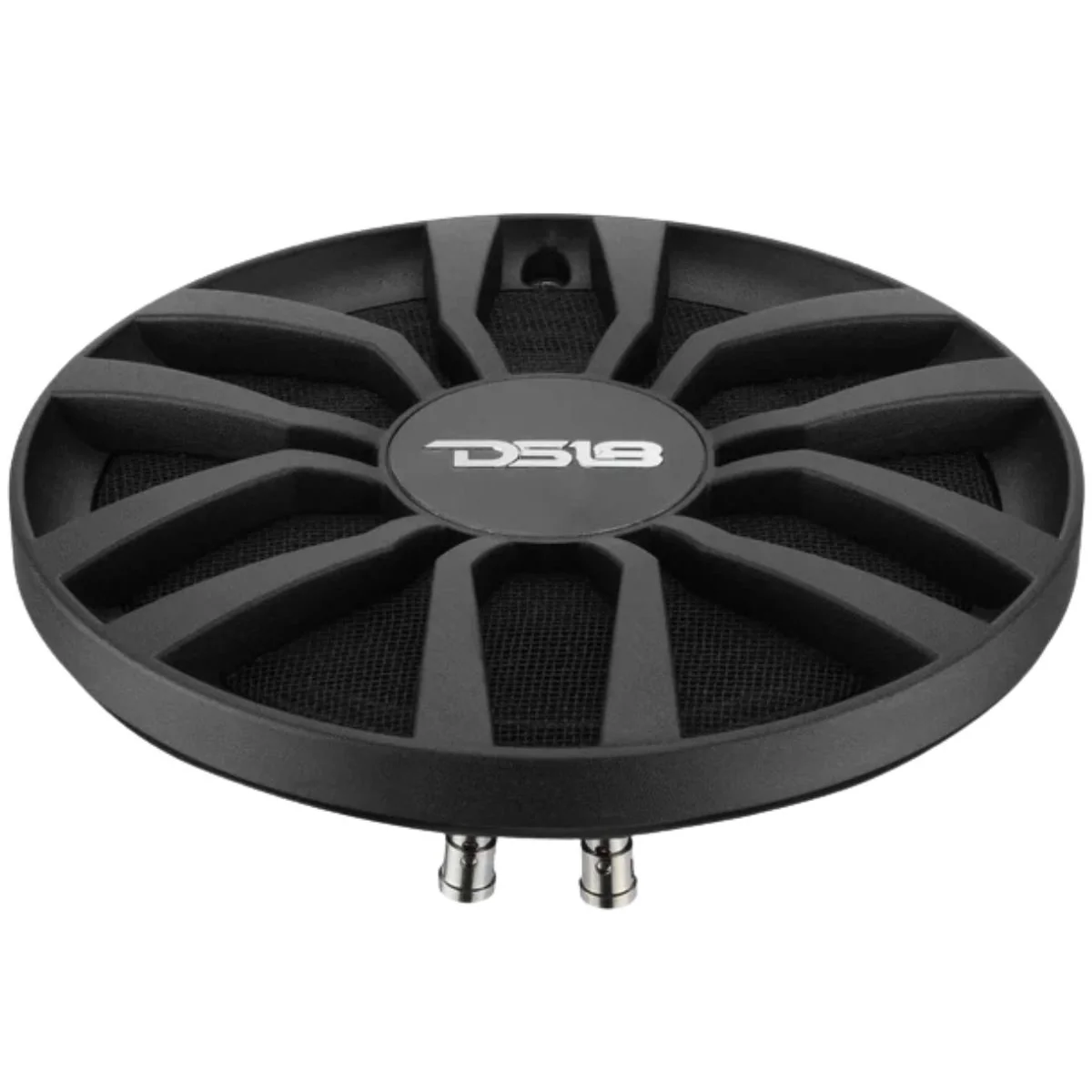

DS18 6.5" Ultra-Slim 1.16" Depth 120W RMS 4-Ohm Mid-Range Neo Pro Loudspeaker

This Listing Includes

• (1) DS18 6.5" Ultra-Slim Speaker PRO-INS6.4

The DS18 PRO-INS6.4 was engineered for one purpose: delivering real midrange output where traditional speakers simply cannot fit. With an ultra-slim 1.16-inch mounting depth, this 6.5-inch neodymium midrange speaker is the perfect solution for shallow, zero-clearance installations without sacrificing output or clarity.

Designed to Fit Anywhere

At just 1.16 inches deep, the PRO-INS6.4 excels in tight spaces such as motorcycle fairings, side panels, custom pods, door panels, and compact enclosures. It’s a true drop-in solution when space is limited, but sound quality still matters.

Powerful and Efficient

Rated at 120 watts RMS and 240 watts MAX, this 4-ohm midrange delivers strong output with less amplifier power thanks to its 95 dB sensitivity. The 1.5-inch KSV voice coil, lightweight CCAW windings, and neodymium motor work together to produce fast, accurate midrange response that stays clean even at higher volumes.

Focused Midrange Performance

Covering a frequency range of 80 Hz to 6 kHz, the PRO-INS6.4 is optimized for tight, punchy midrange reproduction. For best performance and reliability, a 120 Hz high-pass crossover is recommended.

Built for Daily Use

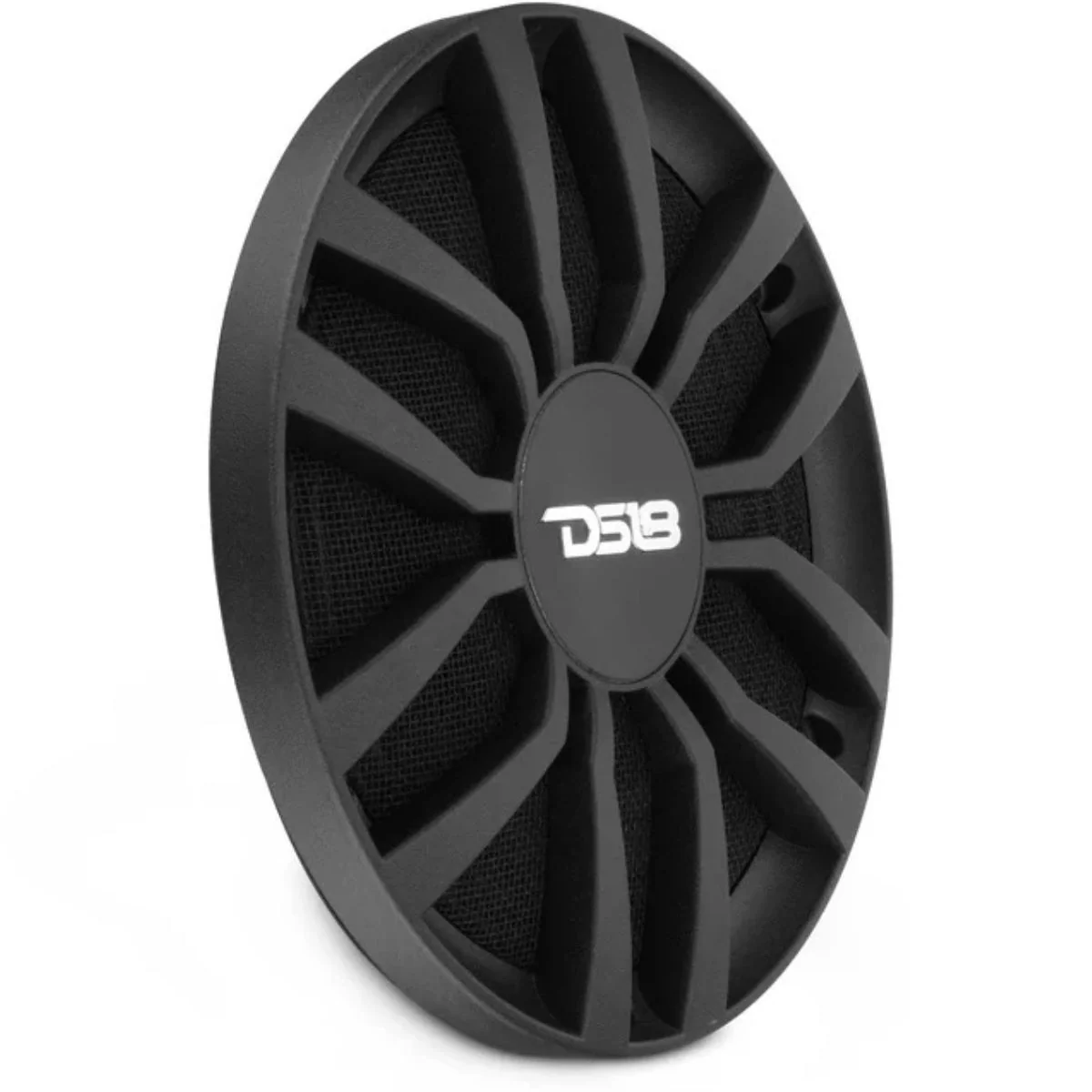

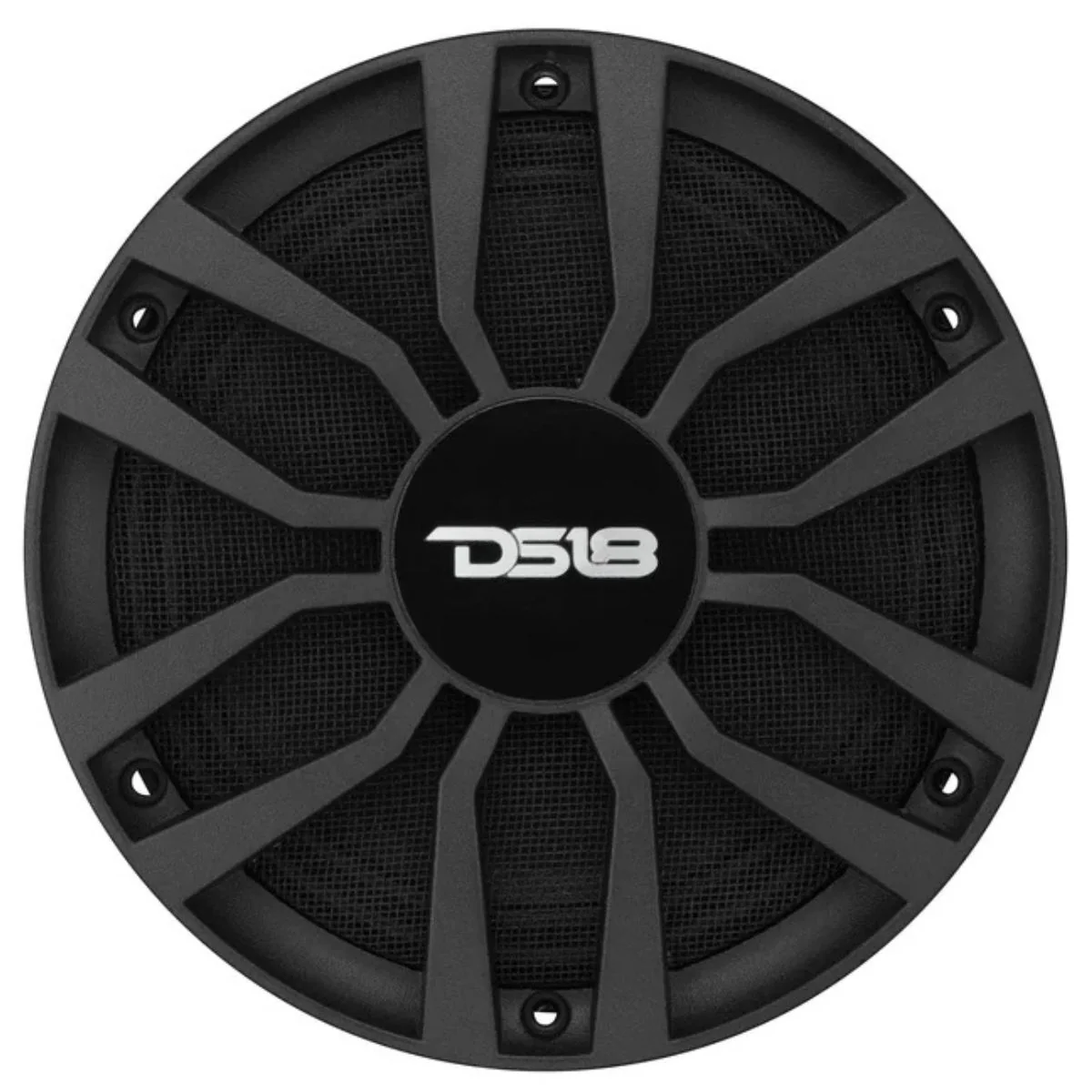

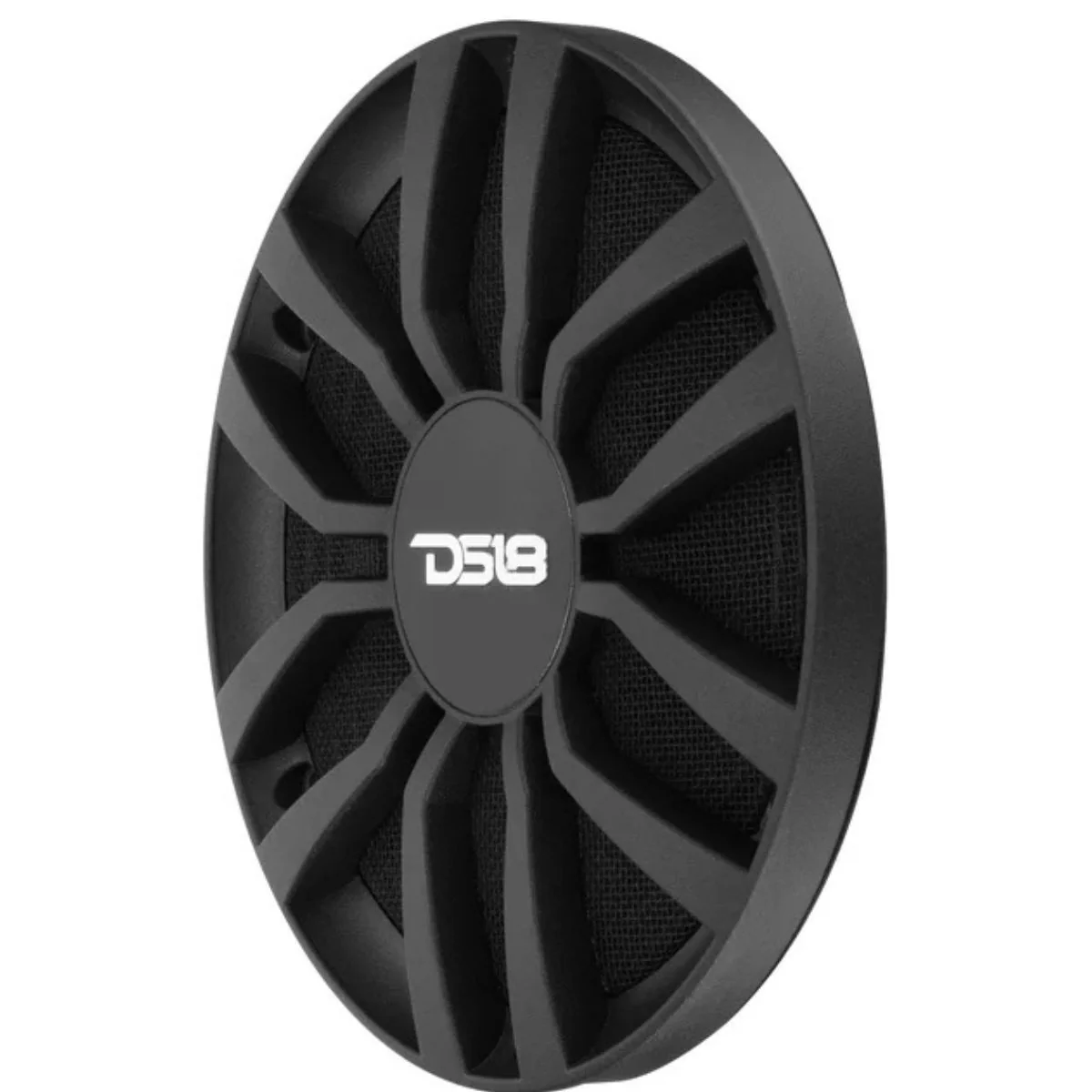

The speaker includes a custom steel mesh grille with cloth protection, helping shield the cone from dust and debris. A paper cone, cloth surround, and matte black steel basket provide a durable, balanced design suitable for everyday driving and demanding installations.

Whether you're filling gaps in a crowded build or stacking multiple drivers in a compact layout, the DS18 PRO-INS6.4 delivers full-size sound from an ultra-low-profile package that fits almost anywhere.

Features

• Ultra-slim 1.16-inch mounting depth for shallow installs


• 120W RMS / 240W MAX power handling


• High-efficiency 95 dB sensitivity


• Neodymium motor for fast, accurate response


• 1.5-inch KSV voice coil with CCAW windings


• Focused midrange frequency range


• Custom steel mesh grille with cloth protection included


• Ideal for motorcycles, doors, pods, and tight enclosures

Specification

• Nominal Diameter: 6.5" / 167 mm


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 120W


• MAX Power Handling: 240W


• Sensitivity (1W/1m): 95 dB


• Frequency Response: 80 Hz - 6 kHz


• Recommended High-Pass Crossover: 120 Hz


• Sold As: Single


• Grille Included: Yes, with cloth protection


• Voice Coil Diameter: 1.5" / 38.6 mm


• Voice Coil Former: KSV


• Winding Material: CCAW


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Finish: Matte Black


• Magnet Material: Neodymium


• Magnet Weight: 1.89 oz

Thiele & Small Parameters

• Equivalent Volume (Vas): 7.961 L / 0.281 ft


• Excursion (Xmax one way): 2 mm


• Free Air Resonance (Fs): 140 Hz


• Mechanical Factor (Qms): 5.336


• Electrical Factor (Qes): 1.408


• Total Factor (Qts): 1.114


• Moving Mass (Mms): 8.868 g


• Compliance (Cms): 0.312 mm/N


• BL Factor: 3


• Voice Coil Inductance: 0.119 mH


• Cone Area (Sd): 132.73 cm


• DC Resistance (Re): 3.5 Ohms


• Mechanical Mass w/o Air: 7.988 g

Dimensions:

• Overall Diameter: 6.89" / 175 mm


• Overall Depth: 1.94" / 49 mm


• Mounting Depth: 1.16" / 29 mm


• Front Mount Cutout: 5.65" / 144 mm


• Motor Diameter: 4.31" / 110 mm
