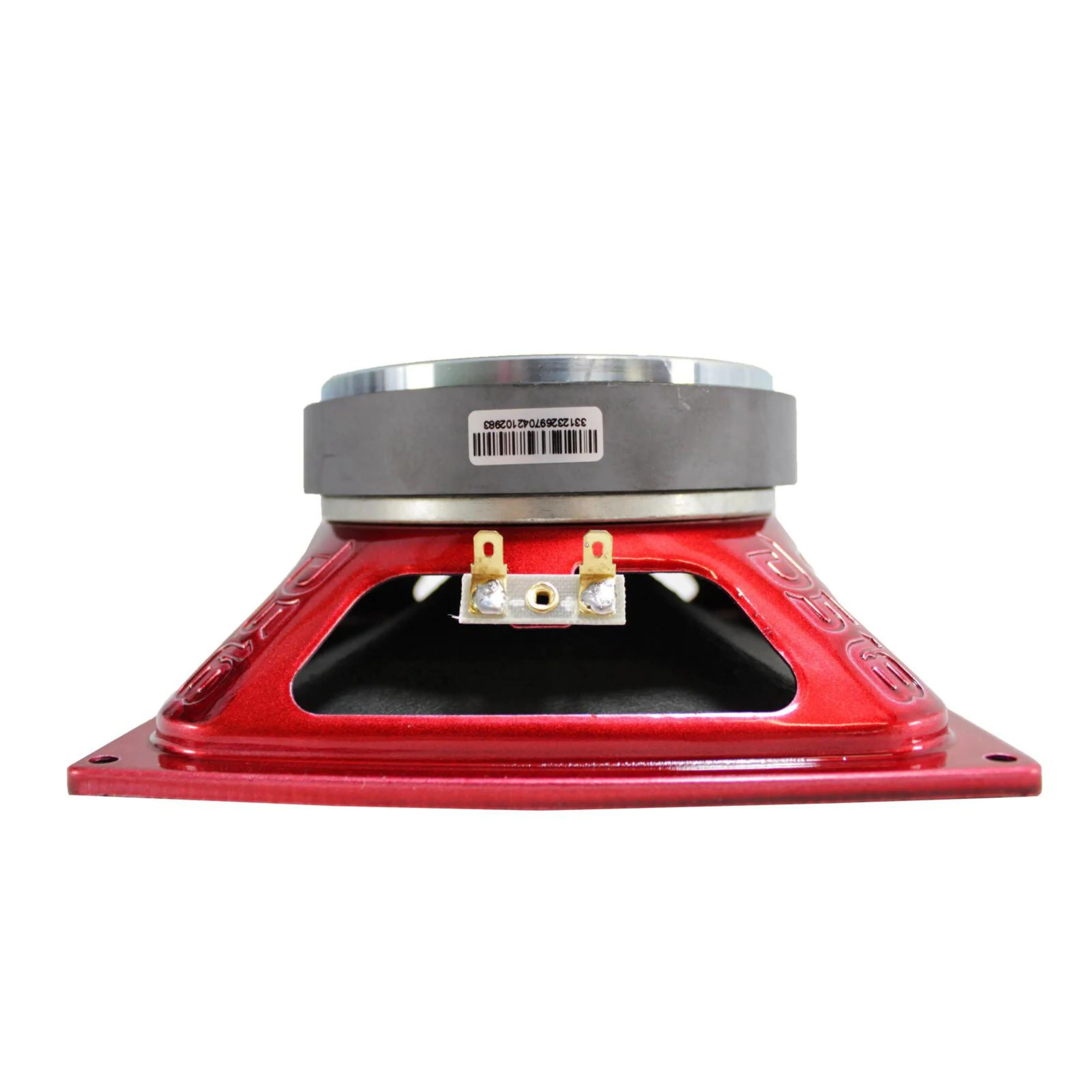

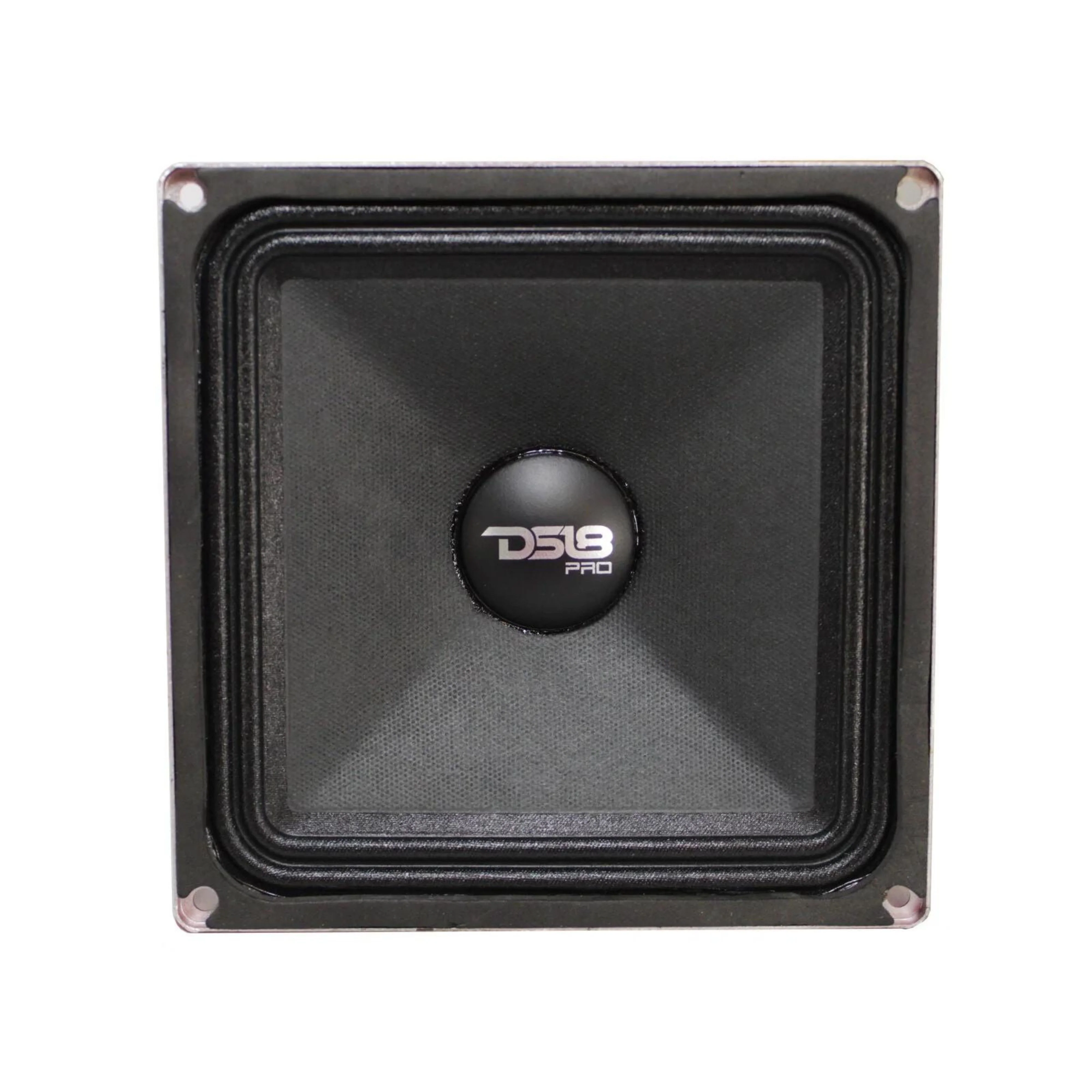

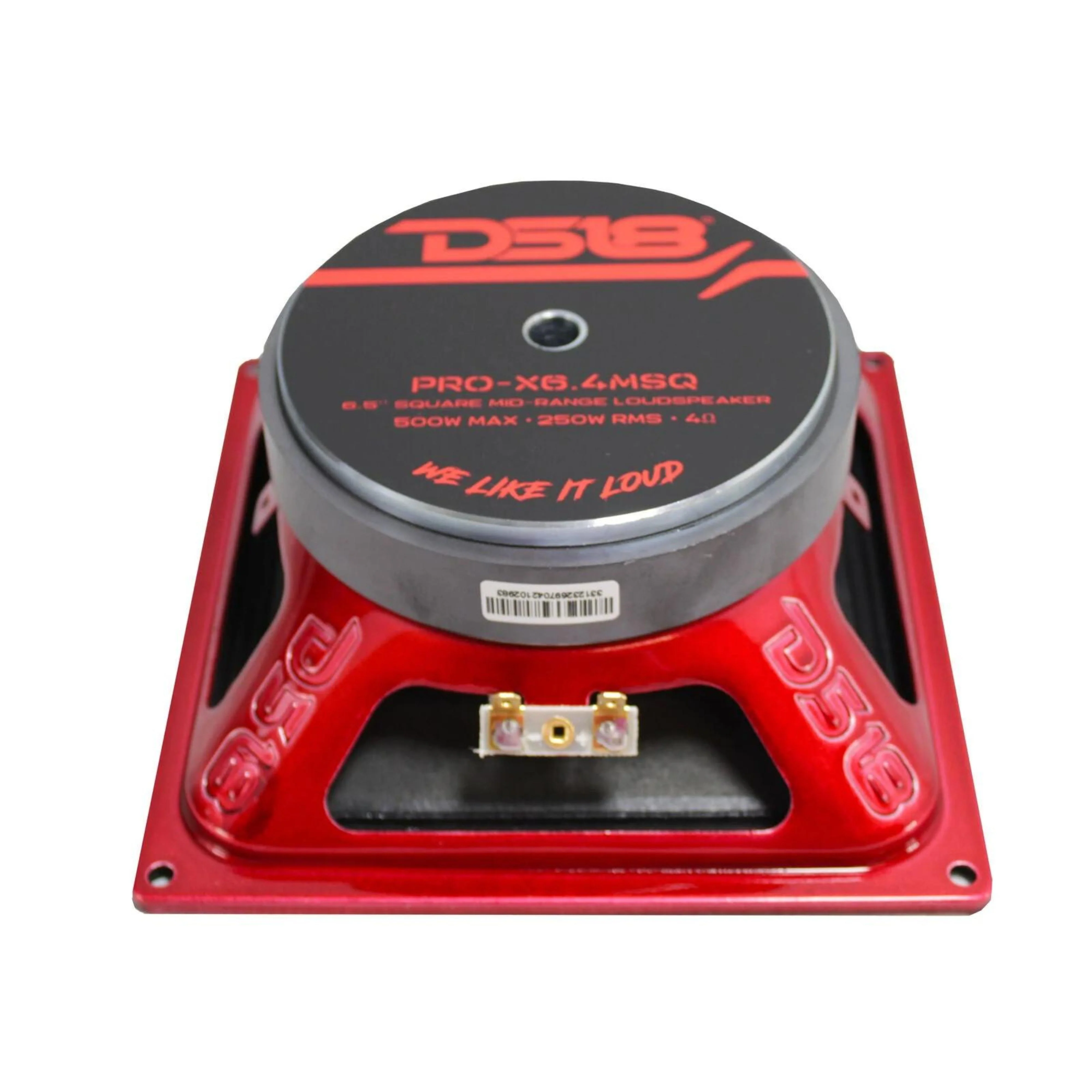

DS18 6.5" x 6.5" 500 Watt 4 Ohm Black Square Midrange Loudspeaker PRO-X6.4MSQ

This Listing Includes:

(1) Midrange Speaker PRO-X6.4MSQ

FEATURES

- High power pro audio speaker handling 250w RMS and 500w Peak power.

- Square cone construction to maximize cone area and boost sensitivity for very loud PRO Audio sound.

- Strong ferrite magnet with CCA high wattage voice coil and 95dB sensitivity.

Specifications:

Nominal Diameter: 6.5" x 6.5" Square

Nominal Impedance: 4 Ohm

RMS Power Handling: 250 Watts

MAX Power Handling: 500 Watts

Sensitivity: 95 dB

Frequency Response: 80 - 16.5 KHz

Recommended Hi-Pass Crossover: 120 Hz

Motor

Voice Coil Diameter: 1.5" (38.6 mm)

Voice Coil Former Diameter: Kapton

Winding Material: CCAW

Cone Material: Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Steel

Basket Color: Glossy Red

Magnet Material: Ferrite

Magnet Weight: 30 Oz

Displacement Volume: 0.32 L

Thiele & Small Parameters:

Vas: 7.613L

Xmax: 8.2mm

Fs: 120 Hz

Qms: 8.184

Qes: 1.053

Gts: 0.933

Mms: 12.575 g

Cms: 0.14 mm / N

BL: 5.536

Le: 4.22 mH

Sd: 132.73 cm2

Re: 3.2 Ohms

Mmd: 10.998g

Dimensions:

Overall Diameter: 6.61" x 6.61" (168 x 168 mm)

Overall Depth: 3.11" (79 mm)

Front Mount Baffle Cutout: 6.02" X 6.02 (153 x 153 mm)

Mounting Depth: 2.87" (73 mm)

Motor Diameter: 4.72" (120 mm)
