• DS18 6XL650NB-4: 6.5" Neodymium Mid-Range Loudspeaker, 650W Max
• Immersive sound with 97 dB sensitivity and 80Hz-12.5KHz frequency response
• Precision design: 2" voice coil, non-pressed paper cone, neodymium magnet
• Stylish aluminum bullet for enhanced aesthetics and frequency response
• Upgrade your audio system for a new level of sonic excellence

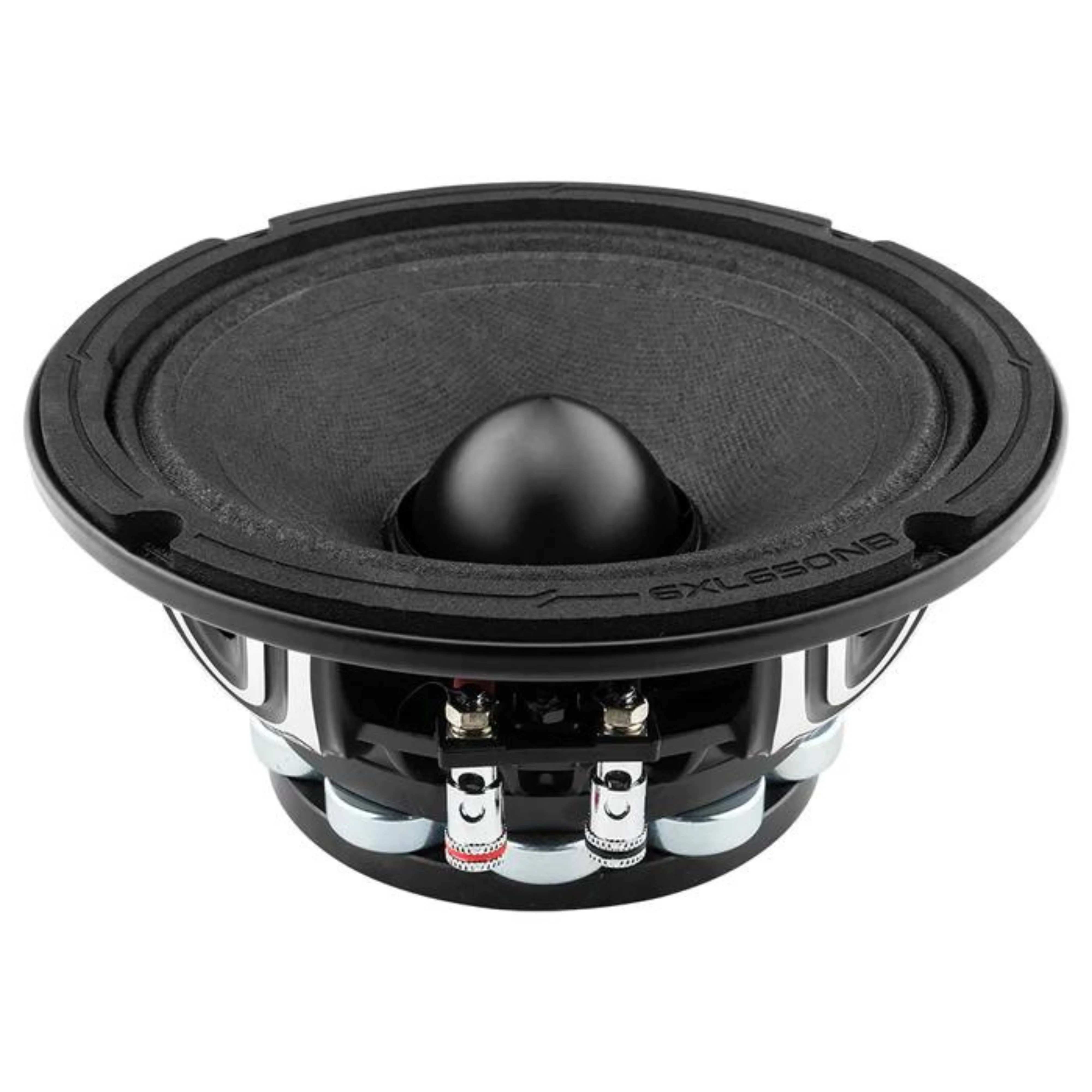

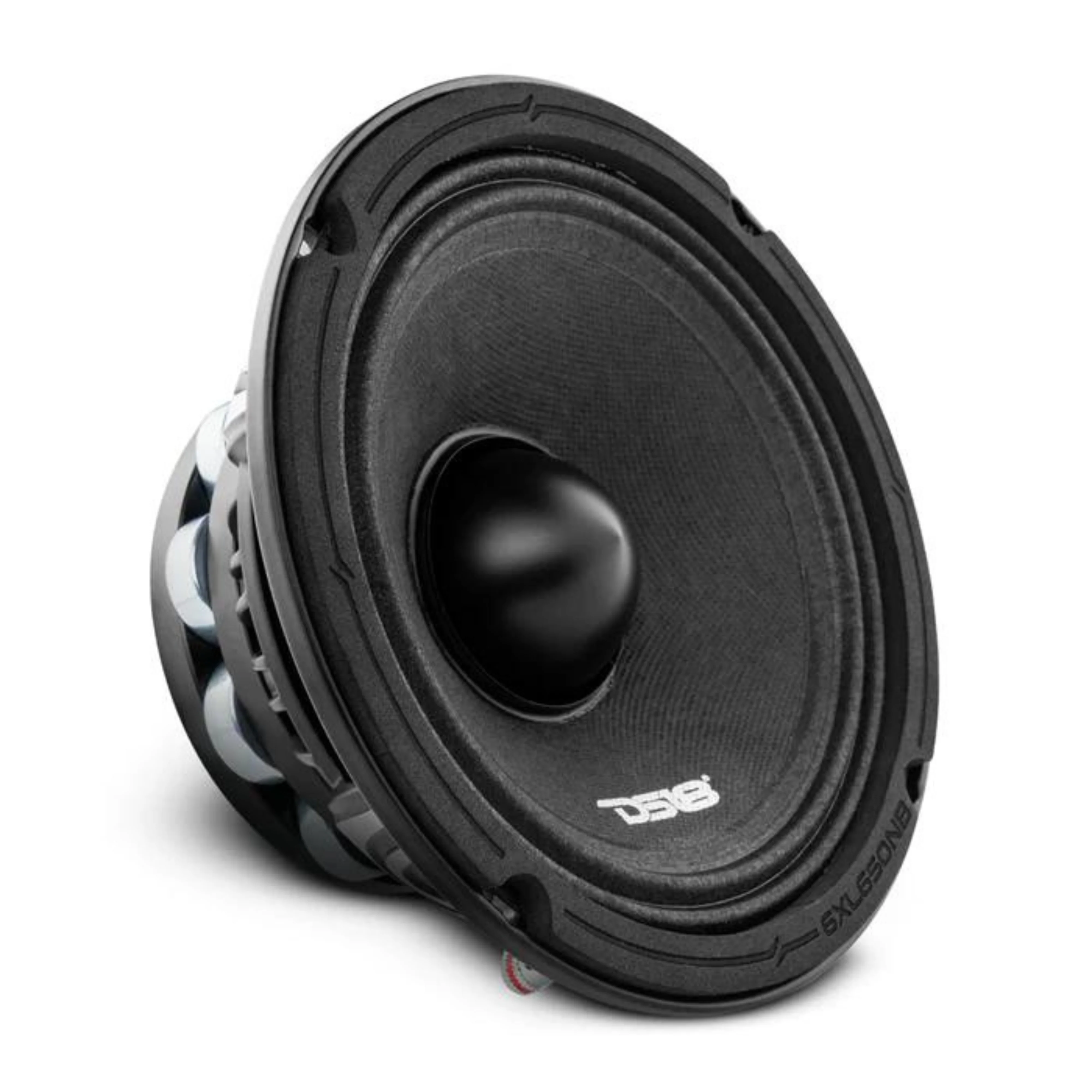

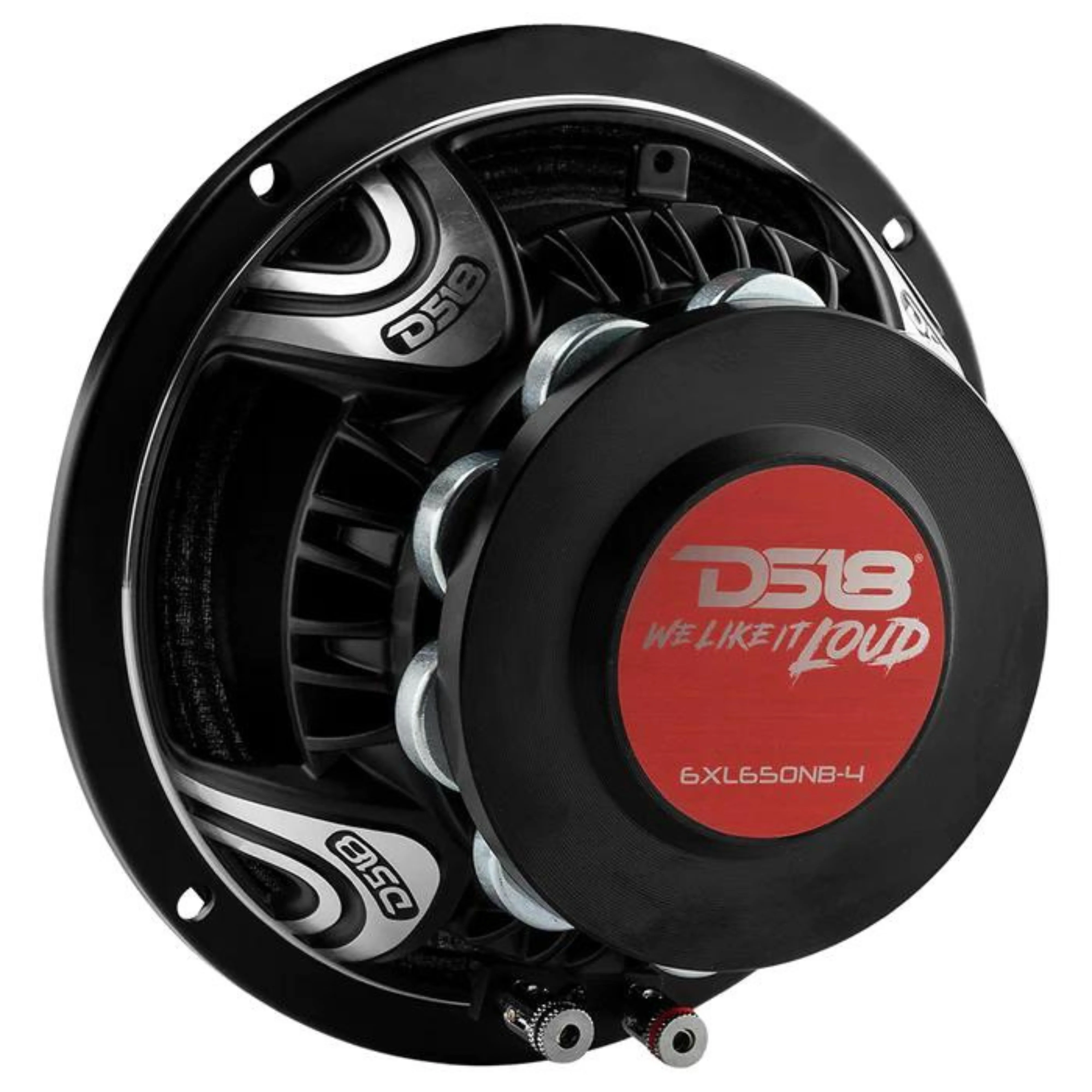

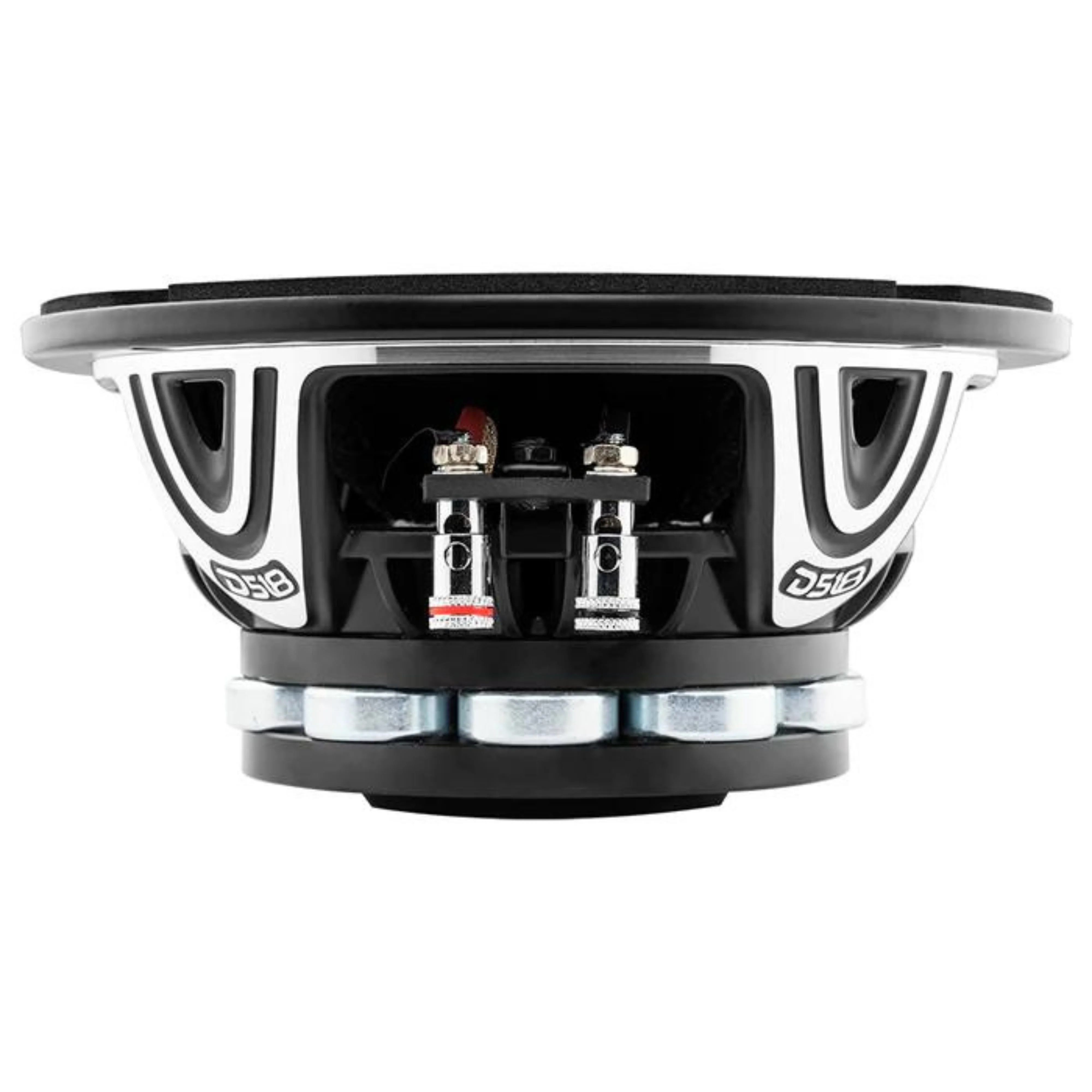

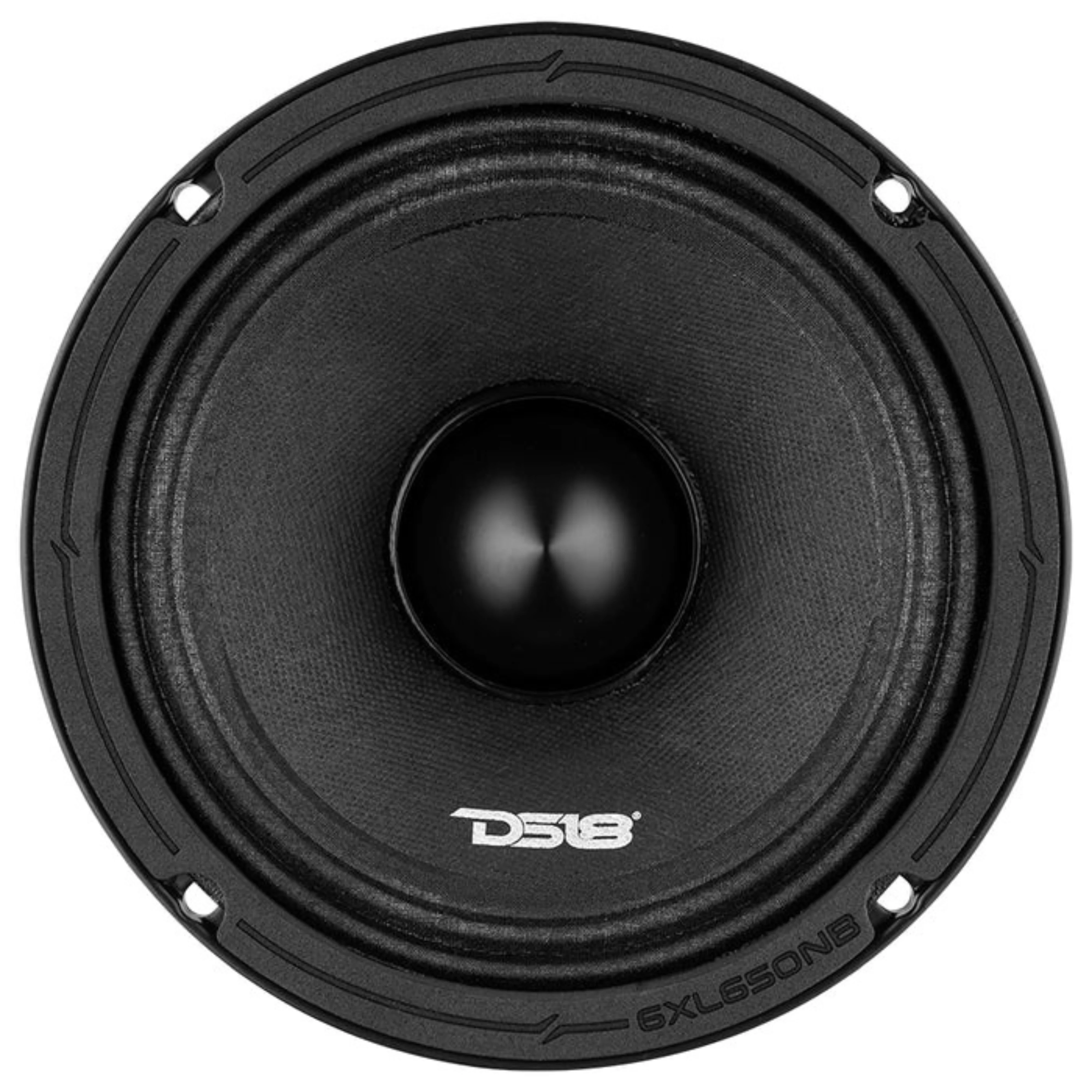

DS18 6.5" XL Series Neodymium Mid-Range Loudspeaker W/Bullet 325 Watts Rms 4 Ohm

This listing Includes:

• (1) 6.5" XL Series Neodymium Mid-Range Loudspeaker

DS18’s 6XL650NB-4, a 6.5" Neodymium Mid-Range Loudspeaker, redefines car audio with 650W max power. Its exceptional sensitivity of 97 dB and 80Hz-12.5KHz frequency response ensure a dynamic sound experience. Precision-designed with a 2" voice coil, non-pressed paper cone, neodymium magnet, and aluminum bullet for style, it elevates your audio system to a new level of sonic excellence.

Specifications:

• SKU: 6XL650NB-4


• Nominal Diameter: 6.5" / 165mm


• Nominal Impedance: 4 Ohm / 8 Ohm


• RMS Power Handling: 325 watts


• MAX Power Handling: 650 watts


• Sensitivity (1w/1m): 97dB


• Frequency Response: 80Hz-12.5KHz


• Recommended HI Pass Crossover: 100Hz


• Sold in Pair or Single: Single


• Grill Included: No

MOTOR:

• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Non-pressed Paper


• Dust Cap Material: N/A


• Bullet Material: Aluminum


• Bullet Color/Finish: Black


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish: Satin Black


• Magnet Material: Neodymium Rings


• Magnet Weight: 11.4 Oz


• Displacement Volume: 0.34L / 0.012ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume: 5.07L / 0.17ft3


• Excursion (one way): 3.7mm


• Free Air Resonance: 120Hz


• Mechanical Factor: 5.16


• Electrical Factor: 0.28


• Total Factor: 0.26


• Mechanical Mass: 9.11g


• Mechanical Compliance: 0.19mm/N


• BL Factor: 9.41


• Voice Coil Inductance: 0.05mH


• Cone Area: 136.85cm2


• DC Resistance: 3.5 ohm


• Mechanical Mass w/o air: 8.2g

MEASUREMENT:

• Overall Diameter: 6.7" / 170mm


• Overall Depth: 3.19" / 81mm


• Front Mount Baffle Cutout: 5.9" / 150mm


• Mounting Depth: 2.83" / 72mm


• Motor Diameter: 4.13" / 105mm
