• 6x9" Mid-Range With Built in Driver
• RMS Power: 250 Watts
• Peak Power: 500 Watts
• Impedance: 4-Ohm
• Ferrite & Neodymium Magnets
• Water Resistant

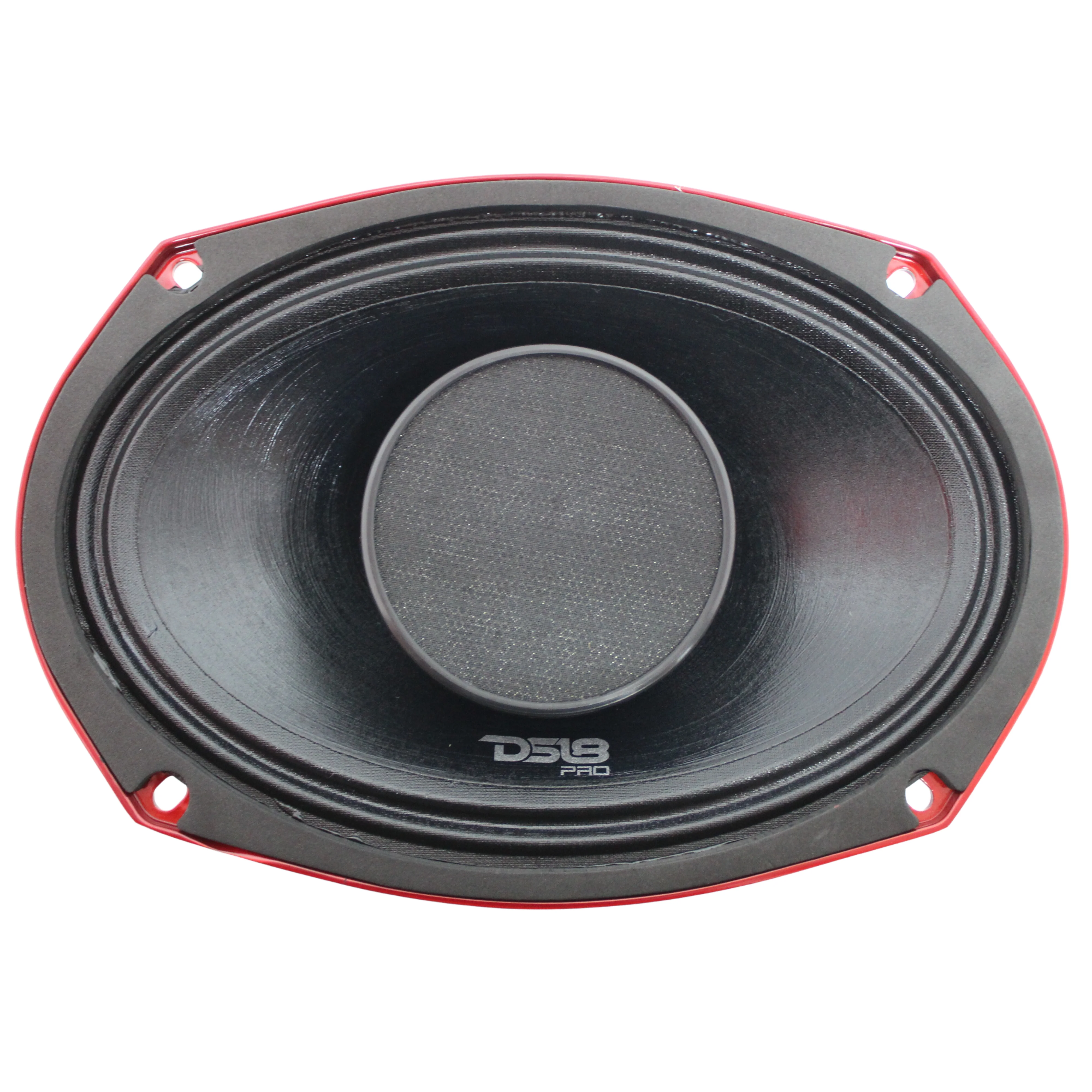

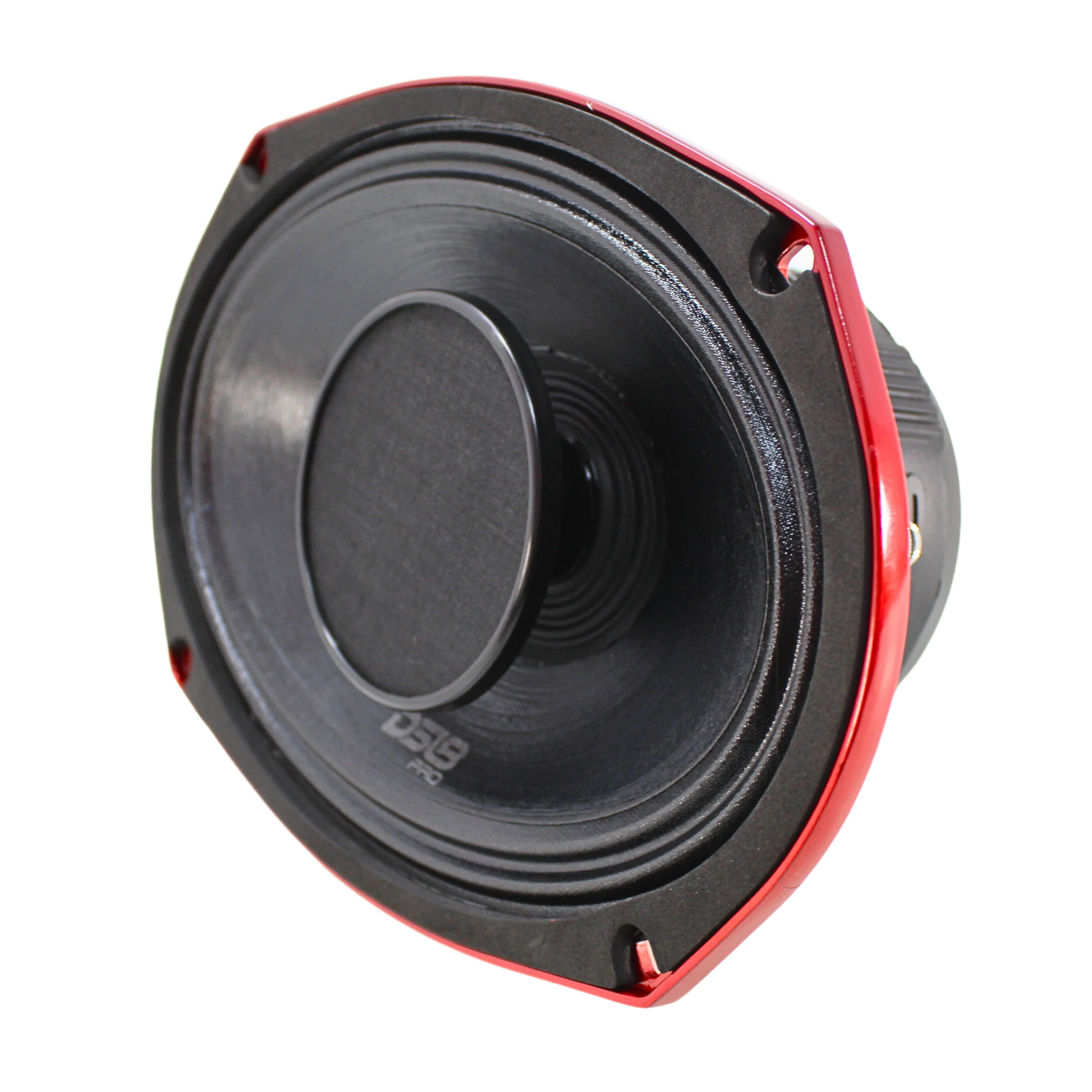

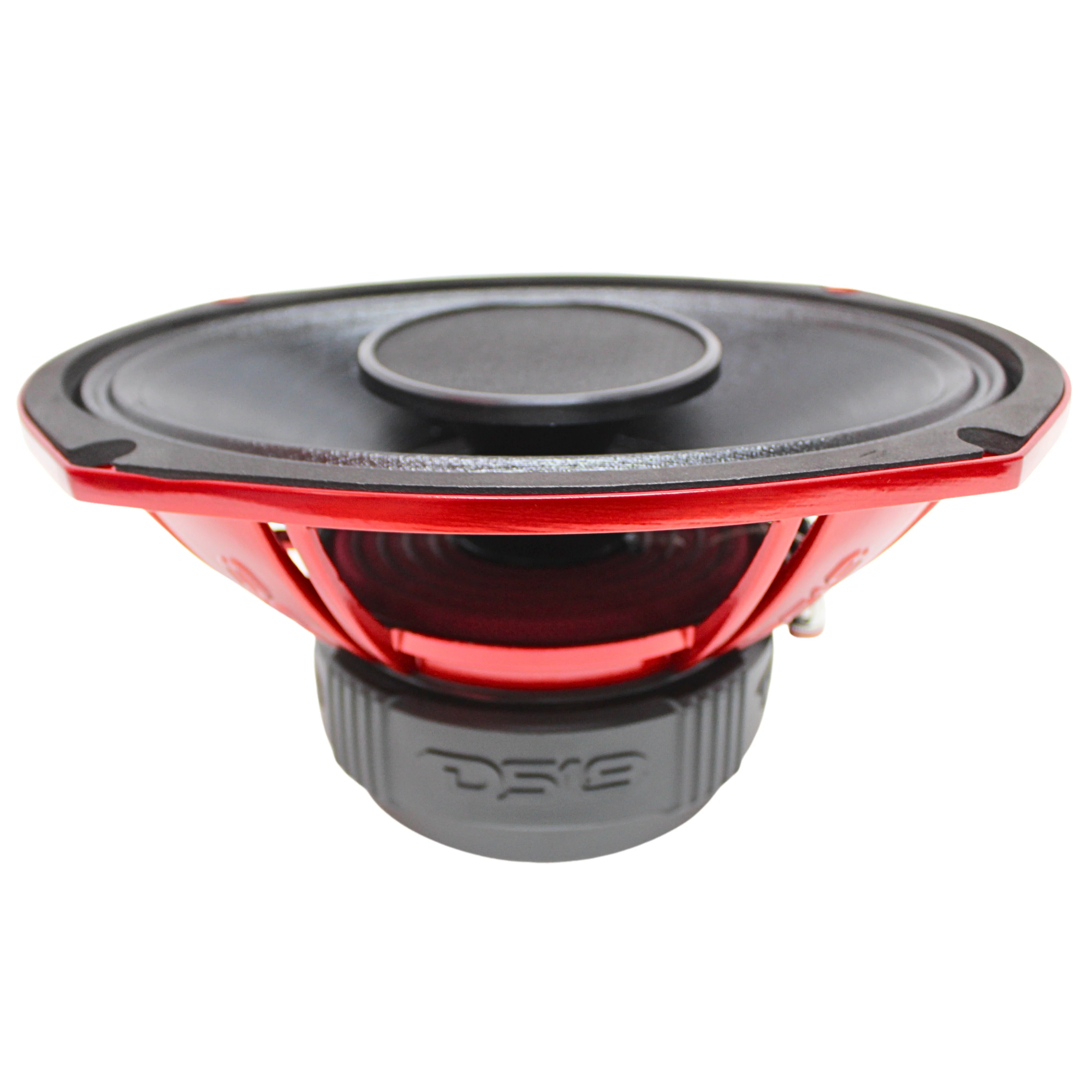

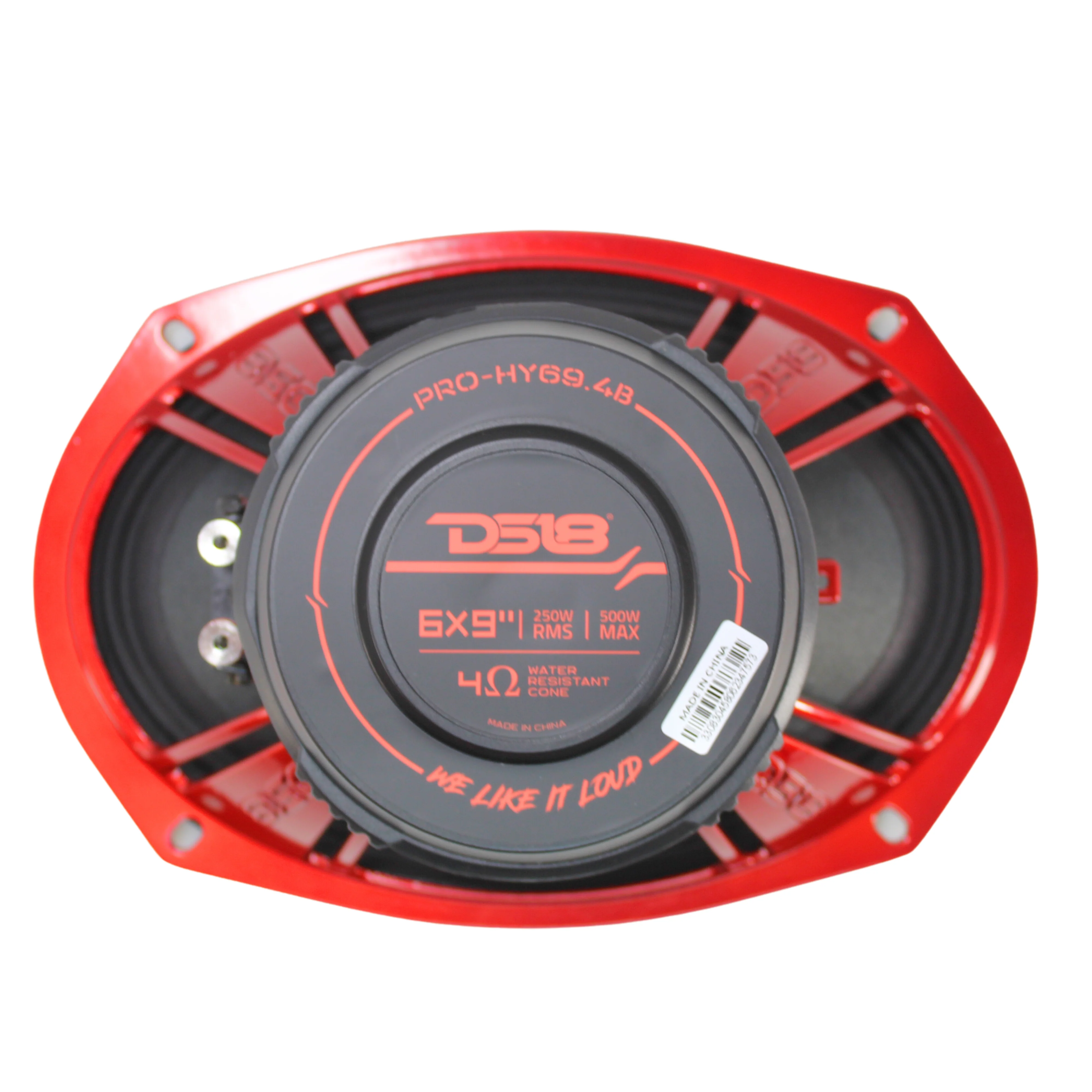

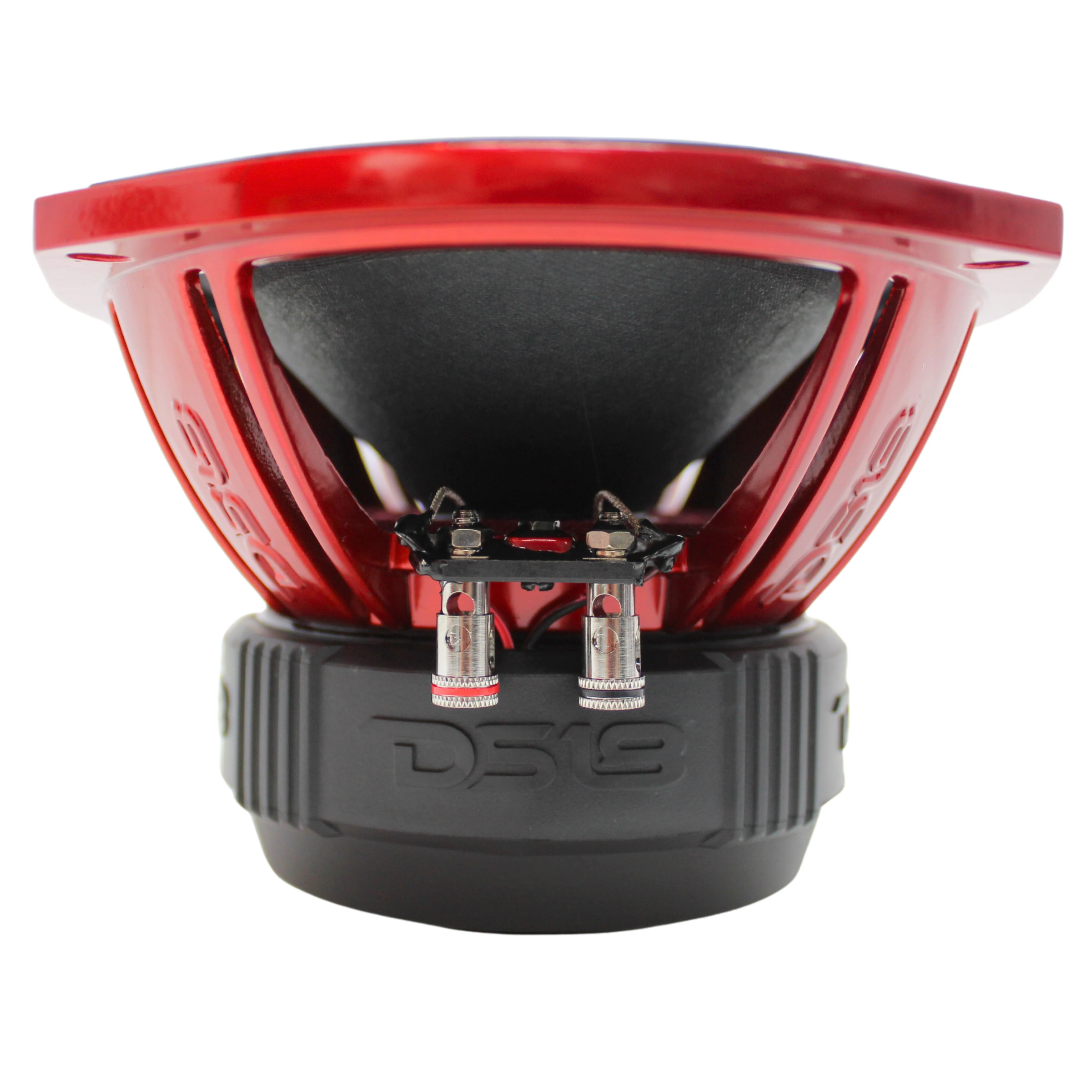

DS18 6x9" 500W 4 Ohm Hybrid Mid-Range Loudspeaker w/ Built-in Driver PRO-HY69.4B

This listing includes:

(1) 6x9" 500W 4 Ohm Hybrid Mid-Range Loudspeaker w/ Built-in Driver

SPECIFICATIONS:

• Nominal Diameter: 6x9" / 152 x 228mm


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 250W


• MAX Power Handling: 500W


• Sensitivity (1w/1m): 97dB


• Frequency Response: 50Hz - 20Khz


• Recommended HI Pass Crossover: 80Hz


• Number of ways: 2 ways


• Pair or Single: Single


• Grill Included: Yes

WOOFER SPECIFICATIONS:

• Voice Coil Diameter: 1.5"/ 38.6mm


• Voice Coil Former Material: Glass Fiber


• Winding Material: CCAW


• Cone Material: Water Resistant Paper (IPx5)


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish: Matte Black


• Magnet Material: Ferrite


• Magnet Weight: 27 Oz


• Displacement Volume: 0.051L / 0.0018ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume Vas: 14.84L / 0.52ft3


• Excursion (one way) Xmax: 9.2mm


• Free Air Resonance Fs: 87Hz


• Mechanical Factor Qms: 3.629


• Electrical Factor Qes: 0.661


• Total Factor Qts: 0.559


• Mechanical Mass Mms: 14.264g


• Mechanical Compliance Cms: 0.236 mm/N


• BL Factor BL: 6.135


• Voice Coil Inductance Le: 4.22mH


• Cone Area Sd: 210.48 Cm2


• DC Resistance Re: 3.2 ohms


• Mechanical Mass w/o air Mmd: 12.509g

DRIVER SPECIFICATIONS:

• Voice Coil Diameter: 1" / 25.4mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• Horn Diameter: 3.26" / 83mm

DIMENSIONS:

• Overall Diameter: 9.45 X 6.57" / 240 X 167mm


• Overall Depth: 4.54" / 115.4mm


• Front Mount Baffle Cutout: 8.74 X 5.98" / 222 X 152mm


• Mounting Depth: 4.21" / 107 mm


• Motor Diameter: 4.61" / 117mm
