• RMS Power Handling: 300 Watts
• MAX Power Handling: 600 Watts
• Frequency Response: 80Hz ~ 12.5KHz
• Recommended HI Pass Crossover: 100 Hz
• Magnet Material: Ferrite + Neodymium

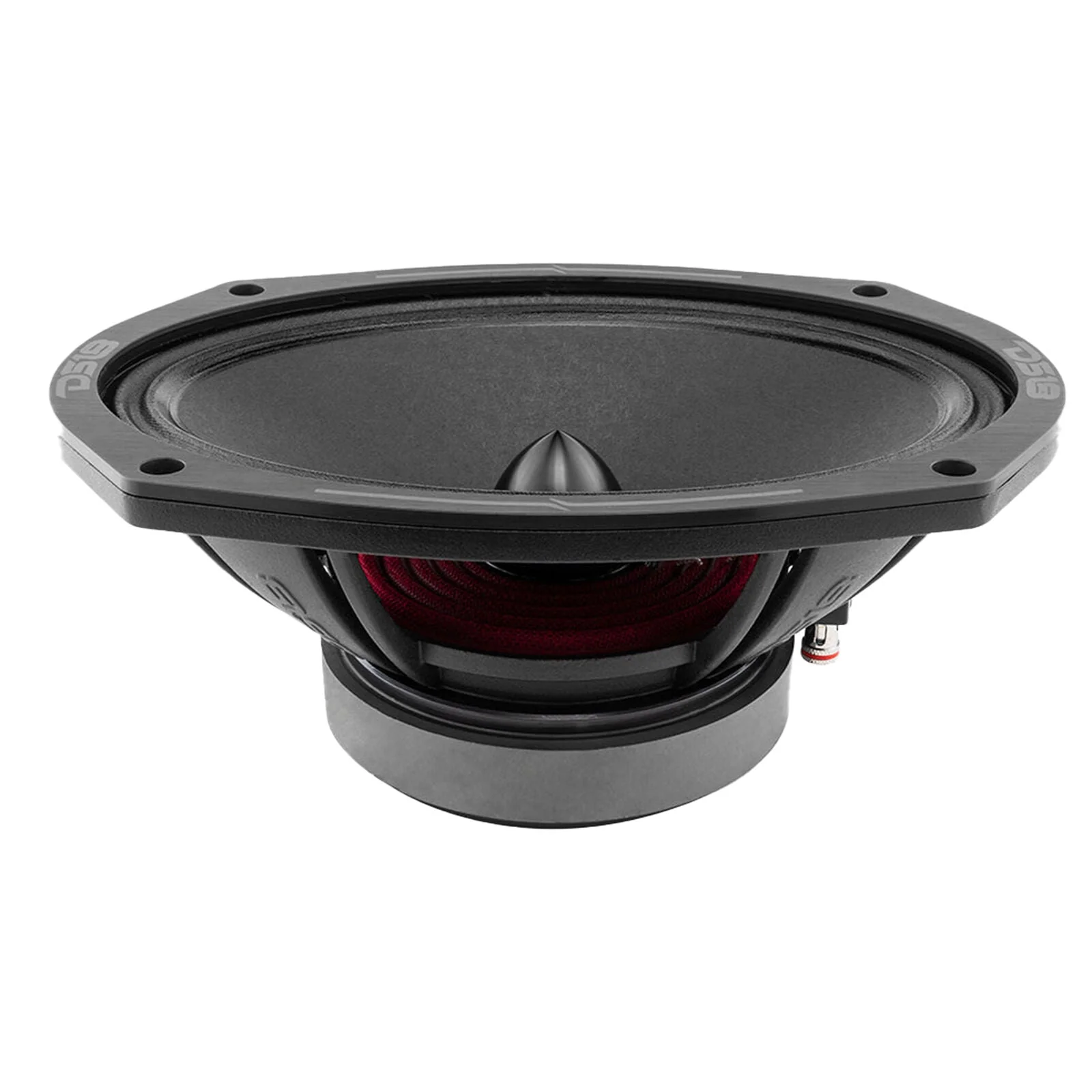

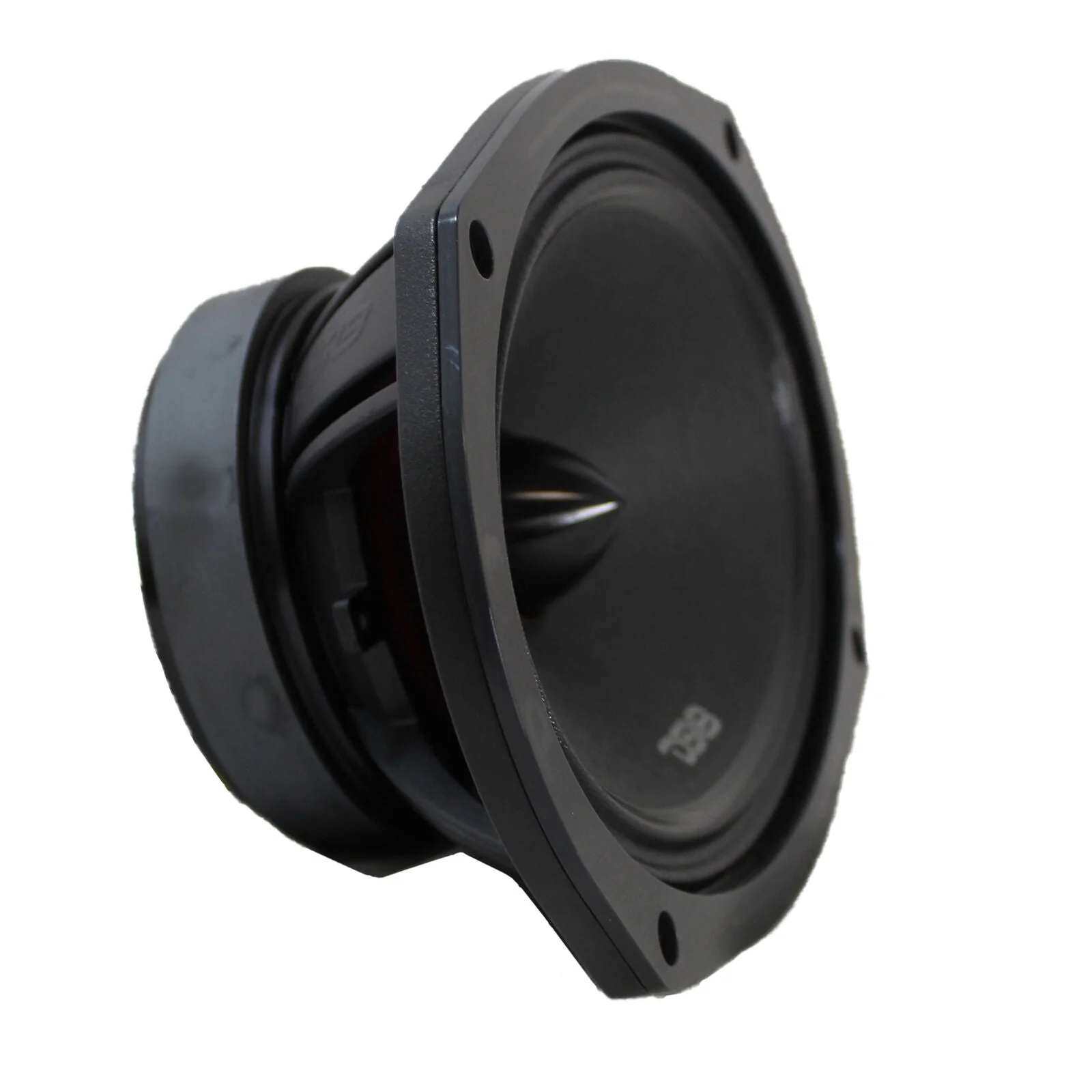

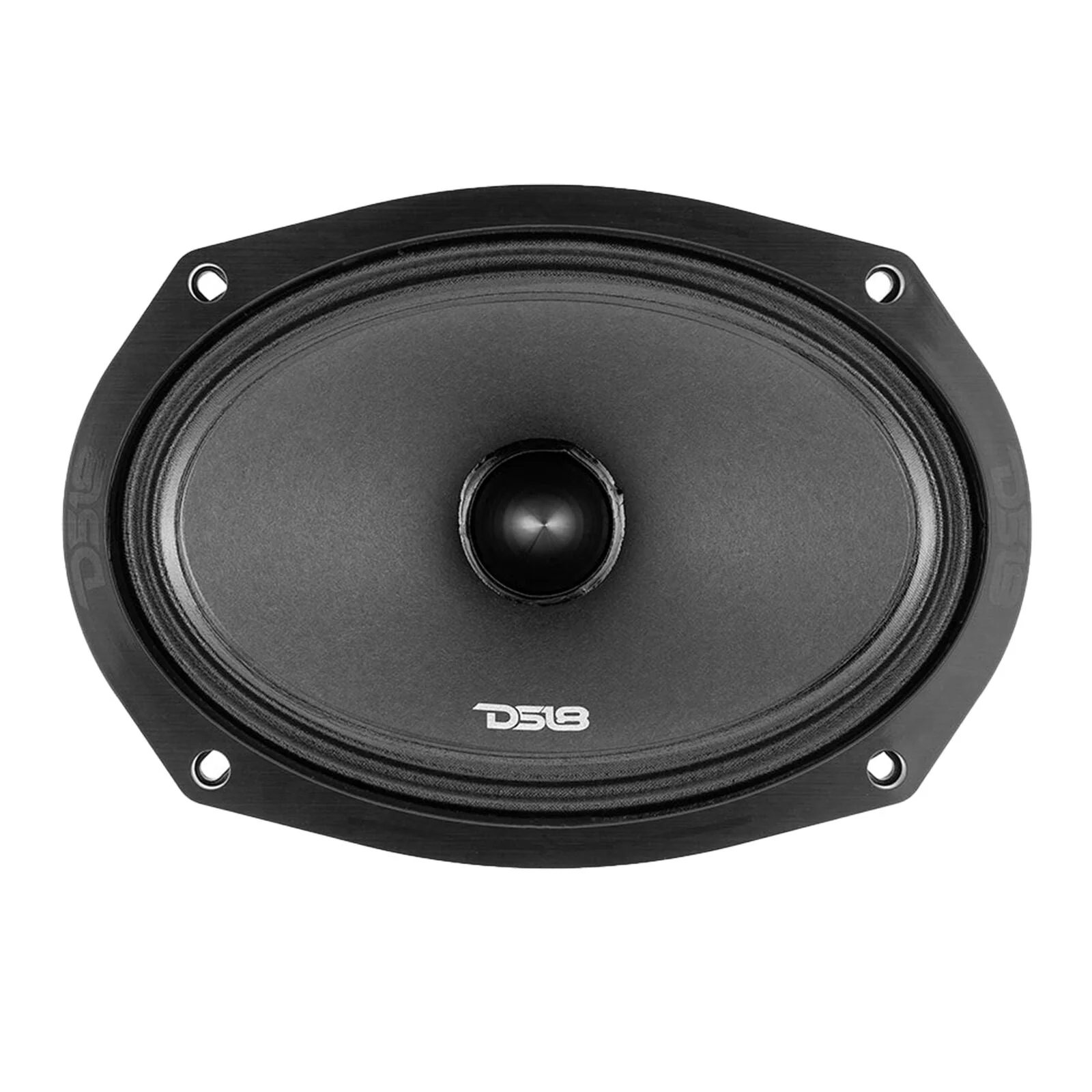

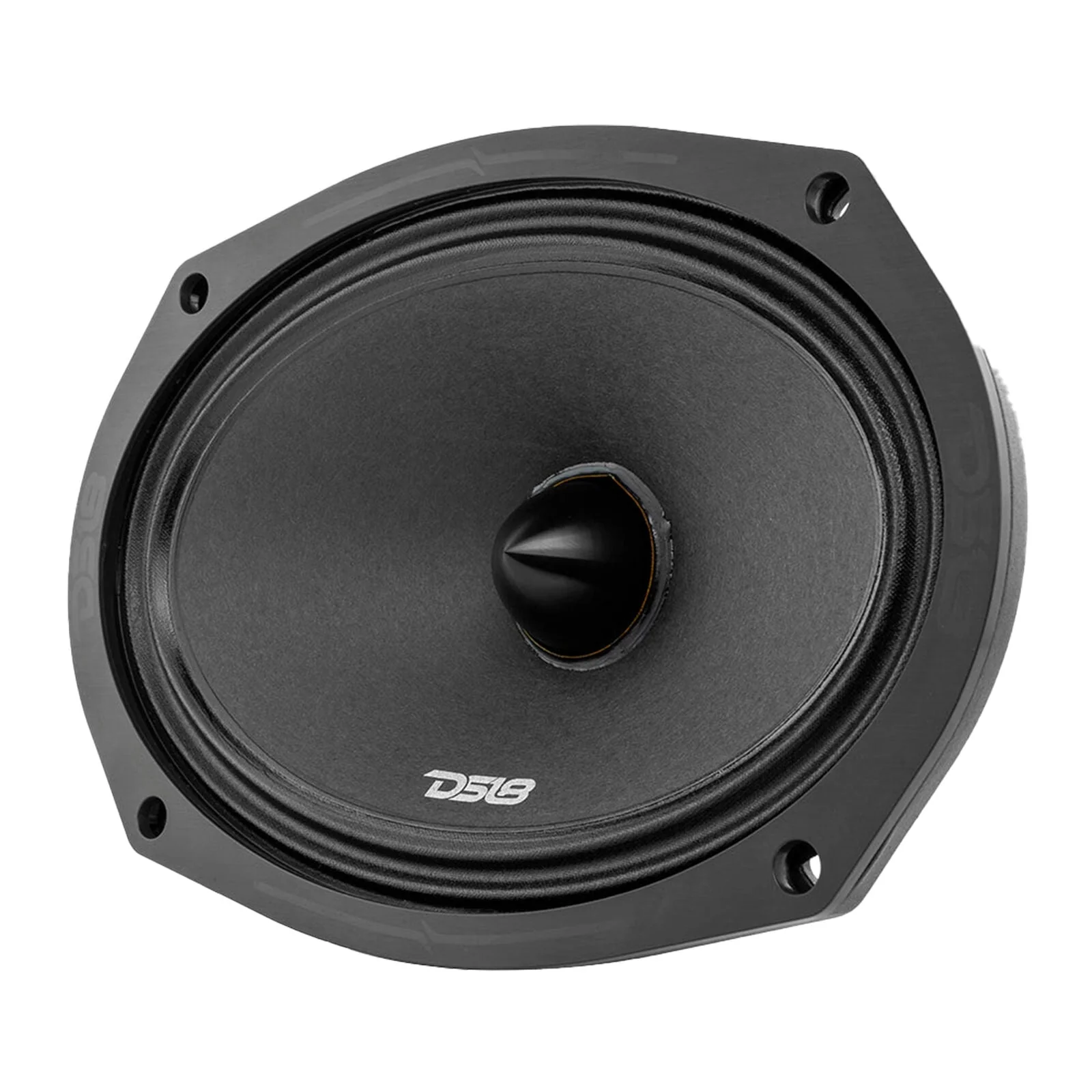

DS18 Car Audio 6x9" Mid-Range Loudspeaker w/ Bullet 600 Watt 4 Ohm PRO-ZXI694BM



The DS18 ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness. This ZXI 6"x9" mid-range speaker was designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently. The PRO-ZXi694BM has a beautiful gloss black basket face with strong black on black bullet dust-cap. This 4-ohm 6x9 Inches handles a huge 300 Watts RMS and 600 Watts MAX power ensuring screaming loud clear mid and high range frequencies!



This Listing Includes:

(1) DS18 6x9" Mid-Range Loudspeaker PRO-ZXI694BM



SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6x9" (152.4 x 228.6mm)

Nominal Impedance: 4 Ohms

RMS Power Handling: 300 Watts

MAX Power Handling: 600 Watts

Sensitivity (1w/1m): 98dB

Frequency Response: 80Hz ~ 12.5KHz

Recommended HI Pass Crossover: 100 Hz



MOTOR:

Voice Coil Diameter: 1.5" (38.6mm)

Voice Coil Former Material: Glass Fiber

Winding Material: CCAW

Cone Material: Paper

Bullet Material: Aluminum

Surround Material: Cloth

Basket Material: Aluminum

Basket Color: Sandblasted Black

Magnet Material: Ferrite + Neodymium

Magnet Weight: 30+3 Oz

Displacement Volume: 0.62L (0.0219ft)



THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 14.9L (0.5271ft)

Excursion (one way): Xmas - 7.2mm

Free Air Resonance: Fs - 100Hz

Mechanical Factor: Qms - 10.64

Electrical Factor: 0.439

Total Factor: Qts - 0.421

Mechanical Mass: Mms - 4g

Mechanical Compliance: Cms - 0.662mm/N

BL Factor: BL - 4.439

Voice Coil Inductance: Le - 0.08798mH

Cone Area : Sd - 207.85cm

DC Resistance: Re - 3.6 Ohms



DIMENSIONS PER SPEAKER:

Overall Diameter: 6.57x9.43" (167x240mm)

Overall Depth: 5.19" (132mm)

Front Mount Baffle Cutout: 3.7" (94mm)

Mounting Depth: 3.38" (86mm)

Motor Diameter: 4.72" (120mm)



Weight: 6 lbs.
