• Very Strong Aluminum Box for better sound, heat dissipation and lightweight construction
• Passive Radiator Design for deeper and louder sound output in a smaller enclosure
• RMS Power: 300 Watts(1200 Watts Peak)

DS18 Loaded Subwoofer Enclosure 8" 300W RMS Subwoofer with 8" Passive Sub

This Listing Includes:

• (1) Loaded Subwoofer Enclosure SQ82

Immerse yourself in bass response like no other with DS18’s SQ82!

Designed for the car audio enthusiast looking for intense bass, the SQ82 packs a punch that defies its size boasting a staggering 1200W of raw audio power, making it the ultimate solution for enthusiasts that crave earth-shattering bass without compromising on space.

The SQ82 combines an 8-inch subwoofer with 8-inch passive woofer, harmonizing their collective power to redefine your audio experience with unparalleled depth and low-frequency extension. Every note, beat, and drop will play with precision, always bringing you back for more.

DS18’s SQ82 REQUIRES an external amplifier that can feed it 300W of RMS Power and 1200W of MAX Power at 4 ohms. The SQ82 may be small, but its thirst for power ensures that every note thunders through the air with breathtaking clarity and intensity.

And let's not forget the aluminum enclosure that houses the DS18 SQ82, elevating its performance to unprecedented heights. Crafted with the utmost precision and attention to detail, this high-end enclosure not only enhances the subwoofer's aesthetic appeal but also plays a vital role in optimizing its sound reproduction. The aluminum enclosure acts as a resonance-free environment for the subwoofer, preventing unwanted vibrations and distortions from corrupting the audio signal.

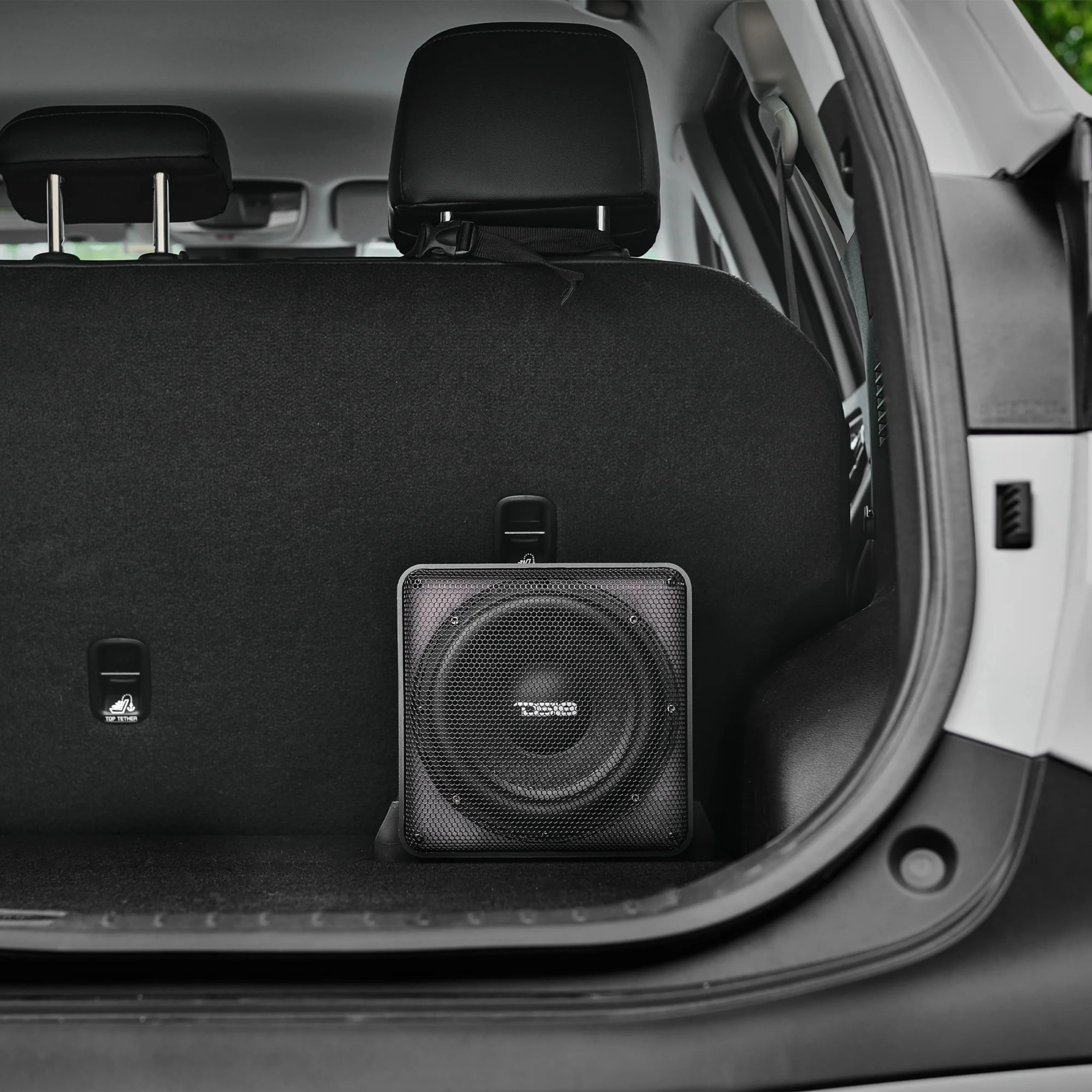

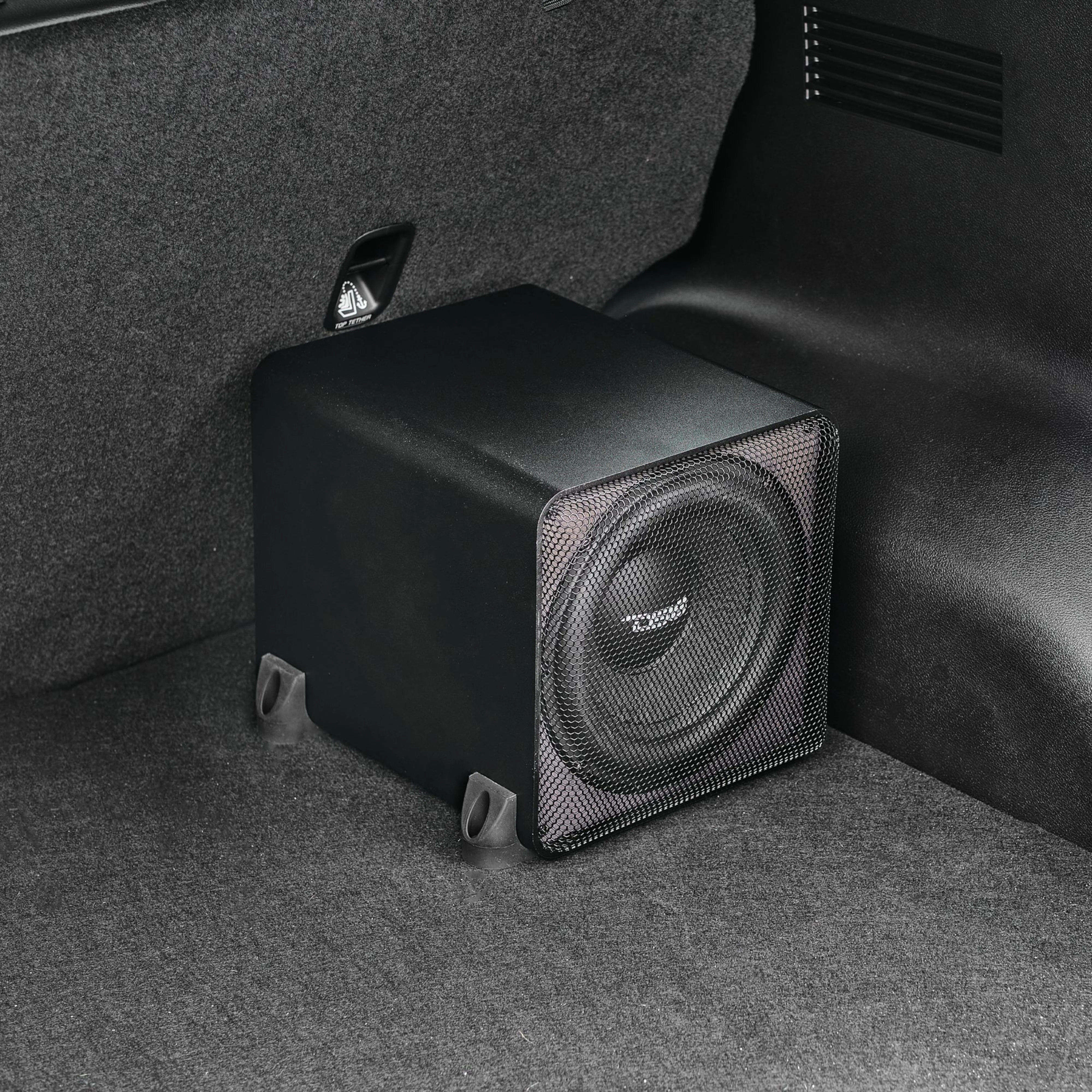

This compact subwoofer is ingeniously crafted to fit seamlessly behind most conventional car seating, rear cubbies, or small-sized storage compartments. DS18’s SQ82 ensures you get vibrant bass in any vehicle no matter how limited your space may be.

Specifications:

• Speaker Type / Size: 8" + 8" Passive


• Total Impedance: 4 + 4 Ohm


• Total RMS Power Handling: 300W


• Total MAX Power Handling: 1200W


• Sensitivity (1w/1m): 83dB


• Frequency Response: 30-350Hz

Speaker Specifications:

• Voice Coil Diameter: 1.52" / 38.6mm


• Voice Coil Former Material: Aluminum


• Winding Material: Copper


• Cone Material: Non-Press Cone


• Dust Cap Material: Paper


• Surround Material: Rubber


• Basket Material: Steel


• Magnet Material: Ferrite


• Magnet Weight: 32 Oz / 914.0g

Box Specifications:

• Internal Volume: 10.8L / 0.38ft3


• Box Tune FB: 50Hz


• Load Configuration: parallel In


• Box Type: Passive active (Sealed)


• Box Material: Aluminum


• Finish Material: Anodic Black


• -3Db Dropping Point F3: 35Hz

Measurements:

• Overall Height: 9" / 230mm


• Overall Width: 9" / 230mm


• Overall Depth: 12" / 304mm
