DS18 Bass Package 2 x 12 Subwoofers 3000W Ported Box /w 1Ch Amplifier & Amp Kit

The DS18 ZR212LD-PKG is a handpicked package made to help users take their first step on their journeys through sound. Weve loaded this package with the essentials needed to achieve hard hitting heavy bass: Twin 1500 Watt ZR12.4D Subs, the 6000 Watt Peak ZR2000.1D Amp, and a user friendly Thicc 0GA installation kit.

Weve also included the ZR2000.1D Amplifier which helps all your subwoofers reach their maximum potential to deliver brilliant sound and intense bass frequency responses. Its also equipped with Lowpass and Subsonic filters for finding the perfect frequency to maximize your listening experience. The included bass knob helps regulate the weight of your bass with only the turn of a dial.

Highlights:

- The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass.

- One ZR212LD subwoofer that will give you the cone area to push out great sounding bass with maximum efficiency.

- ZR2000.1D amplifier producing 2000 Watts RMS that maximizes your bass output.

Great For

- Car Audio.

- Pro Audio.

- Home Solutions.

- Hi-Fi Installation.

- Off-Road.

- DIY Projects.

This listing includes:

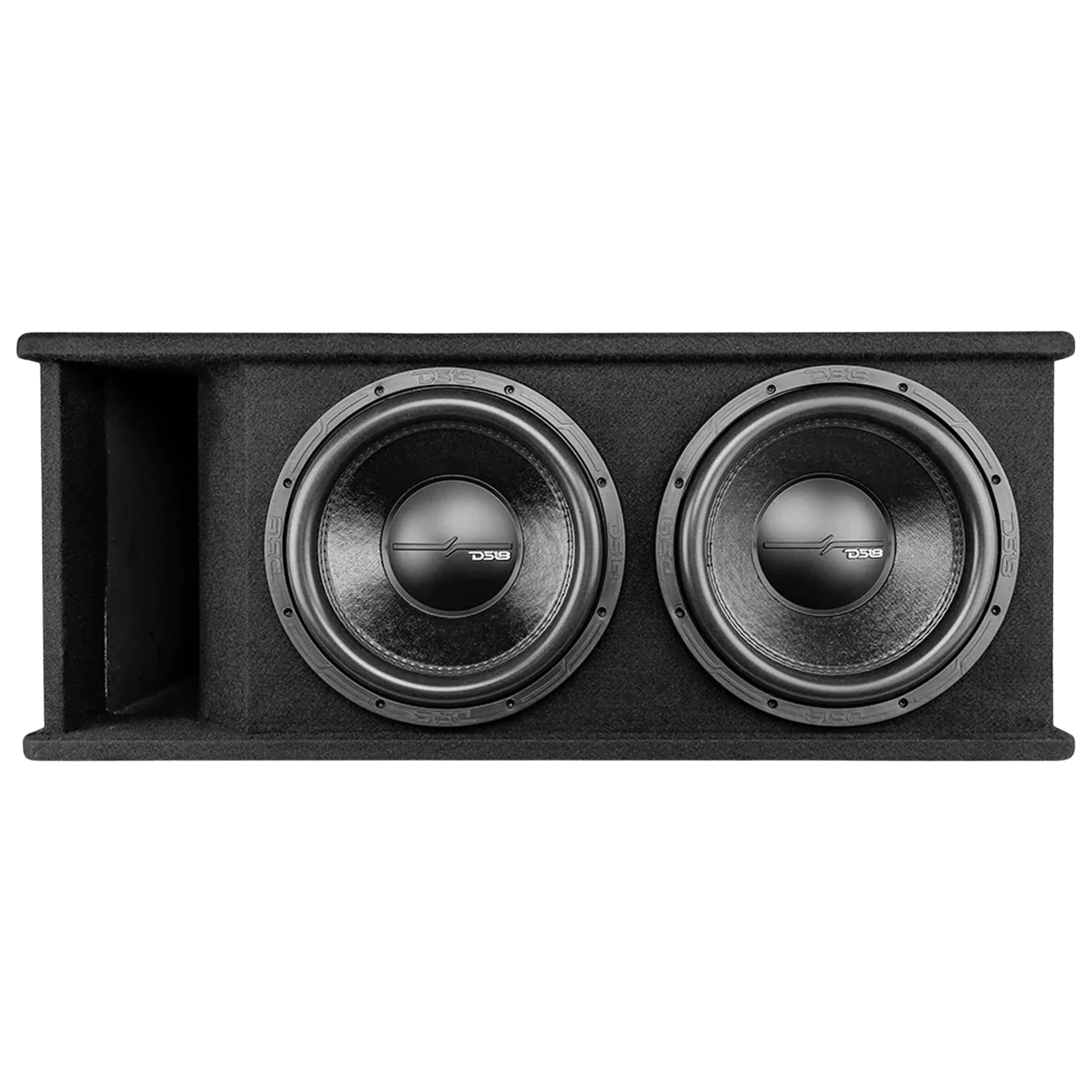

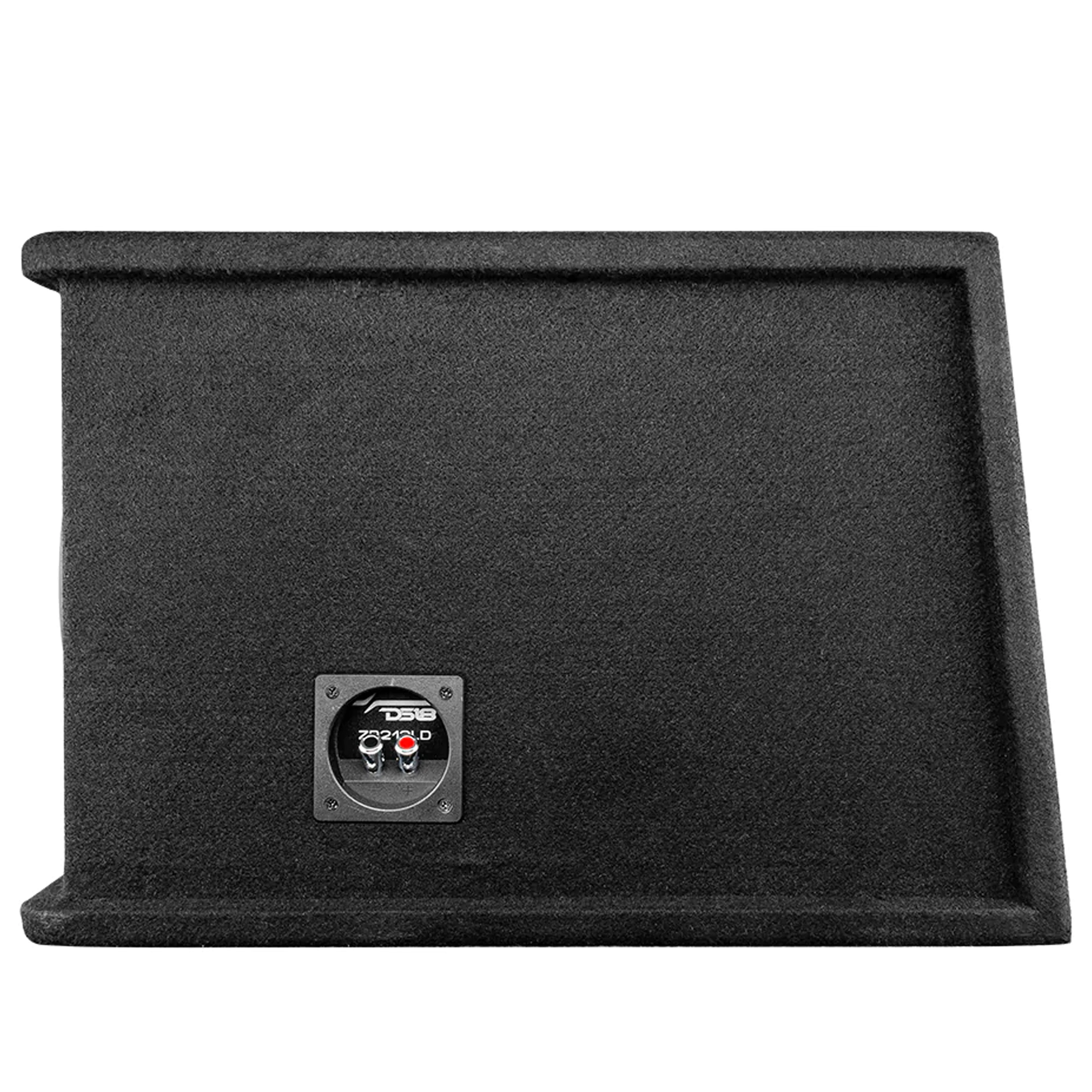

(1) DS18 Ported Box Subwoofer Enclosure ZR212LD

(2) DS18 12 Subwoofers ZR12.4D (Pre installed)

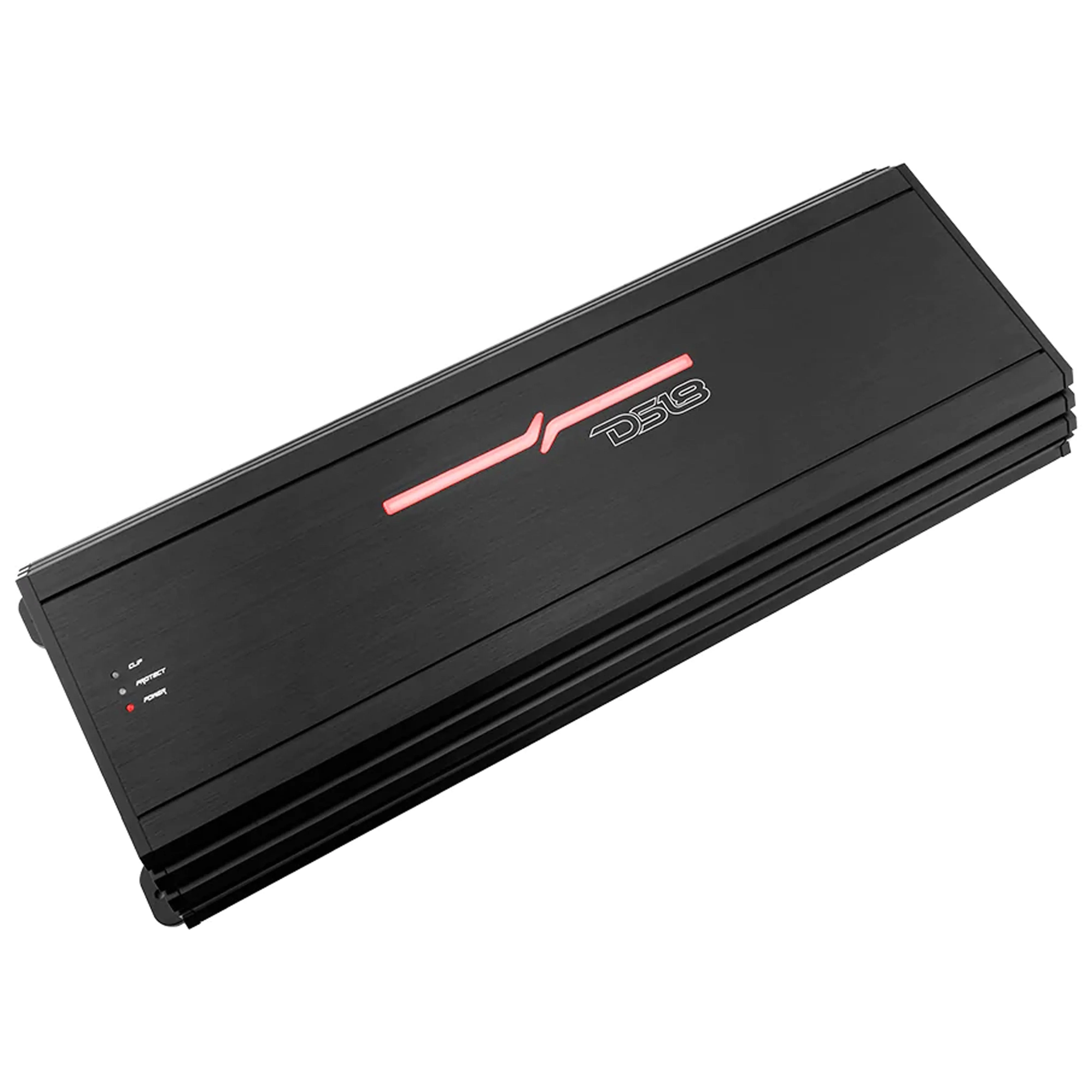

(1) DS18 Monoblock Amplifier ZR2000.1D

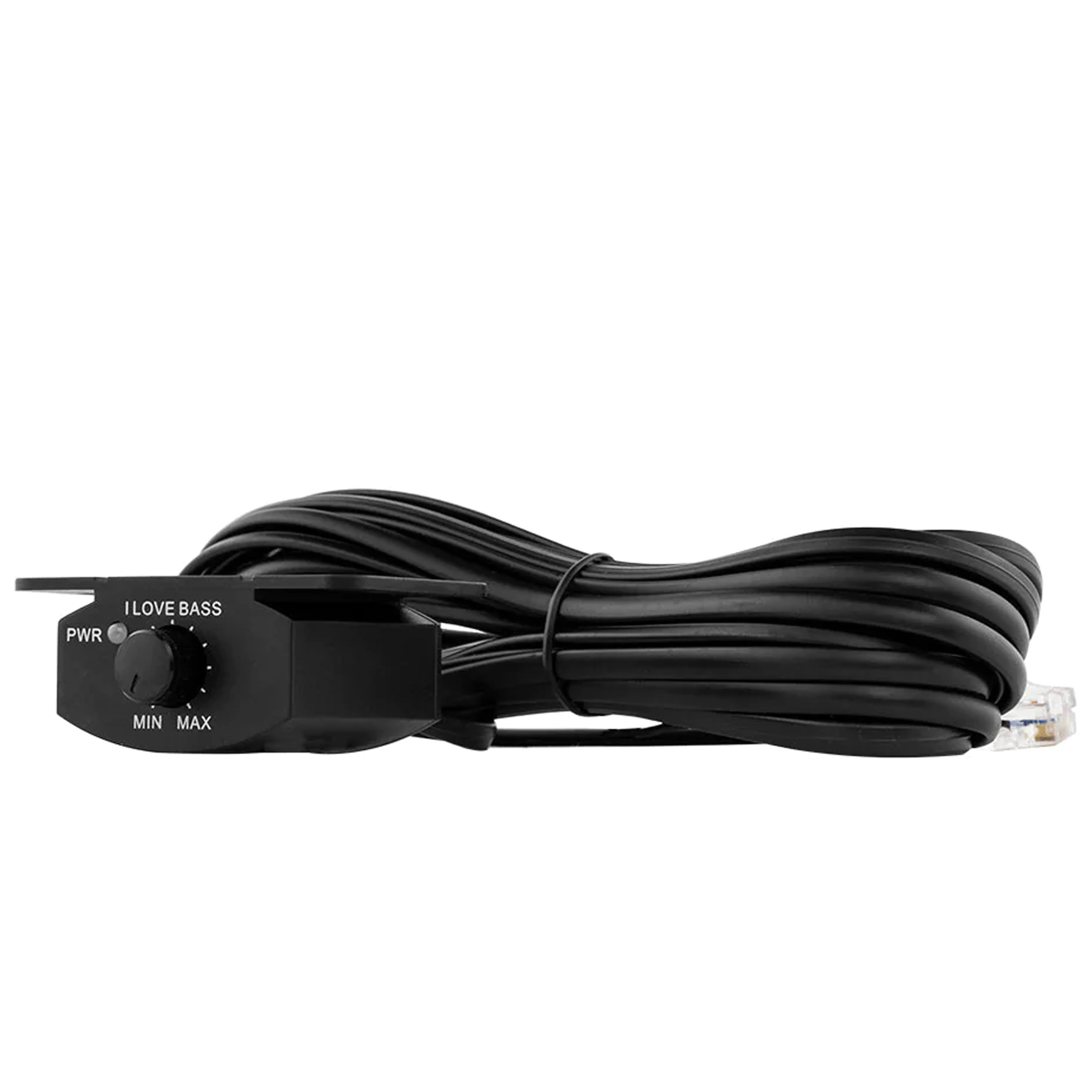

(1) DS 18 Dash Mounted Remote Bass Knob (Included in Amplifier box)

(1) DS18 0GA Amp Installation Kit AMPKIT0

SPECIFICATIONS FOR ZR212LD:

Speaker Type/Size: Twin 12 Subwoofers

Nominal Impedance: 1 Ohm

MAX Power Handling: 3000 Watts

RMS Power Handling: 1500 Watts

Sensitivity (1w/1m): 86dB

Frequency Response: 20Hz ~ 200Hz

Recommended Lo Pass Crossover: 70Hz

MOTOR:

Voice Coil Diameter: 2.5 (61.6mm)

Voice Coil Former Material: Aluminum

Winding Material: Copper

Cone Material: Non-Pressed Paper

Dust Cap Material: PPI

Surround Material: Foam

Basket Material: Steel

Magnet Material: Ferrite

Magnet Weight: 100 Oz

BOX SPECIFICATIONS:

Internal Volume: 141.6L (5ft)

Port Tune: 29Hz

Load Configuration: Ported Box

Box Type: Double 12

Box Material: (19mm) MDF

Finish Material: Black Carpet

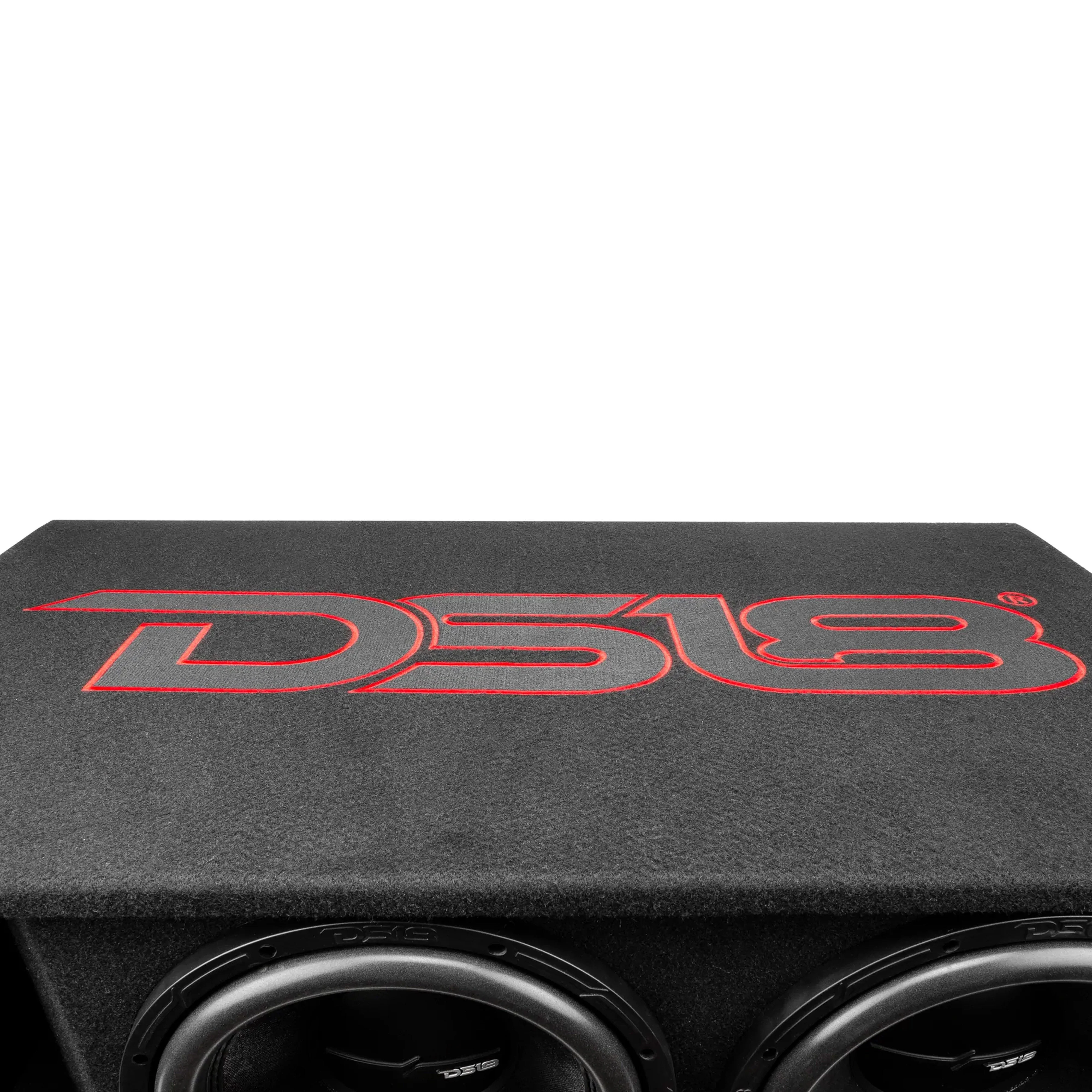

DS18 Logo: Red Stitched

-3dB Dropping Point: 24Hz

BOX DIMENSIONS:

Height: 14.48 (368mm)

Width: 36.22 (920mm)

Depth1: 19.68 (500mm)

Depth2: 21.65 (550mm)

THIELE & SMALL PARAMETERS PER SUBWOOFER:

Equivalent Volume: Vas - 21.2L

Excursion: X-max - 25mm

Free Air Resonance: Fs - 26Hz

Mechanical Factor: Qms - 4.8

Electrical Factor: Qes - 0.84

Total Factor: Qts - 0.71

DC Resistance: Re - 1.8 + 1.8 Ohm

Moving Mass: Mms - 299.7g

Compliance: Cms - 61.9 m/N

Force Factor: BL - 8.6

Voice Coil Inductance: Le - 567.3m mH

Diaphragm Area: Sd - 502.73cm

Efficiency Bandwidth Product: EBP - 30.9

-----------------------------------------------------

AMPLIFIER SPECIFICATIONS:

Total Watts (Peak): 6000 Watts

RMS Power @ 4 OHM: 800 Watts

RMS Power @ 2 OHM: 1300 Watts

RMS Power @ 1 OHM: 2000 Watts

AUDIO SPECIFICATIONS:

Frequency Response: 10Hz ~ 220Hz

Signal To Noise Ratio:>95dB

Efficiency @ 4 OHM: 80%

Damping Factor: 220

Input Impedance: 20K Ohm

Total Harmonic Distortion (THD): 0.01%

Low Level Input Range: 0.2 ~ 6V

High Level Input: Yes

Selectable X-over: Fixed LPF

X-over Filter Range: 40 ~ 180Hz

Bass Boost Range: 0 ~ 12dB

Bass Boost Frequency: 30 ~ 80Hz

Infrasonic Filter: 10 ~ 50Hz

Phase Selector: 0 ~ 180

FEATURES:

Amplifier Class: Digital

Amplifier Type: Monoblock Subwoofer

Number Of Channels: Single Channel

Minimum Impedance: 1 Ohm

Led Indicator: Clipping/Protect/Power

Power Input Terminal Size: 0GA

Recommended Fuse Size: 200A

Remote Level Control: Yes - Dash Mount

Thermal Protection: Yes

Over-Load Protection: Yes

DC Output Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes (9/)16V

Clipping Protection: Yes

Body Color | Finish: Black Alumninum Brush

LED Logo: Yes

DIMENSIONS:

Overall Length: 19.13 (486mm)

Overall Width: 7.24 (184mm)

Overall Height: 2 (53mm)

Heatsink Length: 17.75 (451mm)

Single Unit Weight: 8.1 lbs

-----------------------------------------------------

AMP KIT SPECIFICATIONS:

Includes:

- ANL Fuse Holder with ANL 250A

- Rubber Grommet

- 6 ft. 0GA Loom Tube

- 3 ft. Black Ground Cable: 53mm OD: 15.8mm

- 17 ft. Red Power Cable: 53mm OD: 15.8mm

- 17 ft. Red/Black Twisted RCA Cable

- 17 ft. Turn-On Remote Cable 20 x 0.15mm

- 17 ft. Red/Black Speaker Cable 3.31mm x 2C OD 4.5 x 9.0mm

0GA Accessories Set:

- 10 Cable Ties

- 2 Ring Terminals

- 2 Spade Terminals

- 5 Small Spade Terminals

- 1 Rubber Grommet
