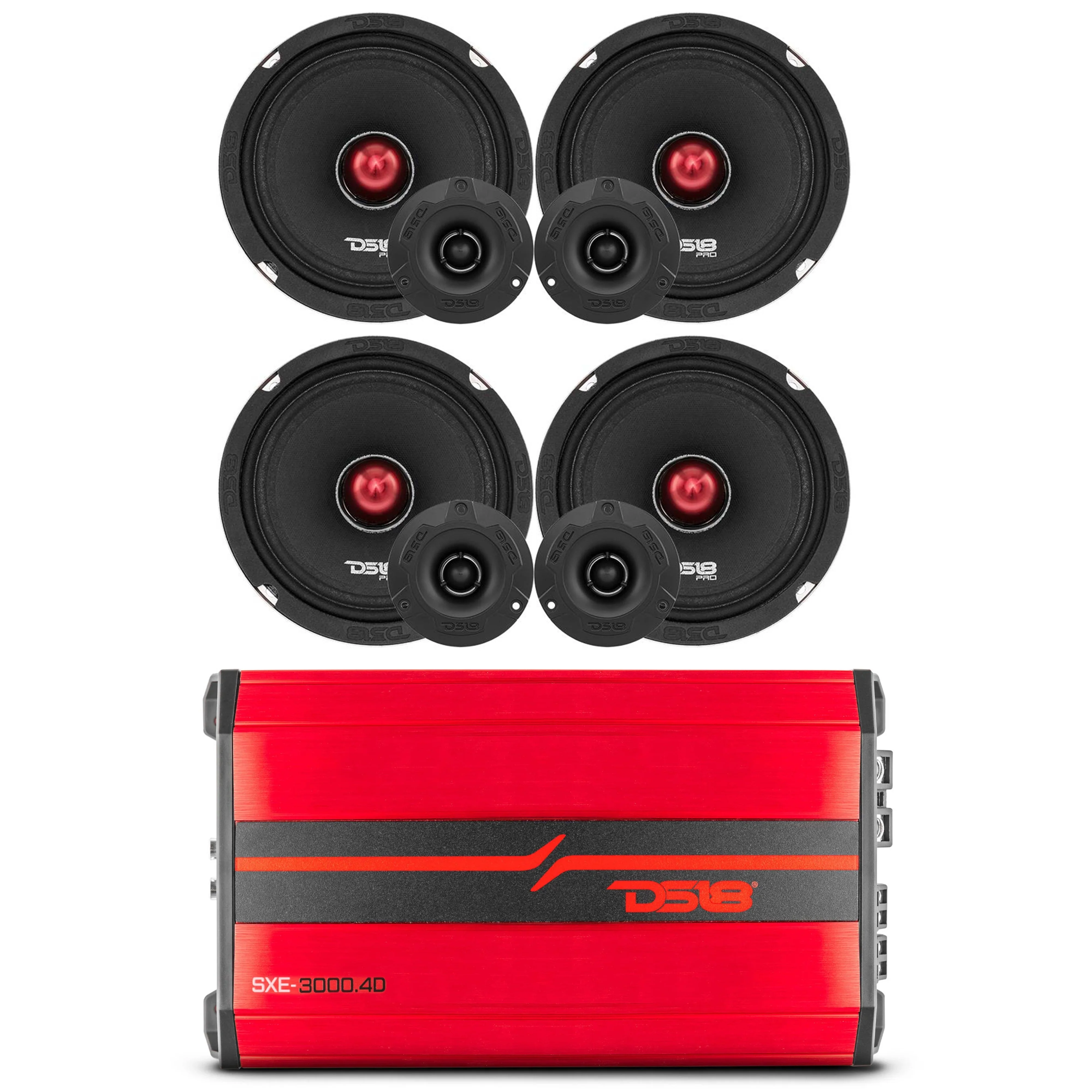

2 Pairs of DS18 PRO-X6.4BMPK 6.5" Midrange Speakers + Class D 4 Channel Amplifier Combo

This listing includes:

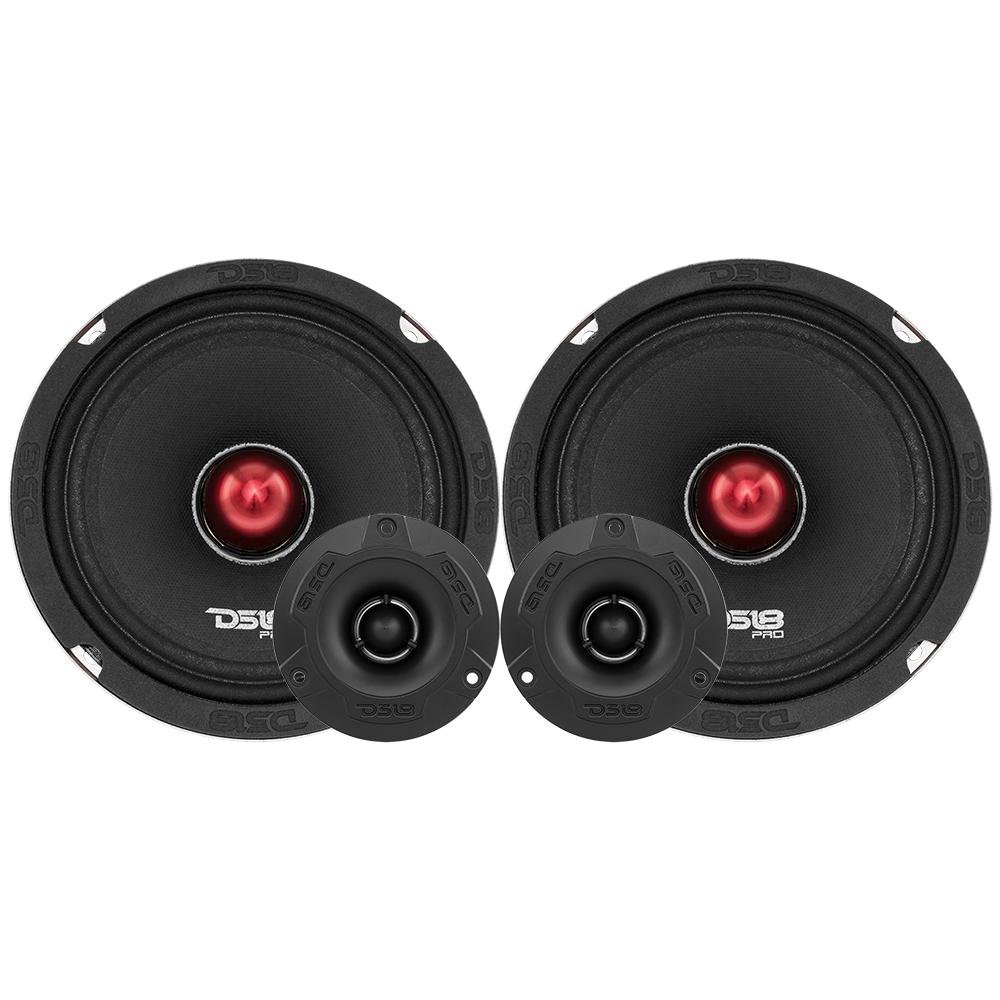

• (2) Pair of Speakers with Bullet - PRO-X6.4BM


• (2) Pair of Tweeters with Bullet - PRO-TWX1/BK


• (1) Amplifier - SXE-3000.4D-RD

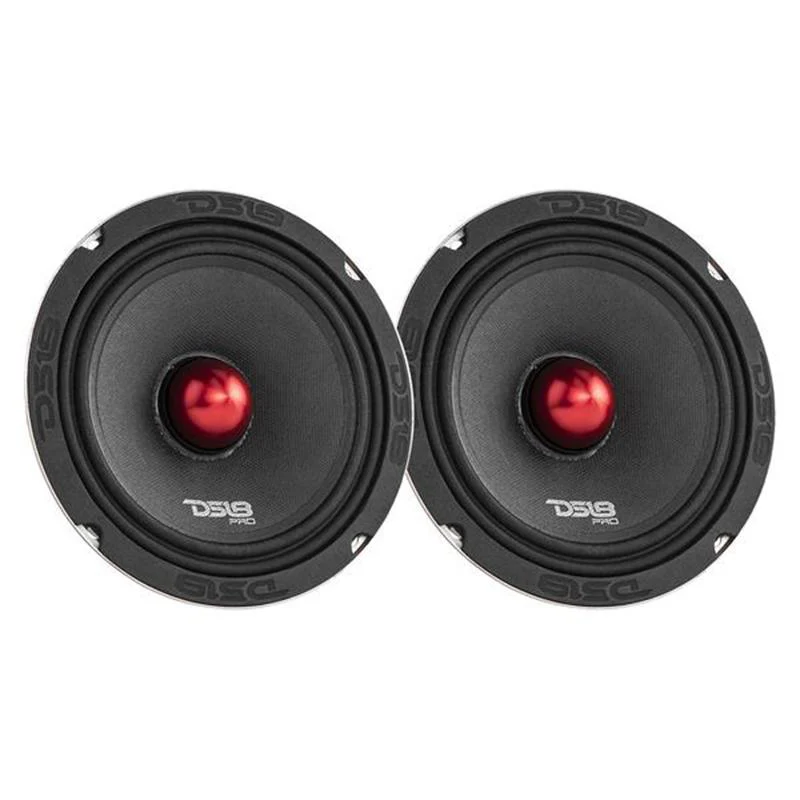

PRO-X6.4BM Specifications:

• Nominal Diameter: 6.5" (165.1 mm)


• Nominal Impedance: 4 ohm


• RMS Power Handling: 250 Watts


• MAX Power Handling: 500 Watts


• Sensitivity (1W/1M): 94 dB


• Frequency Response: 125Hz-12KHz


• Recommended Hi Pass Crossover: 120 Hz


• Voice Coil Diameter: 1.5" (38.1 mm)


• Voice Coil Material: Kapton


• Winding Material: CCAW


• Basket Material: Steel


• Magnet Material: Ferrite


• Magnet Weight: 30 oz

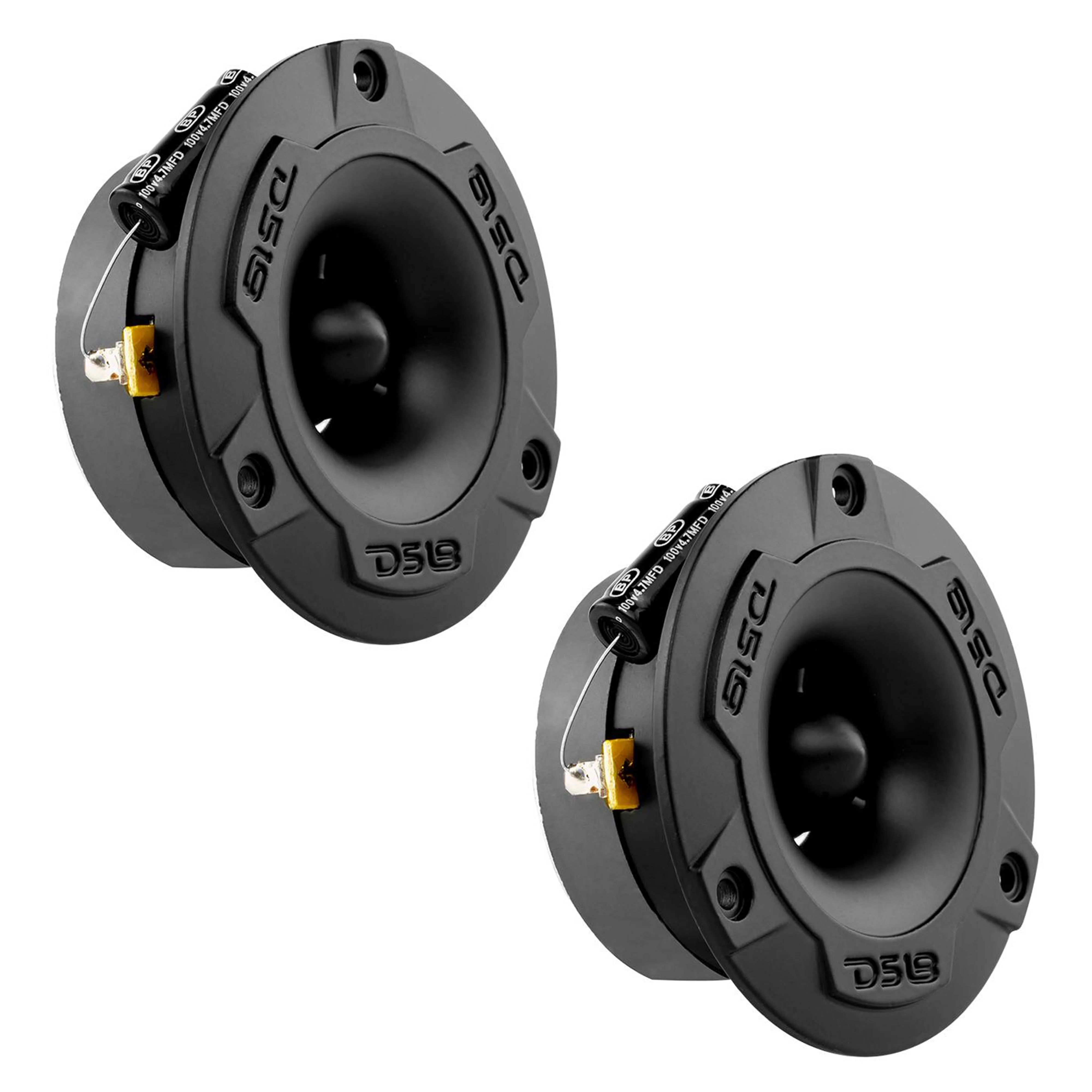

PRO-TWX1 Specifications:

• Nominal Impedance: 4 Ohm


• 60W RMS


• 120W MAX


• Sensitivity (1W/1W): 103 dB


• Frequency Response: 3.5K-20kHz


• Voice Coil Diameter: 1"


• Diaphragm Material: Aluminum


• Magnet Material: Ferrite


• Body Material: Aluminum


• Recommended Hi Pass Crossover: 2kHz

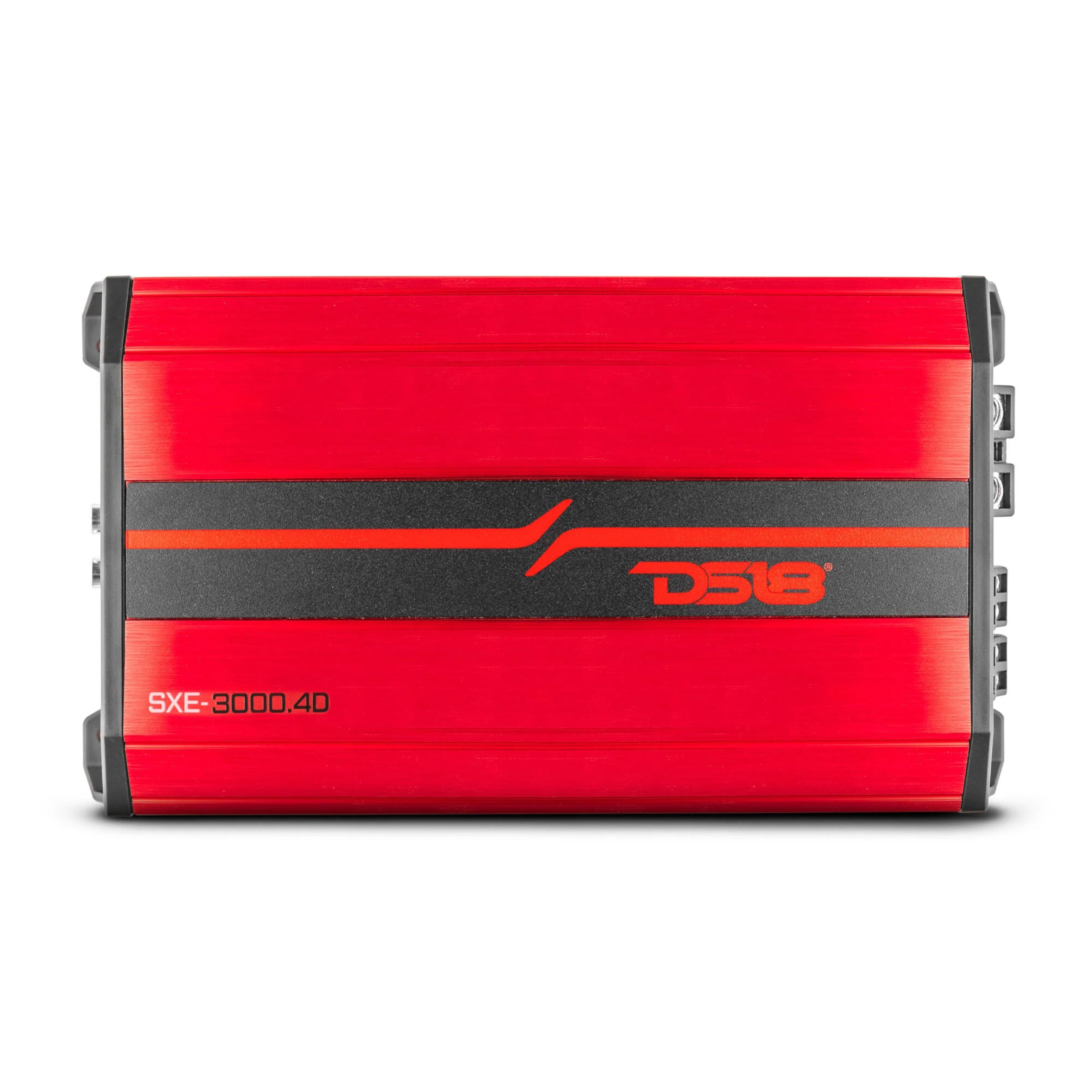

DS18 SXE-3000.4D 3000W Four Channel Amplifier Specifications POWER SPECIFICATIONS:

• Total Watts (Peak): 3000W


• RMS Power @ 4 ohms: 4 x 200W


• RMS Power @ 2 ohms: 4 x 320W


• RMS Power @ 4 ohms Bridge: 2 x 500W

AUDIO SPECIFICATIONS:

• Frequency Response: 10Hz-20KHz


• Signal to Noise Ratio: 90dB


• Efficiency @ 4 ohms: 88%


• Damping Factor: 140


• Input Impedance: 20k


• Channel Separation: 45dB


• Total Harmonic Distortion (THD): 0.05%


• Low Level Input Range: 200mV-5V


• Selectable X-Over: HPF/FULL/LPF


• X-Over Filter Range: 40Hz-2KHz

Amplifier Measurements:

• Overall Length: 9.8" / 249.3mm


• Overall Wide: 5.5" / 140mm


• Overall Height: 1.8" / 48mm


• Heatsink Length: 8.34" / 212mm


• Gross Single Unit Weight 1.86Kg

PRO-X6.4BM Dimensions:

• Overall Diameter: 6.61 (168 mm)


• Front Mount Baffle Cutout: 5.7" (145 mm)


• Mounting Depth: 2.44" (62 mm)


• Overall Depth: 2.72 (69 mm)

PRO-TWX1 Dimensions:

• Overall Diameter: 3.78" (96mm)


• Overall Depth: 1.78" (45mm)


• Front Mount Baffle Cutout: 2.76" (70mm)


• Mounting Depth: 1.57" (40mm)
