3.75" 60W RMS 4-Ohm Water Resistant Marine Tweeters Pair DS18 NXL-T1

This Listing Includes:

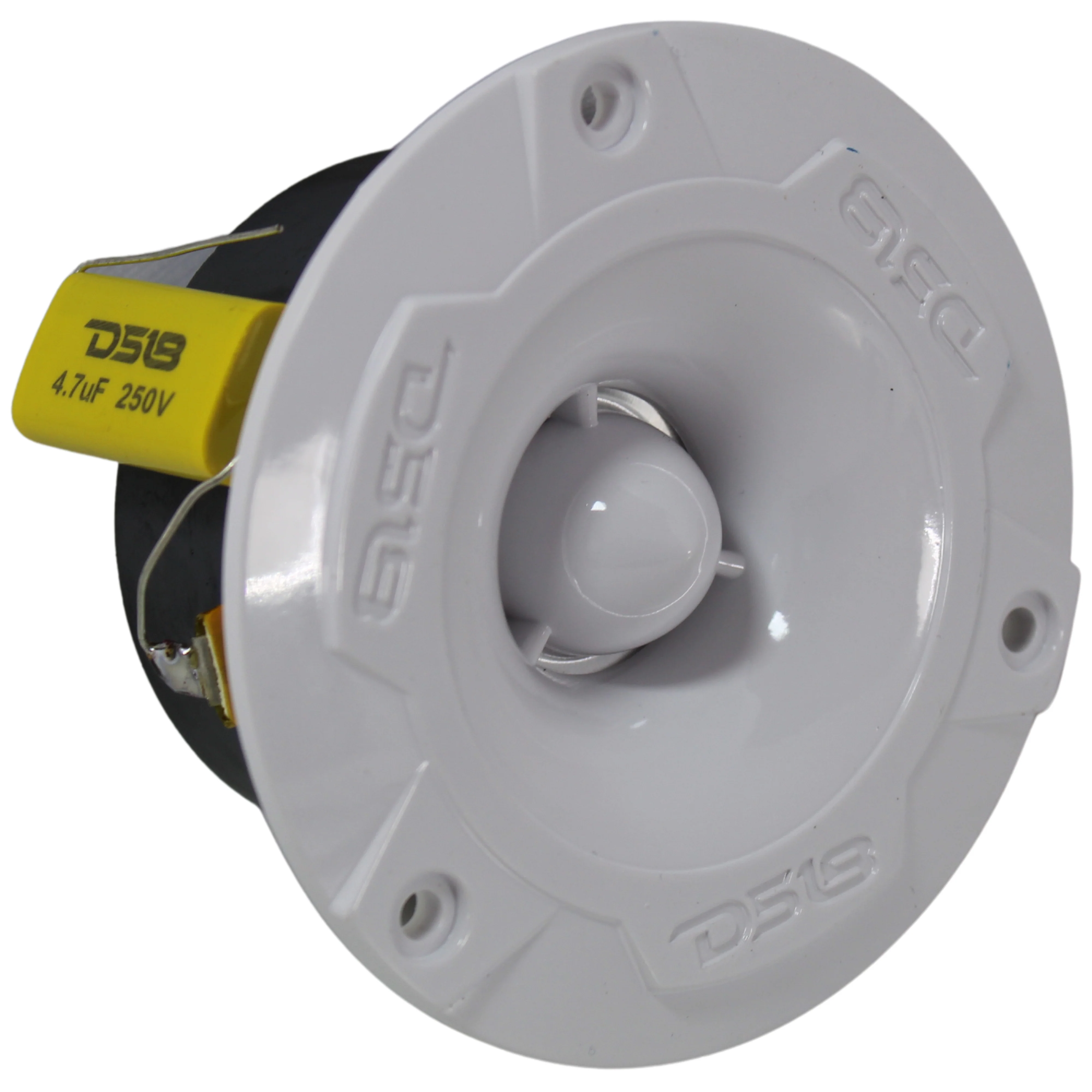

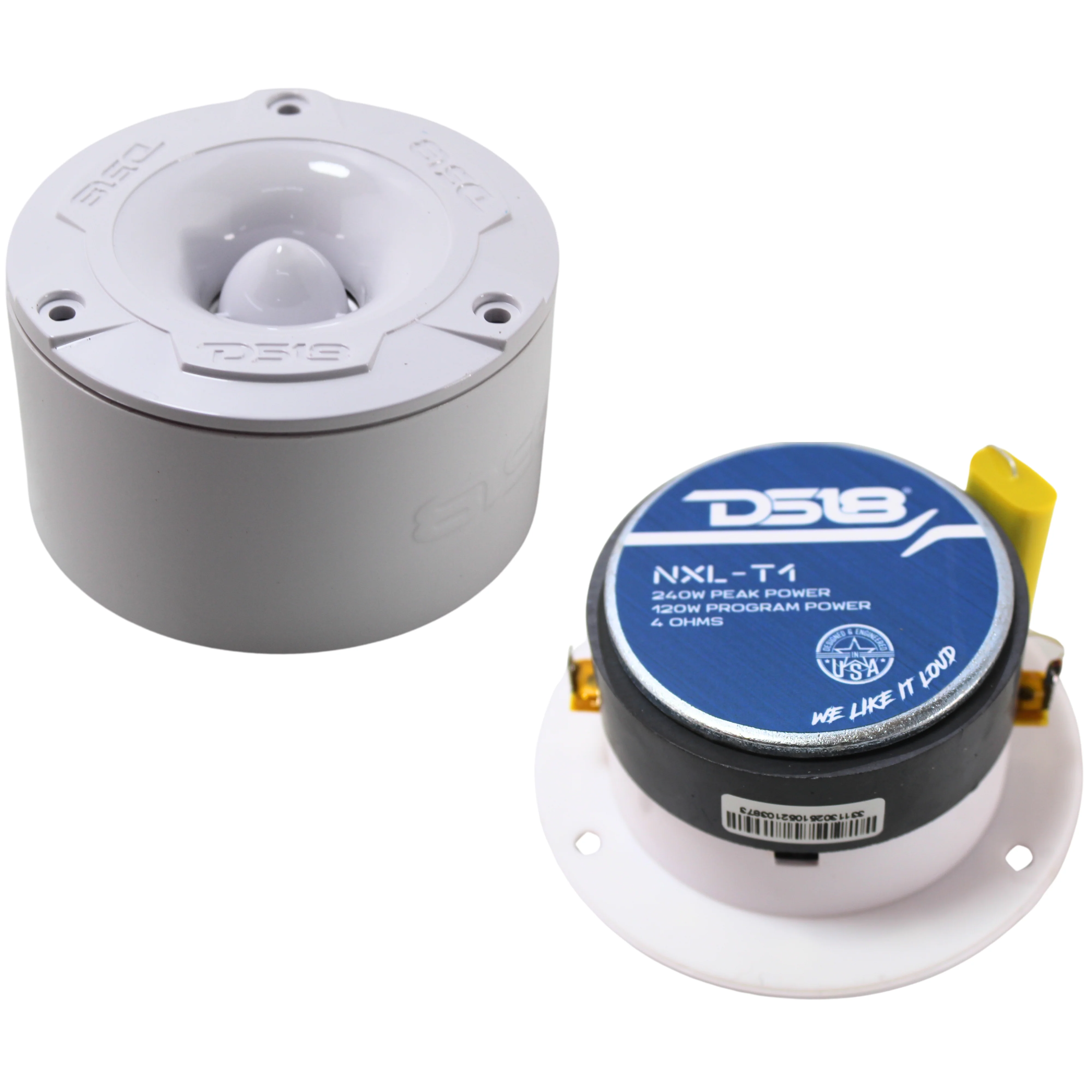

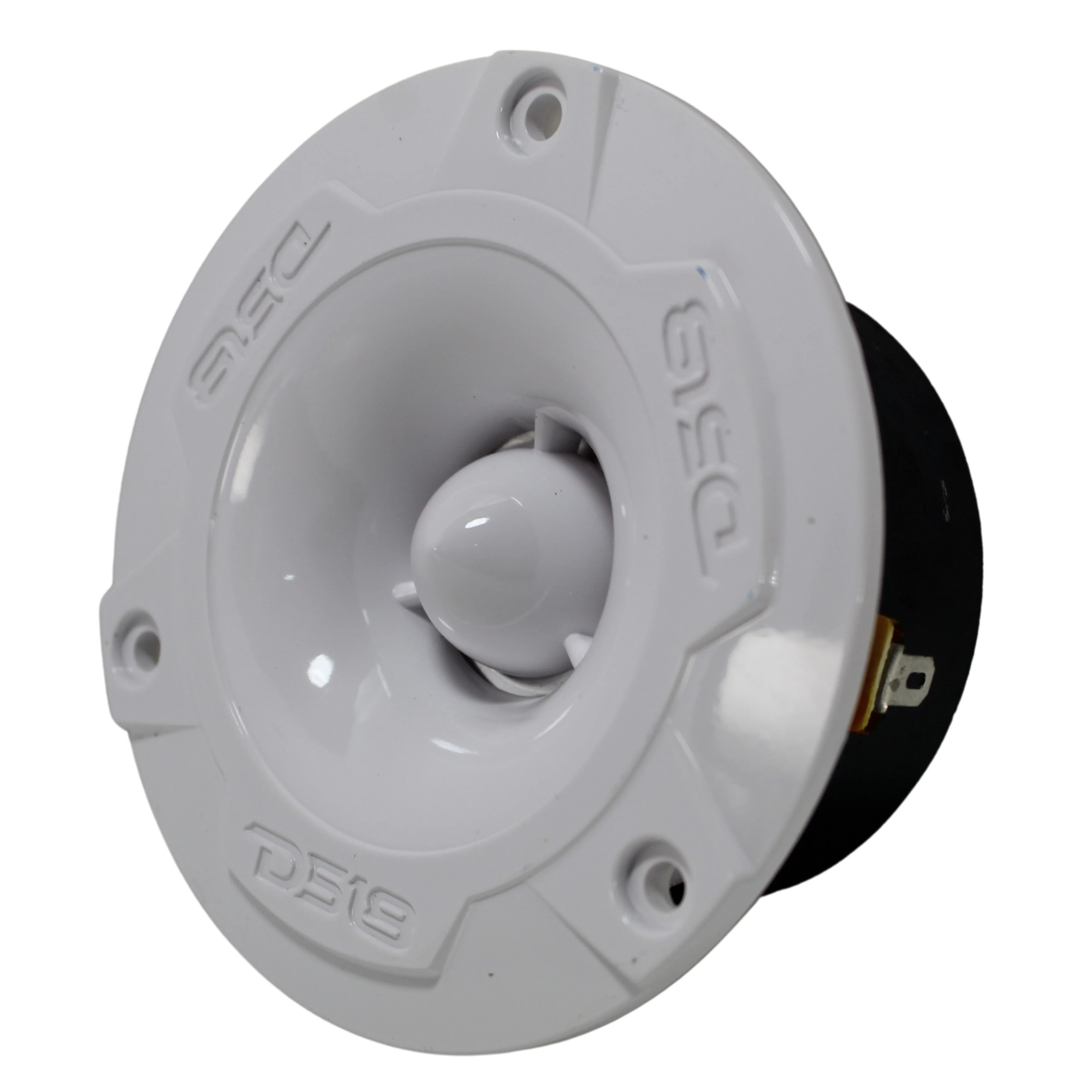

• (2) 3.75" Tweeters

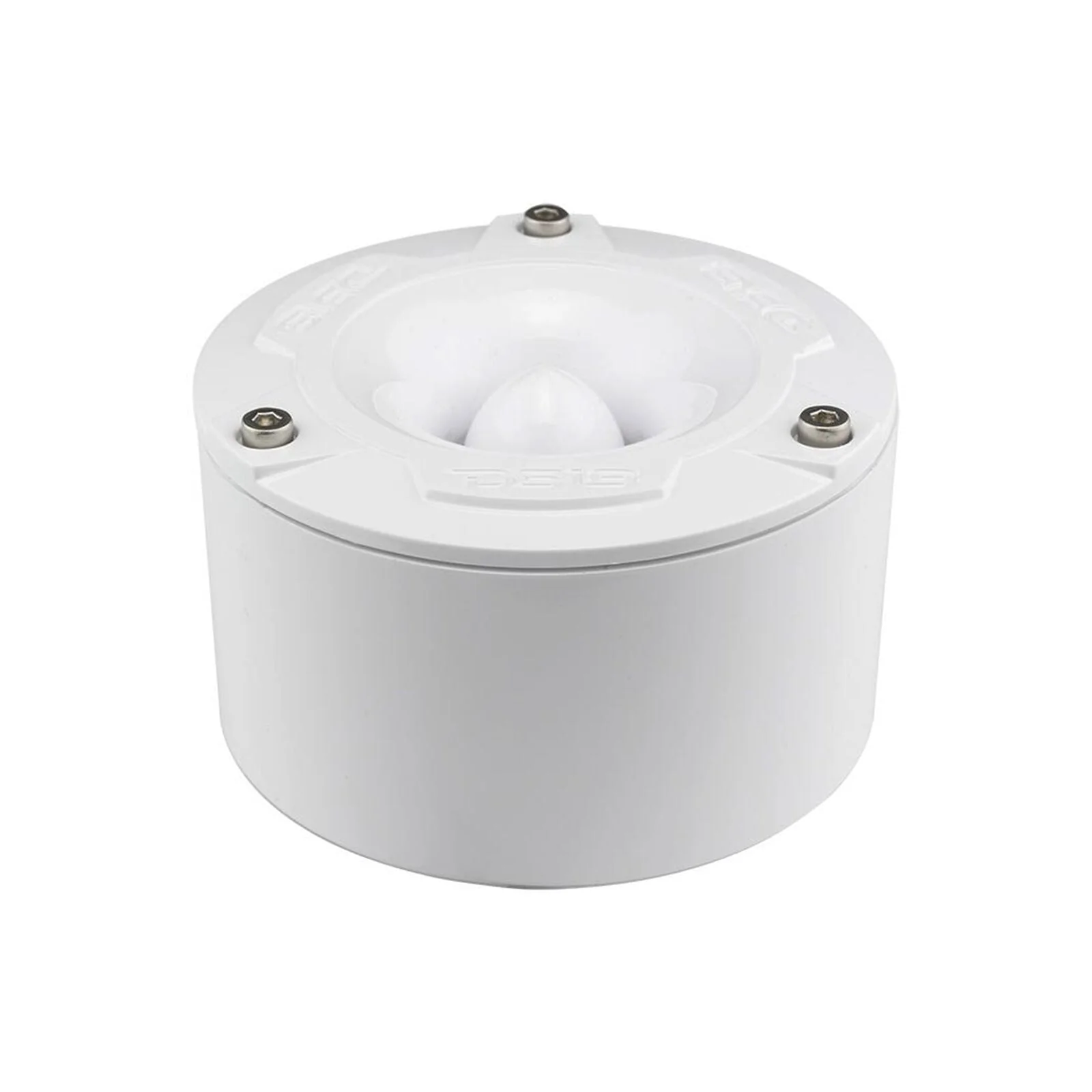

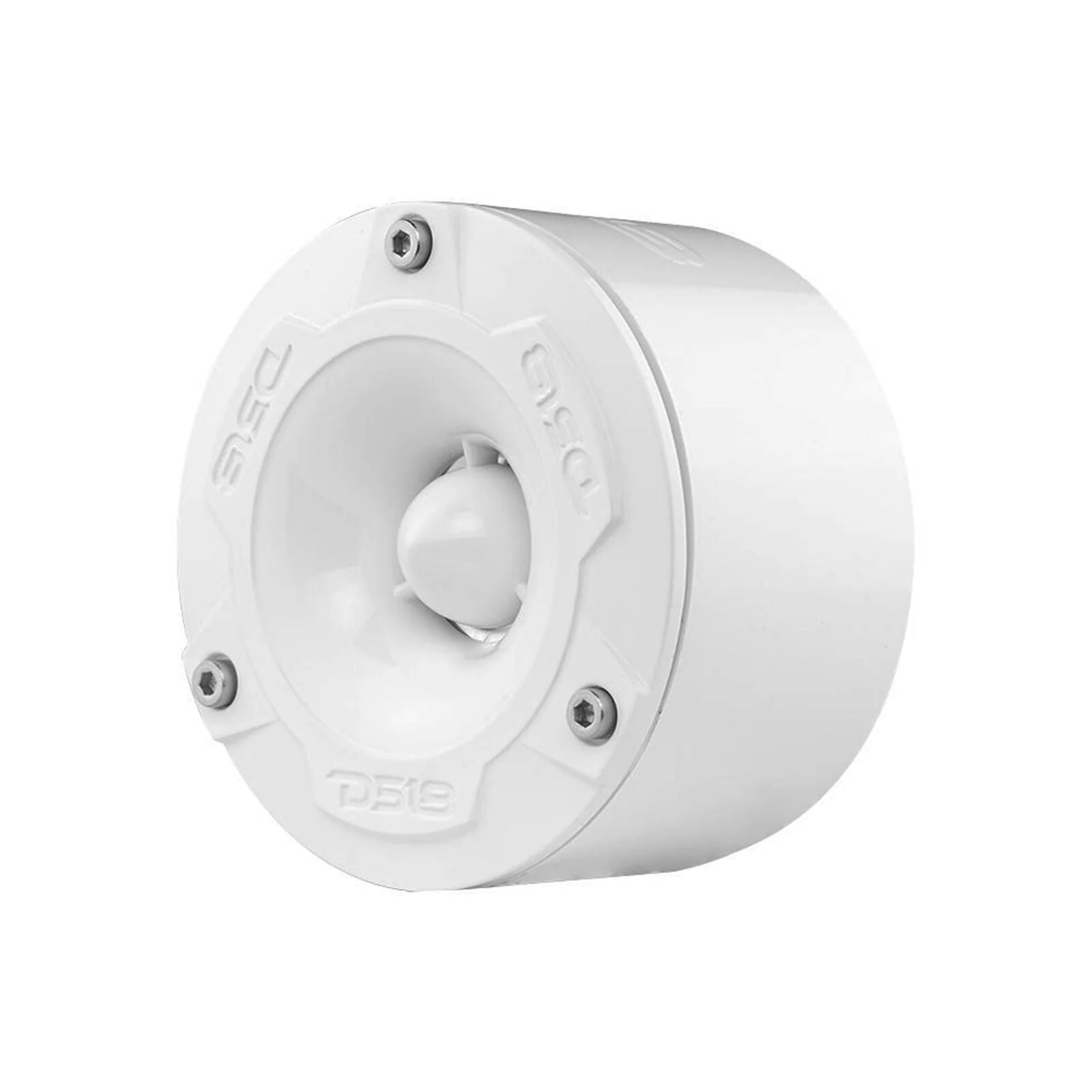

• (2) Tweeter enclosures
• (1) Set of Mounting Hardware & Wires

Description:

Experience exceptional sound quality even in the harshest conditions with DS18's NXL-T1 Marine Super Bullet Tweeter. Engineered with 100% waterproof construction, this tweeter is built to withstand water and moisture, ensuring long-lasting performance without any damage or corrosion. Whether used with or without the included enclosure, its compact size allows for easy mounting in various applications, making it ideal for 4x4 vehicles, marine systems, and motorcycles. Delivering crystal-clear highs, the NXL-T1 features a 1" aluminum voice coil and 240W of MAX power handling. With a sensitivity rating of 103dB and a frequency response of 3KHz-20 KHz, this tweeter guarantees enhanced audio performance like never before. Its marine-grade materials and UV & salt protection ensure durability, featuring an ASA body material, Kapton voice coil former, and aluminum diaphragm.

Download Owner's Manual

GENERAL SPECIFICATIONS:

• Nominal Diameter: 3.75"
• Nominal Impedance: 4 OHMS
• AES Power Handling: 60W
• Program Power Handling: 120W
• Peak Power Handling: 240W
• Sensitivity (1w/1m): 103dB
• Frequency Response: 3Khz-20 KHz
• Recommended Hi Pass Crossover: 2 KHz
• Marine Grade Type: IP36
• UV & Salt Protection: Yes

MOTOR SPECIFICATIONS:

• Voice Coil Diameter: 1"
• Voice Coil Former: Material Kapton
• Winding Material: CCAW
• Diaphragm Material: Aluminum
• Magnet Material: Ferrite
• Magnet Weight: 8 Oz
• Body Material: ASA

MEASUREMENTS:

• Overall Diameter 3.78"
• Overall Depth 1.78"
• Front Mount Baffle Cutout 2.72"
• Mounting Depth 1.57"

MEASUREMENTS:(WITH ENCLOSURE)

• Overall Diameter 3.78"
• Overall Depth 2.26"
