• Durable ABS Housing using factory mounting locations
• Ready for OEM factory speaker connector and grommet
• Compatible with the factory amplifier

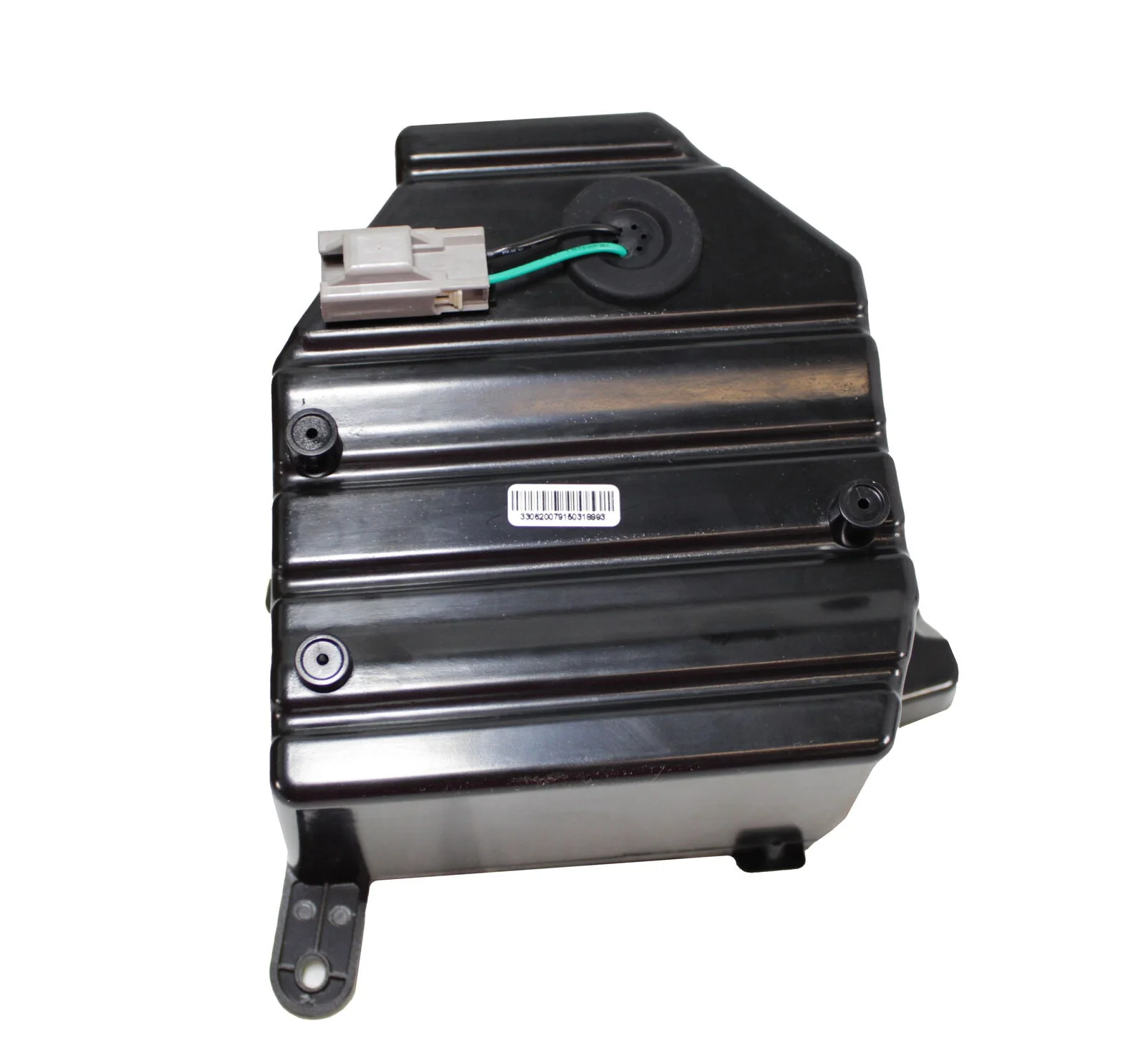

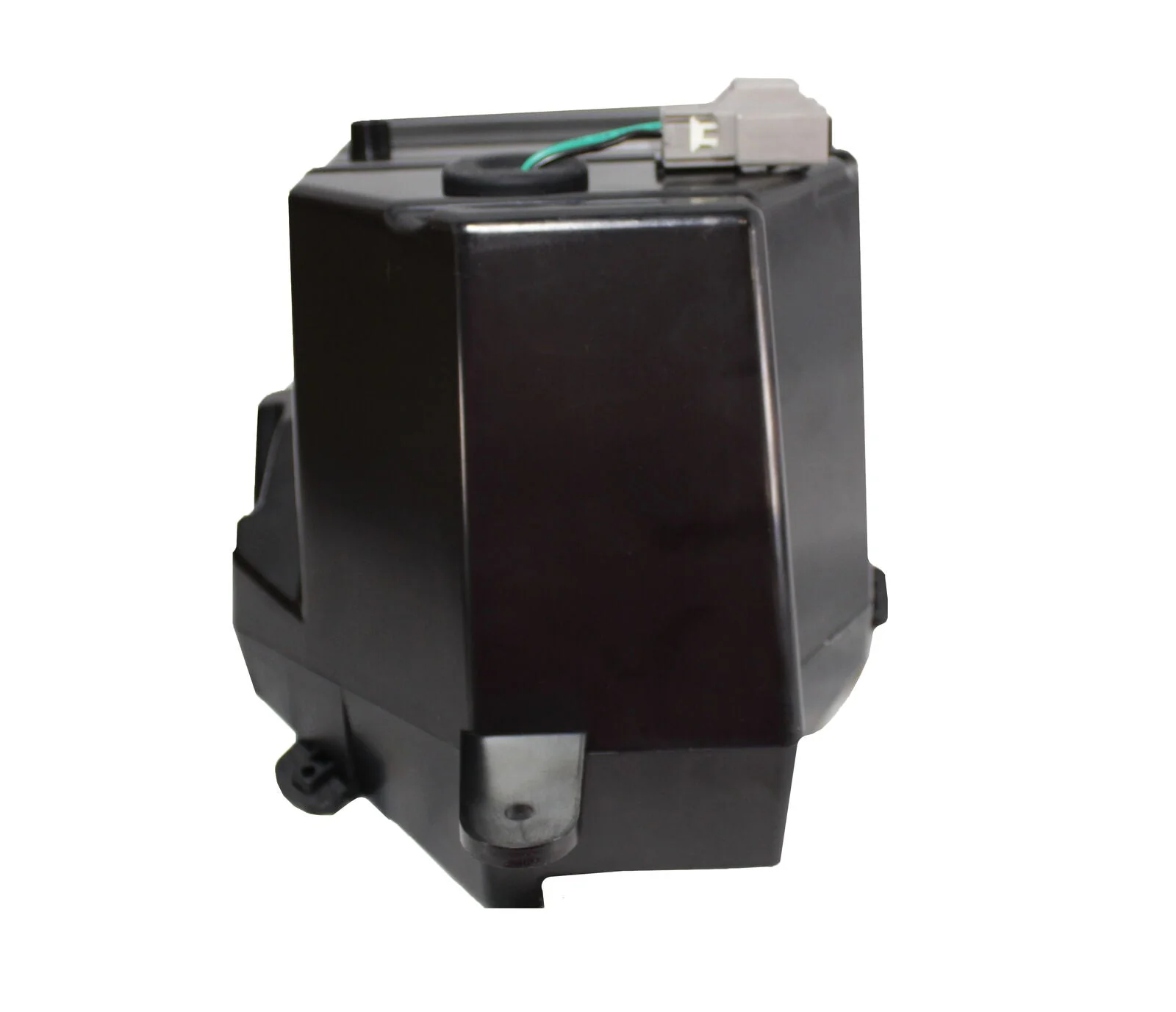

DS18 Jeep 6.5" 300W 4 Ohm Mid-Range Dash Enclosure Upgrade JL, JLU and JT JP6

This Listing Includes:

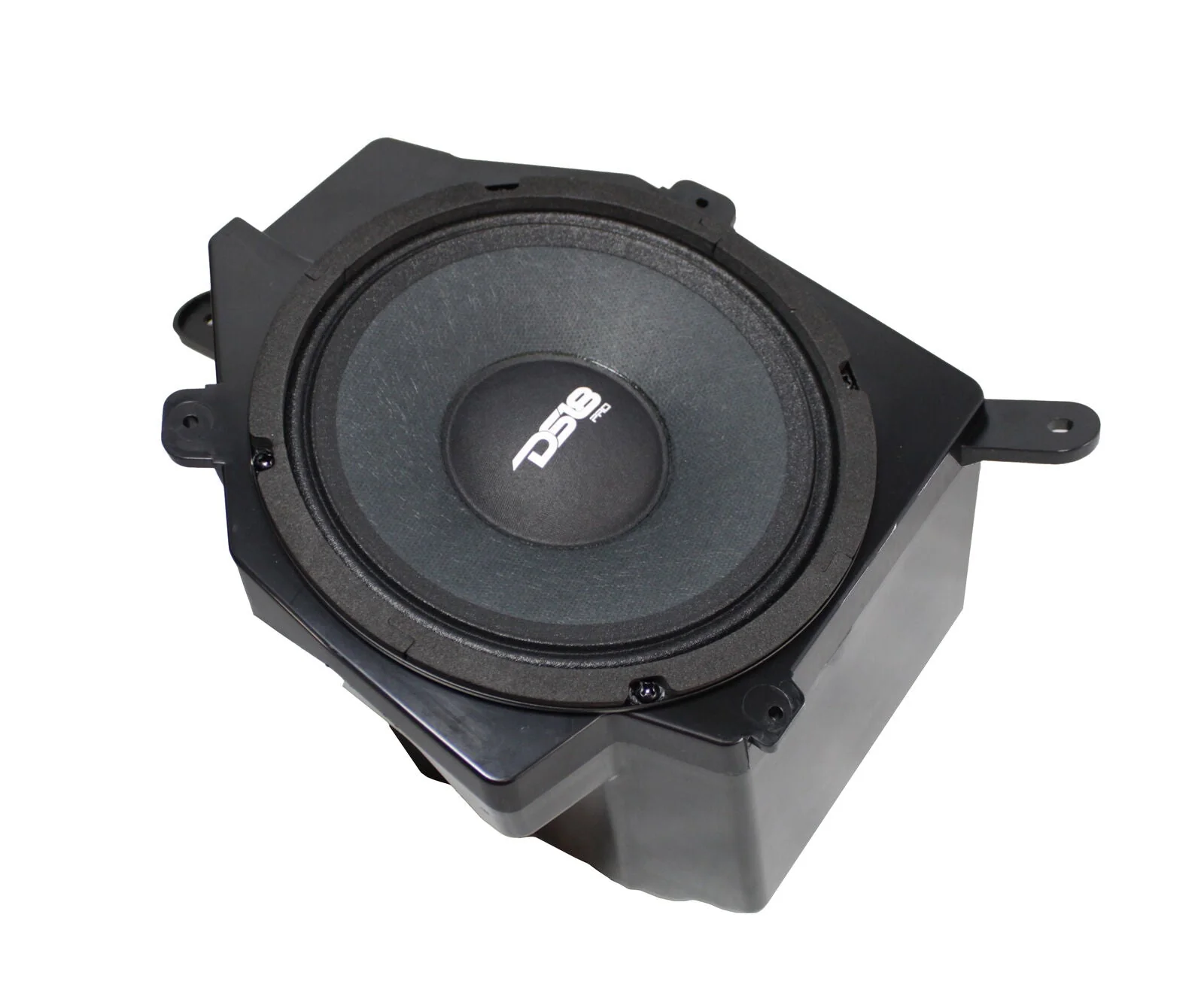

• (1) Dash Enclosure Upgrade with two 6.5" Neodymium Speakers

The new DS18 JP6 enclosure is specifically designed for Jeeps and comes with two 6.5" Neodymium Speakers which can handle a hefty 300 Watts! Fits JL, JLU and JT Jeeps. Uses factory mounting locations for quick install.

Specifications:

• Size: 6.5"


• Ohms: 4 Ohms


• RMS Power: 150 Watts


• MAX Power: 300 Watts


• Sensitivity: 96dB


• Frequency Response: 100Hz-10KHz


• Recommended Hi Pass Crossover: 120Hz


• Voice Coil Diameter: 1.5"


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Magnet Material: Neodymium


• Magnet Weight: 3oz.


• Thiele & Small Parameters Specifications:


• Equivilant Vol :Vas 4.463L


• Excursion (one way): Xmax 1.5 mm


• Free Air Resonance: Fs 138 Hz


• Mechanical Factor: Qms 4.249


• Electrical Factor: Qes 0.977


• Total Factor: Qts 0.794


• Moving Mass: Mms 7.166g


• Compliance: Cms 148.927 u/M/N


• Bl Factor: BL 4.767


• VC Inductance: Le .08696mH


• Diaphragm Area: Sd 145cm2


• Dc Resistance: Re 3.2 ohms


• Mechanical Mass: Mmd 6.159g
