DS18 LSE-112A 12" 500Watt 4 Ohm Loaded Ported Enclosure w/ Amplifier and Amp kit

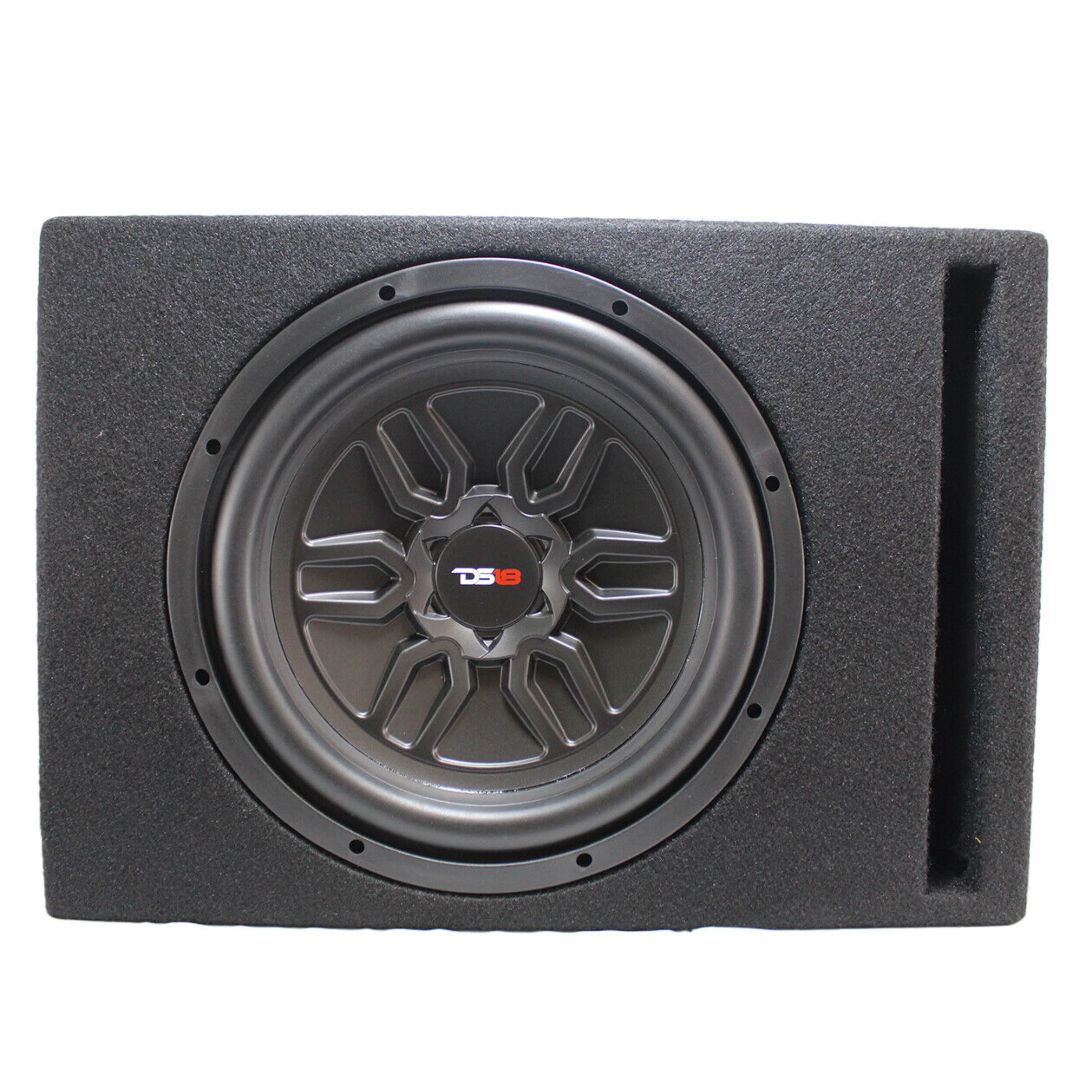

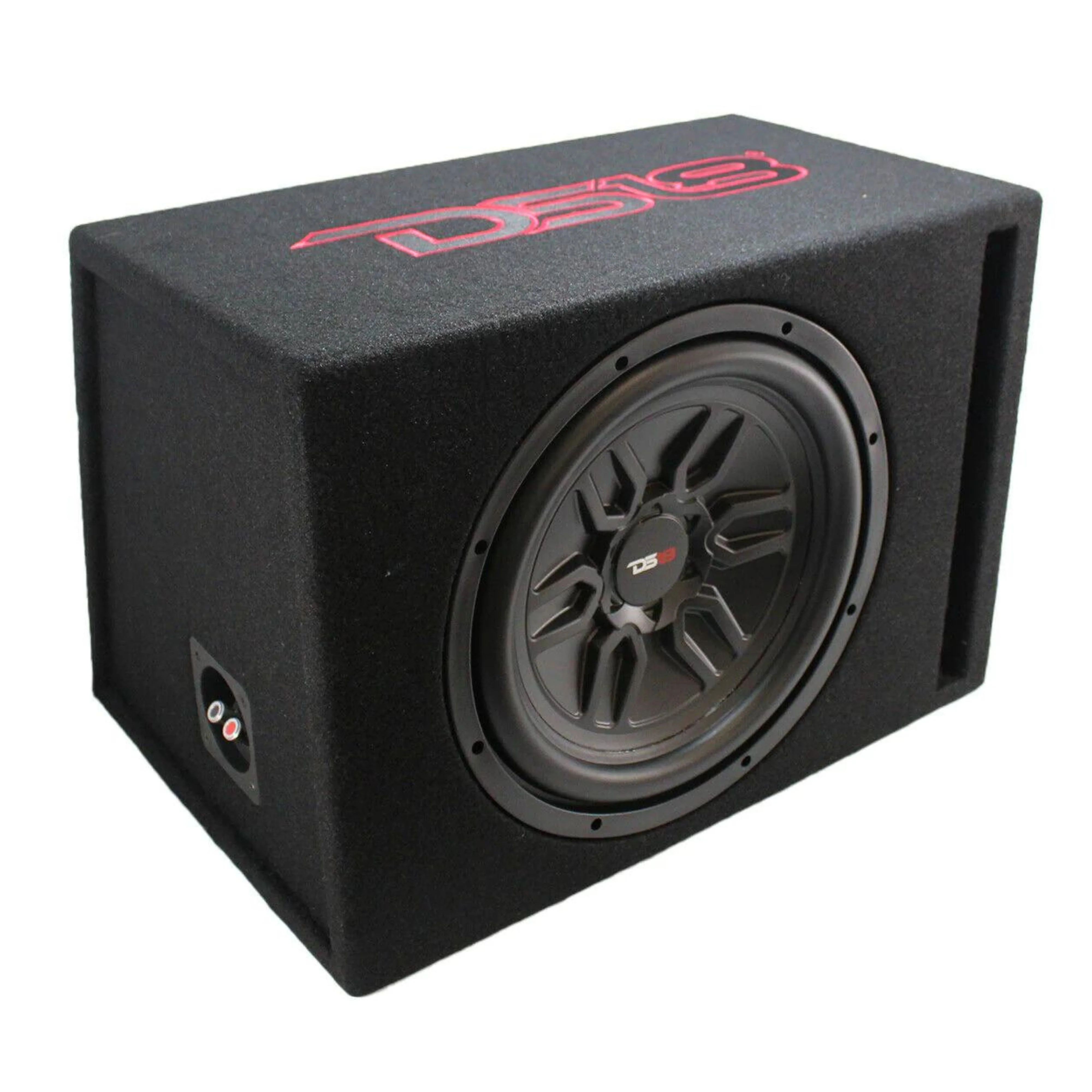

Looking for that perfect bass package but are overwhelmed by all the options? We have made it easy with our loaded subwoofer box the LSE112A! This is a prefabricated box that comes with one of our best selling subwoofers. Included is a beautiful carpeted box with DS18 logo designs tuned to 35 hz. The box is constructed by thick 1/2 MDF for great sound and resonance. The sub included is the very popular MD12 that is a single voice coil 4 ohm sub with a nominal impedance of 4 ohms that will require 250w rms. This loaded box is a great entry level solution to hard hitting heavy bass for all to enjoy.

This listing includes:

(1) S-1500.1 Amplifier

(1) SLC-MD12 Subwoofer Loaded Ported Box

(1) 4-GA Amp Kit Which Includes:

- AGU Fuse Holder with AGU-100A

- 6ft. 4GA Loom Tube

- Rubber Grommet

- 17ft. Red power cable: 21mm od: 10mm

- 3ft. Black ground cable: 21mm od: 10mm

- 17ft. Red/black twisted RCA cable

- 17ft. Turn-on cable: 20*0.15mm

- 17ft. Red/black speaker cable: 1.31mm x 2 wires od 3.2 x 6.4mm

Features:

- The box is constructed of 1/2 inch MDF for great strength, resonance, and tuned to 35hz for low hitting bass.

- One SLC 12-inch sub will give you the cone area to push out great-sounding bass without a lot of power requirements.

- Great design and carpeting with DS18 logos to give your system the flair it deserves and also bring a show-quality look.

- Great durability so you can enjoy hard-hitting bass for years to come.

General Specifications:

Speaker Size: Single 12"

Total Impedance: 4 ohms

Total RMS Power Handling: 250 watts

Total MAX Power Handling: 500 watts

Sensitivity (1w/1m): 93 db

Frequency Response: 29-250hz

Recommended Lo Pass Crossover: 80 Hz

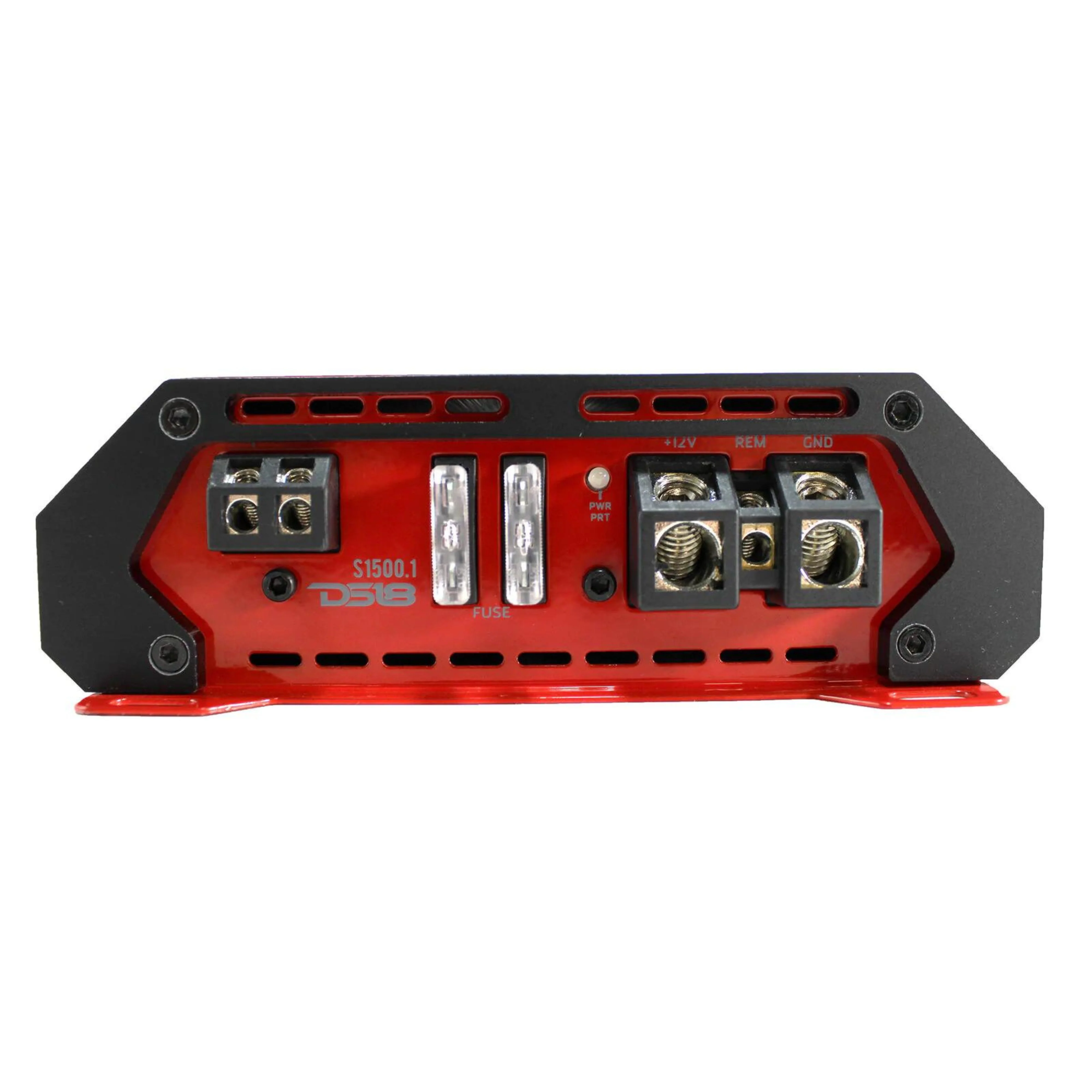

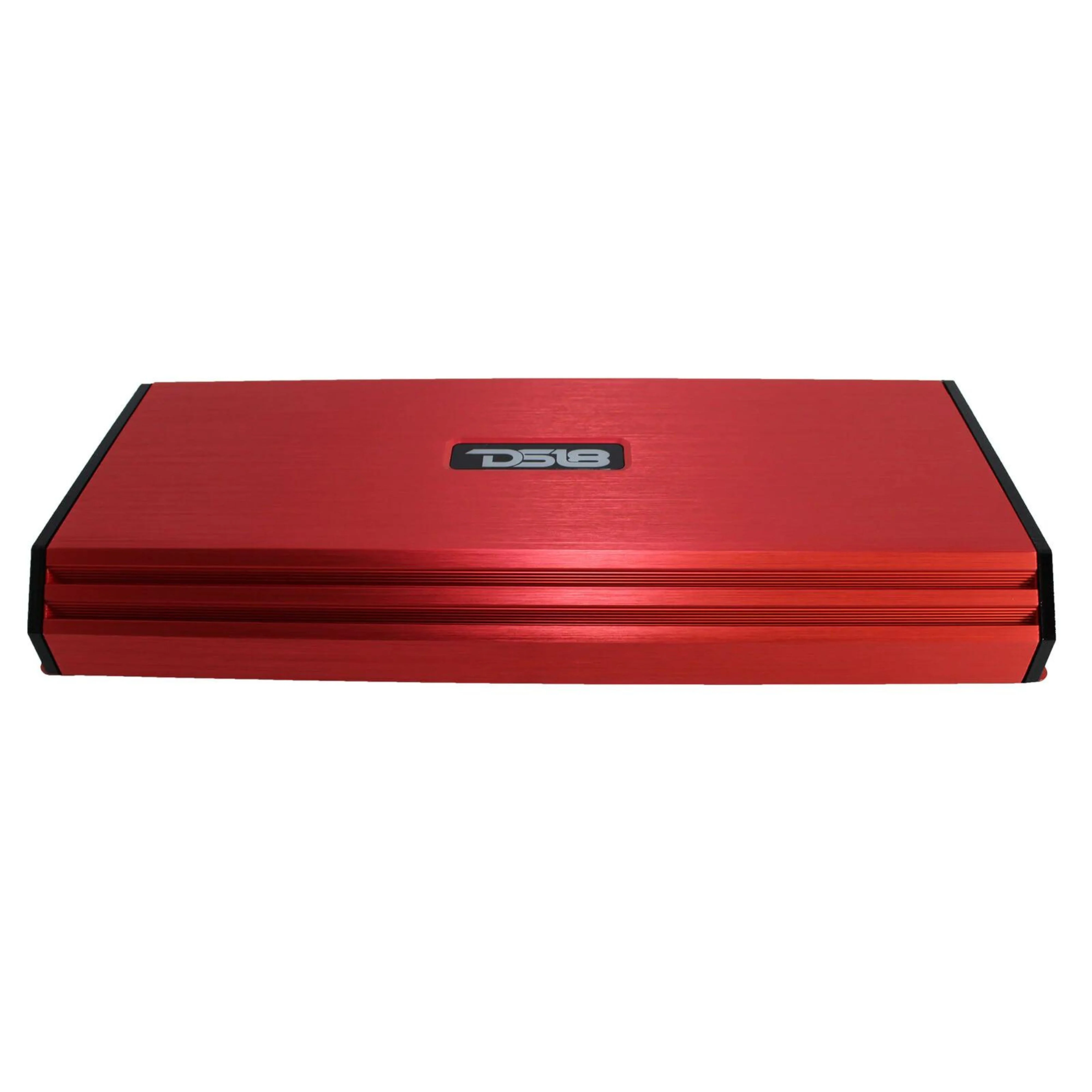

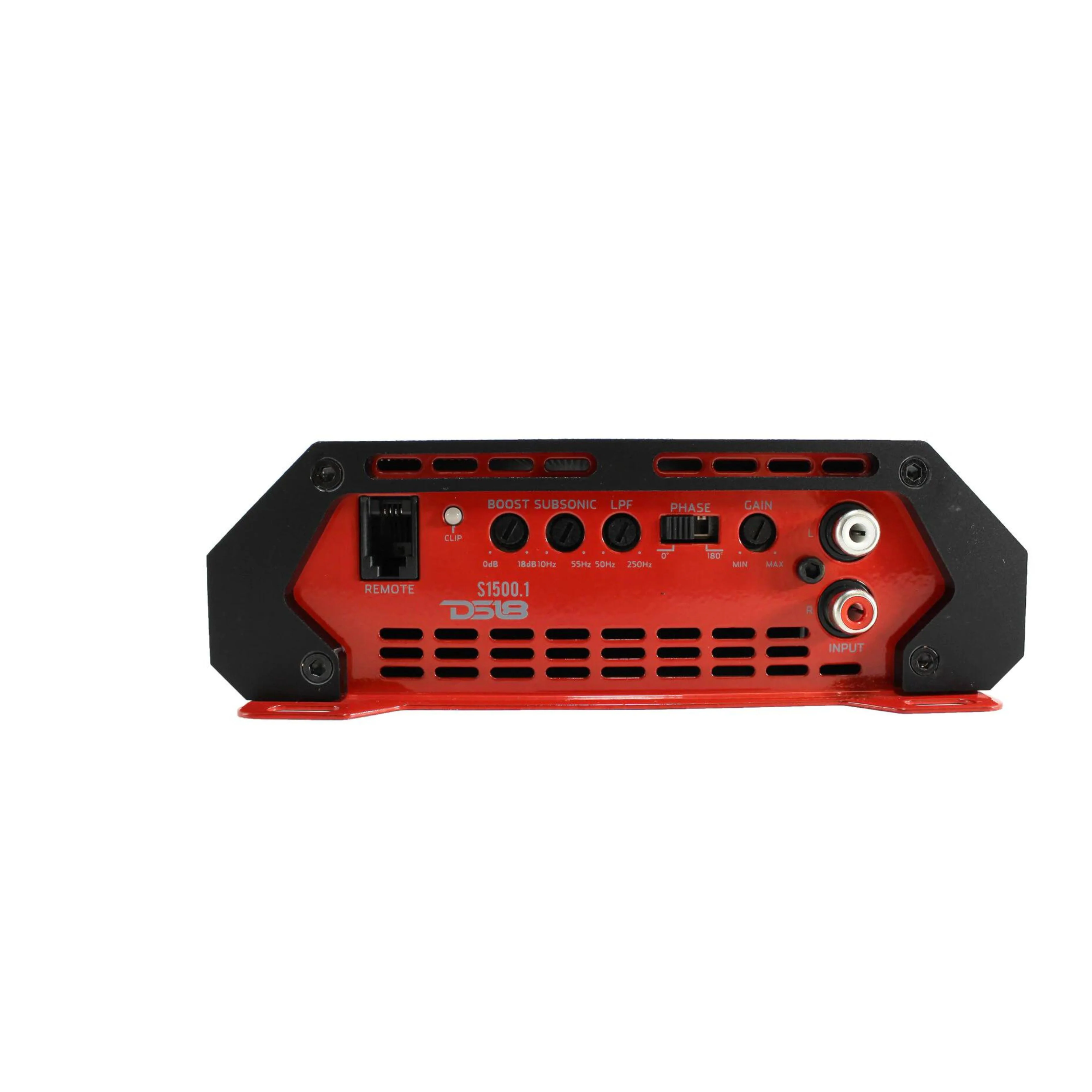

Amplifier Specifications:

Model: S-1500.1

Circuit Topology: Class AB Monoblock Amplifier

RMS Power Output @ 2 OHMS: 350 watts

RMS Power Output @ 4 OHMS: 220 watts

Total Harmonic Distortion: Less Than 3%

S/N Ratio Ref 1w @ 4 OHMS: More Than 90 db

Gain Range: 0.2-6V

Crossover Range: 50-250hz

Frequency Range: 20Hz-500 Hz

Dimensions: 13.7"/348mm x 5.8"/148mm x 1.8" / 47.5mm

Subwoofer Specifications:

Model: SLC-MD12

Type: Subwoofer

Size: 12"

RMS Power: 250W

MAX Power: 500W

Impedance: 4

Voice Coil Size: 2"

Magnet: Ferrite

Magnet Size: 42 oz

Voice Coil Diameter: 50.8mm (2")

Voice Coil Former Material: Aluminum

Winding Material: ACCAW

Cone Material: PPI

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Ferrite

Magnet Weight: 42 oz

Box Specifications:

Port Tune: 35hz

Dust Cap Material: 45.3L

Load Configuration: Front Ported

Box Material: 1/2" MDF

Finish Material: Vinyl

Dimensions/Measurements:

Height: 13.78" / 350mm

Width: 19.68" / 500mm

Depth 1: 11" / 280mm

Depth 2: 14" / 356mm
