• V5 Bluetooth pairing functions so you can play music direct from your phone or any BT source with a longer operating range.
• 37 Radio Presets (18 FM / 12 AM / 7 WB) for easy access.
• The MRX100 is made to deliver 4 x 18 watts RMS @ 4-Ohms and 4 x 25 watts RMS @ 2-Ohms
• The IPX6 waterproof rating will give you the confidence to use your marine head unit anywhere and everywhere.
• Users can also utilize this product to view their vehicle's rear camera directly

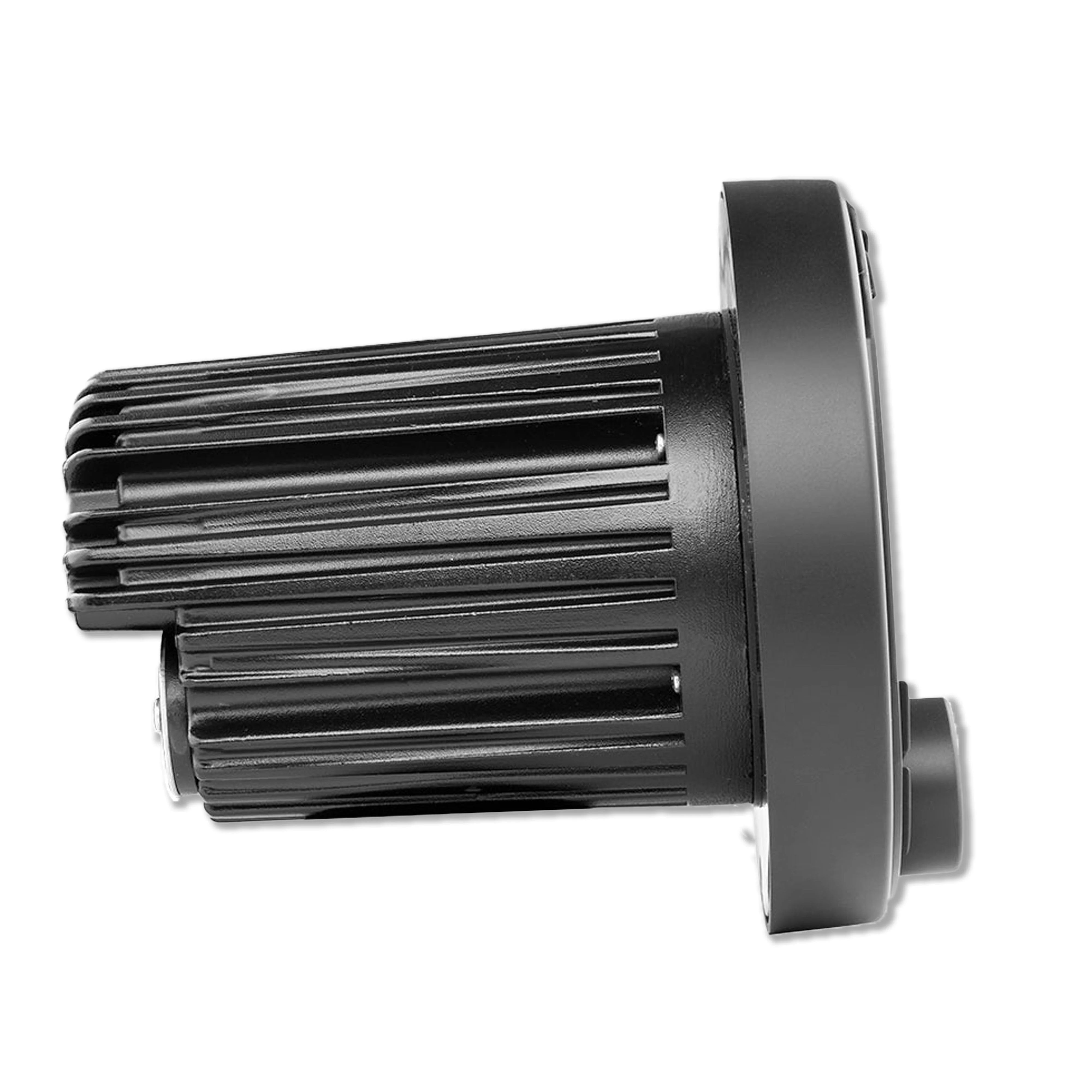

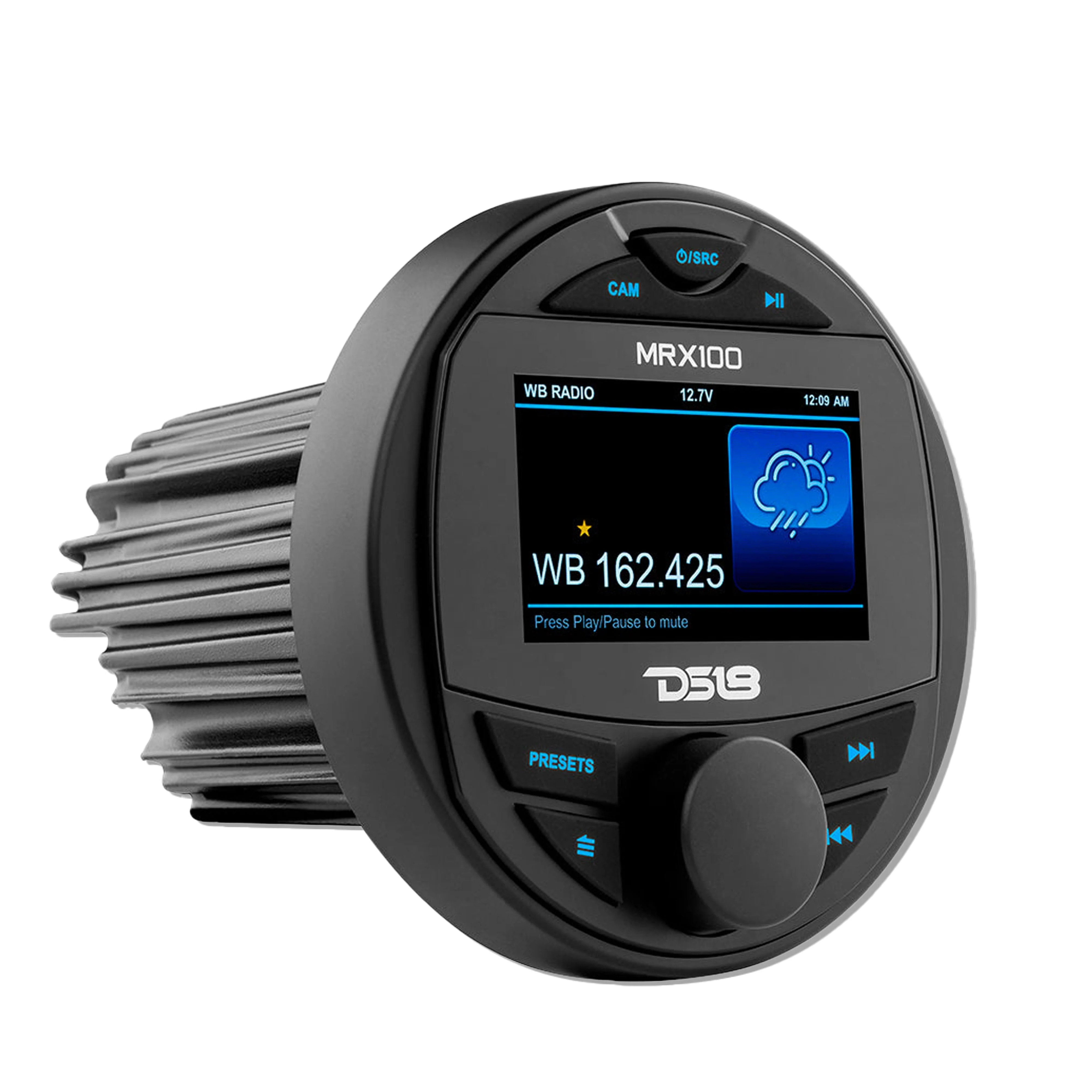

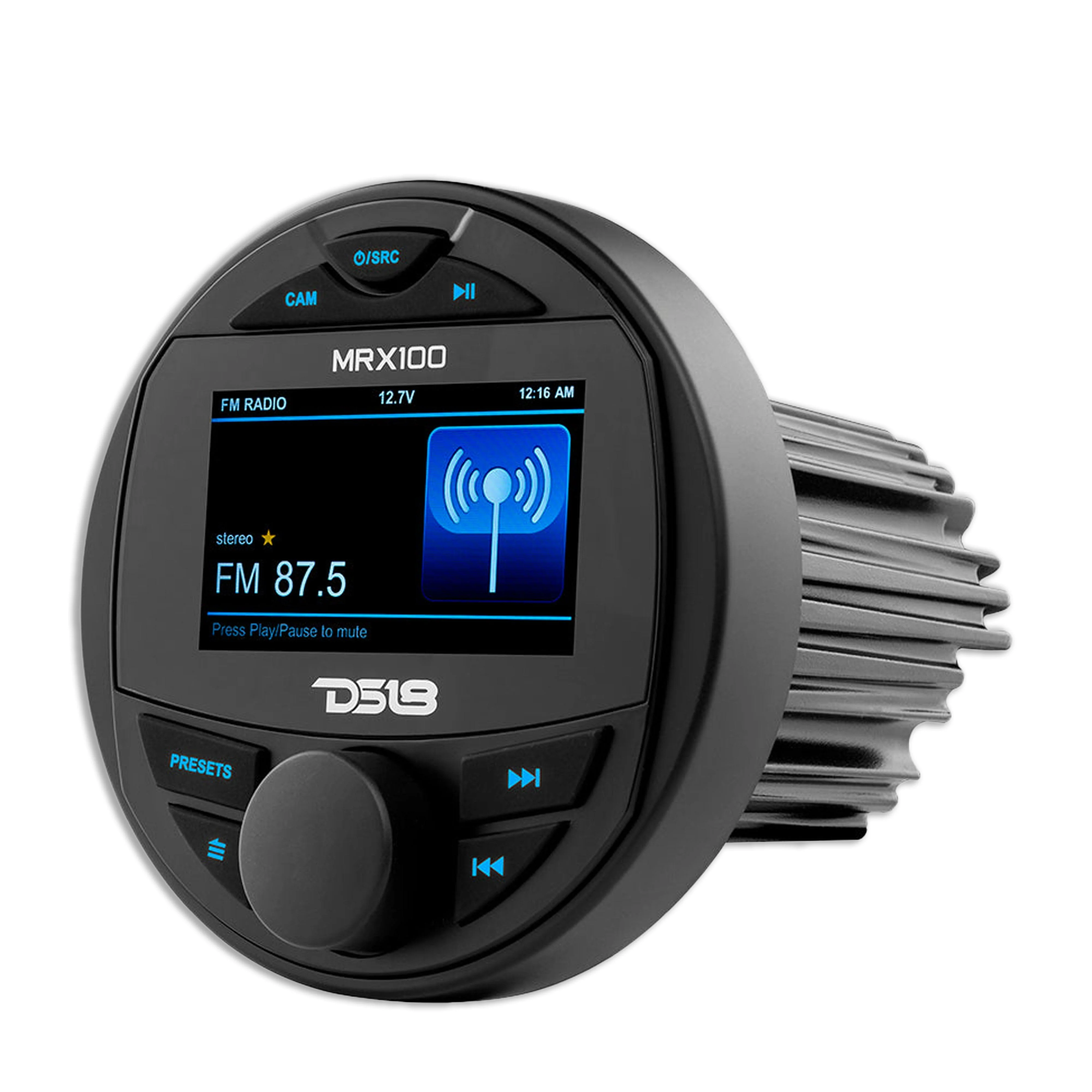

DS18 Marine & Powersports Bluetooth Radio Receiver Video LCD TFT Screen MRX100

DS18s MRX100 Marine Head Unit is designed to do it all and then some! The same beautiful compact design, upgraded to be even more powerful and durable to endure the toughest beating any marine, golf-cart, and off-road head unit will go through.

The experts at DS18 upgraded this powerful receiver with: higher range Bluetooth connectivity, substantial material changes for extended longevity, and lower operating voltage for power consumption efficiency.

The MRX100 also allows classic users to browse over 37 presets radio stations without the need for a device being connected to it. However, if users wish to connect a device, upgraded Bluetooth connection features, as well as USB and AUX input makes it so users can connect any device they wish.

If theres a rear camera attached to the vehicle, users can also utilize this product to view the rear camera directly helping them maneuver the vehicle theyve attached it to.

The MRX100 is guaranteed to bring crystal clear audio quality with unchecked control over how the audio sounds (via a variety of sound settings) at all volumes in your boat, off-road, golf cart, or any vehicle that will be tested by the elements frequently.

Items included with this product:

-(1) Main Unit

-(2) Screws

-(1) U Bracket

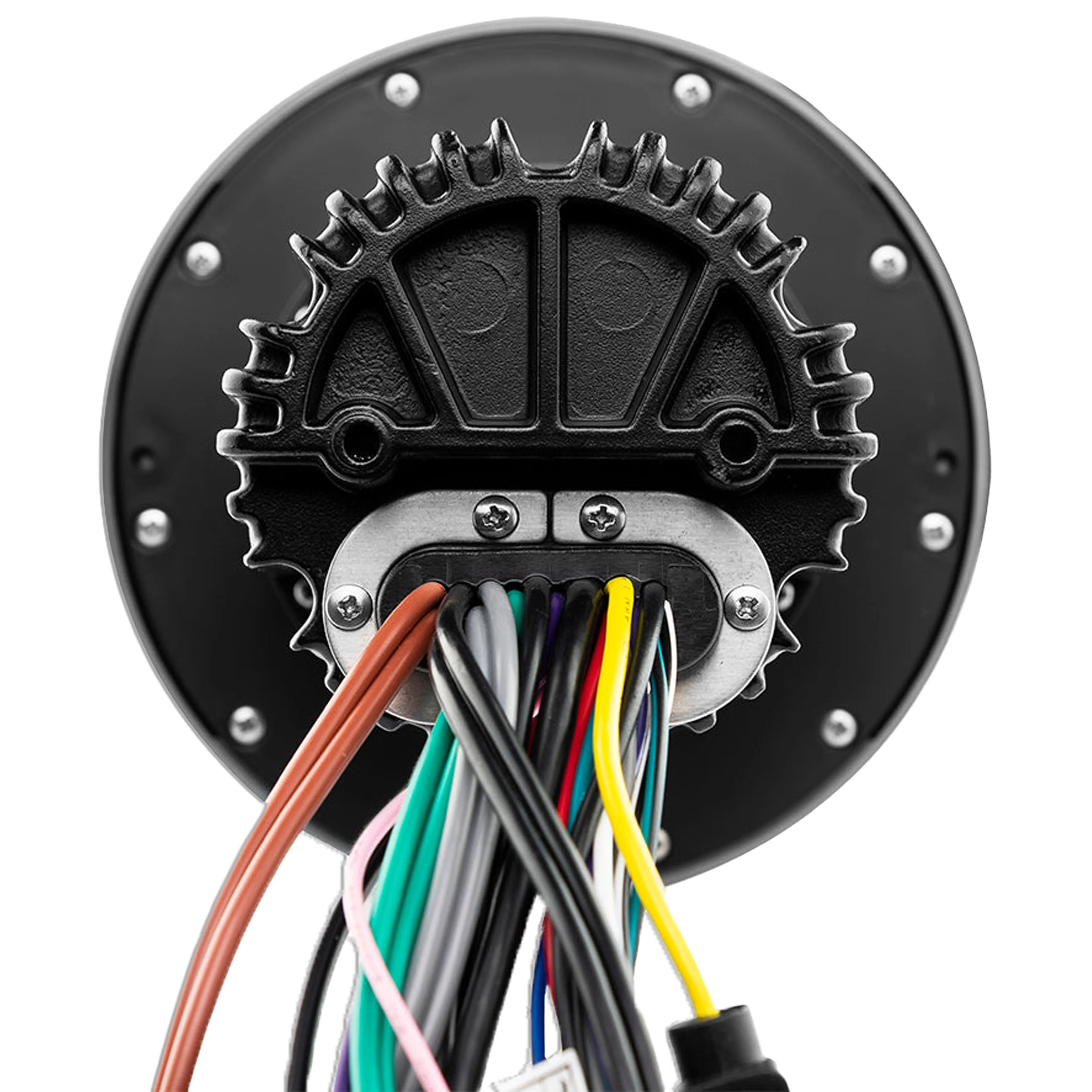

-(1) Power/Speaker Harness

-(2) Hex Head Screws

-(1) Instruction Manual

Features:

-V5 Bluetooth pairing functions so you can play music direct from your phone or any BT source with a longer operating range.

-Gorilla Glass Screen for added fortitude and longevity in every element.

-ID3 Tag Display that helps ensures users know exactly what they are listening to at all times.

-It comes with precise sound settings options that let you control the bass, treble, balance, fade, EQ, loudness, and Subwoofer crossover with ease.

-There is an easy to read LCD display with RGB keys so you can use the color that's easiest to read, to set your mood of the day, or color scheme!

-37 Radio Presets (18 FM / 12 AM / 7 WB) for easy access.

-The USB can transfer music along with charging your chosen device at the rate of 2.1 A.

-The IPX6 waterproof rating will give you the confidence to use your marine head unit anywhere and everywhere.

-Users can also utilize this product to view their vehicle's rear camera directly.

-Voltmeter and Low Voltage Alert to help maintain and optimize all equipment controlled by and connected to this unit.

-The MRX100 is made to deliver 4 x 18 watts RMS @ 4-Ohms and 4 x 25 watts RMS @ 2-Ohms.

-Enjoy all your favorite AM/FM stations with our wideband AM/FM receiver that is also selectable under source controls.

Specifications:

Operating Voltage: 10.5 -16 Volts

Current Drain: 15 Ampere / (Max)

Low Voltage Warning Alert: YES (< 11V)

Waterproof Rating: IPX6

UV/Salt Protection: YES

Buttons: Rubber + RGB Backlit (Blue Color)

Screen Panel: Gorilla Glass with OCA Full Bonding

Type: TFT LCD with IPS

Backlight: LED

RMS: 4 x 18W @ 4 ohms (14.4v) / 4 x 25W @ 2 ohms (14.4v)

Max: 4 x 50W @ 2 ohms (14.4v)

Min Load: 2 ohms Stable per Channel

Frequency Response: 20Hz to 20KHz

RCA Pre-Out Voltage: 4 Volts

Output Impedance: 500 ohms

Equalizer: 2 Bands (Bass 100Hz 10 dB, Treble 10KHz 10dB)

Presets: YES (S-Bass / Vocal /Powerful / Clarity)

Subwoofer Control: Level (-10 to +10)

Audio Zones: 2 Zones (Zone 1: Front R+L, Rear R+L / Zone 2: R+L)

Independent Zone Control: YES (Level/Tone)

Audio Input: L+R RCA (Aux Input)

FM Frequency Range: 87.5 -107.9 MHz

AM Frequency Range: 530 -1710 KHz

Weather Band: 162.40 -162.55 MHz

NOAA Weather Band: YES Compatible

Tuner Presets: 18 FM / 12 AM / 7 WB

Radio Data System: YES (AF / TA / NEWS) Selectable

IF: 10.7MHz (FM), 450KHz (AM)

Sensitivity: 4V (FM), 36dBuV (AM)

Signal to Noise Ratio: >30dB(FM)

Stereo Separation: >25dB

Bluetooth Version: 5.0 + EDR

Audio Streaming: A2DP

USB Compatibility: v2.0

USB Capacity: 64 Gb Max

USB Charge Capacity: 2.1 Amp

Audio Files Compatibility: MP3, WMA

Remote Control: Wired 3.5mm Jack Input (Compatible with MXRC)

Actual Product Dimensions:

(5" x 1.5" x 5")- (127mm x 38.1mm x 127mm)

Box Dimensions:

(6" x 6" x 8")

Product Weight:

2.5 lb
