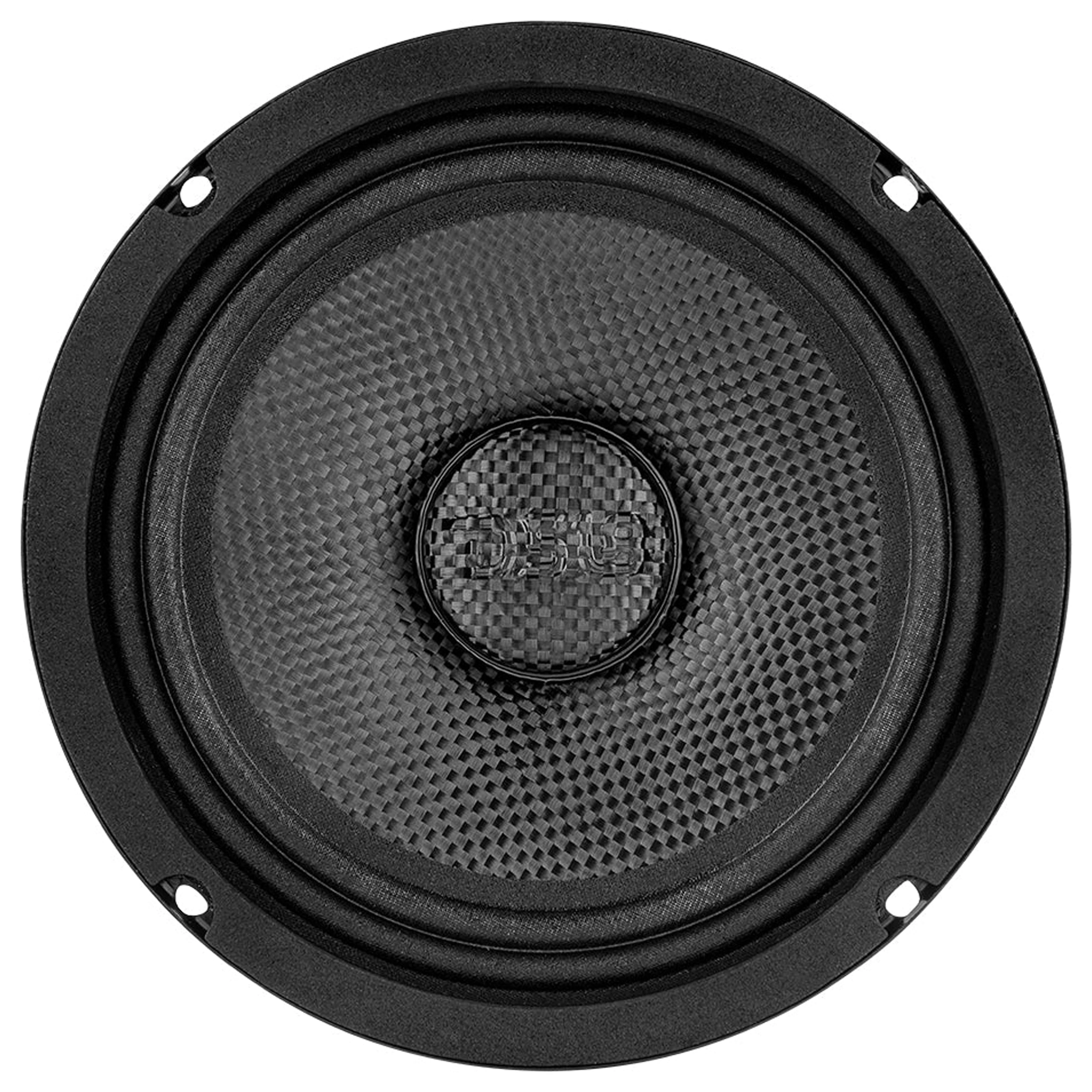

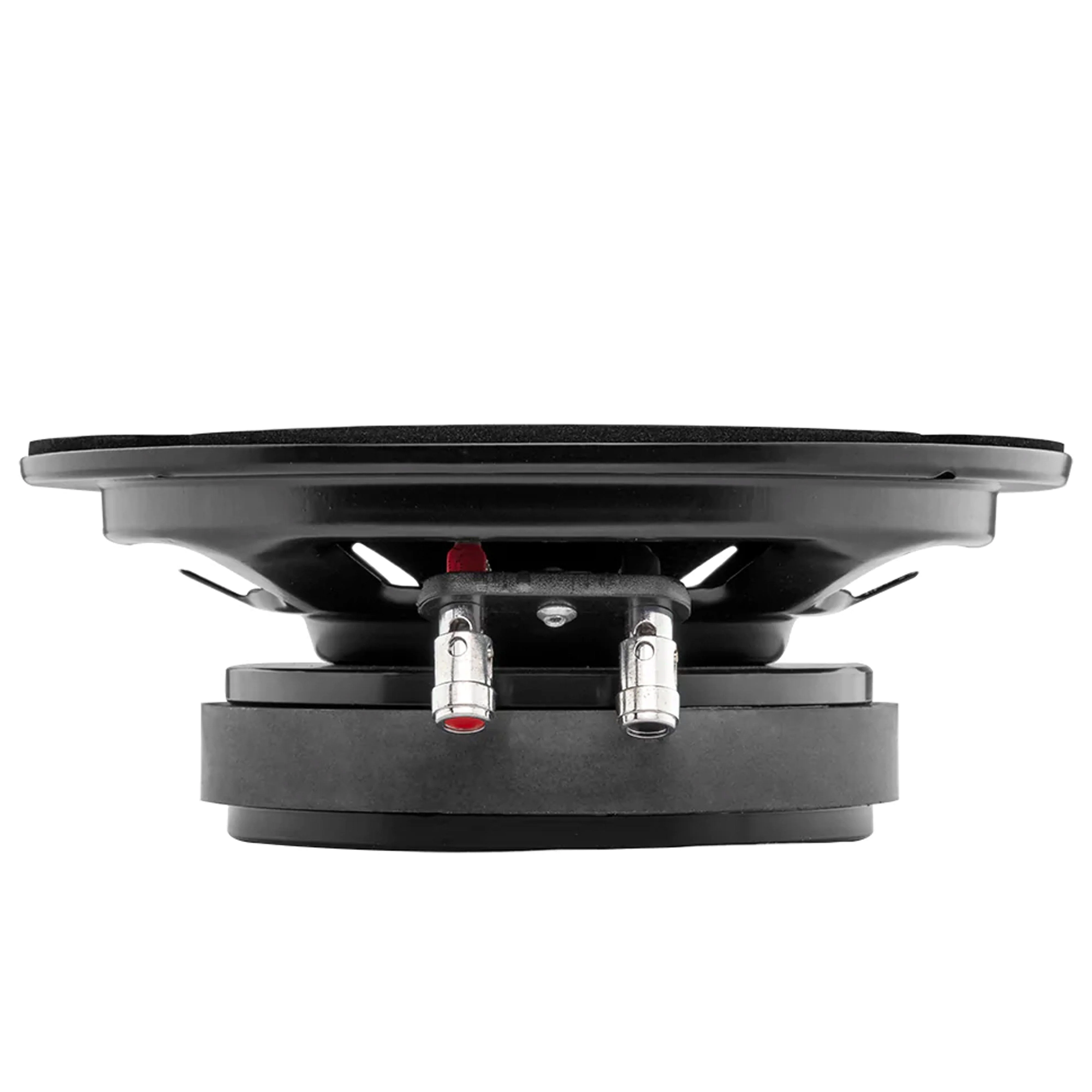

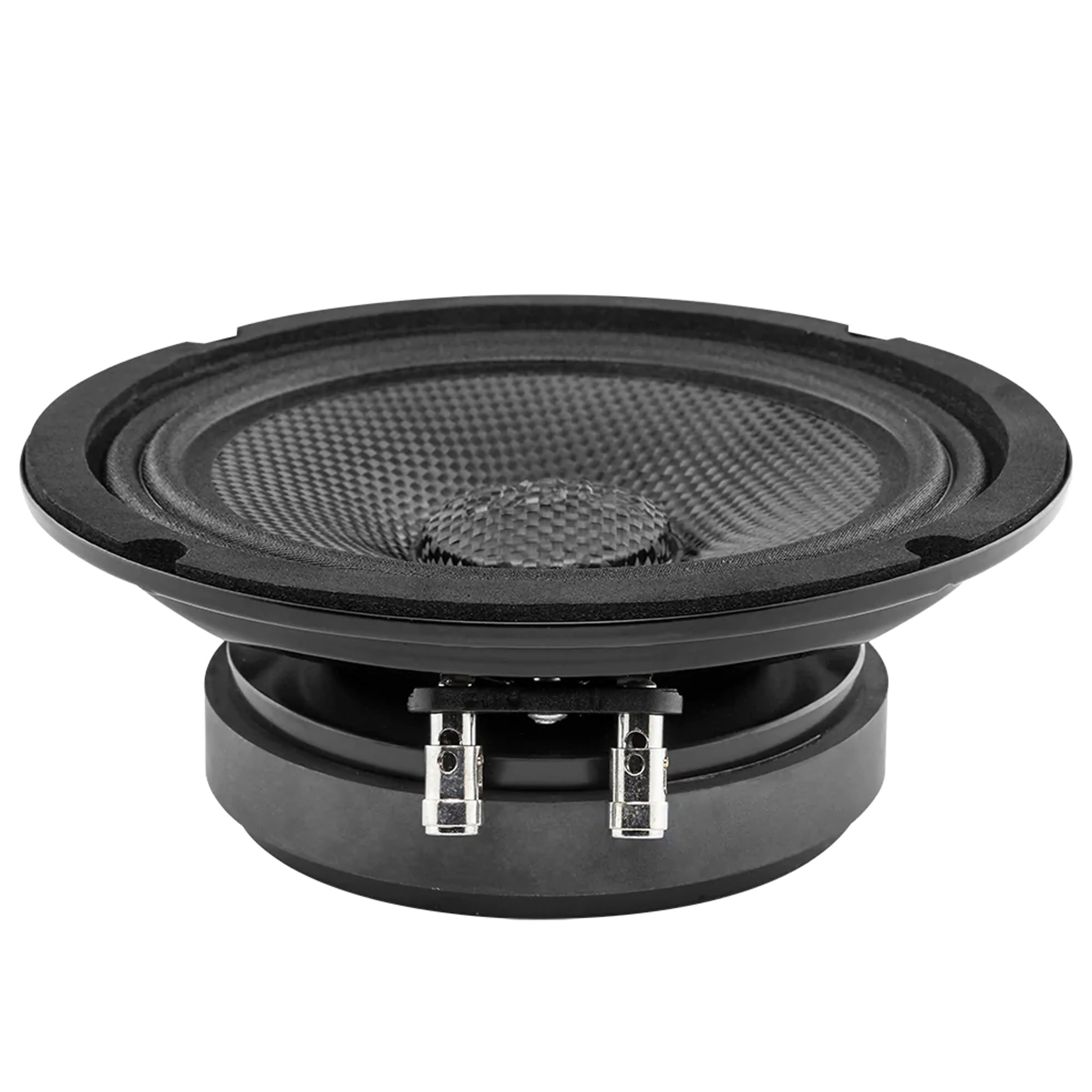

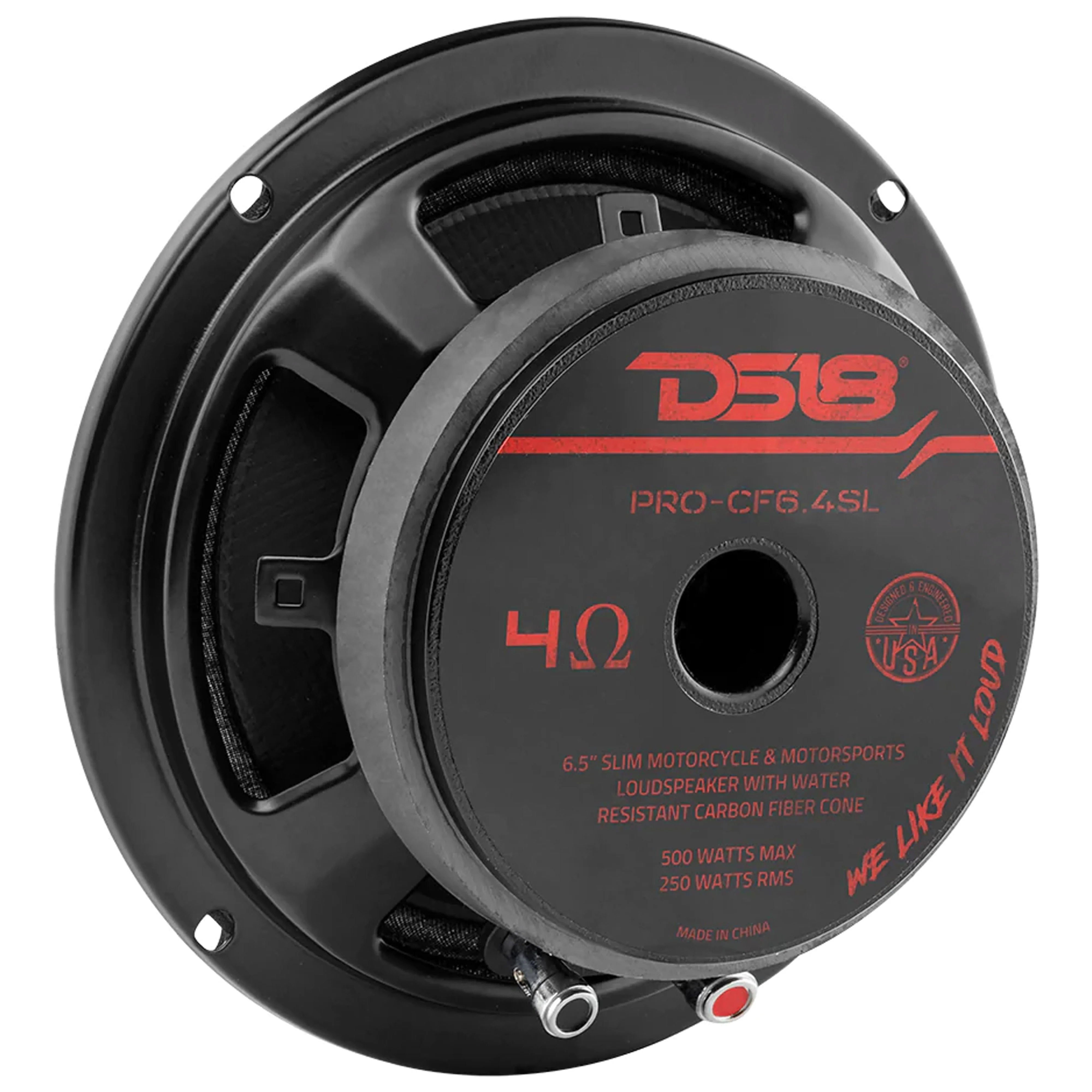

DS18 Marine & Powersports Mid-Bass Loudspeaker Motorcycle 500W 4 Ohm PRO-CF6.4SL

The PRO-CF6.4SL is a water-resistant Pro Audio loudspeaker with amazing highs and comparable low mid-bass frequency responses. This speakers versatility allows it to hit frequencies as high as 12.5KHz and as low as 80 Hz providing an extreme full range of frequencies that all listeners will notice and enjoy! The PRO-CF6.4SL was designed to deliver LOUD audio with striking clarity and remain durable in the worst of the elements. DS18s current waterproof carbon fiber cone design and super strong rubber surrounds protect these speakers from damage sustained by use in harsh environments. This also helps increase the sensitivity level on these speakers, so they play LOUD and clear on every use. Although the speakers components are waterproof, the speaker itself is only water resistant so use in rough conditions should be avoided as much as possible.

Highlights:

- Awesome power handling and efficiency.

- Operable in a wide array of applications.

- The carbon fiber cone provides amazing style supported by a super strong rubber surround that will withstand the test of time!.

Great For:

- Motorcycle Applications.

- Marine Applications.

- Off Road Applications.

- Hi-Fi Installation.

- Car Audio.

- Home Studio.

- DIY Projects.

This listing includes:

(1) DS18 6.5 Mid-bass Loudspeaker PRO-CF6.4SL

SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6.5 (165mm)

Nominal Impedance: 4 Ohms

MAX Power Handling: 500 Watts

RMS Power Handling: 250 Watts

Sensitivity (1w/1m): 95 dB

Frequency Response: 80Hz ~ 12.5KHz

Recommended HI Pass Crossover: 100Hz

MOTOR:

Voice Coil Diameter: 1.5 (38.5mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Cone Material: Waterproof Carbon Fiber

Dust Cap Material: Waterproof Carbon Fiber

Surround Material: Treated Cloth

Basket Material: Steel

Magnet Material: Ferrite

Magnet Weight: 20 Oz

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 9L / 0.317 ft

Excursion: X-max - 2.5mm

Free Air Resonance: Fs - 128Hz

Mechanical Factor: Qms - 15.55

Electrical Factor: Qes - 0.891

Total Factor: Qts - 0.842

Cone Area: Sd - 127.68cm

DC Resistance: Re - 3.6 Ohms

Moving Mass: Mms - 3.904g

Compliance: Cms - 0.393mm/N

Force Factor: BL - 3.592

Voice Coil Inductance: Le - 0.104 mH

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.5 (165mm)

Front Mount Baffle Cutout: 5.67 (144mm)

Mounting Depth: 2.15 (54.5mm)

Overall Depth: 2.38 (60.5mm)

Motor Diameter: 4.33 (110mm)
