• Compact High-Performance Speaker – 3.5” design fits easily into tight dashboard locations without sacrificing sound quality
• Powerful Output – Handles 100W RMS / 200W Max with 88dB sensitivity, producing loud and clean audio for car, truck, or motorcycle sound systems
• Easy Installation – Fits most OEM or custom dashboard openings with 1.5” mounting depth and 3.0” cutout diameter
• Neodymium Magnet Advantage – Compact motor structure delivers strong magnetic force and improved efficiency over traditional ferrite magnets
• Durable, Lightweight Build – Glass fiber + composite foam cone with resin finish provides clear, accurate sound and long-lasting reliability

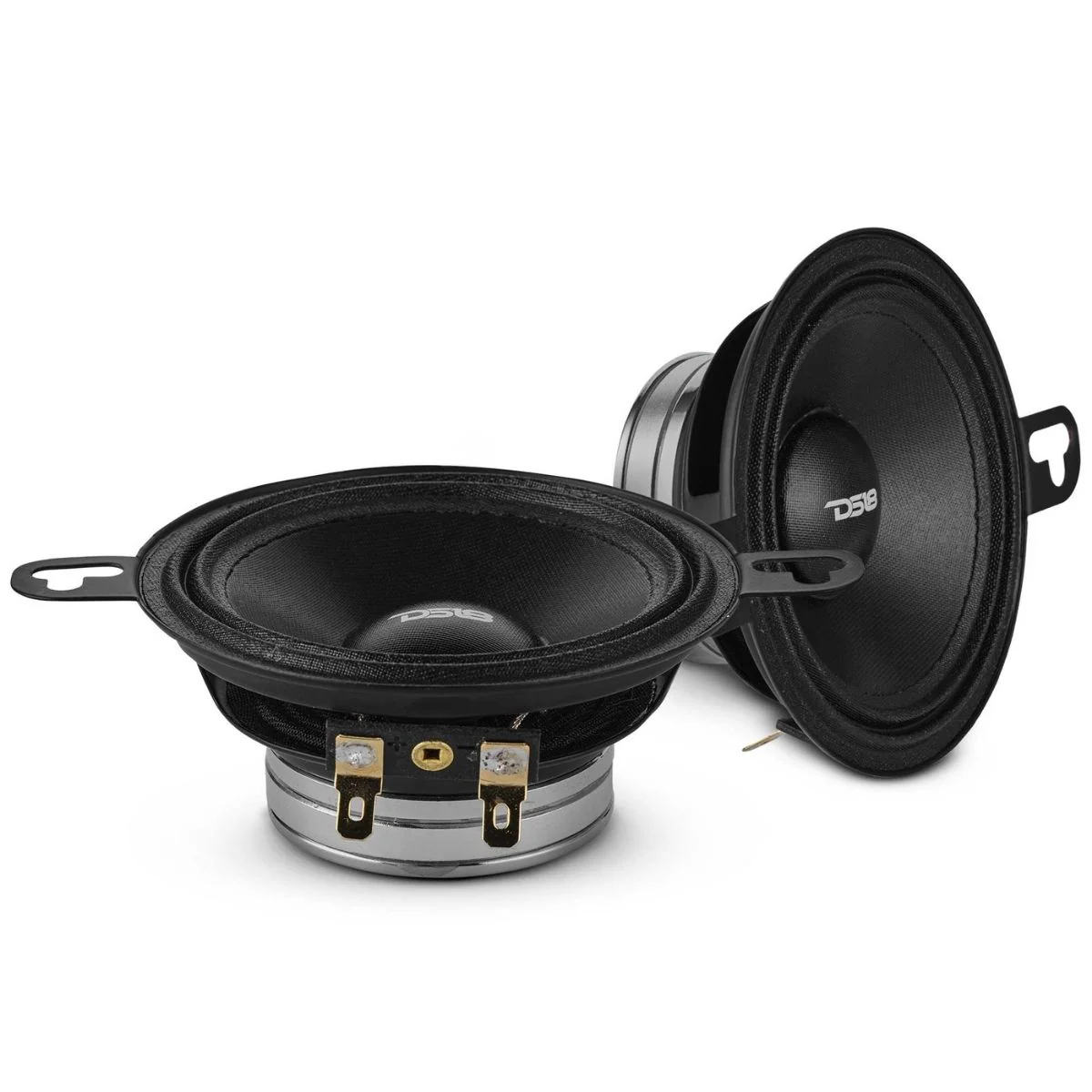

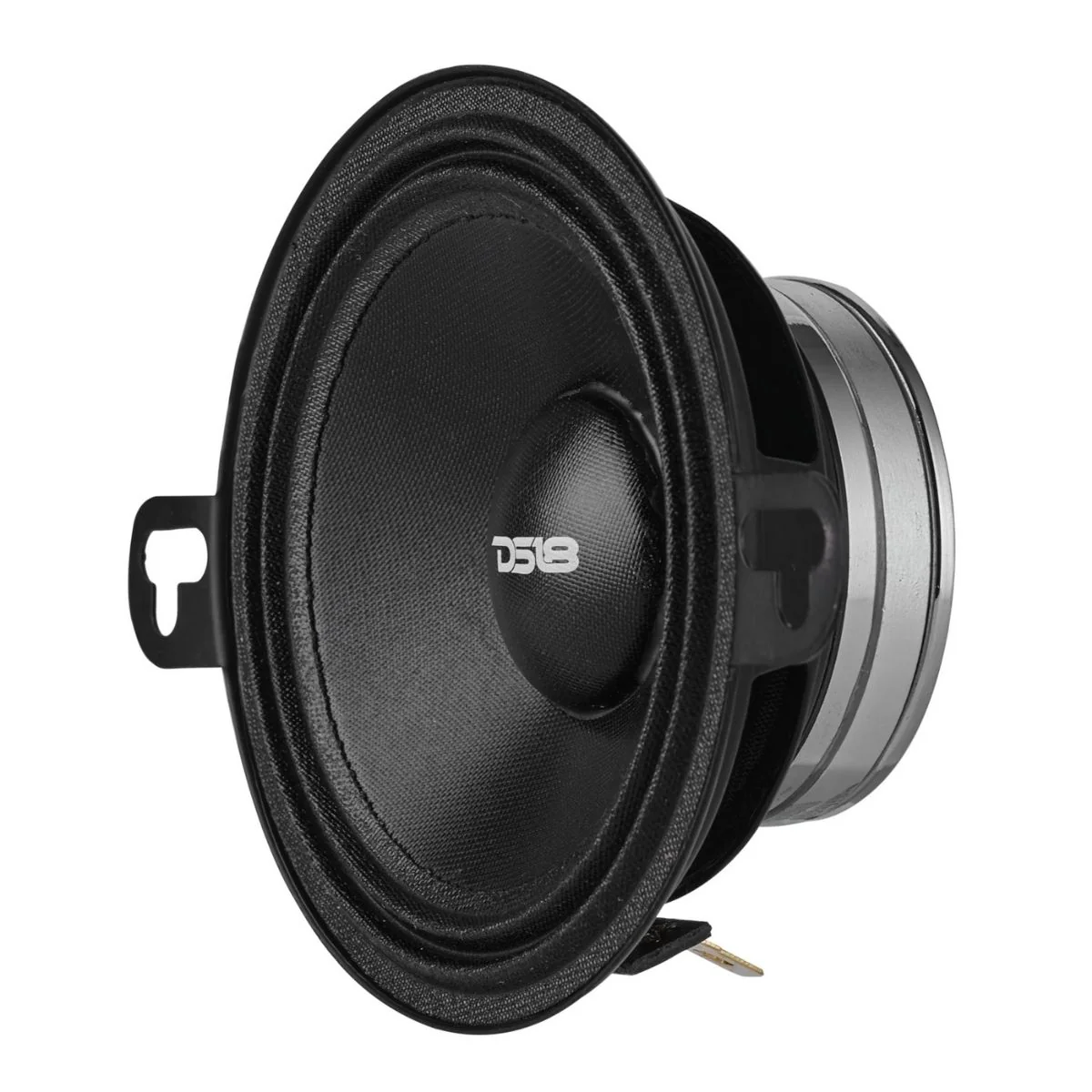

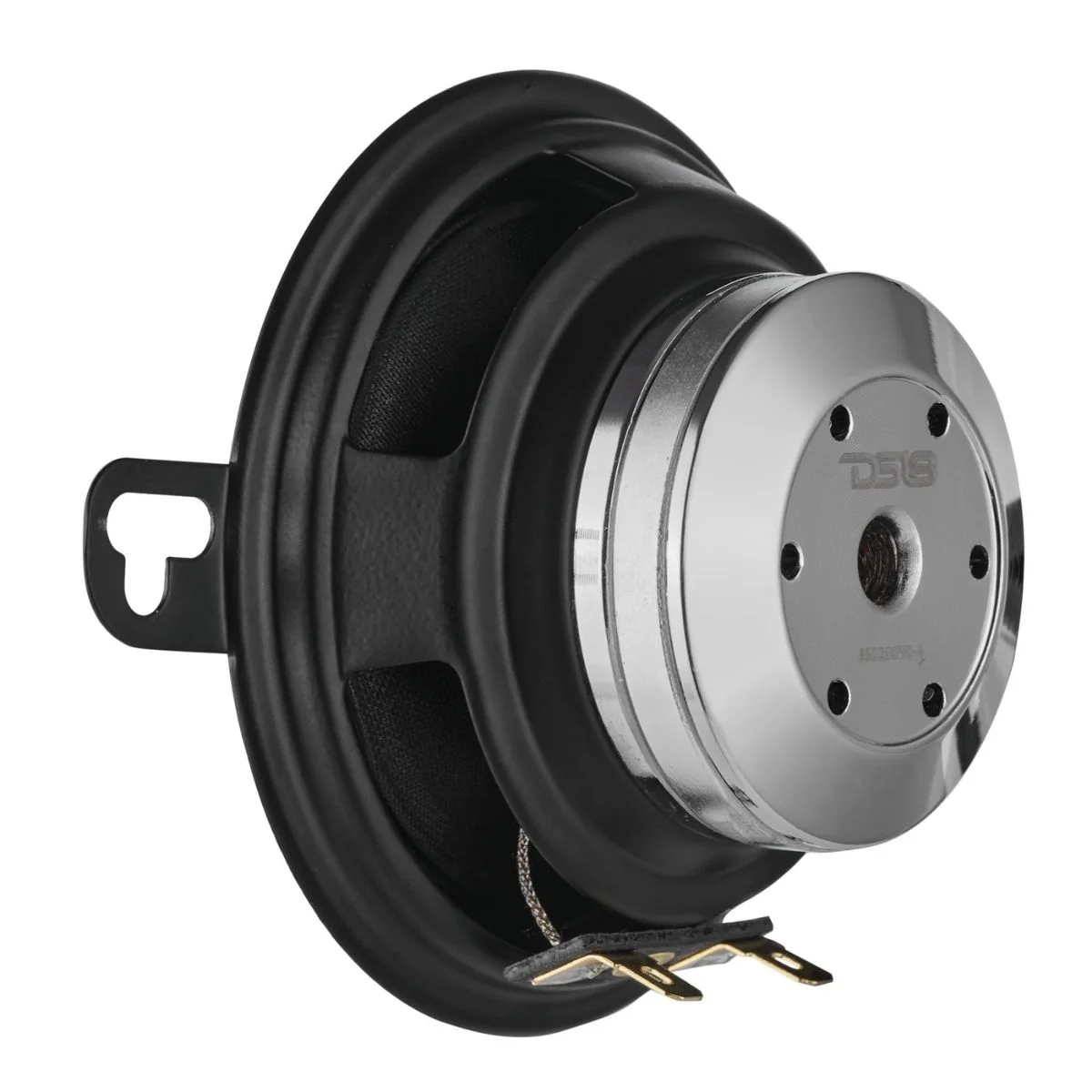

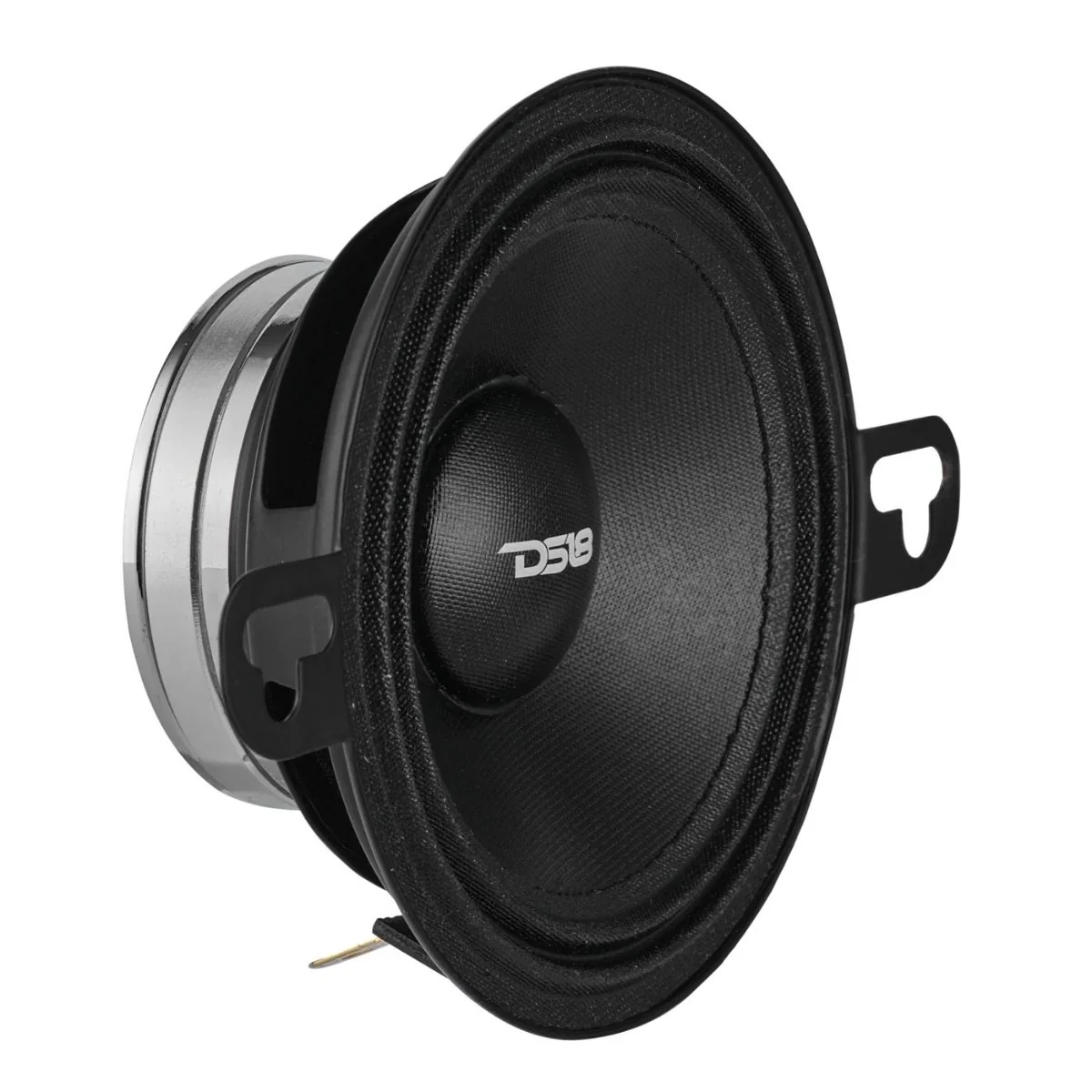

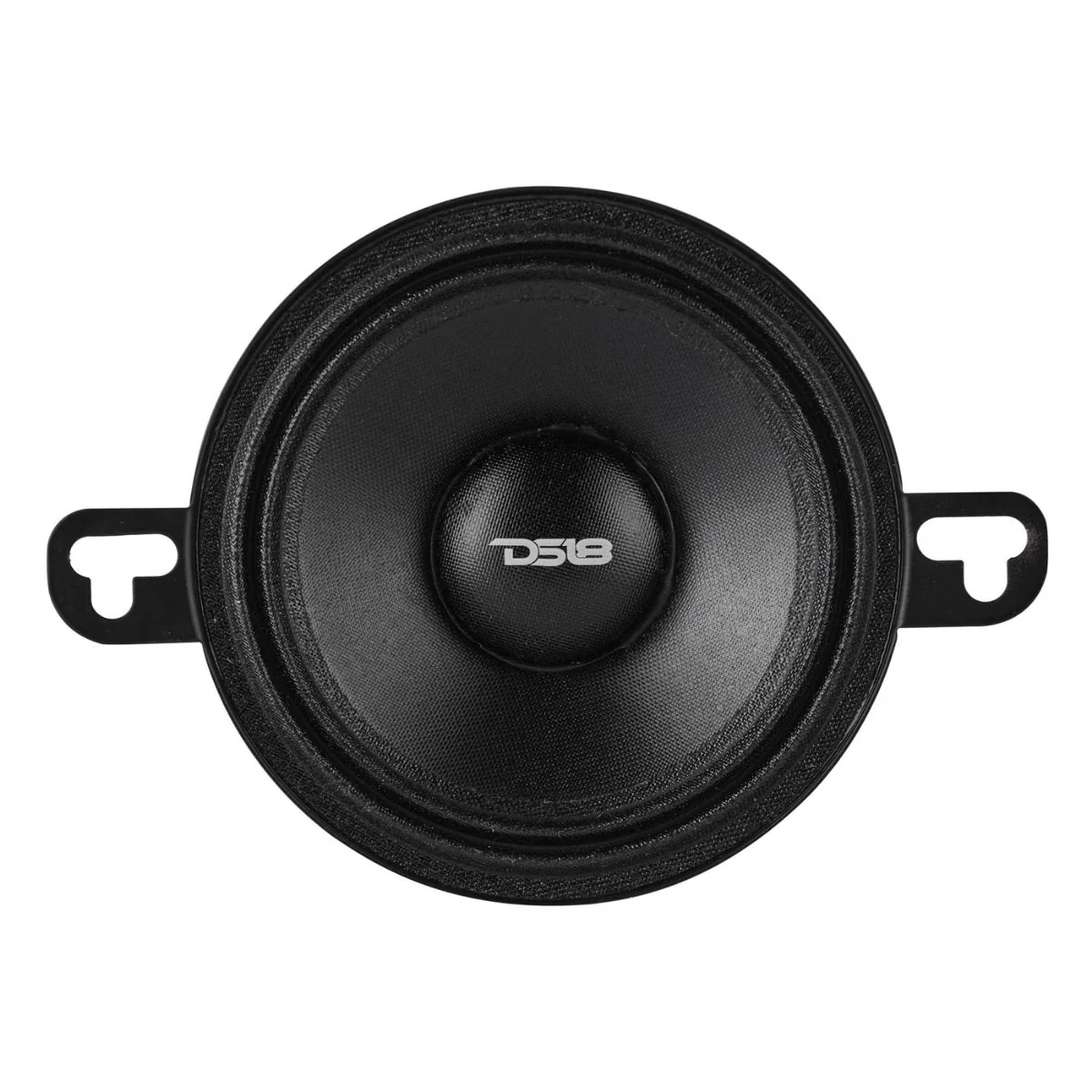

DS18 OEM 3.5" Neo 100W RMS 4-Ohm Dashboard Loudspeaker Pair 35D200NO-4

This listing includes:

• (2) DS18 3.5" Loudspeakers 35D200NO-4

The 35D200NO-4 is the perfect OEM dashboard speaker replacement

Power and Sensitivity

This speaker handles 100W RMS and 200W MAX, offering clear sound at 88dB sensitivity. It reproduces frequencies between 120Hz and 20kHz, for crisp mids and highs ideal for factory system upgrades.

Durable Materials for Long Life

Built with a glass fiber and composite foam cone with resin finish, along with a cloth surround, this driver is both durable and accurate. The neodymium magnet offers strong magnetic force while keeping weight low.

Simple Installation

With regular spade terminals and a black steel basket, the 35D200NO-4 installs easily into most OEM dashboard openings.

Specifications:

• Nominal Diameter: 3.5" / 91.5mm


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 100W


• MAX Power Handling: 200W


• Sensitivity (1w/1m): 88dB


• Frequency Response: 120Hz-20Khz


• Recommended HI Pass Crossover: 160Hz


• Sold in Pair or Single: Pair


• Voice Coil Diameter: 1" / 25mm


• Voice Coil Former Material: TIL


• Winding Material: Copper Ribbon


• Cone Material: Glass Fiber + Foam Composite with Resin Finish


• Dust Cap Material: Glass Fiber + Foam Composite with Resin Finish


• Surround Material: Cloth


• Leads Connection Type: Direct to Coil


• Basket Material: Steel


• Basket Color/Finish: Black


• Magnet Material: Neodymium


• Magnet Weight: 1.4 Oz

T/S Parameters:

• Equivalent Volume: 0.36L / 0.0951ft3


• Excursion (one way): 2mm


• Free Air Resonance: 210Hz


• Mechanical Factor: 7.51


• Electrical Factor: 2.22


• Total Factor: 1.71


• Mechanical Mass: 4.066g


• Mechanical Compliance: 0.122mm/N


• BL Factor: 2.74


• Voice Coil Inductance: 0.046mH


• Cone Area: 38.48cm2


• DC Resistance: 3.77 Ohms


• Mechanical Mass w/o air: 3.797g

Measurements:

• Overall Diameter: 3.4" / 86.5mm


• Overall Depth: 1.65" / 42.1mm


• Front Mount Baffle Cutout: 3.0" / 78.4mm


• Mounting Depth: 1.5" / 38.6mm


• Motor Diameter: 1.96" / 50mm
