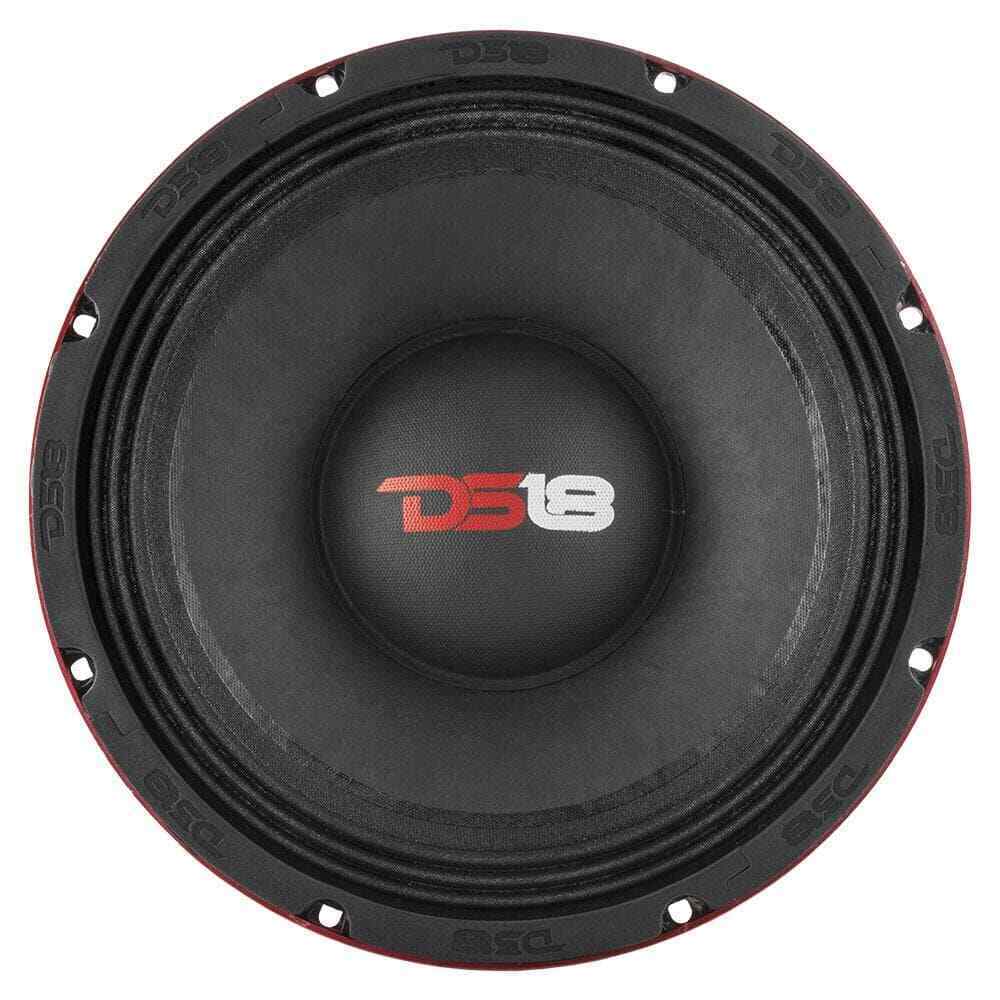

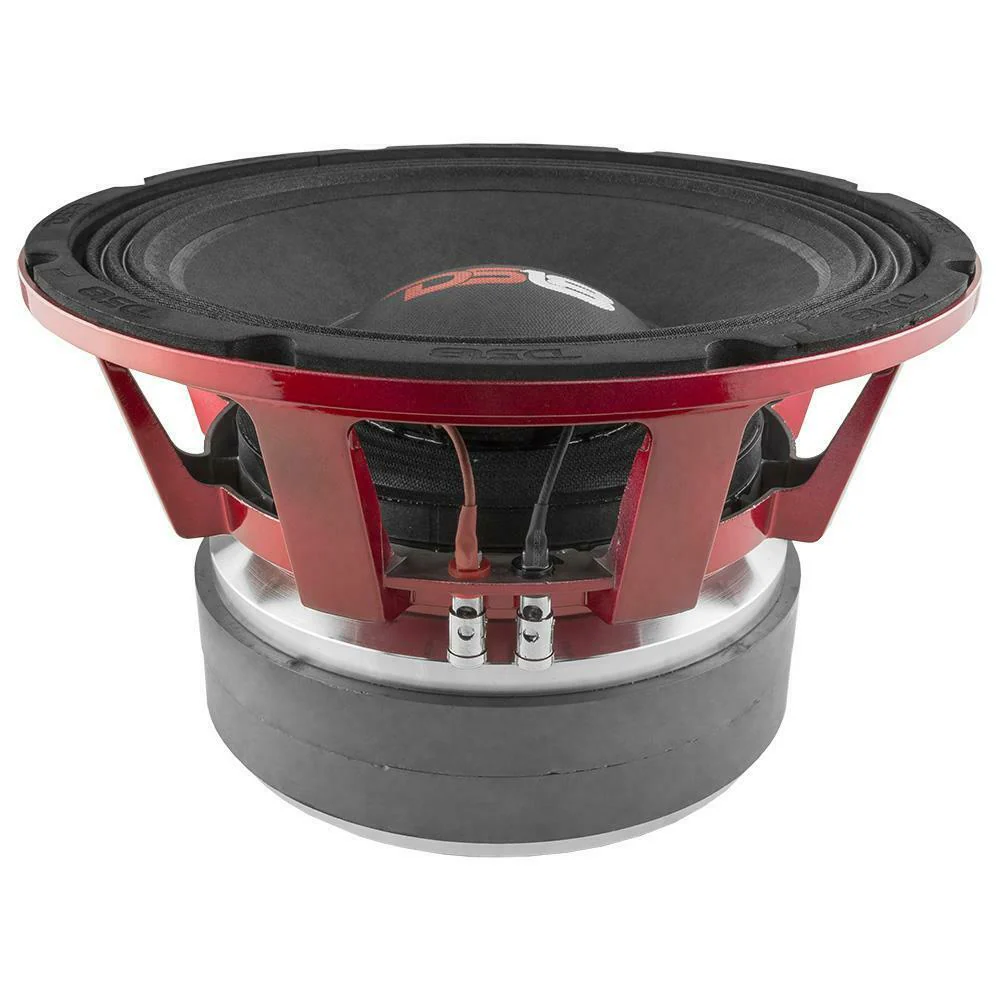

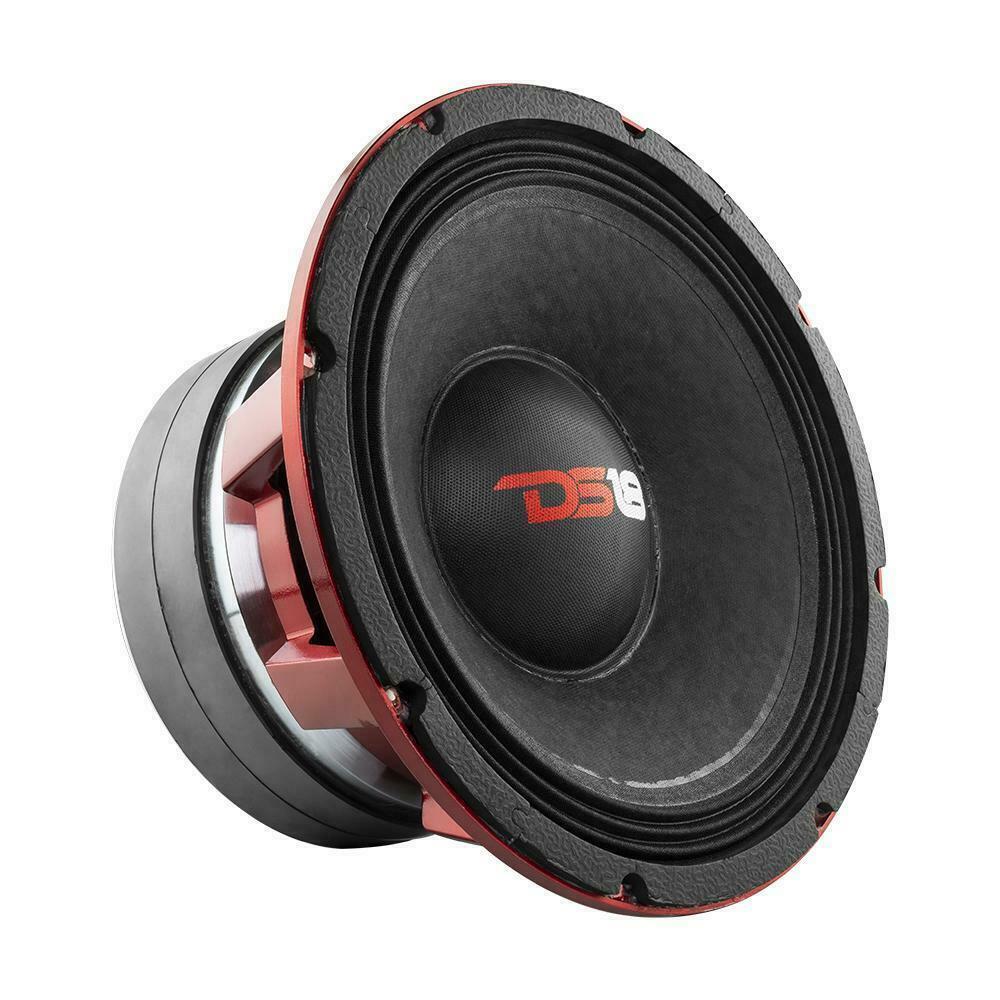

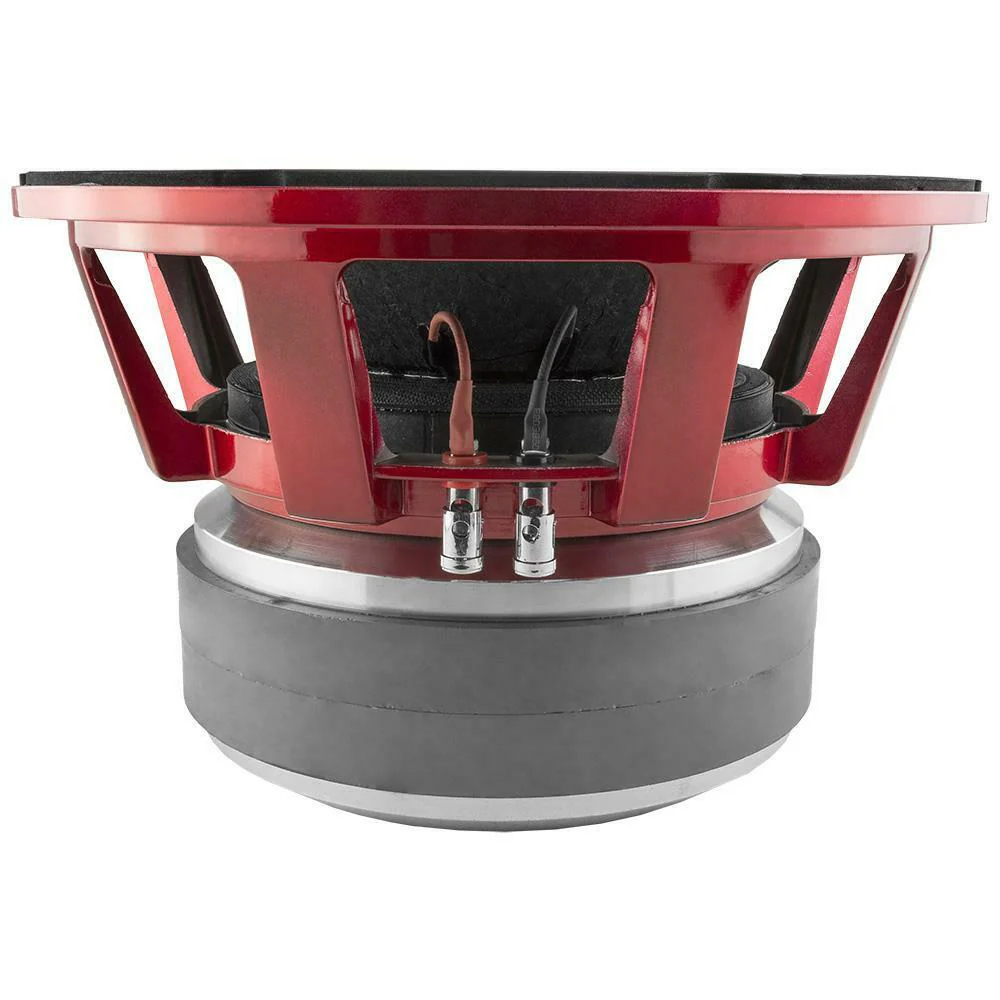

DS18 Car Audio 12" Mid-Bass Loudspeaker 3000 Watt 8 Ohm PANCADO PRO-1.5KP12.8

The Pancadao from DS18 has new siblings to compliment anyone's high-performance pro audio system! These high-performance "do all" woofers can play an amazing range of frequencies. From hard-punching midbass to mid-high vocals at an unbelievable volume. These are the go-to DS18 Pro Audio speakers to set your sound above the rest.

This Listing Includes:

(1) DS18 12" Mid-Bass Loudspeaker PRO-1.5KP12.8

SPECIFICATIONS:

Nominal Diameter: 12"

Nominal Impedance: 8 Ohms

RMS Power Handling: 1500 Watts

MAX Power Handling: 3000 Watts

Sensitivity (1w/1m): 95 dB

Frequency Response: 60Hz ~ 8kHz

Recommended Hi Pass Crossover: 70Hz

MOTOR:

Voice Coil Diameter: 4"

Voice Coil Former Material: Fiber Glass

Winding Material: CCAW

Cone Material: Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Aluminum

Magnet Material: Ferrite

Magnet Weight: 150 Oz

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 19.9 L

Free Air Resonance: Fs - 73.5Hz

Mechanical Factor: Qms - 10.02

Electrical Factor: Qes - 0.383

Total Factor: Qts - 0.369

DC Resistance: Re - 5.6 Ohms

Force Factor: Bl - 26.65

Moving Mass: Mms - 105.1

Compliance: Cms - 44.57 mm/N

Voice Coil Inductance: Le - 1.057MH

Diaphragm Area: Sd - 560 cm/2

Efficiency Bandwidth Product: EBP - 191.9

MEASUREMENTS:

Overall Diameter: 12.36" (314mm)

Overall Depth: 6.53" (166mm)

Front Mount Baffle Cutout: 11.18" (284mm)

Mounting Depth: 5.36" (152mm)

Motor Diameter: 8.66" (220mm)
