• 10" Mid-Range With Built in Driver
• RMS Power: 350 Watts
• Impedance: 4-Ohm
• Ferrite & Neodymium Magnets
• Water Resistant

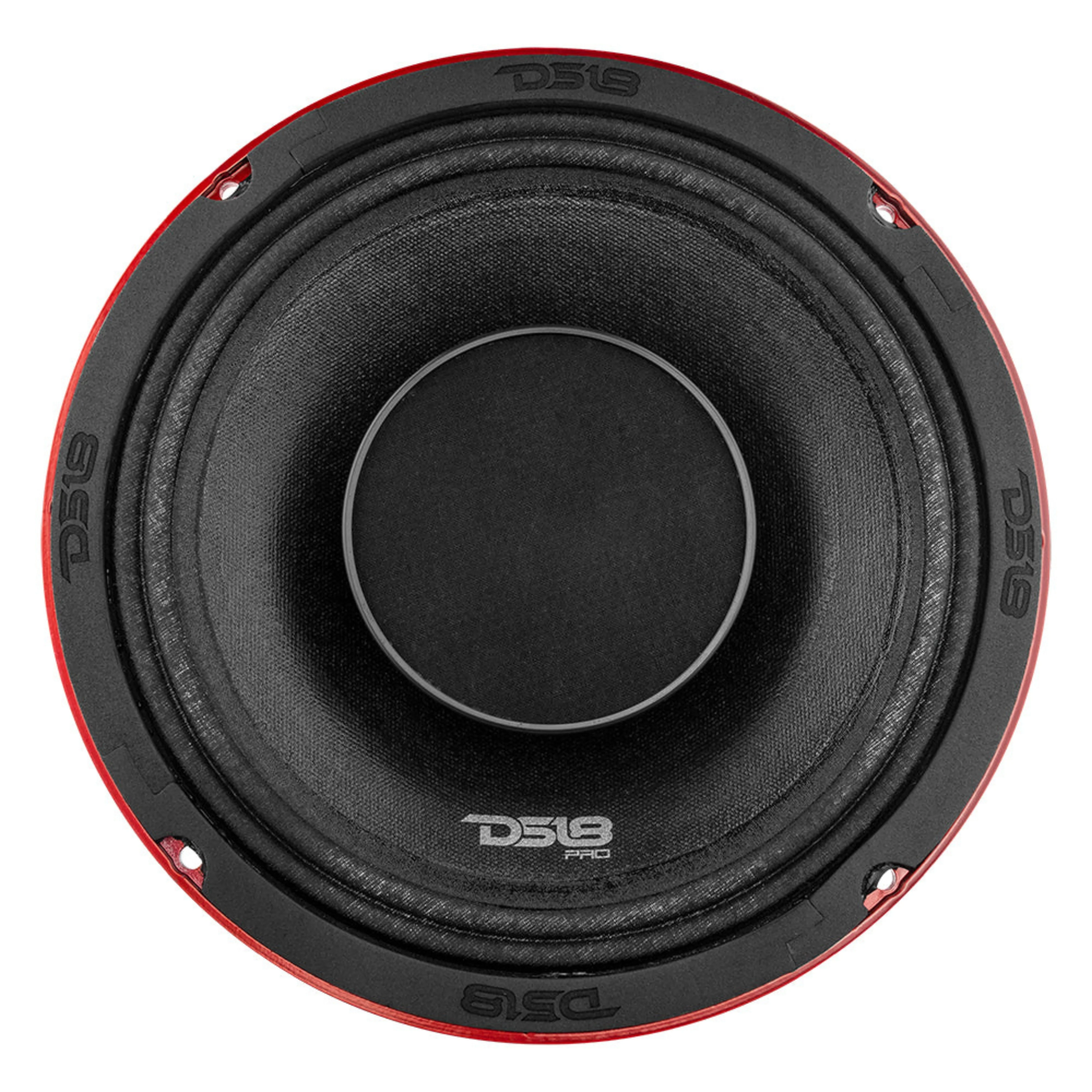

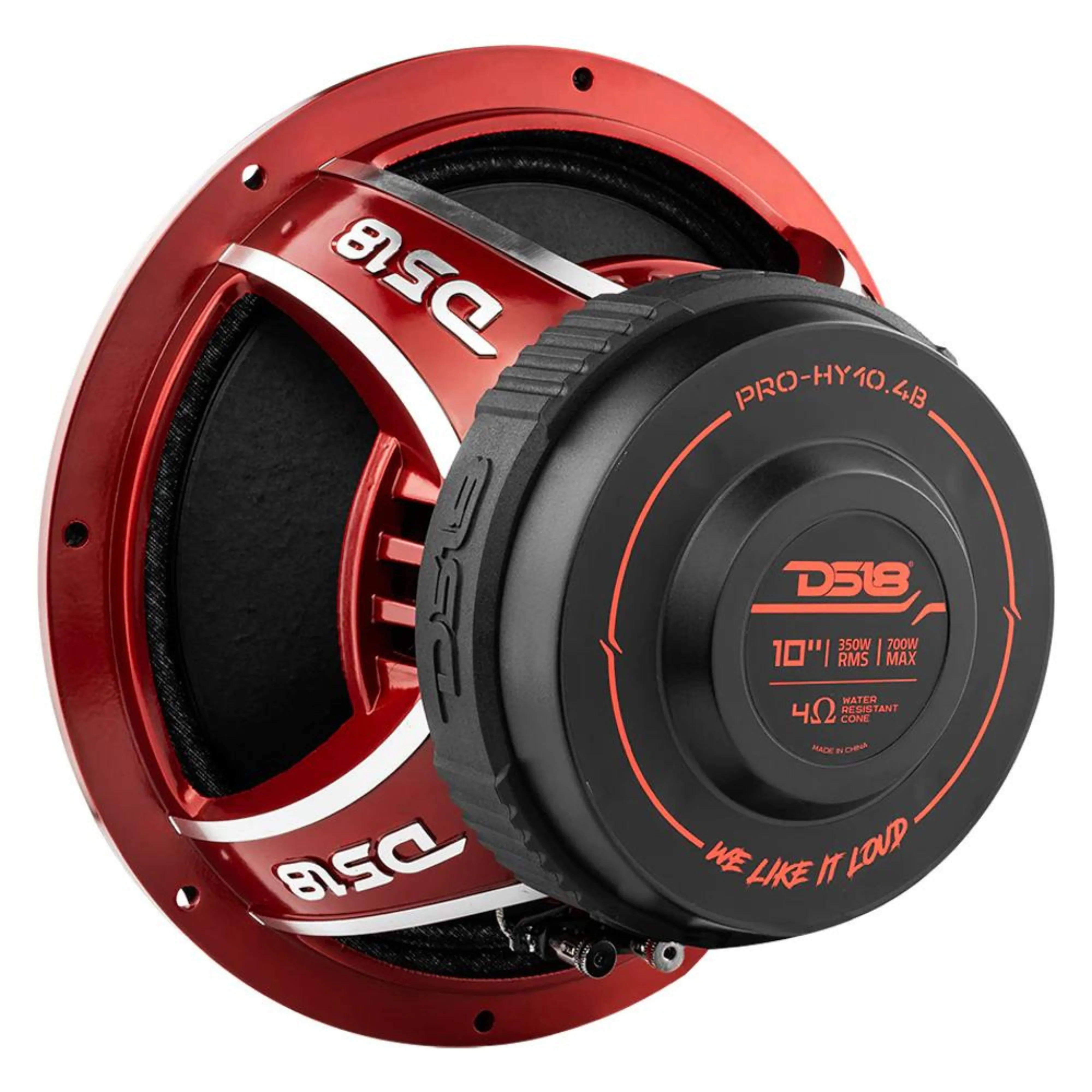

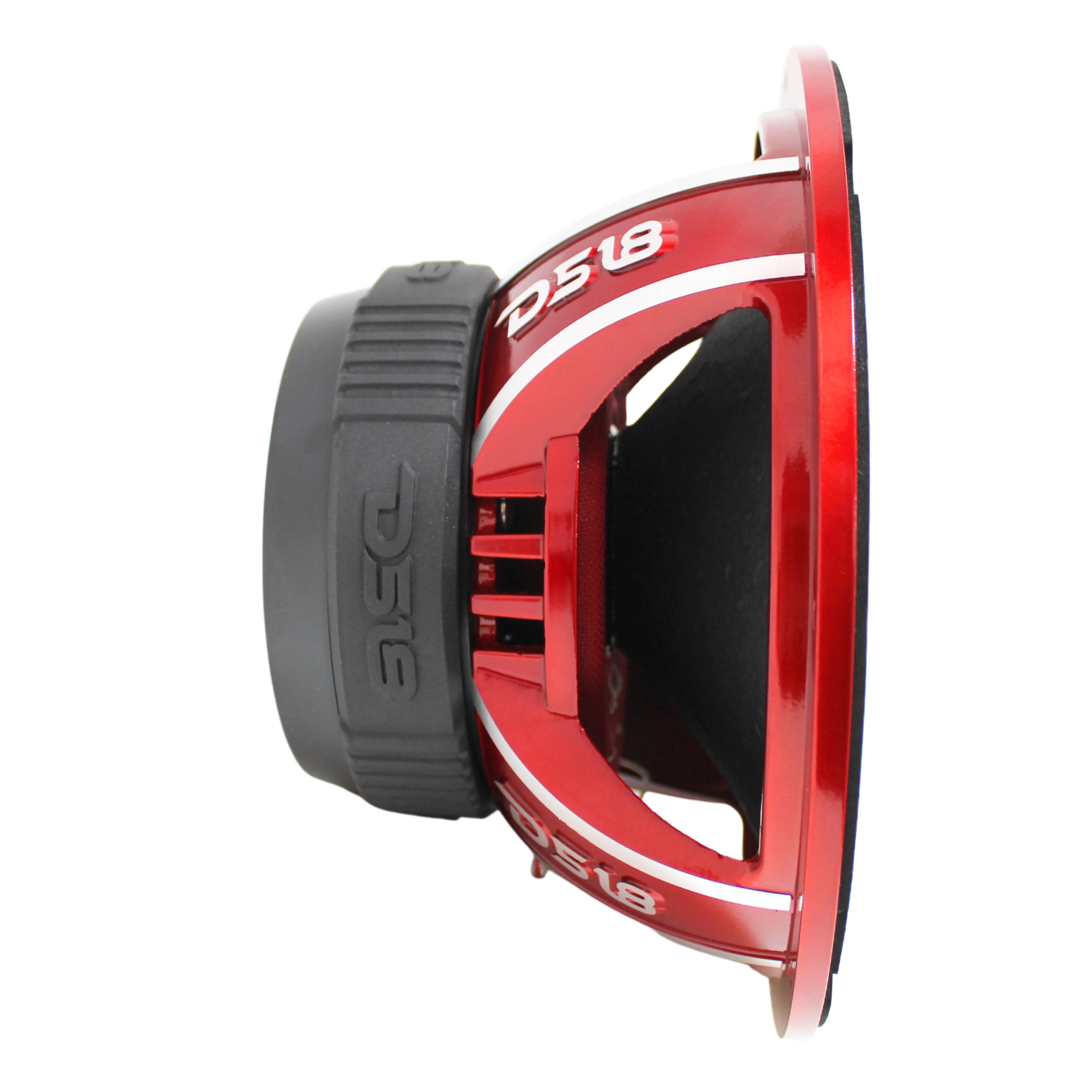

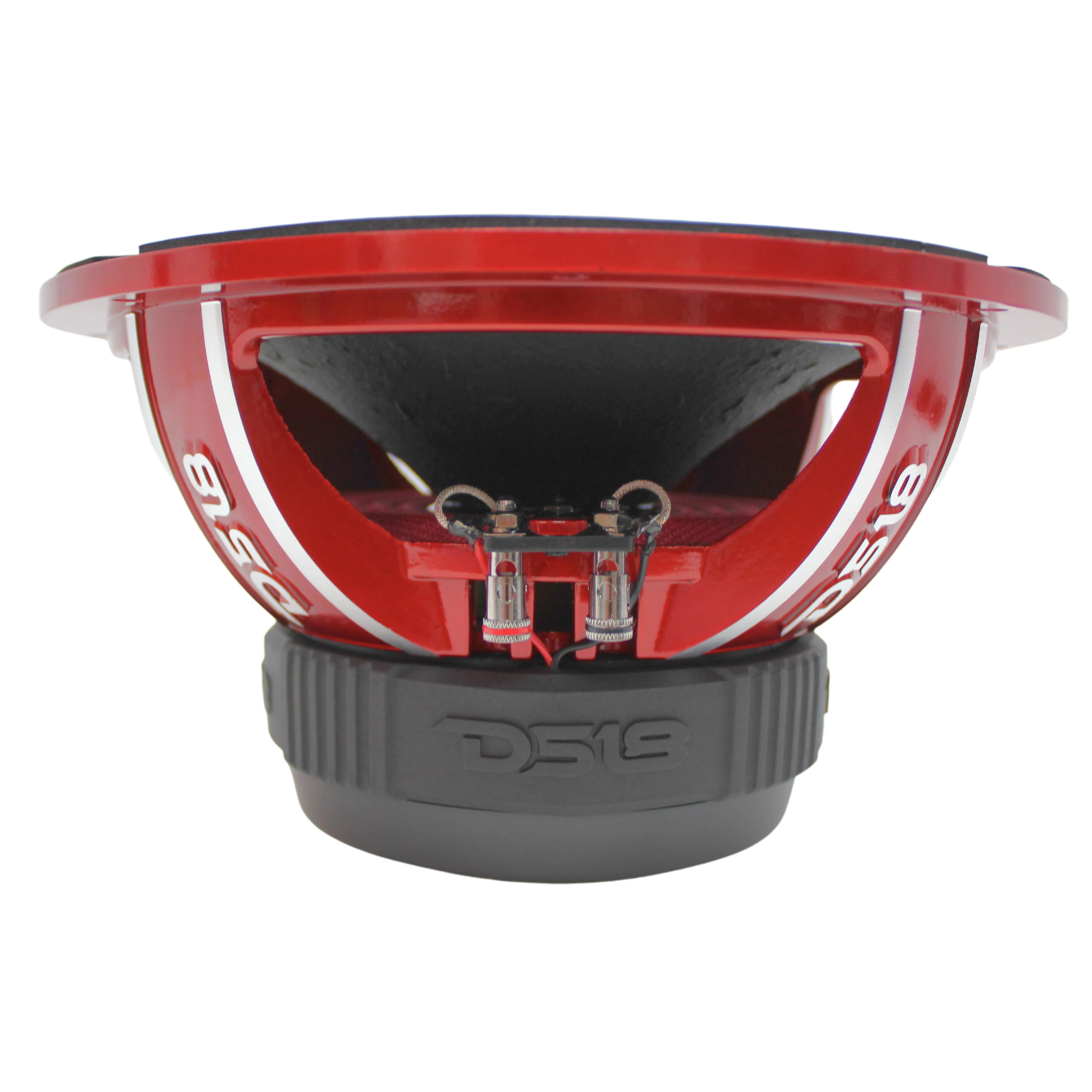

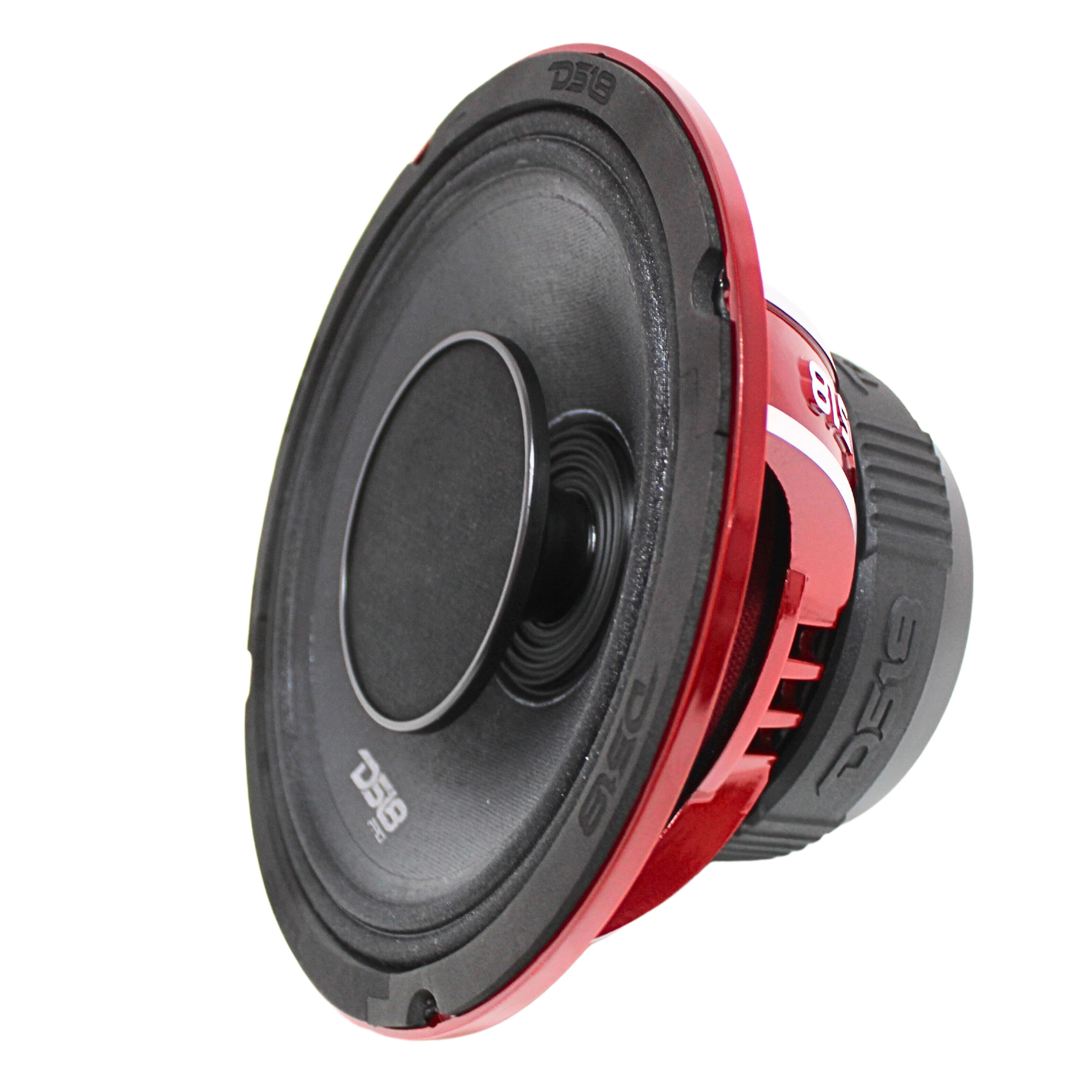

DS18 PRO 10" 350 Watt 4 Ohm Hybrid Mid-Range Loudspeaker w/ Built-in Driver PRO-HY10.4B

This listing includes:

• (1) PRO 10" 350 Watt 4 Ohm Hybrid Mid-Range Loudspeaker w/ Built-in Driver

SPECIFICATIONS:

• Nominal Diameter: 10" / 254mm


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 350W


• MAX Power Handling: 700W


• Sensitivity (1w/1m): 100dB


• Frequency Response: 40Hz - 20KHz


• Recommended HI Pass Crossover: 70Hz


• Number of ways: 2 ways


• Pair or Single: Single


• Grill Included: Yes

WOOFER SPECIFICATIONS:

• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Glass Fiber


• Winding Material: CCAW


• Cone Material: Water Resistant Paper (IPx5)


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish: Matte Black


• Magnet Material: Ferrite


• Magnet Weight: 49 Oz


• Displacement Volume: 2.86L / 0.1ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume Vas: 21.8L / 0.76ft3


• Excursion (one way) Xmax: 10mm


• Free Air Resonance Fs: 95Hz


• Mechanical Factor Qms: 12.59


• Electrical Factor Qes: 0.995


• Total Factor Qts: 0.922


• Mechanical Mass Mms: 26.78g


• Mechanical Compliance Cms: 0.125 mm/N


• BL Factor BL: 6.851


• Voice Coil Inductance Le: 0.313mH


• Cone Area Sd: 352.99 Cm2


• DC Resistance Re: 3.4 ohms


• Mechanical Mass w/o air Mmd: 25g

DRIVER SPECIFICATIONS:

• Voice Coil Diameter: 1.5" / 38.6mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• Horn Diameter: 4.25" / 108mm

DIMENSIONS:

• Overall Diameter: 10.3" / 261.5mm


• Overall Depth: 5.7" / 144.4mm


• Front Mount Baffle Cutout: 9" / 231mm


• Mounting Depth: 5.31" / 135mm


• Motor Diameter: 5.7" / 145mm
