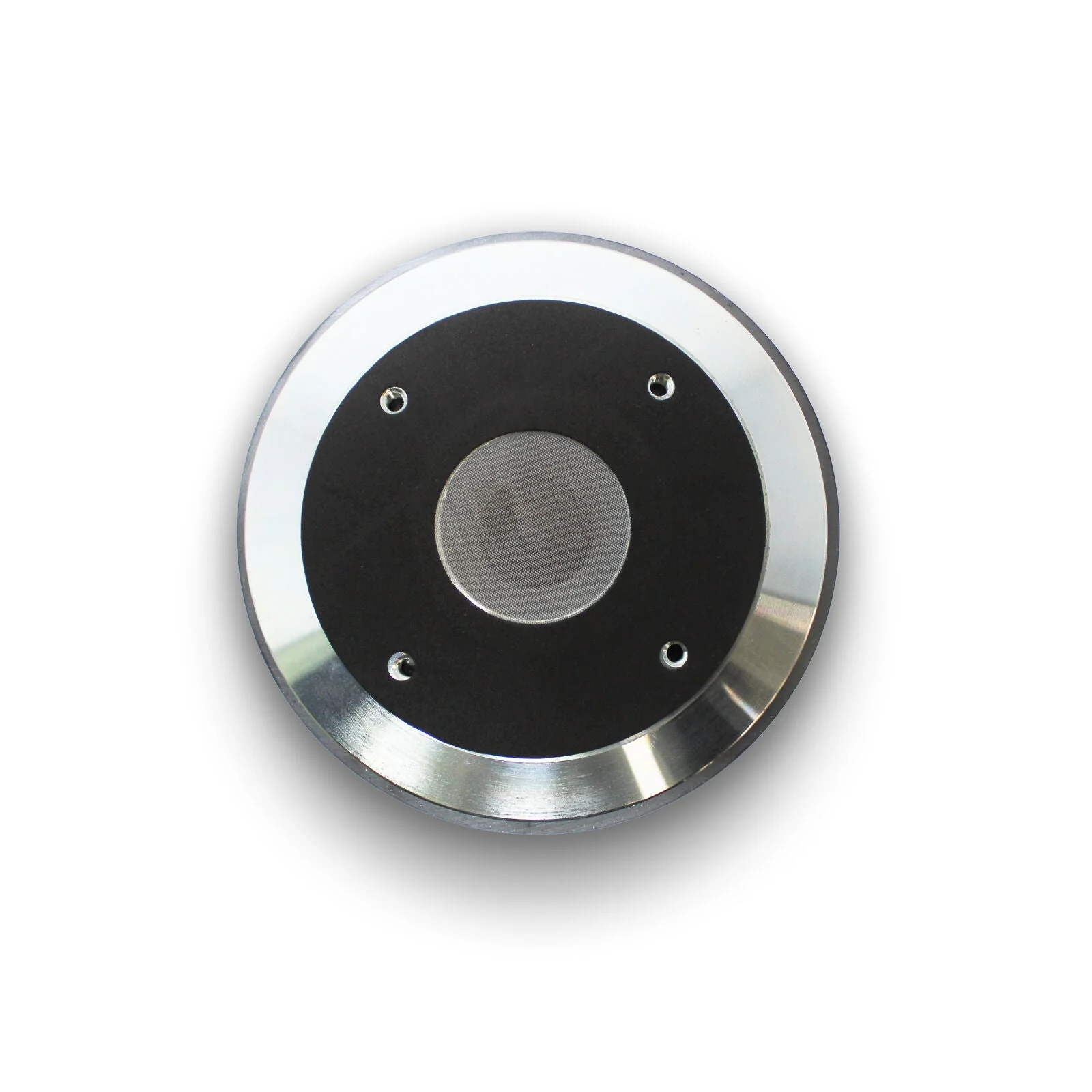

DS18 PRO Car Audio Compression Driver 3" 8 Ohm 800 Watt Phenolic VC Bolt on

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!

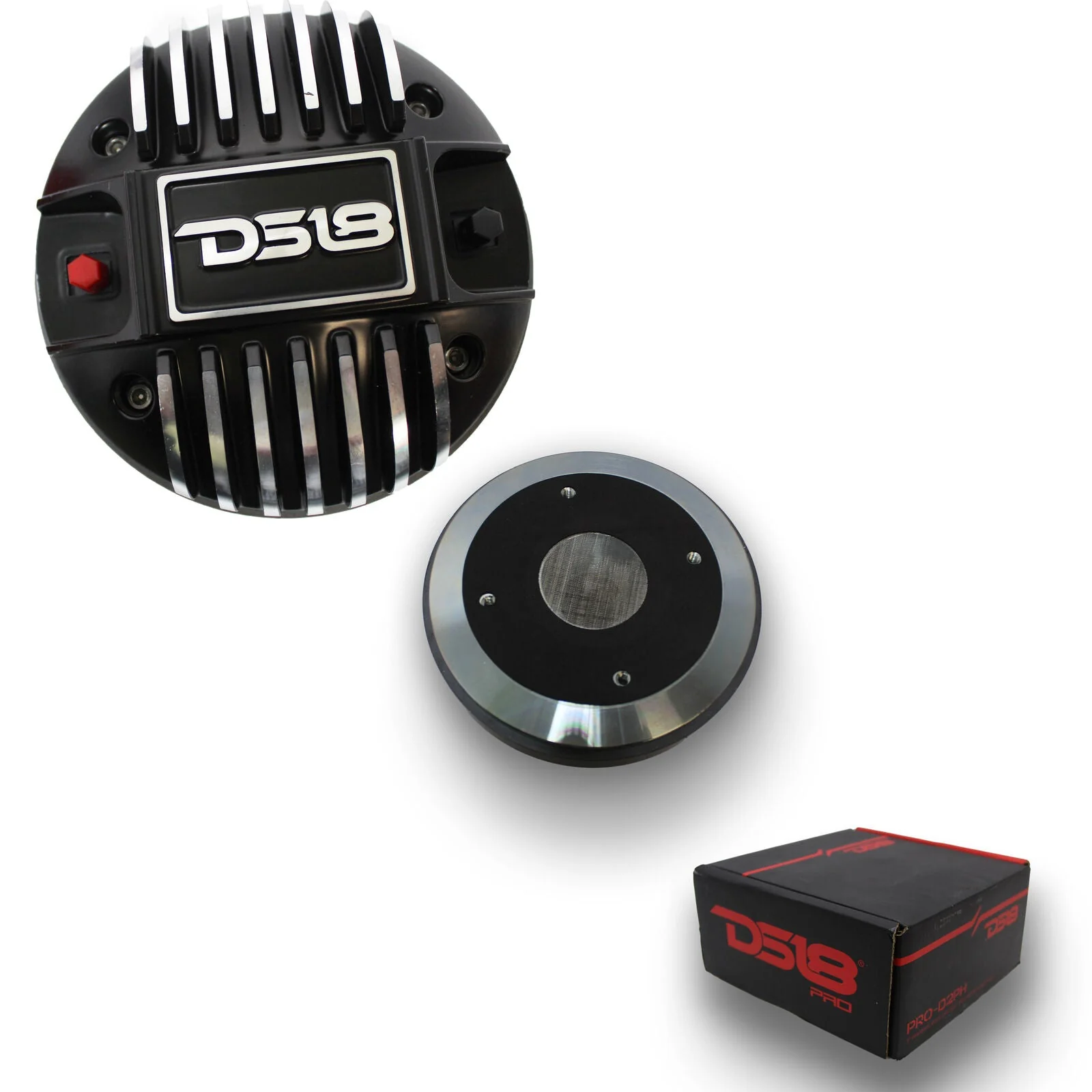

Listing Includes:

(1) DS-PRO D2PH

(4) Spacers

(4) Washer

(4) Mounting Screws

(4) Black Screws

(1) 100v Blocker

Features:

-Ferrite motor structure that provides great motor force and loudness.

-High strength phenolic voice coil taking 200 AES watts and 800 Peak watts.

-Intense high frequency volume without sacrificing sound quality.

-Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.

-Throat Diameter 2" / 50.8mm

-Installation Type Bolt-On

-Nominal Impedance 8 Ohms

-AES Power Handling 200W

-Program Power Handling 400W

-Peak Power Handling 800W

-Sensitivity 109 dB

-Frequency Response 500Hz - 10KHz

-Recommended Hi Pass Crossover 800 Hz

Motor:

-Voice Coil Diameter 3" / 76.2mm

-Voice Coil Former Material Kapton

-Winding Material Aluminum

-Diaphragm Material Phenolic

-Magnet Material Ferrite

-Magnet Weight 65Oz

-Body Material Aluminum

-Body Color / Finish Black Aluminum / Machined

Measurements:

-Overall Diameter 6.69" / 170mm

-Overall Depth 3.2" / 81.4mm

-Bolt Pattern Type 4*M6
