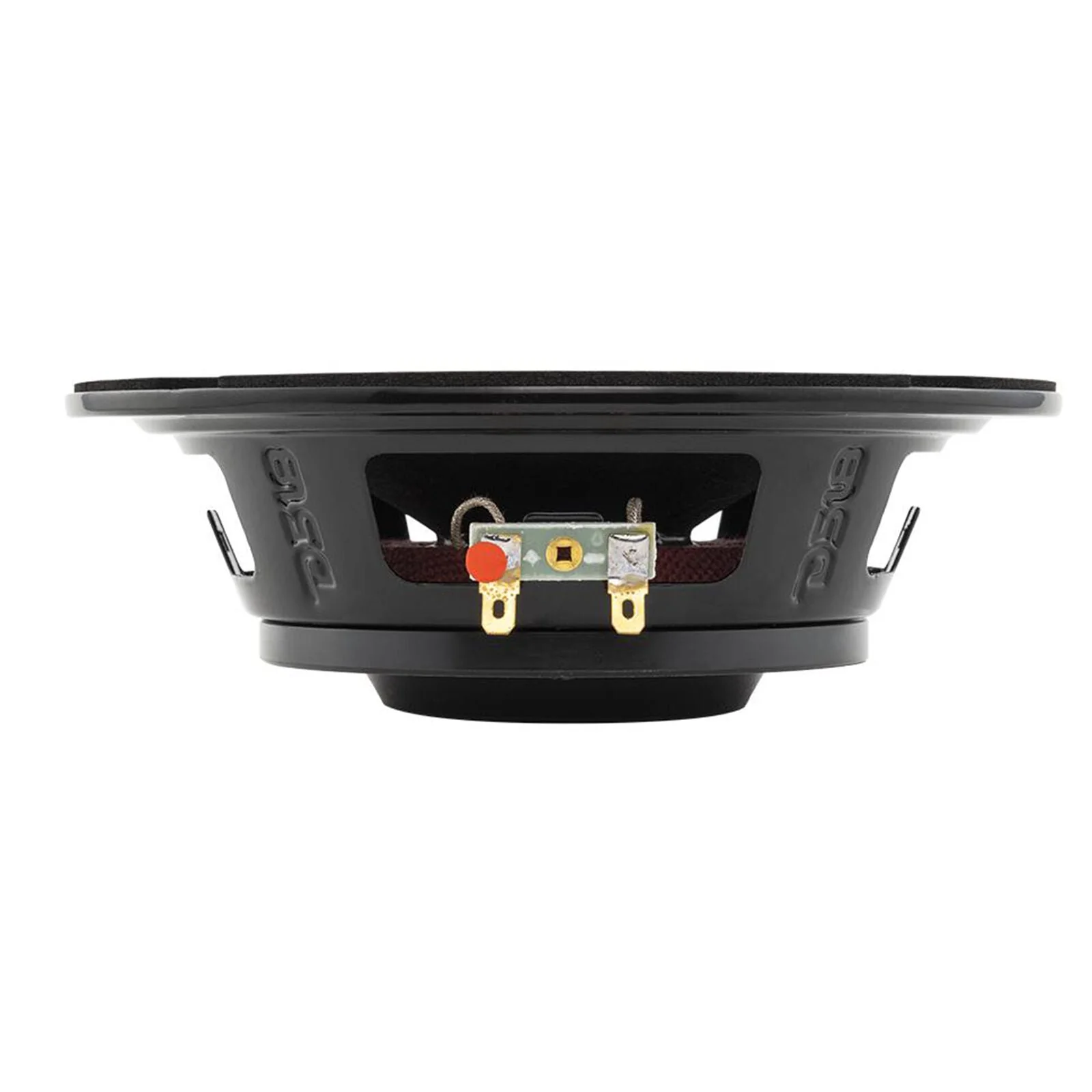

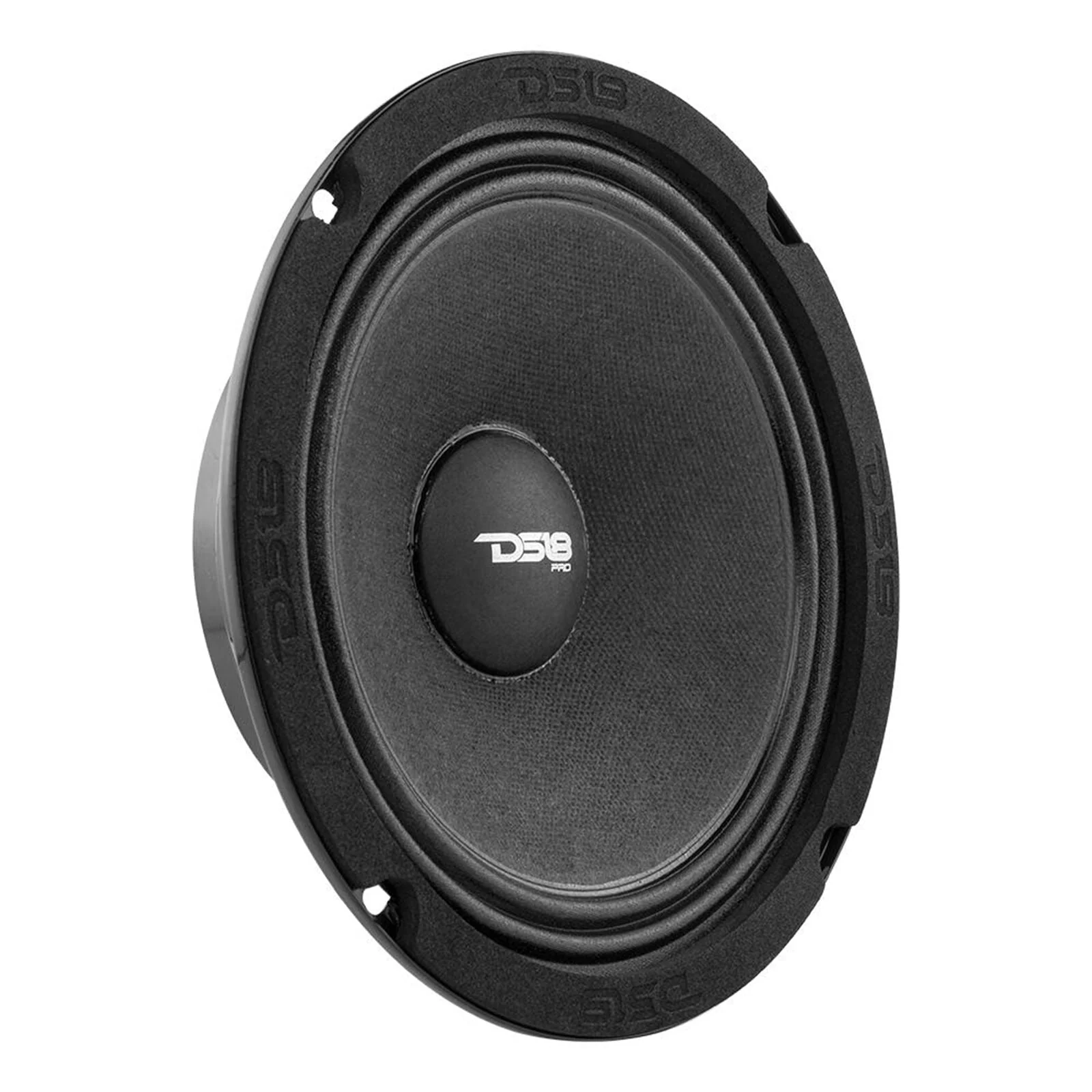

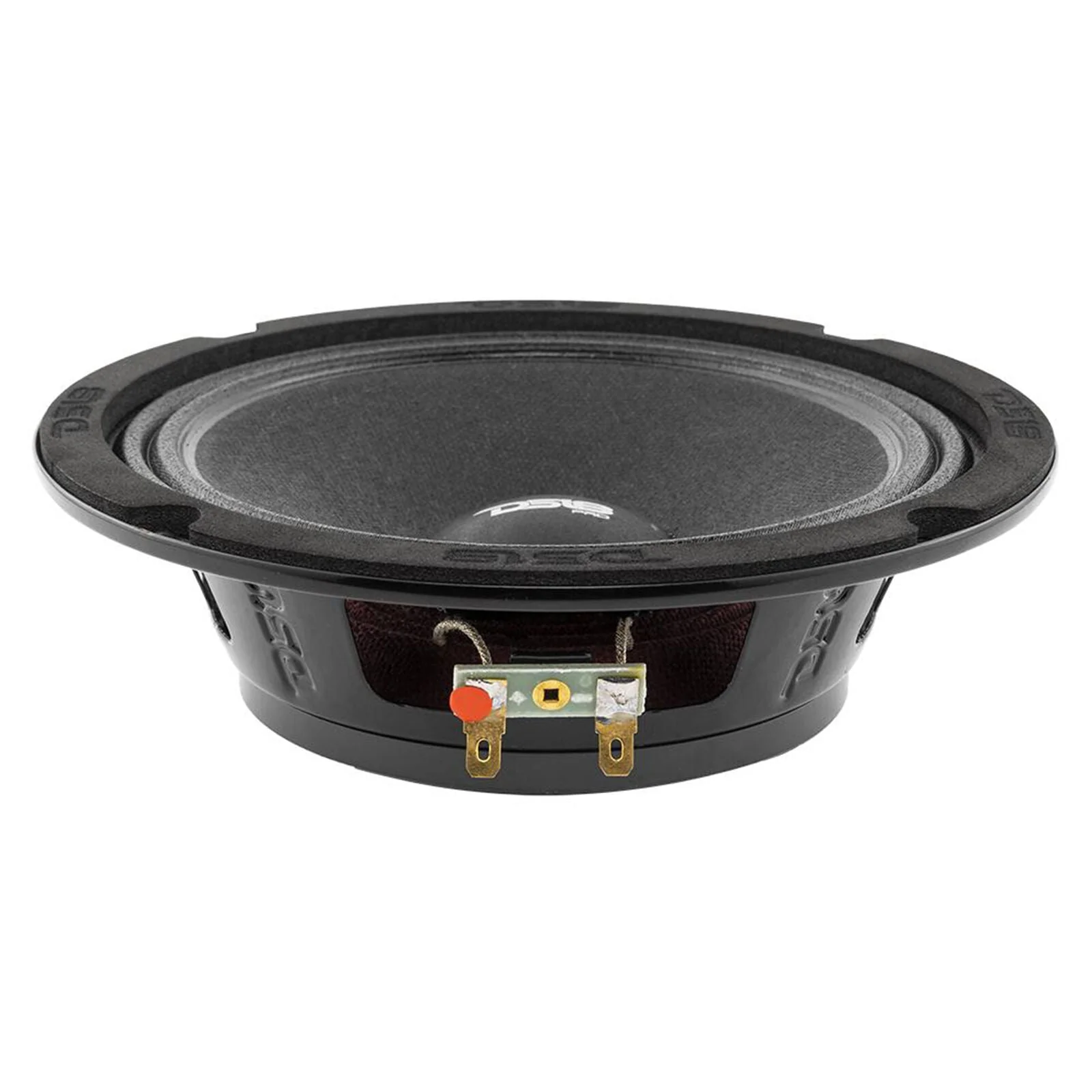

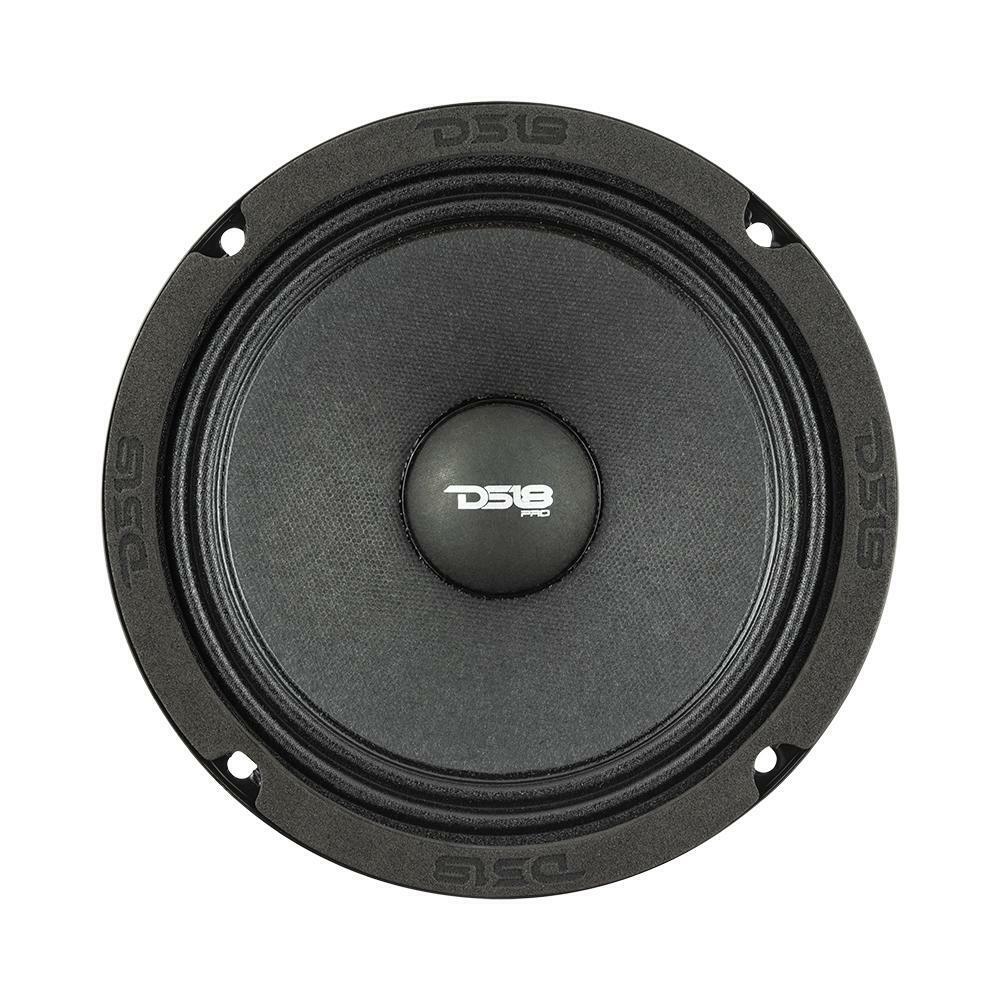

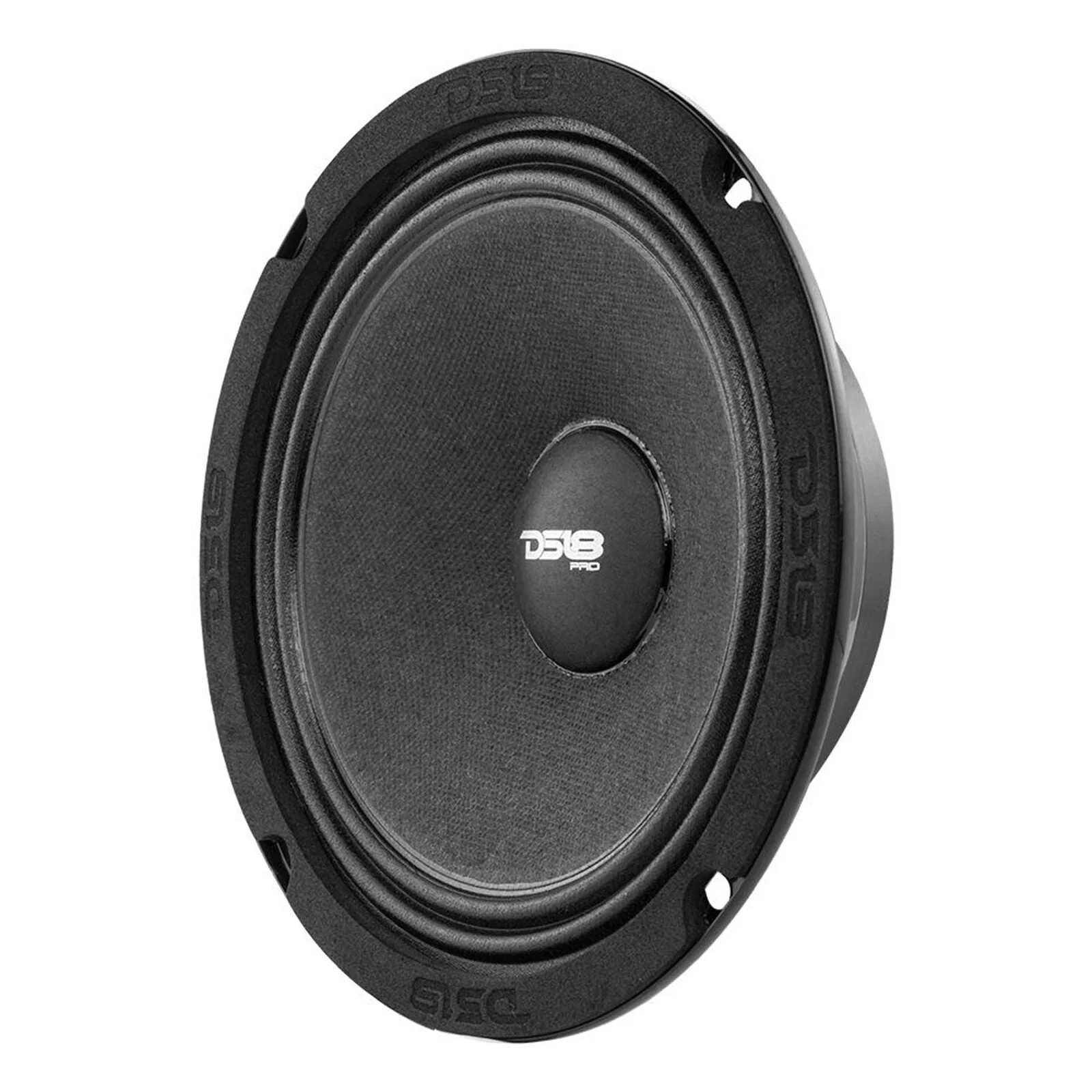

DS18 PRO 6.5" Mid-Range Speaker 300 Watt 4 Ohm with Ultra Slim Neodymium Magnet

The PRO series is a special DS18 line for incredible sounding audio that not only has very high volume, but also amazing sound quality for a great price. This 6.5" inch, 4 ohm mid-range speaker is designed for audio enthusiasts as these speakers have a great range of frequencies and are very loud. 300 watt max power handling so you can pump up the volume with no worries. Ultra Slim Neodymium magnet allows for a shallow mounting depth of only 1.96". Small 6.5" size for a wide variety of vehicle applications.

This Listing Includes:

(1) DS18 6.5" Mid-Range Speaker PRO-NS6.4

Features:

-Ultra Slim Neodymium magnet allows for shallow mounting

-High Power handling of 300 Watts for hi volume listening

-Small 6.5" size for limitless audio applications

GENERAL SPECIFICATIONS:

Nominal Diameter: 6.5"

Nominal Impedance: 4 ohm

RMS Power Handling: 150W

MAX Power Handling: 300W

Sensitivity (1w/1m): 94dB

Frequency Response: 100Hz-12KHz

Recommended Hi Pass Crossover: 180Hz

MOTOR SPECIFICATIONS:

Voice Coil Diameter: 1.5" / 38.6mm

Voice Coil Former Material: KSV

Winding Material: Copper

Cone Material: Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Steel

Magnet Material: Neodymium

Magnet Weight: 1.79 oz / 50.74g

THIELE & SMALL PARAMETERS:

Equivalent Volume: 4.58L

Excursion (one way): 2 mm

Free Air Resonance: 137Hz

Mechanical Factor: 4.906

Electrical Factor: 1.072

Total Factor: .88

Mechanical Mass: 7.356 g

Mechanical Compliance: 183.287m cm/N

BL Factor: 4.2

Voice Coil Inductance: 2.695 mH

Cone Area: 132.732 cm3

DC Resistance: 3.2 ohm

Mechanical Mass w/o air: 6.477g

DIMENSIONS:

Overall Diameter: 6.57" / 167 mm

Overall Depth: 2.2" / 56 mm

Front Mount Baffle Cutout: 5.7"/145 mm

Mounting Depth: 1.96" / 50 mm

Motor Diameter: 4" / 103 mm
