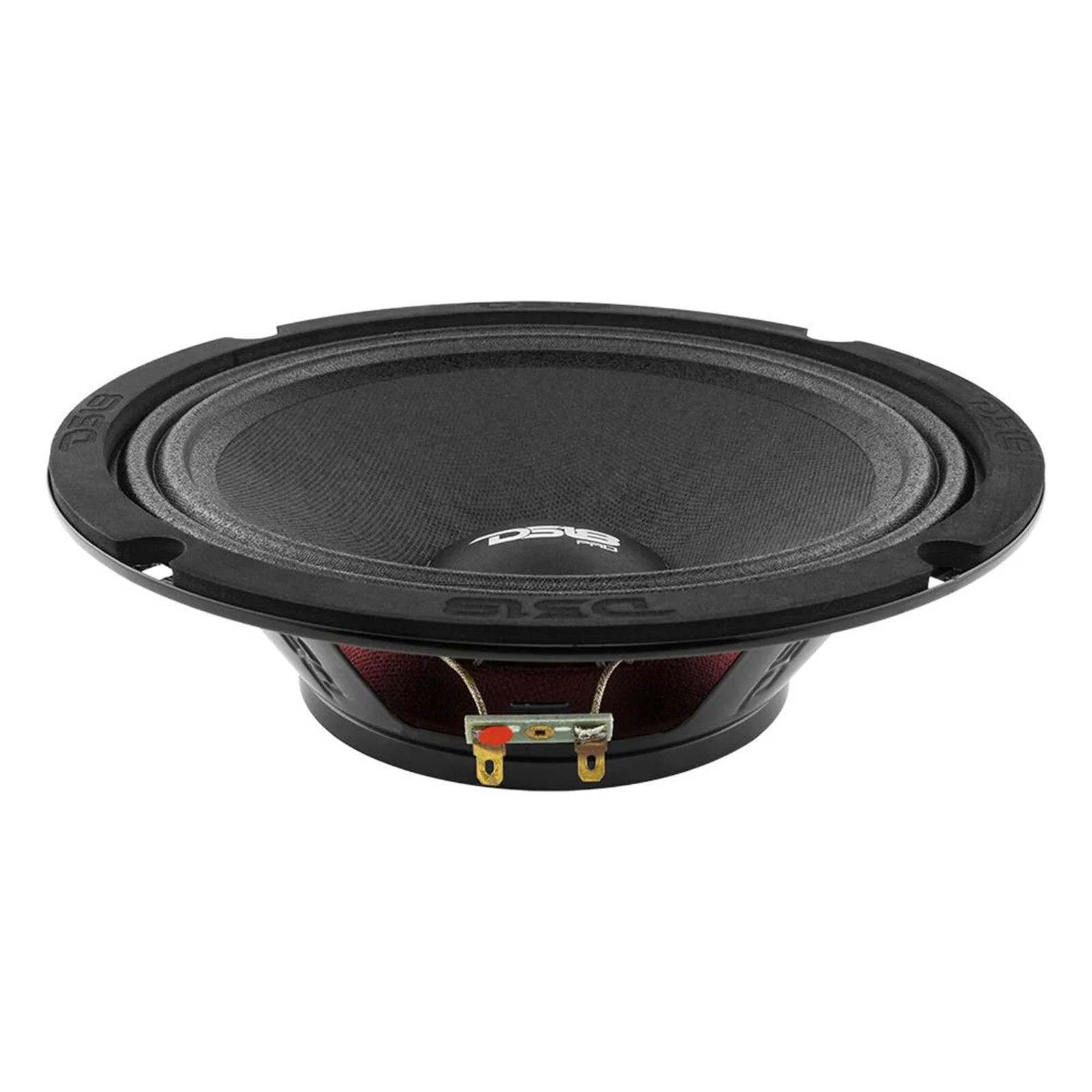

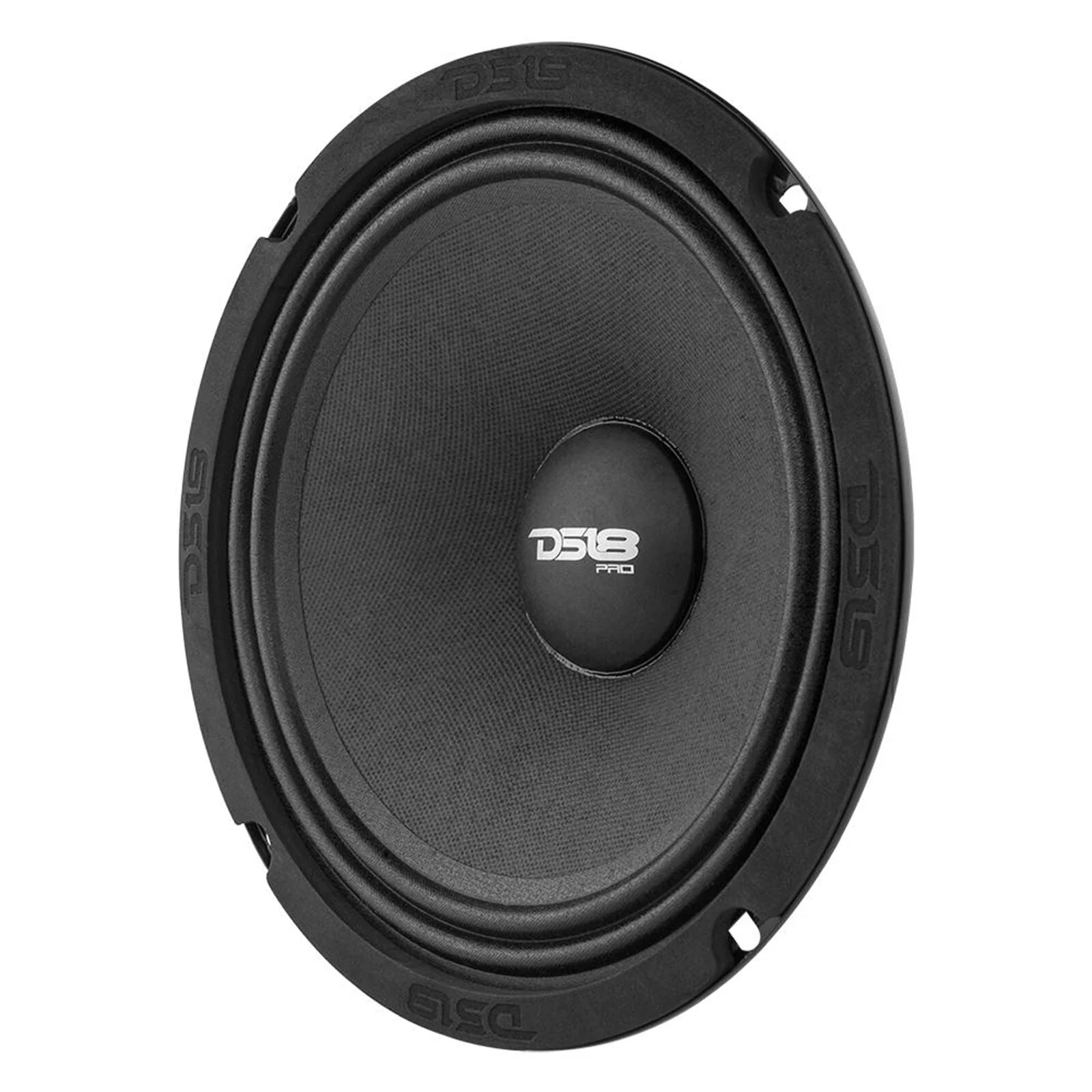

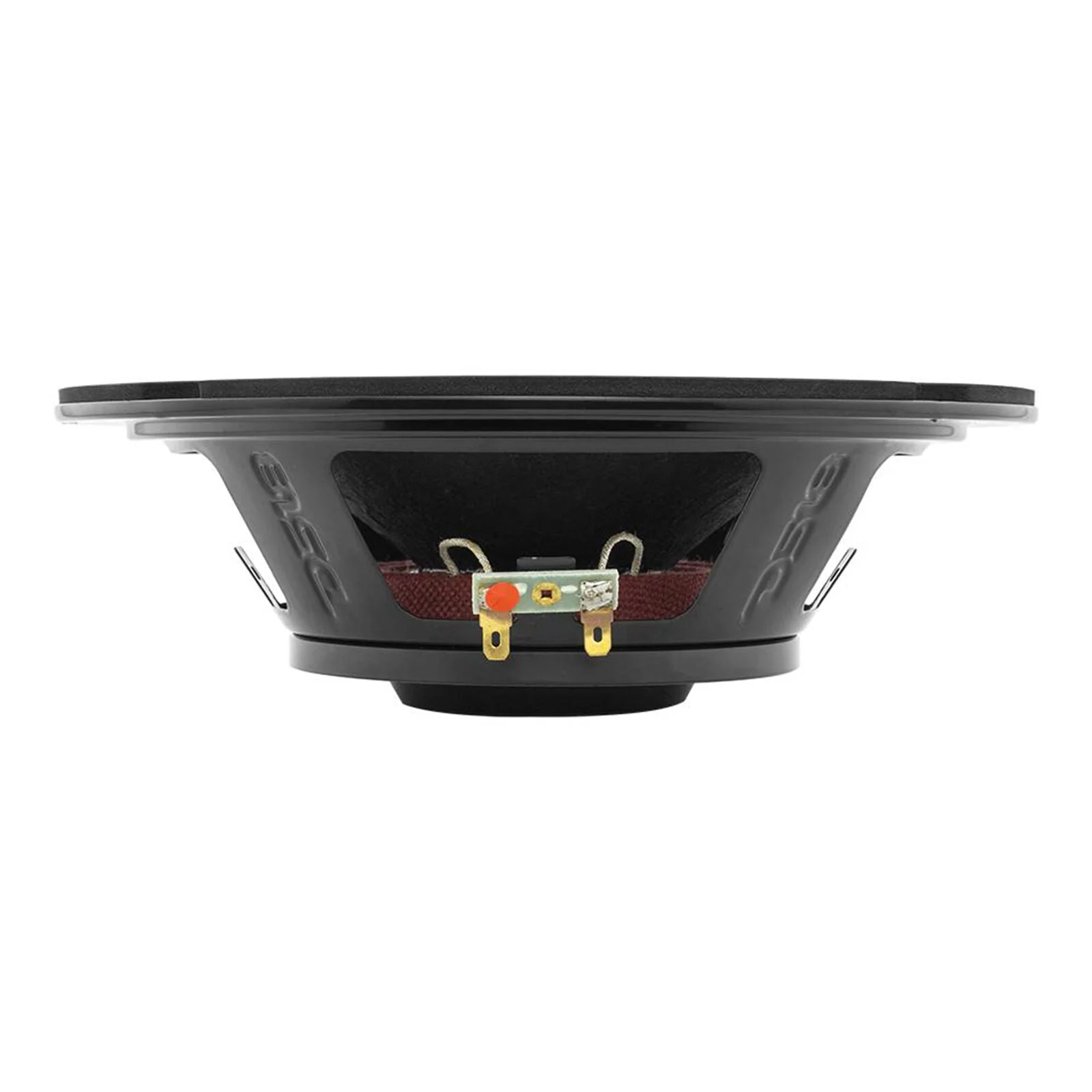

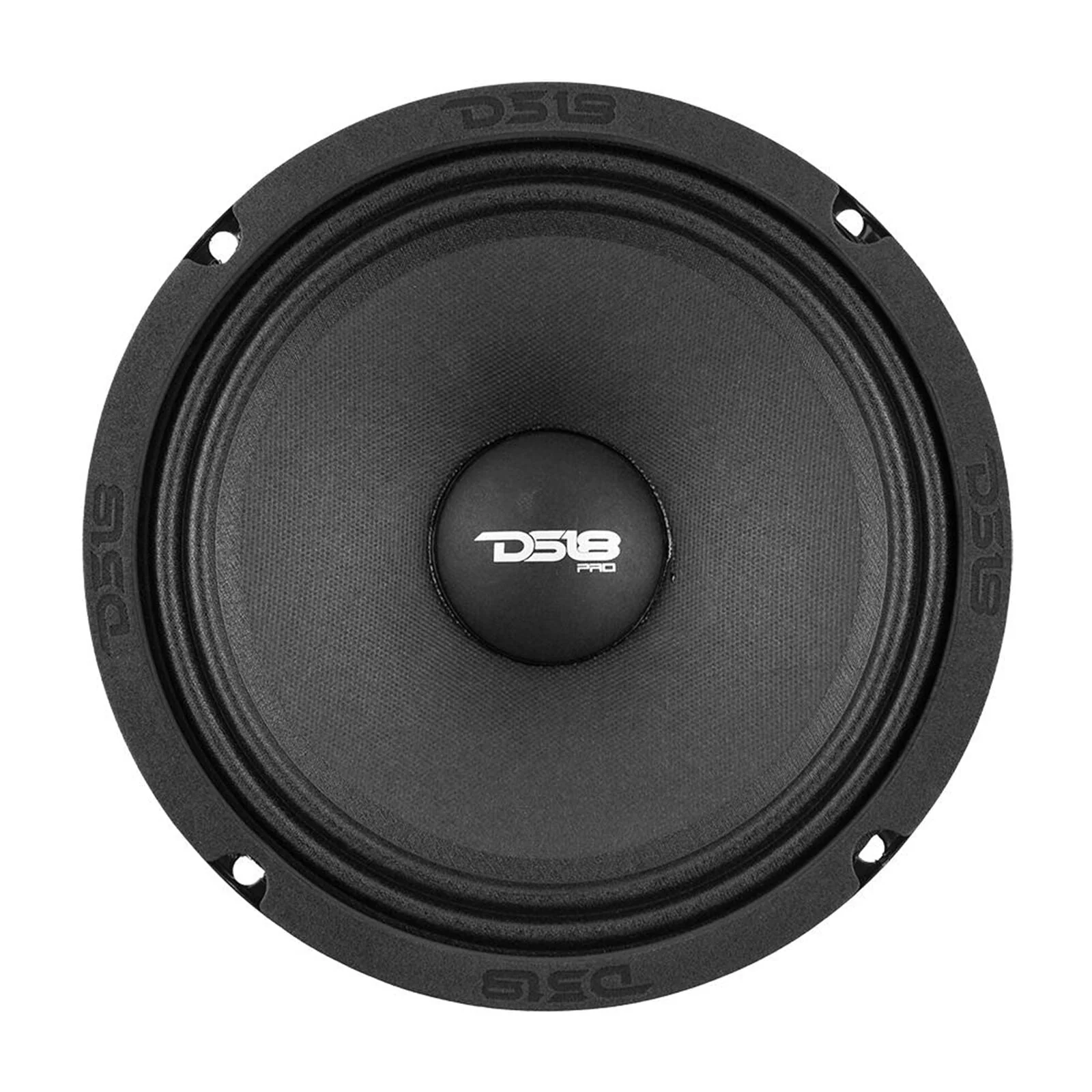

DS18 PRO 8" Mid-Range Speaker 400 Watt 8 Ohm with Ultra Slim Neodymium Magnet

This Listing Includes:

• (1)  DS18 8" Mid-Range Speaker PRO-NS8

The PRO series is a special DS18 line for incredible sounding audio that not only has very high volume, but also amazing sound quality for a great price. This 8" inch, 8 ohm mid-range speaker is designed for audio enthusiasts  as these speakers have a great range of frequencies and are very loud. 400 watt max power handling so you can pump up the volume with no worries. Ultra Slim Neodymium magnet allows for a shallow mounting depth of only 2.48".

Features:

•  Ultra Slim Neodymium magnet allows for shallow mounting.


•  High Power handling of 400 Watts for hi volume listening.


•  Glossy Black Basket finish.

General Specifications:

• Nominal Diameter: 8"


• Nominal Impedance: 8 Ohm


• RMS Power Handling: 200W


• MAX Power Handling: 400W


• Sensitivity (1w/1m): 96dB


• Frequency Response: 97Hz-12KHz


• Recommended Hi Pass Crossover: 160Hz

Motor Specifications:

• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: KSV


• Winding Material: Copper


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Magnet Material: Neodymium


• Magnet Weight: 3.32 Oz / 94.12g

Thiele & Small Parameters:

• Equivalent Volume: 5.48L


• Excursion (one way): 2 mm


• Free Air Resonance: 120Hz


• Mechanical Factor: 3.781


• Electrical Factor: 0.952


• Total Factor: .761


• Mechanical Mass: 13.242 g


• Mechanical Compliance: 162m cm/N


• BL Factor: 6.029


• Voice Coil Inductance: 7.011 mH


• Cone Area: 213.825 cm3


• DC Resistance: 6.5 ohm


• Mechanical Mass w/o air: 13.07g

Dimensions:

• Overall Diameter: 8.2" / 208 mm


• Overall Depth: 2.67" / 68 mm


• Front Mount Baffle Cutout: 7.12"/181 mm


• Mounting Depth: 2.48" / 63 mm


• Motor Diameter: 4.33" / 110  mm
