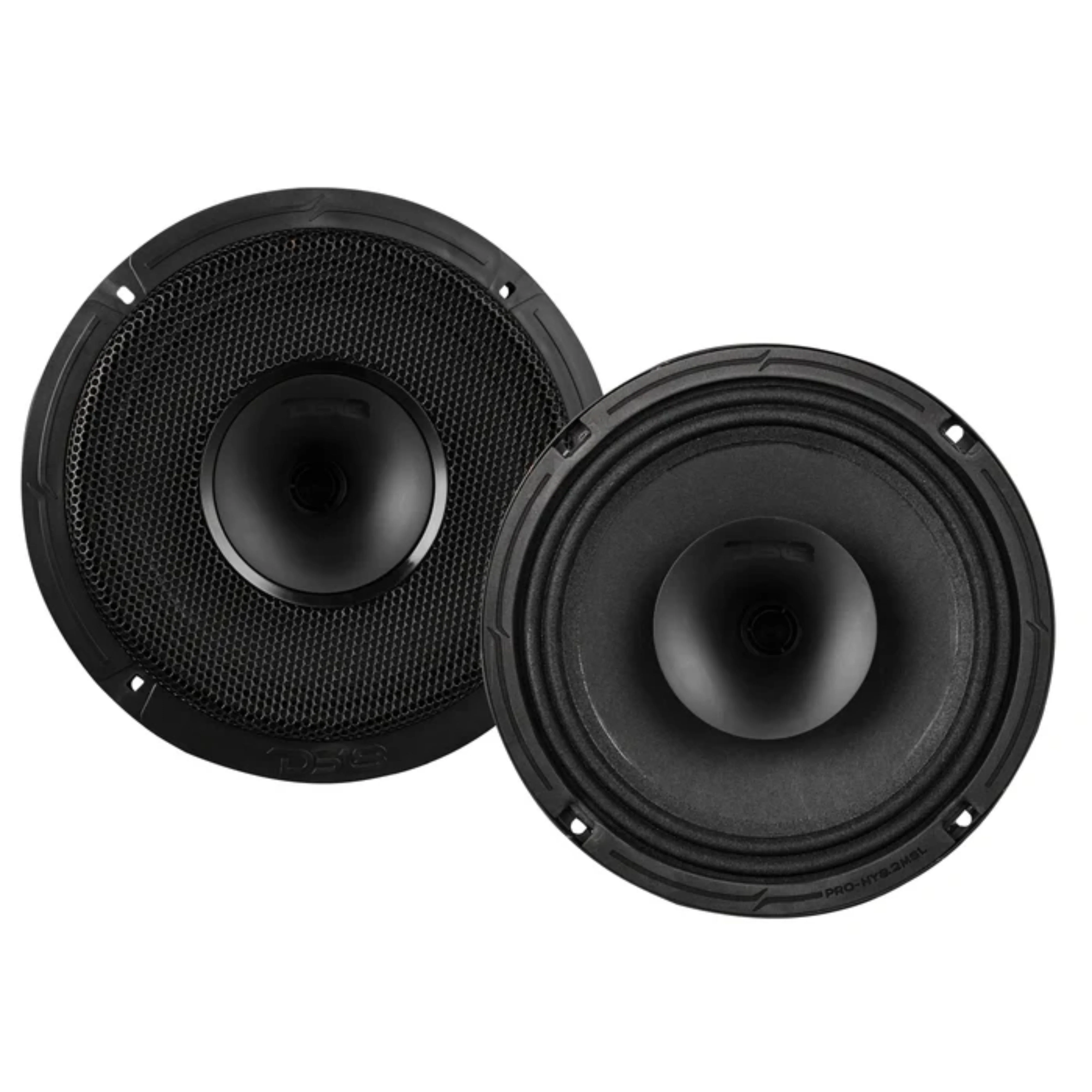

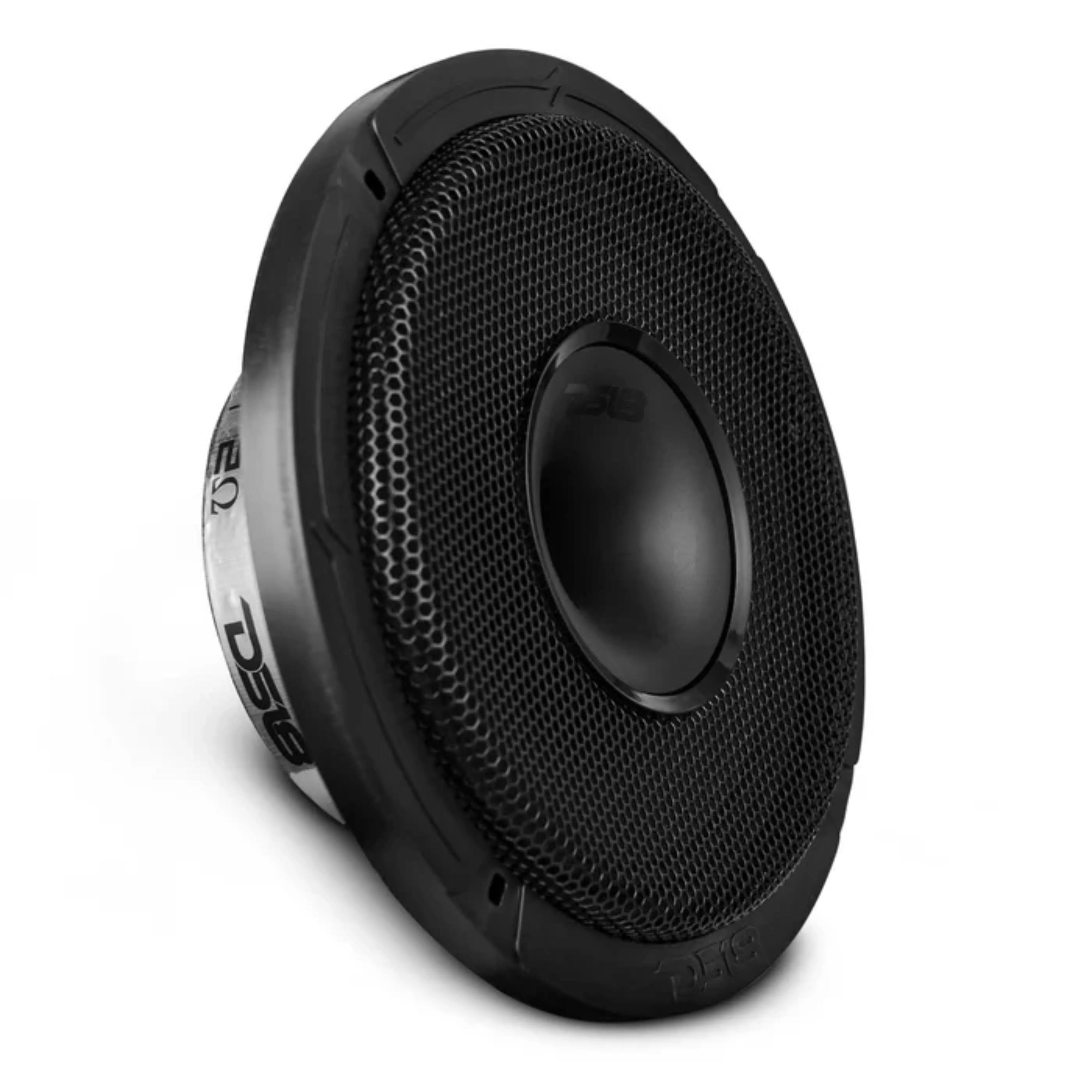

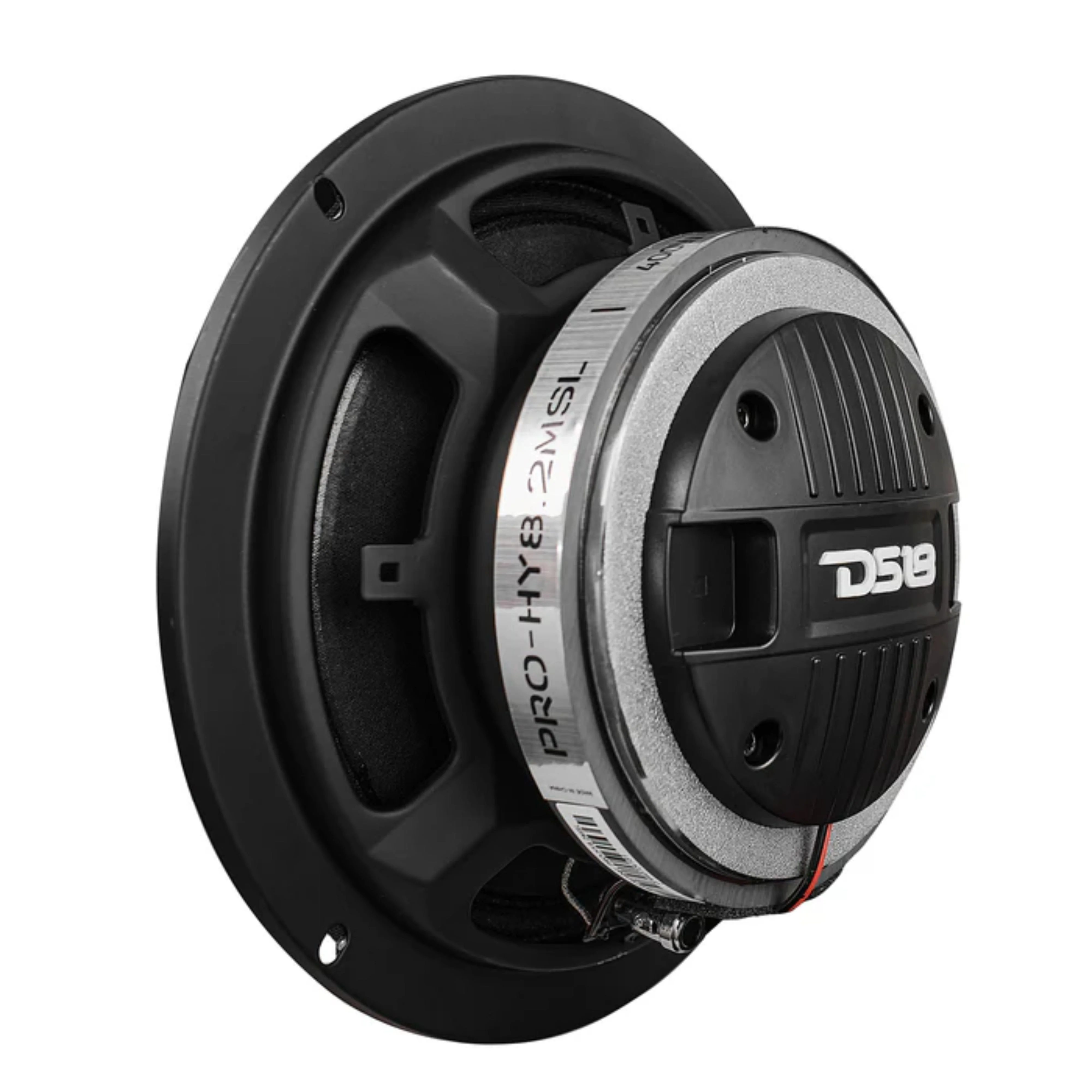

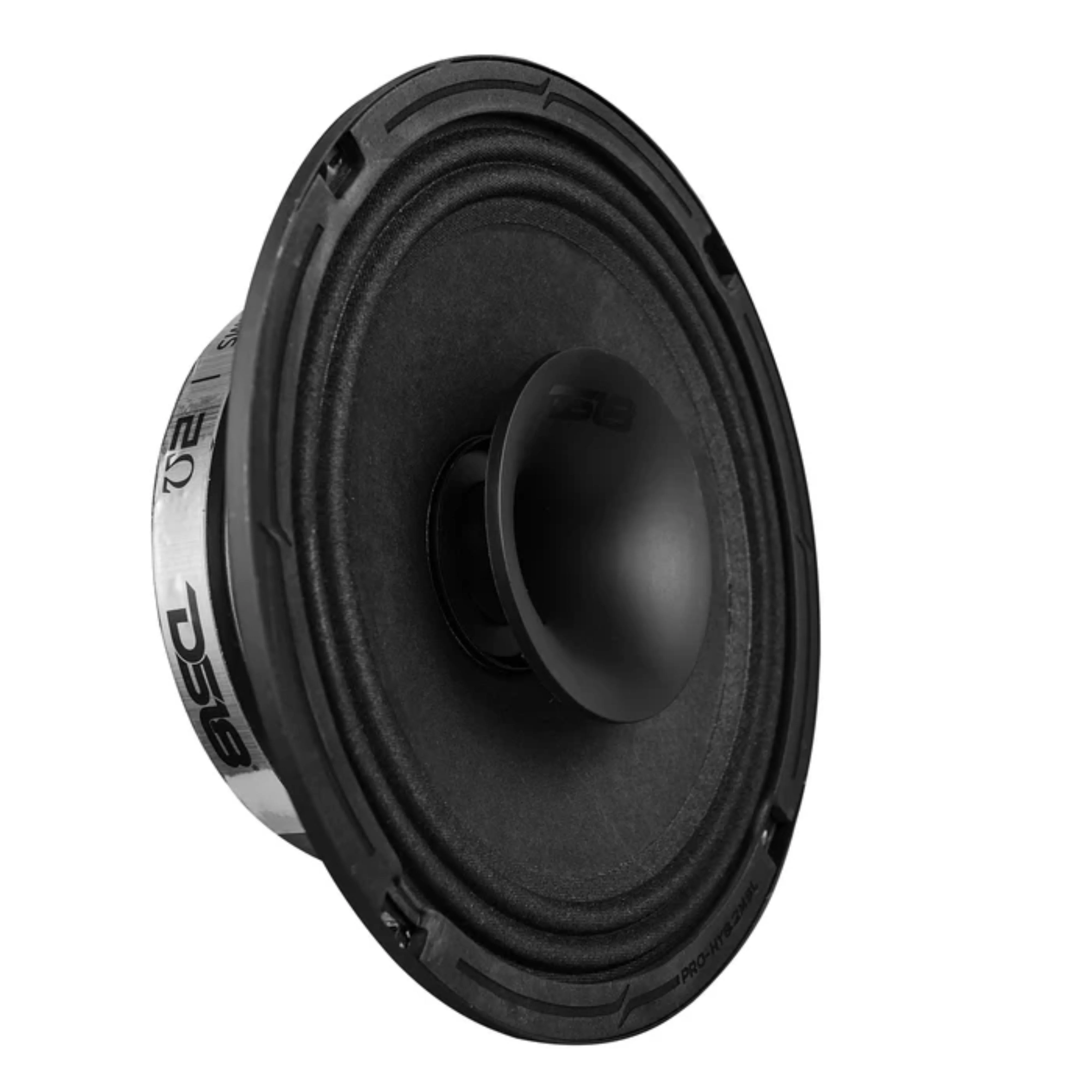

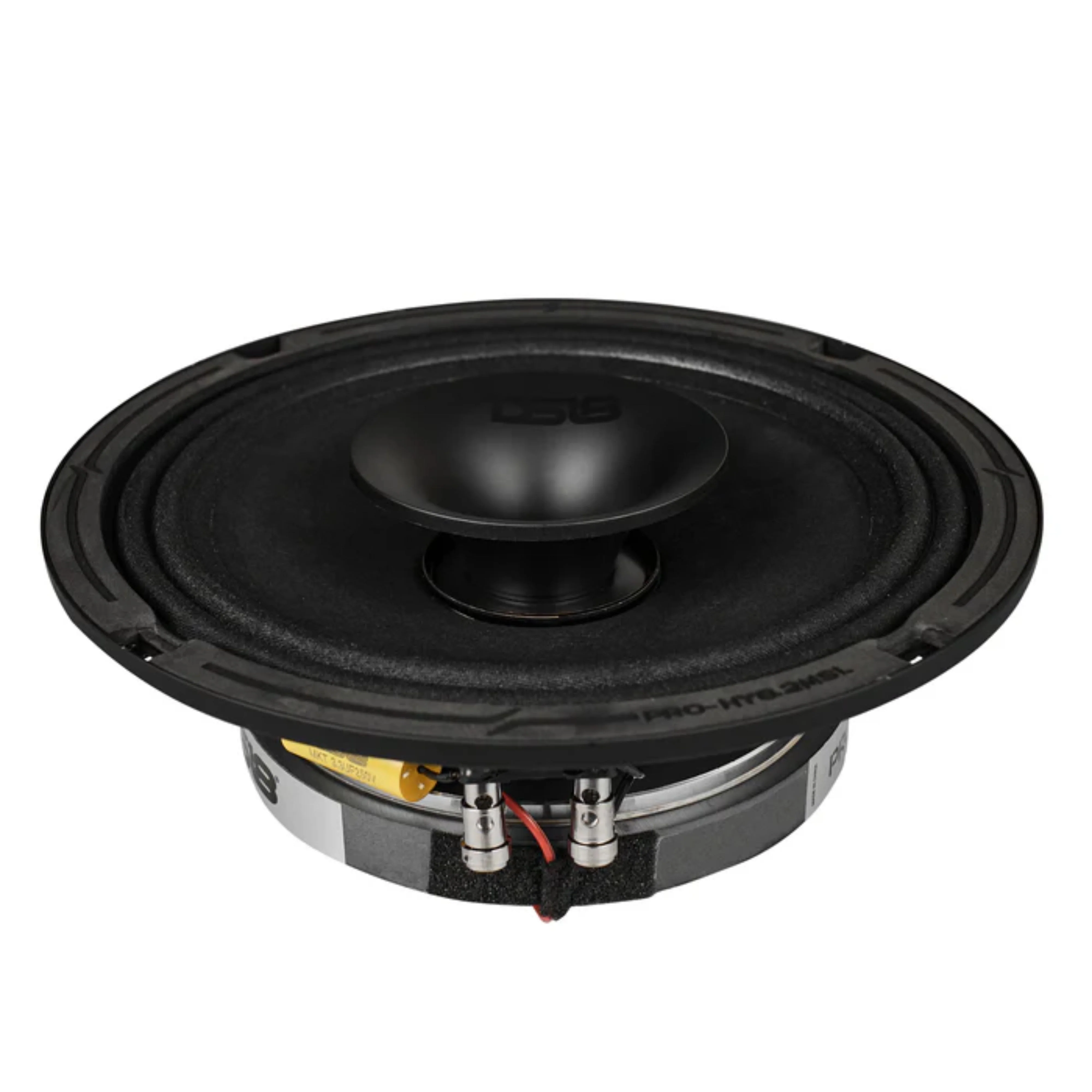

DS18 PRO 8" Hybrid 2 Ohm 150 Watt RMS Loudspeaker w/1" Compression Driver Horn

This Listing Includes:

• (1) 8" Hybrid 2 Ohm 150 Watt RMS Loudspeaker w/1" Compression Driver Horn

Get the best of both worlds with DS18’s PRO-HY8.2MSL. Made for motorcycles, ATVs, UTVs, and Jeeps, this compact loudspeaker brings exceptional audio quality any environment. Focused on bringing volume to open air applications, this 8-inch hybrid loudspeaker features a remarkably high sensitivity rating of 98dB. It features a 2-way system combining a 2-inch woofer using advanced KSV and CCAW materials with a driver made from a titanium diaphragm and neodymium magnet for powerful performance.

Specifications:

• Nominal Diameter: 8" / 203.2mm


• Nominal Impedance: 2 Ohms


• RMS Power Handling: 200W


• MAX Power Handling: 400W


• Sensitivity (1w/1m): 98dB


• Frequency Response: 100Hz - 20kHz


• Recommended Hi-Pass Crossover: 120Hz


• Number of Ways: 2 ways

Thiele & Small Parameters:

• Equivalent Volume (Vas): 9.58L / 0.33ft


• Excursion (one way) (Xmax): 2mm


• Free Air Resonance (Fs): 106Hz


• Mechanical Factor (Qms): 8.083


• Electrical Factor (Qes): 0.729


• Total Factor (Qts): 0.669


• Mechanical Mass (Mms): 13.886g


• Mechanical Compliance (Cms): 0.147 mm/N


• BL Factor (BL): 4.74


• Voice Coil Inductance (Le): 48.9mH


• Cone Area (Sd): 216.424 cm


• DC Resistance (Re): 1.8 ohm


• Mechanical Mass without Air (Mmd): 12.088g
