• Powerful High-Frequency Driver — Handles 320W RMS (640W peak) for loud, clear, and distortion-free highs in your car audio system
• Premium Titanium Voice Coil — Features a massive 2-inch titanium voice coil built for durability and superior sound clarity
• High Sensitivity & Efficiency — 100dB sensitivity with a high-strength ferrite motor delivers intense, piercing high frequencies
• Universal 4-Bolt Compatibility — Fits all DS18 4-bolt horns for versatile installation and mounting depth options
• Durable Construction — Equipped with Kapton voice coil former and titanium diaphragm for long-lasting performance
• Recommended Crossover — Designed for use with 800Hz high-pass crossover to protect the driver and optimize sound quality
• Easy Bolt-On Installation — Includes hardware options with bolt or stud styles for hassle-free mounting

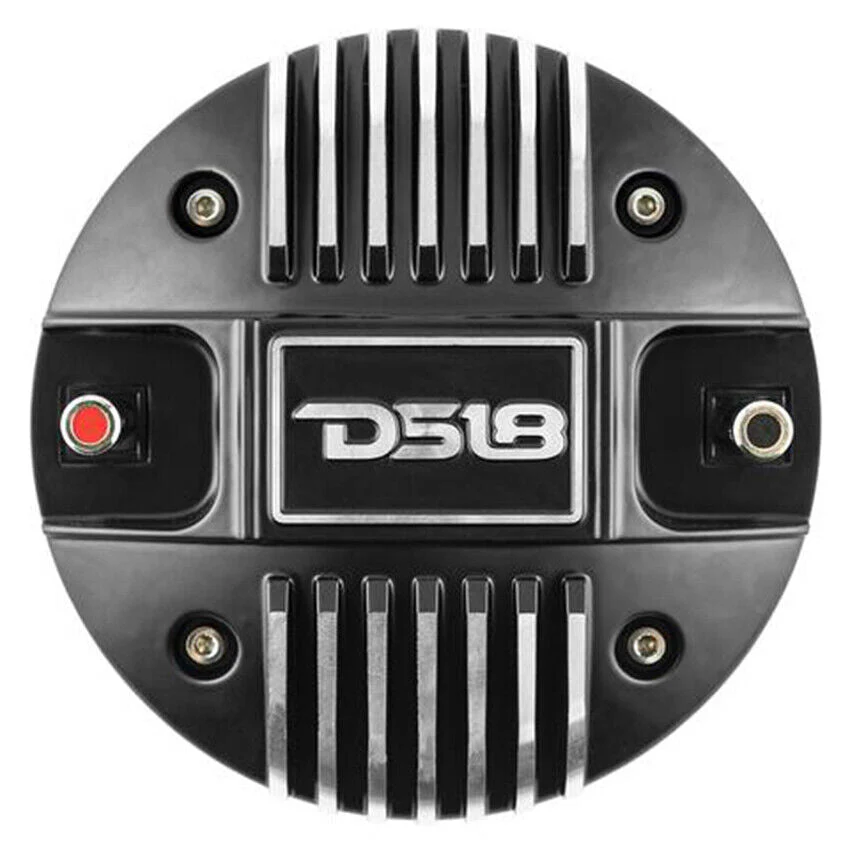

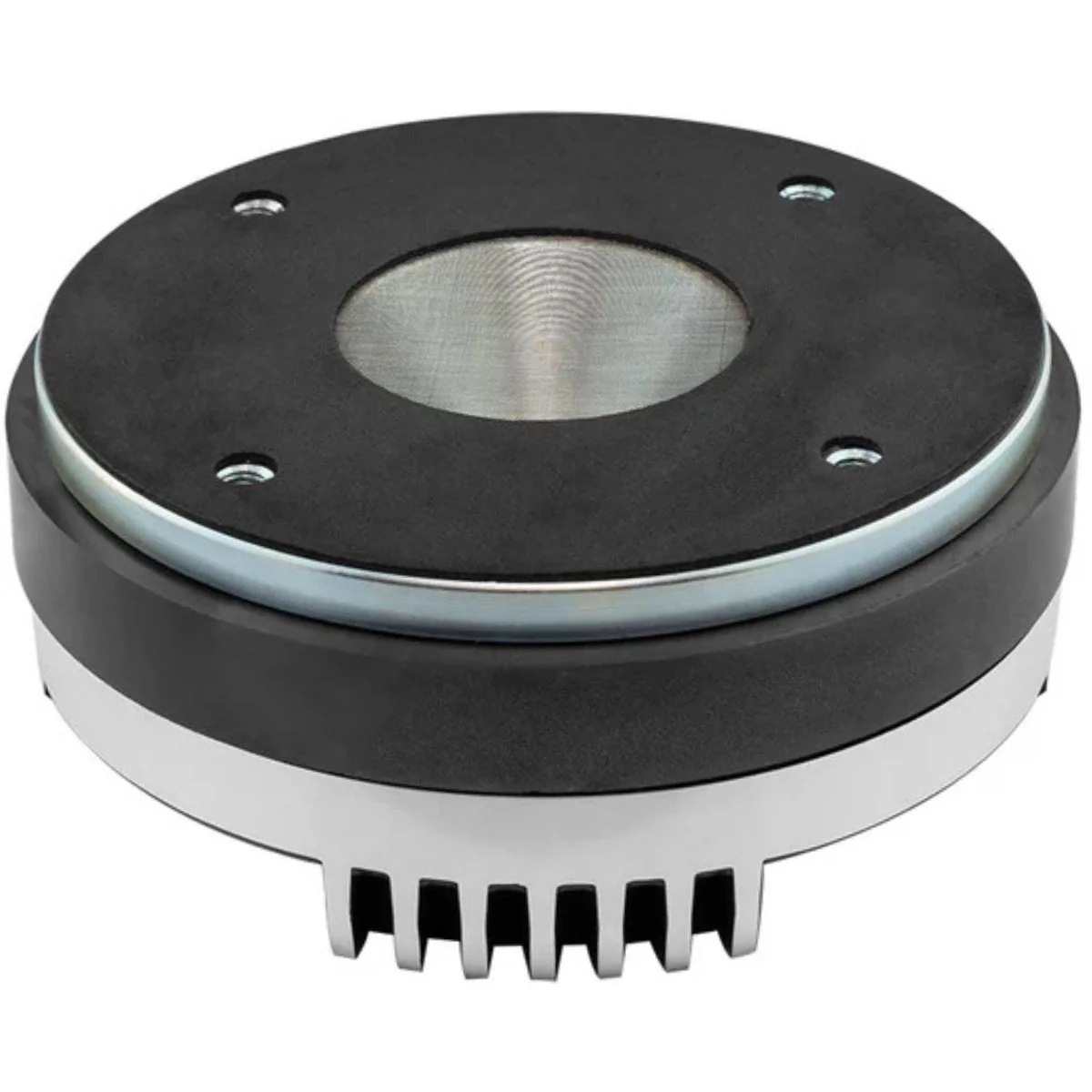

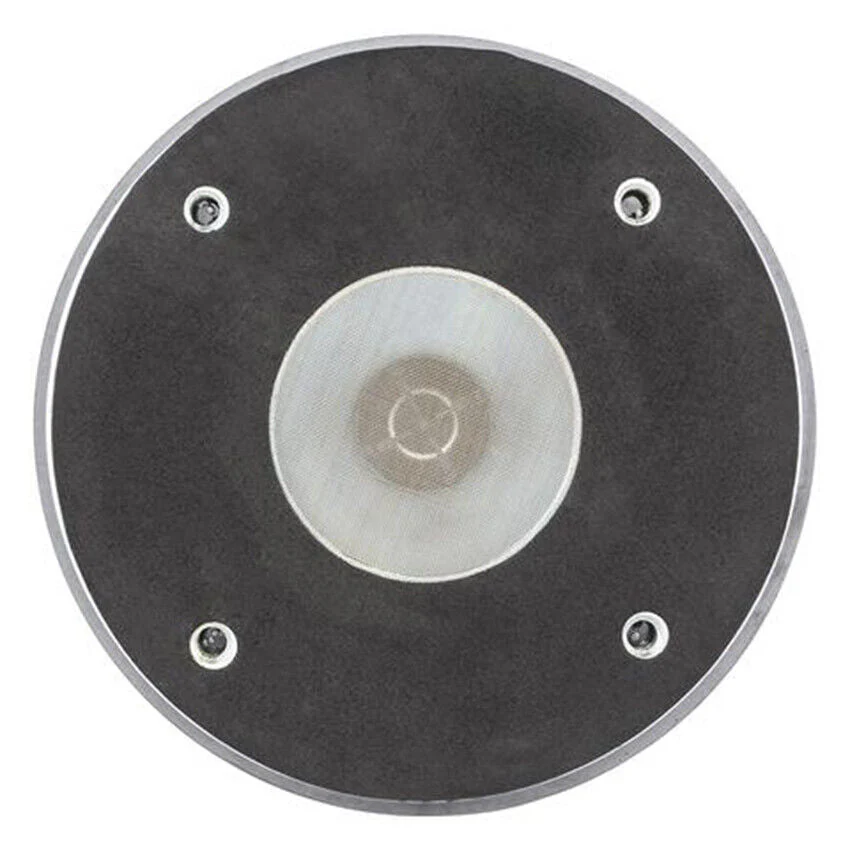

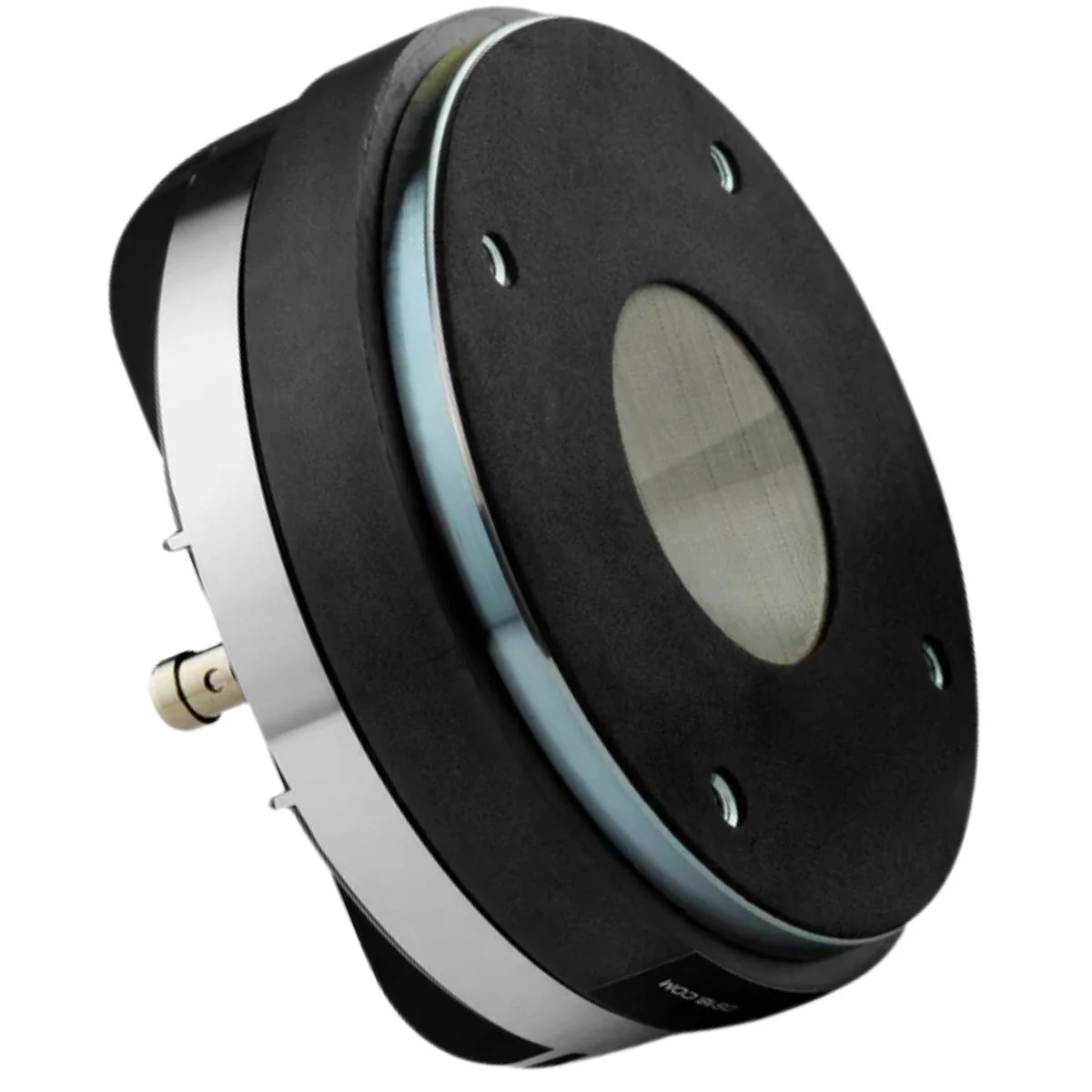

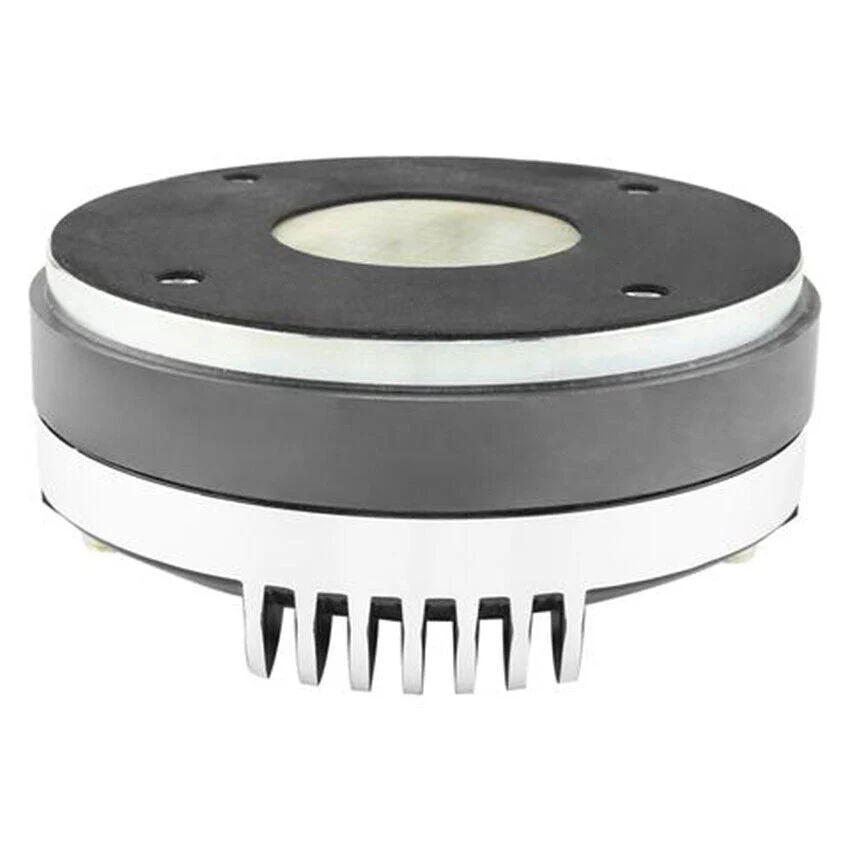

DS18 PRO-D1 2" 640W Titanium 4 Bolt Compression Driver 8 Ohm Car Audio

This listing includes:

(1) DS18 PRO-D1 2" 640W Titanium 4 Bolt Compression Driver

Description

Experience crystal-clear, ear-piercing highs with the DS18 PRO-D1 Titanium Compression Driver. Engineered for serious car audio enthusiasts and professionals, this compression driver features a massive 2" titanium voice coil capable of handling 160 AES watts and 640 peak watts. The high-strength ferrite motor delivers exceptional motor force and efficiency, producing intense high-frequency output without sacrificing sound quality.

Compatible with all DS18 4-bolt throats, this versatile driver fits a wide range of horns and mounting depths, making it a perfect upgrade for any system demanding powerful, high-frequency performance. Whether for competition or premium audio installations, the PRO-D1 is built to deliver loud, detailed highs that stand out.

Features

• High-strength ferrite motor for superior efficiency and loudness


• Massive 2" titanium voice coil rated for 160 AES watts and 640 peak watts


• Produces intense, clear high-frequency sound with excellent sensitivity (100dB)


• Compatible with all DS18 4-bolt horns for versatile mounting options


• Durable construction with Kapton voice coil former and titanium diaphragm


• Ideal for car audio systems requiring powerful, distortion-free highs


• Available with bolt or stud hardware styles for easy installation

Specifications

• Type: Compression Driver


• RMS Power: 320W per driver


• MAX Power: 640W per driver


• AES Power: 160W


• Sensitivity: 100dB


• Voice Coil Size: 2.03 inches


• Impedance: 8 Ohms


• Frequency Response: 630Hz – 20kHz


• Recommended Hi-Pass Crossover: 800Hz


• Magnet: High Strength Ferrite (35 oz)


• Diaphragm Material: Titanium


• Voice Coil Wire: KSV & Flat Wire


• Voice Coil Former Material: Kapton


• Throat Diameter: 2 inches


• Overall Diameter: 5.27 inches


• Overall Depth: 2.4 inches


• Replacement Diaphragm Model: PRO-D1VC


• Installation Type: Bolt-on

Dimensions

• Overall Diameter: 5.27 inches / 134 mm


• Overall Depth: 2.4 inches / 61 mm


• Bolt Pattern: 4 inches / 102 mm, 4 x M6 bolts


• Product Weight: 6.5 lbs


• Product Dimensions (L x W x H): 6.0 x 5.5 x 2.75 inches
