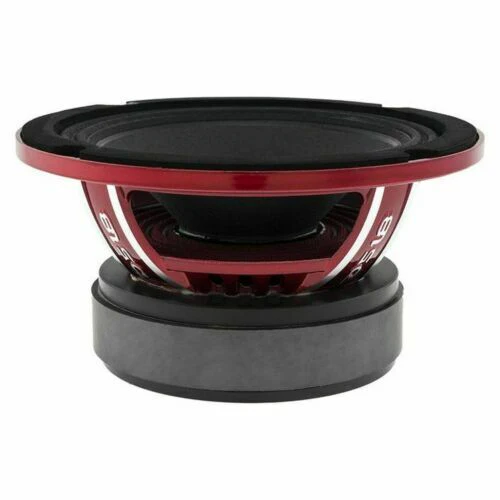

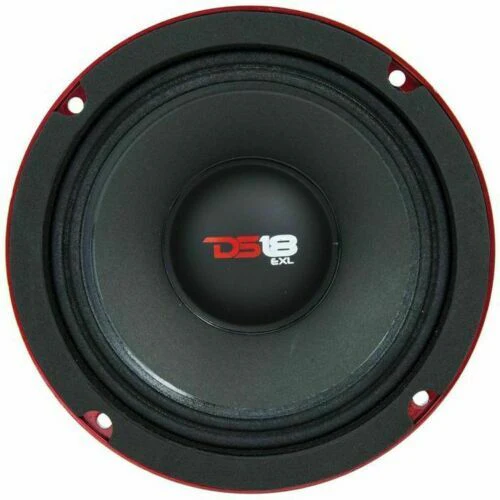

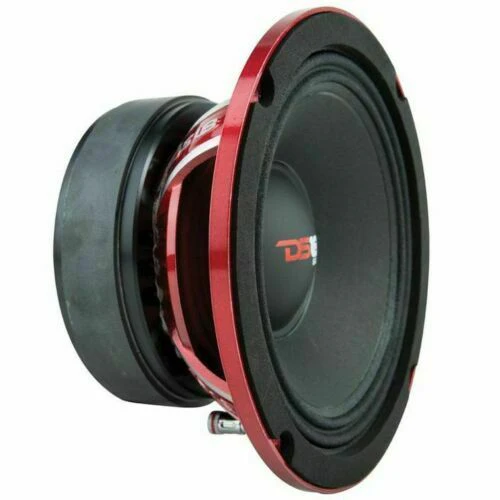

DS18 PRO-EXL68 6.5" Pro Audio Midrange Loud Speaker 600 Watt 8 Ohm

The people who live and breathe car audio demanded a higher performing, extremely effective, and dynamic speaker series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition midranges. Red aluminum baskets, cloth-edges, paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology.

This listing includes:

(1) DS18 PRO-EXL68 Midrange Loudspeaker

FEATURES

- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.

- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.

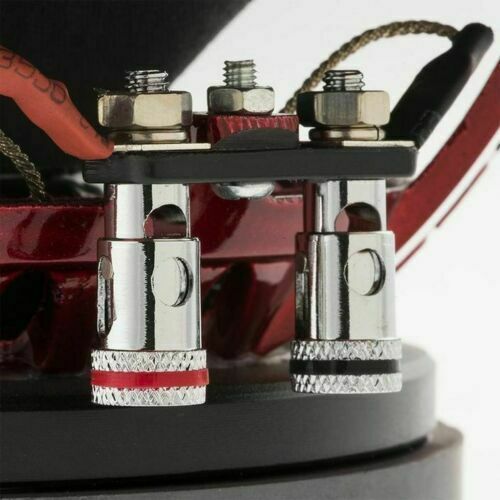

- Large push style connections for large wire and maximum power flow from your amp.

SPECIFICATIONS

Type: Midrange Loudspeaker

Size: 6.5"

RMS Rating: 300 Watts

Max Power: 600 Watts

Frequency Response: 100 - 12.5 KHz

Recommended HI Pass Crossover: 180 Hz

Impedance: 8 ohms

Sensitivity: 92 DB

2" Voice Coil

34 OZ Magnet

Mounting Depth: 3.44"

Cutout Diameter: 5.9"

Motor:

Voice Coil Diameter: 2 (50.8 mm)

Voice Coil Former Material: Glass Fiber

Winding Material: CCAW

Cone: Paper Cone

Surround: Cloth

Basket Material: Aluminum

Magnet Material: Ferrite

Magnet Size: 32 oz

Displacement Volume: 0.047L

Thiele & Small Parameters:

Equivalent Volume: (Vas) 1.0125L

Excursion: (X-max) 9.2 mm

Free Air Resonance: (Fs) 193 Hz

Mechanical Factor: (Qms) 1.408

Electrical Factor: (Qes) 0.828

Total Factor: (Qts) 0.521

Dc Resistance: (Re) 5.2 ohms

Measurements:

Overall Diameter: 6.81 (173 mm)

Front Mount Baffle Cutout: 5.9 (150 mm)

Mounting Depth: 3.34 (85 mm)

Overall Depth: 3.7 (94 mm)

Motor Diameter: 4.72 (120 mm)
