• Exceptional Mid-Range Performance: Experience faithful sound reproduction with the DS18 PRO-GM8 8" Mid-Range Speaker, delivering every nuance of your favorite tracks.
• Powerful and Punchy: With a remarkable RMS power of 190W and a maximum power handling of 580W, these speakers ensure maximum volume without compromising on audio quality.
• Precise Frequency Response: Capturing every note with astonishing accuracy, the frequency response of 80Hz to 10KHz ensures no detail is lost in your music.
• Built to Last: Crafted with high durability parts including a robust ferrite magnet, pressed paper cone, and CCA voice coils, these speakers are designed for longevity.
• Versatile Compatibility: Suitable for various applications, these speakers feature an 8-ohm impedance and recommended HI Pass Crossover of 120Hz.

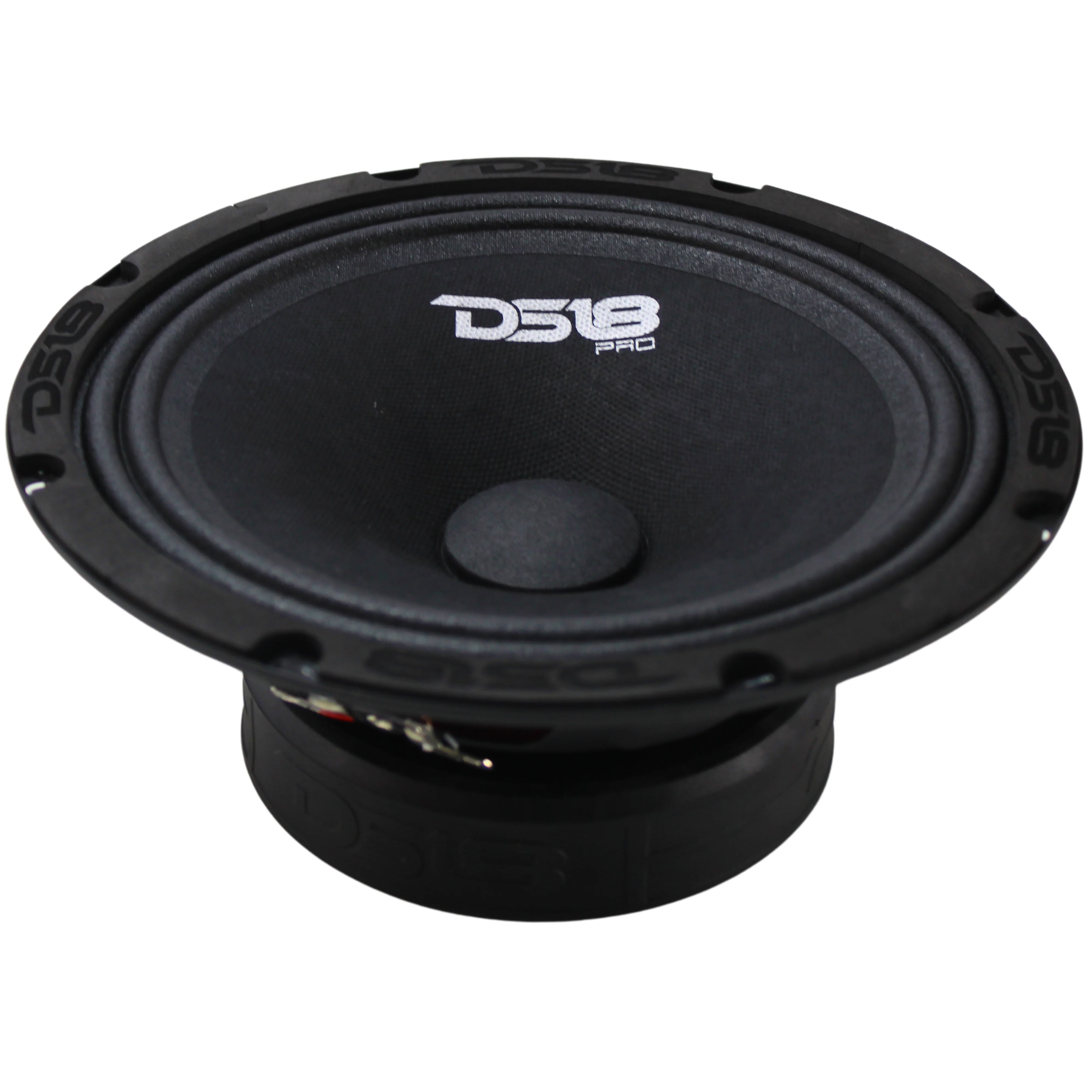

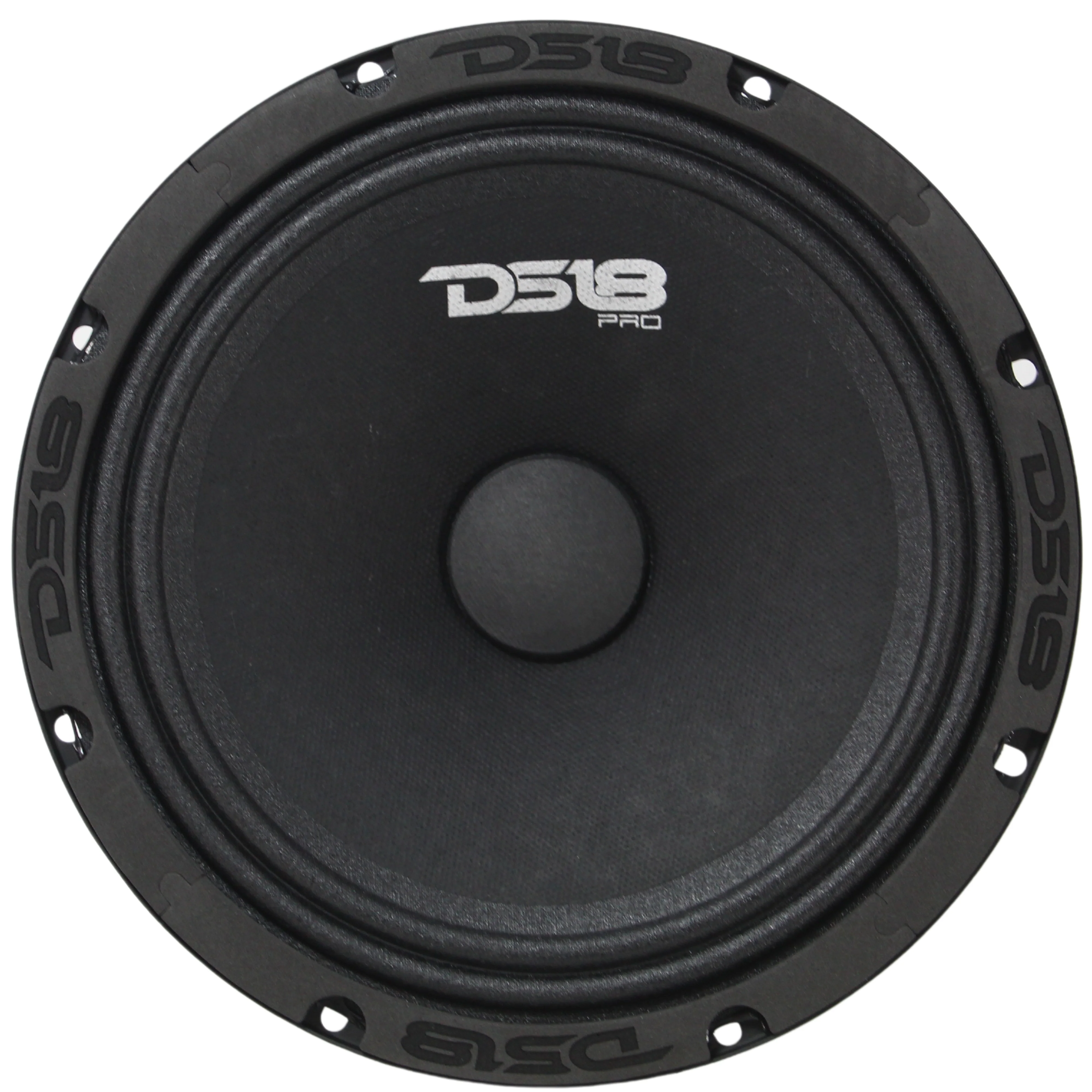

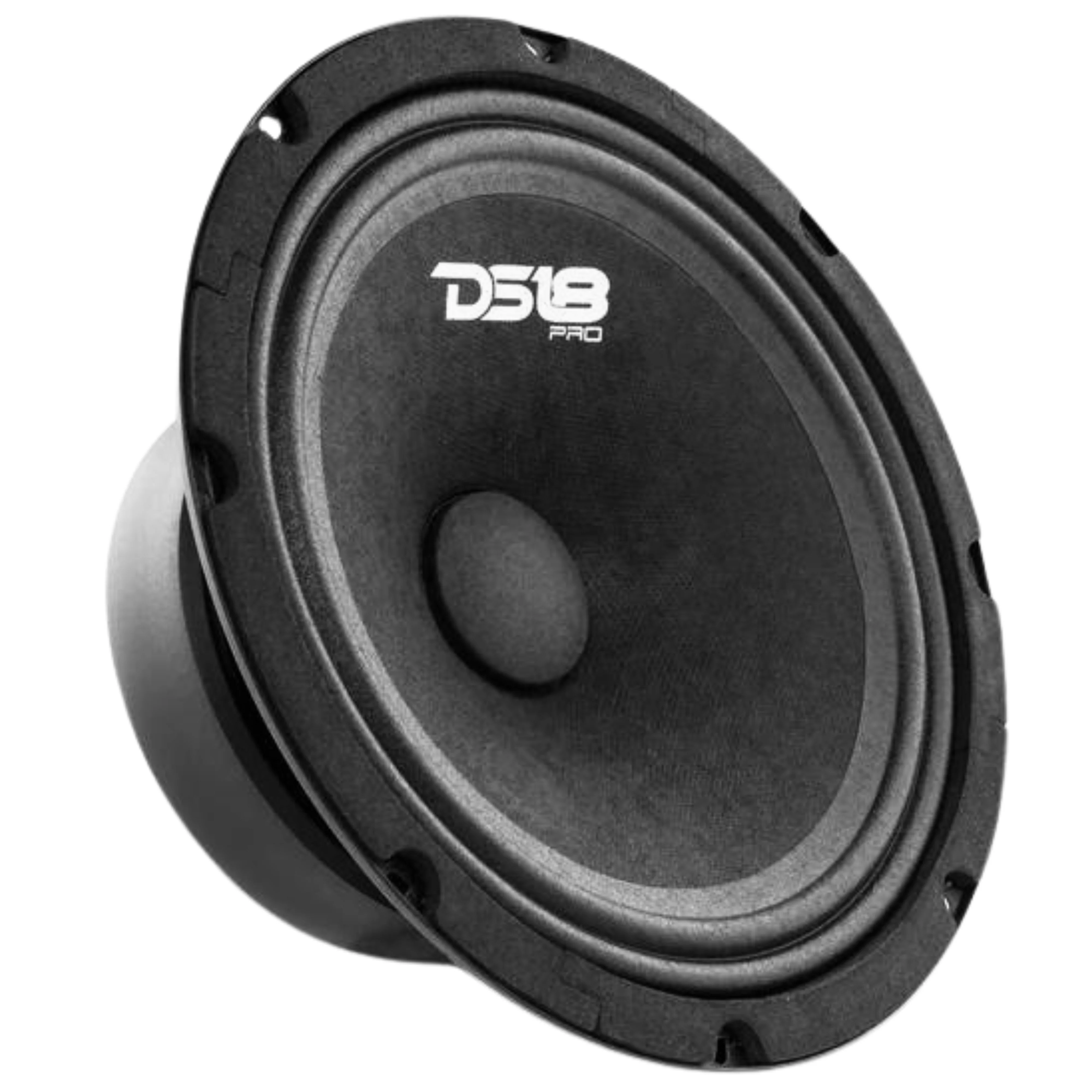

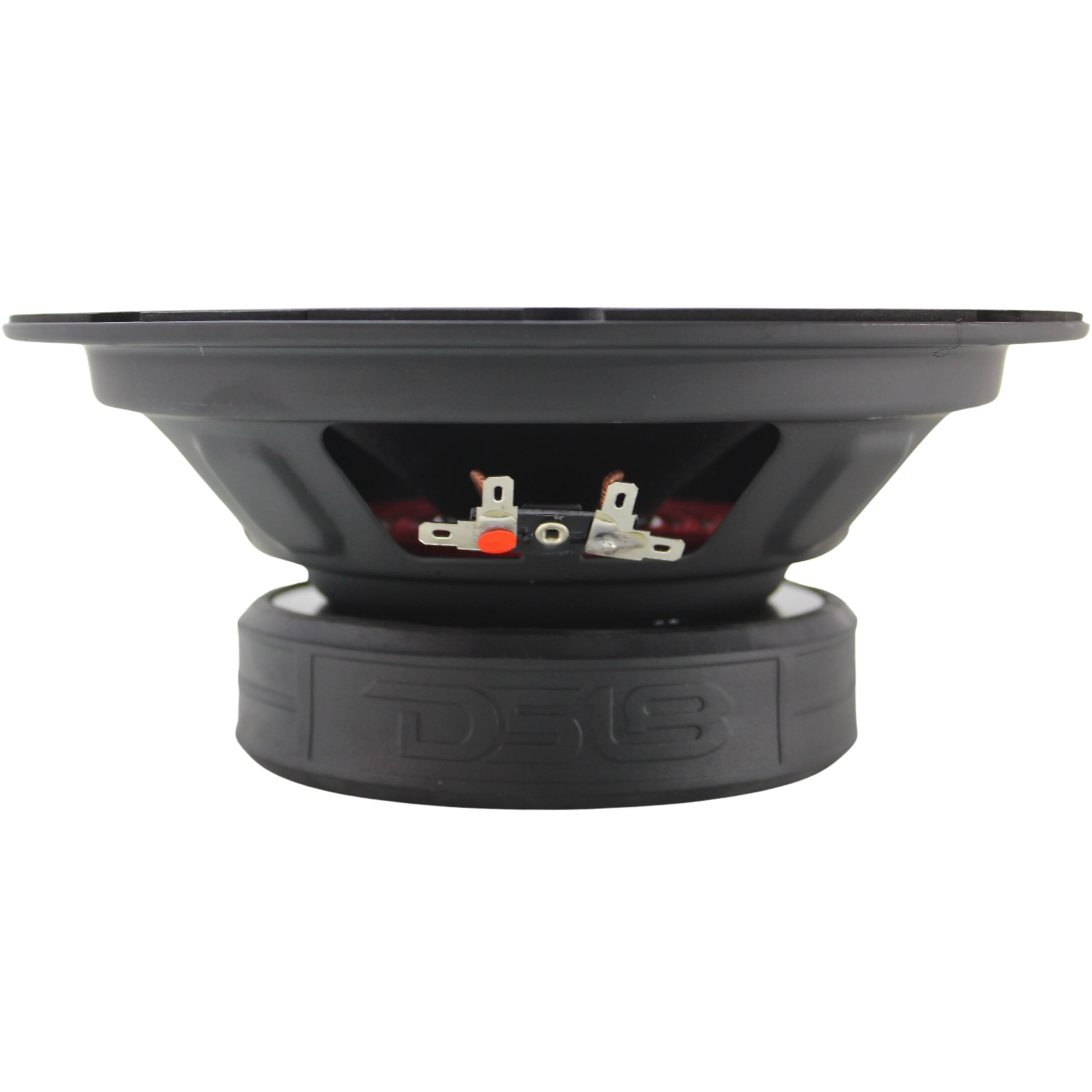

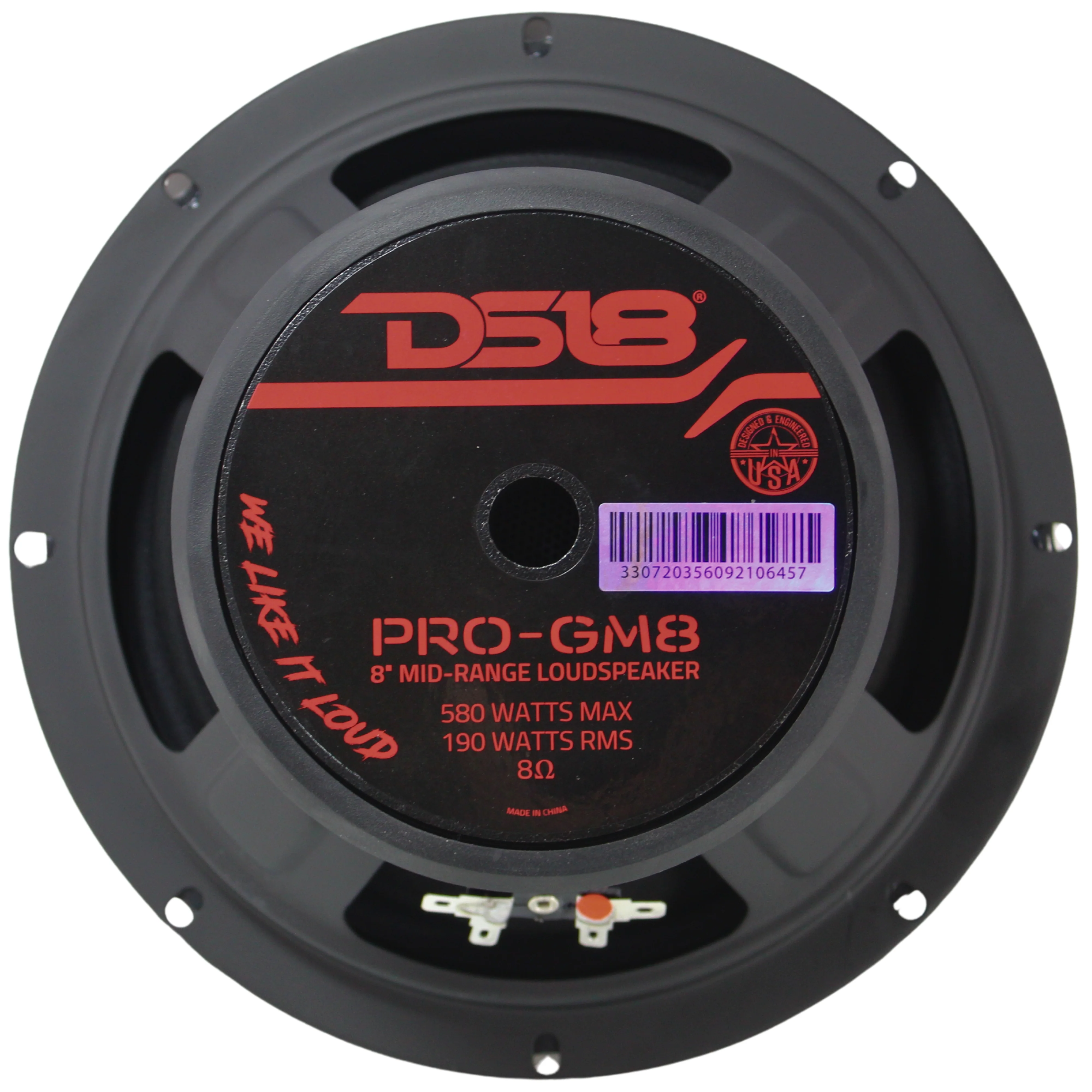

DS18 Pro 8" 580W Max 8-Ohm Mid Range Loud Speaker PRO-GM8

This Listing Includes:

• (1) 8" 580W Mid range Loud Speaker

Experience the epitome of faithful sound reproduction with the DS18 PRO-GM8 8" Mid-Range Speaker. Designed to excel in the midrange region, these speakers faithfully convey every nuance and subtlety of your favorite tracks, delivering exceptional performance that will captivate your senses. With an impressive RMS power of 190W and a maximum power handling of 580W, these speakers pack a punch that will leave you breathless, ensuring maximum volume without compromising on audio excellence. The frequency response of 80Hz to 10KHz captures every note with astonishing accuracy, ensuring that no detail is lost in your music. Crafted with high durability parts, including a robust ferrite magnet, a pressed paper cone, and CCA voice coils, these speakers are built to last.

Specifications:

• SKU: PRO-GM8


• Nominal Diameter: 8" / 203.2mm


• Nominal Impedance: 8 Ohm


• RMS Power Handling: 190W


• MAX Power Handling: 580W


• Sensitivity (1w/1m): 94dB


• Frequency Response: 80Hz-10KHz


• Recommended HI Pass Crossover: 120Hz


• Pair or Single: Single


• Grill Included: No

Motor:

• Voice Coil Diameter: 1.5" / 38.1mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color/Finish: Matte Black


• Magnet Material: Ferrite


• Magnet Weight: 30 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 28.33L / 1ft3


• Excursion (one way) (Xmax): N/A


• Free Air Resonance (Fs): 85Hz


• Mechanical Factor (Qms): 10.696


• Electrical Factor (Qes): 0.961


• Total Factor (Qts): 0.881


• Mechanical Mass (Mms): 8.3g


• Mechanical Compliance (Cms): 0.42mm/N


• BL Factor (BL): 5.44


• Voice Coil Inductance (Le): 0.769mH


• Cone Area (Sd): 213.82cm2


• DC Resistance (Re): 6.4 ohm

Measurements:

• Overall Diameter: 8.26" / 210 mm


• Overall Depth: 3.46" / 88 mm


• Front Mount Baffle Cutout: 7.2" / 183 mm


• Mounting Depth: 3.22" / 82mm
