• Faithful Sound Reproduction - Experience the pinnacle of sound with the PRO-GM8B mid-range speaker, delivering exceptional performance in the midrange region.
• Powerful Punch - With 190W RMS and 580W MAX power, these speakers pack a punch that will leave you breathless, capturing every nuance with astonishing accuracy.
• Durable Construction - Crafted with high durability parts, including a robust ferrite magnet, pressed paper cone, and CCA voice coils, ensuring maximum volume without compromising audio excellence.
• Enhanced Performance - The 1.5" Kapton voice coil wire and 30 oz. magnet weight contribute to enhanced performance and durability, delivering faithful sound reproduction.
• Seamless Integration - Engineered with an 8-Ohm impedance, 95dB sensitivity, 3.22" mounting depth, and 7.2" front mount baffle cutout, these speakers seamlessly fit into your vehicle.

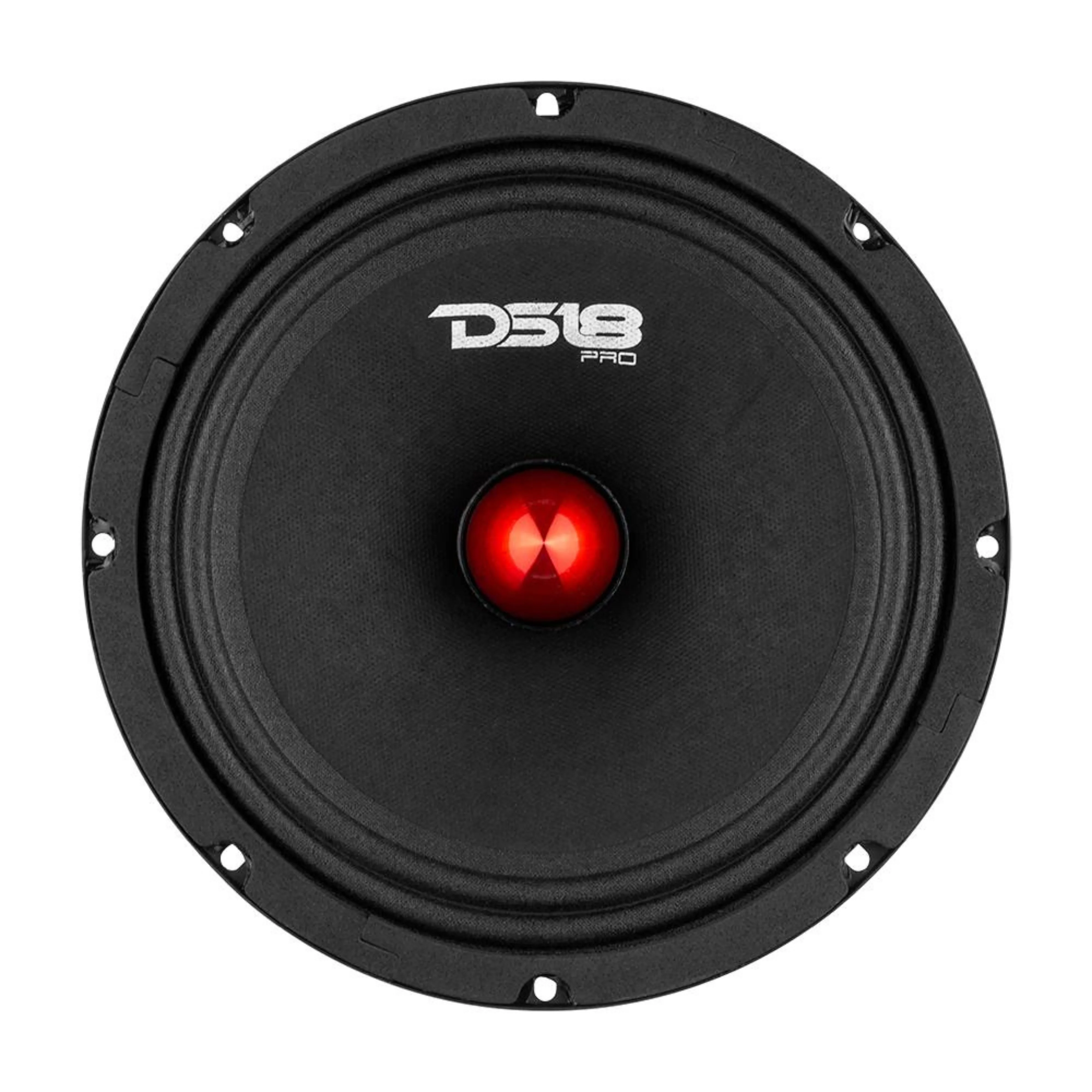

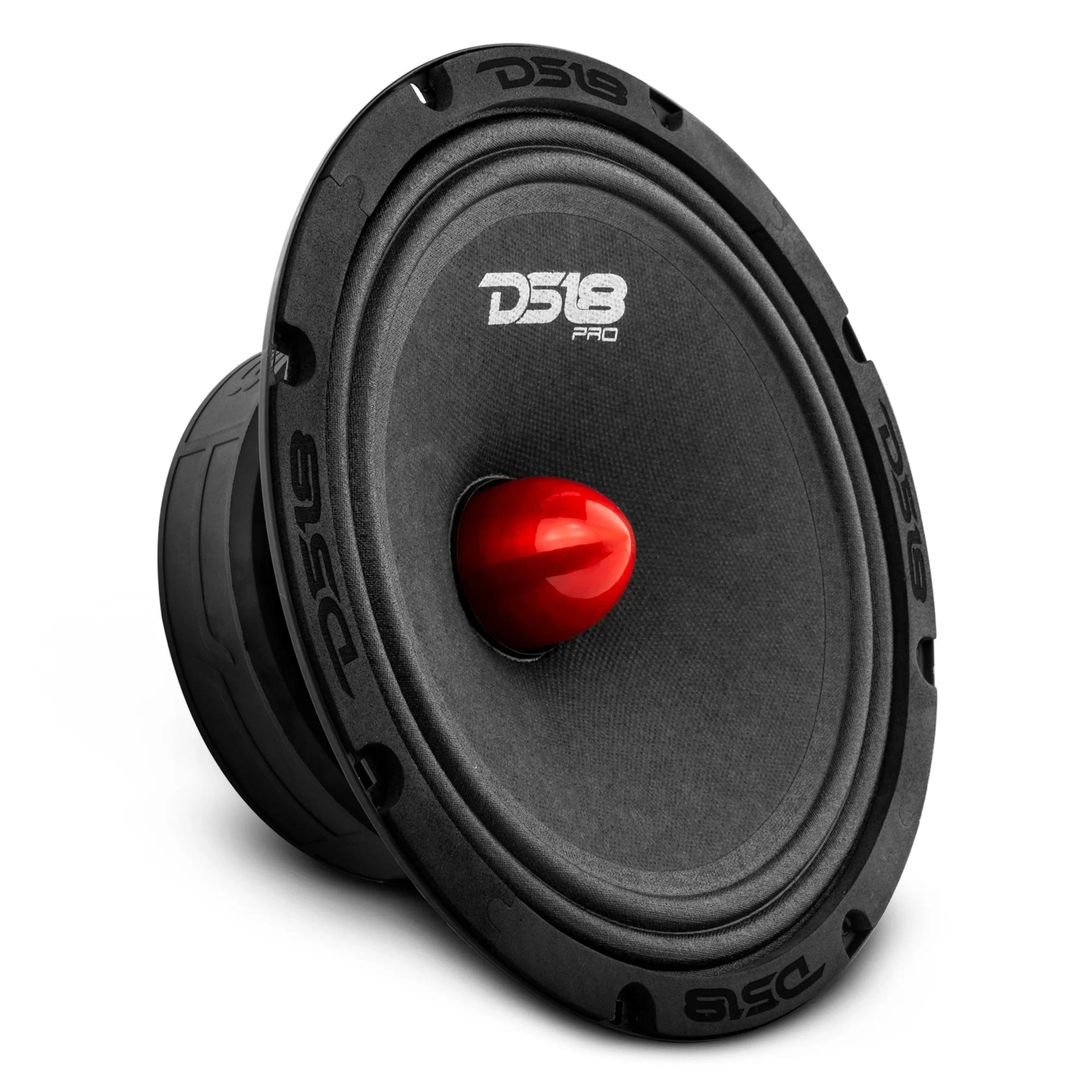

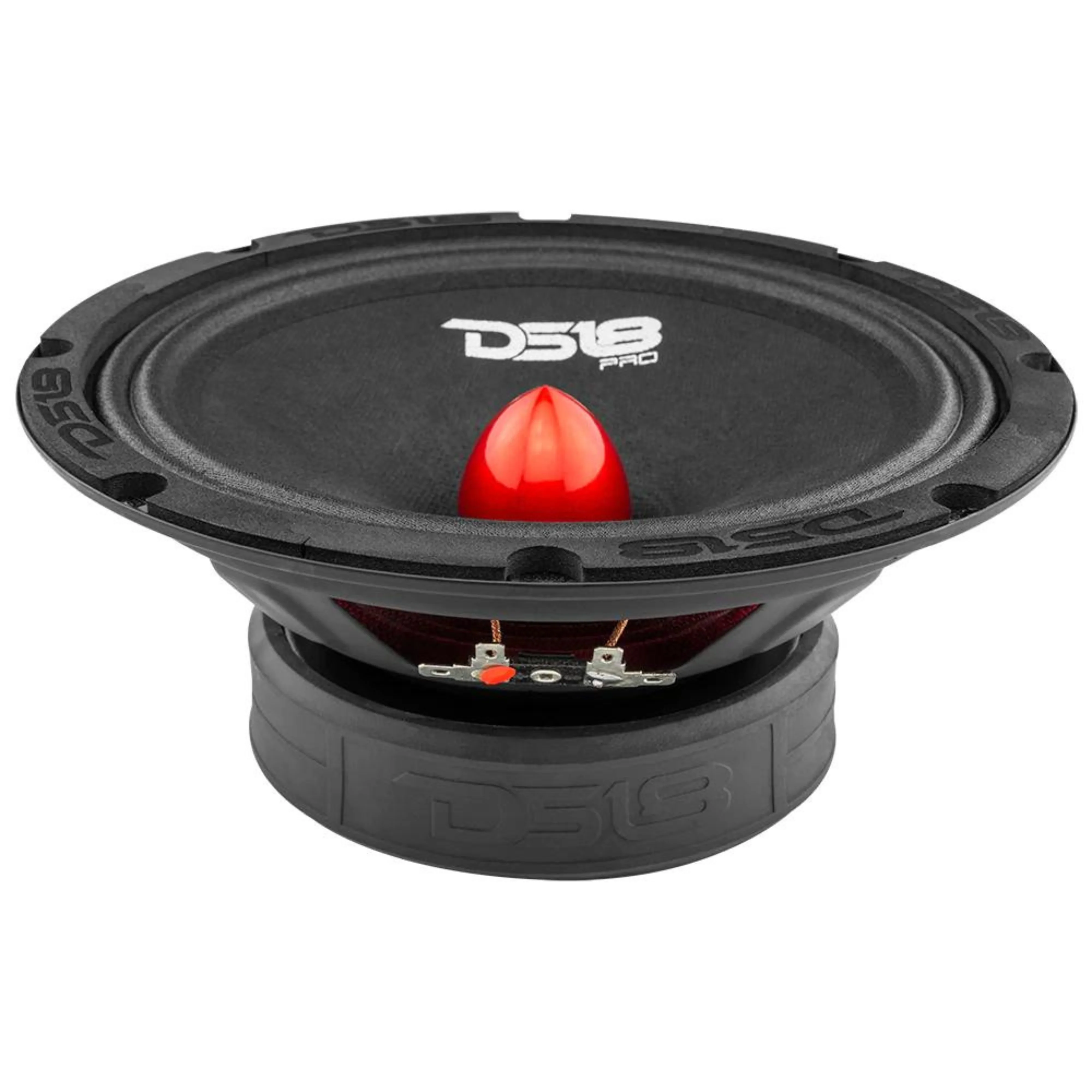

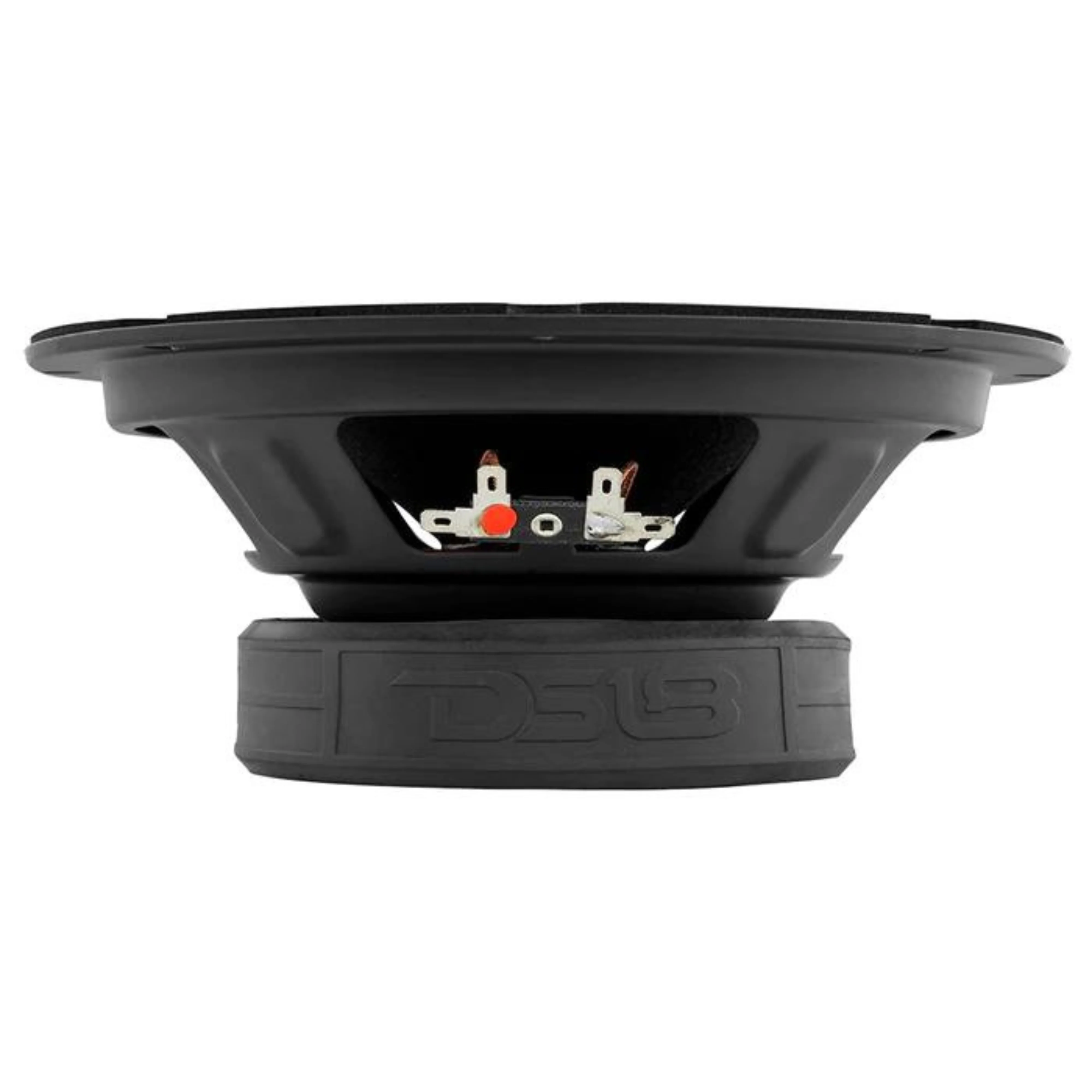

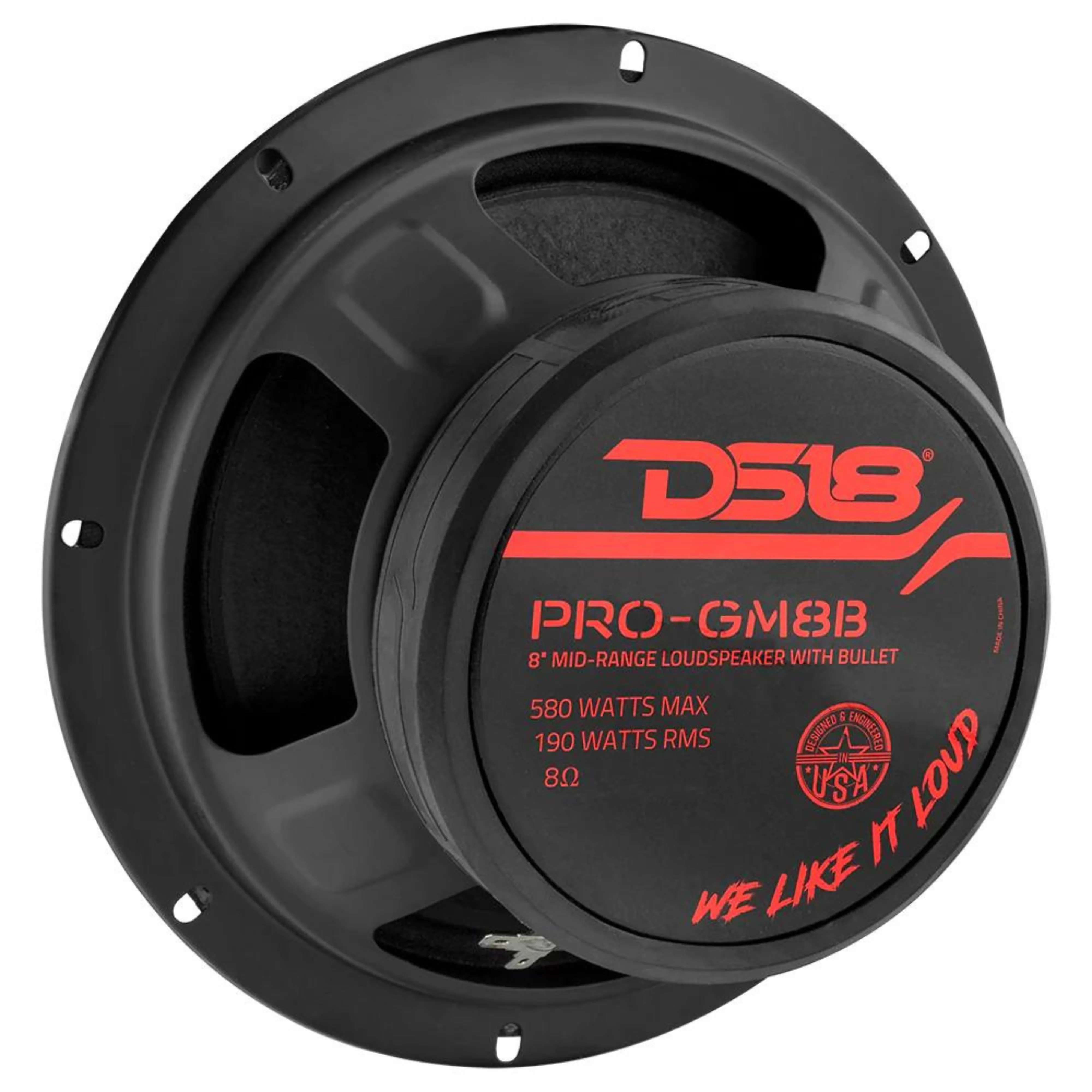

DS18 8" Mid Range 8 Ohm 580 Watts Loud Speaker With Aluminum Bullet PRO-GM8B

This Listing Includes:

• (1) 8" 8 Ohm 580 Watts Loud Speaker

Elevate your audio experience with the DS18 PRO-GM8B 8" Mid-Range Speaker. Boasting 580W MAX and 190W RMS power, these speakers ensure faithful sound reproduction in the midrange region. The robust ferrite magnet, pressed paper cone, and CCA voice coils contribute to durable construction, allowing for maximum volume without compromising audio excellence. The 1.5" Kapton voice coil wire enhances performance and durability. With an 8-Ohm impedance, 95dB sensitivity, and 3.22" mounting depth, these speakers seamlessly integrate into your vehicle, delivering a powerful punch and capturing every nuance with astonishing accuracy.

Features:

• 580W MAX / 190W RMS Power Handling


• Exceptional Midrange Performance


• Durable Construction with Ferrite Magnet and Pressed Paper Cone


• 1.5" Kapton Voice Coil Wire for Enhanced Performance


• Seamless Integration with 8-Ohm Impedance

SPECIFICATIONS:

• Nominal Diameter: 8"


• Nominal Impedance: 8 Ohms


• RMS Power Handling: 190 Watts


• Max Power Handling: 580 Watts


• Sensitivity (1w/1m): 95 dB


• Frequency Response: 125Hz ~ 12kHz


• Recommended Hi Pass Crossover: 140Hz


• Voice Coil Diameter: 1.5"


• Voice Coil Former Material: Kapton


• Winding Material: KCCAW


• Cone Material: Paper


• Bullet Material: Aluminum


• Surround Material: Cloth


• Basket Material: Steel


• Magnet Material: Ferrite


• Magnet Weight: 30 Oz


• Equivalent Volume: Vas - 16.23L


• Free Air Resonance: Fs - 89 Hz


• Mechanical Factor: Qms - 9.26


• Electrical Factor: Qes - 0.791


• Total Factor: Qts - 0.728


• DC Resistance: Re - 6.5 Ohms

MEASUREMENTS:

Overall Diameter: 8.23"

Overall Depth: 3.39"

Front Mount Baffle Cutout: 7.17"

Mounting Depth: 3.11"

Motor Diameter: 4.72"
